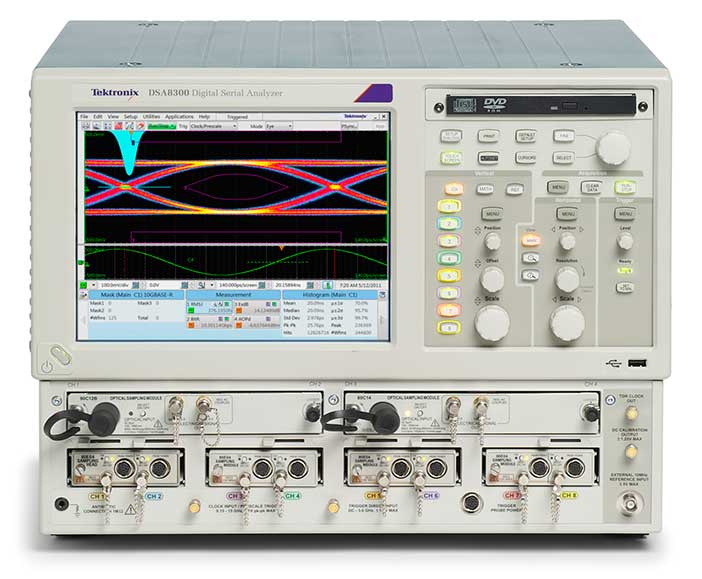

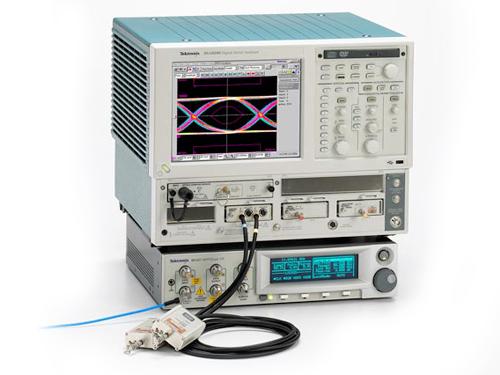

DSA8300 Digital Sampling Oscilloscope

DSA8300 Digital Sampling Oscilloscope

With intrinsic jitter of less than 100 femtoseconds for extremely accurate device characterization, the DSA8300 Series provides comprehensive support for Optical Communications Standards, Time Domain Reflectometry and S-parameters. The DSA8300 Digital Sampling Oscilloscope is a complete high-speed PHY Layer testing platform for data communications from 155 Mb/sec to 400G PAM4.

Features

Benefits

Electrical module signal measurement accuracy:
  • Ultra-low system jitter (<100 fs, typical)
  • > 70GHz
<100 fs intrinsic jitter enables the characterization of high bit-rate (40 and 100 (4´25) Gb/s) devices with typically <5% of the signal’s unit interval being consumed by the test instrumentation. 70 GHz bandwidth allows full characterization of high bit-rate signals (5th harmonic to data rates of 28 Gb/sec and 3rd harmonic to data rates >45 Gb/sec).
Industry’s lowest system noise at all bandwidths:
  • 600 µV max (450 µV typ.) @ 60 GHz
  • 380 µV max (280 µV typ.) @ 30 GHz
Minimizes the amount of instrumentation noise when acquiring high bit-rate, low-amplitude signals to eliminate additional noise which can exhibit itself as additional jitter and eye closure.
Up to 6 channels simultaneous acquisition at <100 fs jitter in a single mainframe. High fidelity acquisition of multiple differential channels enables testing for cross channel impairments and improves the test throughput for systems with multiple high-speed serial channels.
Optical modules support optical compliance test of all standard rates from 155 Mb/s to 100 Gb/s (4x25) Ethernet. Provides cost-effective and versatile optical test system for single and multi-mode optical standards from 155 Mb/s (OC3/STM1) to 40 Gb/s (SONET/SDH and 40GBase Ethernet) and 100 Gb/s Ethernet (100GBase-SR4, -LR4 and ER4) at 850, 1310 and 1550nm.
Superior acquisition throughput with up to 300 kS/s maximum sample rate. Reduced manufacturing or device characterization test-time by 4X with superior system throughput.

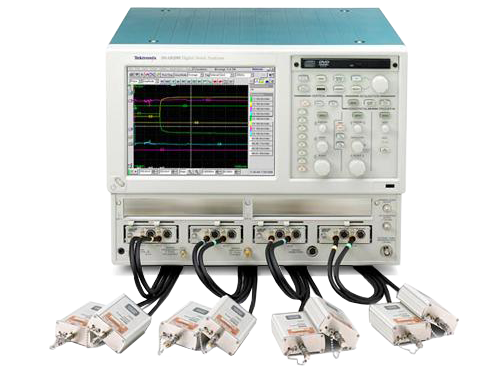

Ability to place the samplers adjacent to the device under test (DUT). Remote sampling heads minimize signal degradation due to cabling and fixturing from DUT to instrumentation and simplifies test system de-embed.
Independent calibrated channel de-skew. Having integrated, calibrated channel deskew in dual channel modules, enhances signal fidelity for multi-channel measurements by eliminating skewing.




Models

Model Analog Bandwidth Sample Rate Record Length Analog Channels List Price
DSA8300 70 GHz Electrical, 80 GHz Optical Up to 300 kS/s 50 points - 16,000 points (1M points with IConnect®, 10M points for 80SJNB) Determined by the sampling modules used, up to 8 channels
-
Configure & Quote
Model DSA8300
Analog BandwidthSample RateRecord Length
70 GHz Electrical, 80 GHz OpticalUp to 300 kS/s50 points - 16,000 points (1M points with IConnect®, 10M points for 80SJNB)
Analog Channels
Determined by the sampling modules used, up to 8 channels
Model Analog Bandwidth Sample Rate Record Length Analog Channels List Price
DSA8300 70 GHz Electrical, 80 GHz Optical Up to 300 kS/s 50 points - 16,000 points (1M points with IConnect®, 10M points for 80SJNB) Determined by the sampling modules used, up to 8 channels
-
Configure & Quote
Model DSA8300
Analog BandwidthSample RateRecord Length
70 GHz Electrical, 80 GHz OpticalUp to 300 kS/s50 points - 16,000 points (1M points with IConnect®, 10M points for 80SJNB)
Analog Channels
Determined by the sampling modules used, up to 8 channels
Data SheetSoftware Package / Software OptionDescriptionConfigure and Quote
Opt. 80S400G-TXO

IEEE 802.3bs (200GBASE-DR4/LR4/FR4 and 400GBASE-DR4/LR8/FR8) and IEEE 802.3cd (50GBASE-FR/LR and 100GBASE-DR) Optical Transmitter Conformance Solution

Contact Us
Datasheet LinkProbeDescriptionConfigure and Quote
DVT30-1MM GigaProbe

30 GHz TDR probe available from GigaProbes.

Contact Us
P8018 HANDHELD TDR PROBE, PASSIVE; 20 GHZ, SINGLE-ENDED, 50 OHM, SMA CONNECTOR WITH 20 GHZ SMA CABLE; DESIGNED TO WORK WITH 80A02 EOS/ESD PROTECTION MODULE; STATEMENT OF COMPLIANCE INCLUDED WITH THIS PRODUCT Configure & Quote
P80318 Probe kit,18GHz 100 Ohm Differential Hand Probe Configure & Quote
Data SheetModuleDescriptionConfigure and Quote
80A02 EOS/ESD PROTECTION MODULE FOR ELECTRICAL STATIC ISOLATION OF TEKTRONIX ELECTRICAL SAMPLING MODULES;STATEMENT OF COMPLIANCE INCLUDED WITH THIS PRODUCT Configure & Quote
80A03 TEKCONNECT PROBE INTERFACE MODULE Contact Us
80C07B OPTICAL SAMPLING MODULE; 2.488 GB/S OC48/STM16,2.500 GB/S 2GBE,2.500 GB/S INFINIBAND;2.5 GHZ OPTICAL BANDWIDTH Configure & Quote
80C08D Single channel optical sampling module; 10G Optical Reference Receiver Filters; 12 GHz optical bandwidth; single-/multi-mode Configure & Quote
80C10C Single Channel, 65/80 GHz Optical Sampling Module(must specify one of options F1, F2, or F3) Configure & Quote
80C11B Single channel optical sampling module; 10G Optical Reference Receiver Filters; 28 GHz optical bandwidth; single-mode Configure & Quote
80C12B 12 GHz, Broad WaveLength, Amplified Optical Sampling Module Configure & Quote
80C14 14+ GHz, Broad WaveLength, Amplified Optical Sampling Module Configure & Quote
80C15 8000 Series Optical Module: single channel, 32GHz optical bandwidth, single/multi-mode, 800nm to 1600nm Configure & Quote
80C17 8000 Series Optical Module: single channel, 30GHz optical bandwidth, single/multi-mode, 800nm to 1600nm Configure & Quote
80C18 8000 Series Optical Module: dual channel, 30GHz optical bandwidth, single/multi-mode, 800nm to 1600nm Configure & Quote
80C20

8000 Series Optical Module: single channel, 53GHz optical bandwidth, single-mode, 1200nm to 1650nm

Configure & Quote
80C21

8000 Series Optical Module: dual channel, 53GHz optical bandwidth, single-mode, 1200nm to 1650nm

Configure & Quote
80E03 SAMPLING MODULE; DUAL,20 GHZ ELECTRICAL SAMPLING MODULE - CERTIFICATE OF TRACEABLE CALIBRATION STANDARD Configure & Quote
80E04 SAMPLING MODULE; DUAL,20 GHZ W/TDR ELECTRICAL SAMPLING MODULE - CERTIFICATE OF TRACEABLE CALIBRATION STANDARD Configure & Quote
80E07B 8000 Series, Dual Channel, 30 GHz, Remote Electrical Sampling Module (includes D1) Configure & Quote
80E08B 8000 Series, Dual Channel, 30 GHz, Remote Electrical Sampling Module w/ TDR (includes D1) Configure & Quote
80E09B 8000 Series, Dual Channel, 60 GHz, Remote Electrical Sampling Module (includes D1) Configure & Quote
80E10B 8000 Series, Dual Channel, 50 GHz, Remote Electrical Sampling Module w/ TDR (includes D1) Configure & Quote
80E11 8000 Series, Dual Channel, 70 GHz, Ultra-low Jitter, Electrical Sampling Module (includes D1) Configure & Quote
80E11X1 8000 Series, Single Channel, 70 GHz, Ultra-low Jitter, Electrical Sampling Module (includes D1) Configure & Quote
82A04B 8000 Series, Phase Reference Module (includes D1) Configure & Quote
This webinar reviews TDR basics and the ability to create S-parameters using TDR/TDT measurements to validate high speed channels for debug or de-embedding in a Serial Data Link Analysis application.
0h 21m 49s
Effects of Infiniband Fixture Crosstalk on Synthesized Eye Diagram
Application note for de-embedding fixture crosstalk from synthesized eye diagrams working on characterization of Infiniband designs.
Literature number: 61W-19673-0
Application Note 11 Nov 2018
Programmable Interface Changes Between Tektronix DSA8200 and DSA8300 Sampling
This document contains the summary of changes to the Programmable Interface (PI).Comments on GPIB and TekVisa
Literature number: 85W-27063-0.pdf
Whitepaper 11 Nov 2018
XYZs of Oscilloscopes Primer
After reading this primer, you will be able to: Describe how oscilloscopes work, Describe the differences between analog, digital storage, digital phosphor, and digital sampling oscilloscopes, describe electrical waveform types, understand basic…
Literature number: 03Z-8605-7
Primer 11 Nov 2018
80A00, 80C00, 80E00, and 82A00 Series
This document describes proper sampling module handling and installation instructions, and the instrument operating systems and TekScope application versions needed to support specific modules.
Part number: 071138611
User
80A00, 80C00, 80E00, and 82A00 Series
This document describes installation procedures and software compatibility information for the 80A00, 80C00, 80E00, and 82A00 Sampling Modules for the DSA8300 and TDS/CSA8000, TDS/CSA8000B, and TDS/CSA/DSA8200 series instruments.
Part number: 071138612
User
DSA8300
This document lists the warranted and typical specifications for the DSA8300 mainframe instrument as well as for the 80AXX, 80CXX, and 80EXX sampling modules.
Part number: 077057100
Performance Verification
DSA8300
Supports TekScope version 6.1.X and greater. This PDF file is a printable version of the DSA8300 Series online help content.
Part number: 077056901
Online Help
DSA8300
Supports TekScope version 6.2.X and greater. This PDF file is a printable version of the DSA8300 Series online help content.
Part number: 077056902
Online Help
DSA8300 Digital Serial Analyzer
Supports DSA8300 TekScope release 6.2.X. This document describes how to install TekScope application and other software on the DSA8300 Digital Serial Analyzer sampling oscilloscope.
Part number: 071289802
Field Install Instructions
DSA8300
For DSA8300 instruments with serial number C040000 (GSA serial number B020000) and later. This document describes how to restore (rebuild) the operating system and application software on the DSA8300 Digital Serial Analyzer hard drive.
Part number: 071316200
Field Install Instructions
DSA8300 Digital Serial Analyzer
For DSA8300 TekScope release 6.2.1.X and greater. Instructions to install TekScope application and related software on the DSA8300 Digital Serial Analyzer sampling oscilloscope.
Part number: 071289804
Field Install Instructions
DSA8300 Digital Serial Analyzer
Describes how to use the Tektronix DSA8300 Digital Serial Analyzer to take 25 Gb/s measurements supporting the 802.3bm 100GBASE-KR4 backplane standard.
Part number: 071320701
Training/Tutorials
80A00, 80C00, 80E00, and 82A00 Series
This 80C00, 80E00, 80A00, and 82A000 Series Read This First document describes proper module handling and installation instructions, as well as the instrument operating systems and TekScope application versions needed to support specific modules.
Part number: 071138610
User
DSA8300 Digital Serial Analyzer and Modules
This document describes adjustments, troubleshooting, and repair procedures, including exploded views and replaceable parts lists.
Part number: 077057200
Service
Case Study: Freescale Semiconductor Uses Tektronix IConnect®
Freescale Semiconductor establishes a new approach to the usual methodology adopted in modeling a Transmitter.
Literature number: 85W-25199-0
Technical Brief 10 Nov 2018
