A Guide to MPEG Fundamentals and Protocol Analysis

Section 1 – Introduction to MPEG

MPEG is one of the most popular audio/video compression techniques because it is not just a single standard. Instead, it is a range of standards suitable for different applications but based on similar principles. MPEG is an acronym for the Moving Picture Experts Group, part of the Joint Technical Committee, JTC1, established by the ISO (International Standards Organization) and IEC (International Electrotechnical Commission). JTC1 is responsible for Information Technology; within JTC1, Sub Group SG29 is responsible for “Coding of Audio, Picture, and Multimedia and Hypermedia Information.” There are a number of working groups within SG29, including JPEG (Joint Photographic Experts Group), and Working Group 11 for compression of moving pictures. ISO/IEC JTC1/SG29/ WG11 is MPEG.

MPEG can be described as the interaction of acronyms. As ETSI stated, “The CAT is a pointer to enable the IRD to find the EMMs associated with the CA system(s) that it uses.” If you can understand that sentence you don’t need this book!

1.1 Convergence

Digital techniques have made rapid progress in audio and video for a number of reasons. Digital information is more robust and can be coded to substantially eliminate error. This means that generation-losses in recording and losses in transmission may be eliminated. The compact disc (CD) was the first consumer product to demonstrate this.

While the CD has an improved sound quality with respect to its vinyl predecessor, comparison of quality alone misses the point. The real point is that digital recording and transmission techniques allow content manipulation to a degree that is impossible with analog. Once audio or video is digitized, the content is in the form of data. Such data can be handled in the same way as any other kind of data; therefore, digital video and audio become the province of computer technology.

The convergence of computers and audio/video is an inevitable consequence of the key inventions of computing and pulse code modulation (PCM). Digital media can store any type of information, so it is easy to use a computer storage device for digital video. The nonlinear workstation was the first example of an application of convergent technology that did not have an analog forerunner. Another example, multimedia, combines the storage of audio, video, graphics, text and data on the same medium. Multimedia has no equivalent in the analog domain.

1.2 Why Compression Is Needed

The initial success of digital video was in post-production applications, where the high cost of digital video was offset by its limitless layering and effects capability. However, production-standard digital video generates over 200 megabits per second of data, and this bit rate requires extensive capacity for storage and wide bandwidth for transmission. Digital video could only be used in wider applications if the storage and bandwidth requirements could be eased; this is the purpose of compression.

Compression is a way of expressing digital audio and video by using less data. Compression has the following advantages:

  • A smaller amount of storage is needed for a given amount of source material.
  • When working in real time, compression reduces the bandwidth needed.
  • Additionally, compression allows faster-than-real-time transfer between media, for example, between tape and disk.
  • A compressed recording format can use a lower recording density and this can make the recorder less sensitive to environmental factors and maintenance.

1.3 Principles of Compression

There are two fundamentally different techniques that may be used to reduce the quantity of data used to convey information content. In practical compression systems, these are usually combined, often in very complex ways.

The first technique is to improve coding efficiency. There are many ways of coding any given information, and most simple data representations of video and audio contain a substantial amount of redundancy. The concept of entropy is discussed below.

Many coding tricks can be used to reduce or eliminate redundancy; examples include run-length coding and variablelength coding systems such as Huffman codes. When properly used, these techniques are completely reversible so that after decompression the data is identical to that at the input of the system. This type of compression is known as lossless. Archiving computer programs such as PKZip employ lossless compression.

Obviously, lossless compression is ideal, but unfortunately it does not usually provide the degree of data reduction needed for video and audio applications. However, because it is lossless, it can be applied at any point in the system and is often used on the data output of lossy compressors.

If the elimination of redundancy does not reduce the data as much as needed, some information will have to be discarded. Lossy compression systems achieve data reduction by removing information that is irrelevant, or of lesser relevance. These are not general techniques that can be applied to any data stream; the assessment of relevance can only be made in the context of the application, understanding what the data represents and how it will be used. In the case of television, the application is the presentation of images and sound to the human visual and hearing systems, and the human factors must be well understood to design an effective compression system.

Some information in video signals cannot be perceived by the human visual system and is, therefore, truly irrelevant in this context. A compression system that discards only irrelevant image information is known as visually lossless.

1.4 Compression in Television Applications

Television signals, analog or digital, have always represented a great deal of information, and bandwidth reduction techniques have been used from a very early stage. Probably the earliest example is interlace. For a given number of lines, and a given rate of picture refresh, interlace offers a 2:1 reduction in bandwidth requirement. The process is lossy; interlace generates artifacts caused by interference between vertical and temporal information, and reduces the usable vertical resolution of the image. Nevertheless, most of what is given up is largely irrelevant, so interlace represented a simple and very valuable trade-off in its time. Unfortunately interlace and the artifacts it generates are very disruptive to more sophisticated digital compression schemes. Much of the complexity of MPEG-2 results from the need to handle interlaced signals, and there is still a significant loss in coding efficiency when compared to progressive signals.

The first part of the solution was to transform the signals from GBR to a brightness signal (normally designated Y) plus two color difference signals, U and V, or I and Q. Generation of a brightness signal went a long way towards solving the problem of compatibility with monochrome receivers, but the important step for bandwidth minimization came from the color difference signals.

It turns out that the human visual system uses sensors that are sensitive to brightness, and that can “see” a very highresolution image. Other sensors capture color information, but at much lower resolution. The net result is that, within certain limits, a sharp monochrome image representing scene brightness overlaid with fuzzy (low-bandwidth) color information will appear as a sharp color picture. It is not possible to take advantage of this when dealing with GBR signals, as each signal contains both brightness and color information. However, in YUV space, most of the brightness information is carried in the Y signal, and very little in the color difference signals. So, it is possible to filter the color difference signals and drastically reduce the information to be transmitted.

This is an example of eliminating (mostly) irrelevant information. Under the design viewing conditions, the human visual system does not respond significantly to the high frequency information in the color difference signals, so it may be discarded. NTSC television transmissions carry only about 500 kHz in each color difference signal, but the pictures are adequately sharp for many applications.

The final step in the bandwidth reduction process of NTSC and PAL was to “hide” the color difference signals in unused parts of the spectrum of the monochrome signal. Although the process is not strictly lossless, this can be thought of as increasing the coding efficiency of the signal.

Some of the techniques in the digital world are quite different, but similar principles apply. For example, MPEG transforms signals into a different domain to permit the isolation of irrelevant information. The transform to color-difference space is still employed, but digital techniques permit filtering of the color difference signal to reduce vertical resolution for further savings.

Component video translations.
Figure 1-1. Component video translations.

Figure 1-1a shows that in traditional television systems, the GBR camera signal is converted to Y, Pb, Pr components for production and encoded into analog composite for transmission. Figure 1-1b shows the modern equivalent. The Y, Pb, Pr signals are digitized and carried as Y, Cb, Cr signals in SDI form through the production process prior to being encoded with MPEG for transmission. Clearly, MPEG can be considered by the broadcaster as a more efficient replacement for composite video. In addition, MPEG has greater flexibility because the bit rate required can be adjusted to suit the application. At lower bit rates and resolutions, MPEG can be used for video conferencing and video telephones.

Digital Video Broadcasting (DVB) and Advanced Television Systems Committee (ATSC) (the European- and Americanoriginated digital-television broadcasting standards) would not be viable without compression because the bandwidth required would be too great. Compression extends the playing time of DVD (digital video/versatile disk) allowing full-length movies on a single disk. Compression also reduces the cost of ENG and other contributions to television production. DVB, ATSC and digital video disc (DVD) are all based on MPEG-2 compression.

In tape recording, mild compression eases tolerances and adds reliability in Digital Betacam and Digital-S, whereas in SX, DVC, DVCPRO and DVCAM, the goal is miniaturization. In disk-based video servers, compression lowers storage cost. Compression also lowers bandwidth, which allows more users to access a given server. This characteristic is also important for VOD (video on demand) applications.

1.5 Introduction to Digital Video Compression

In all real program material, there are two types of components of the signal: those that are novel and unpredictable and those that can be anticipated. The novel component is called entropy and is the true information in the signal. The remainder is called redundancy because it is not essential. Redundancy may be spatial, as it is in large plain areas of picture where adjacent pixels have almost the same value. Redundancy can also be temporal as it is where similarities between successive pictures are used. All compression systems work by separating entropy from redundancy in the encoder. Only the entropy is recorded or transmitted and the decoder computes the redundancy from the transmitted signal. Figure 1-2a (see next page) shows this concept.

An ideal encoder would extract all the entropy and only this will be transmitted to the decoder. An ideal decoder would then reproduce the original signal. In practice, this ideal cannot be reached. An ideal coder would be complex and cause a very long delay in order to use temporal redundancy. In certain applications, such as recording or broadcasting, some delay is acceptable, but in videoconferencing it is not. In some cases, a very complex coder would be too expensive. It follows that there is no one ideal compression system.

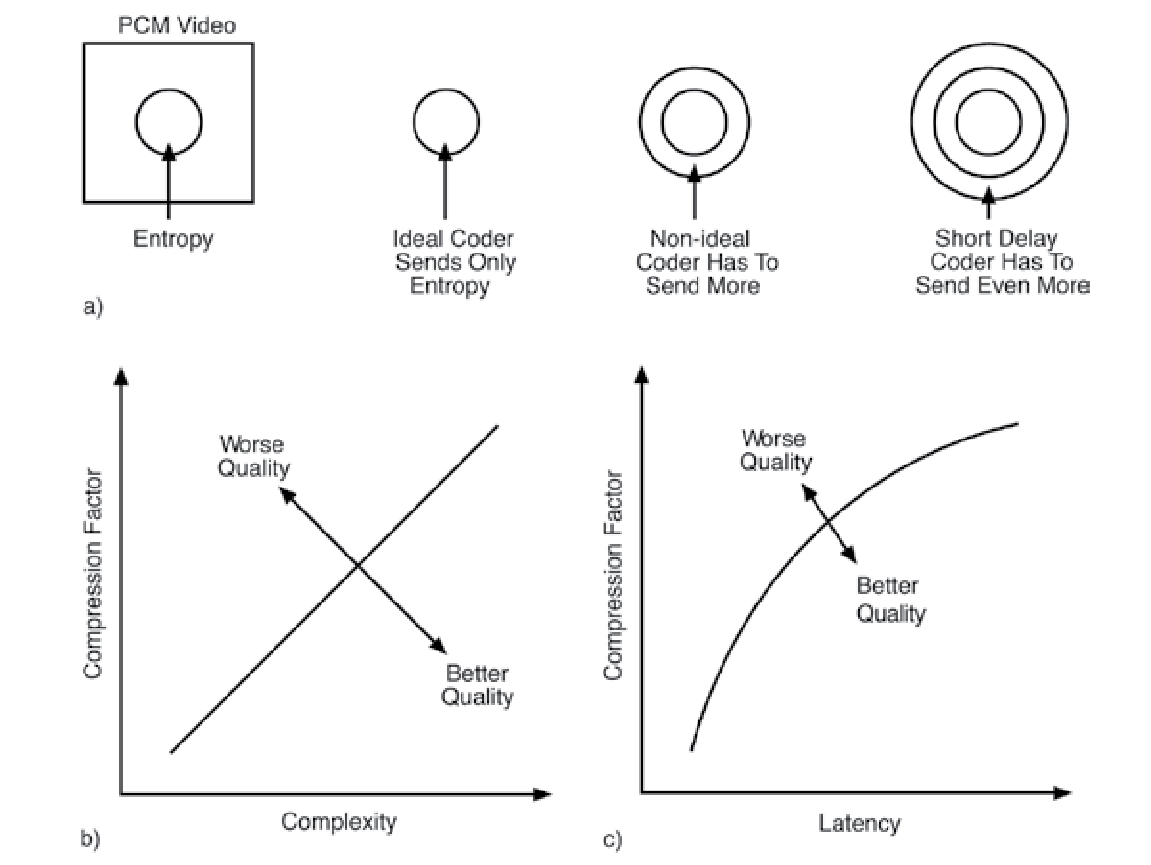

Trade-offs between quality, complexity, and latency.
Figure 1-2. Trade-offs between quality, complexity, and latency.

In practice, a range of coders is needed which have a range of processing delays and complexities. The power of MPEG is that it is not a single compression format, but a range of standardized coding tools that can be combined flexibly to suit a range of applications. The way in which coding has been performed is included in the compressed data so that the decoder can automatically handle whatever the coder decided to do.

In MPEG-2 and MPEG-4 coding is divided into several profiles that have different complexity, and each profile can be implemented at a different level depending on the resolution of the input picture. Section 4 considers profiles and levels in detail.

There are many different digital video formats and each has a different bit rate. For example a high definition system might have six times the bit rate of a standard definition system. Consequently, just knowing the bit rate out of the coder is not very useful. What matters is the compression factor, which is the ratio of the input bit rate to the compressed bit rate, for example 2:1, 5:1 and so on.

Unfortunately, the number of variables involved makes it very difficult to determine a suitable compression factor. Figure 1-2a shows that for an ideal coder, if all of the entropy is sent, the quality is good. However, if the compression factor is increased in order to reduce the bit rate, not all of the entropy is sent and the quality falls. Note that in a compressed system when the quality loss occurs, it is steep (Figure 1-2b). If the available bit rate is inadequate, it is better to avoid this area by reducing the entropy of the input picture. This can be done by filtering. The loss of resolution caused by the filtering is subjectively more acceptable than the compression artifacts.

To identify the entropy perfectly, an ideal compressor would have to be extremely complex. A practical compressor may be less complex for economic reasons and must send more data to be sure of carrying all of the entropy. Figure 1-2b shows the relationship between coder complexity and performance. The higher the compression factor required, the more complex the encoder has to be.

The entropy in video signals varies. A recording of an announcer delivering the news has much redundancy and is easy to compress. In contrast, it is more difficult to compress a recording with leaves blowing in the wind or one of a football crowd that is constantly moving and therefore has less redundancy (more information or entropy). In either case, if all the entropy is not sent, there will be quality loss. Thus, we may choose between a constant bit-rate channel with variable quality or a constant quality channel with variable bit rate. Telecommunications network operators tend to prefer a constant bit rate for practical purposes, but a buffer memory can be used to average out entropy variations if the resulting increase in delay is acceptable. In recording, a variable bit rate may be easier to handle and DVD uses variable bit rate, using buffering so that the average bit rate remains within the capabilities of the disk system.

Intra-coding (intra = within) is a technique that exploits spatial redundancy, or redundancy within the picture; intercoding (inter = between) is a technique that exploits temporal redundancy. Intra-coding may be used alone, as in the JPEG standard for still pictures, or combined with inter-coding as in MPEG.

Intra-coding relies on two characteristics of typical images. First, not all spatial frequencies are simultaneously present, and second, the higher the spatial frequency, the lower the amplitude is likely to be. Intra-coding requires analysis of the spatial frequencies in an image. This analysis is the purpose of transforms such as wavelets and DCT (discrete cosine transform). Transforms produce coefficients that describe the magnitude of each spatial frequency. Typically, many coefficients will be zero, or nearly zero, and these coefficients can be omitted, resulting in a reduction in bit rate.

Inter-coding relies on finding similarities between successive pictures. If a given picture is available at the decoder, the next picture can be created by sending only the picture differences. The picture differences will be increased when objects move, but this magnification can be offset by using motion compensation, since a moving object does not generally change its appearance very much from one picture to the next. If the motion can be measured, a closer approximation to the current picture can be created by shifting part of the previous picture to a new location. The shifting process is controlled by a pair of horizontal and vertical displacement values (collectively known as the motion vector) that is transmitted to the decoder. The motion vector transmission requires less data than sending the picture-difference data.

MPEG can handle both interlaced and non-interlaced images. An image at some point on the time axis is called a “picture,” whether it is a field or a frame. Interlace is not ideal as a source for digital compression because it is in itself a compression technique. Temporal coding is made more complex because pixels in one field are in a different position to those in the next.

Motion compensation minimizes but does not eliminate the differences between successive pictures. The picture difference is itself a spatial image and can be compressed using transform-based intra-coding as previously described. Motion compensation simply reduces the amount of data in the difference image.

The efficiency of a temporal coder rises with the time span over which it can act. Figure 1-2c shows that if a high compression factor is required, a longer time span in the input must be considered and thus a longer coding delay will be experienced. Clearly, temporally coded signals are difficult to edit because the content of a given output picture may be based on image data which was transmitted some time earlier. Production systems will have to limit the degree of temporal coding to allow editing and this limitation will in turn limit the available compression factor.

1.6 Introduction to Audio Compression

The bit rate of a PCM digital audio channel is only about 1.5 megabits per second, which is about 0.5% of 4:2:2 digital video. With mild video compression schemes, such as Digital Betacam, audio compression is unnecessary. But, as the video compression factor is raised, it becomes important to compress the audio as well.

Audio compression takes advantage of two facts. First, in typical audio signals, not all frequencies are simultaneously present. Second, because of the phenomenon of masking, human hearing cannot discern every detail of an audio signal. Audio compression splits the audio spectrum into bands by filtering or transforms, and includes less data when describing bands in which the level is low. Where masking prevents or reduces audibility of a particular band, even less data needs to be sent.

Encoding and encapsulation steps in Program and Transport Stream creation.
Figure 1-3. Encoding and encapsulation steps in Program and Transport Stream creation.

Audio compression is not as easy to achieve as video compression because of the acuity of hearing. Masking only works properly when the masking and the masked sounds coincide spatially. Spatial coincidence is always the case in mono recordings but not in stereo recordings, where lowlevel signals can still be heard if they are in a different part of the sound stage. Consequently, in stereo and surround sound systems, a lower compression factor is allowable for a given quality. Another factor complicating audio compression is that delayed resonances in poor loudspeakers actually mask compression artifacts. Testing a compressor with poor speakers gives a false result, and signals that are apparently satisfactory may be disappointing when heard on good equipment.

1.7 MPEG Streams

The output of a single MPEG audio or video coder is called an elementary stream. An elementary stream is an endless near real-time signal. For convenience, the elementary stream may be broken into data blocks of manageable size, forming a packetized elementary stream (PES). These data blocks need header information to identify the start of the packets and must include time stamps because packetizing disrupts the time axis.

Figure 1-3 shows that one video PES and a number of audio PES can be combined to form a program stream, provided that all of the coders are locked to a common clock. Time stamps in each PES can be used to ensure lip-sync between the video and audio. Program streams have variable-length packets with headers. They find use in data transfers to and from optical and hard disks, which are essentially error free, and in which files of arbitrary sizes are expected. DVD uses program streams.

For transmission and digital broadcasting, several programs and their associated PES can be multiplexed into a single transport stream. A transport stream differs from a program stream in that the PES packets are further subdivided into short fixed-size packets and in that multiple programs encoded with different clocks can be carried. This is possible because a transport stream has a program clock reference (PCR) mechanism that allows transmission of multiple clocks, one of which is selected and regenerated at the decoder. A single program transport stream (SPTS) is also possible and this may be found between a coder and a multiplexer. Since a transport stream can genlock the decoder clock to the encoder clock, the SPTS is more common than the Program Stream.

A transport stream is more than just a multiplex of audio and video PES. In addition to the compressed audio, video and data, a transport stream includes metadata describing the bit stream. This includes the program association table (PAT) that lists every program in the transport stream. Each entry in the PAT points to a program map table (PMT) that lists the elementary streams making up each program. Some programs will be open, but some programs may be subject to conditional access (encryption) and this information is also carried in the metadata.

The transport stream consists of fixed-size data packets, each containing 188 bytes. Each packet carries a program identifier code (PID). Packets in the same elementary stream all have the same PID, so that the decoder (or a demultiplexer) can select the elementary stream(s) it wants and reject the remainder. Packet continuity counts ensure that every packet that is needed to decode a stream is received. An effective synchronization system is needed so that decoders can correctly identify the beginning of each packet and deserialize the bit stream into words.

1.8 Need for Monitoring and Analysis

The MPEG transport stream is an extremely complex structure using interlinked tables and coded identifiers to separate the programs and the elementary streams within the programs. Within each elementary stream, there is a complex structure, allowing a decoder to distinguish between, for example, vectors, coefficients and quantization tables.

Failures can be divided into two broad categories. In the first category, the transport system correctly delivers information from an encoder/multiplexer to a decoder with no bit errors or added jitter, but the encoder/multiplexer or the decoder has a fault. In the second category, the encoder/multiplexer and decoder are fine, but the transport of data from one to the other is defective. It is very important to know whether the fault lies in the encoder/ multiplexer, the transport or the decoder if a prompt solution is to be found.

Synchronizing problems, such as loss or corruption of sync patterns, may prevent reception of the entire transport stream. Transport stream protocol defects may prevent the decoder from finding all of the data for a program, perhaps delivering picture but not sound. Correct delivery of the data but with excessive jitter can cause decoder timing problems.

If a system using an MPEG transport stream fails, the fault could be in the encoder, the multiplexer or in the decoder. How can this fault be isolated? First, verify that a transport stream is compliant with the MPEG-coding standards. If the stream is not compliant, a decoder can hardly be blamed for having difficulty. If the stream is compliant, the decoder may need attention.

Traditional video testing tools, the signal generator, the waveform monitor and vectorscope, are not appropriate in analyzing MPEG systems, except to ensure that the video signals entering and leaving an MPEG system are of suitable quality. Instead, a reliable source of valid MPEG test signals is essential for testing receiving equipment and decoders. With a suitable analyzer, the performance of encoders, transmission systems, multiplexers and remultiplexers can be assessed with a high degree of confidence. As a long standing supplier of high grade test equipment to the video industry, Tektronix continues to provide test and measurement solutions as the technology evolves, giving the MPEG user the confidence that complex compressed systems are correctly functioning and allowing rapid diagnosis when they are not.

1.9 Pitfalls of Compression

MPEG compression is lossy in that what is decoded is not identical to the original. The entropy of the source varies, and when entropy is high, the compression system may leave visible artifacts when decoded. In temporal compression, redundancy between successive pictures is assumed. When this is not the case, the system may fail. An example is video from a press conference where flashguns are firing. Individual pictures containing the flash are totally different from their neighbors, and coding artifacts may become obvious.

Irregular motion or several independently moving objects on screen require a lot of vector bandwidth and this requirement may only be met by reducing the bandwidth available for picture-data. Again, visible artifacts may occur whose level varies and depends on the motion. This problem often occurs in sports-coverage video.

Coarse quantizing results in luminance contouring and posterized color. These can be seen as blotchy shadows and blocking on large areas of plain color. Subjectively, compression artifacts are more annoying than the relatively constant impairments resulting from analog television transmission systems.

The only solution to these problems is to reduce the compression factor. Consequently, the compression user has to make a value judgment between the economy of a high compression factor and the level of artifacts.

In addition to extending the encoding and decoding delay, temporal coding also causes difficulty in editing. In fact, an MPEG bit stream cannot be arbitrarily edited. This restriction occurs because, in temporal coding, the decoding of one picture may require the contents of an earlier picture and the contents may not be available following an edit. The fact that pictures may be sent out of sequence also complicates editing.

If suitable coding has been used, edits can take place, but only at splice points that are relatively widely spaced. If arbitrary editing is required, the MPEG stream must undergo a decode-modify-recode process, which will result in generation loss.

Section 2 – Compression in Video

This section shows how video compression is based on the perception of the eye. Important enabling techniques, such as transforms and motion compensation, are considered as an introduction to the structure of an MPEG coder.

2.1 Spatial or Temporal Coding?

As was seen in Section 1, video compression can take advantage of both spatial and temporal redundancy. In MPEG, temporal redundancy is reduced first by using similarities between successive pictures. As much as possible of the current picture is created or “predicted” by using information from pictures already sent. When this technique is used, it is only necessary to send a difference picture, which eliminates the differences between the actual picture and the prediction. The difference picture is then subject to spatial compression. As a practical matter it is easier to explain spatial compression prior to explaining temporal compression.

Spatial compression relies on similarities between adjacent pixels in plain areas of picture and on dominant spatial frequencies in areas of patterning. The JPEG system uses spatial compression only, since it is designed to transmit individual still pictures. However, JPEG may be used to code a succession of individual pictures for video. In the so-called “Motion JPEG” application, the compression factor will not be as good as if temporal coding was used, but the bit stream will be freely editable on a picture-by-picture basis.

2.2 Spatial Coding

The first step in spatial coding is to perform an analysis of spatial frequencies using a transform. A transform is simply a way of expressing a waveform in a different domain, in this case, the frequency domain. The output of a transform is a set of coefficients that describe how much of a given frequency is present. An inverse transform reproduces the original waveform. If the coefficients are handled with sufficient accuracy, the output of the inverse transform is identical to the original waveform.

The most well known transform is the Fourier transform. This transform finds each frequency in the input signal. It finds each frequency by multiplying the input waveform by a sample of a target frequency, called a basis function, and integrating the product. Figure 2-1 shows that when the input waveform does not contain the target frequency, the integral will be zero, but when it does, the integral will be a coefficient describing the amplitude of that component frequency.

Related and unrelated waveforms

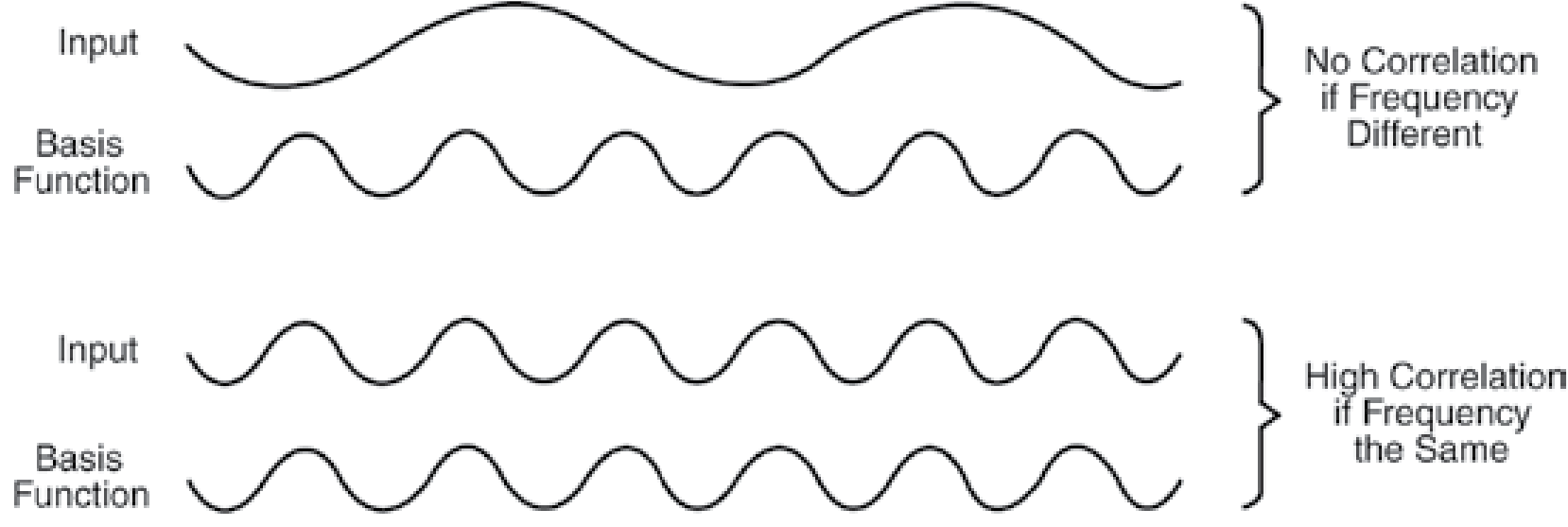

Figure 2-1. Related and unrelated waveforms.

The results will be as described if the frequency component is in phase with the basis function. However if the frequency component is in quadrature with the basis function, the integral will still be zero. Therefore, it is necessary to perform two searches for each frequency, with the basis functions in quadrature with one another so that every phase of the input will be detected.

The Fourier transform has the disadvantage of requiring coefficients for both sine and cosine components of each frequency. In the cosine transform, the input waveform is time-mirrored with itself prior to multiplication by the basis functions. Figure 2-2 shows that this mirroring cancels out all sine components and doubles all of the cosine components. The sine basis function is unnecessary and only one coefficient is needed for each frequency.

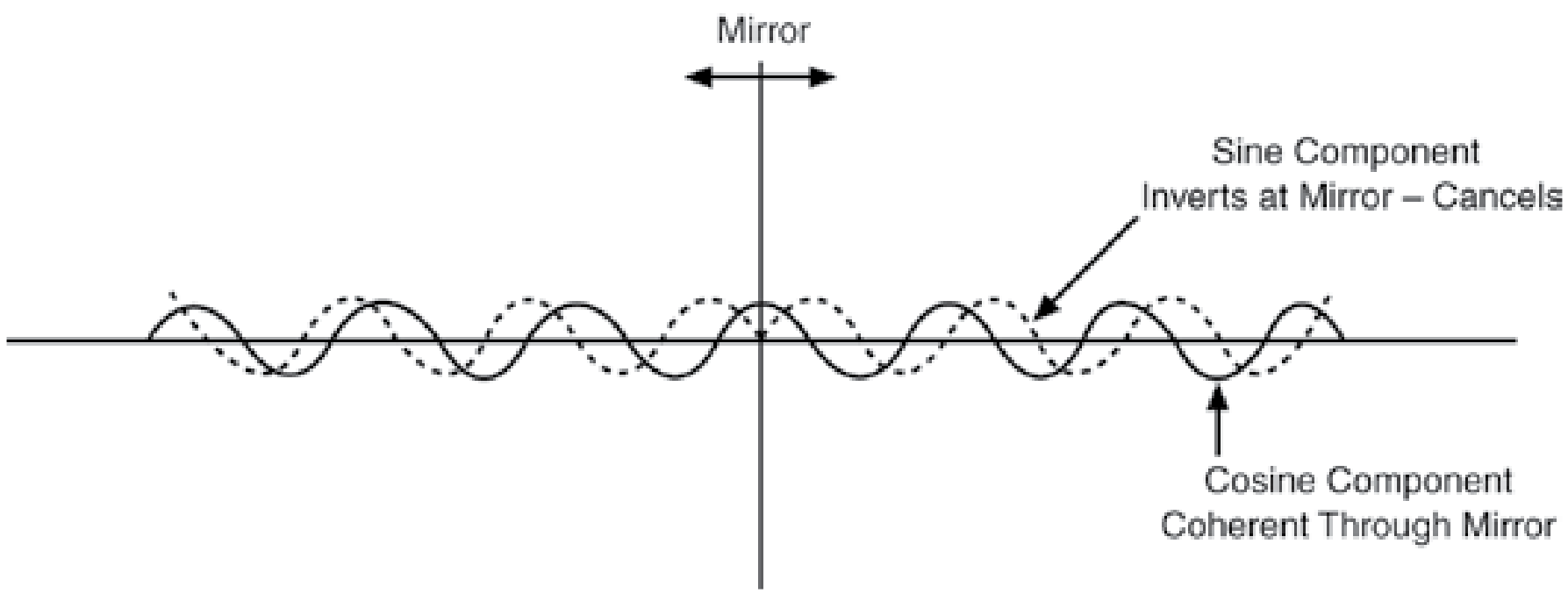

Relationship of sine and cosine components
Figure 2-2. Relationship of sine and cosine components.

The discrete cosine transform (DCT) is the sampled version of the cosine transform and is used extensively in two-dimensional form in MPEG. A block of 8x8 pixels is transformed to become a block of 8x8 coefficients. Since the transform requires multiplication by fractions, there is wordlength extension, resulting in coefficients that have longer wordlength than the pixel values. Typically an 8-bit pixel block results in an 11-bit coefficient block. Thus, a DCT does not result in any compression; in fact it results in the opposite. However, the DCT converts the source pixels into a form where compression is easier.

Figure 2-3 shows the results of an inverse transform of each of the individual coefficients of an 8x8 DCT. In the case of the luminance signal, the top-left coefficient is the average brightness or DC component of the whole block. Moving across the top row, horizontal spatial frequency increases. Moving down the left column, vertical spatial frequency increases. In real pictures, different vertical and horizontal spatial frequencies may occur simultaneously and a coefficient at some point within the block will represent all possible horizontal and vertical combinations.

64 unique coefficients of a DCT

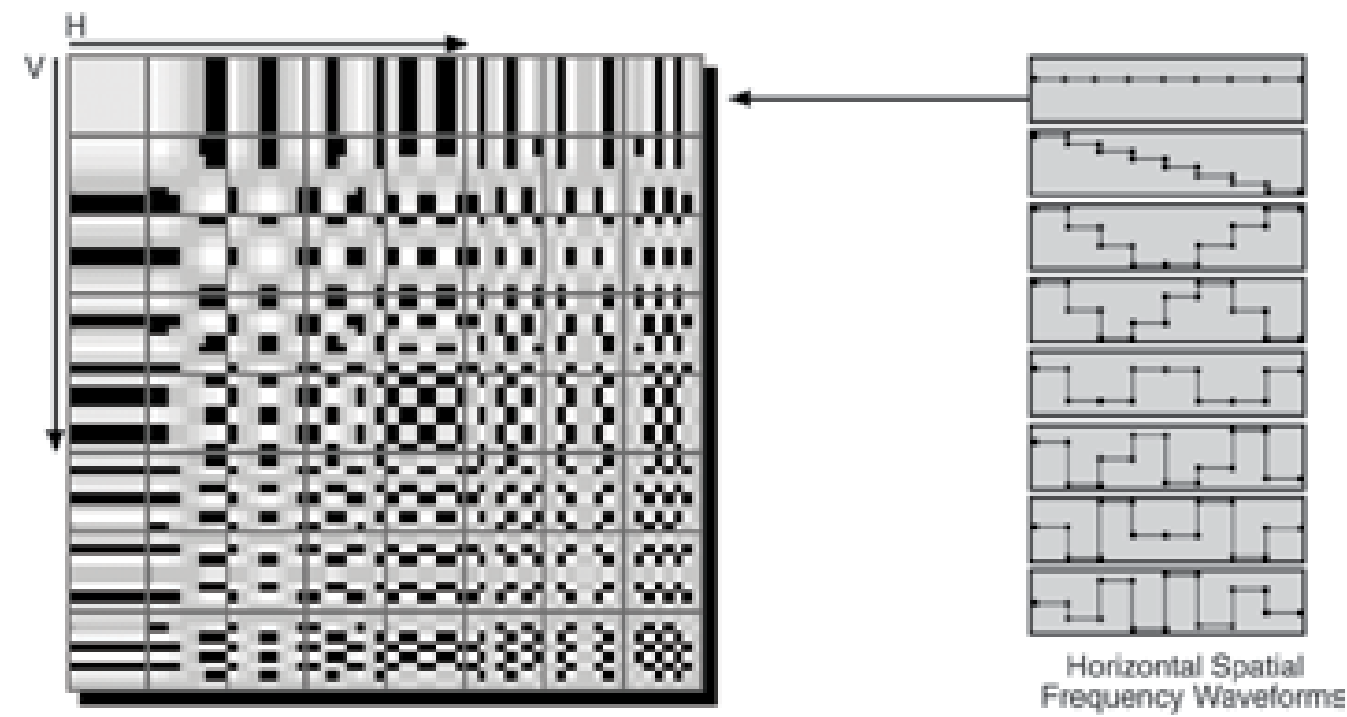

Figure 2-3. 64 unique coefficients of a DCT.

Figure 2-3 also shows 8 coefficients as one-dimensional horizontal waveforms. Combining these waveforms with various amplitudes and either polarity can reproduce any combination of 8 pixels. Thus combining the 64 coefficients of the 2-D DCT will result in the original 8x8 pixel block. Clearly for color pictures, the color difference samples will also need to be handled. Y, Cb and Cr data are assembled into separate 8x8 arrays and are transformed individually.

In much real program material, many of the coefficients will have zero or near-zero values and, therefore, will not be transmitted. This fact results in significant compression that is virtually lossless. If a higher compression factor is needed, then the wordlength of the non-zero coefficients must be reduced. This reduction will reduce accuracy of these coefficients and will introduce losses into the process. With care, the losses can be introduced in a way that is least visible to the viewer.

2.3 Weighting

Human perception of noise to spatial frequency

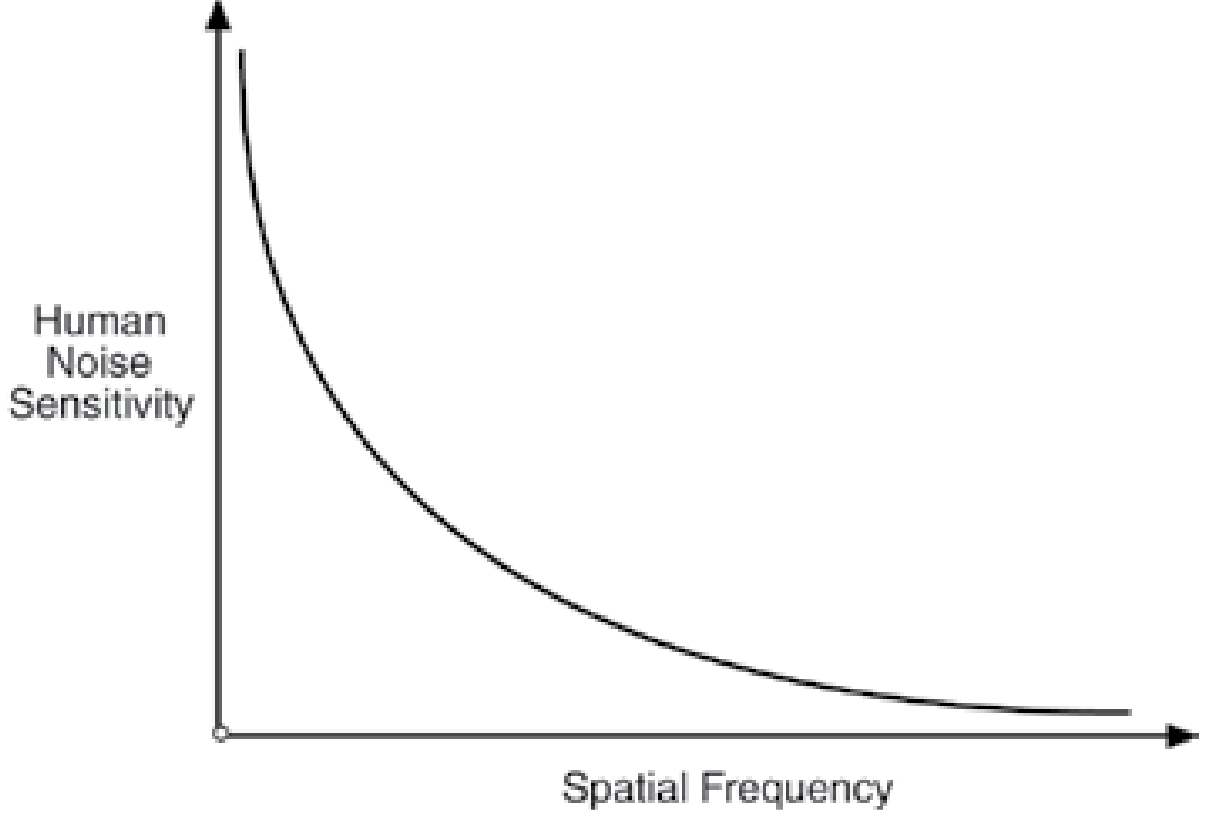

Figure 2-4. Human perception of noise to spatial frequency.

Figure 2-4 shows that the human perception of noise in pictures is not uniform but is a function of the spatial frequency. More noise can be tolerated at high spatial frequencies. Also, video noise is effectively masked by fine detail in the picture, whereas in plain areas it is highly visible. The reader will be aware that traditional noise measurements are frequently weighted so that technical measurements relate more closely to the subjective result.

Compression reduces the accuracy of coefficients and has a similar effect to using shorter wordlength samples in PCM; that is, the noise level rises. In PCM, the result of shortening the word-length is that the noise level rises equally at all frequencies. As the DCT splits the signal into different frequencies, it becomes possible to control the spectrum of the noise. Effectively, low-frequency coefficients are rendered more accurately than high-frequency coefficients by a process of weighting.

DCT coefficients are weighted by Quant Matrix and Quant Scale

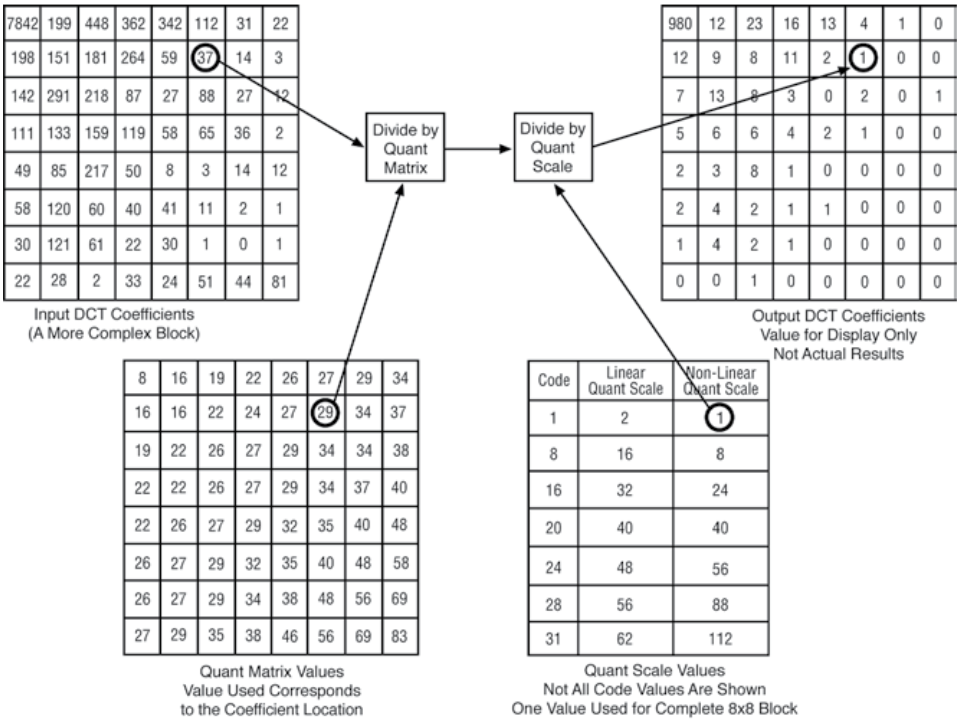

Figure 2-5. DCT coefficients are weighted by Quant Matrix and Quant Scale.

Figure 2-5 shows that, in the weighting process, the coefficients from the DCT are divided by constants that are a function of two-dimensional frequency. Low-frequency coefficients will be divided by small numbers, and highfrequency coefficients will be divided by large numbers. Following the division, the result is truncated to the nearest integer. This truncation is a form of requantizing. In the absence of weighting, this requantizing would have the effect of uniformly increasing the size of the quantizing step, but with weighting, it increases the step size according to the division factor.

As a result, coefficients representing low spatial frequencies are requantized with relatively small steps and suffer little increased noise. Coefficients representing higher spatial frequencies are requantized with large steps and suffer more noise. However, fewer steps means that fewer bits are needed to identify the step and compression is obtained.

In the decoder, low-order zeros will be added to return the weighted coefficients to their correct magnitude. They will then be multiplied by inverse weighting factors. Clearly, at high frequencies the multiplication factors will be larger, so the requantizing noise will be greater. Following inverse weighting, the coefficients will have their original DCT output values, plus requantizing error, which will be greater at high frequency than at low frequency.

As an alternative to truncation, weighted coefficients may be nonlinearly requantized so that the quantizing step size increases with the magnitude of the coefficient. This technique allows higher compression factors but worse levels of artifacts.

Clearly, the degree of compression obtained and, in turn, the output bit rate obtained, is a function of the severity of the requantizing process. Different bit rates will require different weighting tables. In MPEG, it is possible to use various different weighting tables and the table in use can be transmitted to the decoder, so that correct decoding is ensured.

2.4 Scanning

Two methods for serializing the DCT table. The alternate method is often used with interlaced video

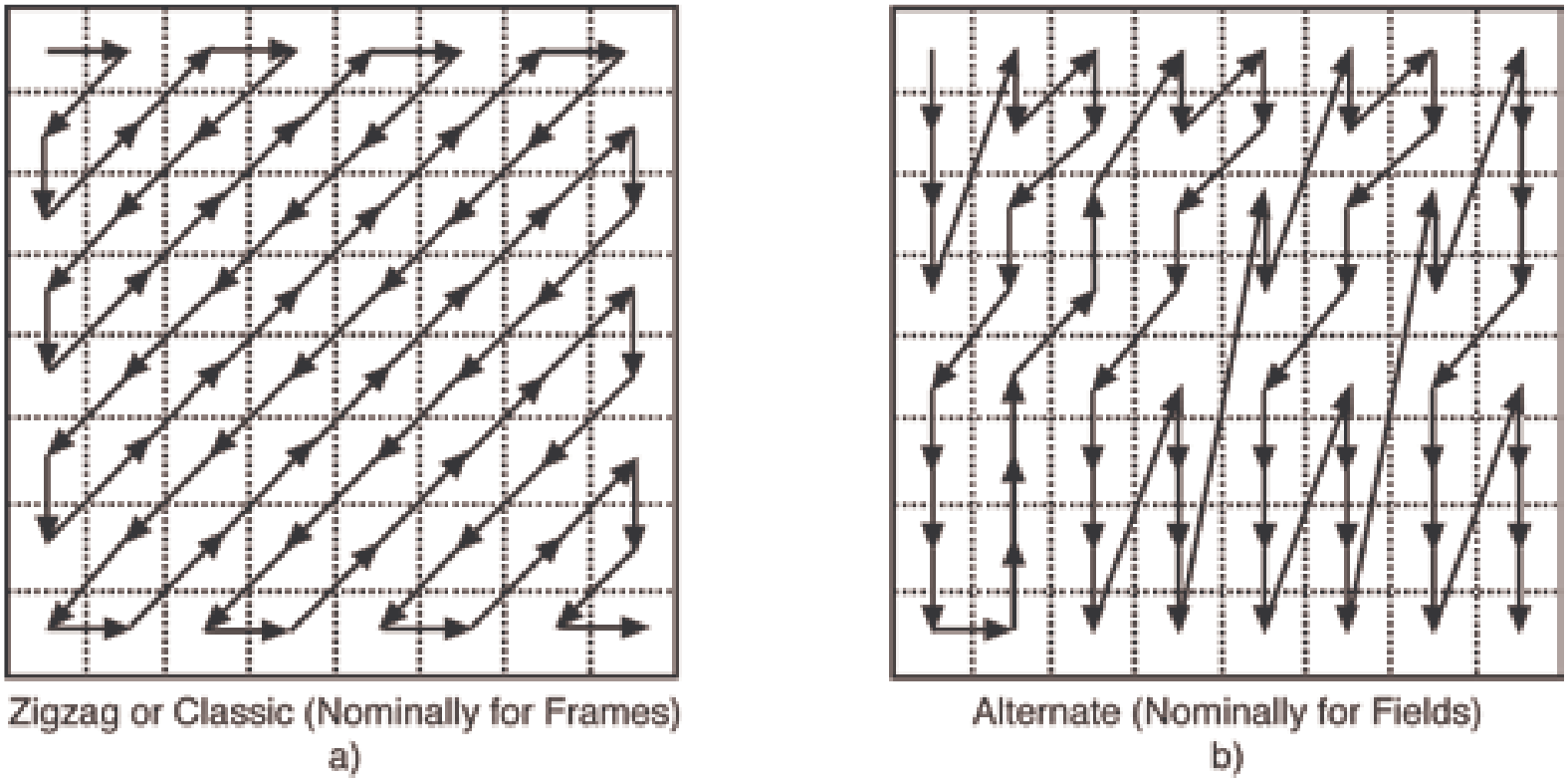

Figure 2-6. Two methods for serializing the DCT table. The alternate method is often used with interlaced video.

In typical program material, the most significant DCT coefficients are generally found in or near the top-left corner of the matrix. After weighting, low-value coefficients might be truncated to zero. More efficient transmission can be obtained if all of the non-zero coefficients are sent first, followed by a code indicating that the remainder are all zero. Scanning is a technique that increases the probability of achieving this result, because it sends coefficients in descending order of magnitude probability. Figure 2-6a (see next page) shows that in a non-interlaced system, the probability of a coefficient having a high value is highest in the top-left corner and lowest in the bottom-right corner. A 45 degree diagonal zigzag scan is the best sequence to use here.

In Figure 2-6b, an alternative scan pattern is shown that may be used for interlaced sources. In an interlaced picture, an 8x8 DCT block from one field extends over twice the vertical screen area, so that for a given picture detail, vertical frequencies will appear to be twice as great as horizontal frequencies. Thus, the ideal scan for an interlaced picture will be on a diagonal that is twice as steep. Figure 2-6b shows that a given vertical spatial frequency is scanned before scanning the same horizontal spatial frequency.

2.5 Entropy Coding

In real video, not all spatial frequencies are present simultaneously; therefore, the DCT coefficient matrix will have zero terms in it. Requantization will increase the number of zeros by eliminating small values. Despite the use of scanning, zero coefficients will still appear between the significant values. Run length coding (RLC) allows these coefficients to be handled more efficiently. Where repeating values, such as a string of zeros, are present, RLC simply transmits the number of zeros rather than each individual bit.

The probability of occurrence of particular coefficient values in real video can be studied. In practice, some values occur very often; others occur less often. This statistical information can be used to achieve further compression using variable length coding (VLC). Frequently occurring values are converted to short code words, and infrequent values are converted to long code words. To aid decoding, no code word can be the prefix of another.

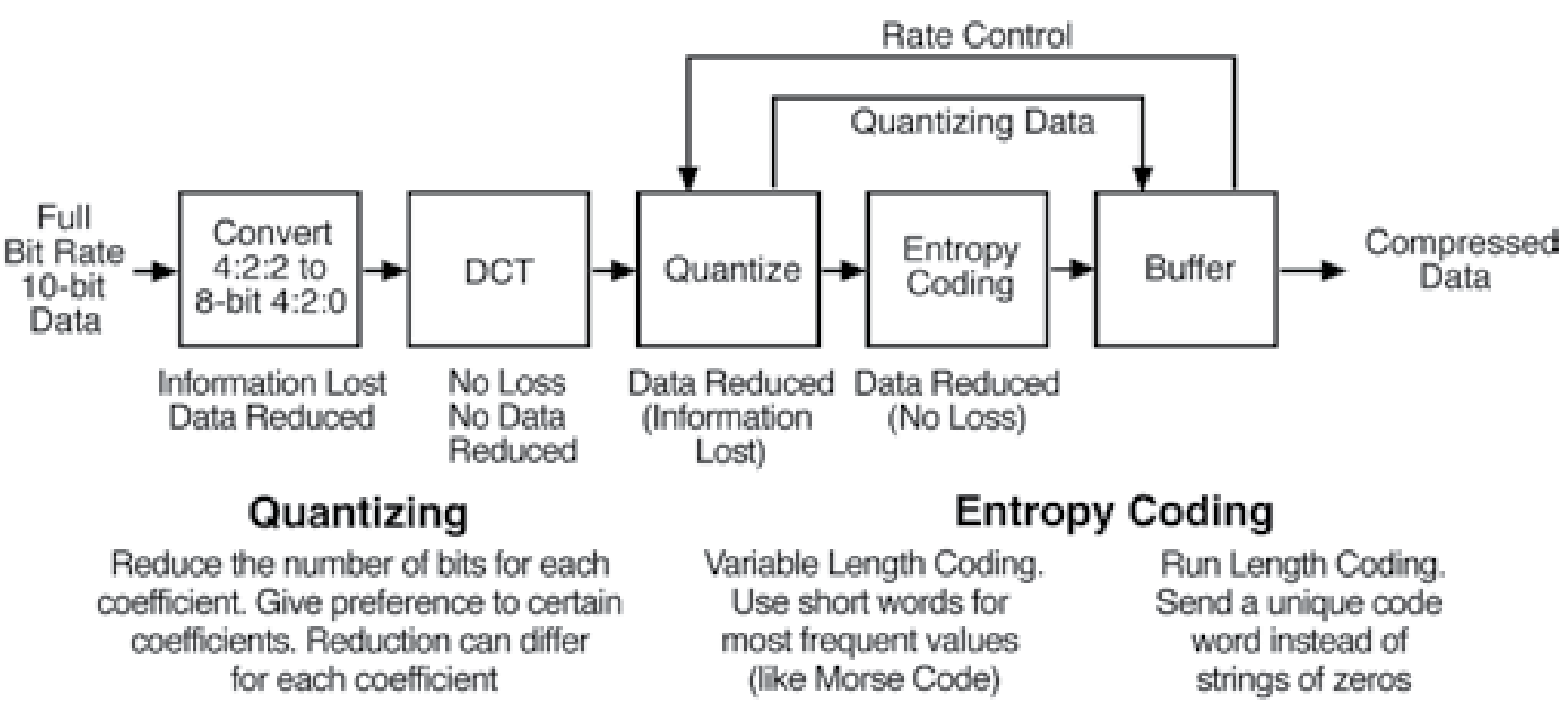

Rate Control and Quantization determine the output rate and quality.
Figure 2-7. Rate Control and Quantization determine the output rate and quality.

2.6 A Spatial Coder

Figure 2-7 ties together all of the preceding spatial coding concepts. The input signal is assumed to be 4:2:2 SDI (Serial Digital Interface), which may have 8- or 10-bit wordlength. MPEG uses only 8-bit resolution; therefore, a rounding stage will be needed when the SDI signal contains 10-bit words. Most MPEG profiles operate with 4:2:0 sampling; therefore, a vertical lowpass filter/interpolation stage will be needed. Rounding and color subsampling introduces a small irreversible loss of information and a proportional reduction in bit rate. The raster scanned input format will need to be stored so that it can be converted to 8x8 pixel blocks.

The DCT stage transforms the picture information to the frequency domain. The DCT itself does not achieve any compression. Following DCT, the coefficients are weighted and truncated, providing the first significant compression. The coefficients are then zigzag scanned to increase the probability that the significant coefficients occur early in the scan. After the last non-zero coefficient, an EOB (end of block) code is generated.

Coefficient data are further compressed by run-length and variable-length coding. In a variable bit-rate system, the quantizing may be fixed, but in a fixed bit-rate system, a buffer memory is used to absorb variations in coding difficulty. Highly detailed pictures will tend to fill the buffer, whereas plain pictures will allow it to empty. If the buffer is in danger of overflowing, the requantizing steps will have to be made larger, so that the compression factor is raised.

In the decoder, the bit stream is deserialized and the entropy coding is reversed to reproduce the weighted coefficients. The coefficients are placed in the matrix according to the zigzag scan, and inverse weighting is applied to recreate the block of DCT coefficients. Following an inverse transform, the 8x8 pixel block is recreated. To obtain a raster-scanned output, the blocks are stored in RAM, which is read a line at a time. To obtain a 4:2:2 output from 4:2:0 data, a vertical interpolation process will be needed as shown in Figure 2-8.

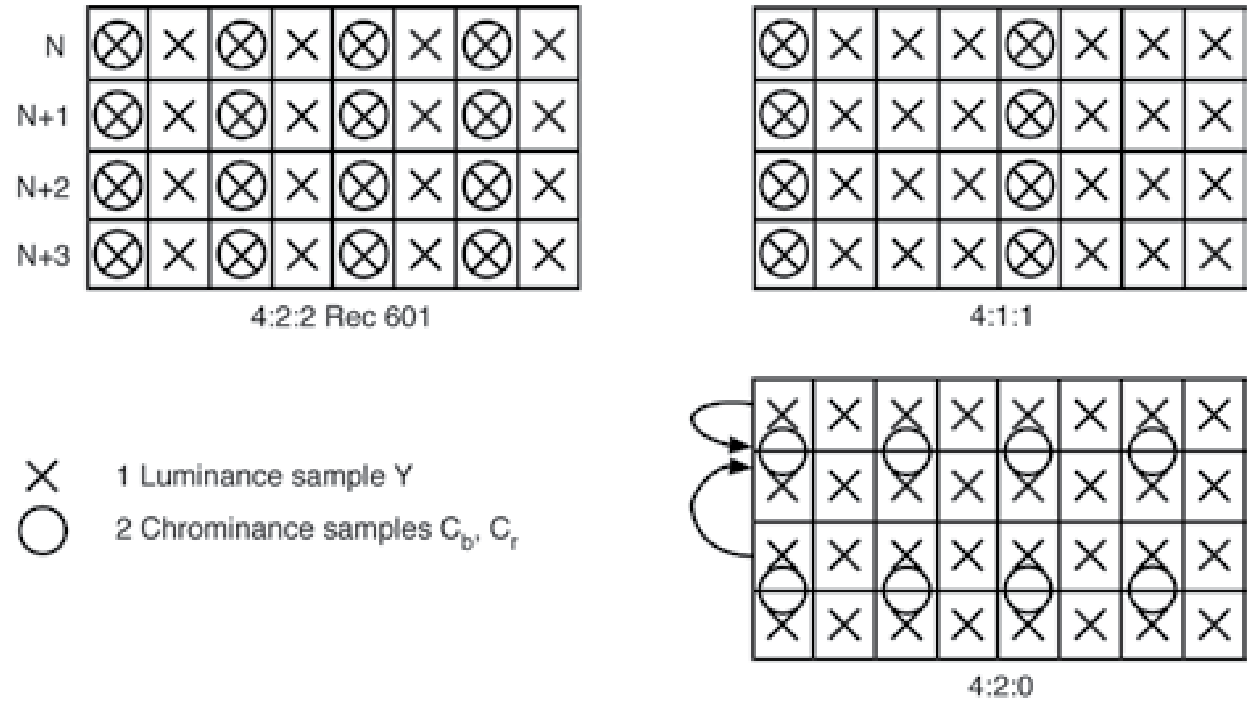

Luma/Chroma sample tables
Figure 2-8. Luma/Chroma sample tables.

The chroma samples in 4:2:0 are positioned half way between luminance samples in the vertical axis so that they are evenly spaced when an interlaced source is used.

2.7 Temporal Coding

Temporal redundancy can be exploited by inter-coding or transmitting only the differences between pictures. Figure 2-9 shows that a one-picture delay combined with a subtracter can compute the picture differences. The picture difference is an image in its own right and can be further compressed by the spatial coder as was previously described. The decoder reverses the spatial coding and adds the difference picture to the previous picture to obtain the next picture.

Picture differencing
Figure 2-9. Picture differencing.

There are some disadvantages to this simple system. First, as only differences are sent, it is impossible to begin decoding after the start of the transmission. This limitation makes it difficult for a decoder to provide pictures following a switch from one bit stream to another (as occurs when the viewer changes channels). Second, if any part of the difference data is incorrect, the error in the picture will propagate indefinitely.

The solution to these problems is to use a system that is not completely differential. Figure 2-10 shows that periodically complete pictures are sent. These are called Intra-coded pictures (or I-pictures), and they are obtained by spatial compression only. If an error or a channel switch occurs, it will be possible to resume correct decoding at the next I-picture.

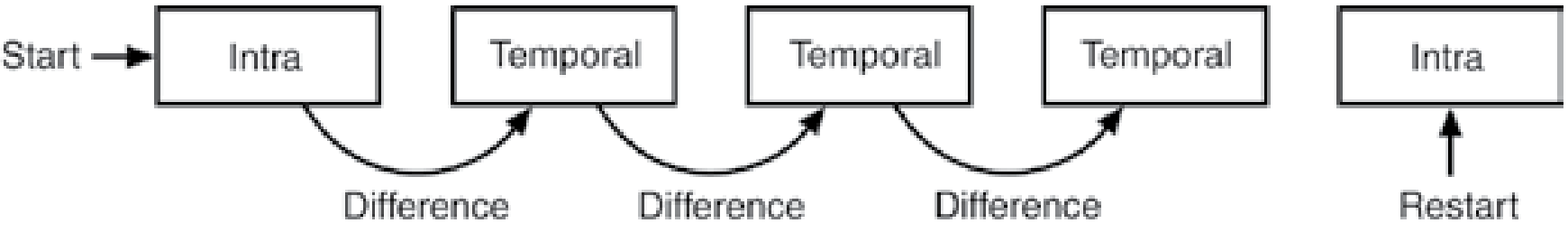

Bandwidth reduction achieved by sending Difference-frames between Intra-frames
Figure 2-10. Bandwidth reduction achieved by sending Difference-frames between Intra-frames.

2.8 Motion Compensation

Motion reduces the similarities between pictures and increases the data needed to create the difference picture. Motion compensation is used to increase the similarity. Figure 2-11 shows the principle. When an object moves across the TV screen, it may appear in a different place in each picture, but it does not change in appearance very much. The picture difference can be reduced by measuring the motion at the encoder. This is sent to the decoder as a vector. The decoder uses the vector to shift part of the previous picture to a more appropriate place in the new picture.

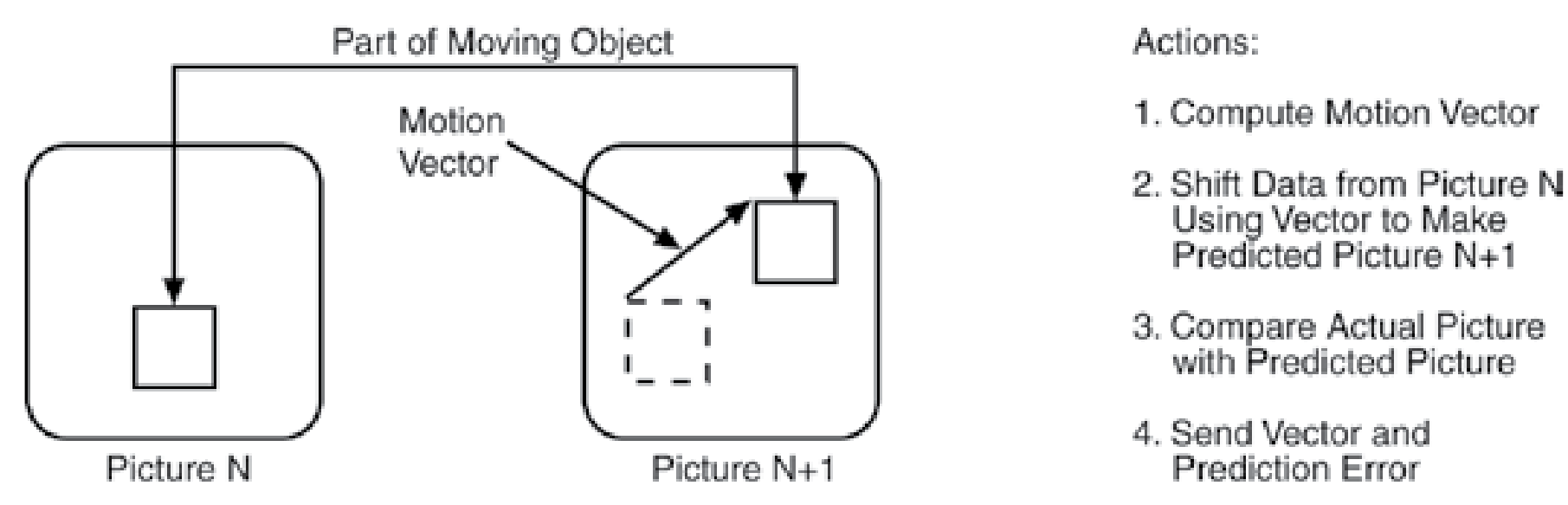

Picture N+1 created by sending Motion Vectors rather than DCT values
Figure 2-11. Picture N+1 created by sending Motion Vectors rather than DCT values.

One vector controls the shifting of an entire area of the picture that is known as a macroblock. The size of the macroblock is determined by the DCT coding and the color subsampling structure. Figure 2-12a shows that, with a 4:2:0 system, the vertical and horizontal spacing of color samples is exactly twice the spacing of luminance. A single 8x8 DCT block of color samples extends over the same area as four 8x8 luminance blocks; therefore this is the minimum picture area that can be shifted by a vector. One 4:2:0 macroblock contains four luminance blocks: one Cb block and one Cr block.

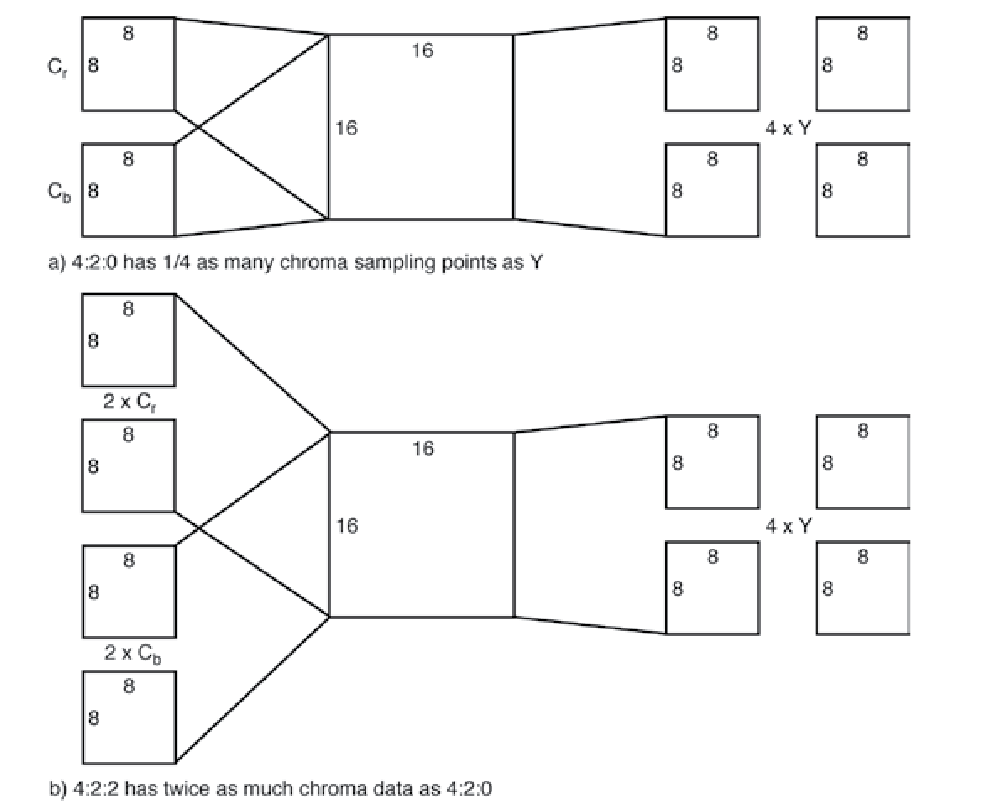

4:2:0 sample size vs. 4:2:2 sample size
Figure 2-12. 4:2:0 sample size vs. 4:2:2 sample size.

In the 4:2:2 profile, color is only subsampled in the horizontal axis. Figure 2-12b shows that in 4:2:2, a single 8x8 DCT block of color samples extends over two luminance blocks. A 4:2:2 macroblock contains four luminance blocks: two Cb blocks and two Cr blocks.

The motion estimator works by comparing the luminance data from two successive pictures. A macroblock in the first picture is used as a reference. The correlation between the reference and the next picture is measured at all possible displacements with a resolution of half a pixel over the entire search range. When the greatest correlation is found, this correlation is assumed to represent the correct motion.

The motion vector has a vertical and horizontal component. In typical program material, a moving object may extend over a number of macroblocks. A greater compression factor is obtained if the vectors are transmitted differentially. When a large object moves, adjacent macroblocks have the same vectors and the vector differential becomes zero.

Motion vectors are associated with macroblocks, not with real objects in the image and there will be occasions where part of the macroblock moves and part of it does not. In this case, it is impossible to compensate properly. If the motion of the moving part is compensated by transmitting a vector, the stationary part will be incorrectly shifted, and it will need difference data to be corrected. If no vector is sent, the stationary part will be correct, but difference data will be needed to correct the moving part. A practical compressor might attempt both strategies and select the one that required the least data.

2.9 Bidirectional Coding

When an object moves, it conceals the background at its leading edge and reveals the background at its trailing edge. The revealed background requires new data to be transmitted because the area of background was previously concealed and no information can be obtained from a previous picture. A similar problem occurs if the camera pans; new areas come into view and nothing is known about them. MPEG helps to minimize this problem by using bidirectional coding, which allows information to be taken from pictures before and after the current picture. If a background is being revealed, it will be present in a later picture, and the information can be moved backwards in time to create part of an earlier picture.

Figure 2-13 shows the concept of bidirectional coding. On an individual macroblock basis, a bidirectionally-coded picture can obtain motion-compensated data from an earlier or later picture, or even use an average of earlier and later data. Bidirectional coding significantly reduces the amount of difference data needed by improving the degree of prediction possible. MPEG does not specify how an encoder should be built, only what constitutes a compliant bit stream. However, an intelligent compressor could try all three coding strategies and select the one that results in the least data to be transmitted.

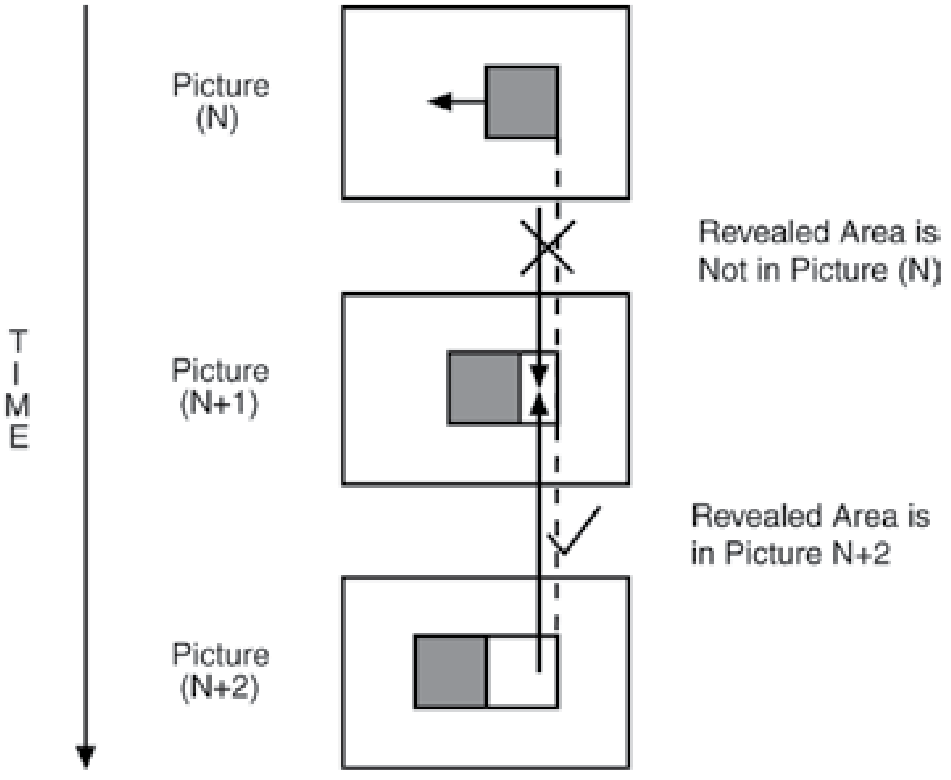

Area revealed as a result of moving a block
Figure 2-13. Area revealed as a result of moving a block.

2.10 I-, P- and B-pictures

In MPEG, three different types of pictures are needed to support differential and bidirectional coding while minimizing error propagation:

I-pictures are intra-coded pictures that need no additional information for decoding. They require a lot of data compared to other picture types, and therefore they are not transmitted any more frequently than necessary. They consist primarily of transform coefficients and have no vectors. I-pictures are decoded without reference to any other pictures, so they allow the viewer to switch channels, and they arrest error propagation.

P-pictures are forward predicted from an earlier picture, which could be an I-picture or a P-picture. P-picture data consists of vectors describing where, in the previous picture, each macroblock should be taken from, and transform coefficients that describe the correction or difference data that must be added to that macroblock. Where no suitable match for a macroblock could be found by the motion compensation search, intra data is sent to code that macroblock. P-pictures require roughly half the data of an I-picture.

B-pictures are bidirectionally predicted from earlier and/or later I- or P-pictures. B-picture data consists of vectors describing where in earlier or later pictures data should be taken from. It also contains the intracoded data that provide necessary corrections. Again, when no suitable match for a macroblock is found by the motion compensation search, intra data is sent to code that macroblock. Bidirectional prediction is quite effective, so most macroblocks in a B-picture will be coded largely by motion vectors. Also, a B-picture is never used as a reference for coding other pictures, so there is no possibility of error propagation. This permits encoders to use more aggressive requantization for correction data. A typical B-picture requires about one quarter the data of an I-picture.

Note that a B-picture does not have to use both directions of prediction; in some circumstances only one direction is employed. This option may be used when constructing closed groups of pictures (GOP).

Figure 2-14 introduces the concept of the GOP. The GOP represents the structure of I-, P-, and B-pictures in the sequence. Generally the GOP structure repeats through the sequence, but the GOP length and structure may be changed at any time. There are no formal limits on the length of a GOP, but for transmission purposes a typical length is 12 or 15 pictures.

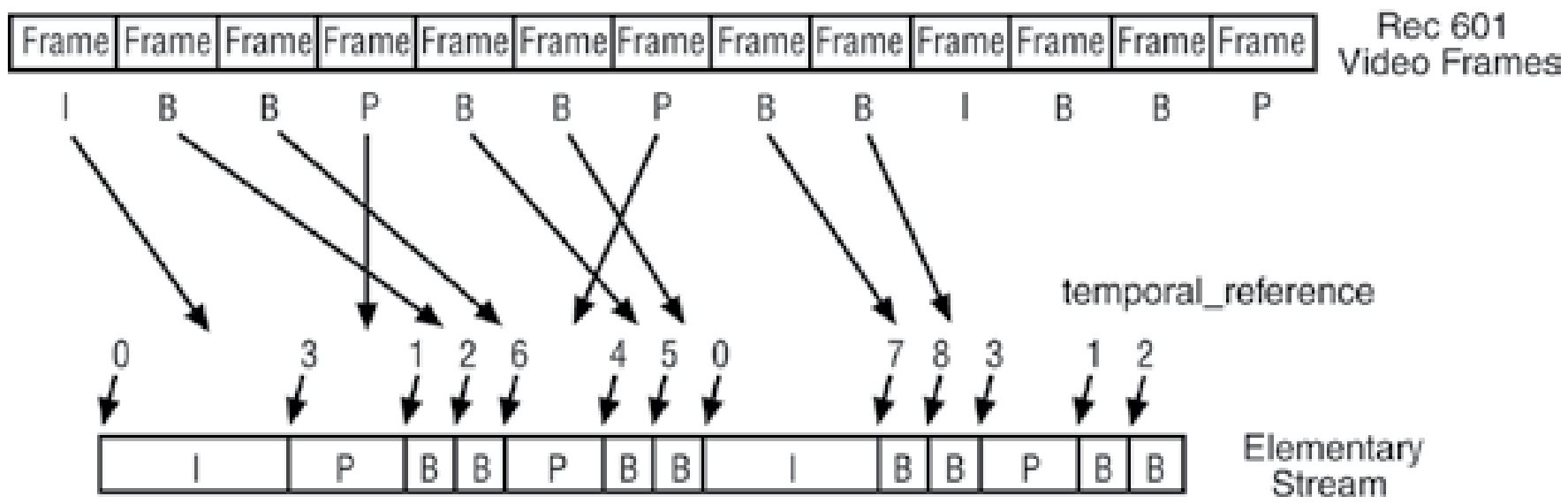

Input frame sequence sent out of order to accommodate revealed areas
Figure 2-14. Input frame sequence sent out of order to accommodate revealed areas.

The nature of MPEG’s temporal compression means that the transmission order of pictures is not the same as the display order. A P-picture naturally follows the I- or P-picture from which it is predicted, so there are no special requirements. A bidirectionally-coded B-picture, however, cannot be decoded until both of its reference pictures have been received and decoded. Figure 2-14 shows the pictures of a GOP in display order at the top, and in transmission order below. Note that, in transmission order, the B-pictures always follow the two reference pictures from which they are predicted.

There are two types of GOP, open and closed. A closed GOP requires no reference outside itself. In display order, it may begin with an I-picture and end with a P-picture. In transmission order there will usually be B-pictures following the last P-picture, but these are pictures that will be displayed before that last P-picture.

It is possible to start and or end a closed GOP with B-pictures (in display order), but in this case the starting and ending B-pictures must be coded using only a single direction of prediction. B-pictures at the start of a closed GOP must use backward prediction only. B-pictures at the end of a closed GOP may use forward prediction only – similar to a P-picture, but B-picture rules would be used for requantization etc.

An open GOP does not have these restrictions on prediction vectors. For example, B-pictures at the end of the GOP can use forward prediction from the last P-picture and backward prediction from the first I-picture of the next GOP. This structure is slightly more efficient, but predictions can cross any picture boundary. It is much more difficult to splice bit streams, and events such as channel changes are more likely to cause picture errors.

The GOP structure may be altered by the encoder when there are scene changes. Predictions across a scene change will usually fail, since there will be large entropy between the two pictures either side of the scene change. An encoder may choose to detect the scene change, use a closed GOP leading up to the scene change, and start a new GOP (open or closed) with an I-picture representing the first picture of the new scene.

Sending picture data out of sequence requires additional memory at the encoder and decoder and also causes delay. The number of bidirectionally-coded pictures between intra- or forward-predicted pictures must be restricted to reduce cost, and to minimize delay if this is an issue.

Bandwidth and quality decreases as GOP increases

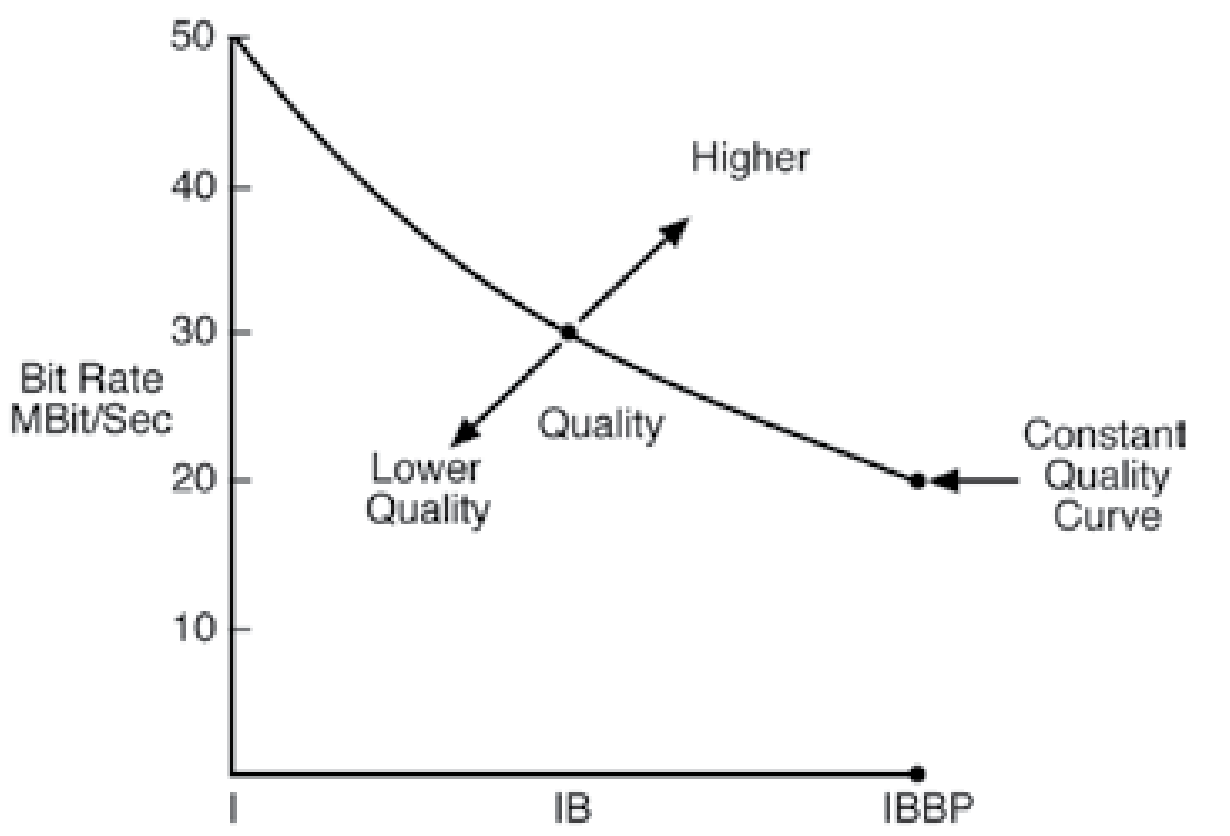

Figure 2-15. Bandwidth and quality decreases as GOP increases.

Figure 2-15 shows the trade-off that must be made between compression factor and coding delay. For a given quality, sending only I-pictures requires more than twice the bit rate of an IBBP sequence.

2.11 An MPEG Compressor

Figures 2-16a, b, and c show a typical bidirectional motion compensator structure. Pre-processed input video enters a series of frame stores that can be bypassed to change the picture order. The data then enter the subtracter and the motion estimator. To create an I-picture, the end of the input delay is selected and the subtracter is turned off so that the data pass straight through to be spatially coded (see Figure 2-16a). Subtracter output data also pass to a frame store that can hold several pictures. The I-picture is held in the store.

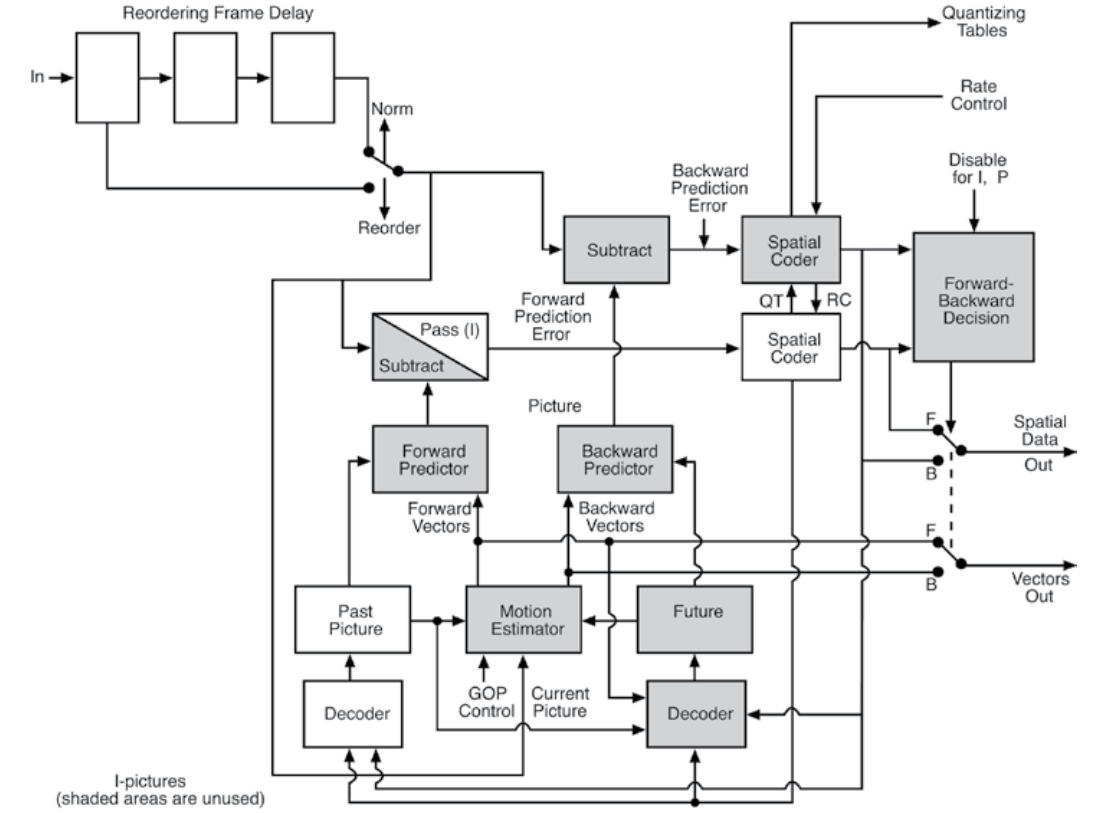

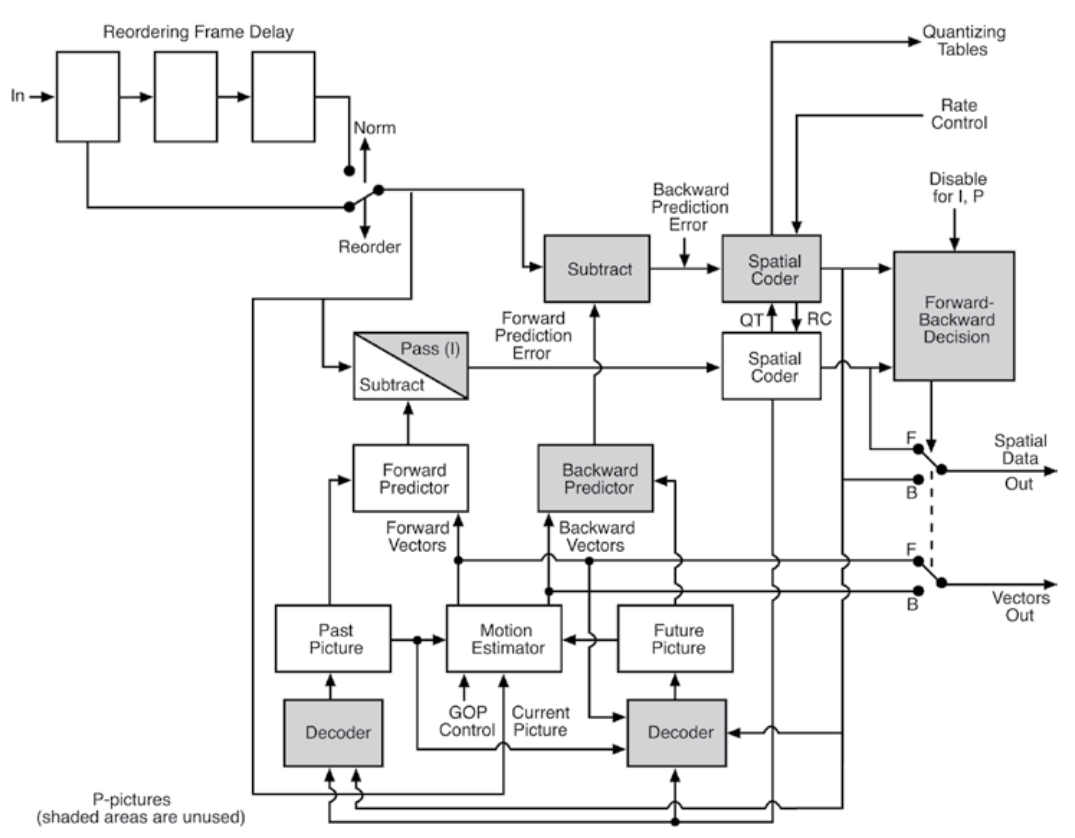

MPEG-2 video encoder flowchart (I-frames highlighted)
Figure 2-16a. MPEG-2 video encoder flowchart (I-frames highlighted).

To encode a P-picture, the B-pictures in the input buffer are bypassed, so that the future picture is selected (see Figure 2-16b). The motion estimator compares the I-picture in the output store with the P-picture in the input store to create forward motion vectors. The I-picture macroblocks are shifted by these vectors to make a predicted P-picture. The predicted P-picture is subtracted from the actual P-picture to produce the prediction error, which is spatially coded and sent along with the vectors. The prediction error is also added to the predicted P-picture to create a locally decoded P-picture that also enters the output store.

MPEG-2 video encoder flowchart (P-frames highlighted)
Figure 2-16b. MPEG-2 video encoder flowchart (P-frames highlighted).

The output store then contains an I-picture and a P-picture. A B-picture from the input buffer can now be selected. The motion compensator will compare the B-picture with the I-picture that precedes it and the P-picture that follows it to obtain bidirectional vectors (see Figure 2-16c). Forward and backward motion compensation is performed to produce two predicted B-pictures. These are subtracted from the current B-picture. On a macroblock- by-macroblock basis, the forward or backward data are selected according to which represent the smallest differences. The picture differences are then spatially coded and sent with the vectors.

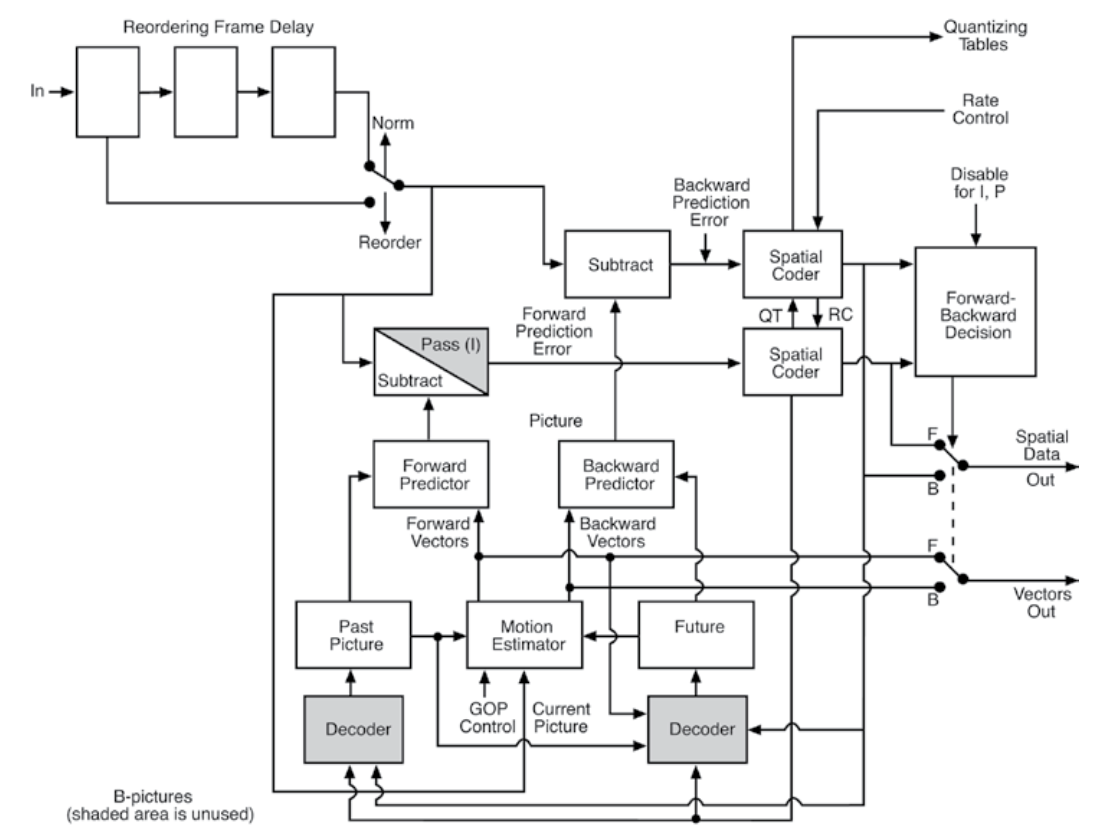

MPEG-2 video encoder flowchart (B-frames highlighted)
Figure 2-16c. MPEG-2 video encoder flowchart (B-frames highlighted).

When all of the intermediate B-pictures are coded, the input memory will once more be bypassed to create a new P-picture based on the previous P-picture.

Rate controller diagram
Figure 2-17. Rate controller diagram.

Figure 2-17 shows an MPEG coder. The motion compensator output is spatially coded and the vectors are added in a multiplexer. Syntactical data is also added which identifies the type of picture (I, P, or B) and provides other information to help a decoder (see Section 5 – Elementary Streams). The output data are buffered to allow temporary variations in bit rate. If the mean bit rate is too high, the buffer will tend to fill up. To prevent overflow, quantization will have to be made more severe. Equally, should the buffer show signs of underflow, the quantization will be relaxed to maintain the average bit rate.

2.12 Preprocessing

A compressor attempts to eliminate redundancy within the picture and between pictures. Anything that reduces that apparent redundancy, that is not picture content, is undesirable. Noise and film grain are particularly problematic because they generally occur over the entire picture. After the DCT process, noise results in more non-zero coefficients, and the coder cannot distinguish this information from genuine picture data. Heavier quantizing will be required to encode all of the coefficients, reducing picture quality. Noise also reduces similarities between successive pictures, increasing the difference data needed.

Residual subcarrier in video decoded from composite video is a serious problem because it results in high, spatial frequencies that are normally at a low level in component programs. Subcarrier also alternates in phase from picture to picture causing an increase in difference data. Naturally, any composite decoding artifact that is visible in the input to the MPEG coder is likely to be reproduced at the decoder.

Any practice that causes unwanted motion is to be avoided. Unstable camera mountings, in addition to giving a shaky picture, increase picture differences and vector transmission requirements. This will also happen with telecine material if sprocket hole damage results in film weave or hop. In general, video that is to be compressed must be of the highest quality possible. If high quality cannot be achieved, then noise reduction and other stabilization techniques will be desirable.

If a high compression factor is required, the level of artifacts can increase, especially if input quality is poor. In this case, it may be better to reduce the entropy presented to the coder by using pre-filtering. The video signal is subject to twodimensional, low-pass filtering, which reduces the number of coefficients needed and reduces the level of artifacts. The picture will be less sharp, but less sharpness is preferable to a high level of artifacts.

In most MPEG-2 applications, 4:2:0 sampling is used, which requires a chroma downsampling process if the source is 4:2:2. In MPEG-1,the luminance and chroma are further downsampled to produce an input picture or CIF (common image format) that is only 352-pixels wide. This technique reduces the entropy by a further factor. For very high compression, the QCIF (quarter common image format) picture, which is 176-pixels wide, is used. Downsampling is a process that combines a spatial low-pass filter with an interpolator. Downsampling interlaced signals is problematic because vertical detail is spread over two fields that may decorrelate due to motion.

When the source material is telecine, the video signal has different characteristics than normal video. In 50-Hz video, pairs of fields represent the same film frame, and there is no motion between them. Thus, the motion between fields alternates between zero and the motion between frames. In 60-Hz video, 3:2 pulldown is used to obtain 60 Hz from 24 Hz film. One frame is made into two fields; the next is made into three fields, and so on.

Consequently, one field in five is completely redundant. MPEG handles film material best by discarding the third field in 3:2 systems. A 24-Hz code in the transmission alerts the decoder to recreate the 3:2 sequence by re-reading a field store. In 50- and 60-Hz telecine, pairs of fields are deinterlaced to create frames, and then motion is measured between frames. The decoder can recreate interlace by reading alternate lines in the frame store.

A cut is a difficult event for a compressor to handle because it often results in an almost complete prediction failure, requiring a large amount of correction data. If a coding delay can be tolerated, a coder may detect cuts in advance and modify the GOP structure dynamically, so that an I-picture is inserted to coincide with the cut. In this case, the cut is handled with very little extra data. The last B-pictures before the I frame will almost certainly need to use forward prediction. In some applications that are not real-time, such as DVD mastering, a coder could take two passes at the input video: one pass to identify the difficult or high entropy areas and create a coding strategy, and a second pass to actually compress the input video.

2.13 Wavelets

All transforms suffer from uncertainty because the more accurately the frequency domain is known, the less accurately the time domain is known (and vice versa). In most transforms such as discreet Fourier transport (DFT) and discreet cosine transform (DCT), the block length is fixed, so the time and frequency resolution is fixed. The frequency coefficients represent evenly spaced values on a linear scale. Unfortunately, because human senses are logarithmic, the even scale of the DFT and DCT gives inadequate frequency resolution at one end and excess resolution at the other.

The wavelet transform is not affected by this problem because its frequency resolution is a fixed fraction of an octave and therefore has a logarithmic characteristic. This is done by changing the block length as a function of frequency. As frequency goes down, the block becomes longer. Thus, a characteristic of the wavelet transform is that the basis functions all contain the same number of cycles, and these cycles are simply scaled along the time axis to search for different frequencies. Figure 2-18 contrasts the fixed block size of the DFT/DCT with the variable size of the wavelet.

MPEG audio use fixed-size FFT while wavelet uses variable size
Figure 2-18. MPEG audio use fixed-size FFT while wavelet uses variable size.

Wavelets are especially useful for audio coding because they automatically adapt to the conflicting requirements of the accurate location of transients in time and the accurate assessment of pitch in steady tones.

For video coding, wavelets have the advantage of producing resolution-scalable signals with almost no extra effort. In moving video, the advantages of wavelets are offset by the difficulty of assigning motion vectors to a variable size block, but in still-picture or I-picture coding this difficulty is not an issue. Wavelet coding has shown particular benefits for verylow bit rate applications. The artifacts generated by excessive quantization of wavelet coefficients generally appear as “smearing,” and these are much less objectionable than the “blockiness” that results from excessive quantization of DCT coefficients.
