AFG302xC/AFG305xC vs. Agilent 33500B Series Arbitrary/Function Generator


Reduced Set-up and Evaluation Time
Tektronix AFG3000C Series
25 Shortcut Keys – Directly access frequently used parameters and settings without browsing through screen menus, saving time.
Reduced Set-up and Evaluation Time
Agilent 33500B Series
✗ 10 Shortcut Keys – All parameters and functions are selected via screen menus. To access some settings, the user has to browse through multiple levels.
Reduced Set-up and Evaluation Time
feature comparison

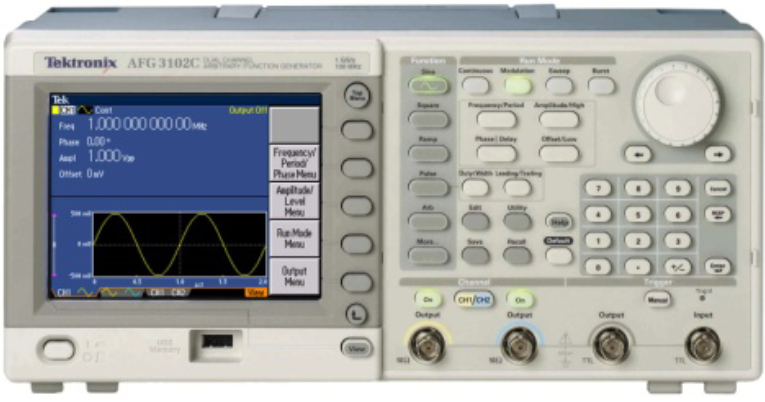

Larger Display
Tektronix AFG3000C Series
5.6” Color LCD – Large display shows all signal parameters and waveform shape at a single glance

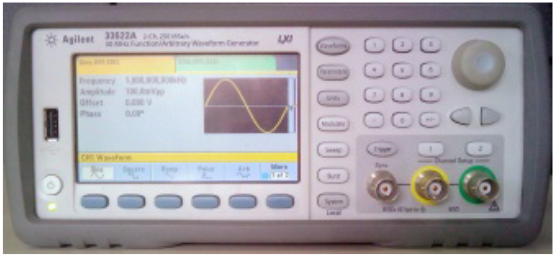

Larger Display
Agilent 33500B Series
✗ 4.3” Color LCD – 30% less viewing space to see signal details and important signal parameters
Larger Display

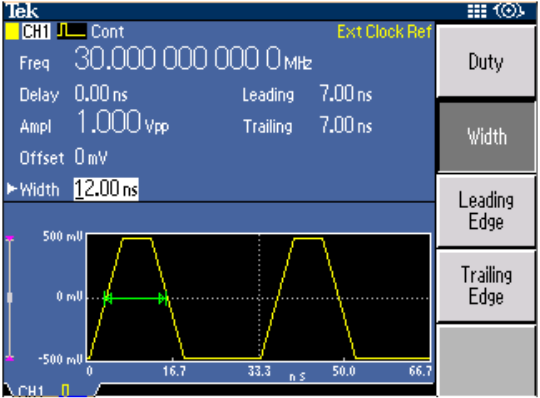

Pulse generation
Tektronix AFG3000C Series
✔ AFG302xC: 25MHz pulse
AFG305xC: 40MHz pulse
✔ AFG302xC: 16ns pulse width
AFG305xC: 12ns pulse width
✔ AFG302xC: 9ns edge times
AFG305xC: 7ns edge times

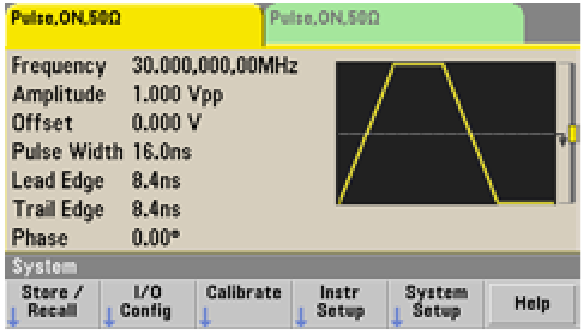

Pulse generation
Agilent 33500B Series
33511/12B: 20MHz pulse
33521/22B: 30MHz pulse
16ns pulse width
8.4ns edge times
Pulse generation
pulse generation

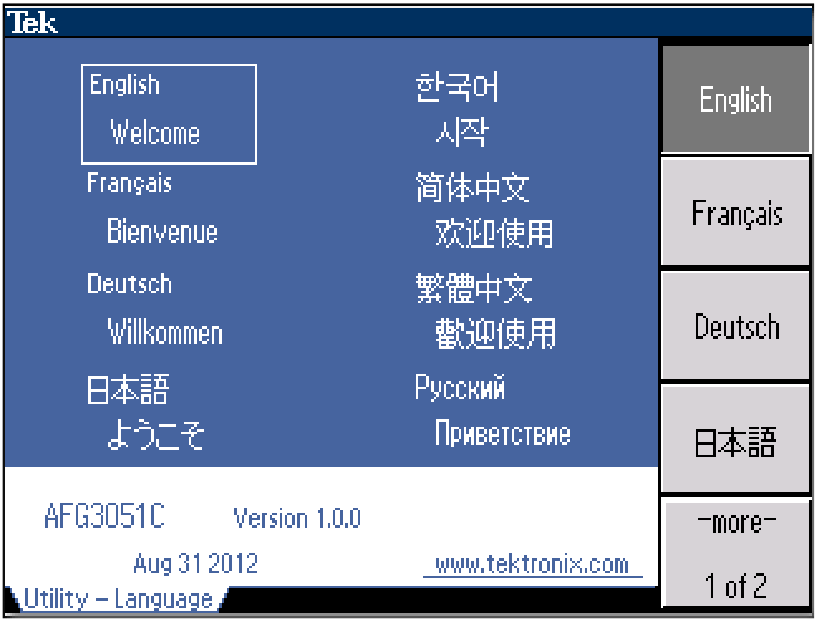

Multi-lingual support
Tektronix AFG3000C Series
✔ Both menus and online help are available in multi languages

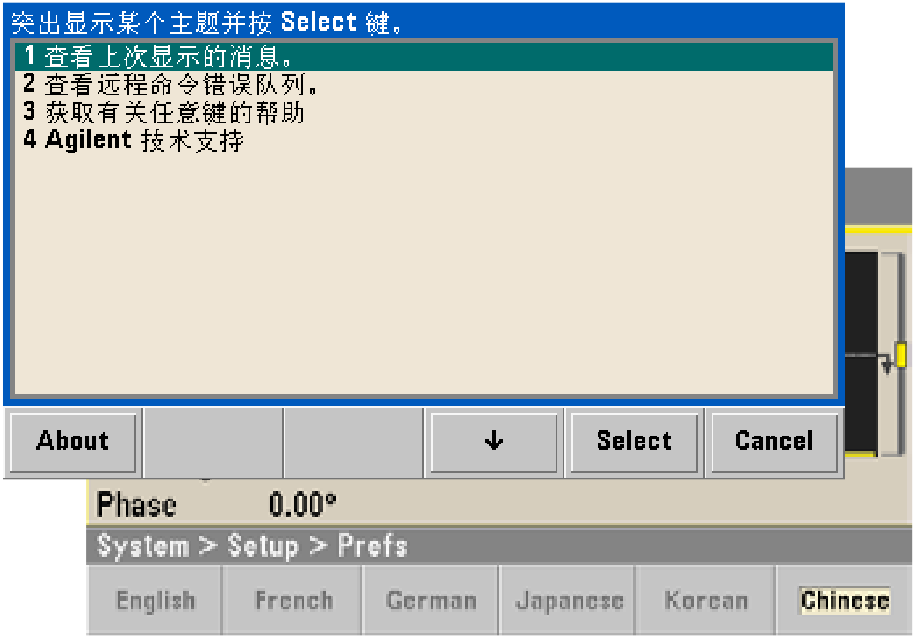

Multi-lingual support
Agilent 33500B Series
Only online help is available in multi languages
Multi-lingual support

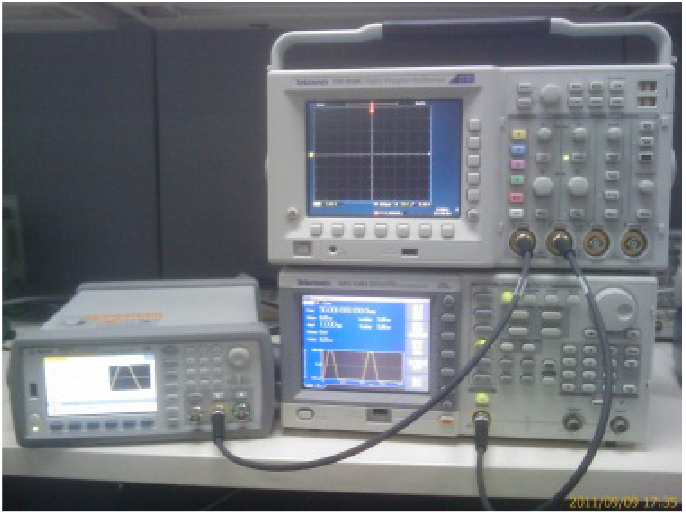

Small Footprint
Tektronix AFG3000C Series
✔ Small footprint optimize bench space: 55, 372 mm2
✔ Mechanically designed to stack with Tektronix scopes to save bench space
One instrument uses full rack width and 5U height.
Agilent 33500B Series
Large footprint requires more bench space: 78,904 mm2
Source and scope must be placed side by side, occupies more bench space
✔ Two units fit side-by-side in rack and use 3U height.
Small Footprint
