LPDA Antenna for Tektronix EMC pre-compliance

EMI-CLP-ANT (Com-Power ALC-100 offered by Tektronix)

EMI-CLP-ANT (Com-Power ALC-100 offered by Tektronix)

The Tektronix EMI-CLP-ANT is the Com-Power ALC-100. It is a compact log period antenna for EMC testing. This antenna is lightweight and compact for easy transport and storage with a frequency range of 300 MHz to 1 GHz. It is ideal for off-site EMC testing or testing inside small EMC chambers.

Key features
  • Frequency range: 300 MHz – 1 GHz (usable from 200 MHz)
  • Transmit and receive capabilities for emissions/immunity applications
  • Individual calibration included per ANSI C63.5 with NIST traceability

Specifications

Antenna
Antenna type
Compact log-periodic dipole array
Frequency range
300 MHz – 1 GHz (useable from 200 MHz)
Nominal input impedance
50 Ω
Polarization
Linear
Power handling
50 Watts continuous
Connector
N-type (female)
Specifications
FCC, CISPR, EN, ETSI, FAA, Mil-Std, Automotive
Dimensions
64.8 mm x 54.6 mm x 13 mm
Weight
0.9 kg

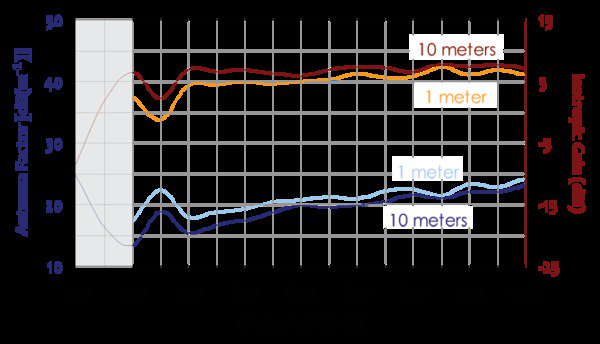

Antenna factor and isotropic gain

EMI-CLPANTdatasheet-EN_US-9-L

Beam width

EMI-CLPANTdatasheet-EN_US-10-L

Ordering information

EMI-CLP-ANT and related accessories
Item Description
EMI-CLP-ANT 300 MHz to 1 GHz compact log periodic antenna
EMI-TRIPOD Antenna Tripod, Wood-Nylon, 0.8 to 1.5 meter adjustable height
Warranty
Three year warranty. All service provided by Com-Power Corporation. Contact https://www.com-power.com/index.html for service.
