Digital and Mixed Signal Oscilloscopes

MSO/DPO70000 Series Datasheet

MSO/DPO70000 Series Datasheet

Engineers rely on an oscilloscope throughout their design cycle, from prototype turn-on to production testing. The MSO/DPO70000 Series oscilloscopes unique capabilities combined with exceptional signal acquisition performance and analysis accelerate your measurement tasks.

Key performance specifications

  • Up to 33 GHz analog bandwidth and rise time as fast as 9 ps. Enables measurement on the latest high-speed serial standards
  • True 33 GHz Real-time Analog Bandwidth on 2 Channels with 33 GHz models
  • Industry-leading sample rate and timing resolution
    • 100 GS/s on 2 Channels (33, 25, 23, 20, 16, and 12.5 GHz models)
  • Four-channel Simultaneous Performance
    • Up to 23 GHz Bandwidth
    • Up to 50 GS/s Real-time Sample Rate
    • Up to 500 Megasample Record Length with MultiView Zoom™ for quick navigation
    • Fastest Waveform Capture Rate with >300,000 wfms/s maximum per channel
  • 16 Logic Channels with 80 ps Timing Resolution for Debug of digital and analog signals (MSO70000 Series only)
  • Unique iCapture® capability enables viewing analog characteristics of digital channels with single probe connection
  • 6.25 Gb/s Real-time Serial Trigger – Assures triggering on the first instance of a specified NRZ or 8b/10b pattern to allow isolation of pattern-dependent effects
  • Application Support for High-speed Serial Industry Standards, wideband RF, Power supplies, and memory – Enables standard-specific certification, measurement automation, and ease of use

Key features

  • Superior signal integrity and excellent signal-to-noise ratio – observe the truest representation of your waveform
  • Pinpoint triggering – minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
  • Visual Trigger – precisely qualify triggers and find unique events in complex waveforms
  • Search and Mark – provides waveform or serial bus pattern matching and software triggers for signals of interest
  • Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI® C-PHY, D-PHY and M-PHY
  • P7700, P7600, and P7500 TriMode probing system – perfectly matched signal connectivity, with calibration to probe tip
  • P6780, P6750, and P6717A high-performance 17-channel logic probes with bandwidths up to 2.5 GHz for connections to today's fast digital signals (MSO70000 Series only)

Connectivity

  • USB 2.0 host port on both the front panel and rear panel for quick and easy data storage, printing, and connecting a USB keyboard
  • Integrated 10/100 Ethernet port for network connection and Video Out port to export the oscilloscope display to a monitor or projector

DPO/DSA/MSO70000 Quick Selection Guide

Quick selection guide
Model Analog Bandwidth Analog Sample Rate – 2/4 Channels Standard Memory – Analog + Digital Analog Channels Logic Channels
DPO70804C 8 GHz 25 GS/s 31 MS 4
MSO70804C 8 GHz 25 GS/s 62 MS 4 16
DPO71254C 12.5 GHz 100 GS/s / 50 GS/s 31 MS 4
MSO71254C 12.5 GHz 100 GS/s / 50 GS/s 62 MS 4 16
DPO71604C 16 GHz 100 GS/s / 50 GS/s 31 MS 4
MSO71604C 16 GHz 100 GS/s / 50 GS/s 62 MS 4 16
DPO72004C 20 GHz 100 GS/s / 50 GS/s 31 MS 4
MSO72004C 20 GHz 100 GS/s / 50 GS/s 62 MS 4 16
DPO72304DX 23 GHz 100 GS/s / 50 GS/s 31 MS 4
MSO72304DX 23 GHz 100 GS/s / 50 GS/s 62 MS 4 16
DPO72504DX 25 GHz 100 GS/s / 50 GS/s 31 MS 4
MSO72504DX 25 GHz 100 GS/s / 50 GS/s 62 MS 4 16
DPO73304DX 33 GHz 100 GS/s / 50 GS/s 31 MS 4
MSO73304DX 33 GHz 100 GS/s / 50 GS/s 62 MS 4 16

Application support

  • High-speed serial industry standards compliance
  • SignalVu RF and vector signal analysis
  • DDR memory bus analysis

Applications

  • Design verification including signal integrity, jitter, and timing analysis
  • Design characterization for high-speed, sophisticated designs
  • Certification testing of serial data streams for industry standards
  • Memory bus analysis and debug
  • Prototype turn-on and power supply verification
  • Research and investigation of transient phenomena
  • Production testing of complex systems
  • Spectral analysis of transient or wide-bandwidth RF signals

System turn-on and verification

From the time a design is first powered up through the initial operational checks, the MSO/DPO70000 Series provide the features you need.

Uncompromised four-channel acquisition

With very low noise and up to 50 GS/s sample rate on all four channels the DPO70000 Series ensures that signal integrity checks and timing analysis can be done without worrying about noise and jitter in the scope distorting the measurements. Single-shot bandwidths up to 23 GHz on all four channels ensure that you'll capture your signals of interest without worrying about undersampling when using more than 1 or 2 channels.

For applications requiring the lowest internal noise and jitter, 100 GS/s performance further reduces noise and jitter and provides additional measurement headroom.

Unmatched acquisition and signal-to-noise performance

The superior signal integrity and excellent signal-to-noise ratio of the MSO/DPO70000 Series ensures confidence in your measurement results.

  • Up to 33 GHz, matched across 4 channels
  • Bandwidth enhancement eliminates imperfections in frequency response all the way to the probe tip. User-selectable filters for each channel provide magnitude and phase correction for more accurate representation of extremely fast signals. In addition, only Tektronix allows the user to disable the bandwidth enhancement for applications needing the highest measurement throughput.
  • Simultaneous high sample rate on all channels captures more signal details (transients, imperfections, fast edges)
    • 100 GS/s on 2 channels and 50 GS/s on all analog channels for the 12.5 through 33 GHz models
    • 25 GS/s on all analog channels for the 8 GHz models
    • 12.5 GS/s on all logic channels in the MSO70000 Series
  • Low jitter noise floor and high vertical accuracy provide additional margin in your measurements
  • Long record length provides high resolution and extended-duration waveform capture
    • Standard 31 MS per channel on the DPO70000 Series and 62 MS on the MSO70000 Series
    • Optional up to 125 MS on all four channels (8 GHz models) and 250 MS (12.5 through 20 GHz models) on all four channels; up to 500 MS on four channels/1 GS on two channels for 23, 25, and 33 GHz models.
    • On the MSO70000 Series, the record length of logic channels matches the analog record lengths for uncompromised analog and digital acquisition
    • MultiView Zoom helps you manage long records, compare and analyze multiple waveform segments
  • With high signal-to-noise ratio and low internal noise floor, the MSO/DPO70000 Series enable you to perform precise characterization measurements. When debugging a DUT, a low noise floor and maximum signal fidelity of the measurement instrument allows you to find the smallest anomalies affecting the DUT's performance. For RF signals, a lower noise floor translates into a higher dynamic range, opening the MSO/DPO70000 Series to a wider range of applications.

Widest range of probing solutions

Whether you need to measure 8 Gb/s serial data, fast digital logic, or switching currents from your new power supply design, Tektronix offers a vast array of probing solutions, including active single-ended, differential, logic, high voltage, current, optical, and a wide range of probe and oscilloscope accessories.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

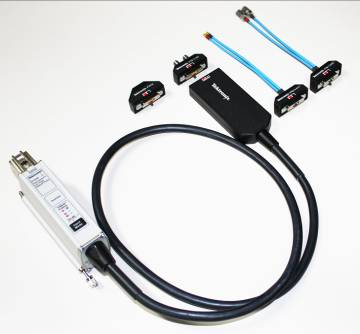

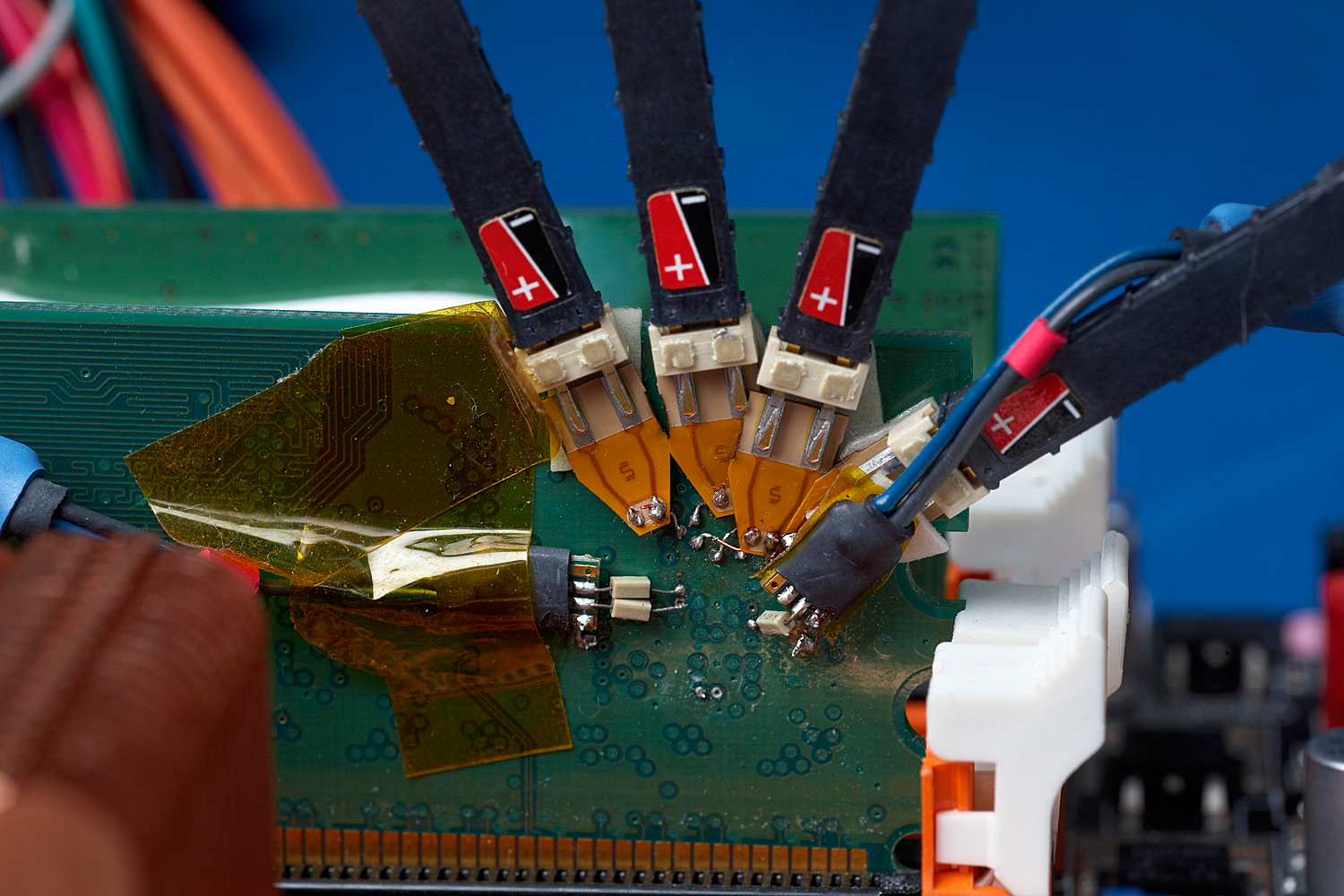

P7633 Low Noise TriMode probes simplify complex measurement setups.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

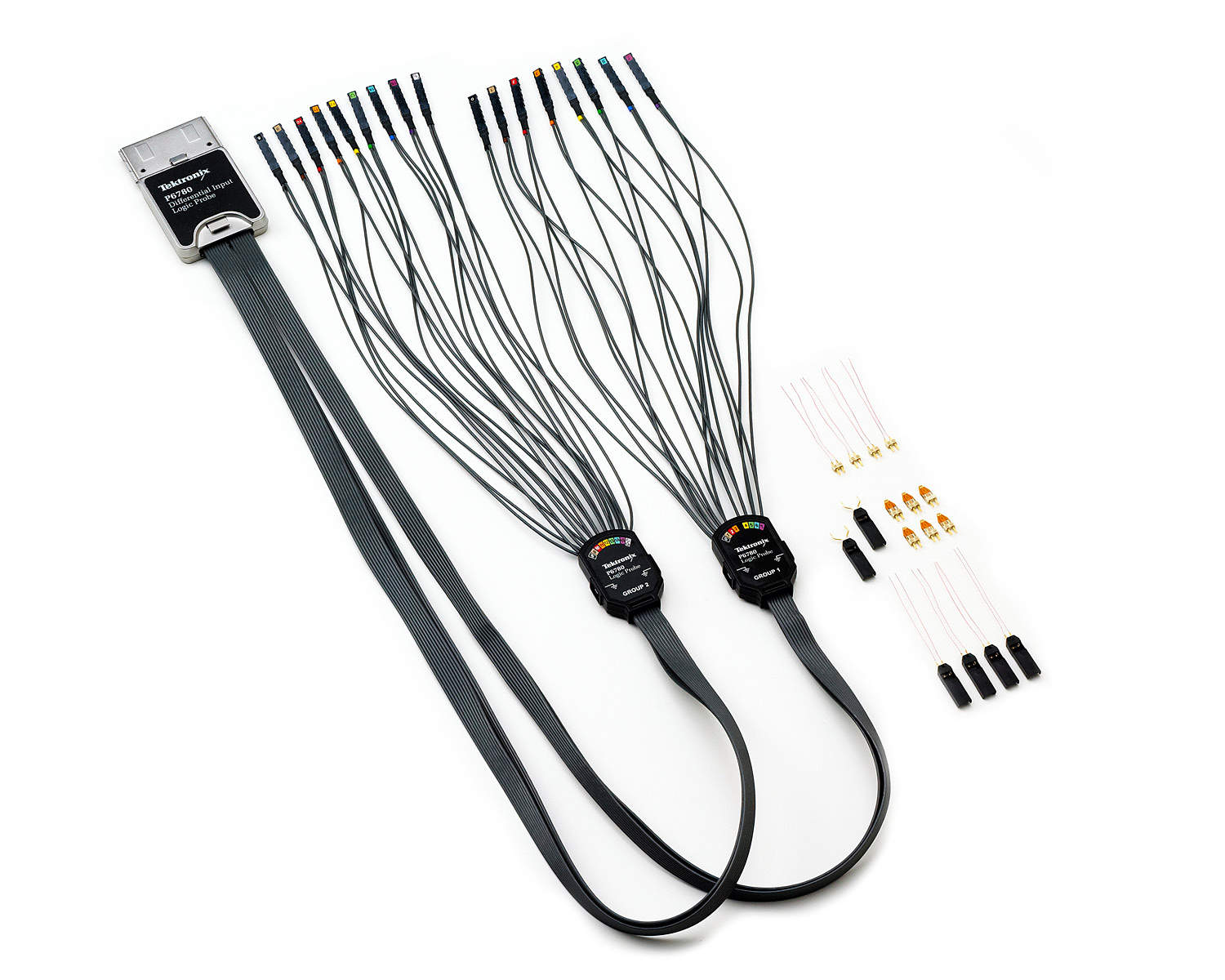

P6780 Differential Logic probes provide high-bandwidth connections for up to 16 digital signals.

16-channel digital acquisition (MSO70000 Series)

When you have many interfaces to verify, the MSO70000 Series with 4 analog and 16 logic channels enables efficient channel-to-channel timing checks. With timing resolution of 80 ps, the MSO70000 Series digital acquisition system enables you to make precise timing measurements on as many as 20 channels simultaneously.

iCapture™ – One connection for analog and digital (MSO70000 Series)

The number of signals that must be verified can often make the checkout of a design long and involved. By using the iCapture digital-to-analog multiplexer feature, you can easily verify the analog characteristics of any of the 16 signals connected to the MSO70000 Series digital channels without changing probes or connections. Using iCapture, you can quickly view the analog characteristics of any input channel. If the signal is working as expected, relegate it to a digital-only view and continue testing other lines.

Bus decoding and triggering

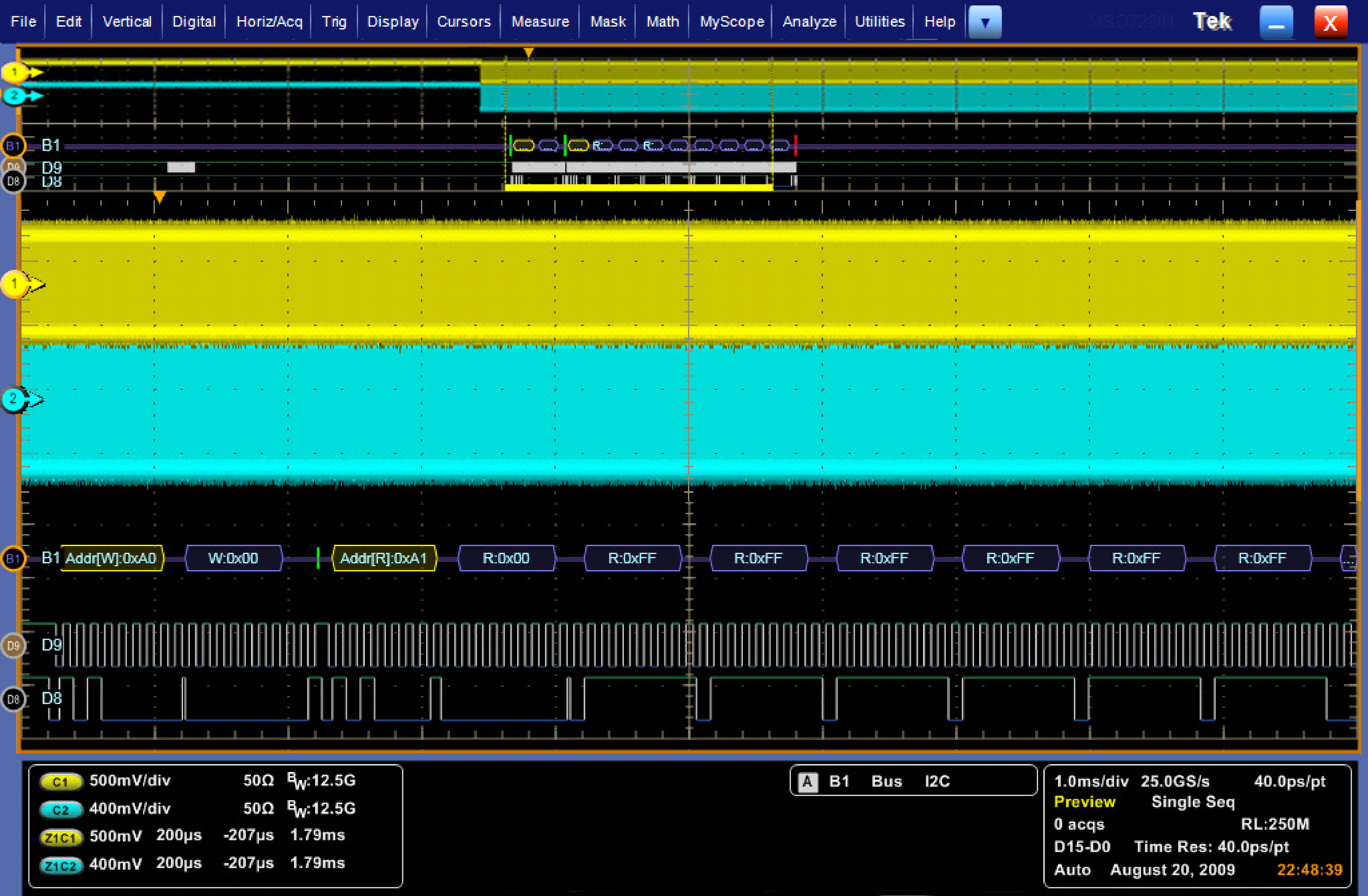

Verifying your system operation often requires the ability to see specific system states on a key bus such as the DDR SDRAM interface. The MSO/DPO70000 Series includes parallel and serial bus decoding that provides deeper insight into the system's behavior. Using the bus triggering capability of the MSO/DPO70000 Series to isolate the exact state needed or find invalid bus sequences is as easy as defining the bus and choosing the bit pattern or symbolic word that describes the desired state. In addition, serial bus decoding for 8b/10b encoded data, I2C, SPI, RS-232/422/485/UART, USB, and MIPI DSI and CSI2 buses enables you to identify where control and data packets begin and end as well as identify subpacket components such as address, data, CRC, etc.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

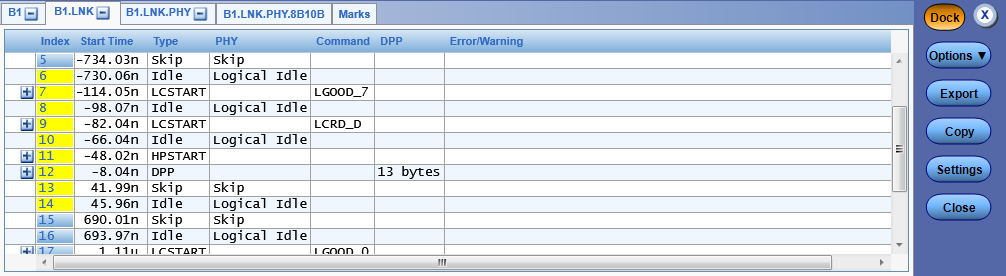

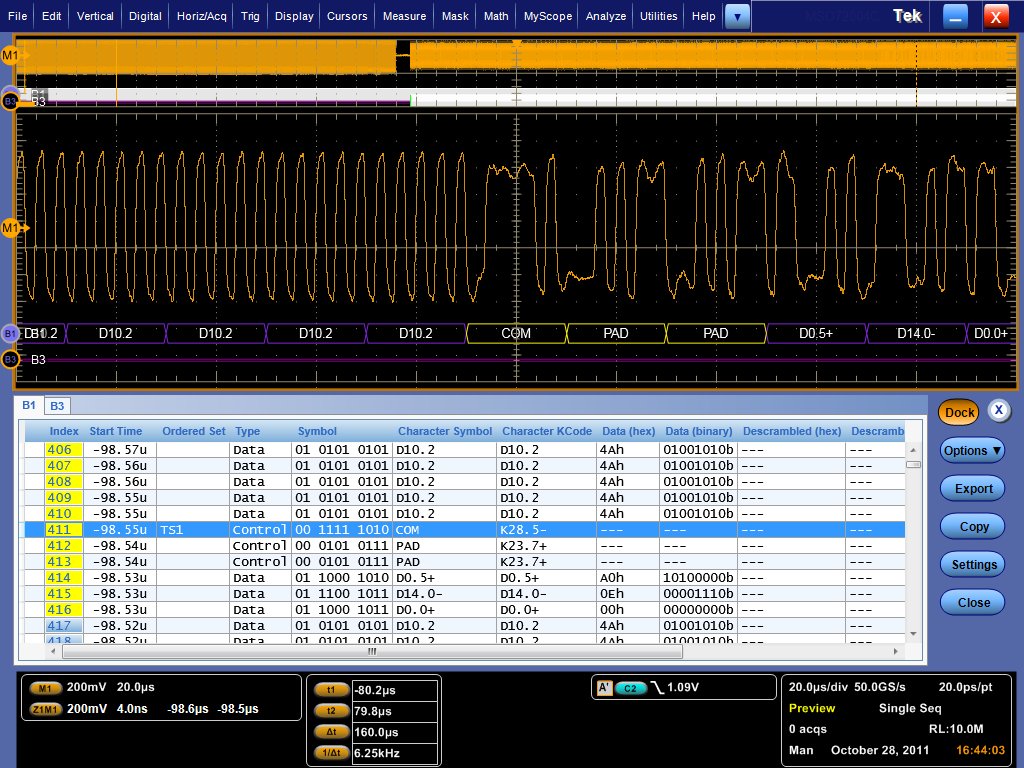

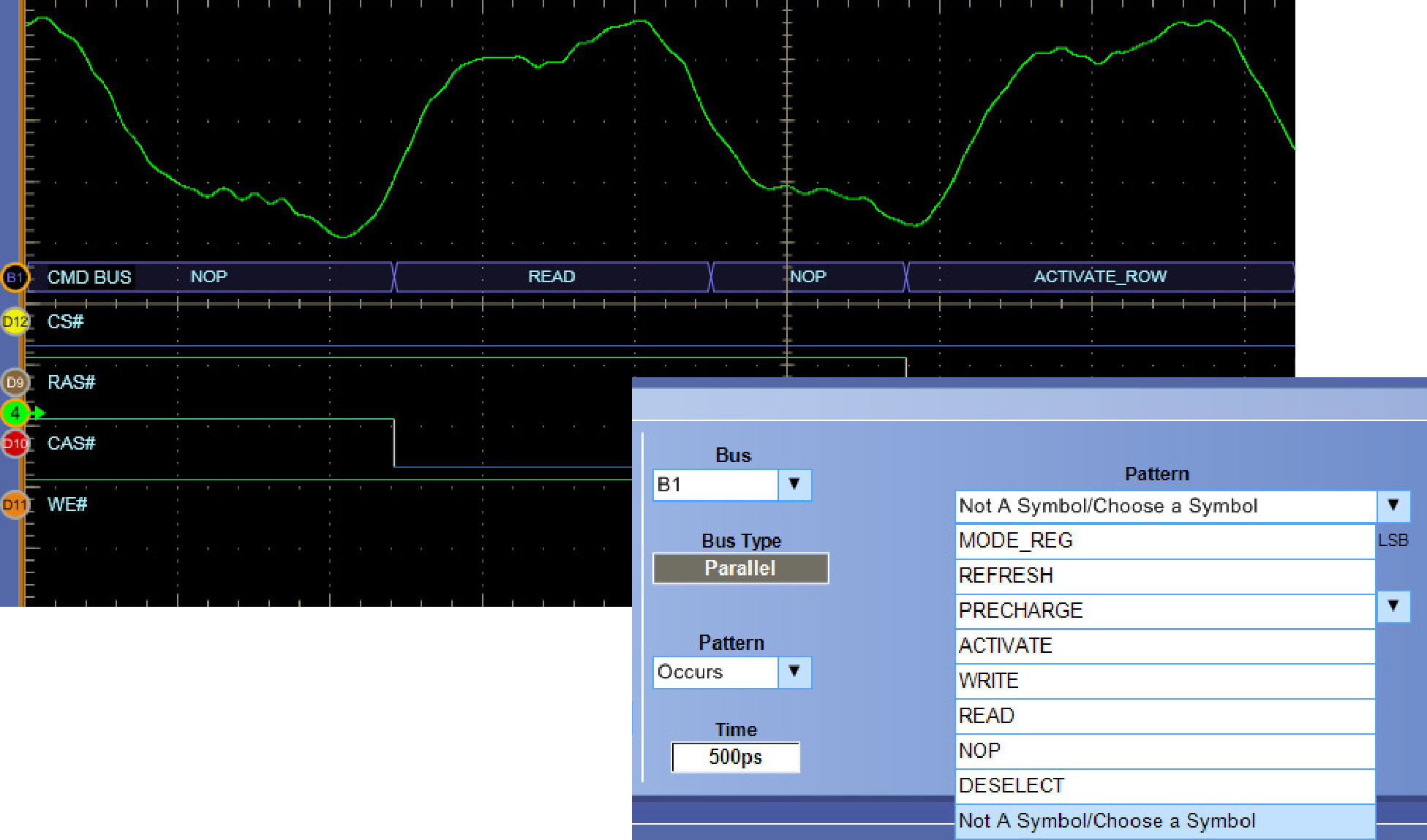

Symbolic bus formats simplify identifying system states and setting up bus triggers.

Deep record length available on all channels

Longer duration events such as power supply sequencing and system status words can be analyzed without sacrificing timing resolution using the long memory depths available on all four analog channels in the DPO70000 Series as well as the 16 logic channels of the MSO70000 Series. Optional memory depths up to 125 MS (Option 10XL) on the 8 GHz models, 250 MS (Option 20XL) on the 12.5 through 20 GHz models and 500 MS (4 channels)/1 GS (2 channels) with option 50XL on the 23 through 33 GHz models are available.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

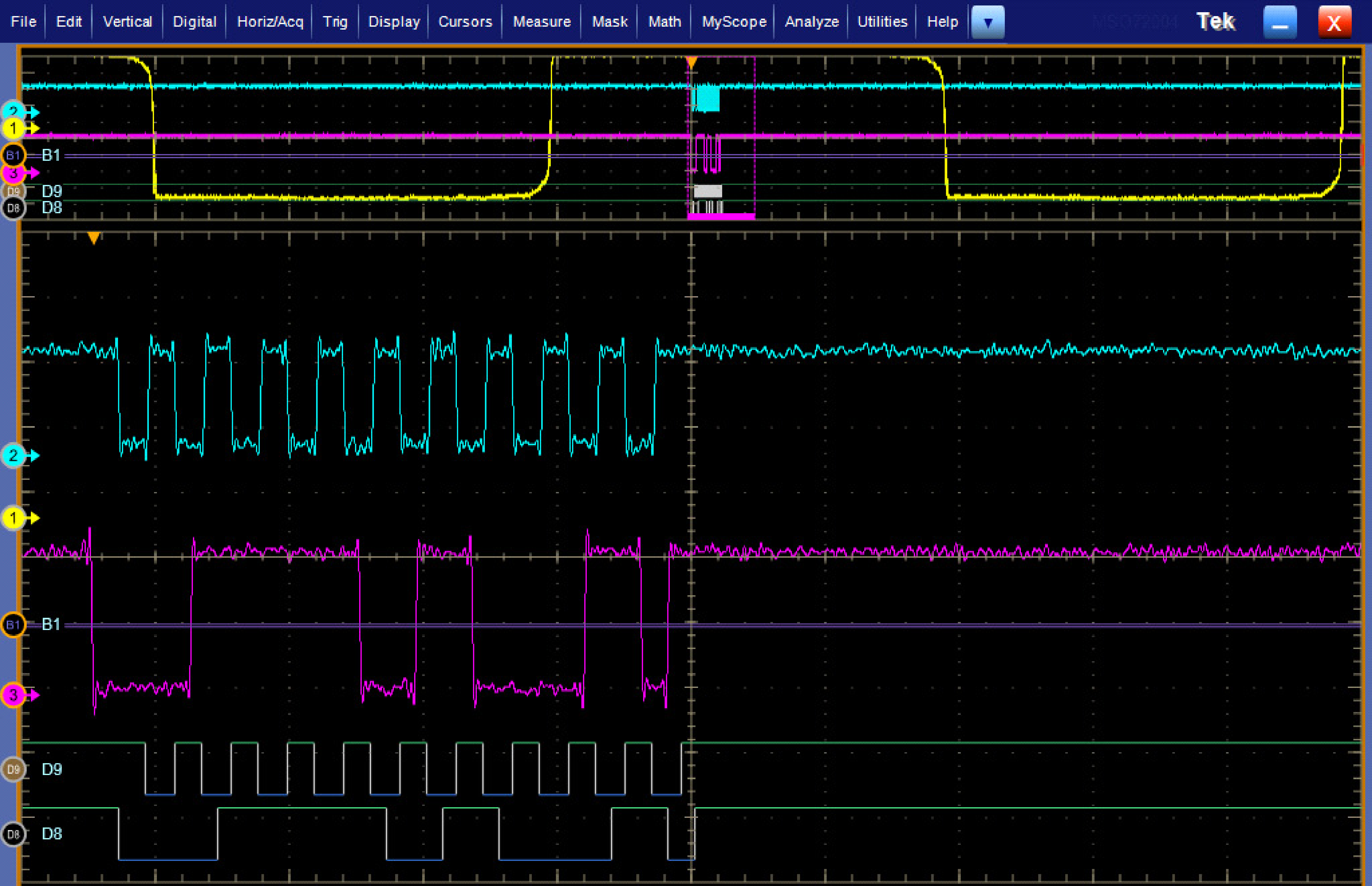

10 ms duration capture of synchronous high-speed and low-speed signals at 25 GS/s.

Power supplies can be a critical failure point in any system. Careful testing of the power delivery system's power on sequence can be time consuming. The MSO70000 Series provides independent logic thresholds for each logic channel enabling multiple logic voltages to be set up and observed simultaneously for quick verification of the system's power rails.

Protocol and serial pattern triggering

To verify serial architectures, the serial pattern triggering for NRZ serial data streams with built-in clock recovery in the MSO/DPO70000 Series allows correlating events across physical and link layers. The instruments can recover the clock signal, identify transitions, and allow you to set the desired encoded words for the serial pattern trigger to capture. This feature comes standard on the MSO70000 Series and is available on the DPO70000 Series as Option ST6G. For higher bit rate standards like USB 3.0, the 8b/10b serial pattern trigger and decode covers data rates up to 6.25 Gb/s.

Pattern lock triggering adds an extra dimension to NRZ serial pattern triggering by enabling the oscilloscope to take synchronized acquisitions of a long serial test pattern with outstanding time base accuracy. Pattern lock triggering can be used to remove random jitter from long serial data patterns. Effects of specific bit transitions can be investigated, and averaging can be used with mask testing. Pattern lock triggering supports up to 6.25 Gb/s NRZ serial data streams and is standard on the MSO70000 Series instruments, or is included as part of Option ST6G on the DPO70000 Series.

Visual Trigger – Find the signal of interest quickly

Finding the right cycle of a complex bus can require hours of collecting and sorting through thousands of acquisitions for an event of interest. Defining a trigger that isolates the desired event speeds up debug and analysis efforts.

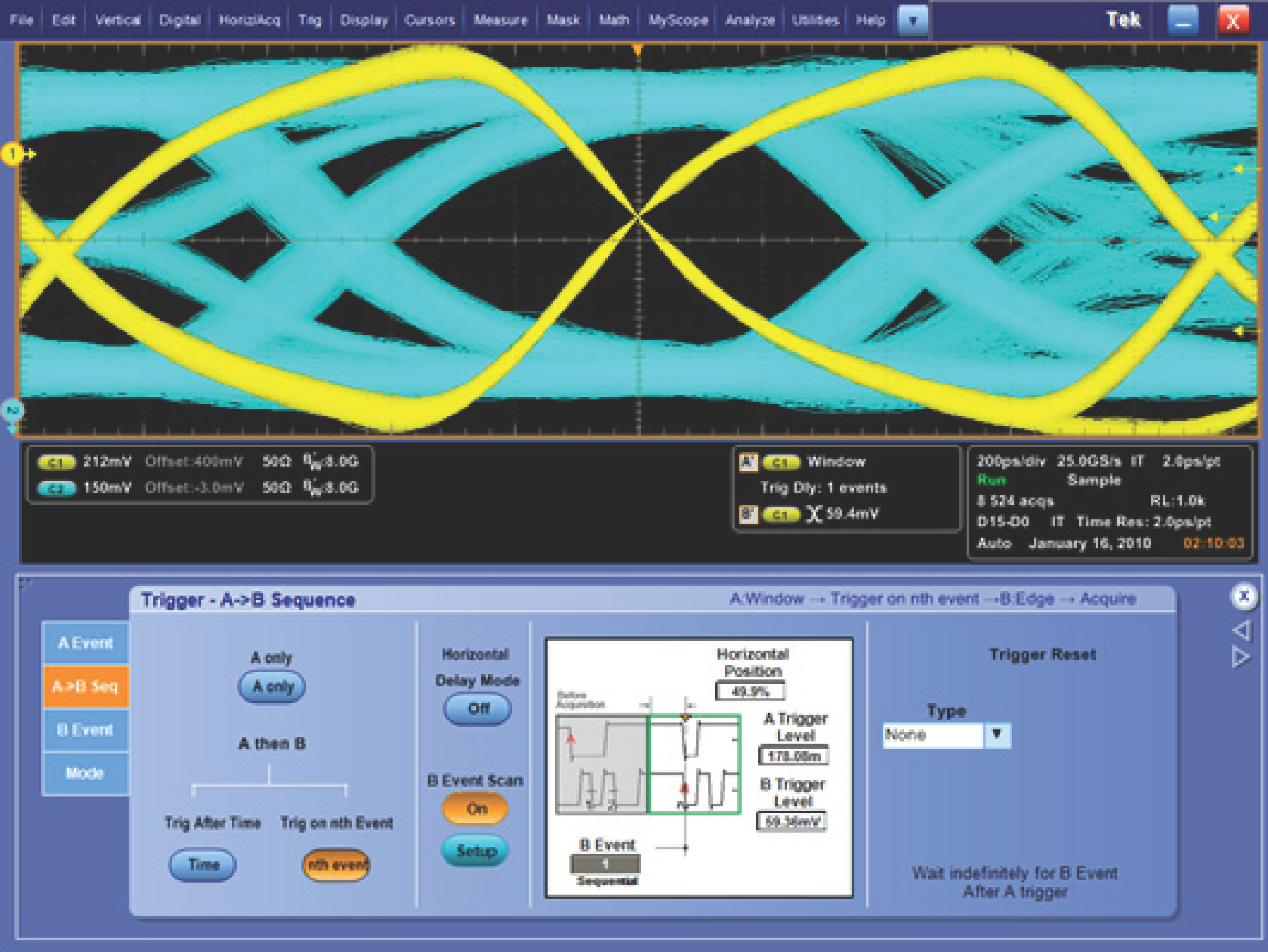

Visual Trigger qualifies the Tektronix Pinpoint Triggers by scanning through all waveform acquisitions and comparing them to on-screen areas (geometric shapes). Up to eight areas can be created using a mouse or touchscreen, and a variety of shapes (triangles, rectangles, hexagons, or trapezoids) can be used to specify the desired trigger behavior. Once shapes are created, they can be edited interactively to create ideal trigger conditions

Visual Trigger extends the Tektronix oscilloscope's triggering capabilities for a wide variety of complex signals as illustrated by the examples shown here.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

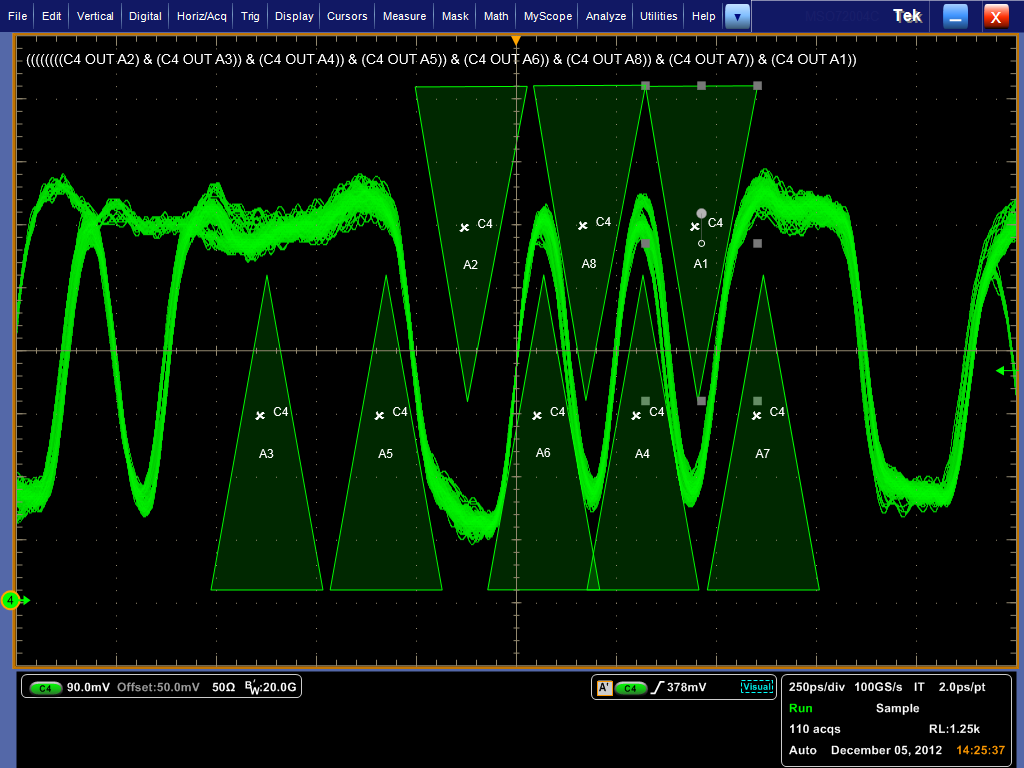

Customized serial triggering. Visual Trigger set to find a serial data pattern of 1101 0101.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

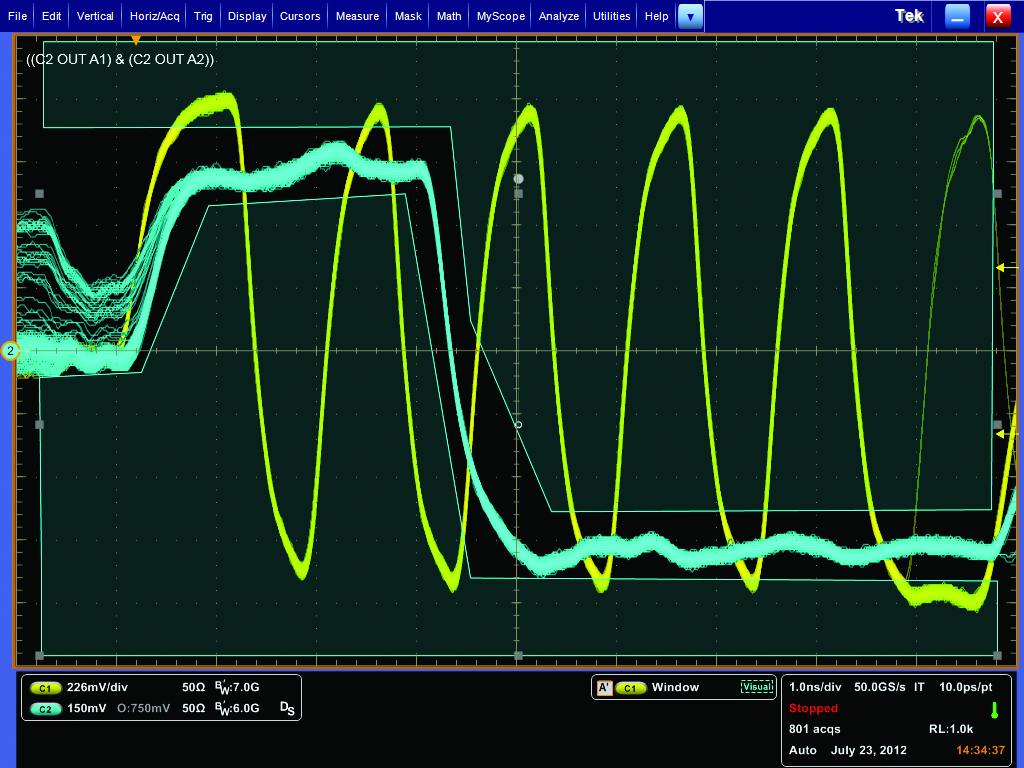

Multiple channel triggering. Visual Trigger areas can be associated with events spanning multiple channels such as packets transmitted on two USB2.0 buses simultaneously.

By triggering only on the most important signal events, Visual Trigger can save hours of capturing and manually searching through acquisitions. In seconds or minutes, you can find the critical events and complete your debug and analysis efforts. Using the Mark All Trigger Events feature, once your Visual Trigger is set, your oscilloscope can automatically search the entire acquired waveform for all events with the same characteristics and mark them for you - a great time-saving feature.

DDR memory bus events involve clocks, strobes and data channels as well as multiple amplitudes and bursts of data.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
DDR memory. Visual Trigger used to isolate a rare occurrence of a write burst on a specific bit pattern in DDR3. The trigger event is a Write DQ burst of 11000000, when the DQ launch starts from a non-tri-state voltage value. DDR memory bus events involve clocks, strobes and data channels as well as multiple amplitudes and bursts of data.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

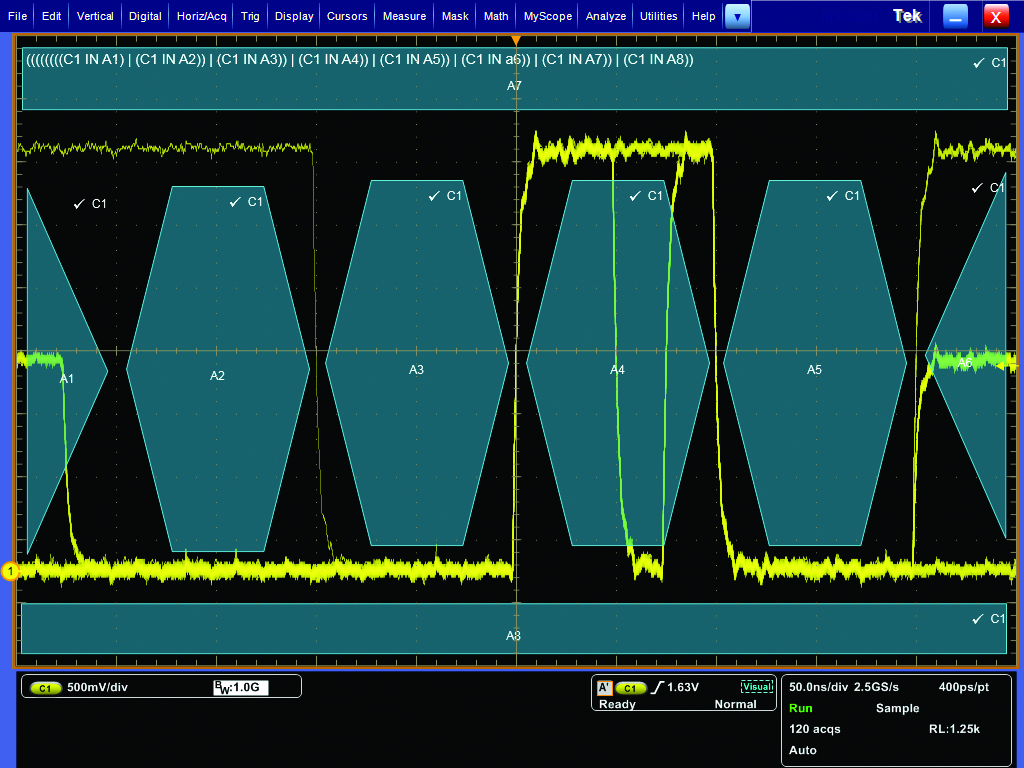

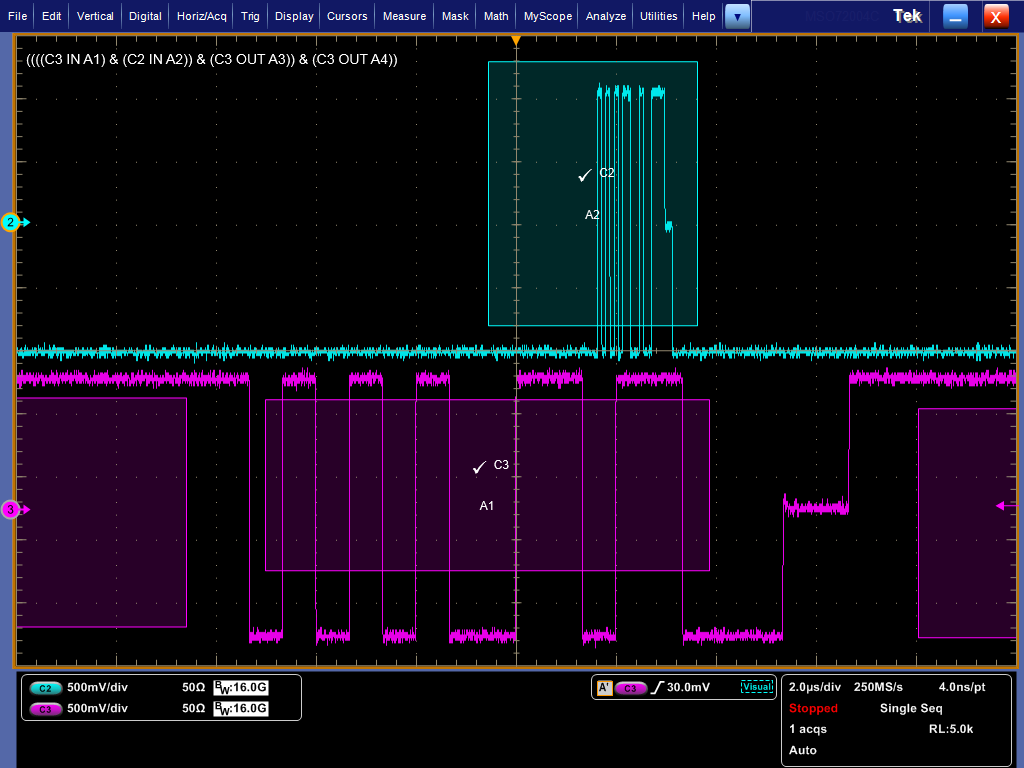

Boolean logic trigger qualification. Boolean logic using logical OR allows the user to simultaneously monitor each bit and capture the occurrence of an anomaly at any point in the acquisition.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

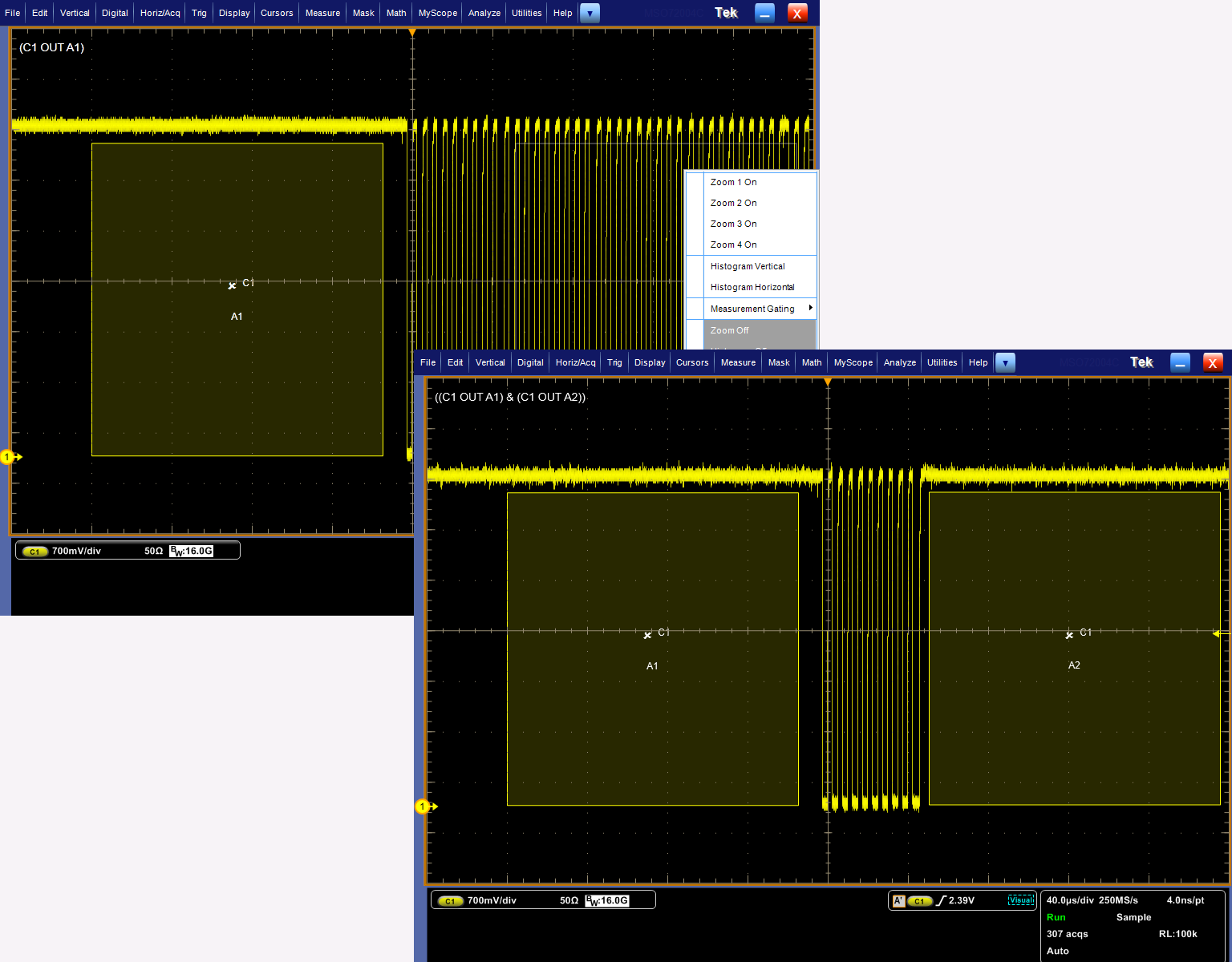

Trigger on the width of a burst of 10 pulses. By drawing a "Must be outside" area before the first clock pulse and a second "Must be outside" area after the tenth pulse, as shown, you can define a Visual Trigger setup that captures the desired burst width.

System characterization and margin testing

When a design is working correctly and the next task is to fully characterize its performance, the MSO/DPO70000 Series offers the industry's most comprehensive set of analysis and certification tools, such as math expressions, waveform mask testing, pass/fail testing, event searching, and event marking. Tools for automation reduce the tedium, increase reliability, and speed up the process of making hundreds of characterization measurements.

Advanced waveform analysis

Full analysis of the power, voltage, and temperature corners of your system under test can be very time consuming. The MSO/DPO70000 Series offer a wide range of built-in advanced waveform analysis tools.

Waveform cursors make it easy to measure trace-to-trace timing characteristics, while cursors that link between YT and XY display modes make it easy to investigate phase relationships and Safe Operating Area violations. Select from 53 automatic measurements using a graphical palette that logically organizes measurements into Amplitude, Time, Histogram, and Communications categories. Gather further insight into your measurement results with statistical data such as mean, min, max, standard deviation, and population.

Define and apply math expressions to waveform data for on-screen results in terms that you can use. Access common waveform math functions with the touch of a button. Or, for advanced applications, create algebraic expressions consisting of live waveforms, reference waveforms, math functions, measurement values, scalars, and user-adjustable variables with an easy-to-use calculator-style editor.

With deep acquisition memory, margin testing can be done over many cycles and long duration trends in the data can be observed. Plus, data from the oscilloscope can be captured into Microsoft Excel using the unique Excel toolbar, and formatted into custom reports using the Word toolbar provided with the MSO/DPO70000 Series.

Automated tools to increase measurement throughput

Ease of use and measurement throughput are key when a large number of measurements must be completed with a performance oscilloscope. MSO70000 Series come standard with the DPOJET Advanced Jitter and Eye Diagram measurement application, providing the tools you need to quickly perform a high volume of measurements and collect statistics. DPOJET Essentials is standard on the DPO70000 Series with the DPOJET advanced version available as an option. Application-specific measurement packages are also available that extend DPOJET and perform the extensive set of tests required by industry standard groups. User-defined measurements can be added to DPOJET using the Application Developers Kit (ADK) that comes standard with the oscilloscope.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

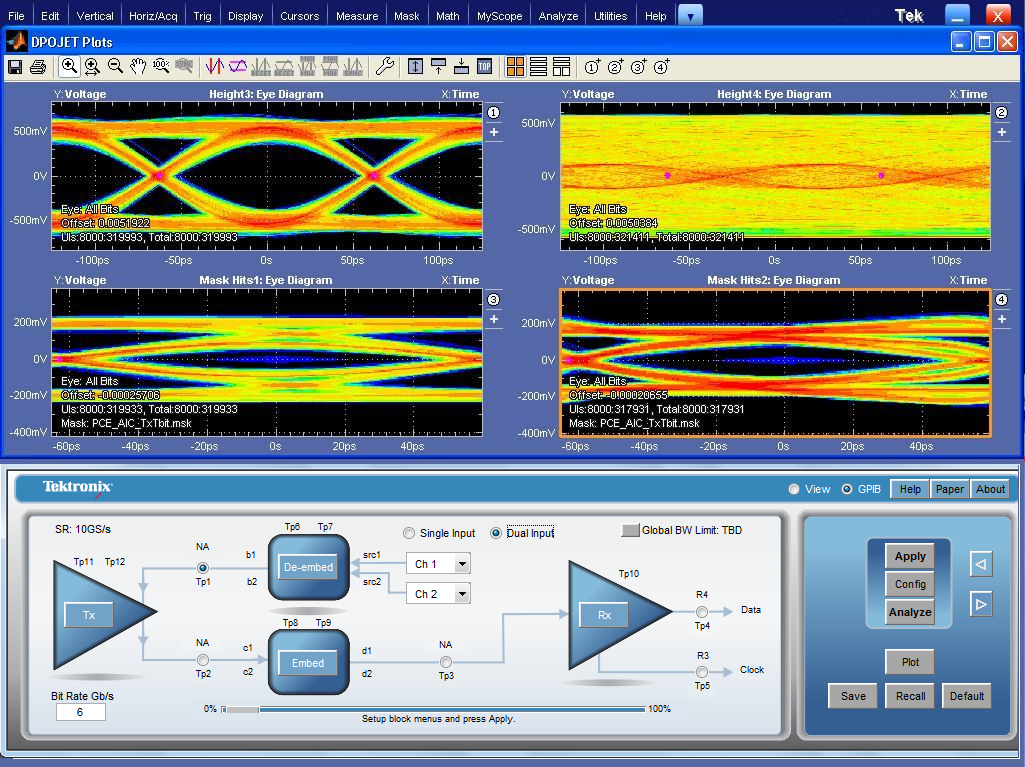

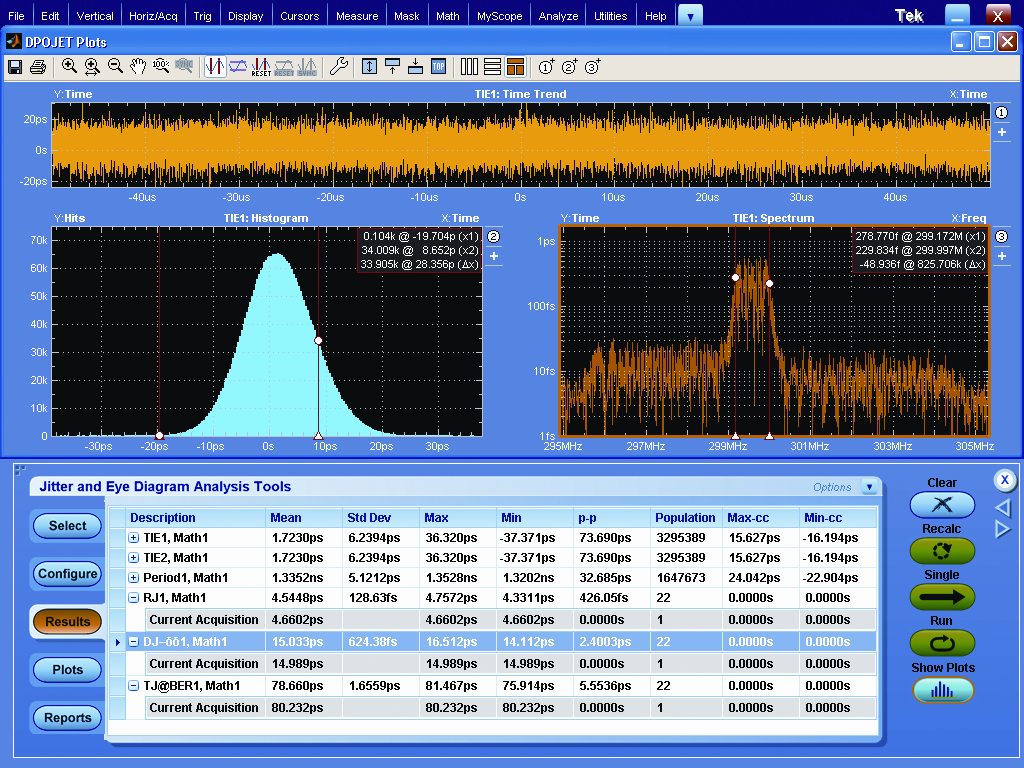

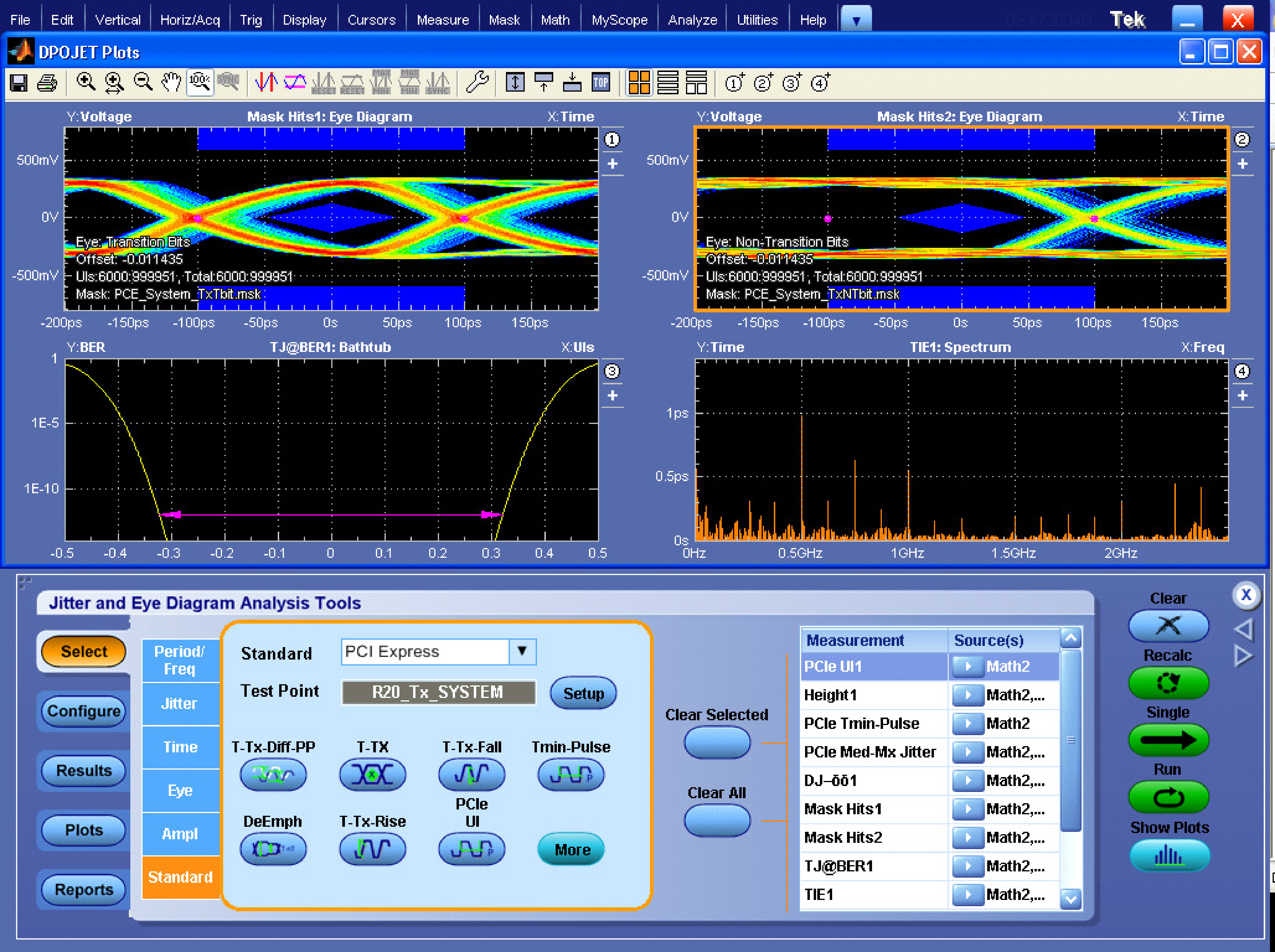

DPOJET Jitter and Eye Diagram Analysis – Simplify identifying signal integrity concerns, jitter, and their related sources with DPOJET software. DPOJET provides the highest sensitivity and accuracy available for real-time oscilloscopes.

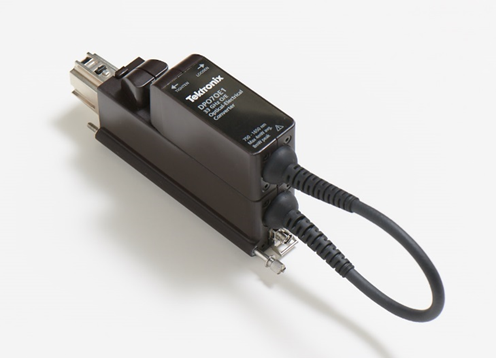

To support the DPO7OE1 optical probe, DPOJET now also provides optical measurements, such as Extinction Ratio (ER), Average Optical Power (AOP), Optical Modulation Amplitude (OMA), Optical High value, and Optical Low value.

Error detector

When performing receiver testing on a serial transceiver, a BER measurement is often required. The MSO/DPO70000 series offer an optional built-in error detector function for 8b/10b-encoded signals. The built-in error detector comes with presets for testing PCIe, USB3.0, and SATA signals up to 6 Gb/s. The error detector settings can be customized to work with a generic 8b/10b-encoded signal and can be set to detect bit, character, or frame errors. When an error is detected, the scope will trigger and display the waveform bits where the error occurred.

RF and vector signal analysis

When vector signal analysis of RF or baseband signals is needed, the optional SignalVu application enables measurements in multiple domains (frequency, time, phase, modulation) simultaneously. SignalVu measurements are fully correlated with the scope's time domain acquisition and triggering. Time domain events, such as commands to an RF subsystem, can be used as trigger events, while the subsystem's RF signal can be seen in the frequency domain. SignalVu also provides wireless standards measurements such as IEEE 802.11 a/b/g/j/p/n/ac that can be correlated in the time domain 1.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

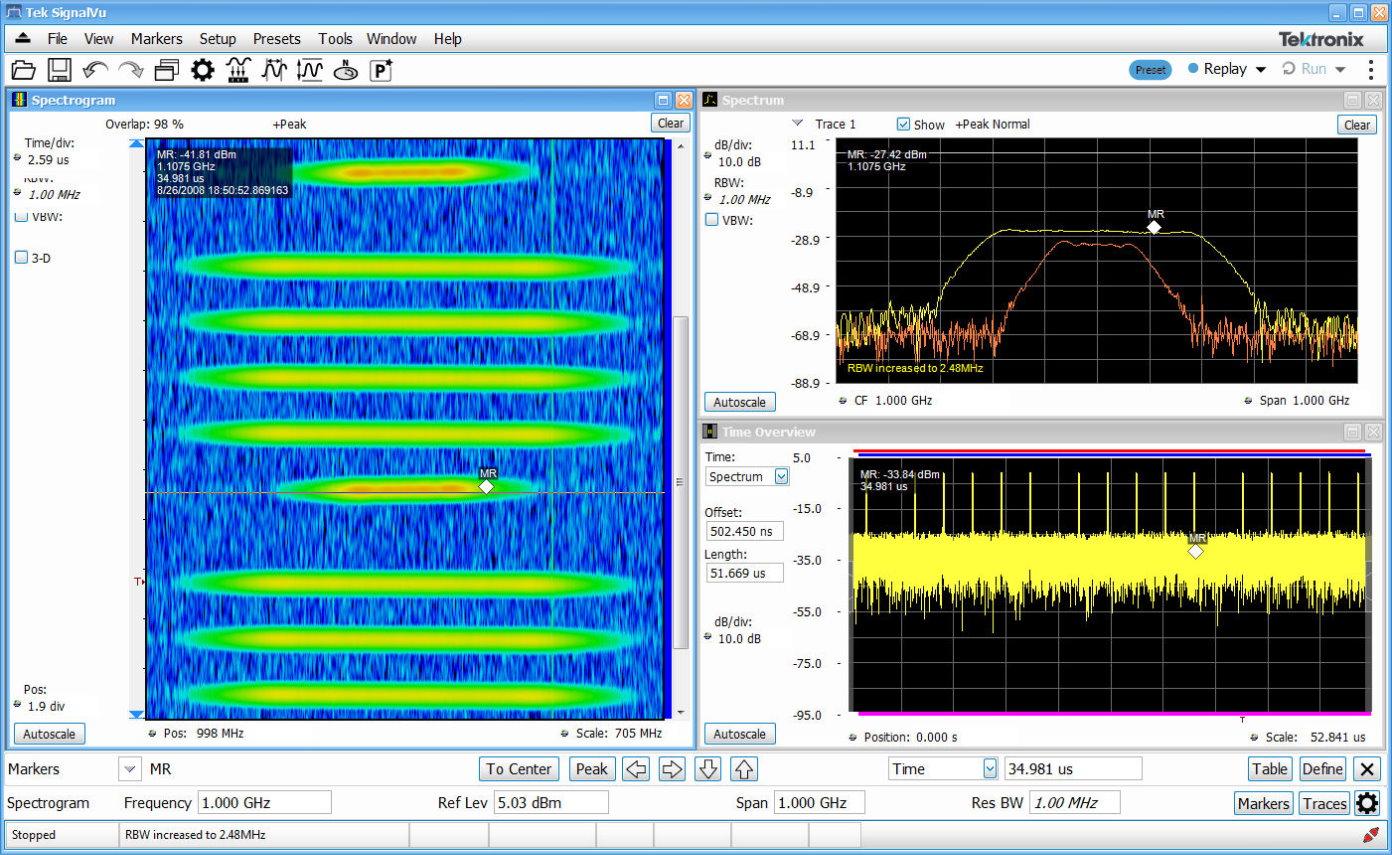

SignalVu® Vector Signal Analysis – Easily verify wide-bandwidth designs such as wideband radar, high data-rate satellite links, WLAN 802.11, or frequency-hopping radios and characterize wideband spectral events. SignalVu® combines the functionality of a vector signal analyzer, a spectrum analyzer, and the powerful triggering capabilities of the MSO/DPO70000 Series – all in a single package.

TekExpress® software automation framework

The TekExpress software automation framework has been developed for automated one-button testing of high-speed serial data standards. TekExpress efficiently executes the required tests for many serial standards such as SATA, SAS, MIPI C-PHY, MIPI D-PHY, MHL, MIPI M-PHY, PCI Express, USB 3.0, DisplayPort, and 10GBASE-T Ethernet. Run on an external Windows PC, the TekExpress software orchestrates the instrument setup and control sequences to provide complete test results for complete design validation.

Beyond using the TekExpress framework, custom applications that you develop yourself using application development environments such as MATLAB can further extend the tool set of the MSO/DPO70000 Series.

Characterization measurements depend upon accuracy and repeatability. The wide bandwidth and unmatched signal fidelity of the MSO/DPO70000 analog front end ensures that your signal quality measurements such as rise times are faithful and amplitude correct with flatness of ±0.5 dB.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

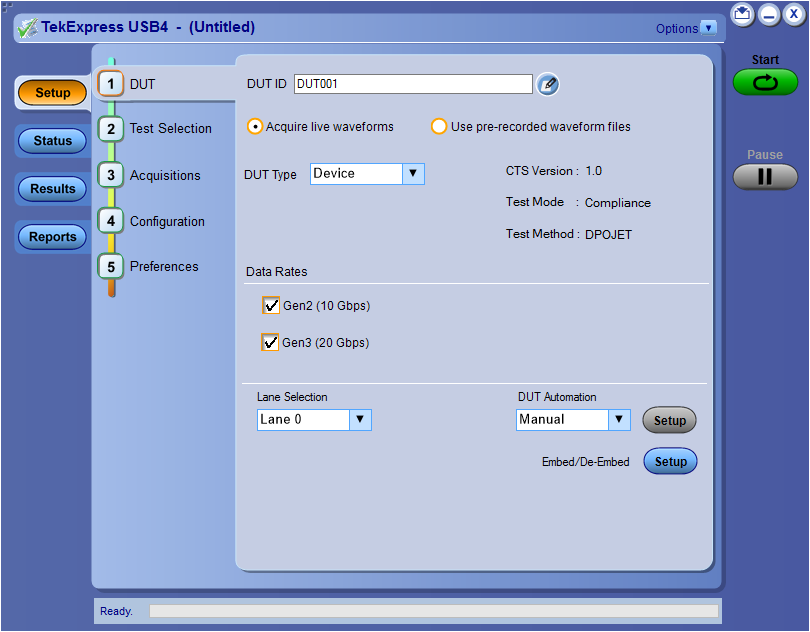

TekExpress® USB 3.0 Automated Test Software (Option USB-TX) –TekExpress® USB 3.0 provides an automated, simple, and efficient way to test USB 3.0 transmitter and receiver hosts and devices consistent with the requirements of the SuperSpeed Universal Serial Bus Electrical Compliance Test Specification. The application automates selection of appropriate fixture de-embed, CTLE and reference channel emulation filters and measurement selections based on device type, test type, test points, and selected probes. In addition, USB-TX leverages DPOJET allowing debug and advanced characterization of USB 3.0 solutions.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

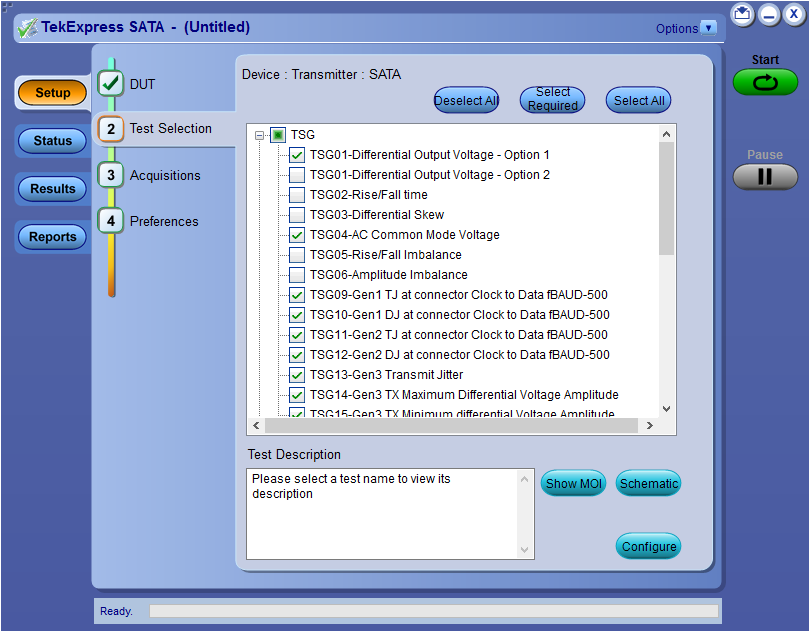

TekExpress® SATA Automated Compliance Test Software – Complete support for SATA Gen1/2/3 defined test suites for transmitters and receivers. Reduce your compliance test time by approximately 70% with simple, efficient automation of all required test suites with TekExpress® software. Also included is auto-recognition of all required test equipment, precise DUT/Host control, and one-button testing.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

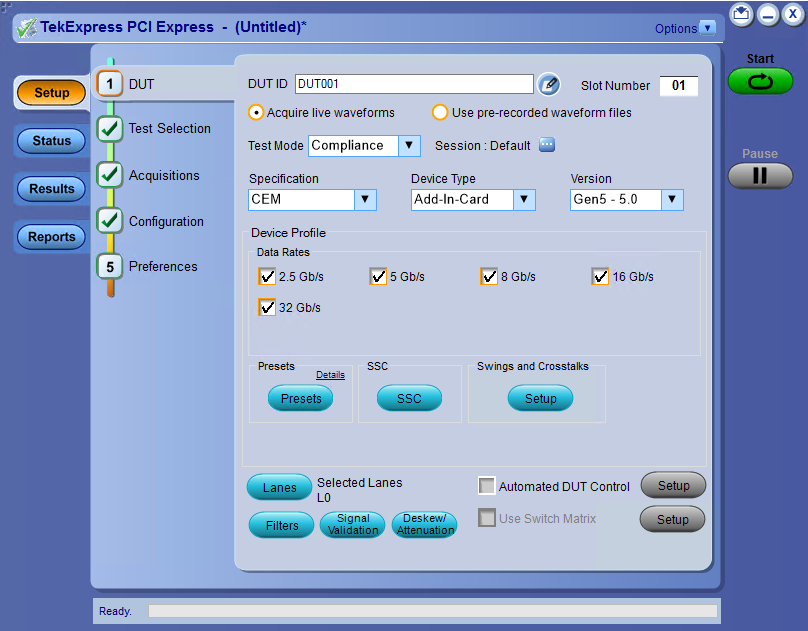

TekExpress® PCI Express Gen 1/2/3 Automated Test Software (Option PCE3) - Provides the most comprehensive solution for PCI Express Gen 1/2/3 transmitter compliance testing as well as debug and validation of PCI Express devices against the PCI-SIG specifications. The application automates selection of appropriate fixture de-embed and reference channel emulation filters and measurement selections based on test type, device data rate, transmitter equalization, link width, and selected probes. In addition, the Option PCE3 application includes a TekExpress compliance automation solution that integrates the PCI-SIG's Sigtest test software with Tektronix DPOJET-based PCI Express Jitter and Eye Diagram & SDLA Serial Data Link Analysis Visualizer analysis tools for debug. Results are presented in a comprehensive HTML format for engineering test documentation.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
TekExpress® MHL Advanced Analysis and Compliance Software (Option MHD) - Provides the most comprehensive solution for MHL 1.0/2.0/1.3/2.1 compliance testing as well as debug and validation of MHL devices against the latest MHL specifications. The application automates Transmitter, Sink and Dongle Electrical tests. Results are presented in a comprehensive HTML format for engineering test documentation

Custom filter and de-embed capability

Create your own filters or use the filters provided as standard with the MSO/DPO70000 Series to enhance your ability to isolate or remove a component of your signal (noise or specific harmonics of the signal). These customizable FIR filters can be used to implement signal-processing techniques, such as removing signal pre-emphasis or minimizing the effects of fixtures and cables connected to the device under test. Using the optional Serial Data Link Analysis Visualizer (SDLA64) application, you can gain further insight into serial data links with the capability to emulate the serial data channel from its S-parameters, remove reflections, cross-coupling, and loss caused by fixtures, cables, or probes, and open closed eyes caused by channel effects using receiver equalization techniques, such as CTLE, DFE, FFE. IBIS-AMI models for silicon-specific receiver equalization can be used to observe on-chip behavior.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
SDLA - Serial Data Link Analysis Visualizer (Option SDLA64) – Offers the capability to emulate the serial data channel, de-embed fixtures, cables, or probes, and add or remove equalization. Option SDLA64 also provides processing of waveforms with IBIS-AMI Receiver Equalization, or CTLE, FFE and/or DFE equalization. DPOJET provides advanced measurement and jitter analysis of the resulting waveforms.

Application-specific solutions – enable standard-specific certification, measurement automation, and extended signal analysis

Accurate, Simple, and Customizable Physical Layer Certification Testing – For designers with industry-standard certification needs, standard-specific compliance and analysis modules that configure the pass/fail waveform mask and measurement limit testing are available as options on the MSO/DPO70000 Series. Modules are available for PCI Express, DDR Memory, Serial ATA, SAS, HDMI, Ethernet, DisplayPort, MIPI® C-PHY, MIPI® D-PHY and M-PHY, Power Supplies, and USB.

See the following list for highlights of the available application-specific solutions:

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

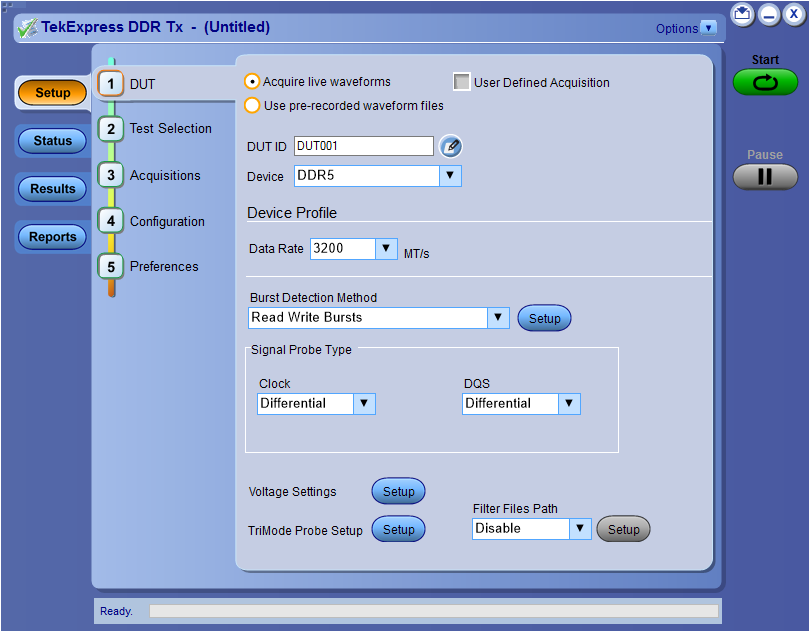

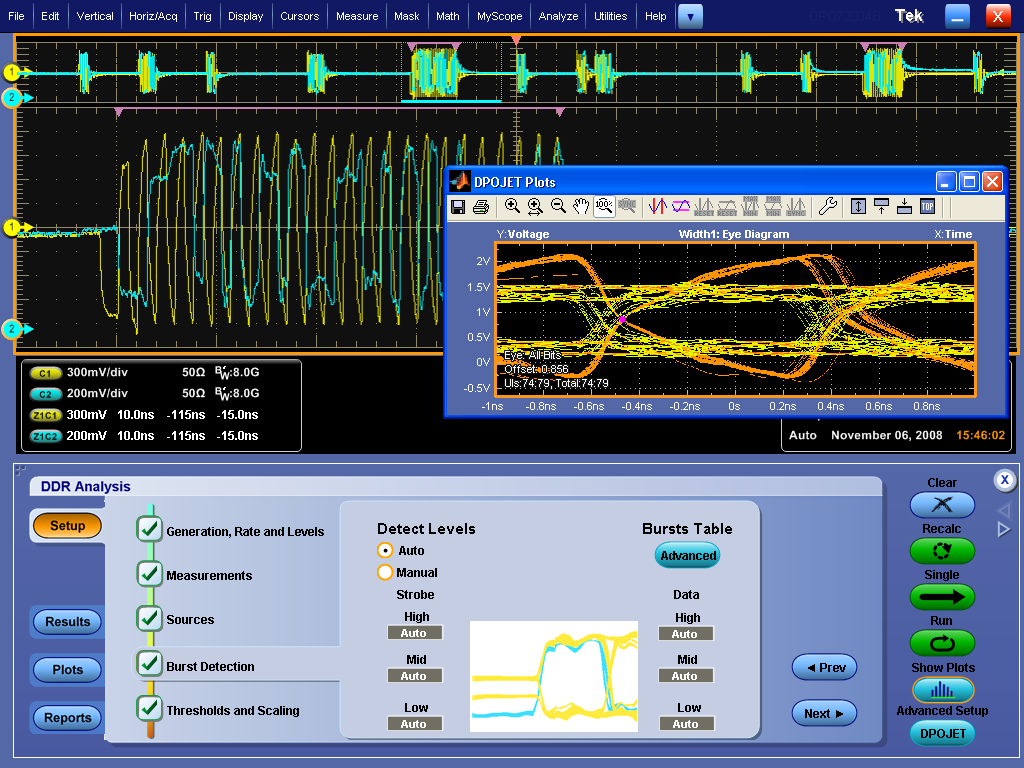

DDR Memory Bus Analysis (Option DDRA) – Automatically identify DDR1, LPDDR, LPDDR2, LPDDR3, DDR2, DDR3, DDR4, and GDDR3 Reads and Writes and makes JEDEC conformance measurements with pass/fail results on all edges in every Read and Write burst. DDRA provides capabilities for measurements of clock, address, and control signals. In addition to enabling conformance testing DDRA with DPOJET is the fastest way to debug complex memory signaling issues. DDRA can also use the Command/Address lines to trigger on specific read/write states when running on the MSO70000 Series Mixed Signal Oscilloscope, which offers 16 channels of digital logic probing.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
USB 3.0 Transmitter Test Solution (Option USB3) – Perform verification, characterization, and debug of USB 3.0 devices. Measurements are implemented in DPOJET and are compliant to the USB 3.0 specification. For compliance and automation, USB-TX is available.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
PCI Express® Transmitter Compliance and Debug (Option PCE3) – Analyze the performance of your PCI Express® Rev 1.0, 2.0, or 3.0 (draft spec) design with comprehensive test support. Using DPOJET, Option PCE3 enables tests that conform to PCI-SIG standards.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

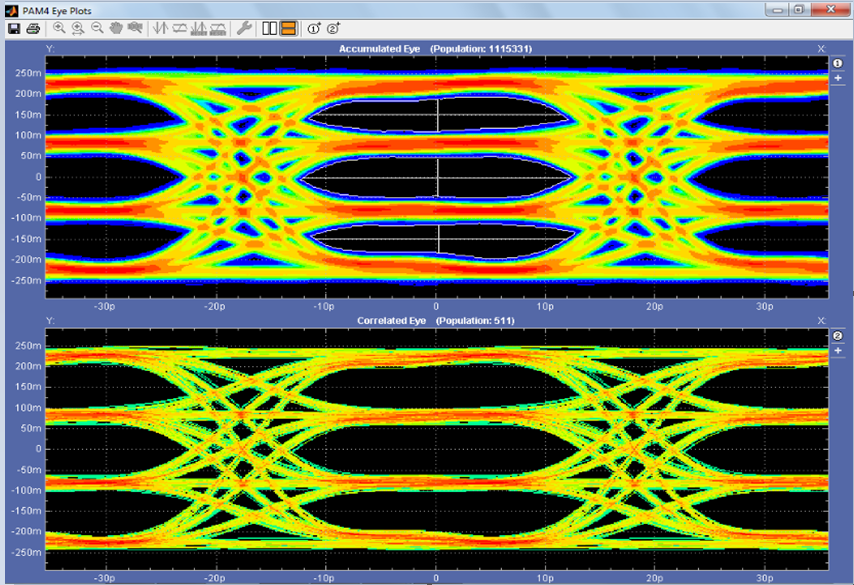

NRZ and PAM4 measurements-The throughput of Datacom networks continues to increase. Tek's DPO73304DX supports up to 10GBASE-KRn data rates. The powerful combination of the DPO70000, DPOJET Jitter and Noise Analysis, and the SDLA Serial Data Link Analysis tool performs accurate de-embedding and eye diagram analysis for Datacom standards.

For more information on PAM4 testing, please refer to the DPO70000SX datasheet and related PAM4 documents.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

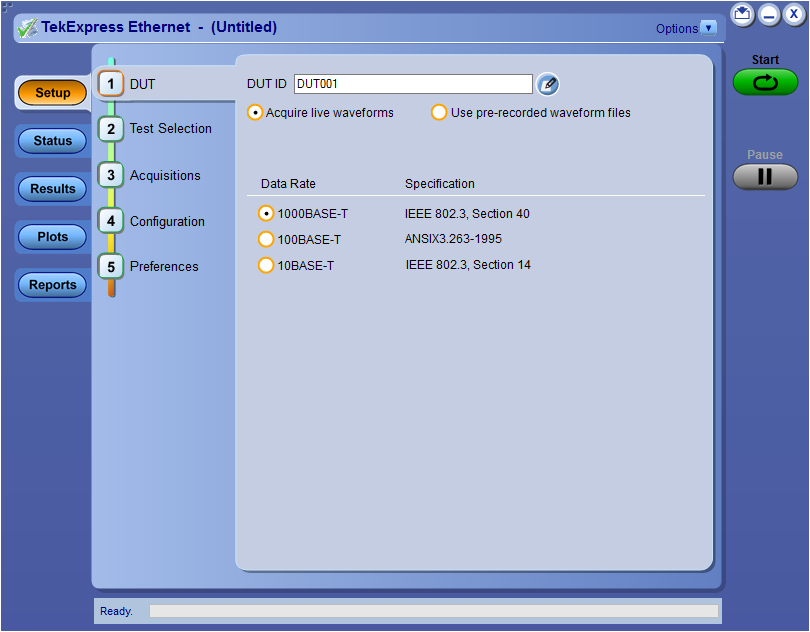

TekExpress Ethernet (Option CMENET3) – Receive full PHY layer support for Ethernet variants 10BASE-T, 100BASE-TX, and 1000BASE-T with the comprehensive, integrated Tektronix® TekExpress Ethernet tool set. Analog verification, automated compliance software, and device characterization solutions are all included.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

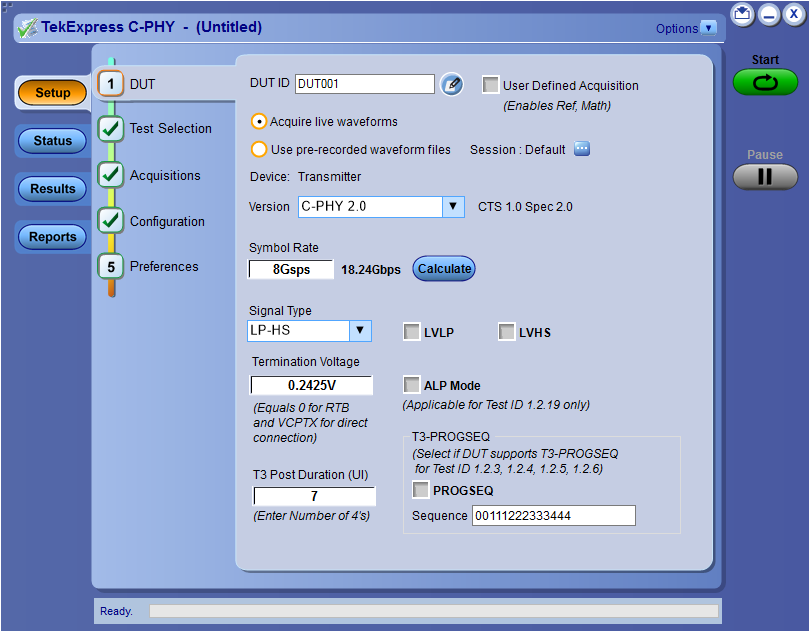

C-PHY uses a unique mechanism for clock recovery. C-PHY 1.0 implements a custom clock recovery algorithm referred to as triggered eye. In this model, the first zero crossing of the four differential signals is used as a trigger point for clock recovery and rendering the eye diagram. The eye mask is optimally placed for maximum eye opening where the eye height is measured. Because of the triggered eye mechanism, all the jitter at the trigger point (zero crossing) is swallowed and reflected on the other side. Jitter and eye diagram rendering performed over the entire record length helps designers better characterize devices by displaying anomalies of the device over an extended period. The software allows you to run the eye diagram analysis for 3M UI and overnight runs for a detailed characterization.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

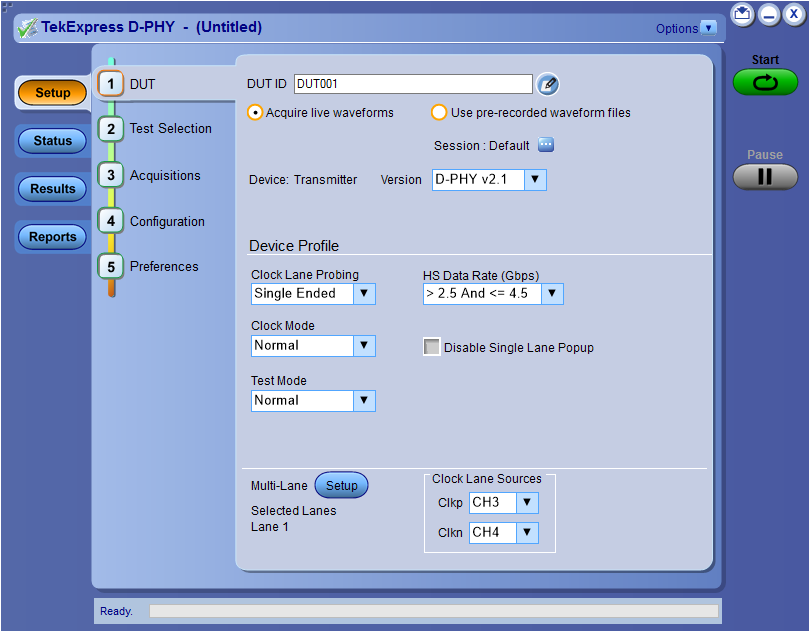

MIPI® D-PHY Characterization and Analysis Solution (Option D-PHY) – Verify to the D-PHY specification by rapidly characterizing and discovering sources of jitter and signal integrity concerns using the fully flexible and customizable test setup. Using DPOJET, Option D-PHY enables transmitter high-speed data-clock timing measurements, along with a full range of electrical characteristics in high-speed or low-power modes.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

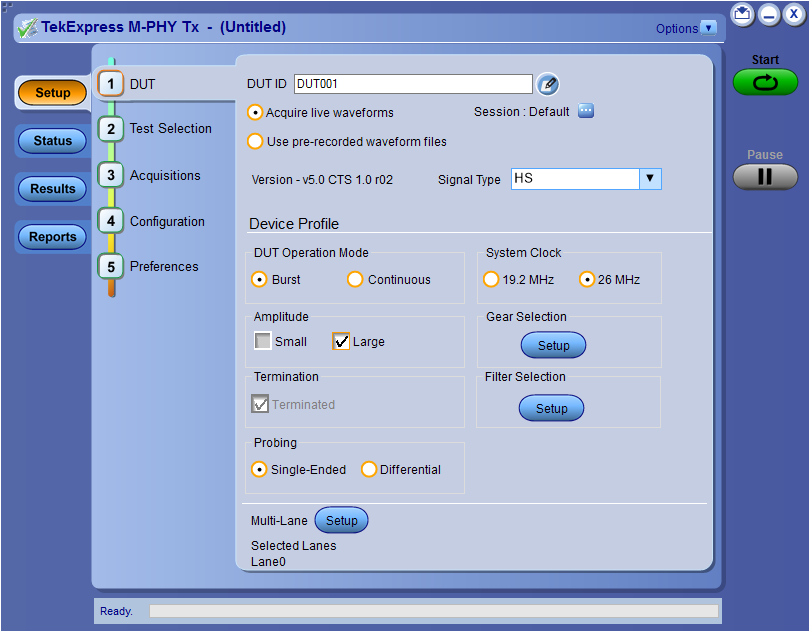

MIPI® M-PHY Debug, Analysis, Characterization and Conformance Test Solution (Option M-PHY) – Verify to the M-PHY specification by rapidly characterizing and discovering sources of jitter and signal integrity concerns. Using DPOJET, Option M-PHY enables transmitter signaling and timing measurements such as differential transmit eye diagrams, rise and fall times, slew rate, amplitude parameters, common mode voltages on each lane for both the large and small amplitude configurations, as well as the terminated and unterminated cases.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

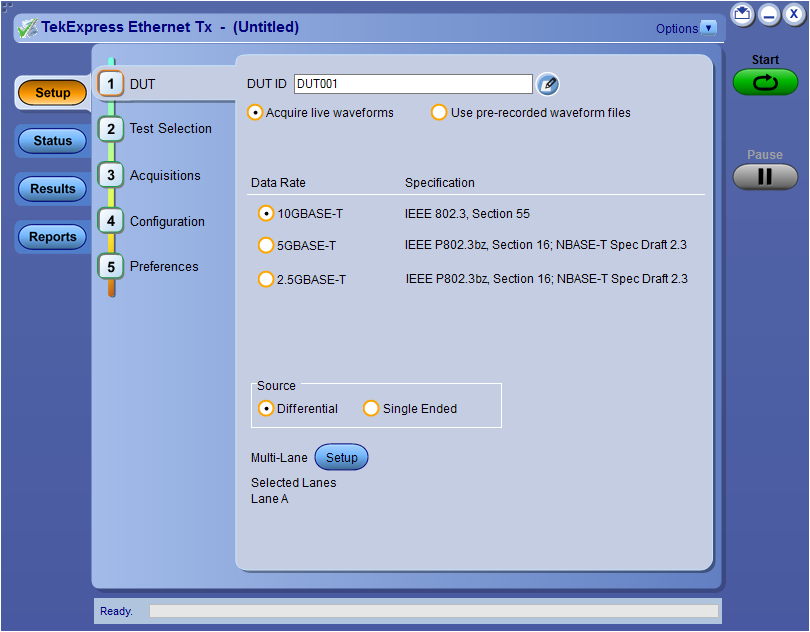

TekExpress Ethernet Tx (Option XGBT2) – Quickly perform 10GBASE-T measurements per the IEEE 802.3an-2006 standard including Power Spectral Density (PSD), Power Level, and Linearity, with a simplified instrument configuration. XGBT2 provides flexible control over test configurations and analysis parameters, enabling more in-depth device characterization.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

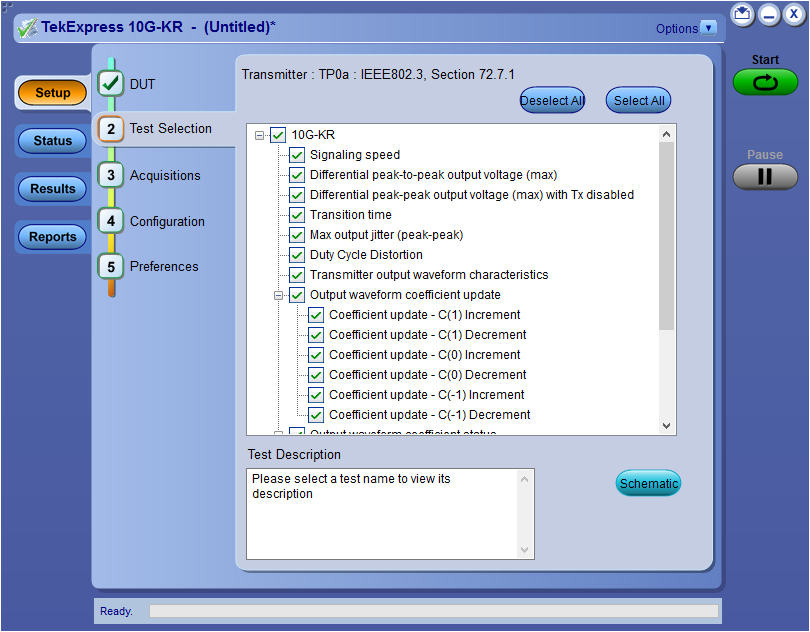

10GBASE-KR/KR4 Compliance and Debug Solution (Option 10G-KR) - Automated compliance measurements for IEEE 802.3ap-2007 specifications. This option includes an automated compliance solution and debugging with DPOJET. The automated test setup measures transmitter equalization levels generating 12 results for each tap and 120 results for 9 different measurements in approximately 15 minutes.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

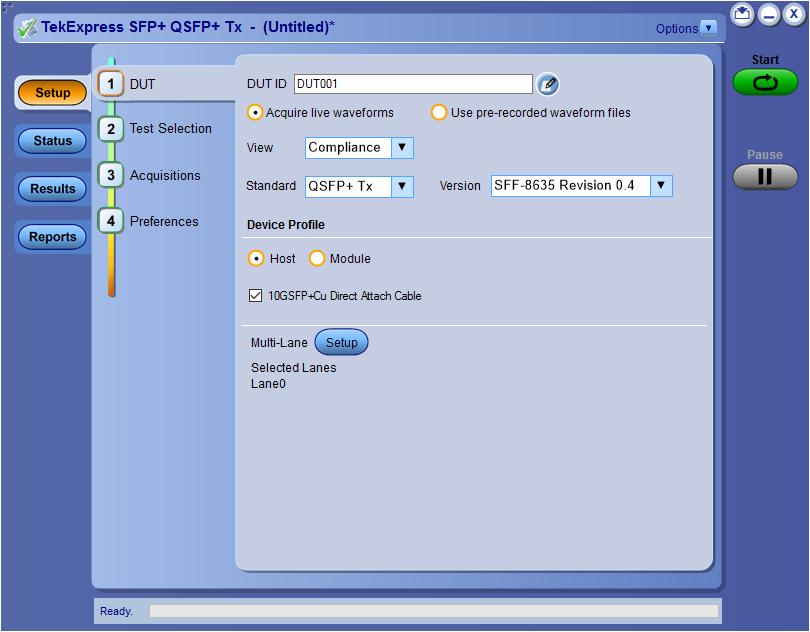

Tektronix SFP+ QSFP+ Tx is developed on a Real Time Oscilloscope platform, which is the platform of choice for engineers designing their products around SFF-8431 & SFF-8634 technology. Option SFP-TX and SFP-WDP enable both an Automation Solution (for Compliance) and DPOJET Option (for Debug), Users can save up to 80% on testing time compared to manual testing. TWDPc - Transmitter Waveform Distortion Penalty for Copper Measurements are available with Option SFP-WDP. SFF-8431 SFP+ TWDPc based MATLAB code is integrated into the SFP-WDP option to make sure Engineers can use this measurement in the automated setup.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

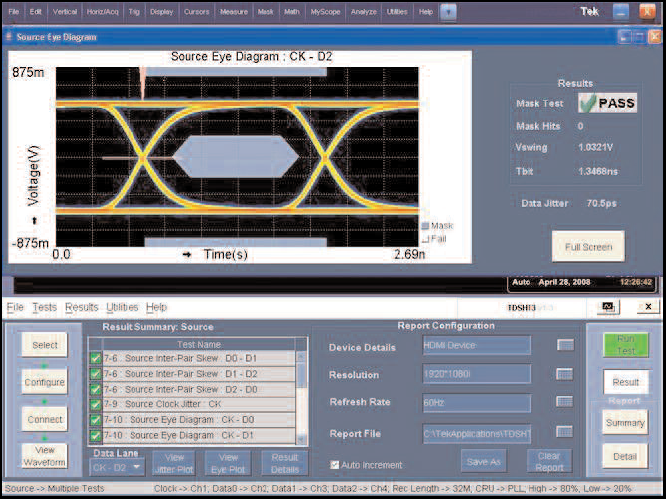

HDMI Compliance Test Solution (Option HT3) – A fast, efficient solution for HDMI compliance measurement challenges, no matter if you are working on a Source, Cable, or Sink solution. This application provides all the HDMI compliance test solutions you need to ensure quality and interoperability.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

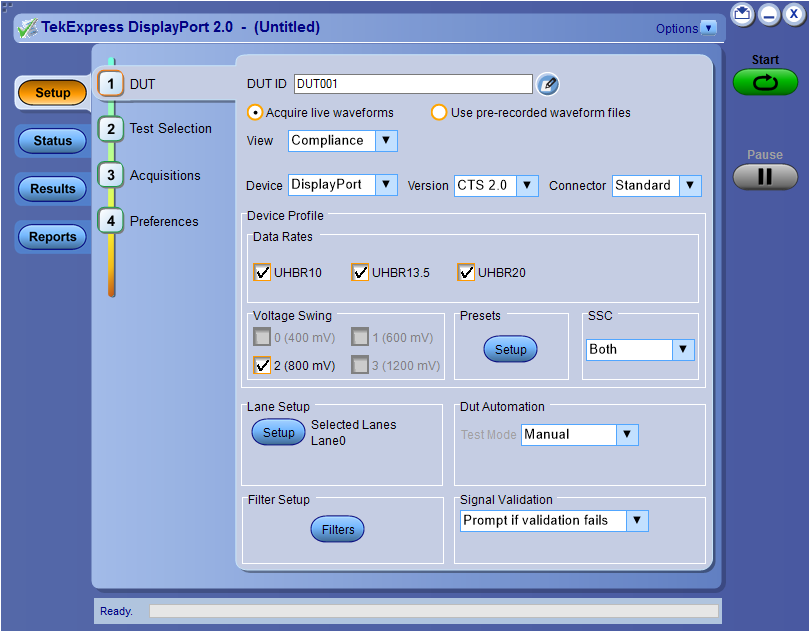

DisplayPort Compliance Test Solution (Option DP12) – Supports DisplayPort Compliance Test Standard (CTS) source test with four-line simultaneous testing using the Tektronix® P7300SMA Series probes and DisplayPort software. Detailed test reports with waveform plots, pass/fail results, and margin analysis are included.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
Power Measurement and Analysis Software (Option PWR) – DPOPWR, Advanced Power Measurement and Analysis software allows the user to configure multiple measurements with custom defined settings, measure and analyze power dissipation in switching devices, and magnetic parameters in a single acquisition. The Trajectory plot computes turn-on loss, turn-off loss and Conduction loss parameters for each cycle. Measurements such as Phase, Conduction loss, amplitude, and Voltage harmonics provide more insight to Input/Output characterization of power supplies. A single mht format file with append feature provides an easy way of generating reports which include measurements, test results, and plot images.

Certification

This is the start of your concept. Before a product can go to market, you often need to complete a series of certification tests on the industry-standard high-speed serial buses in your design. These tests can involve many hours of wrestling with test fixtures, reading certification documents, and collecting sufficient data to validate that your system passes the required tests.

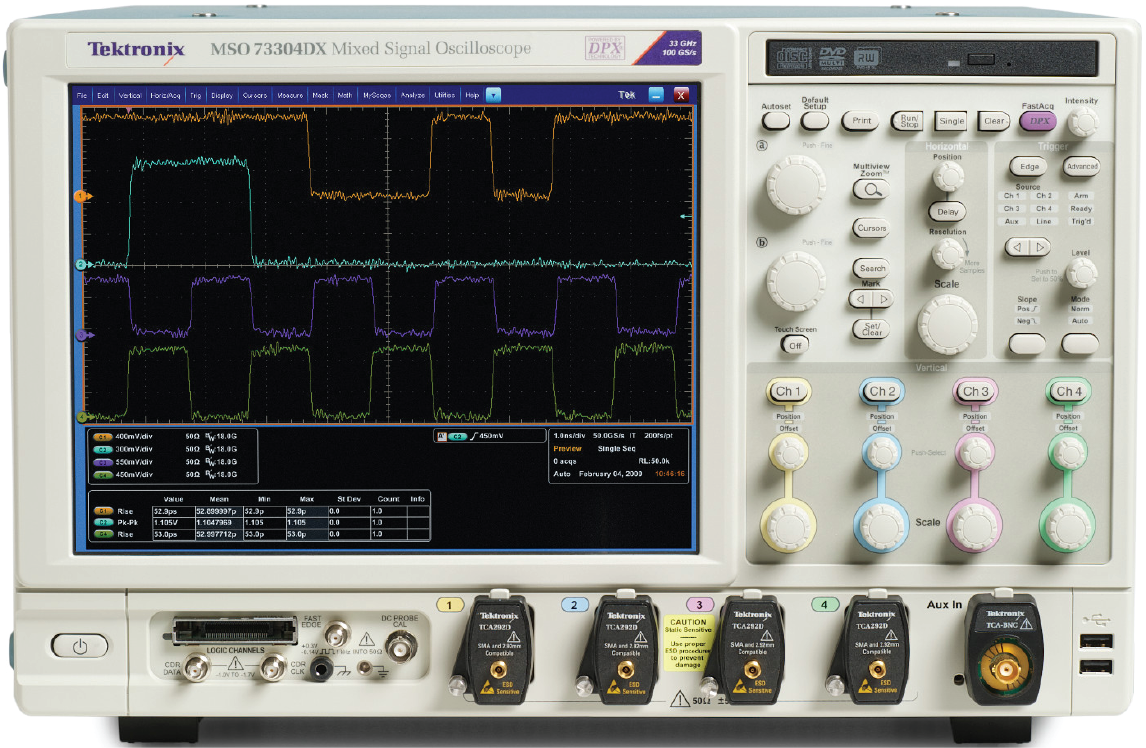

MSO70000 – A dedicated solution configured for today's high-speed serial design challenges

The MSO70000 Mixed Signal Oscilloscopes are specially configured to address high-speed serial data designs by encapsulating many of the serial domain features needed for high-speed serial verification and characterization. These standard features on the MSO70000 Series are options on the DPO70000 Series.

Serial pattern triggering

Real-time serial pattern triggering and protocol decode with built-in clock recovery recovers the clock signal, identifies the transitions, and decodes characters and other protocol data. You can see the 8b/10b bit sequences decoded into their words for convenient analysis, and set the desired encoded words for the serial pattern trigger to capture. With pattern lock triggering, the MSO70000 Series can synchronize to long serial test patterns with data rates up to 6.25 Gb/s and remove random jitter.

DPOJET jitter, timing, and eye diagram analysis

The MSO70000 Series features the highest-accuracy jitter and timing measurements as well as comprehensive analysis algorithms. Tight timing margins demand stable, low-jitter designs. You can make jitter measurements over contiguous clock cycles on every valid pulse in a single-shot acquisition. Multiple measurements and trend plots quickly show system timing under variable conditions, including Random, Deterministic, and Bounded Uncorrelated Jitter separation.

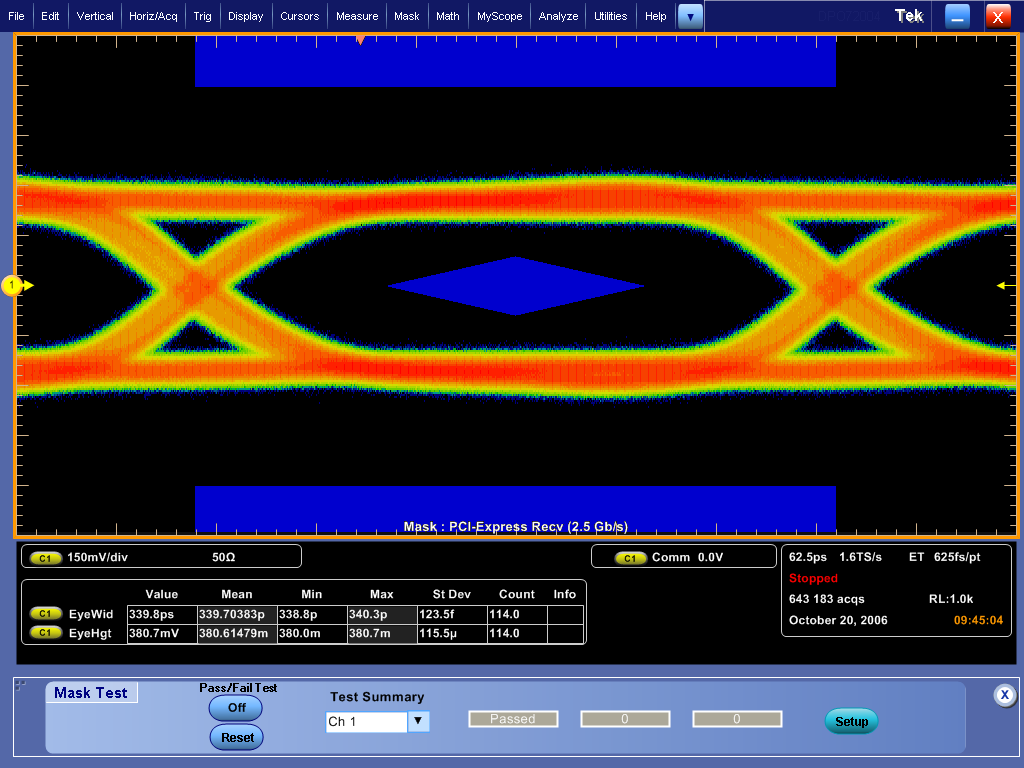

Communications mask testing

Provides a complete portfolio of masks for verifying compliance to serial communications standards. Over 150 masks including the following standards are supported – PCI Express, ITU-T/ANSI T1.102, Ethernet IEEE 802.3, ANSI X3.263, Sonet/SDH, Fibre Channel, InfiniBand, USB, Serial ATA, Serial Attached SCSI, IEEE 1394b, RapidIO, OIF Standards, Open Base Station Architecture Initiative (OBSAI), Common Public Radio Interface (CPRI).

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
Communications mask testing.
62 MS record length

62 MS on all four channels provides a longer time sequence at high resolution. Optional record lengths up to 125 MS for the 8 GHz models, 250 MS for the 12.5 through 20 GHz models and 500 MS (4 channels)/1 GS (2 channels) on 23 to 33GHz models extend the acquisition time sequence.

With standard features that extend the functionality of the Tektronix DPO70000 Series to address high-speed serial signal analysis and certification, the MSO70000 Series offers a specialized instrument that efficiently addresses your design challenges.

Protocol Decode for High Speed Serial buses

The MSO/DPO70000 Series oscilloscopes provide optional protocol analysis for HSS buses such as PCI Express gen 1/2/3, MIPI D-PHY (CSI, DSI) and 8b/10b-encoded buses. With these capabilities, bit sequences can be decoded into familiar commands and data packets for faster analysis. With the PCI Express decoder, the data is displayed in a protocol-aware view using characters and terms from the standard, such as the ordered sets: SKP, Electrical Idle, and EIEOS

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
Table View of the Bus Protocol. The results table provides a protocol view of the bus and with a mouse click allows correlation of what is happening in the physical layer to what is happening in the protocol layers.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
Protocol and Electrical Views of an HSS Bus. The data in the results table and the acquired waveform are time correlated, enhancing the ability to identify possible causes of protocol errors due to electrical signaling.

Both the 8b/10b serial bus trigger and the advanced search and mark feature on the oscilloscope are integrated with the HSS protocol decode to quickly isolate events of interest in a HSS data stream.

User-selectable bandwidth limit filters

While wide bandwidth is needed to characterize your high-speed serial designs, certification testing can require a specific instrument bandwidth appropriate for the signal's data rate in order to correlate test results between different test labs. The MSO/DPO70000 Series feature user-selectable bandwidth limiting filters. Using these bandwidth limit filters which range from 500 MHz to 32 GHz, you will ensure that your measurement is done using the bandwidth specified by the industry standard.

Debugging

Throughout the design cycle, MSO/DPO70000 Series oscilloscopes provide the ability to debug malfunctioning subsystems and isolate the cause. With the high waveform capture rate of FastAcq® you can quickly identify signal anomalies that occur intermittently – saving minutes, hours, or even days by quickly revealing the nature of faults so sophisticated trigger modes can be applied to isolate them. Using Pinpoint® triggers, infrequent events such as glitches or signal runts caused by bus contention or signal integrity issues can be captured, analyzed, and then eliminated.

FastAcq® – Expedites debugging by clearly showing imperfections

More than just color grading or event scanning, the FastAcq® proprietary DPX® acquisition technology captures signals at more than 300,000 waveforms per second on all four channels simultaneously, dramatically increasing the probability of discovering infrequent fault events. And with a simple turn of the intensity knob you can clearly “see a world others don't see”, displaying the complete picture of your circuit's operation. Some oscilloscope vendors claim high waveform capture rates for short bursts of time, but only MSO/DPO70000 Series oscilloscopes, enabled by DPX® technology, can deliver these fast waveform capture rates on a sustained basis.

Pinpoint® trigger

Whether you're trying to find a problem signal or need to isolate a section of a complex signal for further analysis, like a DDR Read or Write burst, Tektronix Pinpoint triggering provides the solution. Pinpoint triggering allows selection of virtually all trigger types on both A and B trigger events delivering the full suite of advanced trigger types for finding sequential trigger events. Pinpoint triggers provide trigger reset capabilities that begin the trigger sequence again after a specified time, state, or transition so that even events in the most complex signals can be captured. Other oscilloscopes typically offer less than 20 trigger combinations; Pinpoint triggering offers over 1400 combinations, all at full performance. Visual Trigger extends the Pinpoint Triggering's capabilities, adding another level of trigger qualification to find important events in a wide variety of complex signals.

With Enhanced Triggering, trigger jitter is reduced to <100 fs. With this stability at the trigger point, the trigger point can be used as a measurement reference.

B scan event trigger

Users who wish to create eye diagrams from data bursts synchronized or initiated by an A event will find the B Event Scan trigger function especially useful. B Event Scan is an A to B trigger sequence that will trigger and capture burst event data of interest defined by the B Event setup menu. Captured bits can be scanned in a sequential or randomized fashion, alternatively the trigger can toggle between two successive B trigger events.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

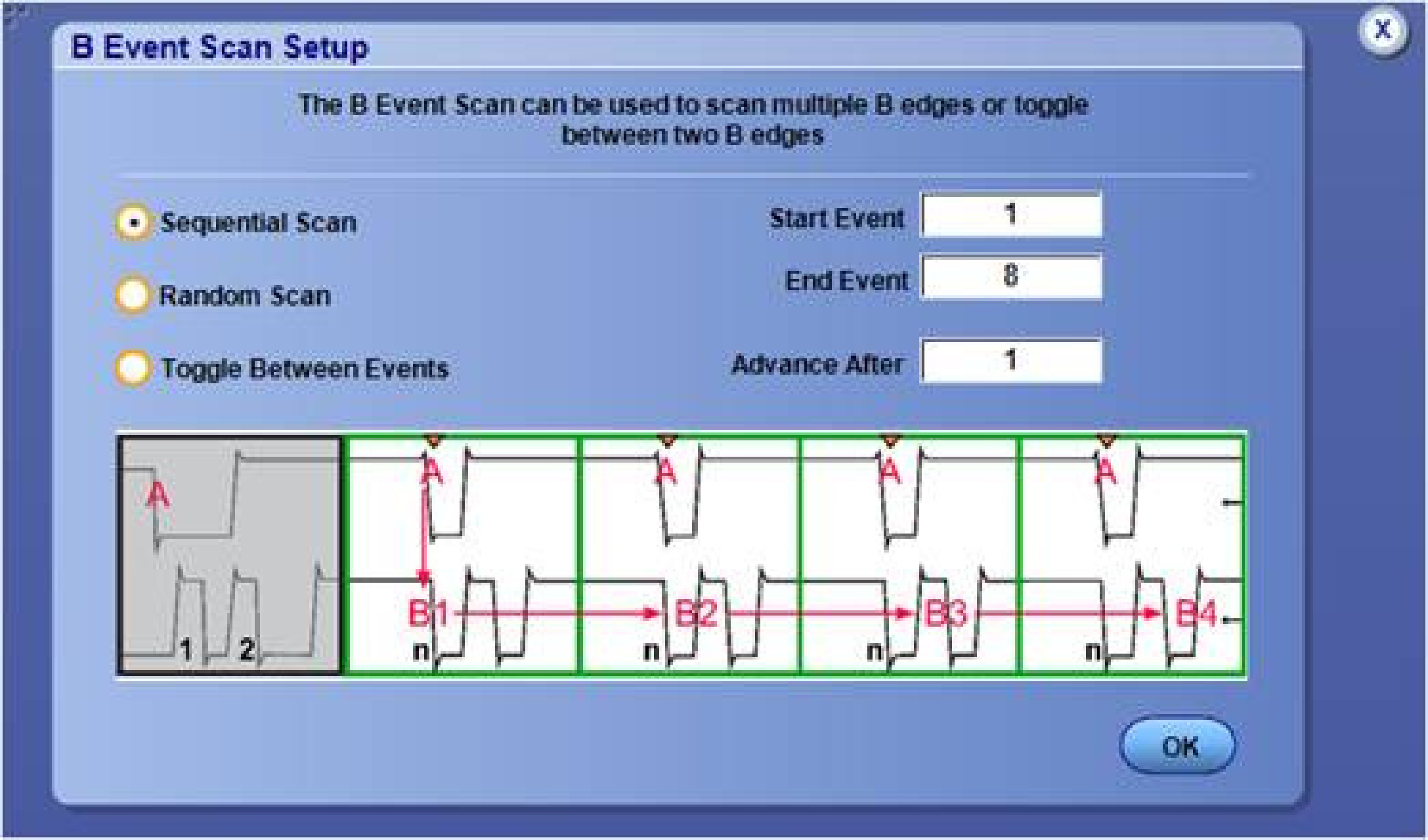

B Event Scan identifies specific events to build an eye diagram.
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
Use B Event Scan trigger on DDR DQS edges used to construct an eye diagram of all bits in a burst.

Logic pattern triggering

Logic pattern triggering allows logic qualification that controls when to look for faults and ignore events that do not occur during the desired state. On the MSO70000 Series, up to 20-bit wide logic pattern triggering enhances the Pinpoint trigger capabilities by helping you isolate the specific system state and analog events that are causing system failure.

Digital A then analog B triggering (MSO70000 Series only)

Advanced triggering capabilities include Digital A then Analog B to help you to identify a specific digital pattern or system state and then wait for an analog event such as a runt pulse to trigger the acquisition.

Integrated logic channels (MSO70000 Series only)

The MSO70000 Series extends the debug capabilities of a 4-channel oscilloscope with an additional 16 logic channels that can be used to provide system level context when the fault occurs. This context, such as an illegal system state or error, may be the clue that leads to the root cause. When other oscilloscopes require you to use a logic analyzer to see the digital data you need to solve your debugging challenge, the MSO70000 Series can effectively debug and verify many digital timing issues in the system more quickly and easily. With 80 ps timing resolution and channel-to-channel skews of as little as 160 ps, the integrated logic channels allow you to view and measure time-correlated digital and analog data in the same display window.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
Integrated Logic Channels – Provide time-correlated analog and digital visibility for system debugging.

FastFrame™

When the key events you are interested in are widely spaced in time, such as bursts of activity on a bus, the FastFrame segmented memory feature on the MSO/DPO70000 Series enables you to capture the events of interest while conserving acquisition memory. Using multiple trigger events, FastFrame captures and stores short bursts of signals and saves them as frames for later viewing and analysis. On the MSO70000 Series, FastFrame and bus or logic triggering enable you to capture your fastest, bursty signals on the analog channels at the highest sample rate while the logic channel trigger recognizes the bus cycle of interest. Capturing thousands of frames is possible, so long-term trends and changes in the bursting signal can be analyzed. Signals captured with FastFrame can also be post-processed using waveform averaging or envelope mode.

iCapture™ (MSO70000 Series only)

When an anomaly is seen on digital lines, iCapture delivers new insight into the analog behavior of the digital signals. With iCapture, you can route any 4 of the 16 logic channels to the MSO70000 Series analog acquisition system so that these signals can be viewed in finer detail. The unique multiplexer circuitry of iCapture provides simultaneous digital and analog views of signals without needing to move the logic probe or double probe the circuit.

Advanced search and mark

Isolating the key event causing your system failure can often be a tedious task. With the Advanced Event Search and Mark feature standard on the MSO/DPO70000 Series, examining data and highlighting important events, skipping the unimportant ones, and enhancing the comprehension of event relationships is made easy. With ASM, you'll be able to navigate through long record length acquisitions effortlessly and quickly locate the event you have been trying to find. Advanced searches can be defined individually or using the scope's trigger settings as the definition for the search. Even Visual Trigger areas can be used as part of the ASM criteria.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

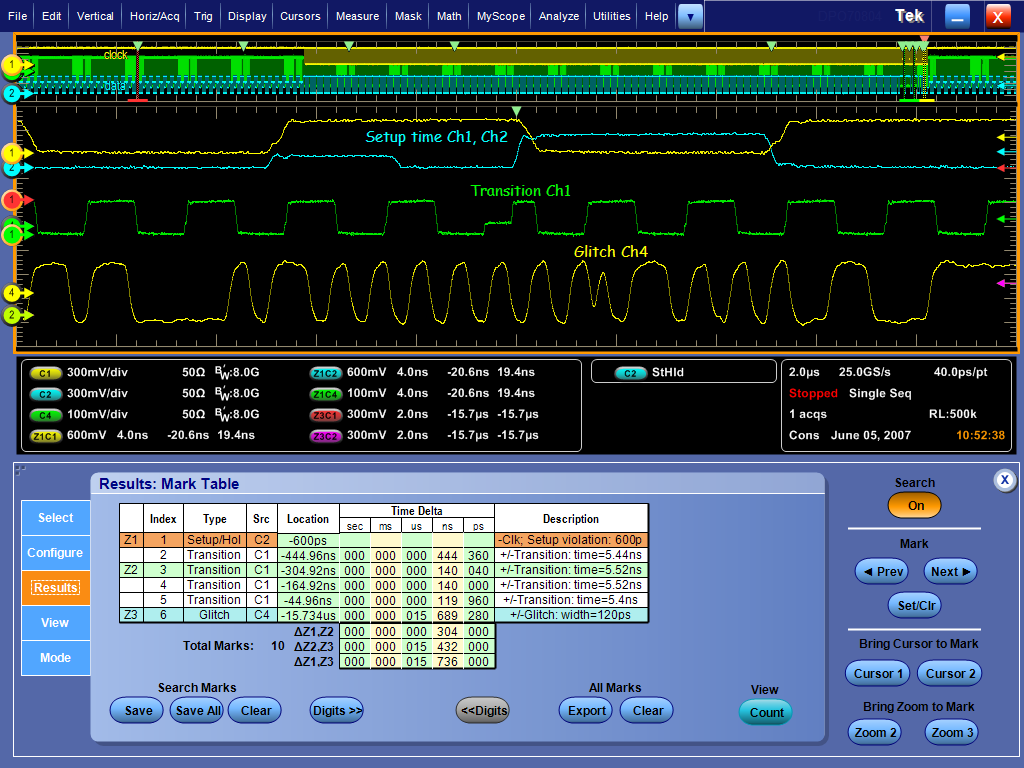

Advanced Search and Mark – Highlights important events and provides convenient previous and next buttons and mouse clicks to navigate between events of interest effortlessly.

Embedded serial bus (I2C, SPI, RS-232/422/485, UART, USB) decoding and triggering

The MSO/DPO70000 Series instruments provide integrated support for a broad range of serial buses – I2C, SPI, RS-232/422/485/UART, and USB. This support for up to 16 separate serial buses enables you to monitor or debug subsystems and components, such as frequency synthesizers, D/A converters, and Flash Memory that are controlled or monitored through serial control buses. While monitoring or debugging these serial buses alone is relatively easy, decoding events on the serial bus can also enable more complex system-level debugging. When you experience an issue with a higher-speed serial interface, the clue to what is going wrong may be found by using the serial bus decode feature to observe the data on your I2C, SPI, RS-232/422/485/UART, or USB interface.

Probing – analog and digital

Often the biggest challenge in debugging a system is getting access to the required signals. Tektronix offers a wide array of probing solutions, including the P7700, P7600, and P7500 TriMode probing system with bandwidths that are perfectly matched to the MSO/DPO70000 Series. These TriMode probes allow you to switch among differential, single ended, and common-mode measurements without moving the probe from its connection points. The P7700 and P7500 series are compatible with all DPO/MSO70000C/DX/SX models. The P7600 series is compatible with DPO/MSO70000 DX/SX models, and combines low noise, 33 GHz bandwidth and the convenience of TriMode™ probing. The P7500 Series offers probes with performance from 4 GHz to 25 GHz and offers several low-cost solder tips with quick connection features that allow moving the probe to various solder points fast and easy.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

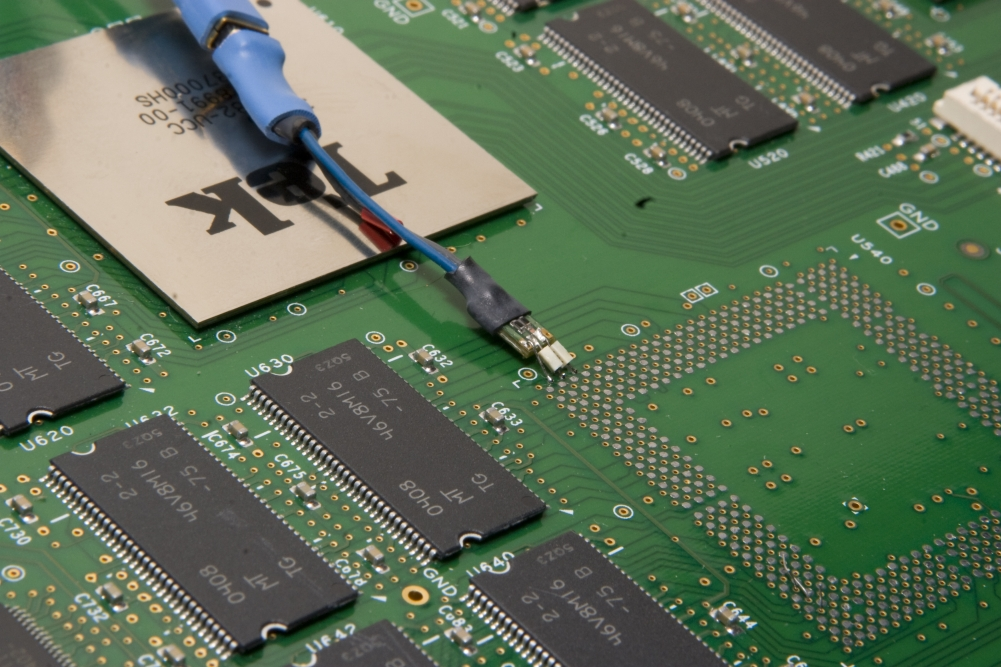

The low-cost solder tips available for the P7500 TriMode™ probes allow quick connection so moving the probe to various solder points is fast and easy.

On the MSO70000 Series, the P6780 differential, P6750 high-density D-Max, and P6717A general-purpose logic probes provide connectivity to low-speed and high-speed digital signals with low loading, small size, and a range of accessories for soldering or browsing.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
Solder tip accessories designed for the P6780 differential logic probes provide access to signals on tightly spaced vias and fine-pitched components.

DPO7OE Series Optical Probes

The DPO7OE Series Optical probes can be used as an Optical Reference Receiver for high speed serial data signals (using selectable Bessel-Thomson ORR filters), or can be used as a conventional O/E converter for general wide-bandwidth optical signal acquisition. The DPO7OE Series (DPO7OE1 and DPO7OE2) probes are compatible with DPO/MSO70000 C/DX/SX models. Connected to TekConnect channels for up to 33 GHz bandwidth.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
DPO7OE1 33 GHz Optical Probe

Production testing

In addition to assisting engineers with design tasks, the MSO/DPO70000 Series allow test engineers to test analog and digital signals with a wide range of clock speeds and data rates. Rackmount options are available for mounting the MSO/DPO70000 Series into an EIA standard 19 inch (487 mm) rack. An IEEE 488.2 standard GPIB interface is standard on all models.

LXI Class C

Using the LXI Web Interface, you can connect to the MSO/DPO70000 Series through a standard web browser by simply entering the oscilloscope’s IP address in the address bar of the browser. The web interface enables viewing of instrument status and configuration, as well as status and modification of network settings. All web interaction conforms to the LXI Class C specification.

OpenChoice® analysis tools

The OpenChoice Software allows you to customize your test and measurement system with familiar analysis tools. The analysis and networking features of the OpenChoice software add more flexibility to Tektronix MSO/DPO70000 Series oscilloscopes: Using the fast embedded bus, waveform data can be moved directly from acquisition to analysis applications on the Windows desktop at much faster speeds than conventional GPIB transfers.

Implementation by Tektronix of industry-standard protocols, such as TekVISA interface and ActiveX controls, are included for using and enhancing Windows applications for data analysis and documentation. IVI instrument drivers are included to enable easy communication with the oscilloscope using GPIB, RS-232, and LAN connections from programs running on the instrument or an external PC.

The Application Development Kit (ADK) extends the OpenChoice framework to support custom end-user and third-party application development. ADK documentation describes how to implement the Data Store Public Interface to speed internal transfer of waveform data through user-created data processing algorithms and display the results in real time on the oscilloscope screen. The Data Store Public Interface is >2X faster than traditional GPIB-based data transfer techniques. The Data Store Public Interface is accessible through MathWorks MATLAB or .NET languages such as C# or Visual Basic. Other features of the ADK include a DPOJET plug-in that enables users to add custom measurements to this market-leading timing and jitter analysis tool. The ADK provides comprehensive documentation and coding examples to aid the user in developing their own unique analysis tool kit to quickly capture and analyze their signals.

Research

With industry-leading acquisition speed and signal-to-noise ratio performance, the MSO/DPO70000 Series can provide researchers with tools that allow them to capture, display, and analyze high-speed and transient signals with unmatched precision.

Full control of acquisition and display parameters

You have full control of the instrument's acquisition modes. Choose the mode you need to do your job the fastest: Automatic, Constant Sample Rate, or Manual settings. When you are doing signal exploration and want a lively signal, the default Automatic mode provides you with the liveliest display update rate. If you want the highest real-time sample rate that will give you the most measurement accuracy, then the Constant Sample Rate mode is for you. It will maintain the highest sample rate and provide the best real-time resolution. Finally, the Manual mode ensures direct and independent control of the sample rate and record length for applications requiring specific settings.

Document tools

The OpenChoice architecture provides a comprehensive software infrastructure for faster, more versatile operations. Data transfer utilities, such as the Excel or Word toolbar plug-ins can be used to simplify analysis and documentation on the Windows desktop or on an external PC.

Unmatched usability

The MSO/DPO70000 Series instruments excel in usability with a suite of productivity features, such as a touch screen, flat menu structures, intuitive graphical icons, knob-per-channel vertical controls, right clicks, mouse wheel operation, and familiar Windows-based controls.

Remote Desktop

When your oscilloscope is connected to a network, use the Windows Remote Desktop utility to access your oscilloscope from across the lab or across the globe.

MyScope® – Create your own control windows

Easily create your own personalized "toolbox" of oscilloscope features in a matter of minutes using a simple, visual, drag-and-drop process. Once created, these custom control windows are easily accessed through a dedicated MyScope button and menu selection on the oscilloscope button/menu bar, just like any other control window. You can make an unlimited number of custom control windows, enabling each person who uses the oscilloscope in a shared environment to have their own unique control window. MyScope control windows will benefit all oscilloscope users, eliminating the ramp-up time that many face when returning to the lab after not using an oscilloscope for a while, and enables the power user to be far more efficient. Everything you need is found in one control window rather than navigating through multiple menus to repeat similar tasks.

Option asset management: floating or fixed

Many Tektronix application solutions and hardware options are enabled with an encrypted license key that is entered through the oscilloscope's Utilities menu. You now have two options. The first option is a fixed license applied to a specific scope serial number and is permanently enabled. A fixed license cannot be moved from one oscilloscope to another.

The second option is a floating license. Floating licenses provide the capability to move a license-key enabled option from one oscilloscope to another. This capability helps users with distributed teams and several Tektronix DPO70000SX, MSO/DPO70000, or DPO7000, and MSO/DPO5000 Series oscilloscopes to better manage their assets and deploy applications or other options such as extended memory to the oscilloscope where it is needed.

DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced

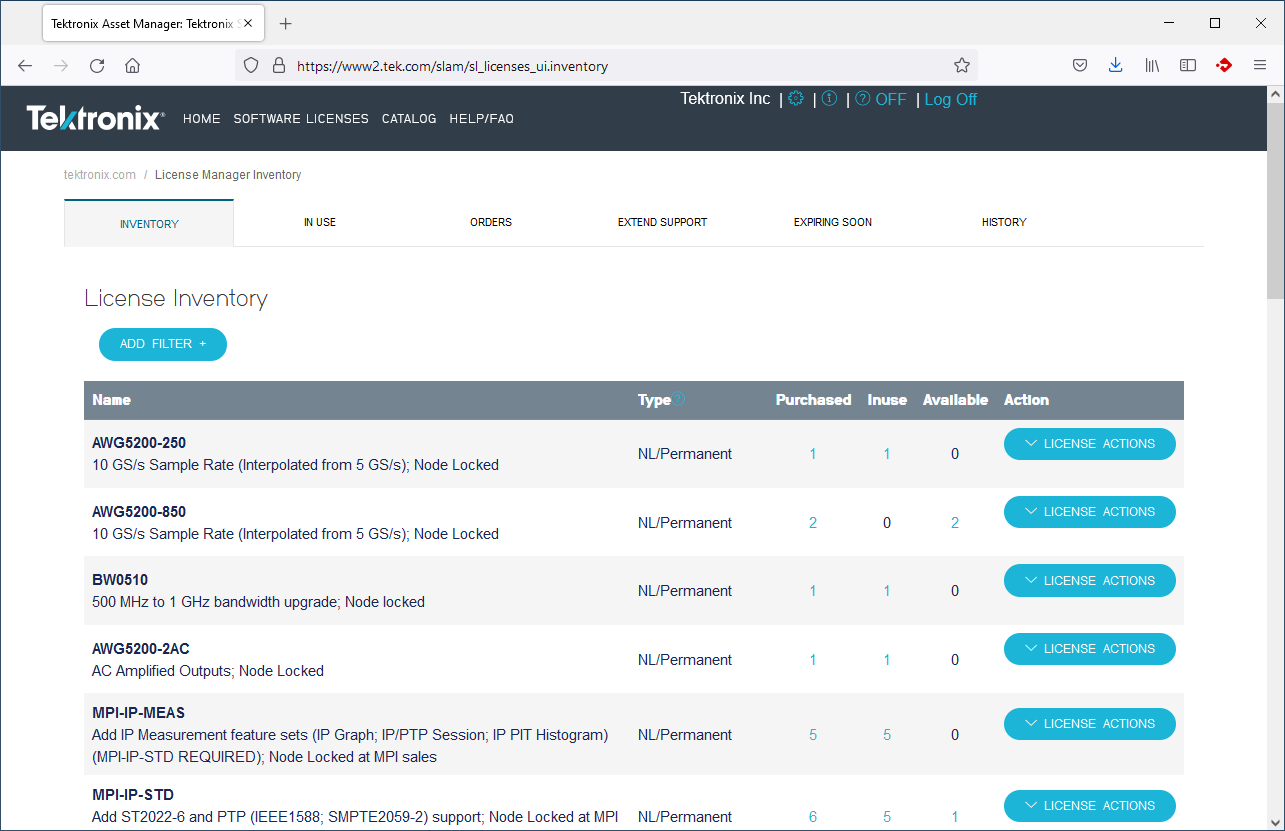

This view in the floating license system identifies the license's current user and location allowing you to easily manage your floating license inventory.

Managing and deploying floating licenses uses an easy online licensing management system. All floating license management functions are maintained on Tektronix secure servers and no infrastructure or your company IT department involvement is necessary. Simply utilize your myTek account to access, track, and deploy your oscilloscope floating-license enabled options.

Performance you can count on

Depend on Tektronix to provide you with performance you can count on. All Tektronix products are backed with industry-leading service and support.

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Model overview

DPO70804C, MSO70804C DPO71254C, MSO71254C DPO71604C, MSO71604C DPO72004C, MSO72004C DPO72304DX, MSO72304DX DPO72504DX, MSO72504DX DPO73304DX, MSO73304DX
Analog channels 4 4 4 4 4 4 4
Digital channels (MSO70000 Series only) 16 16 16 16 1616 16
Analog bandwidth (user-selectable DSP enhance) (–3 dB) 8 GHz 12.5 GHz 16 GHz 20 GHz

23 GHz (2 Ch)

23 GHz (4 Ch)

25 GHz (2 Ch)

23 GHz (4 Ch)

33 GHz (2 Ch)

23 GHz (4 Ch)

Hardware Analog Bandwidth (-3 dB) 8 GHz 12.5 GHz 16 GHz (typical) 16 GHz (typical) 23 GHz 25 GHz 33 GHz
Rise time (typical)

10% to 90%: 49 ps

20% to 80%: 34 ps

10% to 90%: 32 ps

20% to 80%: 22 ps

10% to 90%: 24.5 ps

20% to 80%: 17 ps

10% to 90%: 18 ps

20% to 80%: 14 ps

10% to 90%: 17 ps

20% to 80%: 13 ps

10% to 90%: 16 ps

20% to 80%: 12 ps

10% to 90%: 13 ps

20% to 80%: 9 ps

Sample rate (1, 2 ch) (maximum sample rate is 50 GS/s on digital channels routed to an analog channel through the iCapture™ analog mux) 25 GS/s 100 GS/s 100 GS/s 100 GS/s 100 GS/s 100 GS/s 100 GS/s
Sample rate (3, 4 ch) 25 GS/s 50 GS/s 50 GS/s 50 GS/s 50 GS/s 50 GS/s 50 GS/s
Sample rate (ET/IT mode) 5 TS/s 10 TS/s 10 TS/s 10 TS/s 10 TS/s 10 TS/s 10 TS/s
Record length, points (each channel, standard)

31.25 M

62.5 M (MSO70000 Series)

31.25 M

62.5 M (MSO70000 Series)

31.25 M

62.5 M (MSO70000 Series)

31.25 M

62.5 M (MSO70000 Series)

31.25 M

62.5 M (MSO70000 Series)

31.25 M

62.5 M (MSO70000 Series)

31.25 M

62.5 M (MSO70000 Series)

Record length (each channel, Opt. 5XL, DPO70000 series) 62.5 M 62.5 M 62.5 M 62.5 M 62.5 M 62.5 M 62.5 M
Record length (each channel, Opt. 10XL) 125 M 125 M 125 M 125 M 125 M 125 M 125 M
Record length (each channel, Opt. 20XL) N/A 250 M 250 M 250 M 250 M 250 M 250 M
Record length (each channel, Opt. 50XL) N/A N/A N/A N/A 500 M each channel, 1G on 2 channels 500 M each channel, 1G on 2 channels 500 M each channel, 1 G on 2 channels
Timing resolution

40 ps

(25 GS/s)

10 ps

(100 GS/s)

10 ps

(100 GS/s)

10 ps

(100 GS/s)

10 ps

(100 GS/s)

10 ps

(100 GS/s)

10 ps

(100 GS/s)

Duration at highest sample rate (standard)

1.25 ms

2.5 ms (MSO70000 Series)

0.31 ms

0.61 ms (MSO70000 Series)

0.31 ms

0.61 ms (MSO70000 Series)

0.31 ms

0.61 ms (MSO70000 Series)

0.31 ms

0.61 ms (MSO70000 Series)

0.31 ms

0.61 ms (MSO70000 Series)

0.31 ms

0.61 ms (MSO70000 Series)

Duration at highest sample rate (Opt. 5XL, DPO70000 series) 2.5 ms 0.63 ms 0.63 ms 0.63 ms 0.63 ms 0.63 ms 0.63 ms
Duration at highest sample rate (Opt. 10XL) 5.0 ms 1.3 ms 1.3 ms 1.3 ms 1.3 ms 1.3 ms 1.3 ms
Duration at highest sample rate (Opt. 20XL) 2.5 ms 2.5 ms 2.5 ms 2.5 ms 2.5 ms 2.5 ms
Duration at highest sample rate (Opt. 50XL) 10 ms10 ms10 ms
Vertical noise (% of full scale) (50 mV/div, bandwidth filter on, max sample rate) (typical) 0.35% 0.36% 0.36% 0.56% 0.58% 0.58% 0.58%
Time base range (Auto mode) 20 ps/div to 1000 s/div 10 ps/div to 1000 s/div 10 ps/div to 1000 s/div 10 ps/div to 1000 s/div 10 ps/div to 1000 s/div 10 ps/div to 1000 s/div 10 ps/div to 1000 s/div
Timing resolution (ET/IT mode) 200 fs 100 fs 100 fs 100 fs 100 fs 100 fs 100 fs
Delta time measurement accuracy (RMS over <100 ns Duration; Single Shot; Signal Rise Time = 1.2 × Scope Rise Time; 100 mV/div, bandwidth filter on, max sample rate) 1.24 ps 1.23 ps 1.15 ps 1.43 ps 639 fs 639 fs 555 fs
Jitter noise floor (with BWE enabled) (typical) 300 fs 270 fs 270 fs 290 fs <380 fs <365 fs <325 fs

Vertical system – Analog channels

Bandwidth limit

Depending on instrument model: 33 GHz to 1 GHz in 1 GHz steps, or 500 MHz

Depending on instrument model, hardware-only bandwidth settings at 33, 25, 23, 20, 16, 12.5, 8 GHz

Channel-to-Channel isolation

Any two channels at equal vertical scale

0 GHz to 10 GHz: ≥120:1

>10 GHz to 12 GHz: ≥80:1

>12 GHz to 15 GHz: ≥50:1

>15 GHz to 20 GHz: ≥25:1

>20 GHz to 33 GHz: ≥20:1

DC gain accuracy
±2% (of reading)
Channel delay (typical)

≤10 ps for any two channels at equal V/div and coupling on C models

≤1 ps for any two channels at equal V/div and coupling on DX models

Effective number of bits (typical)
5.5 bits at 50 mV/div, bandwidth filter on, max bandwidth up to 13 GHz, max sample rate
Signal-to-Noise ratio (typical)
34 dB
Input coupling
DC (50 Ω), GND
Input resistance selection
50 Ω ±3%, 1 MΩ with TCA-1MEG adapter
Input sensitivity range
23 GHz, 25 GHz, and 33 GHz models
6.25 mV/div to 600 mV/div (62.5 mV to 6 V full scale)
20 GHz models

20 to 500 mV/div (200 mV to 5 V full scale)

10 mV/div at 18 GHz (100 mV full scale)

All other models
10 mV/div to 500 mV/div (100 mV to 5 V full scale)
Maximum input voltage, 50 Ω
Also determined by TekConnect® accessory.
23 GHz, 25 GHz, and 33 GHz models
≤1.2 VFS: ±1.5 V relative to the termination bias (30 mA maximum), ±5 V absolute maximum input.
>1.2 VFS: 8.0 V.
All other models
<5.0 VRMS for ≥100 mV/div; 1.0 VRMS for <100 mV/div
Termination voltage range
23 GHz, 25 GHz, and 33 GHz models
≤1.2 VFS: -3.5 V to +3.5 V

>1.2 VFS: 0 V.

All other models
0 V only
Offset accuracy
10 mV/div to 99.5 mV/div
±(0.35% (offset value-position) + 1.5 mV + 1% of full scale)
100 mV/div to 500 mV/div
±(0.35% (offset value-position) + 7.5 mV + 1% of full scale)
Offset range
23 GHz, 25 GHz, and 33 GHz models
+3.4 V to ‒3.4 V
All other models

10 mV/div: ±450 mV

20 mV/div: ±400 mV

50 mV/div: ±250 mV

100 mV/div: ±2.0 V

200 mV/div: ±1.5 V

500 mV/div: ±0.0 V

Passband flatness (20, 50, 100, 250 mV/div) (typical)
±0.5 dB to 50% of nominal bandwidth
Position range
±5 div
Vertical resolution
8 bit (11 bit with averaging)

Vertical system – Digital channels

Digital bandwidth
With P6780 logic probe
2.5 GHz
With P6750 or P6717A logic probe
1 GHz
Input resistance selection
With P6780 logic probe
20 kΩ to ground per side or 40 kΩ differential mode ± 2.0%, 0.5 pF
With P6750 or P6717A logic probe
20 kΩ ± 1.0%, 3 pF
Trigger clock/qualifier input
1
Vertical resolution
1 bit
Thresholds
One per channel, independently set
Threshold accuracy
±75 mV + 3% of threshold setting
Threshold resolution
5 mV
Threshold voltage range
With P6780 logic probe
–2 to +4.5 V
With P6750 or P6717A logic probe
–1.5 to +4.0 V
Minimum voltage swing
300 mVp-p
Maximum input voltage
±15 V nondestruct

Horizontal system

Channel-to-Channel deskew range
±75 ns
Time base accuracy
±1.5 ppm initial accuracy, aging <1 ppm per year
Time base delay time range
–5.0 ks to 1.0 ks
Time/Div settings
10ps/div to 1000S/div
Trigger jitter
<100 fsRMS (1.3 psRMS [typical] with enhanced triggering off)

Acquisition system - Analog channels

Acquisition modes
Sample
Acquires and displays sampled values
Average
From 2 to 10,000 waveforms can be included in an average waveform
Envelope
From 1 to 2×109 waveforms included in min-max envelope
Hi-Res
Real-time boxcar averaging reduces random noise and increases resolution
Peak detect
Capture and display narrow glitches at all real-time sampling rates. Glitch widths: 1 ns at ≤125 MS/s; 1/sample rate at ≥250 MS/s
FastAcq®
FastAcq® optimizes the instrument for analysis of dynamic signals and capture of infrequent events, capturing >300,000 wfms/s on all TekConnect channels simultaneously, standalone configuration only
FastFrame™
Acquisition memory divided into segments; maximum trigger rate >310,000 waveforms per second. Time of arrival recorded with each event. Frame finder tool helps to visually identify transients. TekConnect channels only, standalone configuration only
Roll mode
Scrolls sequential waveform points across the display in a right-to-left rolling motion. Works at sample rates up to 10 MS/s with a maximum record length of 40 MS. TekConnect channels only, standalone configuration only
Waveform database
Accumulates waveform data providing a three-dimensional array of amplitude, time, and counts. TekConnect channels only, standalone configuration only

Acquisition system – Digital channels

Maximum sample rate (all channels)
12.5 GS/s
Timing resolution
80 ps
Channel-to-Channel timing uncertainty
<160 ps
Minimum detectable pulse width
<400 ps
Maximum number of buses
16
Number of channels per bus
Up to 24 (16 logic, 4 analog, 4 math)

Pinpoint® trigger system

Trigger sensitivity
Internal DC coupled

4% of full scale from DC to 50 MHz

10% of full scale at 4 GHz

20% of full scale at 8 GHz

50% of full scale at 11 GHz

Aux input 50 Ω (external trigger)
250 mV from DC to 50 MHz, increasing to 350 mV at 1.0 GHz
A event and delayed B event trigger types
Edge, glitch, width, runt, timeout, transition time, logic pattern, logic state, setup/hold, window - all except edge, pattern, and state can be logic state qualified by up to two channels
Main trigger modes
Auto, Normal, and Single
Trigger sequences
Main, Delayed by Time, Delayed by Events, Reset by Time, Reset by State, Reset by Transition. All sequences can include a separate horizontal delay after the trigger event to position the acquisition window in time
Trigger coupling

DC, AC (attenuates <100 Hz)

HF Rej (attenuates >20 kHz)

LF Rej (attenuates <200 kHz)

Noise Reject (reduces sensitivity)

RF coupling (increases trigger sensitivity and bandwidth at the highest operating frequencies)

Trigger holdoff range
250 ns min to 12 s max
Trigger level range
Any channel
±120% of full scale from center of screen
Auxiliary input
±5 V
Line
0 V, not settable
Clock recovery system
DPO Models
Requires Option ST6G or Option MTH
MSO Models
Standard
Clock recovery phase locked loop bandwidth
Fixed at FBaud/1600
Clock recovery jitter (RMS)

<0.25% bit period + 2 psRMS for PRBS data patterns

<0.25% bit period + 1.5 psRMS for repeating "0011” data pattern

Minimum signal amplitude needed for clock recovery

1 divp-p up to 1.25 Gbaud

1.5 divp-p above 1.25 Gbaud

Tracking/Acquisition range
±2% of requested baud
Clock recovery frequency range
1.5 MBaud to 3.125 GBaud. Recovered clock and regenerated data available for use with a BERT.
Serial pattern trigger
DPO Models
Requires Option ST6G
MSO Models
Standard
NRZ-Encoded Data

Up to 64 bit serial word recognizer, bits specified in binary (high, low, don't care) or hex format

Trigger on NRZ-encoded data up to 1.25 GBaud

8b/10b-Encoded Data

Trigger on 8b/10b-encoded data at the following rates: 1.25 to 1.65, 2.1 to 3.2, 3.8 to 5.1, and 5.4 to 6.25 GBaud.

Pattern length up to 40 bits (1 to 4 valid 10-bit characters)

Alignment character is K28.5 (either disparity)

Communications-related triggers

Support for AMI, HDB3, BnZS, CMI, MLT3, and NRZ encoded communications signals. Select among isolated positive or negative one, zero pulse form, or eye patterns as applicable to the standard.

DPO Models
Requires Option MTH
MSO Models
Standard
Bus triggers maximum toggle rate

I2C, SPI, RS-232/422/485/UART: 10 Mb/s

USB: low-speed, full-speed

CAN: 1 Mb/s

LIN: 100 kb/s

MIL-STD-1553B: 2 Mb/s

Logic pattern trigger (MSO Models)
Threshold range

P6780: –2 to +4.5 V

P6717A/P6750: –1.5 to +4 V

Threshold accuracy
±100 mV + 3% of threshold setting
Enhanced triggering

Enhanced triggering corrects the difference in timing between the trigger path and the acquired data path (supports all Pinpoint trigger types on both A- and B-Events except pattern trigger); Default On (user-selectable); Not available in FastAcq mode.

Line trigger
Trigger on power line signal. Level fixed at 0 V.
Visual Trigger
Requires Option VET
Max number of areas
8
Area shapes
Rectangle, Triangle, Trapezoid, Hexagon, user defined shapes (can have >40 vertices)
Compatibility
Visual Trigger qualification is compatible with all trigger types and all trigger sequences
Trigger Types
Trigger Analog Channels MSO Logic Channels Description
Comm 1X Support for AMI, HDB3, BnZS, CMI, MLT3, and NRZ encoded signals.
Bus X X Trigger on a parallel or serial bus when the specific bus value is found.
I2C 1X X Trigger on Start, Repeated Start, Stop, Missing ACK, Address (7 or 10 bit), Data, or Address and Data.
SPI 2X X Trigger on SS or data.
CAN 3X X Trigger on Start of Frame, Frame Type, Identifier, Data, End of Frame, Missing Ack, Bit Stuff Error.
LIN 2X X Trigger on Sync, Identifier, Data, Ident and Data, Wakeup Frame, Sleep Frame, Error.
FlexRay 2X X Trigger on Start of Frame, Indicator Bits, Cycle Count, Header Fields, Identifier, Data, End of Frame, Error.
RS-232/422/485/UART 2X X Trigger on Start Bit, End of Packet, Data, and Parity Error.
USB 2X X Low-speed or Full-speed: Trigger on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error.
MIL-STD-1553B2X X Trigger on Sync, Command Word, Status Word, Data, RT/IMG Time, Error.
PCI Express 2X X Trigger on Patterns (including ordered sets), Character/Symbol, Error, Control Characters (gen 1 and gen 2 rates only)
Edge X X Positive or negative slope on any channel or front-panel auxiliary input. Coupling includes DC, AC, noise reject, HF reject, and LF reject.
B Event Scan X B Event Scan is an A to B trigger sequence that will trigger and capture burst event data of interest as defined in the B Event Scan setup menu. Captured bits can be scanned in a sequential or randomized fashion, and alternatively the trigger can toggle between two successive B trigger events. Eye diagrams can be constructed with burst data acquired as a result of scanning B Event.
Glitch X X Trigger on or reject glitches of positive, negative, or either polarity. Minimum glitch width is 150 ps (typical) with rearm time of 300 ps.
Pattern X X Trigger when pattern goes false or stays true for specified period of time. Pattern (AND, OR, NAND, NOR) specified for four input channels (and 16 logic channels on the MSO70000 Series) defined as high, low, or don't care.
Runt X Trigger on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again. Event can be time- or logic-qualified.
Serial Pattern 1X Trigger on NRZ-encoded data up to 6.25 Gbaud; above 1.25 Gbaud requires 8b/10b encoded data. Includes pattern lock triggering to capture repeated acquisitions of long serial test patterns up to 6.25 Gb/s.
Setup/Hold X Trigger on violations of both setup time and hold time between clock and data present on any two input channels.
State X X Any logical pattern of channels (1, 2, 3) (and 16 logic channels on the MSO70000 Series) clocked by edge on channel 4. Trigger on rising or falling clock edge.
Timeout X X Trigger on an event which remains high, low, or either, for a specified time period. Selectable from 300 ps.
Transition X Trigger on pulse edge rates that are faster or slower than specified. Slope may be positive, negative, or either.
Trigger Delay by Events X X 1 to 2 billion events.
Trigger Delay by Time X X 3.2 ns to 3 million seconds.
Visual Trigger2X Trigger when the Visual Trigger expression is satisfied.
Width X X Trigger on width of positive or negative pulse either within or out of selectable time limits (down to 150 ps).
Window X Trigger on an event that enters or exits a window defined by two user-adjustable thresholds. Event can be time or logic qualified.

Waveform analysis

Search and Mark Events

Search for edges, glitches, or pulses of specified width. Any events found matching the search criteria are marked and placed in the Event table. The search can use positive/negative slopes or both on any channels.

When an event of interest is found, other similar events can be found using "Mark All Trigger Events in Record" in the Pinpoint trigger control windows.

The Event table summarizes all found events. All events are time stamped in reference to trigger position. Users can choose to stop acquisitions when an event is found.

Waveform measurements
Automatic measurements

53, of which 8 can be displayed on-screen at any one time; measurement statistics, user-definable reference levels, measurement within gates isolating the specific occurrence within an acquisition to measure

The DPOJET Jitter and Eye Analysis application offers additional automated and advanced measurements such as jitter.

Amplitude related

Amplitude, High, Low, Maximum, Minimum, Peak-to-Peak, Mean, Cycle Mean, RMS, Cycle RMS, Positive Overshoot, Negative Overshoot

Time related

Rise Time, Fall Time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Period, Frequency, Delay

Combination
Area, Cycle Area, Phase, Burst Width
Histogram related

Waveform Count, Hits in Box, Peak Hits, Median, Maximum, Minimum, Peak-to-Peak, Mean (μ), Standard Deviation (sigma), μ +1sigma, μ +2sigma, μ +3sigma

Bus decoding
Parallel

Data from selected channels is grouped as a parallel, multichannel bus and displayed as a single bus value. Display can be binary, hexadecimal, or symbolic formats

I2C 1
SCLK and SDA channels are displayed as a bus per the Inter-Integrated Circuit specification
SPI 1

MOSI, MISO, SCLK, and SS channels are displayed as a bus per the Serial Peripheral Interface specification

CAN 2

CAN_H, CAN_L, TX, or RX channels are displayed as a bus

LIN 2

Data is displayed as a bus in accordance with the LIN Version 1 or Version 2 standards

FlexRay 2
BP, BM, TX, or RX signals are displayed as a bus
HSIC 2

Data is displayed as a bus according to the USB2.0 HSIC standard

RS-232/422/485/UART 2
Channel is displayed as a bus
USB 2
Channels are displayed as a bus per the USB specification
MIL-STD-1553B 2

Data is displayed as a bus

PCI Express 2

Gen 1, 2, or 3 data rates are automatically detected and displayed as a bus in accordance with the PCIe standard

MIPI® D-PHY 2
DSI or CSI2 channels are displayed as a bus per the MIPI standard
8b/10b Encoded 1
Control and data characters are displayed as a bus
Waveform processing/math
Algebraic expressions

Define extensive algebraic expressions including Waveforms, Scalars, User-adjustable Variables, and Results of Parametric Measurements e.g. (Integral (CH1 ‒ Mean(CH1)) × 1.414 × VAR1)

Arithmetic
Add, Subtract, Multiply, Divide Waveforms and Scalars
Filtering function

User-definable filters. Users specify a file containing the coefficients of the filter. Several example filter files are provided

Frequency domain functions
Spectral Magnitude and Phase, Real and Imaginary Spectra
Mask function

Generates a Waveform Database pixel map from a sample waveform. Sample count can be defined

Math functions

Average, Invert, Integrate, Differentiate, Square Root, Exponential, Log 10, Log e, Abs, Ceiling, Floor, Min, Max, Sin, Cos, Tan, ASin, ACos, ATan, Sinh, Cosh, Tanh

Relational
Boolean result of comparison >, <, ≥, ≤, ==, !=
Vertical units
Magnitude: Linear, dB, dBm Phase: Degrees, radians, group delay IRE and mV units
Window functions

Rectangular, Hamming, Hanning, Kaiser-Bessel, Blackman-Harris, Gaussian, Flattop2, Tek Exponential

Customized Functions using Math Plug-in Interface

An interface is provided to allow users to create their own custom math functions in MATLAB or Visual Studio

Display system

Color palettes
Normal, Green, Gray, Temperature, Spectral, and User-defined
Format
YT, XY, XYZ
Display resolution
1024 horizontal × 768 vertical pixels (XGA)
Display type
307.3 mm (12.1 in.) liquid-crystal active-matrix color display
Horizontal divisions
10
Vertical divisions
10
Waveform styles
Vectors, Dots, Variable Persistence, Infinite Persistence

Computer system and peripherals

Operating system
Microsoft Windows 10 Enterprise IoT Edition
CPU
Intel i7-2600 processor, quad core, 3.4 GHz
System memory
8 GB (16 GB on DX models)
Solid state drive
Removable, 512 GB capacity
CD/DVD drive
Front-panel CD-R/W, DVD-R drive
Mouse
Optical wheel mouse, USB interface (DX models only)
Keyboard
USB interface (DX models only)

Input/Output ports

Auxiliary input
Front panel. See trigger specifications
Auxiliary output
Rear panel. BNC connector, 0 to 3 V; default output is A-Event Trigger low true
Probe calibration output
Front panel. BNC connector, ±10 V DC for DC probe calibration (signal available only during probe calibration)
Fast edge output
Front panel. SMA connector provides fast edge signal. 1 kHz ±20%; 810 mV (base to top) ±20% into ≥10 kΩ load; 440 mV ±20% into a 50 Ω load
Recovered clock output
Front panel. SMA connector, ≤1.25 Gb/s, Output swing ≥130 mVp-p into 50 Ω at 1.25 Gb/s. Requires Option ST6G or Option MTH to enable on DPO70000 Series, standard on MSO70000 Series
Recovered data output
Front panel. SMA connector, ≤1.25 Gb/s, Output swing of 1010 repeating pattern 200 mV into 50 Ω at 1.25 Gb/s. Requires Option ST6G or Option MTH to enable on DPO70000 Series, standard on MSO70000 Series
USB interface

Front panel: Two USB 2.0 ports on 23, 25, and 33 GHz models, one on all others. Allows connection of USB keyboard, mouse, or storage device

Rear panel: Four USB ports, two are USB 3.0. Allows connection of USB keyboard, mouse, or storage devices

LXI web interface (LAN eXtensions for instrumentation)
Class: LXI Class C
Version: 1.3
Audio input/output
Rear panel. Miniature phone jacks for stereo microphone input and stereo line output
External time base reference in
Rear panel. BNC connector; allows time base system to phase lock to external 10/100 MHz reference. Optimized (by using a software switch) for either a highly stable clock or tracking mode
GPIB interface
Rear panel. IEEE 488.2 standard
Keyboard port
Rear panel. PS/2 compatible
LAN port
Rear panel. RJ-45 connector, supports 10BASE-T, 100BASE-T, and 1000BASE-T
Mouse port
Rear panel. PS/2 compatible
eSATA port
Rear panel. External SATA interface for eSATA storage devices
Power
100 to 240 VRMS, ±10%, 50/60 Hz; 115 VRMS ±10%, <870 W, 400 Hz; CAT II, <1100 VA typical
Video out port

Connect to show the oscilloscope display, including live waveforms on an external monitor or projector. The primary Windows® desktop can also be displayed on an external monitor using these ports.

Alternatively, the ports can be configured to show the secondary Windows® desktop (also called extended desktop or dual-monitor display)

Both VGA and DVI-D connectors.

Serial port
Rear panel. Two DB-9 COM1 ports
Time base reference out
BNC connector; provides TTL-compatible output of internal 10 MHz reference oscillator

Physical characteristics

Dimensions
mm in.
Height 298 11.74
Width 451 17.75
Depth 489.97 19.29
Rackmount dimensions
mm in.
Height 311 12.25
Width 480.1 18.9
Depth (from rack mounting ear to back of instrument) 546.1 21.5
Weight
kg lb.
Net 24 53
Shipping 34 67
Rackmount weight
kg lb.
Net 22 59
Kit 2.7 6
Cooling – Required clearance
mm in.
Top 0 0
Bottom 0 0
Left Side 76 3
Right Side 76 3
Front 0 0
Rear 0 0

Environmental

Temperature
Operating
5 °C to +45 °C
Nonoperating
–20 °C to +60 °C
Humidity
Operating
8% to 80% relative humidity (RH) at up to 32 °C
Above +32 °C up to +45 °C; as limited by a 29.4 °C wet bulb temperature
Nonoperating
5% to 95% relative humidity (RH)
Above +32 °C up to +60 °C; as limited by a 29.4 °C wet bulb temperature
Altitude
Operating
3,000 m (9,843 ft.)
Nonoperating
12,000 m (39,370 ft.)
Regulatory
Electromagnetic compatibility
2004/108/EC; EN 61326-2-1:2006
Certifications
UL 61010-1, CSA 61010-1-04, LVD 2006/95/EC, EN61010-1, IEC 61010-1

Ordering information

MSO/DPO70000 models

MSO70804C
8 GHz Mixed Signal Oscilloscope
MSO71254C
12.5 GHz Mixed Signal Oscilloscope
MSO71604C
16 GHz Mixed Signal Oscilloscope
MSO72004C
20 GHz Mixed Signal Oscilloscope
MSO72304DX
23 GHz Mixed Signal Oscilloscope
MSO72504DX
25 GHz Mixed Signal Oscilloscope
MSO73304DX
33 GHz Mixed Signal Oscilloscope
DPO70404C
4 GHz Digital Phosphor Oscilloscope
DPO70604C
6 GHz Digital Phosphor Oscilloscope
DPO70804C
8 GHz Digital Phosphor Oscilloscope
DPO71254C
12.5 GHz Digital Phosphor Oscilloscope
DPO71604C
16 GHz Digital Phosphor Oscilloscope
DPO72004C
20 GHz Digital Phosphor Oscilloscope
DPO72304DX
23 GHz Digital Phosphor Oscilloscope
DPO72504DX
25 GHz Digital Phosphor Oscilloscope
DPO73304DX
33 GHz Digital Phosphor Oscilloscope

Standard accessories

Accessories

071-2980-xx
User Manual (please specify language when ordering)
TCA-292MM (4 included)
TekConnect® to 2.92 mm Adapter (C models)
TCA-292D (4 included)
TekConnect® to 2.92 mm Adapter (DX models)
TCA-BNC
TekConnect® to BNC Adapter
016-1441-02
Accessory Pouch
200-4963-01
Front Cover
119-7054-00
Mouse (DX models only)
119-7275-00
Keyboard (DX models only)
Power Cord (please specify power plug option when ordering)
006-3415-05
Static Protection Wrist Strap
GPIB Programmer's Reference (on product SSD)
Performance Verification Procedure PDF File
Calibration Certificate Documenting NIST Traceability
Z 540-1 Compliance and ISO9001
P6717A
P6717A General Purpose Logic Probe (MSO models)
067-2298-00
Logic Probe Deskew Fixture (MSO models)

Instrument options, upgrades, and floating licenses

The following instrument options, upgrades, and floating licenses are available as indicated.

  • Instrument: An "Instrument" option is an option available at the time of purchase. When ordering an option for a new instrument the option is prefaced by the model number. For example, DPO73304SX DJA.
  • Upgrade: An "Upgrade" is an option available to an existing instrument. When ordering an option as an upgrade the option is prefaced by DPO-UP. For example, DPO-UP DJA.
  • Floating license: Floating licenses offer an alternative method to manage your Tektronix asset. Floating licenses allow license-key enabled options to be easily moved among all your DPO70000SX, MSO/DPO70000C/D/DX, DPO7000, and MSO/DPO5000 Series oscilloscopes. When ordering a floating license, the license is prefaced by DPOFL. For example, DPOFL-DJA. Check www.tek.com/products/oscilloscopes/floating-licenses for additional information about floating license options.

Record Length options, upgrades, and floating licenses

The following Record Length options, upgrades, and floating licenses are available. An "X" indicates the item is available. A "-" indicates the item is not available.

Option Description InstrumentUpgradeFloating license
5XLExtended record length: 62.5 M/Ch X--
10XL Extended record length: 125 M/Ch X--
20XL Extended record length: 250 M/Ch X--
50XL Extended record length: 1 G/Ch (2 Channels) 500 M/Ch (4 Channels) X--
510XLExtended record length: Upgrade from 5XL (62.5 M/Ch) to 10XL (125 M/Ch) (Requires Opt. 5XL)X--
520XLExtended record length: Upgrade from 5XL (62.5 M/Ch) to 20XL (250 M/Ch) (Requires Opt. 5XL)X--
550XLExtended record length: Upgrade from 5XL (62.5 M/Ch) to 50XL (1G/Ch (2 Channels) 500 M/Ch (4 Channels)) (Requires Opt. 5XL)X--
XL02Extended record length: Upgrade from standard to 2XL (31.25 M/Ch)-XX
XL05Extended record length: Upgrade from standard to 5XL (62.5 M/Ch)-XX
XL010Extended record length: Upgrade from standard to 10XL (125 M/Ch)-XX
XL020Extended record length: Upgrade from standard to 20XL (250 M/Ch)-XX
XL050Extended record length: Upgrade from standard to 50XL (1G/Ch (2 Channels) 500M/Ch (4 Channels))--X
XL25Extended record length: Upgrade from 2XL (31.25M/Ch) to 5XL (62.5M/Ch)-X-
XL210Extended record length: Upgrade from 2XL (31.25M/Ch) to 10XL (125M/Ch)-X-
XL220Extended record length: Upgrade from 2XL (31.25M/Ch) to 20XL (250M/Ch)-X-
XL250Extended record length: Upgrade from 2XL (31.25M/Ch) to 50XL (1G/Ch (2 Channels) 500M/Ch (4 Channels))-X-
XL510Extended record length: Upgrade from 5XL (62.5 M/Ch) to 10XL (125 M/Ch)-X-
XL520Extended record length: Upgrade from 5XL (62.5 M/Ch) to 20XL (250 M/Ch)-X-
XL550Extended record length: Upgrade from 5XL (62.5 M/Ch) to 50XL (1 G/Ch (2 Channels) 500 M/Ch (4 Channels))-X-
XL1020Extended record length: Upgrade from 10XL (125 M/Ch) to 20XL (250 M/Ch)-X-
XL1050Extended record length: Upgrade from 10XL (125 M/Ch) to 50XL (1 G/Ch (2 Channels) 500 M/Ch (4 Channels))-X-
XL2050Extended record length: Upgrade from 20XL (250 M/Ch) to 50XL (1 G/Ch (2 Channels) 500 M/Ch (4 Channels))-X-

Storage options and upgrades

The following Storage options and upgrades are available. An "X" indicates the item is available. A "-" indicates the item is not available.

OptionDescriptionInstrumentUpgrade
SSD

Solid State Drive Assembly: Additional customer-installable removable drive with Microsoft Windows 10 OS, TekScope and applications software installed

X-

Trigger and Decode options, upgrades, and floating licenses

The following Trigger and Decode options, upgrades, and floating licenses are available. An "X" indicates the item is available. A "-" indicates the item is not available.

OptionDescriptionInstrumentUpgradeFloating license
SR-810B8b/10b Serial Triggering and AnalysisXXX
SR-AEROAerospace Serial Triggering and Analysis (MIL-STD-1553)XXX
SR-AUTOAutomotive Serial Triggering and Analysis (CAN/LIN/FlexRay)XXX
SR-COMPComputer Serial Triggering & Analysis (RS232/422/485/UART)XXX
SR-CUSTCustom Serial Analysis Kit for DevelopersXXX
SR-DPHYMIPI D-PHY (DSI1 / CSI2) Serial AnalysisXXX
SR-EMBDEmbedded Serial Triggering and Analysis (I2C, SPI)XXX
SR-ENETEthernet Serial Analysis (10BASE-T and 100BASE-TX)XXX
SR-PCIEPCI Express Serial Triggering (Gen 1, 2) and Analysis (Gen 1, 2, 3, 4)XXX
SR-USBUSB Serial Triggering and AnalysisXXX
SSICSSIC Protocol DecoderX-X
ST6GHigh-Speed Serial Trigger and Decode up to 6.25 Gb/s. Supports NRZ patterns and 8b10b serial buses. (Includes Opt. SR-810B)XXX
VETVisual Trigger and SearchX-X
VETHVisual Trigger and Search (for 70K Series <12 GHz)-X-
VTHUVisual Trigger and Search (for 70K Series >12 GHz)-X-

Advanced Analysis options, upgrades, and floating licenses

The following Advanced Analysis options, upgrades, and floating licenses are available. An "X" indicates the item is available. A "-" indicates the item is not available.

Option Description InstrumentUpgradeFloating license
100G-TXE TekExpress 100G-TXE - 100Gbps TX Compliance Solution and DPOJET: CAUI4-TX, KR4-TX & CR4-TXXXX
10G-KRTekExpress 10G-KR - 10G-KR Compliance Solution and DPOJET: 10G-KR measurements plug-in. (Requires Opt. DJA)XXX
400G-TXETekExpress 400G-TXE - 400G Electrical Tx Compliance Solution & DPOJET: CAUI4-TX measurements plug-in. Supports IEEE-802.3bs/cd: 400GAUI/200G-KR/CR & OIF-CEI (VSR/MR/LR). (Requires Opt. DJA, DJAN, PAM4, SDLA64)XXX
40G-CR4TekExpress 40G-CR4 - 40GBase-CR4 Compliance Solution and DPOJET: 40GBase-CR4 measurements plug-in. Suports IEEE 802.3-2012: Section 85. (Requires Opt. DJA)XXX
ASMAdvanced Event Search And Mark-XX
AUTOEN10TekExpress Automotive Ethernet - 10BASE-T1S Compliance SolutionXXX
AUTOEN10GTekExpress Automotive Ethernet - MultiGBASE-T1 Compliance Solution (Requires Opt. DJA)XXX
BRRTekExpress Automotive Ethernet - 100BASE-T1: 1000BASE-T1 Compliance SolutionXXX
C-PHY DPOJET: C-PHY Tx Measurement Plugin (Requires Opt. DJA)XXX
CIODPOJET: CIO Tx/Rx Measurement Plugin. Supports DP2.0, TBT3, USB4 (Requires Opt. DJA)XXX
CMENET3 TekExpress Ethernet - 10/100/1000 BASE-T Compliance SolutionXXX
CMENET3ATekExpress Ethernet - 10/100/1000 BASE-T Compliance Solution (Requires Opt. ET3)-XX
CPHY20TekExpress MIPI C-PHY 2.0 Tx Compliance Solution (Requires DJA)XXX
D-PHYDPOJET: D-PHY Tx Measurement Plugin (Requires Opt. DJA)XXX
DDR-LP4 DPOJET: LPDDR4 Tx Electrical Validation Solution (Requires Opt. DJA, DDRA)XXX
DDR5SYS TekExpress DDR Tx - DDR5 System Level Tx Compliance/Debug Automation Solution. (Requires Opt. DJA, SDLA64, VET)XXX
DDRA DPOJET: DDR Tx Electrical Validation Solution - Supports DDR, DDR2, DDR3, DDR3L, DDR4, LPDDR, LPDDR2, LPDDR3, GDDR3, GDDR5 (Requires Opt. DJA)XXX
DJA DPOJET Jitter and Eye Analysis Tools - AdvancedX-X
DJAHDPOJET Jitter and Eye Analysis Tools - Advanced (for 70k Series <12 GHz)-X-
DJAUDPOJET Jitter and Eye Analysis Tools - Advanced (for 70k Series >12 GHz)-X-
DJAN DPOJET Jitter and Eye Analysis Tools - Noise (Requires Opt. DJA)XXX
DP12 TekExpress DisplayPort - DisplayPort 1.2 Tx Compliance Solution (Requires Opt. DJA)XXX
DP14 TekExpress DisplayPort - DisplayPort 1.4 Tx Compliance Solution (Requires Opt. DJA, SDLA)XXX
DP20TekExpress DisplayPort 2.0 Tx Compliance/Debug Solution (Requires Opt. CIO, DJA, SDLA)XXX
DPHY12 TekExpress MIPI D-PHY 1.2 Tx Compliance Solution (Requires Opt. DJA)XXX
DPHY21TekExpress MIPI D-PHY 2.1 Tx Compliance Solution (Requires Opt. DJA)XXX
DSADigital Serial Analysis Bundle (Includes Opt. 5XL, DJA, MTH, ST6G)X-X
DSAHDigital Serial Analysis Bundle for 4GHz to 8GHz Models (Includes 5XL: DJA: MTH: ST6G)-X-
DSAUDigital Serial Analysis Bundle for 12.5GHz to 20GHz Models (Includes 5XL: DJA: MTH: ST6G)-X-
DSAXDigital Serial Analysis Bundle for DPO70KDX Models (Includes 5XL: DJA: MTH: ST6G)-X-
EARC21RX HDMI 2.1 eARC Advanced Analysis and Compliance software for Rx testsXX-
EARC21TX HDMI 2.1 eARC Advanced Analysis and Compliance software for Tx testsXX-
EDP DPOJET: Embedded DisplayPort 1.2 Tx Measurement Plugin (Requires opt. DJA)XXX
EDP14 DPOJET: Embedded DisplayPort 1.4 Tx Measurement Plugin (Requires opt. DJA)XXX
ERRDTFrame and Bit Error Rate Detector for High Speed Serial Standards (Requires Opt. ST6G)X-X
ERRDTHFrame and Bit Error Rate Detector for High Speed Serial Standards for 70k Series <12 GHz (Requires Opt. ST6G)-X-
ERRDTUFrame and Bit Error Rate Detector for High Speed Serial Standards for 70k Series >12 GHz (Requires Opt. ST6G)-X-
FC-16G DPOJET: Fibre Channel-16G measurements plug-in (Requires Opt. DJA)XXX
HD21DSTekExpress HDMI 2.1 Rx Compliance Solution (Requires Opt. HD21)XXX
HD21DSMTekExpress HDMI 2.1 Rx Electrical and Protocol Compliance Pattern Generation and Calibration Solution (Requires Opt. HD21DS)XXX
HDM TekExpress HDMI 2.0 Tx Compliance Solution (Requires Opt. DJA)XXX
HDM-DSTekExpress HDMI 2.0 Rx Compliance Solution. Includes Rx tests for HDMI 1.4 using AWG70k. (Requires Opt. HDM)XXX
HD-DSMTekExpress HDMI 2.0 Rx Electrical and Protocol Compliance Pattern Generation and Calibration Solution (Requires Opt. HDM-DS)XXX
HSIC DPOJET: HSIC Tx Measurement Plugin: and Scope-Based Protocol Decode (Requires Opt. DJA, SR-CUST)XXX
HT3 TDSHT3 - HDMI 1.4 Compliance Test SoftwareXXX
HT3DS TDSHT3 - HDMI 1.4 Compliance Test Software Rx option (Requires Opt. HT3) XXX
LPDDR5SYSTekExpress DDR Tx - LPDDR5 System Level Tx Compliance/Debug Automation Solution. (Requires Opt. DJA, SDLA64, VET)XXX
LT Waveform Limit Testing XXX
LVDSTXTekExpress LVDS Tx Automation (Requires Opt. DJA)XX-
M-PHY DPOJET: MIPI M-PHY Tx Measurement Plugin (Requires Opt. DJA)XXX
M-PHYRXTekExpress MIPI M-PHY Rx Compliance Solution (Requires Opt. DJA, ERRDT)XXX
M-PHYTXTekExpress MIPI M-PHY Tx Compliance Solution (Requires Opt. DJA)XXX
MHD MHL Advanced Analysis and Compliance Software (Requires Opt. DJA, 2XL or higher)XXX
MHD3MHL 3.0 Advanced Analysis and Compliance Software for Tx,Rx Dongle and Cable tests (Requires Opt. MHD)XX-
MOSTDPOJET: MOST Tx Measurement Plugin. Supports MOST50 and MOST150 (Requires Opt. DJA)XXX
MTHMask Testing: Includes Hardware Clock RecoveryXXX
NBASET TekExpress Ethernet TX - NBASE-T Compliance Solution. Supports IEEE P802.3bz: Section 16; NBASE-TXXX
PAMJET-EPAM4 Transmitter Analysis Software for electrical signals (Requires Opt. DJA, DJAN)XXX
PAMJET-OPAM4 Transmitter Analysis Software for Optical signals (Requires Opt. DJA, DJAN)XXX
PCE3 TekExpress PCIe Tx Compliance Solution and DPOJET: PCIe Tx Measurement Plugin. Supports PCIe Gen1/2/3 (Requires Opt. DJA, SR-PCIE)XXX
PCE4 TekExpress PCIe Tx Compliance Solution and DPOJET: PCIe Tx Measurement Plugin. Supports PCIe Gen 3/4 (Requires Opt. DJA, PCE3, SR-PCIE)XXX
PWR Advanced Power Measurements and Analysis - Switching Loss, Hi-Power Finder, RDS(on) and SOA, Magnetic, Power Quality, Harmonics, Inrush Current, Timing AnalysisXXX
SAS3SAS-3 TX Compliance Test ApplicationXXX
SAS3-TSG TekExpress SAS3 Tx Compliance Solution (Requires Opt. DJA, SAS3)XXX
SAS3-TSGW TekExpress SAS-3 Tx WDP Transmitter Measurements (Requires Opt. SAS3-TSG)XXX
SAS4-TSG DPOJET: SAS4 Tx Measurement Plugin (Requires Opt. DJA)XXX
SATA-DHBTekExpress SATA Tx Compliance Solution (TSG/RSG Bundle: SW option)XXX
SATA-R-UPTekExpress Upgrade for SATA RSG/RMT Receiver Tests-X-
SATA-RSGTekExpress SATA Rx Compliance Solution (RSG/RMT) (Requires Opt. DJA, ERRDT)XXX
SATA-TSGTekExpress SATA Tx Compliance Solution (PHY/TSG/OOB) (Requires Opt. DJA)XXX
SC SignalCorrect Cable, Channel, and Probe Compensation SoftwareXXX
SDLA64 Serial Data Link Analysis - Measurement Circuit De-embed, Simulation Circuit Embed, Transmitter & Receiver Equalization and Advanced Analysis and Modeling ToolsXXX
SFP-TX TekExpress SFP+ QSFP+ Tx - Ethernet SFP+/QSFP+ Compliance Solution and DPOJET: SFP+/QSFP+ Tx measurements plug-in. (Requires Opt. DJA)XXX
SFP-WDP TekExpress SFP+ QSFP+ Tx - Waveform Distortion Penalty measurements (Requires Opt. SFP-TX)XXX
SWX-DPSwitch Matrix support for DisplayPort 1.2 Tx (Requires Opt. DP12)XXX
SWX-PCE Switch Matrix support for PCIe Tx (Requires Opt. PCE, PCE3, PCE4)XXX
TBT-TXTekExpress Thunderbolt 2 Automated ComplianceXXX
TBT3TekExpress Thunderbolt 3 & Thunderbolt 4 Tx Compliance/Debug Automation Solution (Requires Opt. CIO, DJA, SDLA64)XXX
USB-TX TekExpress USB 3.0 Tx Compliance Solution (Requires Opt. DJA)XXX
USB2TekExpress USB 2.0 Automated Compliance SolutionXXX
USB4TekExpress USB4 Tx Compliance and DPOJET: USB4 Tx/Rx Measurement Plugin Solution (Requires Opt. CIO, DJA, SDLA64)XXX
USBPWRUSB Power Adapter/ EPS Compliance Automated Test SolutionXXX
USBSSP-TXTekExpress USB 3.1 Tx Compliance Solution (5Gb and 10Gb) (Requires Opt. DJA, USB-TX)XXX
USBSSP-UPTekExpress USB 3.0 (5Gb) upgrade to TekExpress USB 3.1 (10Gb)-XX
XGBT2 TekExpress Ethernet Tx - 10GBASE-T Compliance Solution. Supports IEEE 802.3: Section 55 XXX

Spectral and Modulation Analysis options, upgrades, and floating licenses

The following Spectral and Modulation Analysis options, upgrades, and floating licenses are available. An "X" indicates the item is available. A "-" indicates the item is not available.

Option Description InstrumentUpgradeFloating license
5GNR5G NR Uplink/Downlink RF Power, Bandwidth, Demodulation and Error Vector Magnitude Measurments (Requires Opt. SVE)-X-
SVE SignalVu® Essentials - Vector Signal Analysis Software X-X
SVEHSignalVu Essentials - Vector Signal Analysis Software for 70k Series <12 GHz-X-
SVEUSignalVu Essentials - Vector Signal Analysis Software for 70k Series >12 GHz-X-
SVAAM/FM/PM Audio Signal Analysis (Requires Opt. SVE)XXX
SVM General Purpose Modulation Analysis (Requires Opt. SVE) XXX
SVO Flexible OFDM Analysis (Requires Opt. SVE) XXX
SVP Advanced Pulsed Signal Analysis including Measurements (Requires Opt. SVE)XXX
SVT Frequency and Phase Settling Time Measurements (Requires Opt. SVE) XXX
SV23 WLAN 802.11a/b/g/j/p measurement application (Requires Opt. SVE) XXX
SV24 WLAN 802.11n measurement application (Requires Opt. SV23) XXX
SV25 WLAN 802.11ac measurement application (Requires Opt. SV24) XXX
SV26 APCO P25 compliance testing and analysis application (Requires Opt. SVE) XXX
SV27 SignalVu Bluetooth Basic LE TX SIG measurements (Requires Opt. SVE) XXX
SV28 SignalVu LTE DownLink RF measurements (Requires Opt. SVE)XXX
SV30 WiGig IEEE 802.11ad/ay transmitter testing (Requires Opt. SVE)XXX
UpgradeDescription
DPO7SSD-W10Additional Windows 10 SSD drive. For units shipped with Windows 10, or to upgrade from Windows 7 to Windows 10. Microsoft Windows 10 OS, TekScope, and applications software installed.
The part numbers for these drives are not DPO-UP options. Order the part numbers as they are listed above. Do not order DPO-UP for these drives.
Investment protection options
As signals get faster and new standards are developed, your investment in an MSO/DPO70000 Series instrument can evolve with your needs. You can upgrade the bandwidth of the unit you own today. You can take advantage of MSO/DPO70000 series performance improvements by upgrading your existing unit to a new series, or adding MSO features to your current DPO model. Contact your local Tektronix representative to discuss the full range of options available to ensure your MSO/DPO70000 series oscilloscope has the tools you need for your next project.

Power plug options

Opt. A0
North America power plug (115 V, 60 Hz)
Opt. A1
Universal Euro power plug (220 V, 50 Hz)
Opt. A2
United Kingdom power plug (240 V, 50 Hz)
Opt. A3
Australia power plug (240 V, 50 Hz)
Opt. A5
Switzerland power plug (220 V, 50 Hz)
Opt. A6
Japan power plug (100 V, 50/60 Hz)
Opt. A10
China power plug (50 Hz)
Opt. A11
India power plug (50 Hz)
Opt. A12
Brazil power plug (60 Hz)
Opt. A99
No power cord

Service options

Opt. C3
Calibration Service 3 Years
Opt. C5
Calibration Service 5 Years
Opt. D1
Calibration Data Report
Opt. D3
Calibration Data Report 3 Years (with Opt. C3)
Opt. D5
Calibration Data Report 5 Years (with Opt. C5)
Opt. G3
Complete Care 3 Years (includes loaner, scheduled calibration, and more)
Opt. G5
Complete Care 5 Years (includes loaner, scheduled calibration, and more)
Opt. IF
Upgrade Installation Service
Opt. R3
Repair Service 3 Years (including warranty)
Opt. R5
Repair Service 5 Years (including warranty)

Recommended accessories

Probes
DPO7OE1
33 GHz optical probe
DPO7OE2
59 GHz optical probe
P7633
33 GHz Low Noise TriMode™ Probe
P7630
30 GHz Low Noise TriMode™ Probe
P7625
25 GHz Low Noise TriMode™ Probe
P7720

20 GHz TriMode Probe

P7716
16 GHz TriMode Probe
P7713
13 GHz TriMode Probe
P7708
8 GHz TriMode Probe
P7520A
25 GHz TriMode™ probe
P7516
16 GHz TriMode™ probe
P7513A
13 GHz TriMode™ differential probe
P7313SMA
13 GHz TriMode™ differential SMA probe
P7508
8 GHz TriMode™ probe
P7506
6 GHz TriMode™ probe
P7504
4 GHz TriMode™ probe
P6780
Differential Input Logic probe
P6750
D-Max® Technology Logic Probe
P6717A
General-purpose Logic probe
P6251
DC to 1 GHz, 42 V, differential probe (requires TCA-BNC adapter)
TCPA300/TCPA400 Series
Current measurement systems
P5200A/P5205A/P5210A
High-voltage differential probes
P77DESKEW
P7700 Probe Deskew Fixture for SMA, solder-down, and browser connections
067-2431-xx
Probe Deskew Fixture for SMA or solder-down connections (up to 30 GHz)
067-0484-xx
Analog Probe Calibration and Deskew Fixture (4 GHz)
067-1586-xx
Analog Probe Deskew Fixture (>4 GHz)
067-1686-xx
Power Deskew Fixture
Adapters
TCA-1MEG
TekConnect® high-impedance buffer amplifier. Includes P6139B passive probe
TCA-292MM
TekConnect® to 2.92 mm adapter (20 GHz bandwidth)
TCA-292D
TekConnect® to 2.92 mm adapter (33 GHz bandwidth)
TCA-BNC
TekConnect® to BNC adapter
TCA-N
TekConnect® to N adapter
TCA-SMA
TekConnect® to SMA adapter
TCA-VPI50
50 Ω TekVPI to TekConnect adapter
TCA75
23 GHz precision TekConnect® 75 Ω to 50 Ω adapter with 75 Ω BNC input connector
Cables
174-6663-01
Cable; 2.92-to-2.92 mm cable pair, straight, 1.5 ps phase-matched, 500 mm, 40 GHz
PMCABLE1M
Phase matched cable pair, 40 GHz, 2.92mm, male-male, 1 meter
174-6978-00
Cable; 2.92-to-2.92 mm cable pair, straight, 1.5 ps phase-matched, 2 m, 40 GHz
174-6664-01
Cable; SMA-to-SMA cable pair, straight, 1.5 ps phase-matched, 200 mm, 20 GHz
174-6665-01
Cable; SMA-to-SMA, single cable, right-angle, 300 mm, 20 GHz
174-6666-01
Cable; SMA-to-SMA, single cable, right-angle, 500 mm, 20 GHz
174-6667-01
Cable; SMA-to-SMA, single cable, right-angle, 1.829 m, 20 GHz
174-6658-01
Cable; SMP-to-SMP cable pair, right-angle, 2.5 ps phase-matched, 300 mm, 20 GHz
174-6659-01
Cable; SMP-to-SMP cable pair, right-angle, 2.5 ps phase-matched, 1 m, 20 GHz
012-0991-xx
GPIB Cable (1 m)
012-0991-xx
GPIB Cable (2 m)
P6780 Logic Probe standard accessories
067-2298-xx
Deskew Fixture, logic probes
020-3035-xx
Standard adapter
020-3036-xx
Wide Body adapter
020-3032-00
25°/55° holder
020-3021-00
Heat Strip wire (4.57 m)
020-3031-xx
Hand Browsing adapter
020-3033-xx
Flex adapter
020-3038-xx
Lead set ground
020-3042-xx
Probe grouper (including header pins)
020-3034-xx
Ferrite beads
020-3037-xx
Wire tubing (4.57 m)
P6717A Logic Probe standard accessories
HEX-P6960PIN
D-MAX Probe footprint to square pin header
NEX-HD2HEADER 4
Mictor to square pin header adapter
067-2298-xx
Deskew Fixture, logic probes
206-0559-xx
Extension ground tip
131-5638-xx
Probe tip
206-0569-xx
IC grabber
352-1115-xx
Probe grouper
196-3501-xx
Lead sets
196-3497-xx
Ground lead sets
Memory testing
NEX-DDR3MP78BSC
DDR3 ×4/×8 Solder Chip Interposer
NEX-DDR3MP78BSCSK
DDR3 ×4/×8 Socket Chip Interposer
NEX-DDR3MP96BSC
DDR3 ×16 Solder Chip Interposer
NEX-DDR3MP96BSCSK
DDR3 ×16 Socket Chip Interposer
NEX-DDR2MP60BSC
DDR2 ×4/×8 Solder Chip Interposer
NEX-DDR2MP60BSCSK
DDR2 ×4/×8 Socket Chip Interposer
NEX-DDR2MP84BSC
DDR2 ×16 Solder Chip Interposer
NEX-DDR2MP84BSCSK
DDR2 ×16 Socket Chip Interposer
Instrumented DIMM for DDR3 1
Order Scope NEXVu card for UDIMM Raw Card E. (Contact http://www.nexustechnology.com)
System Test
TDSUSBF
Test Fixture for use with Opt. USB
TF-XGbT1
10GBASE-T Fixture for use with Option XGbT Software
Ethernet Test Fixture. Order through Crescent Heart Software (http://www.c-h-s.com)
TF-HEAC-TPA-KIT
HEAC TPA-KIT consists of: Main Board; Plug A-type board; Plug C-type board; 2 × TDR board with A Receptacle; 2 × TDR board with C Receptacle
TF-HDMI-TPA-S/STX
HDMI Type C fixture set for Tx/Rx
TF-HDMIC-TPA-S/STX

TF-HDMIC-TPA-S/STX

TF-HDMIE-TPA-KIT
HDMI Type E Fixture set
TF-HDMID-TPA-P/R

HDMI Type D Fixtures

TF-MHL-TPA-TEK
MHL Fixture set
S46-6666-A-AMER
Keithley Instruments RF/Microwave switch system, 32 channel, unterminated, Americas power cord
S46-6666-A-ASIAP
Keithley Instruments RF/Microwave switch system, 32 channel, unterminated, Asia-Pacific power cord
S46-6666-A-EURAF
Keithley Instruments RF/Microwave switch system, 32 channel, unterminated, Europe/Africa power cords
TF-USB3-AB-KIT 1
USB 3.0 A/B Fixture/Cable Kit
TF-USB3-A-P
USB 3.0 A Plug Fixture
TF-USB3-A-R 1
USB 3.0 A Receptacle Fixture Kit
TF-USB3-B-R
USB 3.0 B Receptacle Fixture Kit
TF-GBE-ATP
10/100/1000BASE-T Advanced Test Package (consists of test fixture PCB set, RJ45 interconnect cable, and 1000BASE-T jitter test channel cable)
TF-GBE-BTP
10/100/1000BASE-T Basic Test Package (consists of test fixture PCB set and RJ45 interconnect cable)
TF-GBE-JTC
103 meter 1000BASE-T jitter test channel cable
TF-GBE-SIC
Short (4 inch (0.1 meter)) RJ45 interconnect cable
TF-XGbT 1
Test fixtures that complement the use of the TekEXP-XGbT solution
DPO DSA MSO70000 DataSheet FINAL 13July2022 reduced
Transit Case (carbon fiber).
Other
016-1985-xx
Rackmount Kit
077-0076-xx
Service Manual, pdf on hard drive
016-2039-00
Transit Case (metal frame, wood panels)
016-2043-00
Transit Case (carbon fiber)
TF-TEKPROTECT ESD Protection Tester:

MSO/DPO70000C instruments include TekProtect circuitry designed to stop EOS/ESD events from reaching analog channel preamp inputs, while still allowing normal signals to pass. TekProtect should be checked regularly with the TF-TEKPROTECT ESD Protection Tester to ensure the device is still working.

Warranty

One-year warranty covering all parts and labor.
