Biconical Antenna for Tektronix EMC pre-compliance

EMI-BICON-ANT (Com-Power ABF-900A offered by Tektronix)

EMI-BICON-ANT (Com-Power ABF-900A offered by Tektronix)

The EMI-BICON-ANT is the Com-Power ABF-900A offered by Tektronix. This is a flexible biconical antenna. It can be used for emissions and immunity testing to meet various EMC standards. It has a frequency range of 25 MHz - 300 MHz. The flexible and foldable conical elements allow for easy storage and transport.

Key features
  • Frequency range: 25 MHz to 300 MHz
  • Collapsible antenna elements
  • Individual calibration

Specifications

Antenna
Antenna type
Collapsible biconical
Frequency range
25 MHz – 300 MHz
Nominal input impedance
50 Ω
Polarization
Linear
Continuous input power (CW)
50 Watts
Connector
N-type (female)
Dimensions
134 cm x 73 cm
Weight
4.5 kg (max)

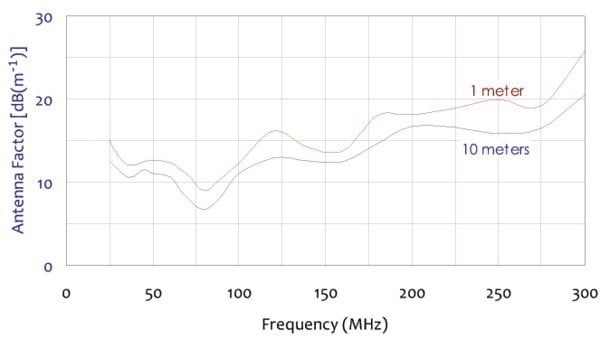

Antenna factor

EMI-BICONANTdatasheet-EN_US-10-L

Isotropic gain

EMI-BICONANTdatasheet-EN_US-11-L

Return loss

EMI-BICONANTdatasheet-EN_US-12-L

Field strength

EMI-BICONANTdatasheet-EN_US-13-L

Ordering information

EMI-BICON-ANT and related accessories
Item Description
EMI-BICON-ANT 25 MHz to 300 MHz collapsible biconical antenna
EMI-TRIPOD Antenna Tripod:- Wood-Nylon, 0.8 to 1.5 meter adjustable height
Warranty
Three year warranty. All service provided by Com-Power Corporation. Contact https://www.com-power.com/index.html for service.
