10 GHz Bias Tee

PSPL5531 Datasheet

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

More Information

Read Online:

PSPL5531 Datasheet

The PSPL5531 is a broadband coaxial bias insertion tee for low current applications such as biasing photodetectors. It is rated for 1.5 kV. It is designed to pass fast rise time pulses with minimum waveform distortion. The rise time is 35 ps with a –3 dB bandwidth extending from 750 kHz to 10 GHz.

Key performance specifications
  • 750 kHz to 10 GHz
  • 35 ps rise time
  • 1.5 kV, 20 mA

Typical performance


PSPL5531-Datasheet-590710-9-N

Insertion Loss, AC to AC+DC; 1 dB/div and 2 GHz/div



PSPL5531-Datasheet-590710-10-N

Return Loss, AC Port; 5 dB/div and 2 GHz/div



PSPL5531-Datasheet-590710-11-N

Isolation, AC to DC; 10 dB/div and 2 GHz/div



PSPL5531-Datasheet-590710-12-N

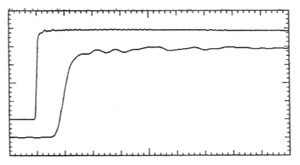

20%/div, 500 ps/div, and 50 ps/div. Response to 20 ps rise time input step



PSPL5531-Datasheet-590710-13-N

2.5% rho/div and 200 ps/div. 35 ps TDR of AC port


Specifications

Parameter Symbol Units Minimum Typical Maximum Comments
Impedance Z ohms   50
Upper 3 dB frequency fc,h GHz   10
Lower 3 dB frequency fc,l kHz   750
Rise time tr ps   35  45  10 – 90%
Insertion loss S21 dB   0.3  0.8  (0.01 – 1 Ghz)
Return loss S11 dB RL > 15 dB -1 dB / GHz * f (GHz) 0.1
Refl. Coefficient (35 ps TDR) Γ %   ±8
-2.5
  t t > 200 ps
DC voltage V V     1.5k
DC current I mA     20
Capacitance C nF   2.2    -20%, +80%
Resistance R ohms   3000
RF power P W     20  Average power
Isolation S13 dB   >20
DC path bandwidth fc,DC MHz
RF Connectors N jacks (f)
DC Connector SHV jack (f)
Dimensions 3 in x 3.8 in x 1 in (7.6 cm x 9. cm x 2.5 cm)
Warranty One Year

Ordering information

Models
PSPL5531
BIAS TEE, 10 GHz, 1.5 kV
