Optical Reference Receivers (SONET/SDH)
Features & Benefits
- Supports SONET/SDH 2.488 Gb/s Data Rate
- Reference Receiver Performance Compliant with ITU-T G.957
- Built-in 4th Order Bessel-Thompson Frequency Response
- 2.0 GHz Bandwidth for Analyzing Communication Eye-patterns or General Purpose Optical Signals
- Amplified Design for Accurate and Repeatable Measurements
- Plug-in Form Factor That Is Compatible with 11800/CSA803 Series Sampling Scopes
- Optional External Power Supply (016-1609-00) for Stand Alone Operation
- Standards Compliance: SONET/SDH 2.488 Gb/s
- Accurate Extinction Ratio Measurements
- Eye-pattern and Pulse Shape Measurements
Verification of SONET/SDH Signals
The Synchronous Digital Hierarchy (SDH) and the Synchronous Optical NETwork (SONET) standards are the cornerstones of today's high-speed digital telecommunications systems. The Tektronix ORR24 optical reference receiver provides an important interface for compliance testing of SDH/SONET optical transmission products or components.
The amplified design of the ORR24 converts the incoming optical light into a high gain, low noise electrical signal. This allows easy testing of optical designs as well as repeatable measurements. The ORR24 is DC coupled which is required for accurate extinction ratio measurements.
The controlled frequency design of the ORR24 optical reference receiver ensures that the measurements correctly represent the true transmitted signal for the purpose of pulse shape analysis or eye-pattern measurements. A certificate of calibration and a frequency response graph are supplied with the ORR24 for performance documentation. The compact SDxx form factor enables the ORR24 to conveniently plug into the Tektronix 11800 or CSA803 Series sampling oscilloscopes for complete compliance testing. An optional power supply is available for other instrument applications.
Nominal Frequency Performance Values for an Optical Reference Receiver
SDH/SONET recommendations define the nominal transfer function for an optical reference receiver as being a fourth-order Bessel-Thompson response. The following table lists the corresponding attenuation at various frequencies, f. In this table fo is the transmitted data rate and fr is the 3 dB cutoff, which is defined as fr = 0.75fo.
Note: Allowable deviation from the nominal attenuation in the table is very tightly specified in the SDH/SONET recommendations. The actual allowable deviation values depend on f/fr and the bit rate. These values run as low as ±0.5 dB.
ORR24 with standard accessories and optional power supply.
Wavelength Range - 1100 nm to 1650 nm.
Bandwidth*1 - DC to 2.0 GHz.
Rise Time - 205 ps.
Conversion Gain (typical) - ≥0.7 V/mW (1310 nm/1550 nm).
Maximum Input Optical Power - Maximum average linear response power: 100 µW (-10 dBm).
Maximum average nondestruct power: 5 mW (7 dBm).
Maximum peak nondestruct power: 10 mW (10 dBm).
Noise Equivalent Power - ≤15 pW per square root of Hz.
Max Output Modulation Depth for Reference Receiver Performance - ≤200mVp-p*4.
Aberrations - ≤5%mVp-p.
Optical Return Loss*2 - ≥-30 dB.
Output Termination Impedance - 50 Ω ±4%.
Internal Fiber Size - 9 µm.
Operating Temperature (Class VI)*3 - +10 °C to +40 °C.
Nonoperating Temperature (Class VI) - -40 °C to +70 °C.
Humidity - 75% noncondensing.
*1 Optical bandwidth (-6 dB electrical power).
*2 Single-mode fiber input.
*3 Reference receiver performance over 25 °C ±10 °C.
*4 Dependent on conversion gain of wavelength.

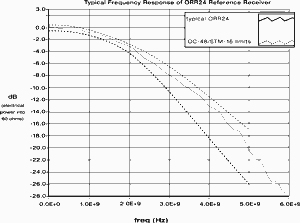

ORR24 frequency response (typical).
2.488 Gb/s SDH/SONET Optical Reference Receiver.
Includes: Hard Case, User Manual (English), Assorted Fiber Optic Hybrid Connectors (FC/FC, FC/ST, FC/SC), FC/FC Single-mode Fiber Jumper, High Performance SMA Cable (015-0560-00), Frequency Response Graph, Certificate of Traceable Calibration.
ORR24 Product Service Options
Opt. C3 - Three years of Calibration Services.
Opt. D1 - Cal Data Report.
Opt. D3 - Test Data (requires Opt. C3).
Opt. R3 - Three Year Extended Warranty.
External Power Supply - Includes: IEC compatible Power Supply, ORR24 Adapter Cable, U.S. Power Cord, Instruction Sheet. Order 016-1609-00.
International Power Plugs -
European: Order 161-0066-09.
UK: Order 161-0066-10.
Australia: Order 161-0066-11.
Switzerland: Order 161-0154-00.
2 m Single-mode Fiber Optic Cables, 8/125 µm -
FC/PC to FC/PC: Order 174-1387-00.
FC/PC to ST: Order 174-1386-00.
FC/PC to SC/PC: Order 174-3921-00.
90/10, 3-Port Single-mode Optical Splitter, FC/PC Connectors - Order 174-3737-00.
10 dB, In-line Single-mode Optical Attenuator, FC/PC Connectors - Order 119-5118-00.
50 Ω Power Dividers, DC to 12 GHz (50% Splitter) -
SMA Female: Order 015-0565-00.
SMA Male: Order 015-1014-00.
Sonet/SDH Hardware Filters.
SONET/SDH Hardware Filters (SMA) - 155 Mb/s (117 MHz): Order 119-5936-00.
622 Mb/s (467 MHz): Order 119-5929-00.
