Keithley Kickstart 軟體

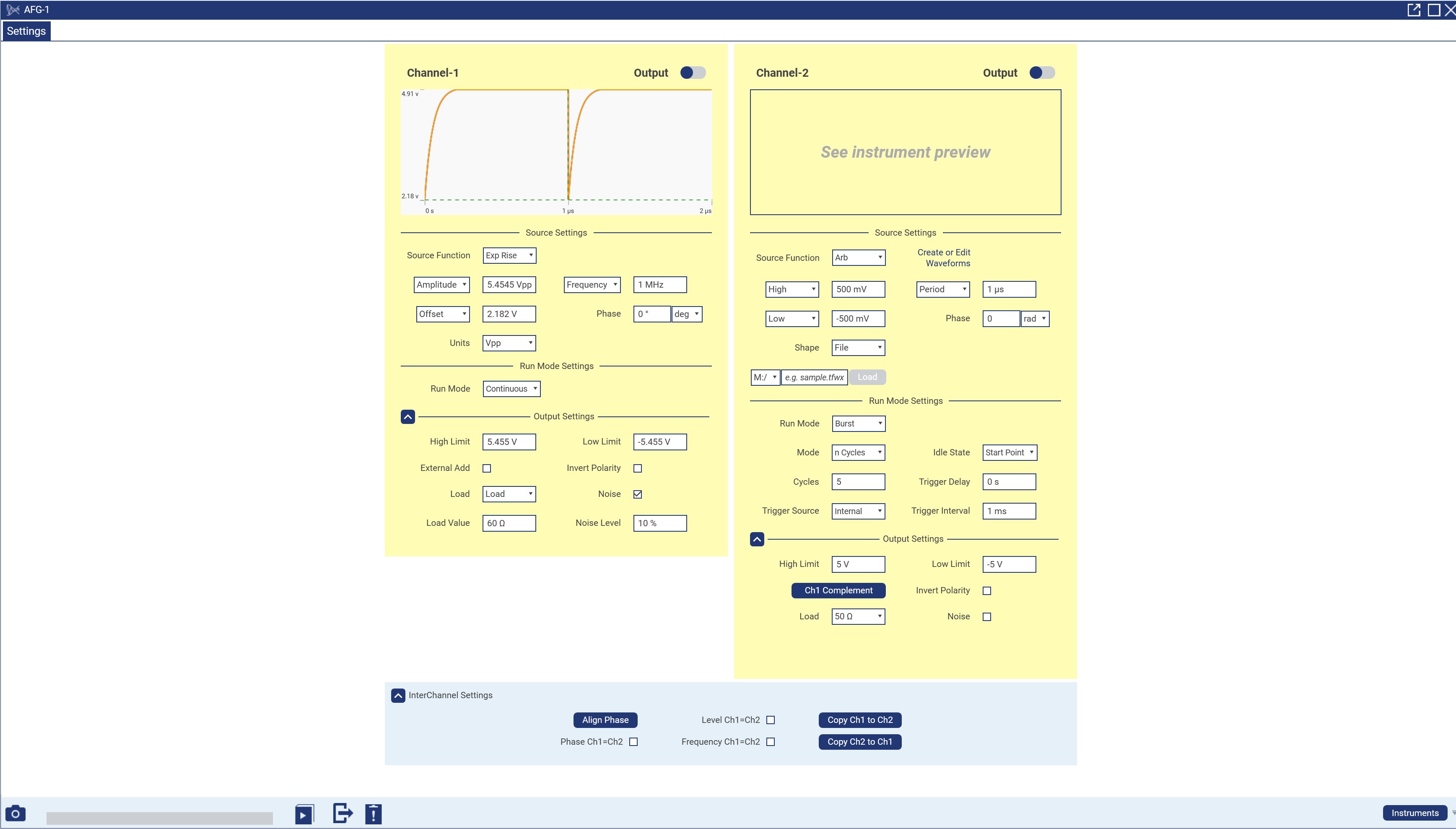

AFG

Description

The KickStart AFG App gives users a simple method to control the AFG by sourcing and previewing waveforms remotely. Use the AFG App in conjunction with other KickStart apps, such as the Scope App, to capture signal data. Change settings in real time with our responsive interface along with accessing a variety of source functions, including pulse, noise, arbitrary, exponential rise, and many more

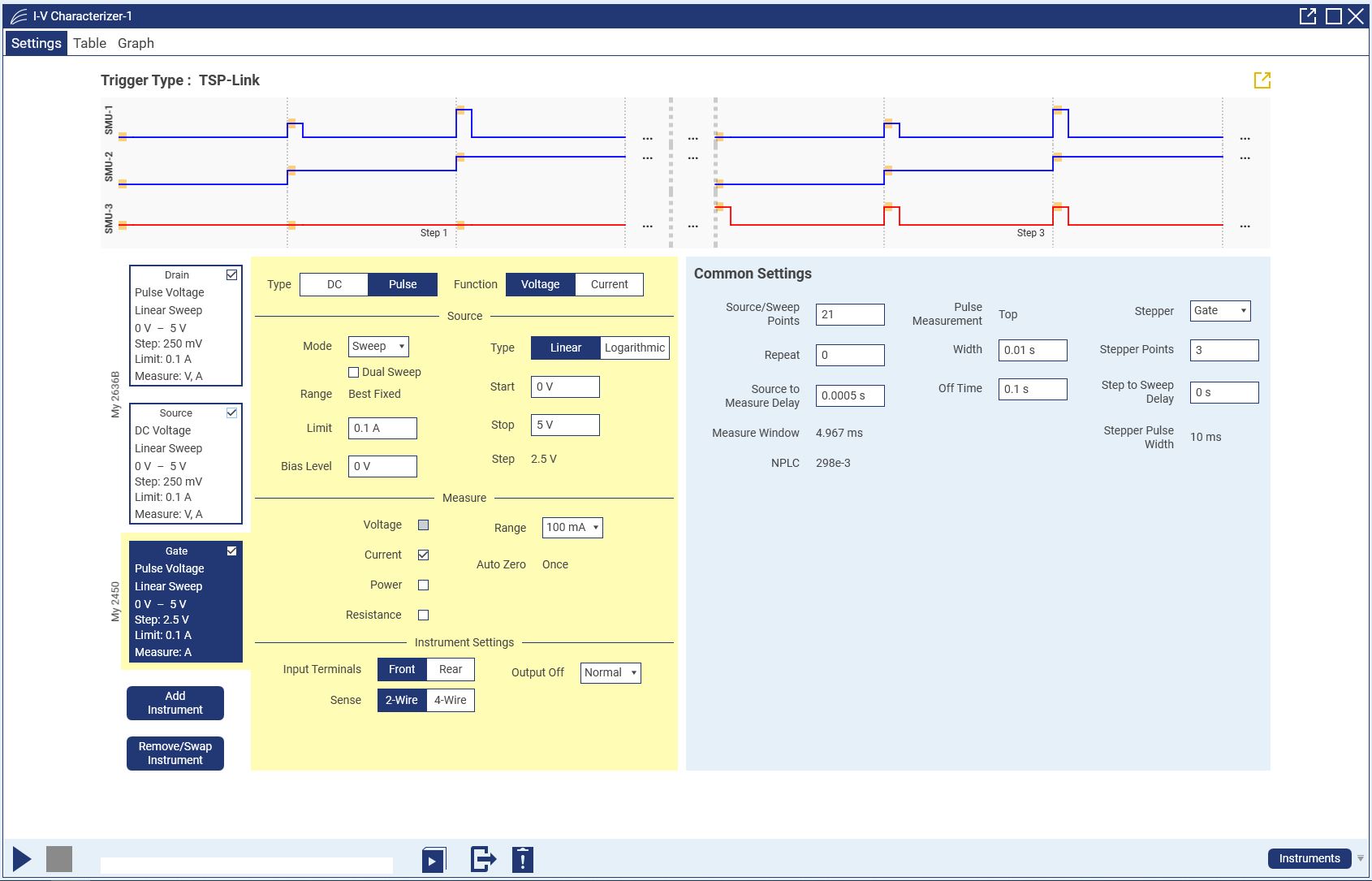

I-V Characterizer

Description

Use the I-V Characterizer App to perform current vs. voltage (I-V) test on a variety of materials, two-terminal and multi-terminal semiconductor devices, solar cells, and much more. You can configure each SMU for a variety of bias and sweep sourcing operations, including linear, log, list, and dual sweeps.

Configure and control up to four instruments for DC or Pulsed I-V test in either the same app, same project, or a combination of the two while performing current versus voltage (I-V) testing on a variety of materials and devices

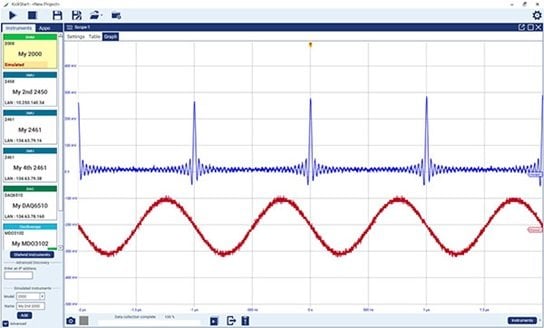

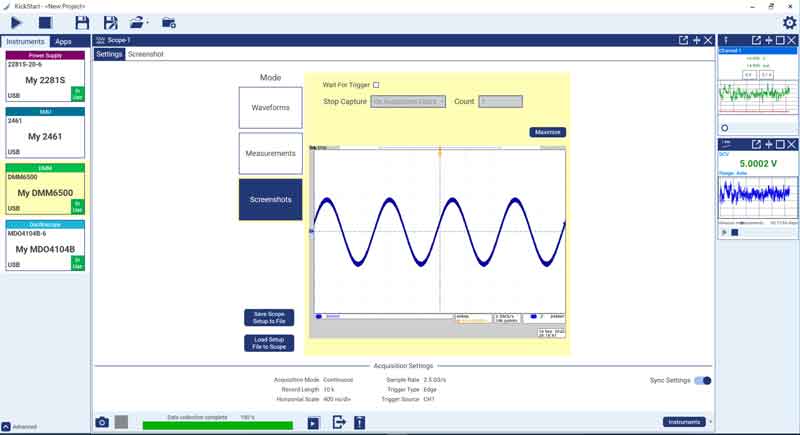

Scope

Description

The Scope app supports data retrieval from Analog Channels, Reference Channels and Math Channels. The app will either capture present data (without waiting for a trigger) or will arm the scope to wait for a trigger, stop the capture to gather data once scope has been triggered and re-arm scope to wait for next trigger after data is captured.

Enable data capture and datalogging of waveforms, measurements, and screenshots with threee modes of operation while also capturing present data or arm to wait for a trigger, capture data, and re-arm for next trigger

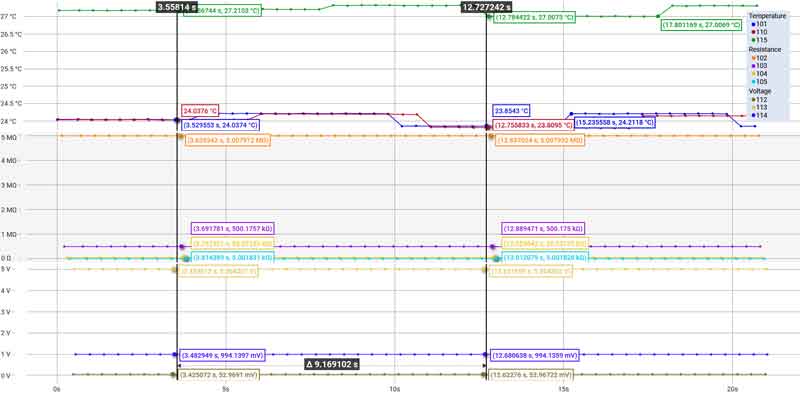

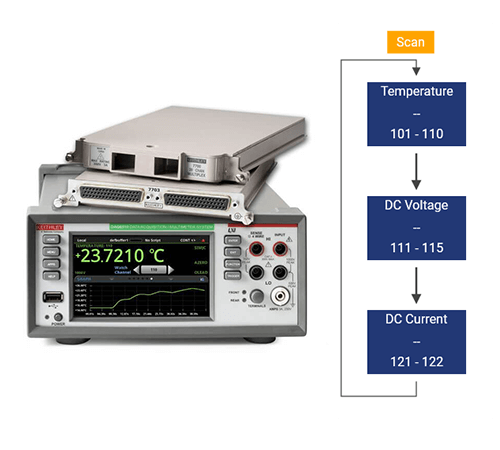

Data Logger

Description

Use the KickStart Data Logger App to set up and control your multi-channel data acquisition instrument. This app is designed to help you configure all your channels very quickly and even validate your connections during test configuration. It allows you to set up multiple channels with the same configuration but give each channel a meaningful label so that you can quickly scan your results and grab the information you need. Configure pass/fail limits for each channel in order to set alarm conditions and obtain quick visual verification of test results.Quickly configure multi-channel data acquisition instruments, stream millions of readings directly to PC disk media for safe data archival, and automatically export data in ready-to-use formats for reports and additional analysis.

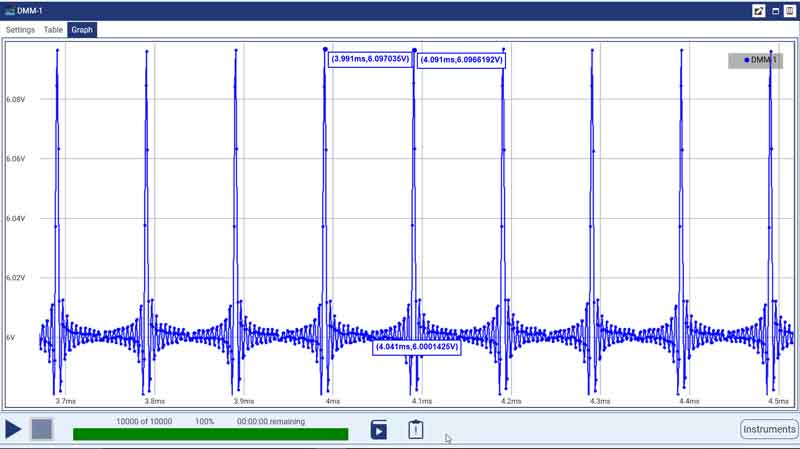

DMM

Description

This app affords you a simple way to log data using your Keithley DMM or sensitive measurement instrument.

Run independent or simultaneous tests that log measurements from one or more DMMs and get a quick summary of data using statistics built into the data table

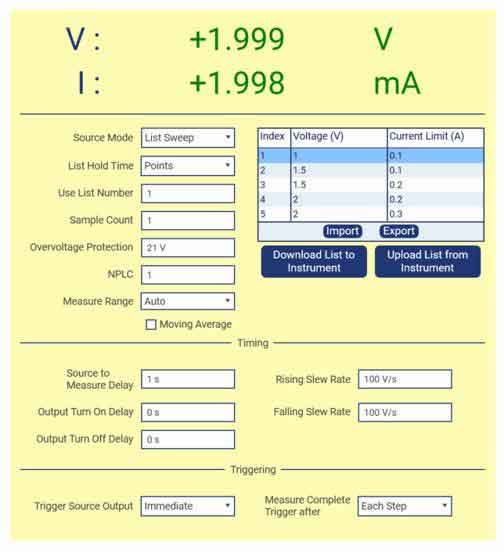

Power Supply

Description

This app simplifies supplying power to your device or system. Export / save statistics with the data while having easy access to control voltage bias and current limit while viewing data from primary measurement instrument in main viewing area. Configure list sweeps to automate tests of up to 99 points on the power supply. Control channels individually on multi-channel power supplies.

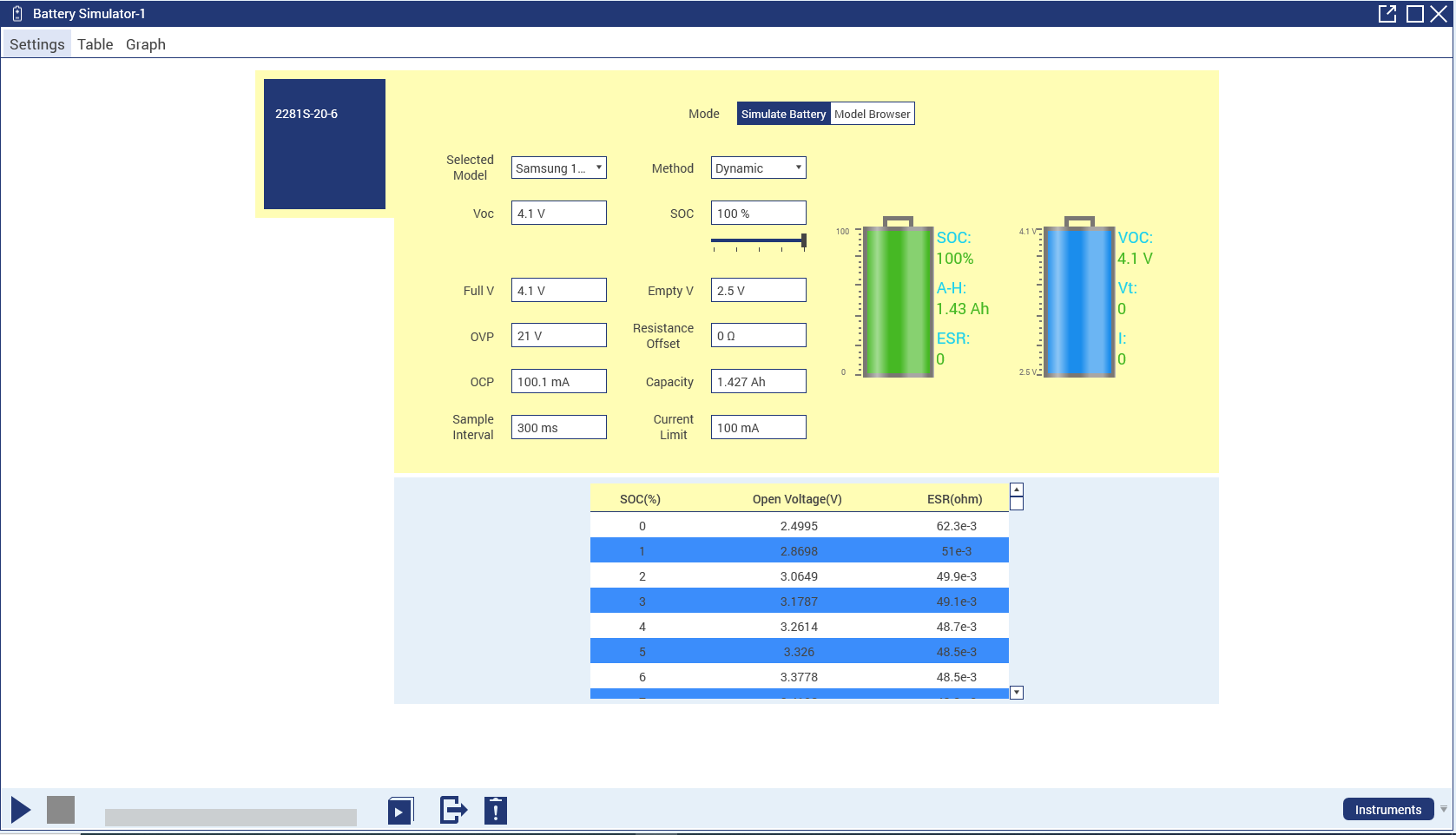

Battery Simulator

Description

We provide a simple method to create, manage, and simulate battery models along with the ability to cycle test batteries. Designed for use with Keithley instruments to simulate battery models, battery model generation, and battery charge/discharge cycle testing.

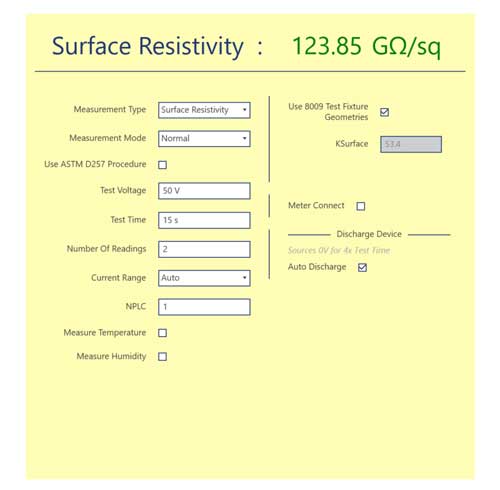

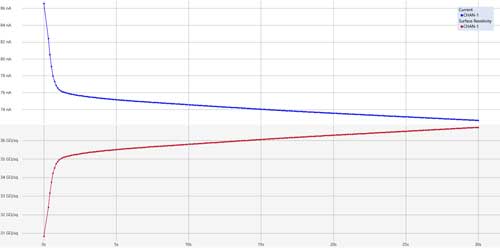

High Resistivity

Description

Measure resistance up to 10¹⁸ Ω at up to 1000V, quickly and reliably determine resistivity of material using tests that conform to ASTM D257 standard. For the most accurate resistivity measurements use alternating polarity measurement technique to eliminate inherent background currents.

I-V Tracer Software

Description

Leverage the unique touchscreen interface of the 2400 Series Source Measure Unit (SMU) instrument to recreate the familiar user experience of a curve tracer for two-terminal devices. This gives a dedicated user interface for tracing the characteristics of devices through both current and voltage. With a range of compatible instruments, the I-V Tracer app can utilize the full capabilities of each source measure unit.

Maintenance

Description

Perpetual License Only

All perpetual-licensed software comes with 1 year of updates. Maintenance plans add 1 year of updates to existing Perpetual License for one year increments after 1st year of software purchase.
