EA Elektro-Automatik 自動調整桌上型電源供應器

EA Elektro-Automatik 系列桌上型可程式直流電源有桌上型和塔式外形，功率範圍為 100W 至 1500W。 部分型號具有高級功能，例如自動量程和內置函數生成器。 自動量程自動調整電流在較低電壓下較高，反之亦然，以在一定範圍的電壓/電流水平上保持完整的輸出功率。 函數產生器可以提供正弦波、三角波、矩形波、梯形波等多種波形，還可以輸出自訂的任意波形。

所有工作台備件均配有 TFT 觸控螢幕顯示器，可實現直觀的控制和測試設置。 這個易於使用的介面使您能夠快速配置測試並直觀地操作儀器。 EA 系列桌上型和塔式節省空間的直流電源和負載結構緊湊、經濟，但具有市場上大多數桌上型設備所不具備的先進功能。

基本價格
US $446 +
選擇要配置/報價的型號
產品概要 下載
電源

高達 30 kW

電壓

高達 2000 V

目前

高達 1000 A

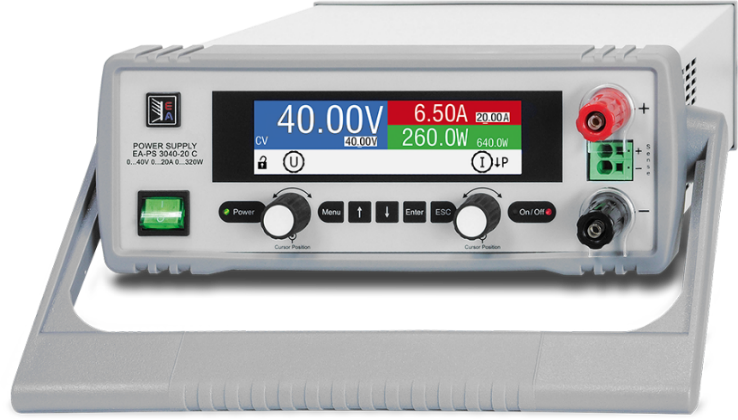

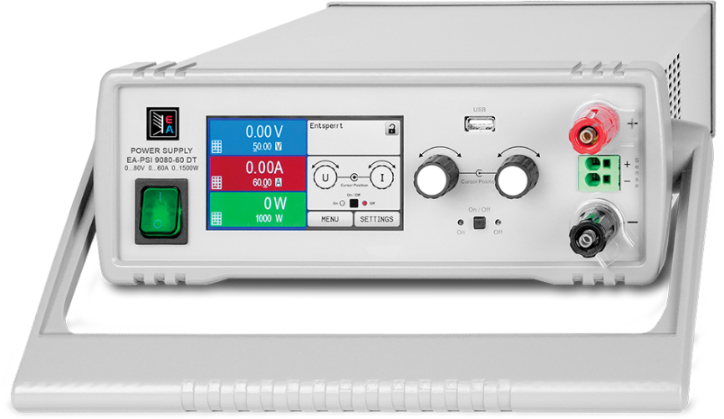

自動量程工作台電源供應器

自動調整提供靈活性

EA Elektro-Automatik 產品具有自動設定範圍功能，可讓供應器或負載在一系列電壓和電流下以最大功率運行，低至額定輸出最高值的 33%。

與之相比，傳統電源供應器僅可在最大電壓和最大電流下輸出額定功率。對待測裝置 (DUT) 施以最大電壓的情況較罕見，這意味著大多數時候供應器並未充分利用其電位。

它如何運作？EA 電源會自動在較低電壓下提供更多電流（或在較低電流下提供更高電壓），使供應器能夠繼續輸出額定功率。這允許單一來源因應多個電壓和電流組合，否則會需要多個供應器。
Series 電源 電壓 電流 產品規格表
EA-PSI 9000 DT 0–320 W /0–1.5 kW 0–40 V up to 0–750 V 0–4 A up to 0–60 A 檢視產品規格表
機型 電源 電壓 電流
EA PSI 9750 04 DT 0–1 kW 0–750 V 0–4 A per channel Get a quote
EA PSI 9360 10 DT 0–1 kW 0–360 V 0–10 A per channel Get a quote
EA PSI 9080 10 DT 0–320 W 0–80 V 0–10 A Get a quote
EA PSI 9080 60 DT 0–1.5 kW 0–80 V 0–60 A per channel Get a quote
EA PSI 9040 60 DT 0–1.5 kW 0–40 V 0–60 A per channel Get a quote
EA PSI 9200 10 DT 0–640 W 0–200 V 0–10 A per channel Get a quote
EA PSI 9040 20 DT 0–320 W 0–40 V 0–20 A Get a quote
EA PSI 9080 20 DT 0–640 W 0–80 V 0–20 A per channel Get a quote
EA PSI 9200 15 DT 0–1 kW 0–200 V 0–15 A per channel Get a quote
EA PSI 9500 10 DT 0–1.5 kW 0–500 V 0–10 A per channel Get a quote
EA PSI 9200 25 DT 0–1.5 kW 0–200 V 0–25 A per channel Get a quote
EA PSI 9080 40 DT 0–1 kW 0–80 V 0–40 A per channel Get a quote
EA PSI 9200 04 DT 0–320 W 0–200 V 0–4 A per channel Get a quote
EA PSI 9040 40 DT 0–1 kW 0–40 V 0–40 A per channel Get a quote
EA PSI 9360 15 DT 0–1.5 kW 0–360 V 0–15 A per channel Get a quote
EA PSI 9500 06 DT 0–1 kW 0–500 V 0–6 A per channel Get a quote
EA PSI 9750 06 DT 0–1.5 kW 0–750 V 0–6 A per channel Get a quote
EA-PS 2300 B 2 channels up to 0–160 W & 1 channel up to 0–12 W 2 channels up to 0–84 V & 1 channel 3–6 V 2 channels up to 0–10 A & 1 channel 0–4 A 檢視產品規格表
機型 電源 電壓 電流
EA PS 2384 03B Channels 1 & 2: 0–100 W
Channel 3: 0–12 W		 Channels 1 & 2: 0–84 V
Channel 3: 3–6 V		 Channels 1 & 2: 0–3 A
Channel 3: at 0–4 A		 Get a quote
EA PS 2342 06B Channels 1 & 2: 0–100 W
Channel 3: 0–12 W		 Channels 1 & 2: 0–42 V
Channel 3: 3–6 V		 Channels 1 & 2: 0–6 A
Channel 3: at 0–4 A		 Get a quote
EA PS 2384 05B Channels 1 & 2: 0–160 W
Channel 3: 0–12 W		 Channels 1 & 2: 0–84 V
Channel 3: 3–6 V		 Channels 1 & 2: 0–5 A
Channel 3: at 0–4 A		 Get a quote
EA PS 2342 10B Channels 1 & 2: 0–160 W
Channel 3: 0–12 W		 Channels 1 & 2: 0–42 V
Channel 3: 3–6 V		 Channels 1 & 2: 0–10 A
Channel 3: at 0–4 A		 Get a quote
EA-PS 2000 B 0–100 W /0–320 W 0–42 V up to 0–84 V 0–6A up to 0–20 A
機型 電源 電壓 電流
EA PS 2042 06B 0–100 W 0–42 V 0–6 A per channel Get a quote
EA PS 2084 10B 0–320 W 0–84 V 0–10 A per channel Get a quote
EA PS 2084 03B 0–100 W 0–84 V 0–3 A per channel Get a quote
EA PS 2042 10B 0–160 W 0–42 V 0–10 A per channel Get a quote
EA PS 2084 05B 0–160 W 0–84 V 0–5 A per channel Get a quote
EA PS 2042 20B 0–320 W 0–42 V 0–20 A per channel Get a quote
