MSO/DPO2000B Series vs Rigol MSO/DS2000 Series


Navigation and Search
Tektronix MSO/DPO2000B Series

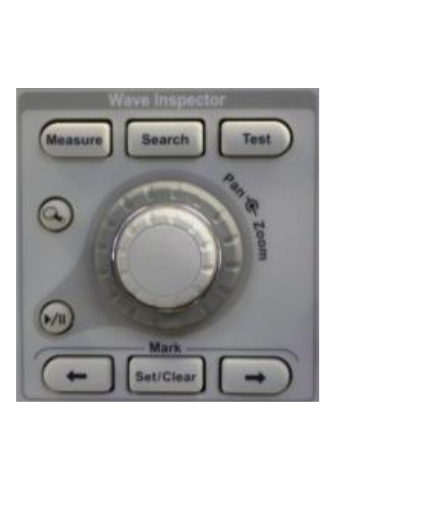

✔ Wave Inspector® Pan/Zoom controls make easy work of scrolling through long records
✔ Play/Pause button scrolls the waveform across the screen automatically
✔ Search/Mark controls enable you to search for events of interest, mark them, then navigate through the record markby-mark
oscilloscope
Rigol MSO/DS2000A Series
No search and mark functions to find events of interest and mark them
Cannot automatically play the waveform in zoom mode
Lack of search/mark. User has to go through record length manually to find events of interest
key features comparison
Serial Triggering and Decode
Tektronix MSO/DPO2000B Series
✔ 2 and 4 analog channels (16 digital channels on MSO) available for serial inputs
✔ Optional serial bus support: I2C, SPI, RS232, CAN, LIN
✔ 2 buses available for decoding I2C, SPI, RS232, CAN, LIN

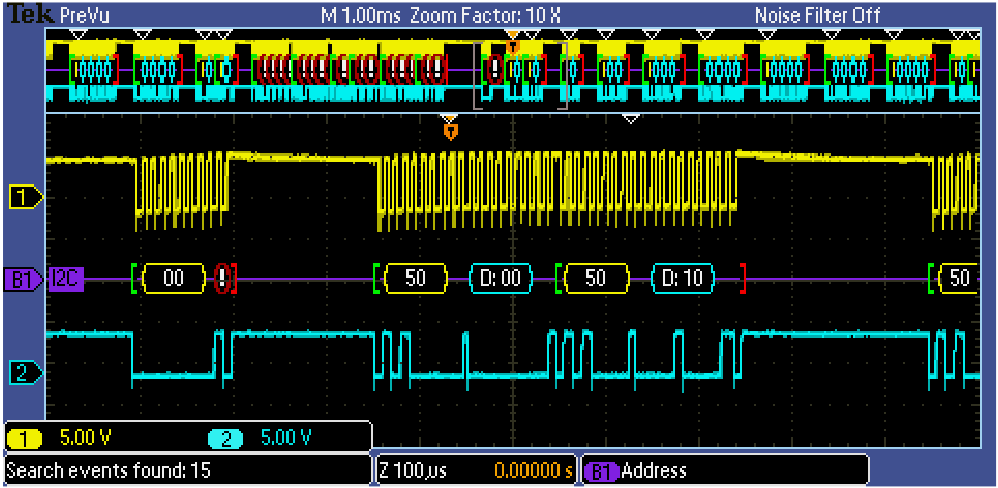

✔ Wave Inspector® automatically searches for and marks userdefined events on packet content.
oscilloscope
Rigol MSO/DS2000A Series
Only 2 analog channels (16 digital channels on MSO) available for serial inputs.
Optional serial: I2C, SPI, RS232 & CAN
✔ 2 buses for decoding I2C, SPI, RS232 & CAN
No serial search offered.
Advanced Probe Interface

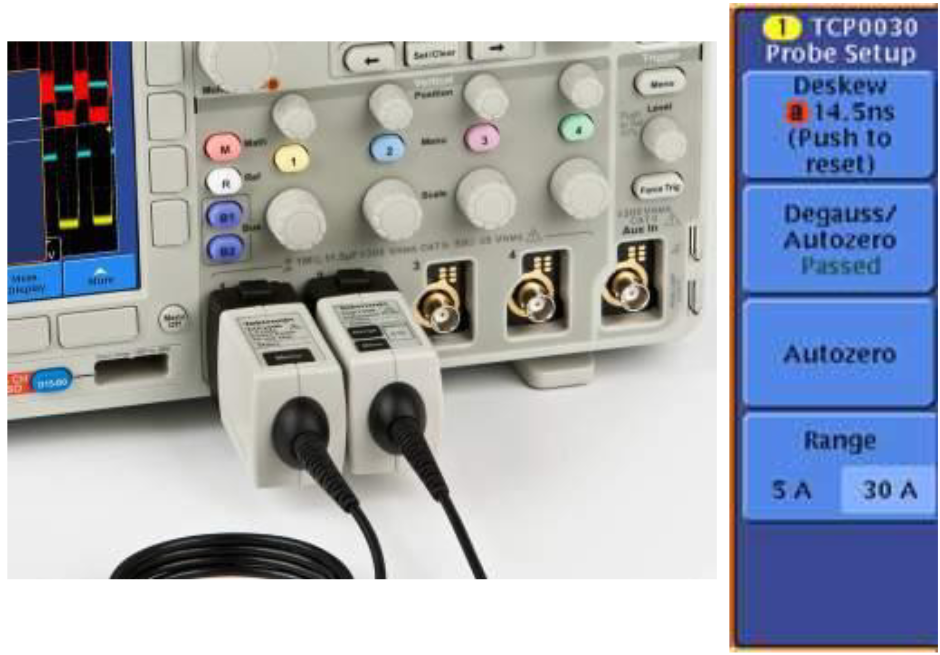

Tektronix MSO/DPO2000B Series: TekVPI probe interface
Tektronix TBS2000 Series probe ✔ Probe menu on oscilloscope interacts directly with probe
✔ Enables direct connection to current probes (including ac/dc), differential probes, and single-ended active probes.
✔ Enables simpler deskewing of probes

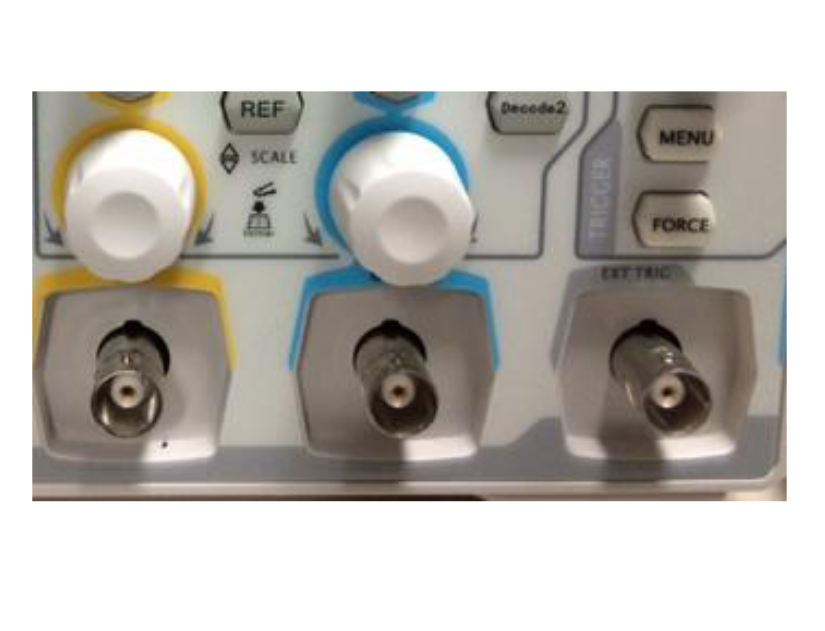

Rigol MSO/DS2000A Series: traditional low cost probe interface
Keysight X2000 Series probe No communication between oscilloscope and probes
Cannot connect to current probes or active probes directly
No automated deskew
MSO Series Mixed Signal Debug
Tektronix MSO2000B Series

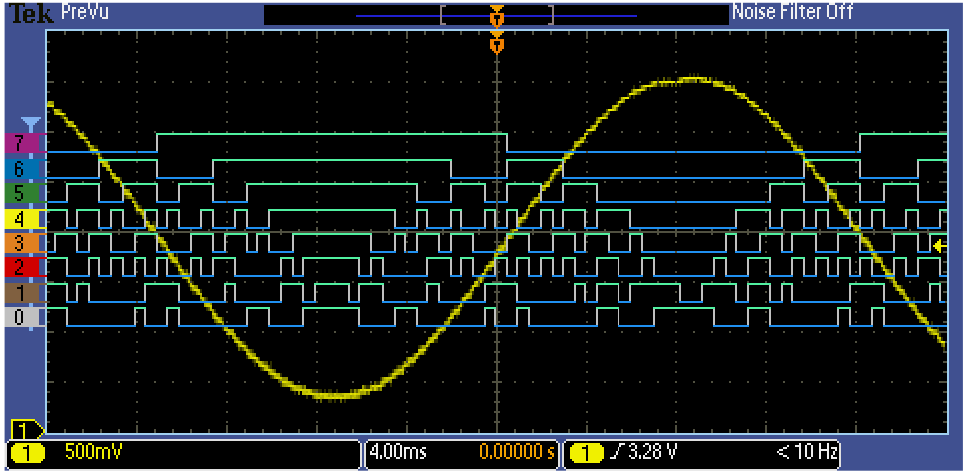

✔ View up to 4 analog, 16 digital, and 2 bus waveforms, all time-correlated.
✔ Define parallel or serial buses.
✔ Logical highs are identified in Green and lows in Blue.
✔ Group waveforms and threshold settings
Oscilloscope
Rigol MSO/DS2000A Series
View up to 2 analog, 16 digital, and 2 bus waveforms, all time-correlated
✔ Define parallel or serial buses.
Noise Filter
Tektronix MSO/DPO2000B Series

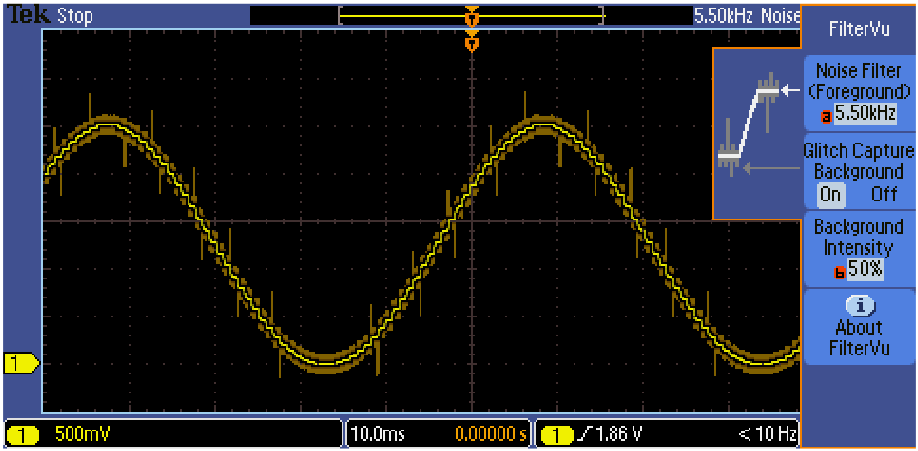

✔ FilterVu - Adjustable low-pass noise filter

Filters out the unwanted noise while still capturing glitches and signal details up to the full bandwidth of the oscilloscope.

Display 2 waveforms: a waveform that can be filtered and a glitch captured waveform
Oscilloscope
Rigol MSO/DS2000A Series
Fixed 20MHz bandwidth limit filter. Useful high frequency signal could be filtered out.
