Low-Pass Risetime Filter
PSPL5915 Datasheet
이 데이터 시트의 제품은 텍트로닉스에서 더 이상 판매하지 않습니다.
리퍼브 테스트 장비에 대한 Tektronix Encore를 확인하십시오.
이러한 제품에 대한 지원 및 보증 상태를 살펴보십시오.
![PSPL5915-Datasheet](/-/media/datasheets/pspl5915datasheetenus1sjpg.jpg?h=104&iar=0&w=180)
The PSPL5915 Low-Pass Rise time Filter is designed for use in high-speed digital networks and telecom systems. The -3 dB bandwidth of the standard filters is 0.75 * Bit Rate. These filters are a proprietary, absorption filter design that has attenuation and group delay responses similar to those of the Bessel-Thomson filter. Bessel-Thomson filters filter by reflection and thus can cause increased bit error rates and eye diagram closure due to multiple reflections. By contrast, the PSPL5915 filters by absorption. It has excellent impedance matches and very good return losses, both within and above the filter pass band.
Typical performance
The following figure shows the Insertion Loss of the PSPL5915 Option 100PS.

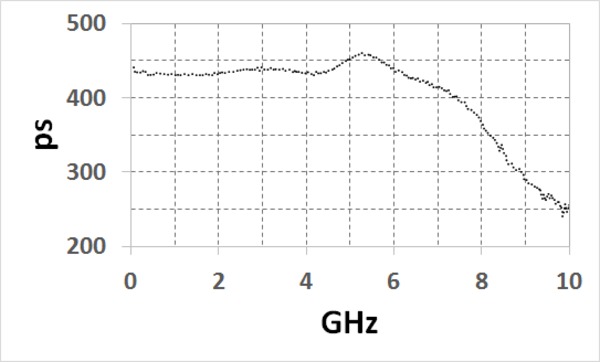

The following figure shows the Group Delay of the PSPL5915 Option 100PS.

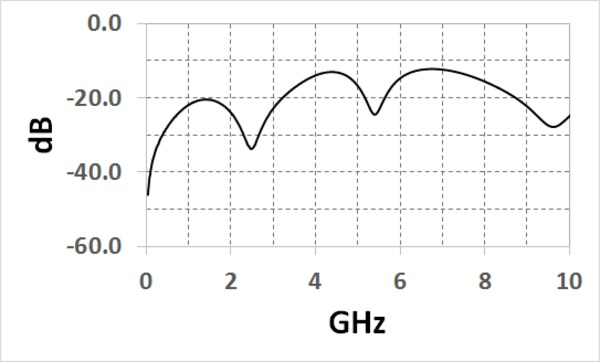

The following figure shows the Return Loss of the PSPL5915 Option 100PS.
Specifications
Parameter 1 | Value |
---|---|
Return Loss | >15 dB at fo, typical |
Risetime (10 to 90%) | Specified by option |
Bandwidth (-3 dB), fo | 0.35/Risetime |
fo Tolerance at 23 C | 2%, 5% f > 4 GHz |
Max. Power | 23 dBm at fo |
Max Current | 1 A |
Max Voltage | 50 V DC |
Insertion Loss | < 0.02 dB at DC |
Impedance | 50 Ω |
Connectors | SMA jack (f) & plug (m) |
Temperature | -25 C to + 90 C |
Warranty | One year |
1All parameters listed are typical unless max/min guaranteed limits are provided.

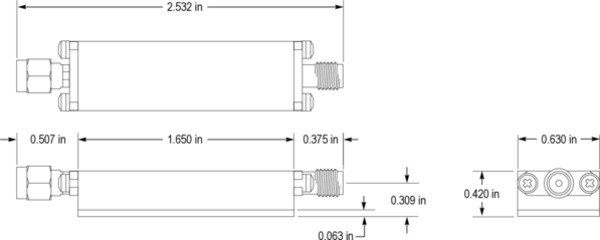

- Mechanical dimensions
Ordering information
Models
- PSPL5915
- Low-Pass Filter
PSPL5915 filter options
- 60PS
- 60 ps rise time (5.83 GHz, 3 dB frequency)
- 100PS
- 100 ps rise time (3.5 GHz, 3 dB frequency)
- 200PS
- 200 ps rise time (1.75 GHz, 3 dB frequency)
- 300PS
- 300 ps rise time (1.17 GHz, 3 dB frequency)
- 330PS
- 330 ps rise time (1.06 GHz, 3 dB frequency)
