26 GHz Bias Tee

PSPL5541A Datasheet

Tektronix 不再銷售此產品規格表上的產品。
檢視 Tektronix Encore 以取得檢修測試設備。
檢查這些產品的支援保固狀態

PSPL5541A-Datasheet

更多資訊

線上參閱:

The Model PSPL5541A is a very broadband, coaxial bias insertion tee and DC blocking capacitor. It passes very fast rise pulses with a minimum of waveform distortion. Its rise time is only 8 ps. The frequency response is flat over many decades, and the -3 dB bandwidth extends from 80 kHz to beyond 26 GHz.

Key performance specifications
  • 80 kHz to 26 GHz
  • 8 ps rise time
  • 50 V, 100 mA

Typical performance

PSPL5541A-Datasheet-EN_US-9-L

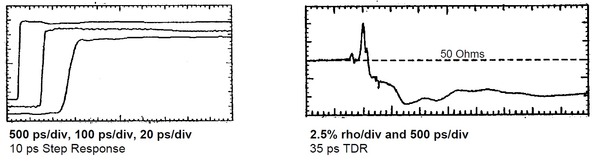

PSPL5541A-Datasheet-EN_US-10-L


Specifications

Parameter Symbol Units Minimum Typical Maximum Comments
Impedance Z Ohms  50
Upper 3 dB frequency fc,h GHz  >26
Lower 3 dB frequency fc,l kHz  80
Rise time tr ps  12  10 – 90%
Insertion loss S21dB  0.4

1.5
 Typical
f < 6 ghz="">
f < 20 ghz="">
Return loss S11dB  20
>15
 f = 100 MHz
f < 10 ghz="">
Refl. Coefficient (35 ps TDR) Γ %   -5    t > 1 ns (AC Port)
DC voltage V Volts   50
DC current I mA   100
Capacitance C μF  0.02   +/-20%
Inductance L mH   +/-20%
Resistance R Ohm  3.7
RF power P W   Average power
Isolation S13dB   >40
DC path bandwidth fc,DCkHz  16
Delay Td ps  213   AC port to AC+DC port
RF Connectors SMA jacks (f)
DC Connector SMA jack (f)
Warranty One Year
Mechanical dimensions

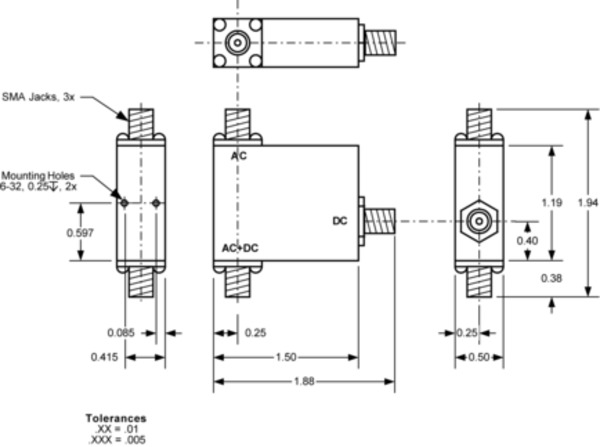

PSPL5541A-Datasheet-EN_US-11-L

Ordering information

Models
PSPL5541A
BIAS TEE, 26 GHz, 50 V
