Model 3724 Dual 1x30 FET Multiplexer Specifications


Document number: SPEC-3724A

Specifications are subject to change without notice.

DUAL 1 × 30 FET MULTIPLEXER CARD

60 differential channels, automatic CJC with 3724-ST

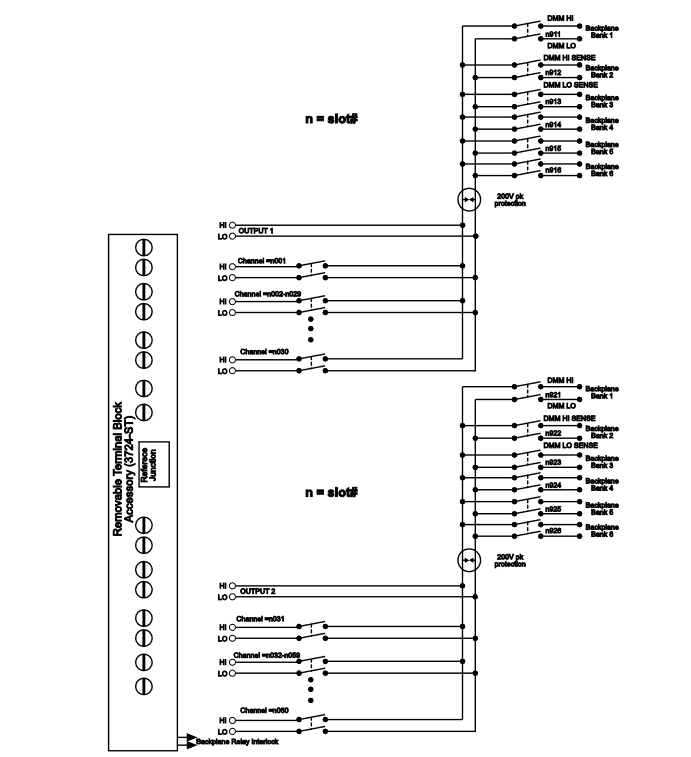

MULTIPLEXER CONFIGURATION: Two independent 1 × 30 2-pole Multiplexers. Banks can be connected together via relay creating a single 1 x 60 Multiplexer. Banks can be isolated from the backplane by relays. Card can be configured for 2 wire and 4 wire.

CONTACT CONFIGURATION: 2 pole form A.

CONNECTOR TYPE: Two 78 pin male D-shells.

MODEL 3724-ST SCREW TERMINAL OPTION: #22 AWG typical wire size with 0.062 inch O.D. 124 conductors maximum. 16 AWG maximum wire size with 0.092 inch O.D. 36 conductor per card maximum.

MAXIMUM SIGNAL LEVEL: 200 V DC or 141 V RMS between any terminal, 0.1A switched (0.1A carry), 800mW.

COMMON MODE VOLTAGE: 300 V DC or RMS between any terminal and chassis.

VOLT-HERTZ LIMIT : 107.

CONTACT LIFE:
Solid State > unlimited
EMR (Backplane) > 1×10operations @ 5V, 10mA
1×10operations @ maximum signal level

  Dual 1 × 301  Single 1 × 601, 2
Channel Resistance (HI and LOW Path)   <62Ω (54Ω@23ºC)  <64Ω (58Ω @23ºC)
 Contact Potential (differential)   <±2μV   <±2.5μV
Offset Current   <10nA (<±100pA@23ºC/60% R.H.)  <10nA (<±100pA@23ºC/60% R.H.)
Isolation
  Differential  109Ω, 500pF 109Ω, 1100pF
  Bank-Bank     109Ω, 100pF  —
  CH –CH   109Ω, 125pF  109Ω, 125pF
  Common mode  109Ω, 150pF   109Ω, 700pF
Crosstalk CH-CH (50Ω Source, 50 Ω Load)
300KHz:
1MHz:

−40 dB
−30 dB

−40 dB
−30 dB
Bandwidth (50 Ω Source, 50 Ω Load)  2MHz 1MHz

1 Connections made using 3724-ST.

2 3706 mainframe with all DMM backplane relays disconnected. Maximum two card backplane relays closed.

GENERAL:

ACTUATION TIME: <0.2ms.

TEMPERATURE ACCURACY USING AUTOMATIC CJC WITH 3724-ST ACCESSORY: 1°C for J, K, T, and E type (see mainframe specification for details).

RELAY TYPE: Optically isolated FET.

RELAY DRIVE SCHEME: Direct.

INTERLOCK: Backplane relays disabled when interlock connection removed.

RELAY DRIVE CURRENT: 4mA.

OPERATING ENVIRONMENT:
Specified for 0°C to 50°C.
Specified to 70% R.H. at 35°C.

STORAGE ENVIRONMENT: −25°C to 65°C.

WEIGHT: 2.5lb.

FIRMWARE: Requires main revision to be 1.20 or above (applies to all 3706 series mainframes).

SAFETY: Conforms to European Union Directive 73/23/EEC, EN61010-1.

EMC: Conforms to European Union Directive 2004/108/EC, EN61326-1.

TYPICAL SCANNING SPEEDS, SWITCH ONLY3

  Ch/Sec
Sequential scanning, single channel, Immediate Trigger Advance   > 1250

 TYPICAL SCANNING SPEEDS, WITH MEASUREMENTS INTO MEMORY4

  Ch/Sec
DCV (10V range) or 2W Ohms (1KΩ range)   >1000
 Thermocouple  >1000
 3 or 4 Wire RTD   >450
 4 Wire Ohms (1KΩ range)  >450
 ACV (10V, 400Hz range )  >1000

3 Scanning script local to mainframe, within same bank, break before make.
4 3706 mainframe with autorange off, limits off, dmm.autodelay=0, dmm.autozero=0, 4½ digits (NPLC=.006), for ACV dmm.detectorbandwidth=300, for OHMs dmm.offsetcompensation=off, dmm.opendetector=off. Scanning script local to mainframe, sequential scan within same bank (2 pole) or card (4 pole), and break before make switching.

 Power Budget Information:

Quiescent Power (milliwatts): 1150
Channel Relay Power (milliwatts) each: 20
Backplane Relay Power Consumption (milliwatts) each: 100
See Chapter 8 of the series 3700 user’s manual for more detailed information.

ACCESSORIES AVAILABLE:

3791-KIT78-R 78 pin female D-sub connector kit (contains 2 female D-sub connectors and 156 solder cups).
3720-MTC-3 78 pin D-sub female to male cable, 3m.
3720-MTC-1.5 78 pin D-sub female to male cable, 1.5m.
3724-ST screw terminal block.
3791-CIT Contact insertion and extraction tool.

60 differential channels, Automatic CJC w/3724-ST
