AC Current Probes

P6021A, P6022

Datenblatt herunterladen
Weitere Informationen

Online lesen:

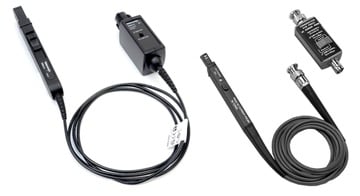

P6021A P6022 Current Probe 60W 06647 5

The P6021 and P6022 Current Probes provide versatile AC current measurements. Both probes provide accurate current measurements over a wide range of frequencies. The P6021 and P6022 allow current measurements without breaking the circuit by clipping onto the current carrying conductor. Shielded probe heads are not grounded when the slides are in their open positions, eliminating accidental grounding of the circuit under test.

Key performance specifications

  • P6021A
    • 120 Hz to 60 MHz
    • 10.6 A RMS, 250 A peak, 10 mA sensitivity
  • P6022
    • 935 Hz to 120 MHz
    • 2.12 A RMS, 100 A peak, 1 mA sensitivity

Key features

  • For 1 MΩ inputs
  • Shielded probe head
  • AC only
  • Split core construction allows easy circuit connection
  • 1.5 m (5 ft) cable

Applications

  • Motor drives
  • Power inverters/converters
  • Power supplies
  • Avionics

P6021A

For general purpose applications, the P6021A provides wide-band performance with excellent low-frequency characteristics. Bandwidth is 120 Hz to 60 MHz. The probe range is switchable between 2 mA/mV and 10 mA/mV.

P6022

With a head size of 0.47 in. x 0.25 in. (10 mm x 6 mm, about half the size of the P6021A) and a bandwidth of 935 Hz to 120 MHz, the P6022 is ideal for measuring currents in compact, high-performance circuits. Passive termination output is switchable between 1 mA/mV and 10 mA/mV.

Specifications

All specifications apply to all models unless noted otherwise.

Physical characteristics

Probe dimensions

Cable length
1.5 m (59 in)
P6021A probe head
Length
20 cm (7.77 in)
Width
16 mm (0.625 in)
Height
32 mm (1.25 in)
Maximum conductor diameter
5 mm (0.197 in)
P6022 probe head
Length
152 mm (6.0 in)
Width
6.4 mm (0.25 in)
Height
12 mm (0.47 in)
Maximum conductor diameter
2.8 mm (0.11 in)

EMC environment and safety

Compliance

Compliance

CAN/CSA-C22.2 No. 61010-1

CAN/CSA-C22.2 No. 61010-2-032

UL 61010-1

UL61010B-2-032

EN 61010-1

EN 61010-2-032

Ordering information

Models

P6021A
Current Probe
P6022
Current Probe with termination

Standard accessories

6 in. ground lead
196-3521-00
Instruction manual
071-3004-00 (P6021A),
070-0948-03 (P6022)
Termination
011-0106-00 (P6022 only)

Recommended accessories

Nylon carrying case
016-1952-xx
Current loop, 1 turn, 50 Ω with BNC connector, used for Performance Verification
067-2396-xx
Deskew/calibration fixture
067-1686-xx

Warranty

One year parts and labor.

Service options

Opt. C3
Calibration Service 3 Years
Opt. C5
Calibration Service 5 Years
Opt. D1
Calibration Data Report
Opt. D3
Calibration Data Report 3 Years (with Opt. C3)
Opt. D5
Calibration Data Report 5 Years (with Opt. C5)
Opt. R3
Repair Service 3 Years (including warranty)
Opt. R3DW

Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase

Opt. R5
Repair Service 5 Years (including warranty)
Opt. R5DW

Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
