Spectrum Analyzers

RSA3000B Series

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

More Information

Read Online:

RSA3000B Series

Features & Benefits

Discover
  • DPX™ Live RF spectrum display provides an intuitive understanding of time-varying RF signals with color-graded displays based on frequency of occurrence
  • Revolutionary DPX displays transients with >48,000 spectrum measurements per second
Trigger
  • Tektronix exclusive Frequency Mask Trigger (FMT) offers easy event-based capture of transient RF signals by triggering on any change in the frequency domain
Capture
  • DC to 8 GHz frequency range
  • All signals in spans up to 36 MHz are captured into memory
  • Up to 1.28 s acquisition length at 36 MHz bandwidth provides complete analysis over time without making multiple acquisitions
  • Fully preselected and image-free at all times for full dynamic range at any capture bandwidth
  • Interfaces with TekConnect® probes for RF probing
  • Differential IQ input available
Analyze
  • Extensive time-correlated vector spectrum analysis. Multidomain displays connect problems in Time, Frequency, Phase, and Amplitude for quicker understanding of cause and effect when troubleshooting
  • Power measurements and signal statistics help you characterize components and systems: ACLR, Power vs. Time, CCDF, PDF, and real-time spectrum emission measurement with user-defined spectrum emission mask
  • Pulse measurements including Pulse Width, Duty Cycle, and Pulse-to-Pulse Phase
  • Offline analysis available with RSAVu software
  • Analog demodulation analysis including Baseband, AM, FM, and PM measurements
  • Audio distortion analysis of Baseband, AM, and FM with real-time spectrogram and graphical display of harmonics and spurious. Wide choices of lowpass filters, highpass filters, bandpass filters, and de-emphasis settings.

Applications

  • RF debug of components, modules, or systems
  • Find interference and unknown signals in spectrum monitoring and management
  • Analyze time-variant behavior of standards-based and other radio systems
  • Software Defined Radio (SDR) and field tactical radio transceiver measurements
  • Characterize radar and pulsed RF signals
  • Powerful vector signal analyzer functionality and signal source analysis capability
  • Broad range of standard-specific options for analysis of RFID, 3GPP, 3GPP2, and WLAN systems
  • Comprehensive analog demodulation and audio distortion measurement for tactical radio and sonar systems

Discover and interpret complex behaviors of your time-variant signals

The RSA3000B Series makes it easy for you to discover design issues that other signal analyzers miss. The revolutionary DPX Live RF spectrum display offers an intuitive live color view of signal transients changing over time in the frequency domain, giving you immediate confidence in the stability of your design or instantly displaying a fault when it occurs. This live display of transients is impossible with other signal analyzers. Once a problem is discovered with DPX, the Real Time Spectrum Analyzer (RTSA) can be set to trigger on the event in the frequency domain, capture a continuous time record of changing RF events and perform time-correlated analysis in all domains. You get the functionality of a high-performance vector signal analyzer, a spectrum analyzer, and the unique discover-trigger-capture-analyze capability of a Real Time Spectrum Analyzer – all in a single package.

A001_5741-N

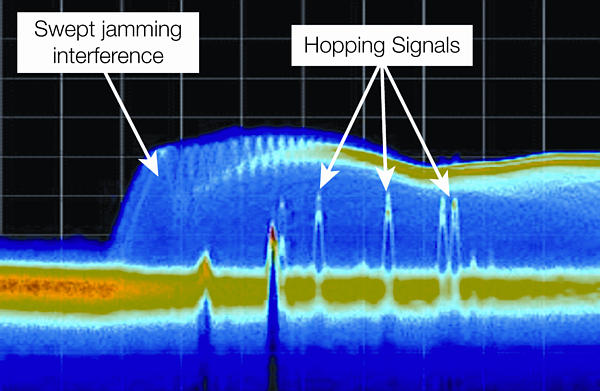

Revolutionary DPX™ spectrum display discovers events that other analyzers miss. This is an off-the-air capture of a frequency-hopping signal jammed by large interference.

Performance You Can Count On

Depend on Tektronix to provide you with performance you can count on. In addition to industry-leading service and support, this product comes backed by a one-year warranty as standard.



Characteristics

Discover

The DPX™ spectrum processing engine brings live analysis of transient events to spectrum analyzers. Performing more than 48,000 frequency transforms per second, transients as brief as 31 μs are displayed in the frequency domain. This is orders of magnitude faster than conventional analysis techniques. Events are color coded by rate of occurrence onto a bitmapped display, providing unparalleled insight into transient signal behavior.

Trigger

The optional Frequency Mask Trigger (FMT) makes it easy to trigger on signals in the frequency domain and capture transient signals in bandwidths up to 36 MHz. The FMT is simply configured to monitor all changes in frequency occupancy within the capture bandwidth. The Power Trigger, working in any capture bandwidth, fires at the instant in time when the RF input signal crosses a user-set power threshold. An external trigger is available for synchronization to test system events.

A002_2937-N

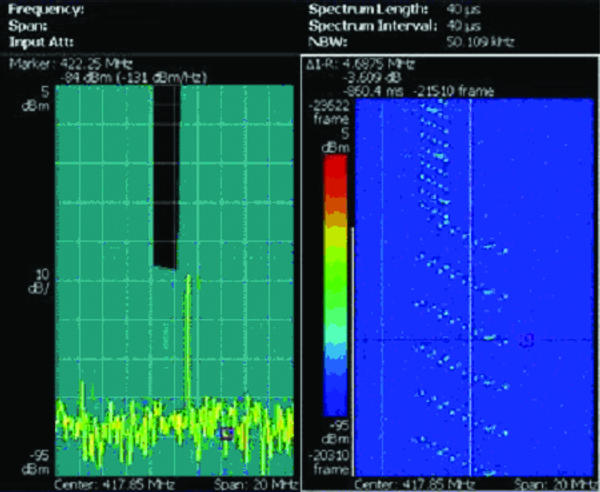

FMT and Spectrogram of a fast-hopped signal captured. The left side displays the user-defined Frequency Mask Trigger (FMT), while the right-side spectrogram displays the captured signal hopping pattern.

Capture

Unlike many SA/VSA combination instruments, the RTSA is fully preselected at all times for spurious and image rejection in any combination of capture bandwidth and frequency. Capture of small signals in the presence of large signals is enabled with up to 73 dB Spurious Free Dynamic Range (SFDR) and class-leading image rejection in all capture bandwidths. Capture once with seamless acquisitions and make multiple measurements without recapturing. Record lengths vary depending upon the selected capture bandwidth: up to 1.28 seconds at 36 MHz, 2.56 seconds at 15 MHz, 51.2 seconds at 1 MHz, or 1.42 hours at 10 kHz bandwidth with optional FMT / Deep Memory.

A002_2938-N

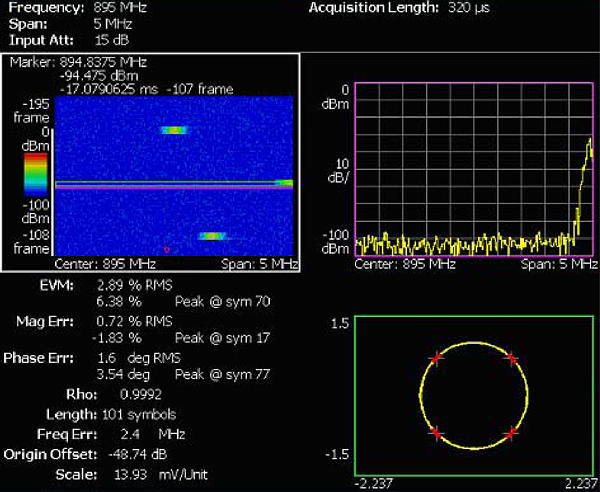

Unlike a conventional VSA’s capability of quantifying the modulation quality only at the center frequency, the RSA3000B Series can demodulate a captured off-center hopped signal with view of the spectrogram (upper left), frequency versus amplitude (upper right), signal modulation quality (lower left) and Constellation (lower right).

A002_2939-N

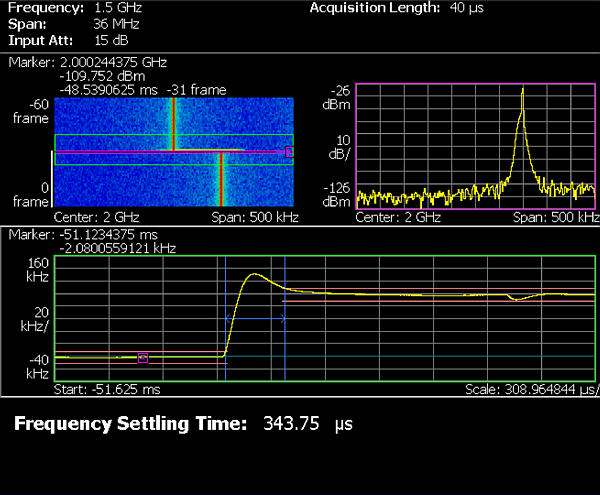

The RSA3000B Series also provides automatic measurement of the frequency settling time with the built-in Modulation Domain analyzer.

A002_2764-N

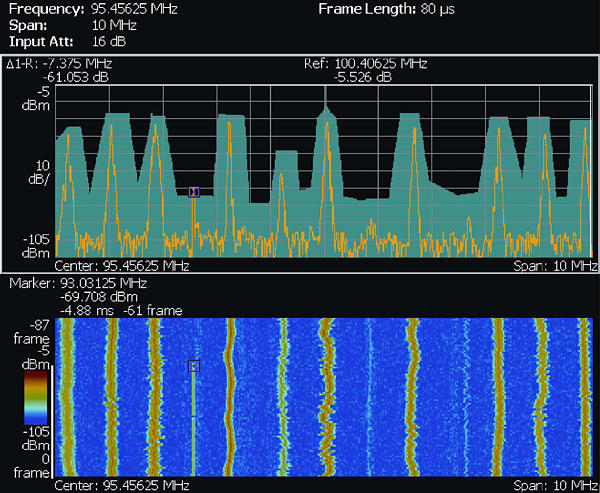

A Frequency Mask Trigger (FMT) was set to monitor the frequency domain for any changes in the spectrum, and it triggered on transient interference. The spectrogram (lower display) shows the time relationship between the desired good signal and the interfering transient signal. The spectrum display shows what was happening at the precise moment the interfering signal was present in the band. FMT is an essential tool for capturing interfering and unauthorized signals in the presence of desired emitters.





A002_2763-N

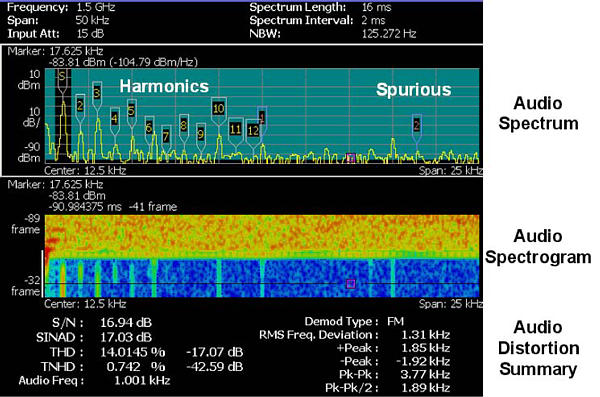

The Audio Spectrum and Spectrogram allow designers to understand the nature of distortion by viewing harmonics and nonharmonic components over time. Distortion parameters are calculated for each FFT frame in the Spectrogram display.

A002_2767-N

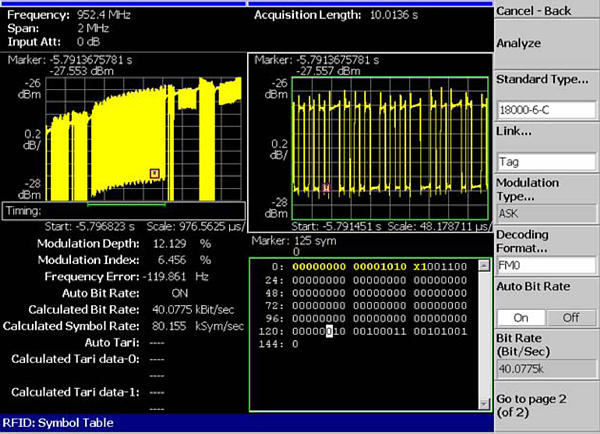

The RSA3000B Series supports all of the latest RFID standards including ISO 18000-6, 18000-7, and ISO 15693. As a leading RFID test solution, this delivers the confidence you need from standards-based RF conformance tests to RF troubleshooting in the prototype lab tests.

A001_1834-N

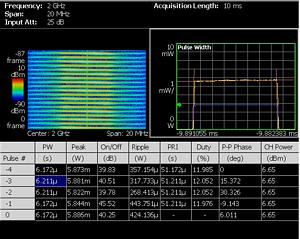

Powerful pulsed-signal analysis for characterization of Radar and other pulsed systems. Automatically measure pulse width, rep rate, pulse power, and other pulse parameters.

Analyze

The RTSA offers analysis capabilities that advance productivity for engineers working on components or in RF system design, integration and performance verification, or operations engineers working in network or spectrum management. Time-correlated data analysis with automatic domain correlation and linked markers accelerates troubleshooting and analysis by pinpointing the root cause of problems in multiple domains.

RSA3000B Series Real Time Spectrum Analyzer

Specification or Feature

RSA3300B Models

RSA3400B Models

Tektronix offers multiple models of RSA3000B Series Real Time Spectrum Analyzer to meet a range of needs for frequency coverage, real-time bandwidth, and dynamic range. The table below summarizes the differences between the models.

Freq Range

DC up to 8.0 GHz

DC up to 8.0 GHz

Max. Capture BW

15 MHz

36 MHz

Triggers, Standard

Level, Free Run, External

Level, Free Run, External

Triggers, Optional

Frequency Mask

15 MHz BW

Frequency Mask

36 MHz BW

Digital Phosphor (DPX) Spectrum Update Rate, Max Span, and Min. Signal Duration

>48,000 Spectrums/sec

>48,000 Spectrums/sec

15 MHz Max Span;

Min. Sig. Duration: 41 μs

36 MHz Max Span;

Min. Sig. Duration: 31 μs

Memory

64 MB / 256 MB

64 MB / 256 MB

Spurious-free Dynamic Range at Max. Capture BW

–70 dBc/15 MHz

–73 dBc/36 MHz

DANL, 1 GHz

–150 dBm/Hz

–151 dBm/Hz

SSB Phase Noise at Specified Offsets at 1 GHz, dBc/Hz (Typical)

10 kHz: –108

10 kHz: –112

1 MHz: –133

1 MHz: –135

10 MHz: –136

10 MHz: –140

Screen Size, User Interface

8.4 inch Screen, Keyboard, Mouse, Front Panel

8.4 inch Screen, Keyboard, Mouse, Front Panel

Interface Ports

GPIB, LAN, USB(2)

GPIB, LAN, USB(2)

Storage Media

Internal HDD and FDD

Internal HDD and FDD;

Optional Removable HDD

IQ Inputs Option

20 MHz BW Differential Inputs

40 MHz BW Differential Inputs

IF Outputs

Not Available

Standard, 421 MHz, 40 MHz BW

Digital I and Q Output Option Bandwidth

Not Available

Up to 36 MHz BW

Memory Depth (Time) and Maximum Time Resolution (RSA3300B Models)

Span

Sample Rate

(For I and Q)

Record Length

(Standard)

Record Length

(Option 02)

Spectrum Frame

(Time)

Time Resolution

(I and Q)

20 MHz (Baseband)

25.6 MS/s

0.64 s

2.56 s

40 μs

40 ns

15 MHz

25.6 MS/s

0.64 s

2.56 s

40 μs

40 ns

10 MHz

12.8 MS/s

1.28 s

5.12 s

80 μs

80 ns

5 MHz

6.4 MS/s

2.56 s

10.24 s

160 μs

160 ns

2 MHz

3.2 MS/s

5.12 s

20.48 s

320 μs

320 ns

1 MHz

1.6 MS/s

10.24 s

40.96 s

640 μs

640 ns

500 kHz

800 kS/s

20.48 s

81.92 s

1.280 ms

1.280 μs

200 kHz

320 kS/s

51.20 s

200.48 s

3.2 ms

3.2 μs

100 kHz

160 kS/s

102.40 s

409.60 s

6.4 ms

6.4 μs

50 kHz

80 kS/s

204.80 s

819.20 s

12.8 ms

12.8 μs

20 kHz

32 kS/s

512 s

2048 s

32 ms

32 μs

10 kHz

16 kS/s

1024 s

4096 s

64 ms

64 μs

5 kHz

8 kS/s

2048 s

8192 s

128 ms

128 μs

2 kHz

3.2 kS/s

5120 s

20480 s

320 ms

320 μs

1 kHz

1.6 kS/s

10240 s

40960 s

640 ms

640 μs

500 Hz

800 S/s

20480 s

81920 s

1.28 s

1.28 ms

200 Hz

320 S/s

51200 s

204800 s

2.56 s

2.56 ms

100 Hz

160 S/s

102400 s

409600 s

5.12 s

5.12 ms

Memory Depth (Time) and Maximum Time Resolution (RSA3400B Models)

Span

Sample Rate

(For I and Q)

Record Length

(Standard)

Record Length

(Option 02)

Spectrum Frame

(Time)

Time Resolution

(I and Q)

40 MHz (Baseband)

51.2 MS/s

0.32 s

1.28 s

20 μs

20 ns

36 MHz

51.2 MS/s

0.32 s

1.28 s

20 μs

20 ns

20 MHz

25.6 MS/s

0.64 s

2.56 s

40 μs

40 ns

10 MHz

12.8 MS/s

1.28 s

5.12 s

80 μs

80 ns

5 MHz

6.4 MS/s

2.56 s

10.24 s

160 μs

160 ns

2 MHz

2.56 MS/s

6.4 s

25.6 s

400 μs

400 ns

1 MHz

1.28 MS/s

12.8 s

51.2 s

800 μs

800 ns

500 kHz

640 kS/s

25.6 s

102.4 s

1.6 ms

1.6 μs

200 kHz

256 kS/s

64 s

256 s

4.0 ms

4.0 μs

100 kHz

128 kS/s

128 s

512 s

8.0 ms

8.0 μs

50 kHz

64 kS/s

256 s

1024 s

16 ms

16 μs

20 kHz

25.6 kS/s

640 s

2560 s

40 ms

40 μs

10 kHz

12.8 kS/s

1280 s

5120 s

80 ms

80 μs

5 kHz

6.4 kS/s

2560 s

10240 s

160 ms

160 μs

2 kHz

2.56 kS/s

6400 s

25600 s

400 ms

400 μs

1 kHz

1.28 kS/s

12800 s

51200 s

800 ms

800 μs

500 Hz

640 S/s

25600 s

102400 s

1.6 s

1.6 ms

200 Hz

256 S/s

64000 s

256000 s

4.0 s

4 ms

100 Hz

128 S/s

128000 s

512000 s

8.0 s

8 ms

Frequency Mask Trigger (Option 02)

Characteristic

Description

Mask Shape

User-defined

Mask Point Horizontal Resolution

1 bin

Level Range

0 to –60 dBfs at 10 dB/div vertical scale.

Level Accuracy

Equal to reference level accuracy + frequency response over 0 to –60 dBfs range

Span Range

   Start Frequency ≥20 MHz

100 Hz to 15 MHz (RSA3300B Models)

   Start Frequency <20 MHz

100 Hz to 20 MHz (RSA3300B Models)

   Start Frequency ≥40 MHz

100 Hz to 36 MHz (RSA3400B Models)

   Start Frequency <40 MHz

100 Hz to 40 MHz (RSA3400B Models)

Minimum Event Duration for 100% Probability of Trigger

40 μs (RSA3300B Models), 20 μs (RSA3400B Models) (at maximum acquisition bandwidth) Events lasting less than minimum event duration specification will result in degraded Frequency Mask Trigger level accuracy

Trigger Position Uncertainty

±2 Frames (For Span = 15 MHz, uncertainty = ±80 μs, For Span = 36 MHz, uncertainty = ±40 μs)

External Trigger

Level Range

–1.5 V to +1.5 V

Level Setting Resolution

0.1 V

Trigger Position Timing Uncertainty

±2 Samples

Input Impedance

>2 KΩ (nominal)

Trigger Output

Voltage



   High

≥2.0 V

   Low

<0.4 V (Output current <1 mA)

Trigger-related

Characteristic

Description

Trigger Modes

Free run, Triggered (Single or Continuous)

Trigger Event Source

RF Input, External Trigger Input

Trigger Types

Power Level: Frequency Mask (Option 02)

Trigger Position

Settable from 0 to 100% of total acquisition length

Power Level Trigger

Level Range

0 dBfs to –40 dBfs*1 from reference level

Trigger Bandwidth Range (equal to selected span)

100 Hz to 15 MHz (RSA3300B Models)

100 Hz to 36 MHz (RSA3400B Models)

Trigger Position Display Timing Uncertainty (Power and External Trigger)

±2 sample points

*1 dBfs: dB relative to full scale.

Capture-related

Characteristic

Description

Real-time Acquisition Bandwidth, Maximum

   Start Frequency ≥20 MHz (RF)

15 MHz (RSA3300B Models)

   Start Frequency <20 MHz (Baseband)

20 MHz (RSA3300B Models)

   Start Frequency ≥40 MHz (RF)

36 MHz (RSA3400B Models)

   Start Frequency <40 MHz (Baseband)

40 MHz (RSA3400B Models)

   IQ Inputs (Option 03)

10 MHz (RSA3300B Models)

40 MHz (RSA3400B Models)

A/D Converter

102.4 MS/s, 14 bit

Acquisition Memory Size

64 MB (16.4 MSamples) Standard

256 MB (65.6 MSamples) Option 02

Minimum Acquisition Length

1024 Samples

Acquisition Length Setting Resolution

1024 Samples

Analysis-related

Optional Measurement Functions, Standards-based and Offline Analysis

Description

Measurements and Displays

General Purpose Digital Modulation Analysis (Option 21)

Mod. Formats: BPSK, QPSK, π/4 DQPSK, OQPSK, SOQPSK, 8PSK, D8PSK,16/32/64/128/256-QAM, GMSK, GFSK, C4FM, 2ASK, 2FSK, 4FSK, 8FSK, 16FSK, CPM (per MIL STD 188-181C)

Standard support: Bluetooth, TETRA, P25, IEEE 802.15.4 OQPSK (Zigbee)

EVM (RMS, Peak, EVM vs. Time), Magnitude Error (RMS, Peak, Mag Error vs. Time), Phase Error (RMS, Peak, Phase Error vs. Time), Origin Offset, Frequency Error, Gain Imbalance, Quadrature Error, Rho, Constellation, Symbol Table, Symbol Timing Error, FSK Deviations and Error, Eye Diagram

PDF: Probability of Occurrence vs. Power Level

AM-AM, AM-PM, 1 dB Compression, Crest Factor

Demodulation Accuracy

Characteristic

RSA3300B Models

RSA3400B Models

16/64 QAM EVM CF = 2 GHz (typical)

0.9% (at 100 kS/s)

0.5% (at 1 MS/s)

1.2% (at 4 MS/s)

2.2% (at 10 MS/s)

0.5% (at 1 kS/s)

0.5% (at 1 MS/s)

0.5% (at 4 MS/s)

0.7% (at 10 MS/s)

QPSK EVM CF = 2 GHz (typical)

0.5% (at 100 kS/s)

0.5% (at 1 MS/s)

1.2% (at 4 MS/s)

2.7% (at 10 MS/s)

0.5% (at 100 kS/s)

0.5% (at 1 MS/s)

0.6% (at 4 MS/s)

0.9% (at 10 MS/s)

Modulation Accuracy (typical)

   π/4DQPSK

Total EVM: 0.65% (95 percentile)

Test Condition: Symbol Rate = 24.3 kHz

Measurement Filter: Root Raised Cosine, alpha = 0.3

Reference Filter: Raised Cosine, alpha = 0.3

Signal Power = –25 dBm

   GMSK

EVM: 0.94% (95 percentile)



Test Conditions:

   Symbol Rate = 270.833 kHz

   Gaussian BT = 0.3

   Signal Power = –25 dBm

   GFSK

FSK Error (RMS): 1.01% (95 percentile)



Test Conditions:

   Symbol Rate = 1.152 MHz

   Gaussian BT = 0.5

   Deviation = 288 kHz

   Signal Power = –25 dBm

Maximum Symbol Rate

RSA3408B: 51.2 MS/s

RFID Analysis

(Included in Option 21)

ISO/IEC 18000 Part 4 Mode 1.

ISO/IEC 18000 Part 6 Type A, B, C.

ISO/IEC 18092(424k).

ISO/IEC 14443 Part 2 Type A, B.

EPC Global Generation 1 Class 0, Class 1.

ISO/IEC 18000-7

ISA/IEC 15693

Maximum ERP, Spurious, Power-on and Power-down Timing and Settling, RF Envelope On-width, Off-width and Period, Constellation, Modulation Depth, Modulation Index, Symbol Rate, Bit Rate, Tari Data –0, Tari Data –1, Eye Diagram, Symbol Table, OBW, EBW, FSK Envelope.

Signal Source Analysis

(Included in Option 21)

Integrated Phase Noise, Random Jitter, Periodic Jitter, Settling Time, Spurious, Real-time Phase Noise vs. Time (Noise-o-gram)

Audio Distortion Analysis (Option 10)

S/N, SINAD, THD, TNHD, Audio Freq, AM modulation, FM deviation, Spectrum, Spectrogram, Hum and Noise Ratio, Harmonics, Nonharmonics

GSM/EDGE (Option 24)

Modulation Accuracy, Mean Power, Power vs. Time, Spectrum due to Modulation, Spectrum due to Switching

CDMA2000-1X Forward/Reverse Link (Option 25)

Channel Power, ACPR, Spectrum Emission Mask, CCDF, Modulation Accuracy, Code Domain Power

1X EVDO Forward/Reverse Link (Option 26)

Channel Power, ACPR, Spectrum Emission Mask, CCDF, Modulation Accuracy, Code Domain Power

TD-SCDMA (Option 28)

Channel Power, ACLR, CCDF, Modulation Accuracy, Code Domain Power

802.11 a/b/g/n (Option 29)

Transmit Power, Spectrum Mask, Modulation Accuracy, OFDM Flatness and Linearity, 802.11n Transfer Function, Transfogram, Delay Profile, Delayogram, Transfer Efficiency

3GPP W-CDMA Release 5 HSDPA (Option 30)

Channel Power, ACLR, Spectrum Emission Mask, CCDF, Modulation Accuracy, Code Domain Power, PRACH, ACK/NACK Analysis

3GPP Release 6 HSUPA

(Option 40)

Channel Power, ACLR, Spectrum Emission Mask, CCDF, Modulation Accuracy, Code Domain Power, Phase Discontinuity, E-RGCH, E-HICH, E-AGCH Analysis

Frequency Settling Time (typical, under conditions stated below)

Input Power

–5 dBm

RF Attenuator

0 dB

Smoothing Factor

1

Span

≥10 MHz

Input Frequency

100 MHz to 101 MHz

Frequency Settling Threshold

100 kHz

Span

100 kHz

Input Frequency

10 MHz to 10.01 MHz

Frequency Settling Threshold – 1 kHz

Span

Error Frequency Settling Time

Error Frequency Settling Time From Trigger

RSA3400BModels

RSA3300BModels

RSA3400BModels

RSA3300BModels

RSA3400BModels

RSA3300BModels

36 MHz

15 MHz

60 ns

160 ns

100 ns

40 ns

10 MHz

10 MHz

240 ns

240 ns

240 ns

80 ns

100 kHz

100 kHz

19 μs

19 μs

19 μs

13 μs

Offline Analysis

RSAVu

All measurements that can be performed on a stored waveform can be performed with RSAVu offline analysis software (except TD-SCDMA and Option 28)

Standard Measurement Functions by Mode

Measurement Mode

Measurements and Displays

Spectrum Analyzer Mode

Channel Power, Adjacent Channel Power, Occupied Bandwidth, Emission Bandwidth, Carrier-to-Noise Ratio, Carrier Frequency, Spurious Search, dBm/Hz Marker, dBc/Hz Marker, Spectrum Emission Mask

RTSA Mode

Channel Power, Adjacent Channel Power, Occupied Bandwidth, Emission Bandwidth, Carrier-to-Noise Ratio, Carrier Frequency, Spurious Search, dBm/Hz Marker, dBc/Hz Marker, Real-time Spectrum Emission Mask

RTSA with Zoom

dBm/Hz Marker, dBc/Hz Marker

DPX

dBm/Hz Marker, dBc/Hz Marker

Analog Mod. Analysis

IQ vs. Time, AM Depth, FM Deviation, PM Deviation, Pulse Spectrum

Time

IQ vs. Time, Power vs. Time, Frequency vs. Time, CCDF, Crest Factor

Pulse

Pulse Width, Peak Power, Ripple, Pulse Repetition Interval, Duty Cycle, Pulse-to-Pulse Phase, Frequency Deviation, Channel Power, OBW, EBW

Spectrum Mode Display Traces, Detectors, and Functions

Characteristic

Description

Traces

Two traces

Detector

Max, Min, Max-Min

Trace Functions

Normal, Average, Max Hold, Min Hold

Spectrum Trace Length

801 points (Auto mode)

RF Performance

Frequency

Characteristic

Description

Frequency Range

DC up to 8 GHz

Initial Center Frequency Setting Accuracy

within 10–7 after 10 minute warm-up

Center Frequency Setting Resolution

0.1 Hz

Frequency Marker Readout Accuracy

<20 MHz, ±(RE × MF + 0.001 × Span + 0.2) Hz (RSA3300B Models)

≥20 MHz, ±(RE × MF + 0.001 × Span + 2) Hz (RSA3300B Models)

<40 MHz, ±(RE × MF + 0.001 × Span + 0.2) Hz (RSA3400B Models)

≥40 MHz, ±(RE × MF + 0.001 × Span + 2) Hz (RSA3400B Models)

Note: RE = Reference Frequency Error, MF = Marker Frequency (Hz)

Span Accuracy

±0.3% (Auto mode)

Reference Frequency

   Aging per Day

1 × 10–9 (after 30 days of operation)

   Aging per Year

1 × 10–7 (after 30 days of operation)

   Temperature Drift

1 × 10–7 (10 to 40 ºC).

   Total Frequency Error

2 × 10–7 (within one year after calibration)

Reference Output Level

>0 dBm

External Reference Input Frequency

10 MHz

External Reference Input Level Range

–10 dBm to + 6 dBm, Spurious level must be < –80 dBc within 100 kHz offset

Resolution Bandwidth (Spectrum Analysis Mode)

Characteristic

Description

Range

1 Hz to 10 MHz (auto-coupled or user-selected (arbitrary) )

Shape

1 Hz to 10 MHz – Approximately Gaussian, shape factor <5:1 (60:3 dB) typical. Rectangular, Nyquist and Root Nyquist shapes may also be selected.

Accuracy

Within 6% (referenced to –3 dB BW). ±0.1% (referenced to Noise BW)

Minimum Settable Spectrum Analysis RBW vs. Span Extended Resolution ON

Frequency Span

RBW

>2 GHz

100 kHz

>1 GHz - 2 GHz

50 kHz

>500 MHz - 1 GHz

20 kHz

>20 MHz - 500 MHz

10 kHz

>500 kHz - 20 MHz

1 kHz

>200 kHz - 500 kHz

500 Hz

>100 kHz - 200 kHz

200 Hz

>50 kHz - 100 kHz

100 Hz

>20 kHz - 50 kHz

50 Hz

>10 kHz - 20 kHz

20 Hz

>5 kHz - 10 kHz

10 Hz

>2 kHz - 5 kHz

5 Hz

>1 kHz - 2 kHz

2 Hz

>100 Hz - 1 kHz

1 Hz

Frequency Resolution(RTSA Mode and FFT Analysis in Spectrum Mode)

Characteristic

Description

Noise Bandwidth Range, RTSA Mode

0.250545 Hz to 100.218 kHz

FFT Performance, Spectrum Mode

Number of samples per frame: 64 to 8192 (65,536 samples per frame, extended resolution)

Window Types

Rectangular, Parzen, Welch, Sine-Lobe, Hanning, Sine-Cubed, Sine to the 4th, Hamming, Blackman, Rosenfield, Blackman-Harris 3A, Blackman-Harris 3B, Blackman-Harris 4A, Blackman-Harris 4B, FlatTop

DPX Digital Phosphor Spectrum Processing

Characteristic

Description

Spectrum Processing Rate

48,000/s, span-independent

Number of Traces

2

Trace Types

Color-graded bitmap, +Peak, Max Hold, –Peak, Min-Hold, Average

Minimum Signal Duration for 100% Probability of Intercept

41 μs (RSA3300B Models)

31 μs (RSA3400B Models)

Span Range

100 Hz to 15 MHz (RSA3300B Models)

100 Hz to 36 MHz (RSA3400B Models)

Resolution BW Accuracy –7%

Resolution BW Range vs. Span (DPX)

Acquisition Bandwidth

RBW (Min)



RSA3300B Models

RSA3400B Models

36 MHz



300 kHz

20 MHz



200 kHz

15 MHz

200 kHz



10 MHz

100 kHz

100 kHz

5 MHz

30 kHz

30 kHz

2 MHz

20 kHz

20 kHz

1 MHz

10 kHz

10 kHz

500 kHz

5 kHz

5 kHz

200 kHz

2 kHz

2 kHz

100 kHz

1 kHz

1 kHz

50 kHz

500 Hz

500 Hz

20 kHz

200 Hz

200 Hz

10 kHz

100 Hz

100 Hz

5 kHz

50 Hz

30 Hz

2 kHz

20 Hz

20 Hz

1 kHz

10 Hz

10 Hz

500 Hz

5 Hz

3 Hz

200 Hz

2 Hz

2 Hz

100 Hz

1 Hz

1 Hz

Stability

Residual FM - <2 Hz p-p, typical

Phase Noise Sidebands, dBc/Hz at Specified Center Frequency (CF).



Noise Sidebands, dBc/Hz (RSA3300B Models)



RSA3303B, RSA3308B

RSA3308B



At 1 GHz CF

At 2 GHz CF

At 6 GHz CF

Offset

Spec

Typical

Spec

Typical

Spec

Typical

1 kHz

≤ –100

≤ –103

≤ –96

≤ –99

≤ –87

≤ –90

10 kHz

≤ –105

≤ –108

≤ –104

≤ –107

≤ –104

≤ –107

20 kHz

≤ –105

≤ –108

≤ –105

≤ –108

≤ –105

≤ –108

30 kHz

≤ –105

≤ –108

≤ –105

≤ –108

≤ –105

≤ –108

100 kHz

≤ –112

≤ –115

≤ –112

≤ –115

≤ –112

≤ –115

1 MHz

≤ –132

≤ –135

≤ –132

≤ –135

≤ –128

≤ –131

5 MHz

≤ –135

≤ –138

≤ –135

≤ –138

≤ –130

≤ –133

7 MHz

≤ –135

≤ –138

≤ –135

≤ –138

≤ –130

≤ –133

Noise Sidebands, dBc/Hz (RSA3400B Models)



At 1 GHz CF

At 2 GHz CF

At 6 GHz CF

Offset

Spec

Typical

Spec

Typical

Spec

Typical

1 kHz

≤ –105

≤ –107

≤ –103

≤ –105

≤ –97

≤ –99

10 kHz

≤ –110

≤ –112

≤ –109

≤ –111

≤ –106

≤ –108

100 kHz

≤ –112

≤ –115

≤ –112

≤ –115

≤ –111

≤ –113

1 MHz

≤ –132

≤ –135

≤ –132

≤ –135

≤ –132

≤ –134

5 MHz

≤ –138

≤ –140

≤ –138

≤ –140

≤ –137

≤ –139

10 MHz

≤ –138

≤ –140

≤ –138

≤ –140

≤ –137

≤ –139

Amplitude (Specifications excluding mismatch error)

Characteristic

Description

Measurement Range

Displayed Average Noise Level to Maximum Safe Input

Input Attenuator Range

   RF/Baseband input

0 dB to 50 dB, 2 dB step at <3.5 GHz; 10 dB step at ≥3.5 GHz (RSA3300B Models)

0 dB to 55 dB, 5 dB step (RSA3400B Models)

   IQ Input (Option 03)

0 dB to 30 dB, 10 dB step (RSA3300B Models)

0 dB to 35 dB, 5 dB step (RSA3400B Models)

Maximum Safe Input Level

   Average Continuous (RF Band, RF ATT ≥10 dB)

+30 dBm

MAX DC Voltage

RF Band, ±0.2 V, Baseband, ±5 V, IQ input,Option 03. ±5 V

Maximum Measurable Input Level

Average Continuous (RF ATT: Auto): +30 dBm

Log Display Scale

10 μdB/div to 10 dB/div

Display Divisions

10 divisions

Display Units

dBm, dBμV, Volts, Watts, Hz for Frequency Measurements, and Degrees for Phase Measurements

Marker Readout Resolution, dB units

0.01 dB

Marker Readout Resolution, Volts units

0.001 μV

Reference Level Setting Range

   RF

–50 dBm to +30 dBm, 1 dB step

   Baseband

–30 dBm to +20 dBm, 5 dB step

   IQ Inputs (Option 03)

–10 dBm to +20 dBm, 5 dB step

Level Linearity over Display Range

±0.2 dB, spec; ±0.12 dB, typical

Frequency Response (20 °C to 30 °C, Att. ≥10 dB)

Frequency

Spec

Typical

100 kHz - 40 MHz

±0.5 dB

±0.3 dB

>40 MHz - 3.5 GHz

±1.2 dB

±0.5 dB

>3.5 GHz - 6.5 GHz

±1.7 dB

±1.0 dB

>6.5 GHz - 8 GHz

±1.7 dB

±1.0 dB

Amplitude Accuracy (–20 dBm signal, 0 dB ATT, 20 °C to 30 °C)

Characteristic

Description

Absolute Amplitude Accuracy at Calibration Point

   RF

±0.5 dB at 50 MHz (RSA3300B Models)

±0.5 dB at 100 MHz (RSA3400B Models)

   Baseband

±0.3 dB at 10 MHz (RSA3300B Models)

±0.3 dB at 25 MHz (RSA3400B Models)

Input Attenuator Setting Uncertainty

±0.5 dB (RSA3300B Models)

±0.2 dB (RSA3400B Models)

Reference Level Accuracy

±0.2 dB (–10 dBm to –50 dBm at 50 MHz)

(RSA3300B Models)

±0.2 dB (–10 dBm to –50 dBm at 100 MHz)

(RSA3400B Models)

VSWR

(Att ≥10 dB, Preamp OFF), typical

< 1.4:1 (300 kHz to 40 MHz), < 1.3:1 (40 MHz to 3 GHz), < 1.4:1 (3 GHz to 8 GHz)

(RSA3308B and RSA3400B Models)

FeliCa™ RFID Test Conditions*2, 3

Characteristic

Description

Amplitude Accuracy (Variable Attenuator)

Absolute Accuracy: ±0.57 dB (99 percentile, 2.58σ)

Relative Accuracy: ±0.15 dB (99 percentile, 2.58σ)



Test Conditions:

   Center Frequency: 13.56 MHz

   Span: 5 MHz

   RF Attenuator Setting: 0 to 14 dB

   Input Power Range: 0 to –20 dB for Full Scale

Amplitude Accuracy (Fixed Attenuator)

Absolute Accuracy: ±0.45 dB (99 percentile, 2.58σ)

Relative Accuracy: ±0.15 dB (99 percentile, 2.58σ)



Test Conditions:

   Center Frequency: 13.56 MHz

   Span: 5 MHz

   RF Attenuator Setting: 0 dB

   Input Power Range: 0 to –20 dB for Full Scale

Repetitive Amplitude Accuracy

Repetitive Accuracy: ±0.04 dB (99 percentile, 2.58σ)



Test Conditions:

   Center Frequency: 13.56 MHz

   Span: 5 MHz

   Reference Level: 0 dBm

   Input Power: –10 dBm

   Within 1 hour after Self Gain Calibration

AM Modulation Index Accuracy

Accuracy: ±0.17% (99 percentile, 2.58σ)



Test Conditions:

   Center Frequency: 13.56 MHz

   Span: 5 MHz

   Carrier Level: +4 dBm

   AM Modulation Index Range: 1% to 10%

   AM Frequency: 212 kHz, Sinusoidal Wave

ASK Modulation Index Accuracy

Accuracy: ±0.21% (99 percentile, 2.58σ)



Setting Conditions:

   Center Frequency: 13.56 MHz

   Span: 5 MHz

   Carrier Level: +4 dBm



At RFID Analysis Mode on RSA:

   ASK Modulation Index Range: 1% to 10%

   ASK Frequency: 212 kHz, Square Wave

*2 FeliCa is the contactless IC card technology developed by Sony Corporation.

*3 FeliCa is a trademark of Sony Corporation.

Distortion

Characteristic

Description

3rd Order Intermodulation Distortion

(Total Signal Power = –7 dBm, Ref Level +5 dBm,Attenuator adjusted for optimum performance)

Frequency

3rd Order IM

   100 MHz to 3 GHz

< –74 dBc (RSA3300B Models)

   3 GHz to 8 GHz

< –72 dBc (RSA3308B only)

   2.0 GHz

< –78 dBc (RSA3400B Models)

2nd Harmonic Distortion

(–30 dBm tone at input mixer)

Frequency

2nd Harmonic Distortion, Typical

   10 MHz to 1.5 GHz

< –56 dBc (RSA3300B Models)

   10 MHz to 1.75 GHz

< –56 dBc (RSA3308B only)

   10 MHz to 1.4 GHz

< –65 dBc (RSA3400B Models)

   1.4 GHz to 1.75 GHz

< –70 dBc (RSA3400B Models)

Displayed Average Noise Level (Input Terminated)

Frequency

Specification

1 kHz - 10 kHz

–144 dBm/Hz

>10 kHz - 100 MHz

–151 dBm/Hz

>100 MHz - 3 GHz

–150 dBm/Hz

>3 GHz - 8 GHz

–142 dBm/Hz

Residual Response

(Input Terminated, Ref. Level = –30 dBm, RBW = 100 kHz)

RSA3303B Model

Frequency and Span

Specification

1 MHz to 20 MHz,Span 20 MHz

–93 dBm

0.5 GHz to 3 GHz,Span 3 GHz

–90 dBm

RSA3308B Model

Frequency and Span

Specification

1 MHz to 20 MHz,Span 20 MHz

–93 dBm

0.5 GHz to 3.5 GHz,Span 3 GHz

–90 dBm

3.5 GHz to 8 GHz,Span 3 GHz

–85 dBm

RSA3408B Model

Frequency and Span

Specification

1 MHz to 40 MHz,Span 20 MHz

–93 dBm

0.5 GHz to 3.5 GHz,Span 3 GHz

–90 dBm

3.5 GHz to 8 GHz,Span 3 GHz

–85 dBm

Spurious Response with Signal

Signal Frequency

Spurious Response

(Signal at Center Frequency, Span = 10 MHz, Ref Lvl = 0 dBm, RBW = 50 kHz, Signal Level = –5 dBm)

25 MHz

–73 dBc

2 GHz

–73 dBc

5 GHz

–70 dBc

5 GHz

–70 dBc

Adjacent Channel Leakage Ratio Dynamic Range



ACLR

Signal Type, Measurement Mode

RSA3300B Models

RSA3400B Models

(Typical, CF = 2.1425 GHz, with test-signal amplitude adjusted for optimum performance)

3GPP Downlink, 1 DPCH

Adjacent Alternate

Adjacent Alternate

Real-time (Spec.)

–60 dB - 66 dB

–66 dB - 68 dB

Stepped (Typical)

–63 dB - 70 dB

–70 dB - 72 dB

IF Frequency Response and IF Phase Linearity - (400 MHz Center Frequency, 36.6 MHz BW, Typical) (RSA3400B Models)

Amplitude – ±0.3 dB

Phase – ±2.5°



Analog Modulation Analysis

Characteristic

Description

Displays

Amplitude vs. Time, Frequency vs. Time, Phase vs. Time

Measurements

   AM

+AM, –AM, Total AM, Modulation Depth

   FM

+peak, –peak, peak-to-peak, (peak-to-peak)/2, RMS

   PM

Phase at marker

Accuracy

(–10 dBfs signal, input at CF, typical)

   AM

±2% (modulation depth 10% to 60%)

   FM

±1% of span

   PM

±3°

Audio Distortion Analysis

Characteristic

Description

Demodulation Types

Baseband, AM and FM

Measurement Range

20 Hz to 100 kHz

Displays

Spectrum and Spectrogram

Measurements

S/N, SINAD, THD, TNHD, Hum and Noise Ratio, Audio Frequency

Audio Filters



   De-emphasis

25 μs, 50 μs, 75 μs, 750 μs

   Lowpass Filters

3 kHz, 15 kHz, 30 kHz, 80 kHz

   Highpass Filters

50 Hz, 300 Hz, 400 Hz

   CCITT



   C-Message



Accuracy



   Distortion

±1 dB (distortion products > –70 dB from fundamental tone)

   SINAD

±1 dB (SINAD levels <70 dB)

   Residual Distortion and Noise

–80 dB or 15 uV, 20 Hz to 20 kHz

   Audio Frequency

±0.1% when analyzer and source share common reference (signal duration under bursted conditions > 1 second)

Pulse Measurements

Characteristic

Description

Displays

Pulse Measurement Table, Pulse Trace

Measurements

Pulse Width, Pulse Peak Power, On/Off Ratio, Pulse Ripple, Pulse Repetition Interval, Duty Cycle, Pulse-Pulse Phase, Channel Power, OBW, EBW, Frequency Deviation

Minimum Pulse Width for Detection

20 samples (RSA3300B Models = 800 ns at maximum sample rate, RSA3400B Models = 400 ns at maximum sample rate)

Maximum Pulse Length

260,000 samples

Inputs and Outputs

Characteristic

Description

Front Panel

RF and Baseband Input Connector

N type, 50 Ω

I and Q Inputs (Option 03) – BNC Type

Preamp Power Connector

Lemo, 6 poles:

Pin 1 = NC

Pin 2 = ID1

Pin 3 = ID2

Pin 4 = –12 V

Pin 5 = GND

Pin 6 = +12 V

Rear Panel

Analog IF Output

BNC Type, Frequency – 421 MHz (RSA3400B Models)

10 MHz REF OUT

50 Ω, BNC, > –3 dBm

10 MHz REF IN

50Ω, BNC, –10 dBm to +6 dBm

EXT TRIG IN

Ext Trig, BNC, High: 1.6 to 5.0 V, Low: 0 to 0.5 V

GPIB Interface

IEEE 488.2

Trigger Out

50 Ω, BNC, High: >2.0 V, Low: <0.4 V

(Output current 1 mA)

Digital IQ Output (RSA3400B Models Option 05)

   Connector Type

MDR (3M) 50 pin × 2

Data Output

   I data

16 bit LVDS

   Q data

16 bit LVDS

Control Output

Clock: LVDS, MAX 51.2 MHz

Control Input

IQ data output enabled, connecting GND enables output of IQ data

Clock Rising Edge to Data Transition Time (hold time)

>5 ns

Data Transition to Clock Rising Edge (setup time)

>5 ns

Side Panel

LAN Interface Ethernet

10/100BASE-T

Serial Interface

USB 1.1, two ports

VGA Output

VGA compatible, 15 DSUB

Floppy Disk Drive

3.5 inch, 1.44 MB

Note: Data from Option 05 requires application of correction factors to IQ data to achieve similar RF performance to RSA3408B.

General Characteristics

Characteristic

Description

Temperature Range

   Operating

+10 °C to +40 °C

   Storage

–20 °C to +60 °C

Warm-up Time

20 minutes

Operating Altitude

   Operating

Up to 3000 m (Approximately 10,000 ft.)

   Nonoperating

Up to 12,190 m (40,000 ft.)

Safety and Electromagnetic Compatibility

UL 61010-1; CSA C22.2 No. 61010-1-xx

IEC61010, second edition (Self Declaration)

Low Voltage Directive 2006/95/EC; EN61010-1: 2001 Safety requirements for Electrical Equipment for Measurement, Control, and Laboratory Use

EC Council EMC Directive 2004/108/EEC;EN61326:1997 Product Family Standard for Electrical Equipment for Measurement, Control, and Laboratory Use – EMC Requirements

Radio communications Act:1992, EMC Regulatory Arrangements, AS/NZS CISPR 11 (Industrial, Scientific, and Medical Equipment)

Power Requirements

90 VAC to 250 VAC, 47 Hz to 63 Hz(RSA3300B Models)

90 VAC to 264 VAC, 47 Hz to 63 Hz(RSA3400B Models)

Power Consumption

400 VA maximum

Data Storage

Internal HDD, USB ports, FDD, Removable HDD (RSA3400B Models Option 06)

Calibration Interval

One year

Warranty

One year

GPIB

SCPI-compatible, IEEE488.2 compliant

Physical Characteristics

Dimensions

mm

in.

Without bumpers and feet

215 mm (H) × 425 mm (D)

× 425 mm (W)

8.5 in. (H) × 16.7 in. (D) × 16.7 in. (W)

With bumpers and feet

238 mm (H) × 470 mm (D)

× 445 mm (W)

9.4 in. (H) × 17.5 in. (D) × 18.5 in. (W)

Weight

kg

lb.

With all options

20 kg

44 lb.



Ordering Information

RSA3303B

Real Time Spectrum Analyzer, DC - 3 GHz

RSA3308B

Real Time Spectrum Analyzer, DC - 8 GHz

RSA3408B

Real Time Spectrum Analyzer, DC - 8 GHz



All Include: User Manual, Programmer's Manual (On CD), Power Cord, BNC-N Adapter, USB Keyboard, USB Mouse, Front Cover, One-year Warranty.

Options

Option

Description

Opt. 02

65.5 MSample Deep Memory, Frequency Mask Trigger

Opt. 03

IQ, Differential IQ inputs

Opt. 05

Digital IQ Output (RSA3400B Models only)

Opt. 06

Removable HDD (40 GB) (RSA3400B Models only)

Opt. 10

Audio Distortion Analysis

Opt. 21

Advanced Measurements Suite

(GP Mod. Analysis, RFID, Sig. Source)

Opt. 24

GSM/EDGE Analysis

Opt. 25

CDMA 1X Forward/Reverse Link Analysis

Opt. 26

1X EVDO Forward/Reverse Link Analysis

Opt. 28

TD-SCDMA Analysis

Opt. 29

WLAN 802.11a/b/g/n Analysis

(RSA3400B Models only)

Opt. 30

3GPP Release 99 (W-CDMA) and Release 5 UL/DL (HSDPA) Analysis

Opt. 40

3GPP Release 6 (HSUPA UL/DL) Analysis

(requires Opt. 30)

Application Software and Accessories

SW/Accessory

Description

RSAVu

Offline Analysis Software for Real Time Spectrum Analyzers, Oscilloscopes, and Logic Analyzers. Free demo version can be downloaded from /rsa. See RSAVu data sheet for more details.

Extra Hard Drive

Extra 40 GB Removable Hard Drive for use with Opt. 06. Order part number 650-5150-xx

(RSA3400B Models only)

RSA3KR Rackmount

Rackmount RSA33/34B Series Real Time Spectrum Analyzers (customer installable)

RTPA2A

Adapter for use with TekConnect Active and Passive Probes

E and H Near-field probes

For EMI troubleshooting.

Order part number 119-4146-xx

International Power Plugs

Option

Description

Opt. A0

North America

Opt. A1

Universal EURO

Opt. A2

United Kingdom

Opt. A3

Australia

Opt. A4

240 V North America

Opt. A5

Switzerland

Opt. A6

Japan

Opt. A10

China

Opt. A11

India

Opt. A99

No Power Cord or AC Adapter

Manuals

Option

Order Number

Additional User Manual, Paper

English

071-2363-xx (RSA3300B Models)

071-2364-xx (RSA3400B Models)

Japanese

071-2362-xx (RSA3300B Models)

071-2365-xx (RSA3400B Models)

Service Manual(Paper, English)

071-2367-xx (RSA3300B Models)

071-2366-xx (RSA3400B Models)

Operator Manual(Paper, Russian)

071-2369-xx (RSA3000 Series)

Service

Option

Description

Opt. CA1

Single Calibration or Functional Verification

Opt. C3

Calibration Service 3 Years

Opt. C5

Calibration Service 5 Years

Opt. D1

Calibration Data Report

Opt. D3

Calibration Data Report 3 Years (with Opt. C3)

Opt. D5

Calibration Data Report 5 Years (with Opt. C5)

Opt. G3

Complete Care 3 Years (includes loaner, scheduled calibration and more). RSA3303B, RSA3408B only

Opt. G5

Complete Care 5 Years (includes loaner, scheduled calibration and more). RSA3303B, RSA3408B only

Opt. R3

Repair Service 3 Years

Opt. R5

Repair Service 5 Years

Upgrades

RSA3BUP (RSA3300B Models)

RSA34BUP (RSA3400B Models)

Option

Description

Opt. 02

65.5 MSample Deep Memory, Frequency Mask Trigger (customer installable)

Opt. 03

IQ, Differential IQ inputs (customer installable)

Opt. 05

Digital IQ Output (customer installable)

(RSA3400B Models only)

Opt. 06

Removable HDD (RSA3400B Models only)

Opt. 10

Audio Distortion Analysis

Opt. 21

Advanced Measurements Suite (customer installable)

Opt. 24

GSM/EDGE Analysis (customer installable)

Opt. 25

CDMA 1X Forward/Reverse Link Analysis(customer installable)

Opt. 26

1X EVDO Forward/Reverse Link Analysis(customer installable)

Opt. 28

TD-SCDMA Analysis (customer installable)

Opt. 29

WLAN 802.11a/b/g/n Analysis (customer installable) (RSA3400B Models only)

Opt. 30

3GPP Release 99 (W-CDMA) and Release 5 (W-CDMA) UL/DL Analysis (customer installable)

Opt. 40

3GPP Release 6 (HSUPA UL/DL) Analysis

(requires Opt. 30, customer installable)

Opt. IF

Installation labor for RSA34BUPxx

(no calibration required)

Opt. IFC

Installation labor for RSA34BUPxx (with calibration)

Languages

Option

Description

User/Programmer Manual

Opt. L0

English

Opt. L5

Japanese

Opt. L10

Russian
