PAMJET Signal Analysis of PAM4 Signal

Datasheet

Online lesen:

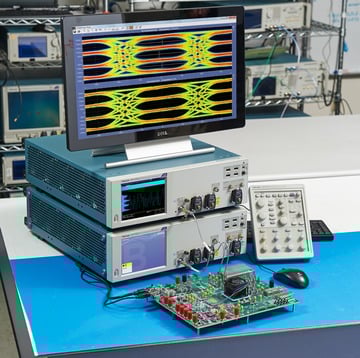

The PAMJET Signal Analysis software application enhances the capabilities of the DPO/MSO70000DX/SX and DPO/DSA/MSO70000 series oscilloscopes (13 GHz or greater bandwidth), adding signal analysis, characterization, and compliance test for four-level Pulse Amplitude Modulation (PAMJET) devices and interfaces for both electrical and optical physical domains.

Key features

  • Single Integrated Application for PAMJET Electrical and Optical Signal Debug and Validation
    • PAMJET brings together all the capabilities needed for comprehensive PAM analysis and debug
    • Dashboard style configuration panel enables quick and easy configuration of all the necessary parameters for PAM analysis
  • Enhanced Clock Recovery
    • PAMJET's build-in clock recovery offers the industry's most robust clock recovery capability; clean, low-jitter clock is recovered immediately even from heavily impaired signals, even when SSC is present.
  • Configurable Bessel-Thomson and other Reference Receiver Filters
    • Offers the flexibility to tune bandwidth of the measurement receiver, either manually or automatically, based on detected data rate
  • Integrated embedding or de-embedding of test fixtures, cables, or channel models
  • Auto Configuration
    • Auto detect thresholds, symbol rate, pattern type and length, enabling ease of configuration
  • Symbol and Bit Error Detector
    • Detect and navigate to individual errors with annotations of clock recovery, eye centers, and expected symbols
    • Accumulate SER and BER over multiple acquisition cycles
  • Integrated Receiver Equalization
    • Calculate taps for, and apply CTLE, FFE, and DFE equalization to the acquired waveform to open a closed eye.
    • Model different types of receiver equalizer settings to perform what-if analysis
    • Support for standard based equalization presets
  • Jitter Measurement and Eye Analysis
    • Full Characterization of the PAM eyes to support standard-based and debug analysis
    • Isolate the effects of ISI and show the potential for receiver equalization using correlated eye
    • Rise and Fall times for all 12 PAM4 transitions offers the capability to analyze each transition type in PAM4 signal.
    • Flexible controls to automatically acquire a desired symbol population across multiple acquisitions
  • Noise Analysis and BER Contours
    • Eye width and eye height analysis per standards or to custom BER targets
    • Eye diagram annotated to show BER contours and width/height measurement locations
  • SNDR Analysis
    • Automates a complex Electrical PAM4 transmitter measurement useful for characterization
  • TDECQ Analysis
    • Automates a complex Optical PAM4 measurement that is used to characterize the optical transmitter vertical eye closure
  • Plots and reports
    • Comprehensively interact with plots for measurement visualization and deep analysis
    • HTML report captures all the relevant setup configuration, measurement test results, and plot in single file that is easy to read and share
    • Measurement results across multiple acquisitions can be exported to a consolidated CSV file useful for additional analysis

Applications

  • Debug, Analysis, and Characterization of Electrical and Optical PAM4 signals
  • Characterization of OIF-CEI, PCIe and IEEE based PAM4 standards; such as OIFCEI-VSR-56G-PAM4, 802.3bs, 802.3ck and higher - with 25GBASE, 50GBASE and 100GBASE KR, CR, DR, FR and AUI/GUAI/CAUI/CDAUI, PCIe Gen6 64G 1.0.

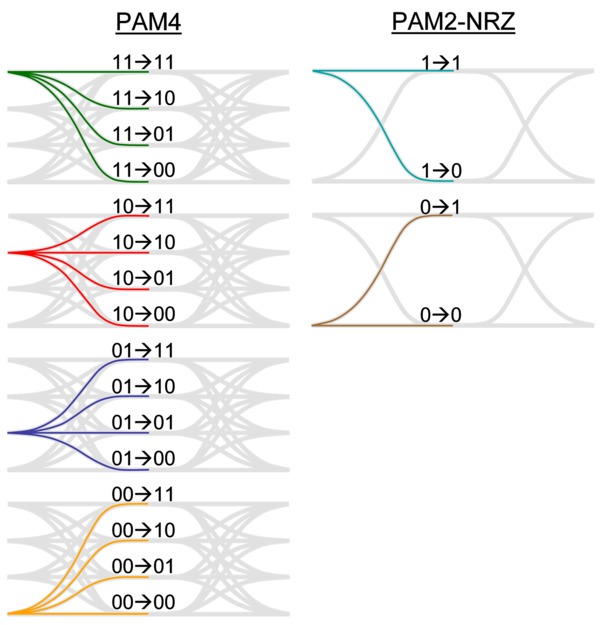

PAM4 overview

The frequency content of the NRZ signal increases linearly with bit-rate. PAM4 signaling needs half the bandwidth as NRZ for the same data rate. 400G Ethernet standards, both electrical and optical interfaces, adopted PAM4 signaling to support the forecasted growth in the datacenter and network traffic. PCI Express standards introduced PAM4 signaling in the 6.0 Base specification adding a 64GT/s line speed.

PAMJET EN US 55W 60239 11
Assumes linear coding for illustration. In practice, gray coding is frequently used.

The 4 levels of PAM4 introduce additional complexity in signaling and place new demands on the test methodology. The PAM analysis PAMJET tool offers several measurement and visualization capabilities aimed at making the task of validating PAM4 designs more efficient.

PCI Express standards introduced PAM4 signaling in the 6.0 Base specification adding a 64GT/s line speed

PAM4 measurement configuration

The configuration panel is a dashboard within the PAM analysis (PAMJET) tool that enables you to configure most elements for a PAM analysis (PAMJET) run. The panel includes: measurement source selection, Clock recovery, Threshold, and Bessel-Thomson filter Equalization configuration. It also has the ability to embed or de-embed a channel using a waveform filter.

PAMJET EN US 55W 60239 11

Configurable PLL (phase-locked loop) clock recovery reliably extracts the symbol clock, even with highly impaired signals, uses it internally and exports the reconstructed clock waveform to a reference channel where it may be viewed.

Channel embedding / de-embedding

The waveform filter option offers the ability to embed or de-embed different channel elements. For example:

  • The effects of a test fixture can be de-embedded to gain visibility of the signal at the transmitter output.
  • A channel can be embedded to gain visibility of the signal at the receiver input.

You can use the Tektronix SDLA software application to further analyze and process S-parameters and create signal filters as needed, for emulation, de-embedding etc.

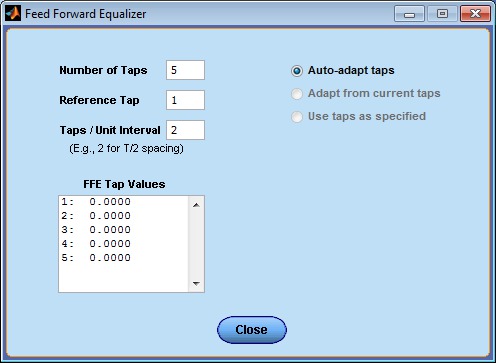

Equalization

It is often necessary to apply receiver equalization to open the eyes before measurements can be performed. In most cases the lack of physical access makes it impossible to verify the receiver circuit behavior and monitor the effects of clock recovery and equalization.

A comprehensive equalizer in the PAM analysis PAMJET tool offers the ability to do the following:

  • Apply CTLE either using custom poles and zeros or standards based presets.
  • Apply configurable length FFE and / or DFE with auto-adapted tap values.
  • Calculate the tap values, and observe the tap values that have been calculated.

PAMJET EN US 55W 60239 11

Auto configure capability

The PAM analysis PAMJET application can automatically detect the signal’s symbol rate and pattern, and choose the appropriate decision thresholds based on analysis of the eye diagram. This allows quick and error-free set-up, as well as, verifying your signal’s key characteristics.

Measurement selection

The Select panel enables you to select either electrical and optical PAM4 measurements.

The selection list allows you to choose window measurements and configure the display for ease of use and execution speed.

PAMJET EN US 55W 60239 11

PAM4 measurements

The PAM analysis (PAMJET) package provides a comprehensive set of measurements that offer greater insight into signal characteristics, speeding up validation or characterization of PAM4 designs.

The supported list includes IEEE (802.3bs/cd) and OIF-CEI Standards based measurements, SNDR and TDECQ of electrical and optical PAM4 Transmitter.

PAM4 Optical Measurements
Error AnalysisSymbol Errors
SER
BER
Linearity RLM
JitterRj
Dj
[email protected]
Statistical Eye AnalysisVertical Eye Closure
EW6 / EW5
EH6 / EH5
Vupp / Vmid / Vlow
Hupp / Hmid / Hlow
OpticalER
OMAOUTER
AOP 1
RIN x OMA
IEEE SpecificTDECQ
Ceq
Launch Power in OMAOUTER minus TDECQ
Correlated WaveformLevel Deviation
Level Thickness
Time Deviation
Rise and Fall
Data RateSignaling rate

PAM4 Electrical Measurements
Error AnalysisSymbol Errors
SER
BER
Linearity RLM
JitterRj
Dj
[email protected]
Statistical Eye AnalysisVertical Eye Closure
EW6 / EW5
EH6 / EH5
Vupp / Vmid / Vlow
Hupp / Hmid / Hlow
SNDRSNDR
Pmax
σ e
σ n
σ n per Level
OIF-CEIUUGJ (rms)
UBHPJ (p-p)
EOJ
IEEE SpecificJrms
J3u
J4u
EOJ
EOJ per Edge
Rise Time
Fall Time
SNRISI
Correlated WaveformLevel Deviation
Level Thickness
Time Deviation
Rise and Fall
PCIe 6.0 SpecificTTX-uTJ
TTX-uDJDD
TTX-RJ
TTX-UPW-TJ
TTX-UPW-DJDD

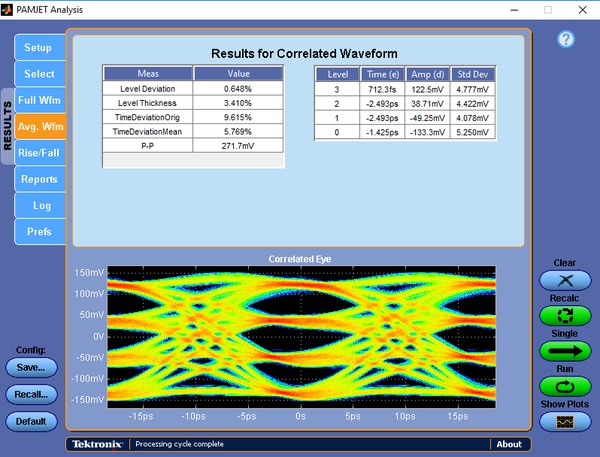

Full waveform and correlated waveform analysis

A full eye analysis can also be performed by overlaying all the unit intervals on the acquired PAM4 signal. A jitter analysis is done on the individual eyes and on the BER eye contours. Both tests can give insight into eye closure at all timing phases and reference levels simultaneously.

The correlated waveform and the correlated eye shows the signal without the random noise and jitter (and other uncorrelated components) for greater clarity of insight. The correlated waveform can be analyzed by tools and techniques similar to those found on Equivalent Time Oscilloscopes. Many performance communications standards assume access to correlated data. The PAMJET application can effectively model correlated and composite eye diagrams.

PAMJET EN US 55W 60239 11

PAMJET EN US 55W 60239 11

Rise and fall time analysis

Analysis of the individual transitions, rise and fall times helps separate linear impairments (bandwidth, ISI) from nonlinear (slew-rate limiting, clipping). The rise and fall times also support advanced tuning of equalization algorithms. The PAMJET software provides the max, min, and mean rise and fall time for each of the six transition types within the PAM4 eye.

PAMJET EN US 55W 60239 11

Visualization

A comprehensive set of plots can be used to visualize measurement data. The plots provide additional insight into the signal characteristics and are useful for debugging.

The PAMJET toolset enables interaction with the plots and can focus in on an area of interest for closer examination and further analysis.

PAMJET EN US 55W 60239 11

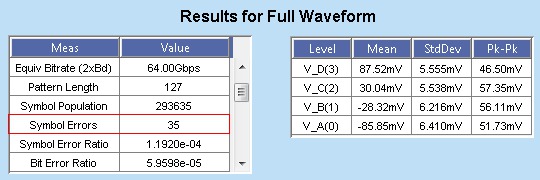

The PAMJET tool comes with a built in error detector that can identify individual symbol errors in the current source waveform. The identified error can be viewed in a dedicated error navigator window.

PAMJET EN US 55W 60239 11

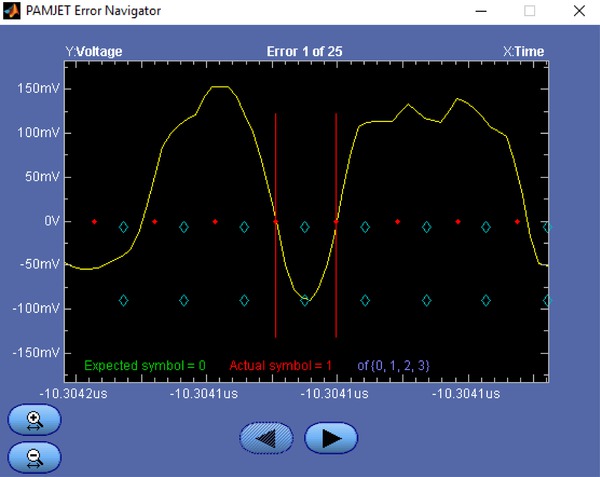

The error navigator has several capabilities that makes it easy to quickly navigate and zoom into the error location. The additional information for the following detected errors offer help debugging symbol errors on the link:

  • Location of recovered clock
  • Location of symbol error reference thresholds
  • Expected symbol displayed
  • Actual symbol displayed
PAMJET EN US 55W 60239 11

Comprehensive test report and data export

The measurement results can be saved in the form of a test report. The report includes; the configuration of the oscilloscope, application configuration, measurement results, and plots all available in an easy to read or share format.

The measurement results across multiple acquisitions can also be exported to a single CSV file for further analysis.

PAMJET EN US 55W 60239 11

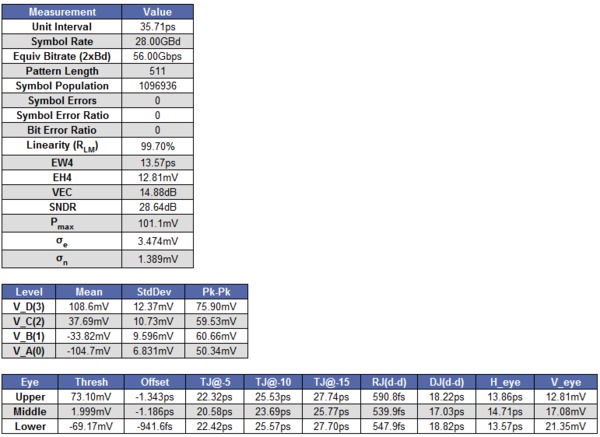

Full waveform results
PAMJET EN US 55W 60239 11

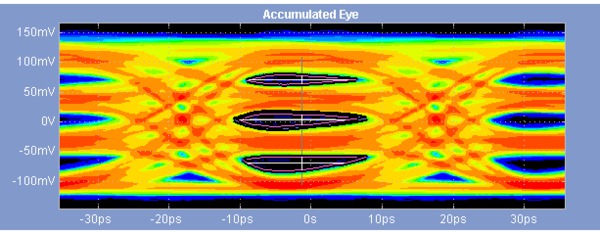

Full waveform eye diagram

DPO7OE series optical probes

The DPO7OE series optical probes can be used as an optical reference receiver for high speed serial data signals (using selectable Bessel-Thomson ORR filters), or can be used as a conventional O/E converter for general wide-bandwidth optical signal acquisition. The DPO7OE series is compatible with DPO/MSO70000 C/DX/SX models. Connected to TekConnect channels provides up to 33 GHz bandwidth. Connected to ATI channels, the DPO7OE1 provides up to 42 GHz electrical response; the DPO7OE2 provides up to 59 GHz electrical bandwidth response.

PAMJET EN US 55W 60239 11

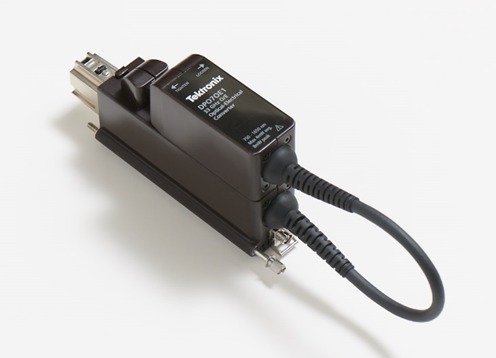

DPO7OE1 33 GHz optical probe

Ordering information

The PAMJET Transmitter Analysis software for Tektronix DPO/MSO70000 Series oscilloscopes.

For new DPO/MSO70000 Series oscilloscopes

Product Option Description
DPO/MSO70000DX/SX PAMJET-E PAM Analysis (PAMJET) software for electrical signals
DPO/MSO70000DX/SX PAMJET-O PAM Analysis (PAMJET) software for optical signals
DPO70000SXPAMPCIE62PAM Analysis (PAMJET) software for PCIe Gen6

For users with existing DPO/DSA/MSO70000 Series oscilloscopes

Product Option Description
DPO-UP PAMJET-E PAM Analysis (PAMJET) Software Upgrade for electrical signals
DPOFL PAMJET-E- PAM Analysis (PAMJET) software floating license for electrical signals
DPOFT PAMJET-E- PAM Analysis (PAMJET) software trial license for electrical signals
DPO-UP PAMJET-OPAM Analysis (PAMJET) Software Upgrade for optical signals
DPOFL PAMJET-O - PAM Analysis (PAMJET) software floating license for optical signals
DPOFT PAMJET-O - PAM Analysis (PAMJET) software trial license for optical signals
DPO-UPPAMPCIE62PAM Analysis (PAMJET) software for PCIe Gen6
DPOFL-PAMPCIE62- PAM Analysis (PAMJET) software floating license for PCIe Gen6
DPOFT-PAMPCIE62- PAM Analysis (PAMJET) software trial license for PCIe Gen6

Required options

DJA
DPOJET Eye and Jitter Analysis

Recommended probes

DPO7OE1
33 GHz optical probe
DPO7OE2
59 GHz optical probe
