30 A AC/DC Current Probe
TCP0030A Datasheet
Weitere Informationen
- Stromtastköpfe
- Produkt-Support
- Weitere Oszilloskop-Tastkopf und Zubehör kaufen Modelle entdecken
Online lesen:

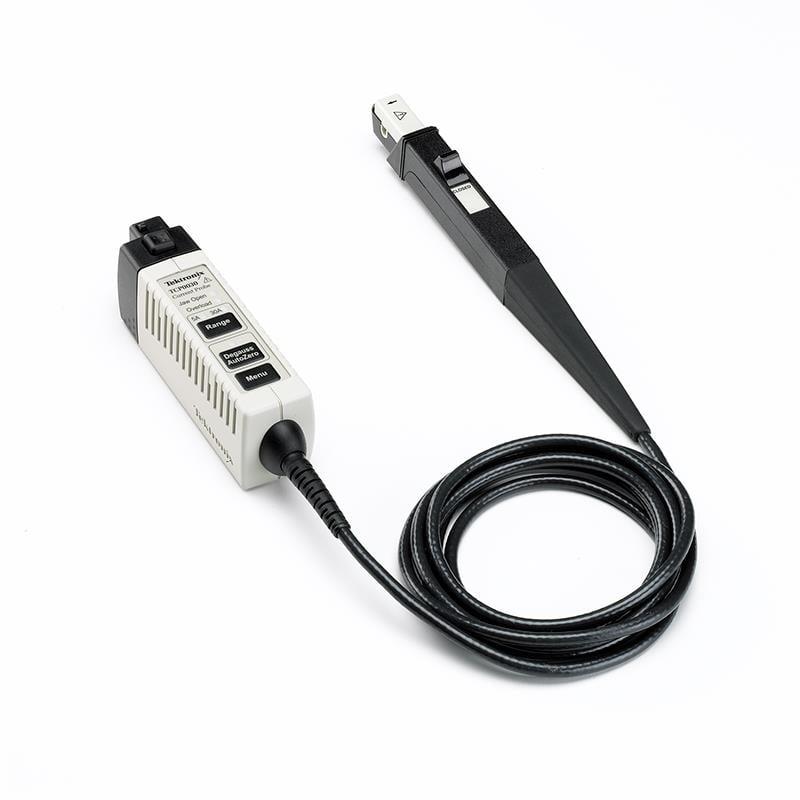

![TCP0030A_51W1904211](/-/media/images/datasheets/tcp0030a_51w1904211/tcp0030aproductimagejpg.jpg?iar=0)
TCP0030A is a high-performance, easy-to-use AC/DC current probe designed for use and direct connection to oscilloscopes with the TekVPI™ probe interface. This AC/DC current measurement probe provides greater than 120 MHz of bandwidth with selectable 5 A and 30 A measurement ranges. It also provides exceptional low-current measurement capability and accuracy to current levels as low as 1 mA, important for meeting today's challenging current measurement needs.
Key features
- Easy-to-use and accurate AC/DC current measurements
- Intelligent communication with TekVPI™ oscilloscopes provides:
- Units scaling and readout. Automatic, on-screen readout of amps and magnitude. Manual setup is not required. Hand calculation from volts to amps is unnecessary
- Push button degauss and Autozero functionality
- Probe status and diagnostic indicator LEDs
- Remote GPIB/USB probe control
- Split-core construction allows easy circuit connection
- High accuracy with typically less than 1% DC gain error
- Low noise and DC drift
- 3rd party safety certification
Key performance specifications
- DC to >120 MHz bandwidth
- 30 A RMS maximum current capability
- 50 A peak pulse current capability
- High accuracy with typically less than 1% DC gain error
- Accurately measures current levels as low as 1 mA
Applications
- Power supplies
- Semiconductor devices
- Power inverters/converters
- Electronic ballasts
- Industrial/consumer electronics
- Mobile communications
- Motor drives
- Transportation systems
Specifications
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
Electrical characteristics
- Bandwidth
- DC to ≥120 MHz
- Rise time
- ≤2.92 ns
- Maximum DC current
- 30 A
- Maximum RMS current
- 30 A
- Maximum peak pulse current
- 50 A
- Maximum bare wire voltage
- 150 V CAT II, (insulated wire 300 V CAT II)
- Sensitivity
- 1 mA (on oscilloscopes that support 1 mV/div setting)
- DC accuracy
- ±3% warranted
- Accuracy, typical
- DC: ±1% of reading
- DC to 60 Hz, ≤5 A: ±1%
- 60 Hz – 5 kHz, ≤5 A: ±1.5%
- DC – 5 kHz, >5 A: ±1.5%
- Maximum Amp-Second product
- 500 A*µs (in 30 A range)
- Insertion impedance
- 1 mΩ at 10 kHz
- 3.5 mΩ at 100 kHz
- 0.08 Ω at 1 MHz
- 0.15 Ω at 10 MHz
- 0.7 Ω at 100 MHz
- 0.85 Ω at 120 MHz
- Signal delay
- 14.5 ns
- Current ranges
- 5 A and 30 A
- Power requirements
- TCP0030A is powered directly by oscilloscopes with the TekVPI™ interface. Note: For best support, download and install the latest version of the oscilloscope software from www.tek.com.
Physical characteristics
- Probe head
- Length
- 20 cm (7.77 in)
- Width
- 1.6 cm (0.625 in)
- Height
- 3.2 cm (1.25 in)
- Maximum conductor size
- 5 mm (0.197 in)
- Cable length
- 200 cm (79 in)
- Shipping weight
- 1.55 kg (3.44 lb)
EMC environment and safety
- Temperature
- Operating
- 0 °C to 50 °C (32 °F to 122 °F)
- Nonoperating
- -40 °C to +75 °C (-40 °F to 167 °F)
- Humidity
- Operating
- 5% to 95% Relative Humidity (RH) at up to +30 °C; 5% to 85% RH above 30 °C up to +50 °C, noncondensing
- Nonoperating
- 5% to 95% Relative Humidity (RH) at up to +30 °C; 5% to 85% RH above 30 °C up to +75 °C, noncondensing
- Altitude
- Operating
- Up to 3,000 m (10,000 ft.)
- Nonoperating
- Up to 12,192 m (40,000 ft.)
- Compliance labeling
- CE (European Union), WEEE (European Union)
Ordering information
- TCP0030A
- AC/DC Current Probe
Standard accessories
- Instruction manual
- 071-3006-xx
- Probe ground lead - 6 in. length
- 196-3120-xx
- Nylon carrying case
- 016-1952-xx
Recommended accessories
- Current Loop, 1 Turn, 50 Ω with BNC connector used for Performance Verification
- Order 067-2396-00
Warranty
Service options
- Opt. C3
- Calibration Service 3 Years
- Opt. C5
- Calibration Service 5 Years
- Opt. D3
- Calibration Data Report 3 Years (with Opt. C3)
- Opt. D5
- Calibration Data Report 5 Years (with Opt. C5)
- Opt. R3
- Repair Service 3 Years (including warranty)
- Opt. R3DW
Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- Opt. R5
- Repair Service 5 Years (including warranty)
- Opt. R5DW
Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
- Opt. SILV600
- Standard warranty extended to 5 years
