Use the product only as specified. Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. Carefully read all instructions. Retain these instructions for future reference.

This product shall be used in accordance with local and national codes.

For correct and safe operation of the product, it is essential that you follow generally accepted safety procedures in addition to the safety precautions specified in this manual.

The product is designed to be used by trained personnel only.

Only qualified personnel who are aware of the hazards involved should remove the cover for repair, maintenance, or adjustment.

Before use, always check the product with a known source to be sure it is operating correctly.

This product is not intended for detection of hazardous voltages.

Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.

While using this product, you may need to access other parts of a larger system. Read the safety sections of the other component manuals for warnings and cautions related to operating the system.

When incorporating this equipment into a system, the safety of that system is the responsibility of the assembler of the system.

Keep fingers behind the protective barrier, protective finger guard, or tactile indicator on the probes. Remove all probes, test leads and accessories that are not in use.

Use only correct Measurement Category (CAT), voltage, temperature, altitude, and amperage rated probes, test leads, and adapters for any measurement.

WARNING:To avoid electric shock, keep the probe wire as far from the tip and high voltage circuits as possible. The probe wire voltage rating is less than the probe tip voltage rating. Therefore the probe wire may not provide adequate protection.

WARNING:To avoid electric shock, do not use the probe if the wear indicator on the cable becomes visible. Contact Tektronix at tek.com for a replacement.

Beware of high voltages

Understand the voltage ratings for the probe you are using and do not exceed those ratings. Two ratings are important to know and understand:

• The maximum measurement voltage from the probe tip to the probe reference lead.
• The maximum floating voltage from the probe reference lead to earth ground.

These two voltage ratings depend on the probe and your application. Refer to the Specifications section of the manual for more information.

WARNING:To prevent electrical shock, do not exceed the maximum measurement or maximum floating voltage for the oscilloscope input BNC connector, probe tip, or probe reference lead.

These terms may appear in this manual:

WARNING:Warning statements identify conditions or practices that could result in injury or loss of life.

CAUTION:Caution statements identify conditions or practices that could result in damage to this product or other property.

These terms may appear on the product:

• DANGER indicates an injury hazard immediately accessible as you read the marking.
• WARNING indicates an injury hazard not immediately accessible as you read the marking.
• CAUTION indicates a hazard to property including the product.

When this symbol is marked on the product, be sure to consult the manual to find out the nature of the potential hazards and any actions which have to be taken to avoid them. (This symbol may also be used to refer the user to ratings in the manual.)

The following symbols(s) may appear on the product.

CAUTION: Refer to Manual

WARNING: High Voltage

Earth Terminal

This product complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1Ed. 3., as described in Laser Notice 56, dated May 8, 2019.

CLASS 1 LASER PRODUCT

WARNING:Damage to the probe, especially broken optic fibers, can emit high-power laser radiation that is not visible with to the human eye. This radiation poses significant risks, including permanent eye and skin injuries.

WARNING:Using controls or making adjustments to perform procedures other than those specified in the user manual can result in hazardous radiation exposure.

Always handle the fiber optic cable with care as instructed in the Measurement system handling best practices.

If you are unsure of the condition of the cable, return it to Tektronix for inspection (Ref. CS-SUP-0240).

Visit the Safety Recall page on tek.com for the latest updates and information.

The unique common mode voltage range of the measurement system allows it to be used in the presence of high frequency/high voltage common mode signals. It is important to observe all precautions while using this product.

WARNING:Electrical shock can occur while using this measurement system. The system is intended to isolate the operator from hazardous input voltages (common mode voltages); the plastic case of the probe head and the shield on the probe tip do not supply safe isolation. Maintain the safe clearance from the probe head and probe tip while the measurement system is connected to the energized circuit as recommended in this document. Do not access the RF Burn Hazard Zone while taking measurements on a live circuit.

While measuring high frequency common mode signals, there is a risk of RF burns. Refer to the following derating curve to identify the danger areas. Measuring common mode signals within the gray shaded area can result in RF burns within 1 m (40 in.) of the probe head and earth ground.

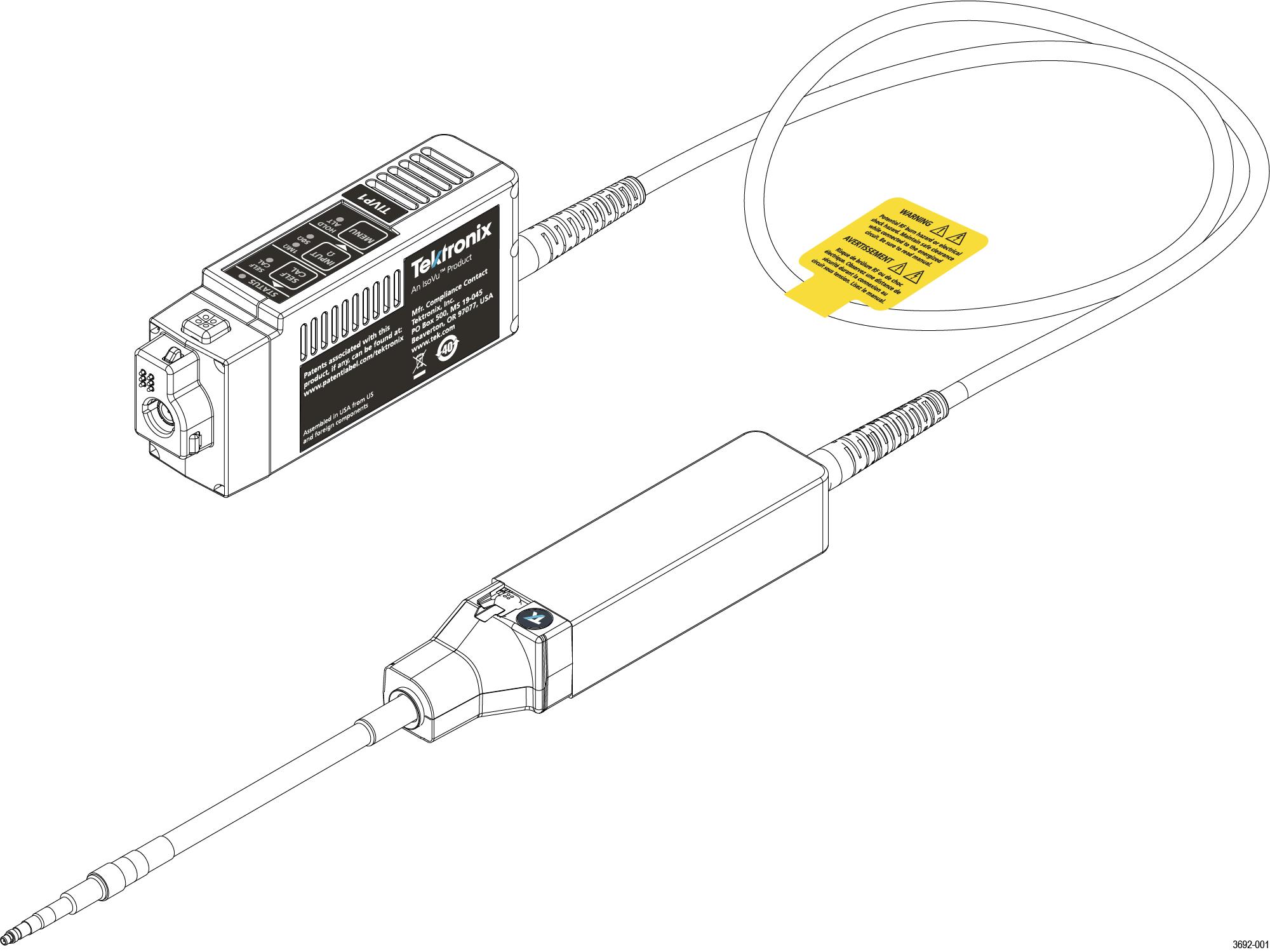

The following figure shows the components of the measurement system and the potential RF burn area when working with hazardous voltages. The RF burn area of 1 m (40 in.) is indicated by the dashed lines surrounding the probe head.

This section lists the safety standards with which the product complies and other safety compliance information.

This section provides information about the environmental impact of the product.

Product end-of-life handling

Observe the following guidelines when recycling an instrument or component:

Equipment recycling

Production of this equipment required the extraction and use of natural resources. The equipment may contain substances that could be harmful to the environment or human health if improperly handled at the product’s end of life. To avoid release of such substances into the environment and to reduce the use of natural resources, we encourage you to recycle this product in an appropriate system that will ensure that most of the materials are reused or recycled appropriately.

This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2012/19/EU and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Tektronix Web site (http://www.tek.com/productrecycling).

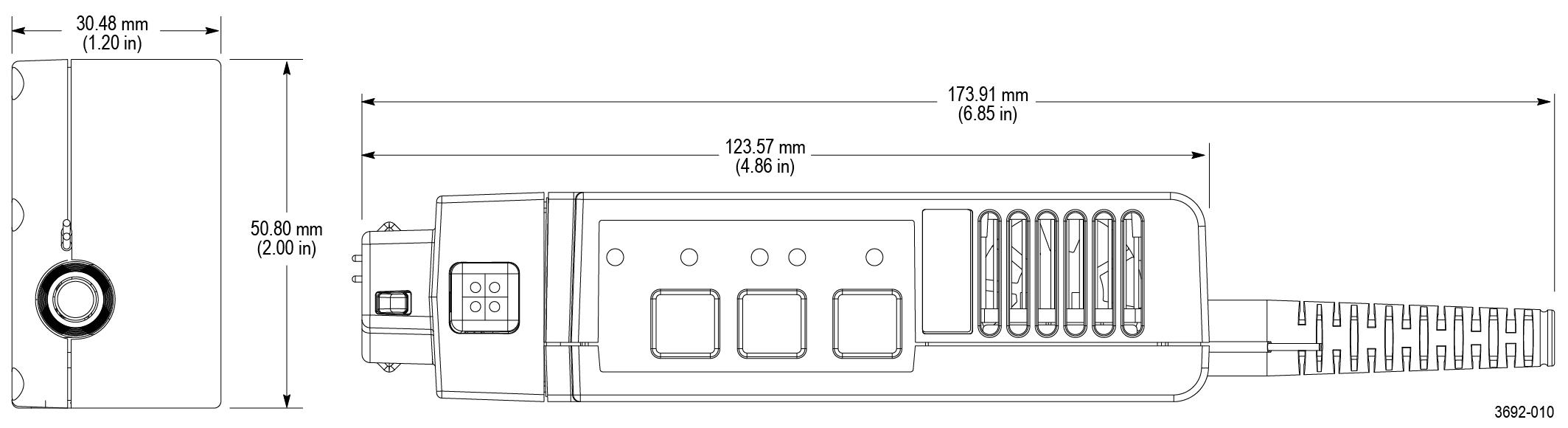

The TekVPI compensation box (comp box) connects the measurement system to one of the input channels on the oscilloscope. Power is supplied to the measurement system through the TekVPI interface of the oscilloscope. The buttons and indicators on the comp box provide a means for controlling the probe and indicating the overall status.

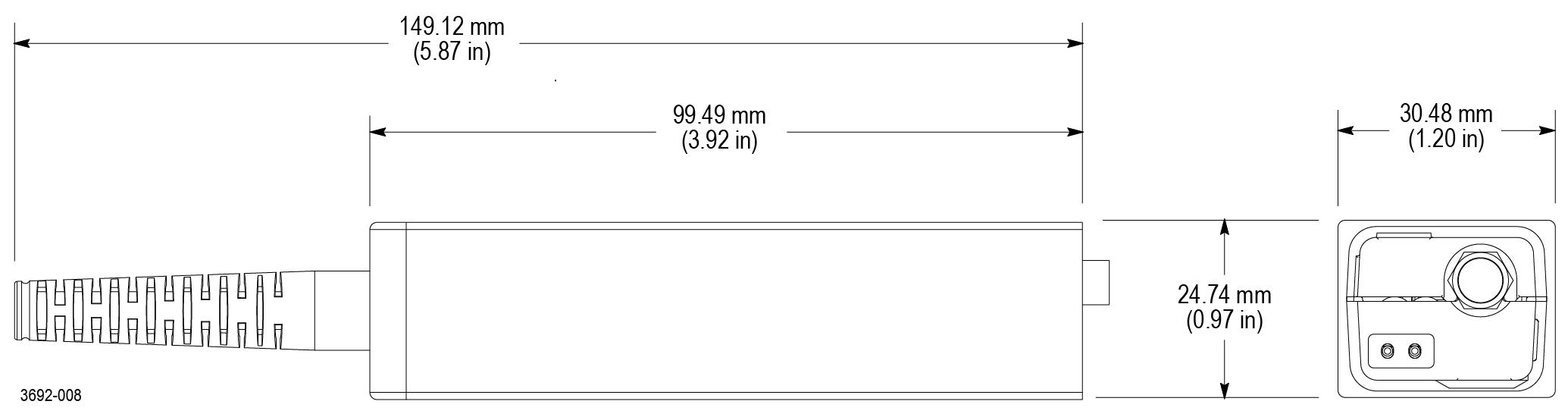

The sensor head provides an interface between the device-under-test (DUT) and the compensation box. It contains an electro-optic converter that converts the electrical signal from the sensor tip cables to an optical signal sent to the comp box.

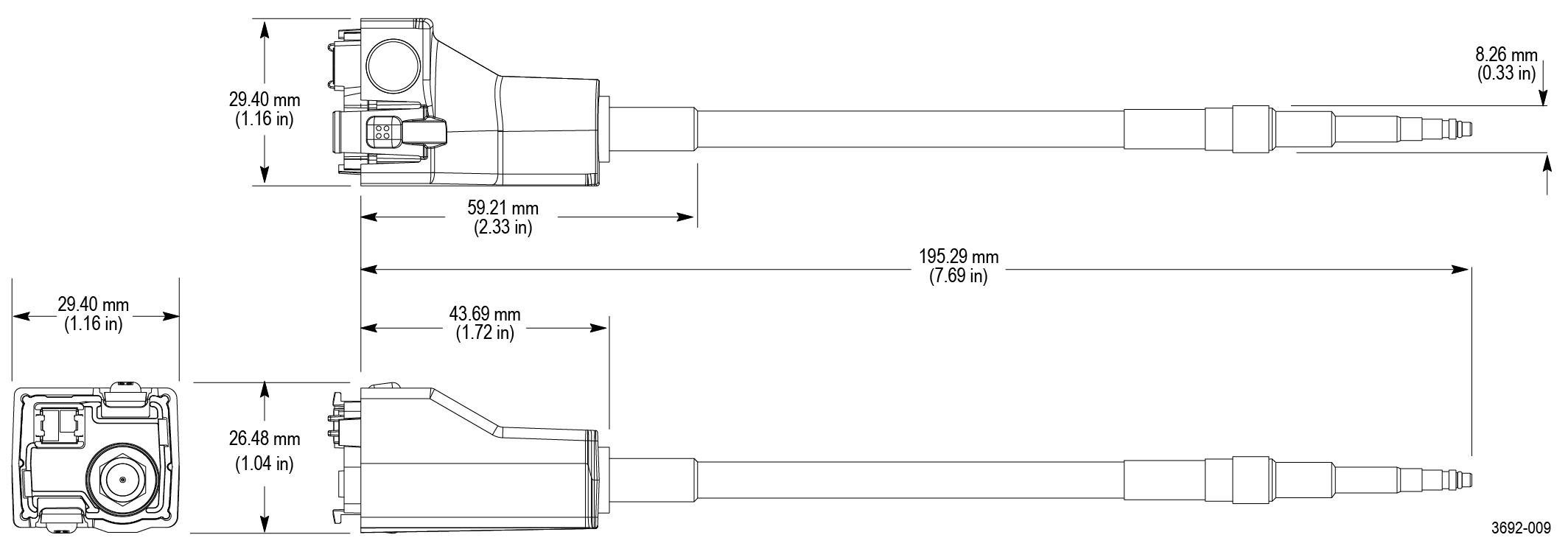

Several sensor tip cables options are available to connect the sensor head to the DUT:

• TIVPMX10X, 10X MMCX tip cable connector
• TIVPMX50X, 50X MMCX tip cable connector
• TIVPSQ100X, 100X 0.1-inch (2.54 mm) square pin connector
• TIVPWS500X, 500X 0.2-inch (5.08 mm) square pin connector
• TIVPMX1X, 1X MMCX tip cable connector

The TIVP Series IsoVu Measurement System includes the following models:

• TIVP1. Tektronix IsoVu® Generation 2; 1 GHz Isolated Probe
• TIVP05. Tektronix IsoVu® Generation 2; 500 MHz Isolated Probe
• TIVP02. Tektronix IsoVu® Generation 2; 200 MHz Isolated Probe
• TIVP1L. Tektronix IsoVu® Generation 2; 1 GHz Isolated probe (10 m cable)
• TIVP05L. Tektronix IsoVu® Generation 2; 500 MHz Isolated probe (10 m cable)
• TIVP02L. Tektronix IsoVu® Generation 2; 200 MHz Isolated probe (10 m cable)

The measurement system can only be used with the 4, 5, and 6 Series Mixed Signal Oscilloscopes with oscilloscope software version 1.28 or greater.

The following table lists the accessories that are shipped with the probe.

Accessory	Description	Part number
	The 10X MMCX tip is included in every TIVP. The MMCX tip is recommended for the best bandwidth and CMRR performance. 0.100" Square Pin and 0.200" Wide Square Pin tips are available as optional accessories.	TIVPMX10X
	Bipod is used to hold the probe.	020-3210-XX
	Probe tip adapter. Adapts an MMCX IsoVu tip to standard 0.100" spaced, 0.025" square pins.	131-9717-XX
	SMA wrench/driver tool (5/16") for use on a SMA connector.	003-1947-XX
	Soft carrying case with foam insert protects the TIVP and enforces the optical fiber minimum bend radius.	016-2147-XX
	10 m version	016-2149-XX

The following table lists optional accessories.

Accessory	Description	Part number
	50X MMCX probe tip	TIVPMX50X
	100X probe tip with 0.100" spaced square pin connector	TIVPSQ100X
	500X probe tip with 0.200" spaced wide square pin connector	TIVPWS500X
	1X MMCX probe tip	TIVPMX1X
	Square pin to MMCX adapter, 0.062" spacing	131-9677-XX
	Probe tip tripod support	352-1170-XX
	MMCX to IC grabber lead	196-3546-XX
	Square pin to IC grabber lead	196-3547-XX
	Kit, wide square pin to banana jack with alligator clamps and support brace	020-3189-XX
	Square pin Y-lead	196-3434-XX
	MicroCKT grabbers	206-0569-XX

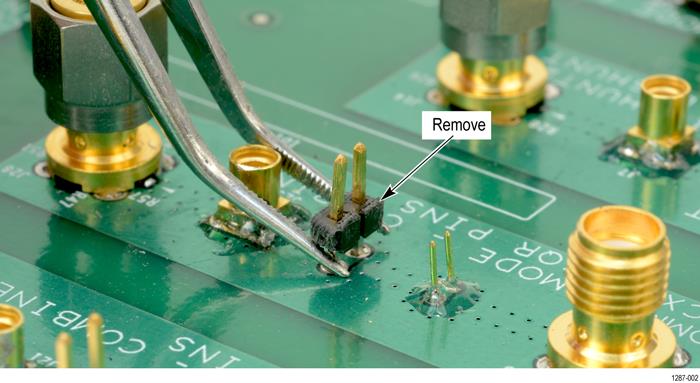

	Spare pins for 0.062" spaced test points Solder aid for 0.062" spaced square pins	020-3169-XX 003-1946-XX

The measurement system consists of quality parts and should be treated with care to avoid damage or degrading the performance due to mishandling. Consider the following precautions when handling the probe and tips.

• Do not crush, crimp, or sharply bend the probe cable. Avoid making loops in the cable smaller than 5 inches (12.7 cm).
• Do not twist the cable. Twisting the cable will stress the optical fibers.
• Do not allow kinks or knots to develop in the probe cable.
• Avoid putting tension on the probe cable.
• Do not pull or jerk the cable, especially when kinks or knots are present.
• Do not drop the probe head or comp box assembly. This can result in damage and misalignment of the internal components.
• Avoid over-bending the probe tips; do not exceed the minimum bend radius of 2.0 inches (5.1 cm).
• Avoid crushing the cables by accidentally running over the cable with a chair wheel or by dropping a heavy object onto the cable.
• Never support the weight of the probe head or comp box by the probe cable.
• Store the measurement system in the supplied carrying case when not in use.

A description of the controls and indicators on the compensation box.

1. STATUS indicator.
2. SELF CAL button and LED indicator: Press to start self-calibration routine.
3. INPUT Termination button and LED indicator: With no tip attached, press to toggle the sensor head between 50 Ω and 1 MΩ termination. For more information on the state of the LED
4. MENU button: Press to open the Probe Vertical menu on the oscilloscope.
5. ALT mode indicator: Displays special information about the probe.

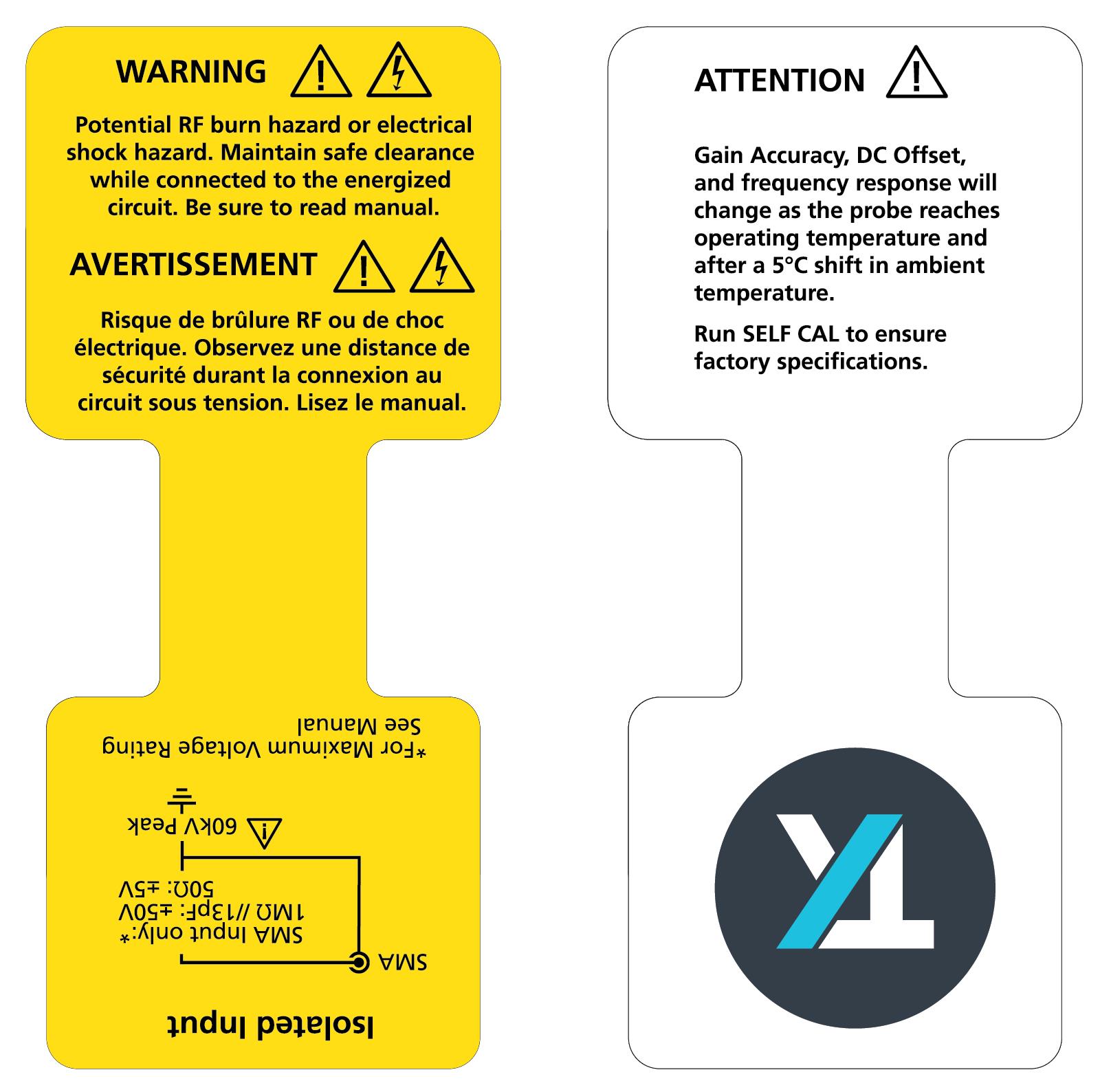

Flags on the cable provide high-level specifications for connecting to the DUT. They also provide a potential RF burn hazards warning, laser exposure warning, and a self-calibration notification.

Each probe tip has a label that provides the maximum dynamic range and displays the attenuation factor.

WARNING:This measurement system contains laser sources; exposing these laser sources may cause laser exposure. Except for the sensor tip cables on the sensor head, do not remove any plastic or metallic covers from the sensor head or comp box or attempt to disassemble the product.

WARNING:Do not connect the measurement system to an energized circuit to avoid the risk of shock. Always de-energize the circuit-under-test before installing or removing the tip cable from the circuit-under-test. The plastic case of the sensor head and the shield tip of the sensor cable do not supply the isolation.

WARNING:To avoid the risk of electrical shock or RF burns while the DUT is energized, do not touch the sensor head or sensor tip cable while taking measurements. Always keep a 1 m (40 in.) clearance from the sensor head during the measurement. Figure 2 Be sure to check the maximum ratings and derating curve for more information on the RF burn hazard zone. Figure 1

CAUTION:To avoid possible damage to the equipment, do not connect the coaxial (common) shield of the sensor tip cable or SMA input to the high impedance portion of a circuit. The additional capacitance can cause circuit damage. Connect the coaxial (common) shield to the low impedance section of the circuit.

Note:Touching the sensor head or sensor tip cable when measuring a high frequency common mode signal increases the capacitive coupling and can degrade the common mode loading on the circuit-under-test.

WARNING:To prevent the arc flash caused by a different potential, do not place the sensor head or sensor tip cable on the circuit that has the different voltage.

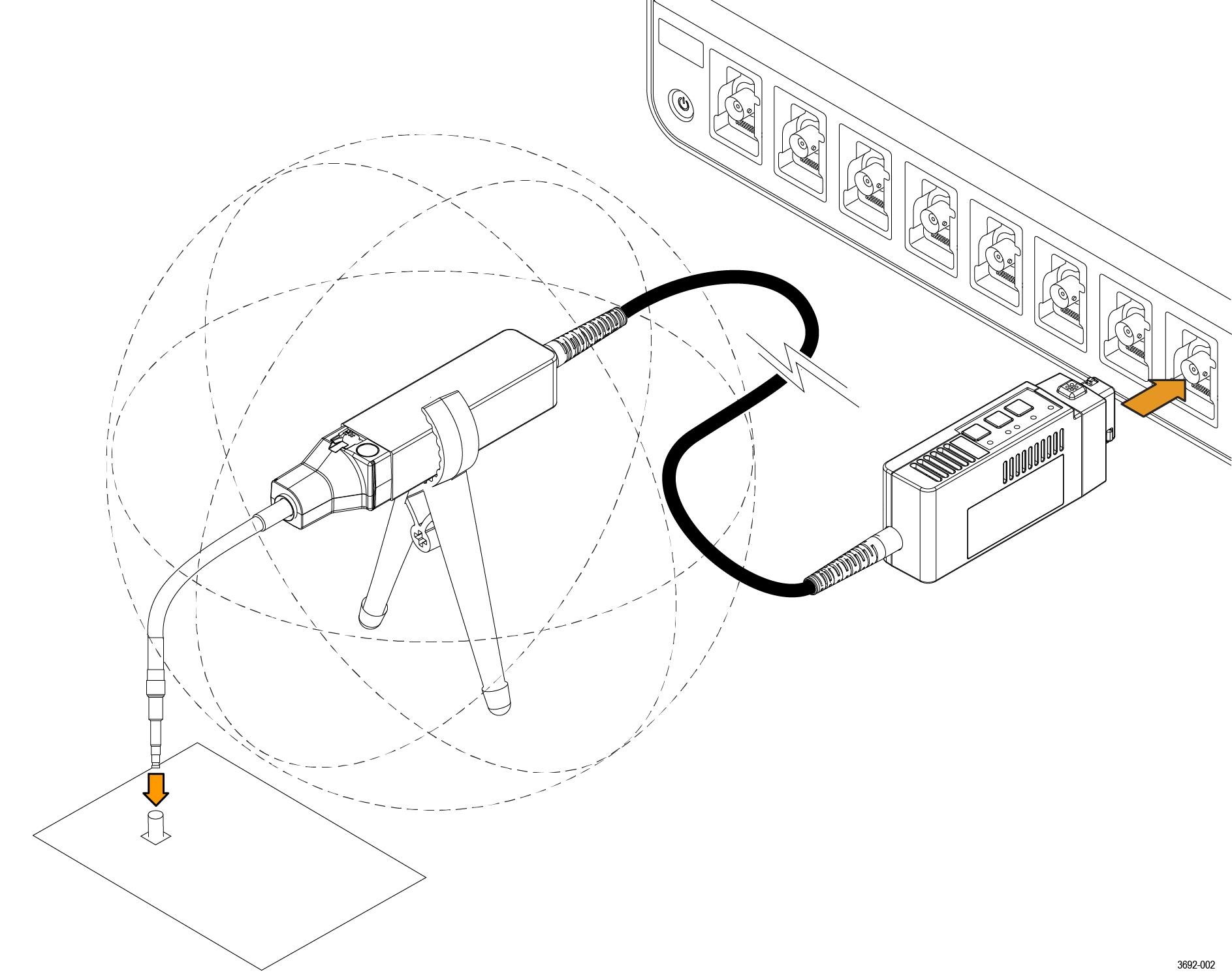

The following steps describe the process for connecting the measurement system between an oscilloscope and the DUT.

1. Verify the DUT is not connected to an energized circuit.
2. Connect the comp box to one of the channels on the oscilloscope.





3. Install the sensor tip cable to the sensor head.
   1. Line up the sensor tip cable with the sensor head. Take care to avoid bending or twisting the sensor tip cable assembly during this process.
   2. Connect the SMA connector of the sensor tip cable to the sensor head. Use the SMA wrench to tighten the SMA cable to 4 to 5-in lbs. Use the adjustment tool that was shipped with your probe.





4. Connect the sensor head to the bipod or a similar support. Using a support keeps the sensor head steady, reducing the potential mechanical stresses at the electrical connection point of the DUT. The support also keeps the sensor head away from surrounding circuits and conductive objects to minimize the parasitic capacitive coupling to these surroundings.





   Note:To obtain the most accurate measurement, allow the measurement system to warm up for 20 minutes. Then perform the self-calibration before connecting the tip cable to the DUT and taking the measurement.

5. Connect the sensor tip cable end to the DUT. If you are using MMCX sensor tip cable, connect it to an MMCX connector on the DUT or to a square pin adapter on the DUT. The adapters connect to square pins with either 0.100-inch (2.54 mm) spacing or 0.062-inch (1.57 mm) spacing. Figure 1

   If you are using one of the square pin sensor tip cables, connect it directly to the square pins on the DUT. Connecting the sensor tip cables

6. Set up the controls on the oscilloscope.

7. Apply power to the DUT to take the measurement.

The TIVP contains a self-calibration function that corrects gain accuracy, DC offset, and frequency response. These parameters change as the probe warms up to the operating temperature and remain constant once the temperature reaches steady-state. After the probe warms up, self-calibration is recommended when there is a 5°C change in ambient temperature. An indicator LED on the compensation box provides the status of the self-calibration. See the Controls and indicators for more information on the LEDs.

To check the status of the self-calibration programmatically, use the SELFCAL:STATE? PI command to determine whether a self-calibration is RECOMMENDED, RUNNING, or PASSED.

Before performing critical measurements, run a self-calibration to ensure the probe is compensated.

Note:The sensor tip cable does not need to be removed from the test point to successfully complete the self-calibration.

1. Connect probe to an oscilloscope channel.
2. Press the SELF CAL button on the probe compensation box. The Self Cal indicator LED will blink while self-calibration is in process.
3. Self-calibration is complete when the indicator LED displays green.

To run the self-calibration programmatically, use the CH<x>:PROBE:SELFCAL EXECUTE PI command. The connected channel is specified by "x".

The TIVP probe takes about 20 minutes to warm up. During this time, acquired waveforms may show obvious aberrations. The following screen shot shows how a 1 KHz square wave appears at the beginning of the warm-up period. Notice how the probe appears to be uncompensated.

Note:When moving a probe that has fully warmed up to a new oscilloscope channel, you must give the probe another 5 minutes to warm up on the new channel.

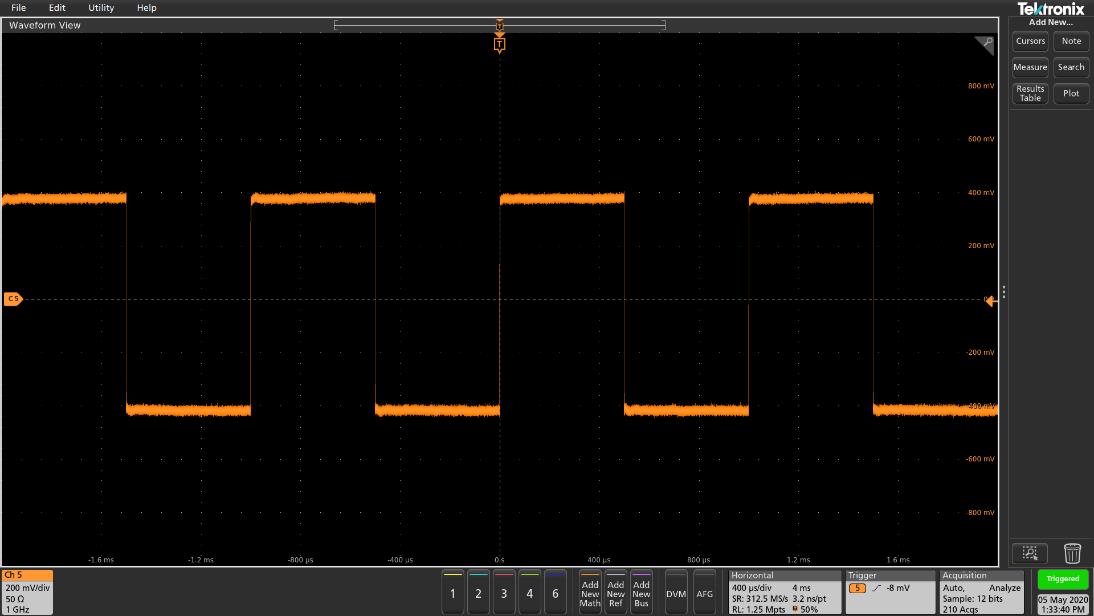

After 20 minutes, most of the aberrations are gone. Self-calibration can be used before the probe reaches its operating temperature, however those self-calibration settings will become invalid a few minutes later as the internal temperature changes.

Self-calibration takes less than 2 minutes to complete. Your signal does not need to be disconnected from the probe head when running self-calibration. The LED next to the SELF CAL button on the compensation box will flash yellow during the operation. When complete, the LED will either turn green (passed) or red (failed).

The SelfCal Status indicator in the oscilloscope Probe Setup menu indicates whether self-calibration is required.

Note:In 4/5/6 Series Mixed Signal Oscilloscopes, commands are available to start and monitor self-calibration and a status query to determine if self-calibration is needed.

AutoZero and self-calibration work on different parts of the measurement system. Self-calibration optimizes measurements through adjusting parameters in the probe. AutoZero is an oscilloscope function and is used when a displayed waveform is not centered correctly (for example; due to a small DC offset error). AutoZero automatically runs after self-calibration.

It is not necessary to disconnect your signal from the probe when running a self-calibration. However, when AutoZero is run by itself, the signal must not be present.

When the probe changes between its internal ranges it may be beneficial to run an AutoZero from the oscilloscope. The probe internal range will change in Auto Range mode when the vertical scale of the oscilloscope is changed. The probe internal range will also change in Manual Range mode if a different range is selected from the Probe Setup menu in the channel vertical settings.

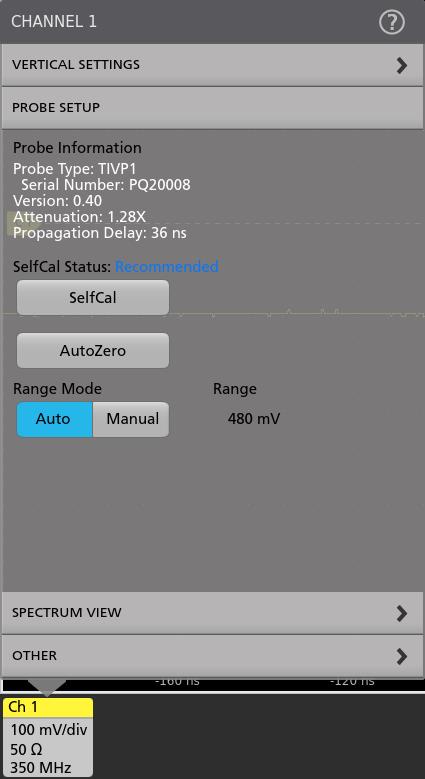

Press the MENU button on the comp box to view the Probe Setup menu on the oscilloscope.

Use the menu options on the oscilloscope to change the probe settings.

The measurement system has a variety of ranges available for you to select, whether the probe is being used with or without a tip. This allows for tradeoffs to be made between noise and dynamic range depending on the needs of the measurement being made.

CAUTION:To avoid damaging the probe, do not exceed the Peak Voltage rating for a given tip or the probe head. The Maximum Non-Destruct Voltage limit (Peak Voltage) does not increase when the Probe Ranges are changed. For example, the TIVPMX50X limit of ±250 Vpk is the same for all range settings.

In 4, 5, and 6 Series MSO Instruments, the ranges are selectable when Range Mode is set to Manual. The recommended V/div settings are displayed in the table below. The ranges shown are for the probe SMA input and 1X tip. Multiply the range and V/div setting by the tip attenuation to get the values for a probe tip.

When using a tip, the label of each probe tip shows the maximum dynamic range and the attenuation factor. For example, the TIVPMX10X has a 10X attenuation factor and displays a signal with a ±50 V differential voltage. When more sensitive ranges are selected, dynamic range is limited. Refer to the Linear differential input voltage range in the specifications table for more information.

The Range Mode is selectable for either Auto or Manual. When the Range Mode set to Auto, the probe range is automatically selected when the V/div knob on the oscilloscope is turned. The relationship between probe range and V/div setting matches that shown in Ranges and 4/5/6 Series MSO Volts/div settings table.

CAUTION:Avoid over-voltage conditions that can damage or degrade the probe head input termination by selecting the correct probe tip. Selecting the correct probe tip attenuation factor is crucial to ensure that the probe head input termination is not degraded or damaged by an over-voltage condition. Select the probe tip that will provide the lowest attenuation possible for the signal being measured.

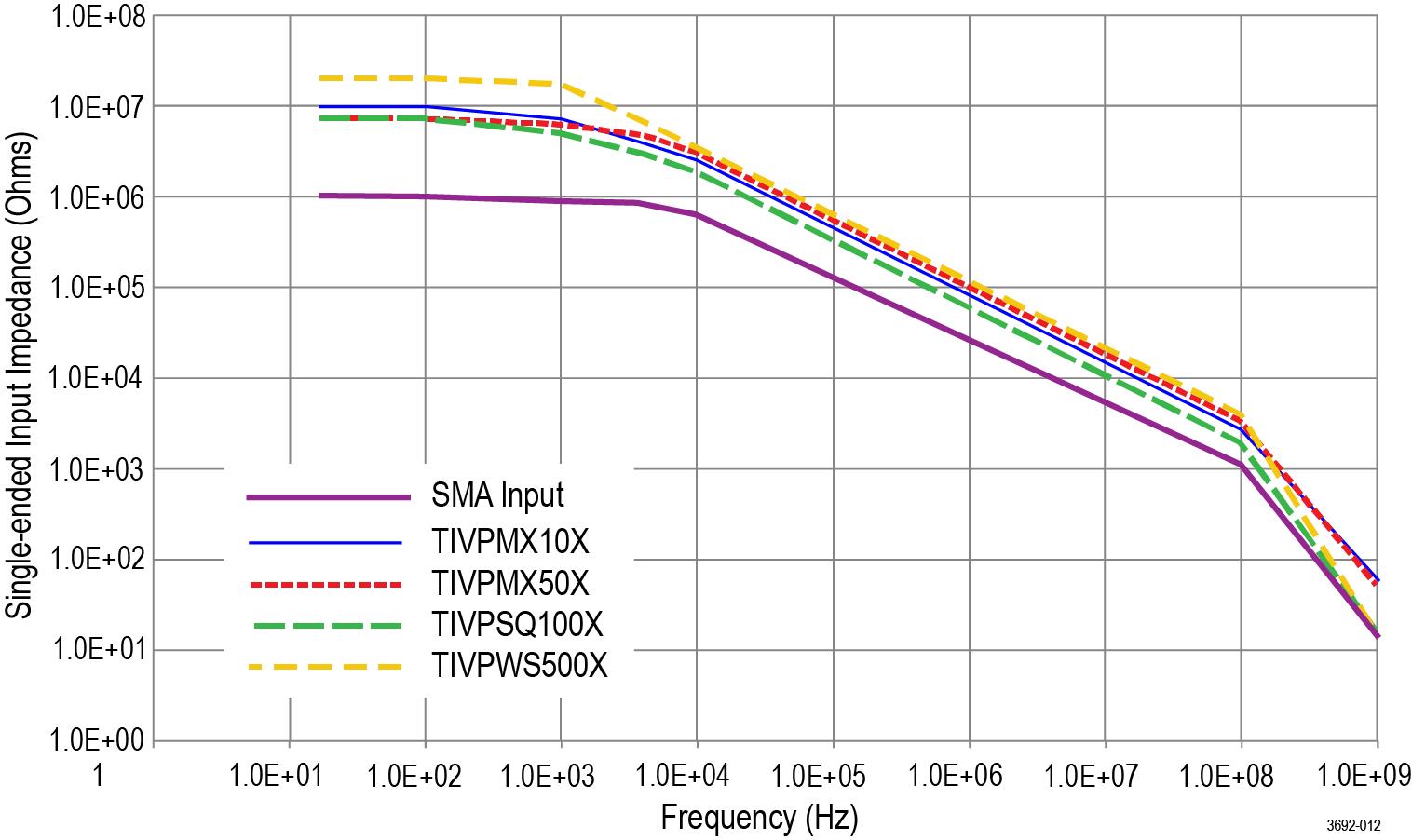

When selecting a probe tip for a particular application, consider the following questions:

• What is the maximum RMS/Peak Voltage at the test point being measured (for example, under a fault condition)?
• What is the minimum single-ended input resistance that my circuit can tolerate?
• How large of a signal do I want to display at one time on the oscilloscope?
• What sensitivity do I need (for example, the minimum V/div setting)?

The following table will help you select the correct probe tip. Start at the top of the table and work down. Choose the first tip that meets all of your criteria.

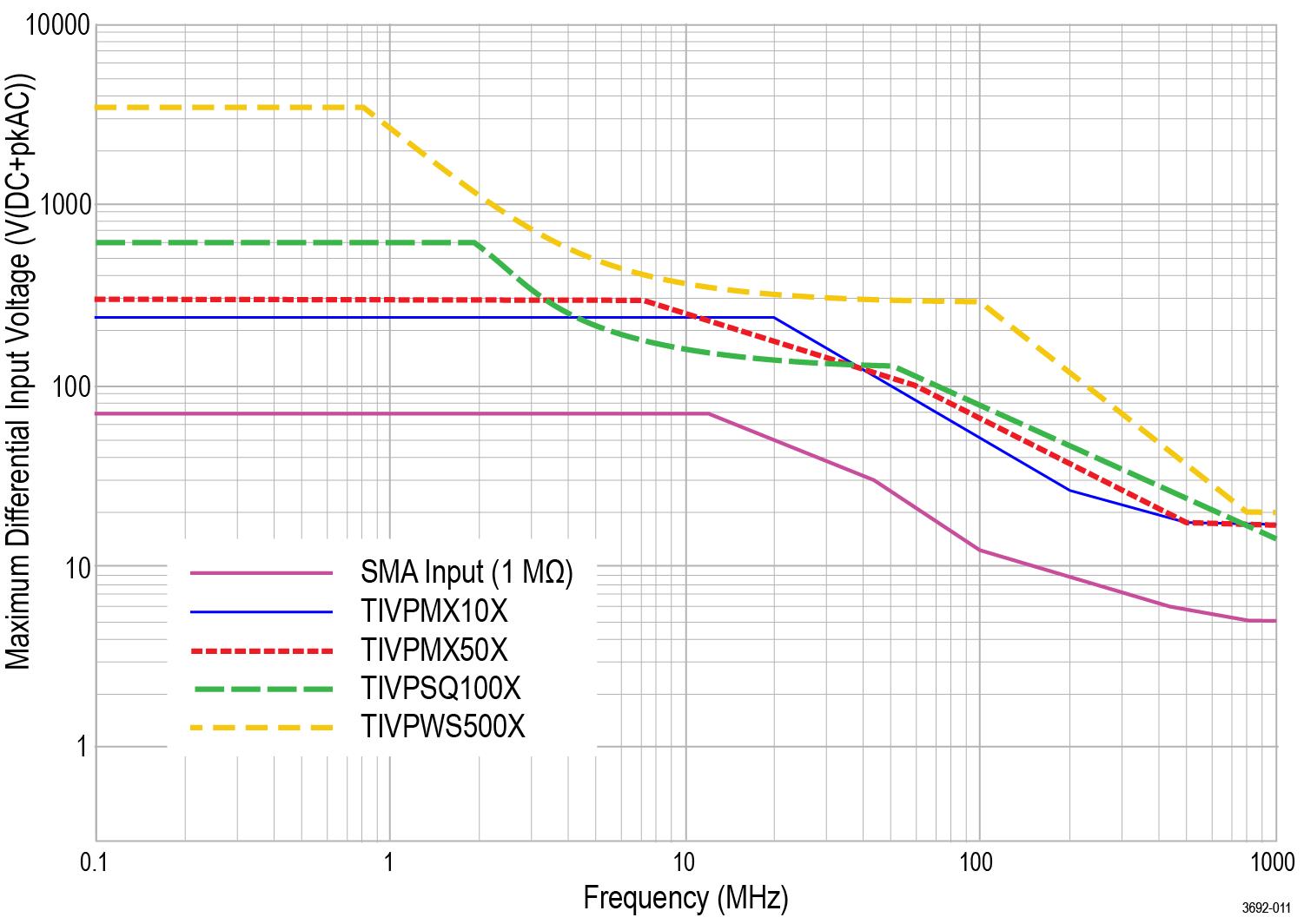

For maximum non-destruct voltage refer to the Maximum differential input voltage vs frequency derating graph.

Each probe comes loaded with nominal propagation delay values that can be automatically applied through the Vertical menu on the oscilloscope. Deskew accuracy can be improved using a known signal and a deskew fixture. When the timing relationships between waveforms is critical, always deskew your test system with known equipment.

The measurement system provides an adjustable input referred offset voltage. This enables viewing a portion of the signal that is off-screen or examining sensitive behavior riding on a larger differential voltage. For example, a 0 V to 600 V step would normally exceed a ±500 V input range. By applying 300 V of offset, the 600 V step is brought into the dynamic range of the probe and can be viewed accurately. Offset is applied by the probe and has a much greater range than the oscilloscope alone.

The TIVP sensor head contains both DC and DC Reject input coupling modes. By default, DC coupling is enabled; the mode is switchable through the scope interface or PI command.

The DC input coupling setting provides a direct, DC coupled, electrical path in the sensor head; it accepts all types of signals, including unchanging DC voltages, time-varying DC voltages, AC, and combinations of AC and DC.

When DC input coupling is selected, any applied offset is injected at the sensor head and the offset range depends on the attached tip cable attenuation.

DC Reject input coupling setting provides an AC- only path in the sensor head, removing DC offset from any mixed signal to view the AC component of the signal. DC reject is useful when you measure small amplitude signals superimposed on a large differential offset component.

With DC Reject enabled, offset is applied at the oscilloscope input and is limited by the offset capability of the specific Volts/Div setting on the oscilloscope multiplied by the selected tip attenuation.

The probe is designed to enable characterization of high frequency circuits with a wide range of differential voltages in the presence of common mode voltages. Understanding the limits and differences between the voltage ratings as discussed in this section is essential to optimize signal fidelity and measurement accuracy.

Although the common mode voltage range of the probe is very large (>60 kV), the differential input range is limited and depends on the tip attenuation, the gain range selected, and the applied offset.

The input voltage conditions are divided into several different input ranges.

Tektronix provides different types of sensor tip cables to connect to the circuit board.

The MMCX sensor tip series connect directly to MMCX connectors on the circuit board or to probe tip adapters installed on the circuit board. Installing the probe tip adapters

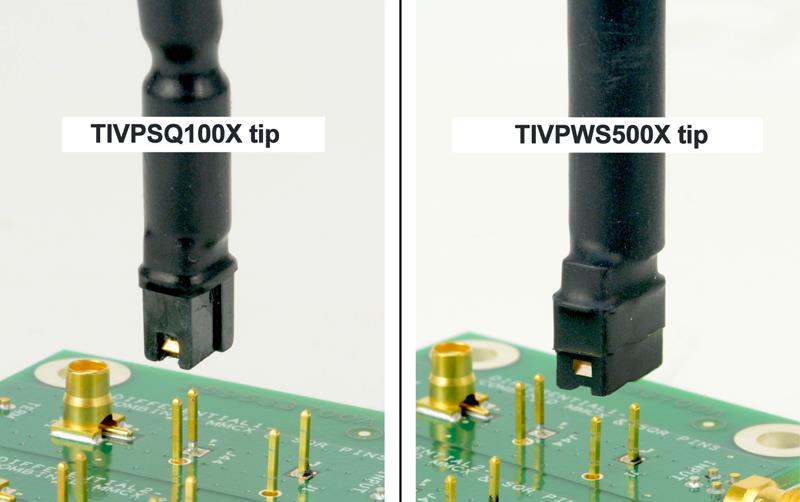

The square pin series sensor tip cables connect directly to the circuit board as shown in the following figure.

The SQPIN series sensor tip cables connect to 0.1-inch (2.54 mm) square pins on the circuit board. The WSQPIN series sensor tip cables connect to 0.2-inch (5.08 mm) square pins on the circuit board.

There are two Tektronix probe tip adapters to connect the MMCX probe tips to pins on the circuit board. The MMCX-to-0.1-inch (2.54 mm) pitch adapter and the MMCX-to-0.062-inch (1.57 mm) pitch adapter.

One end of each adapter has an MMCX socket for connection to an IsoVu MMCX tip cable. The other end of the adapter has a center pin socket and four common (shield) sockets around the outside of the adapter. Notches on the adapters can be used to locate the shield sockets. The procedure for installing these adapters are the same, the main difference is the spacing of the pins on the circuit board.

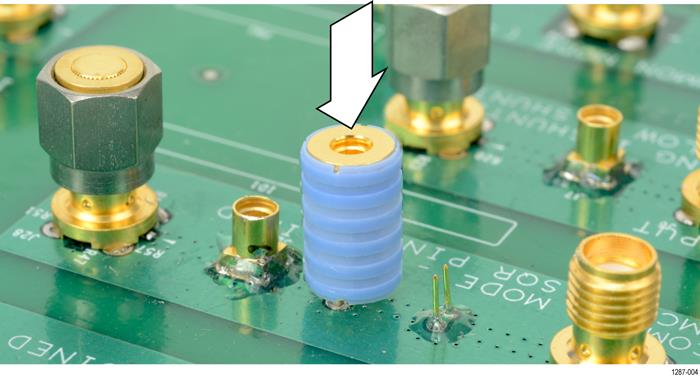

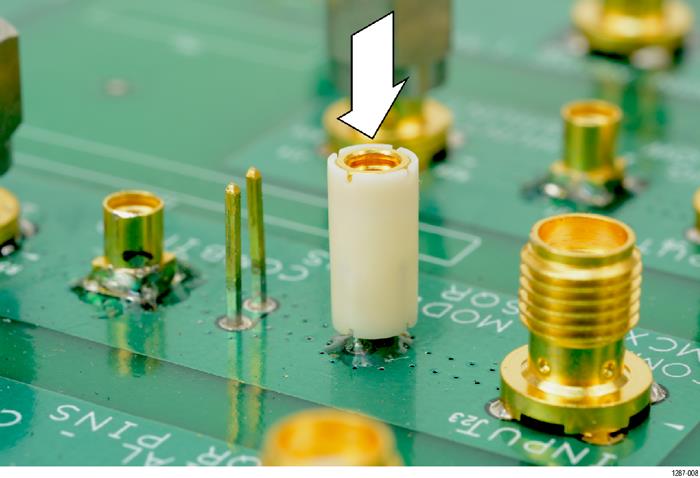

To install the adapters onto the square pins, line up the center of the adapter with the signal source pin on the circuit board. Use the notch on the adapter to align one of the shield sockets to the common pin on the circuit board. The following figures show examples of lining up the adapters on the circuit board.

To achieve the best electrical performance, especially the CMRR performance and EMI susceptibility, place the probe tip adapter as close as possible to the circuit board.

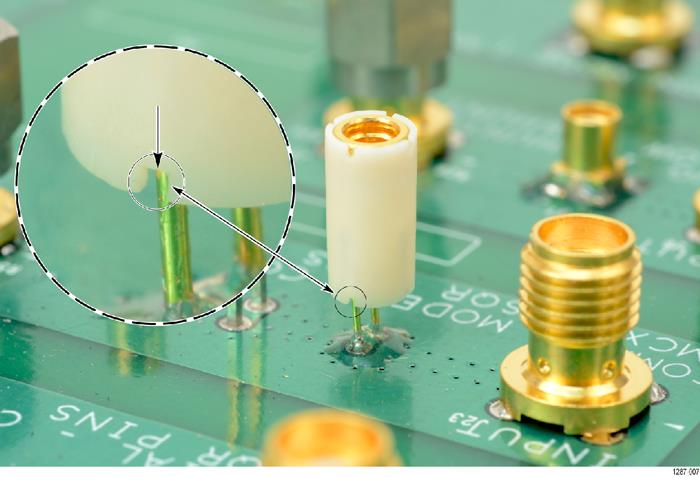

After lining up the adapters gently push down on the adapter to seat it in place on the circuit board.

When the adapters are firmly in place on the circuit board connect the probe tip to the top of the adapter while using the probe tip tripod to ease the tension off the probe tip cable and adapter. Figure 1

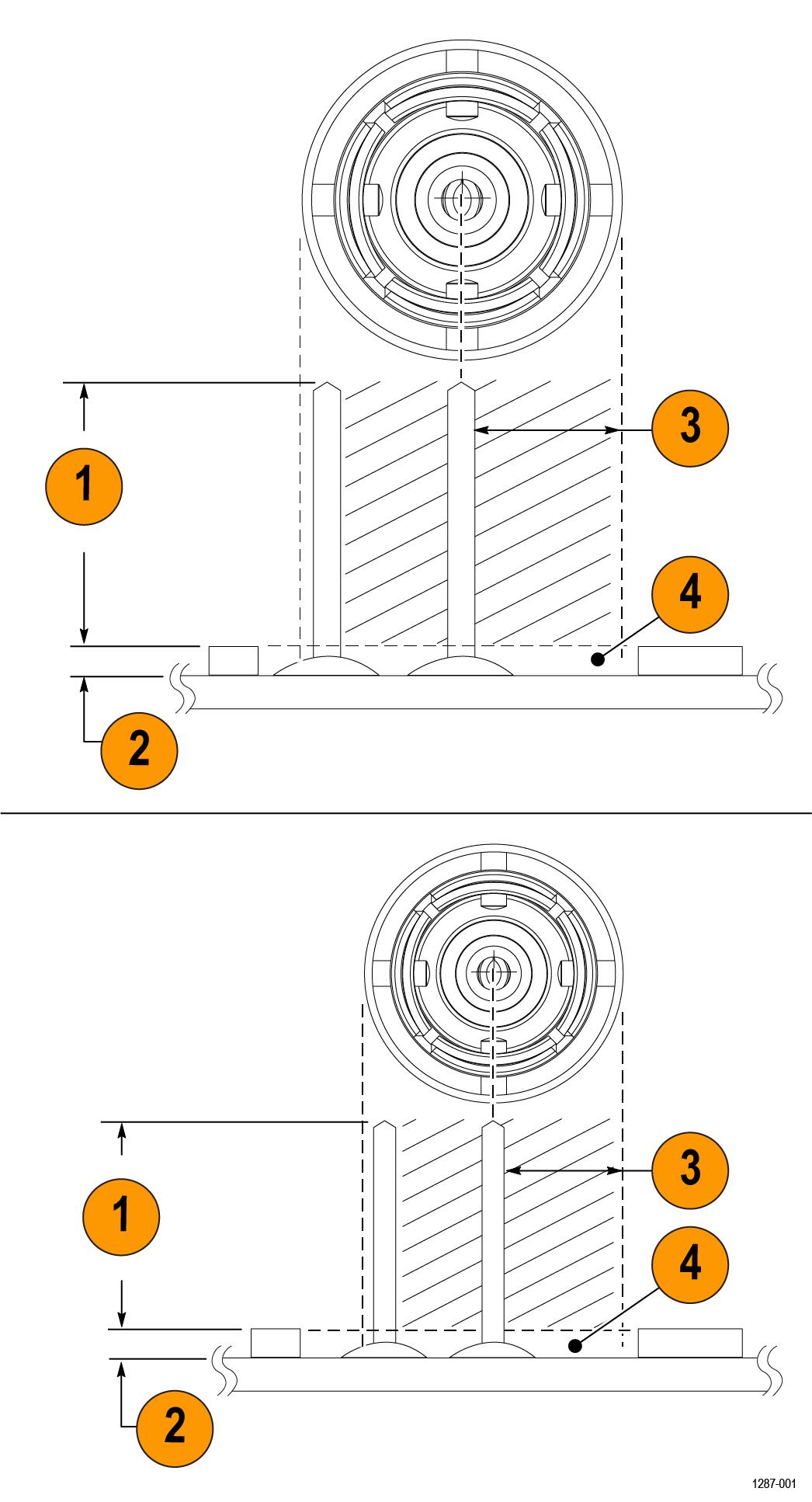

The following figure and table shows the recommended clearance requirements for connecting the adapters to the square pins on the circuit board. The bottoms of the adapters are shown at the top.

The 0.025-inch (0.635 mm) square pins should already be located on the circuit board. Some square pins might have headers installed on the circuit board. Tektronix recommends removing the plastic spacer from the square pins to gain closer access to the circuit board as shown in the following figure to achieve the best electrical performance, especially CMRR. You might need to use a pair of tweezers to remove the spacer as shown in the figure.

Tektronix provides a set of solder pins (0.018-inch (0.46 mm) diameter) to install on the circuit board for use with the MMCX to 0.062-inch (1.57 mm) adapter. Use the soldering aide tool accessory (Tektronix part number, 003-1946-xx) to install these pins on the circuit board.

The solder pins are extremely small and can be challenging to handle. Tektronix recommends using tweezers and a magnifying tool when installing the pins on the circuit board.

The solder pins can be installed around a surface mounted component on the circuit board, but adequate clearance should be maintained for a good electrical connection for the adapter. Figure 1

Note:The coaxial (common) shield of the probe tip and tip adapters should always be connected to the lowest impedance point (usually a circuit common or power supply rail) in the circuit-under-test (relative to the probe tip cable/center conductor) to obtain the most accurate waveform.

Use the following steps to install the solder pins using the soldering aide on the circuit board:

1. Carefully insert the solder pins into the soldering aide as shown in the following illustration.





2. Use the soldering aide to hold the square pins in place while soldering the square pins to the circuit board.
3. If necessary apply a small amount of adhesive to further strengthen the connection to the circuit board. However, keep the height of the adhesive to a minimum to provide good electrical contact for the adapter. Figure 1

The ability to measure common mode rejection ratios (CMRR) of the IsoVu system below 100 kHz is limited by the dynamic range of test systems. Due to the optical isolation of the IsoVu sensor head, the DC CMRR performance of all tip cables is expected to be greater than 160 dB.

The following figure shows the typical CMRR values for the supported sensor tip cables.

The following figure shows the derating values for the supported sensor tip cables.

The following figure shows the frequency response for each probe.

The following figure shows the single-ended input impedance vs. frequency values for the supported sensor tip cables.

The following figure shows a block diagram of the IsoVu measurement system.

The common mode resistance and capacitance to earth ground is shown in the figure. The common mode resistance is shown as R parasitic and is essentially infinite with the IsoVu measurement system since it is galvanically isolated and can be ignored. The common mode coupling capacitance to earth ground and the surrounding circuit is shown as the Parasitic Bridging Capacitance (C parasitic). This parasitic capacitance will be approximately 2 pF when the sensor head is placed six (6) inches (15.25 cm) above a ground plane.

To minimize the effects of common mode capacitive loading consider the following items:

• Whenever possible, choose a reference point in the circuit-under-test that is static potential with respect to earth ground.
• Connect the coaxial (common) shield of the sensor tip cable to the lowest impedance point of the circuit.
• Increasing the physical distance between the sensor head and any conductive surface will reduce the parasitic capacitance.
• When using multiple IsoVu systems to measure different points in the circuit that do not have the same common mode voltages, keep the sensor heads separated to minimize the capacitive coupling.

Prepare the equipment as follows:

1. Turn on the TekVPI oscilloscope.

2. Connect the TIVP probe to the oscilloscope on CH 1.
   • Remove any TIVP probe tip, if attached
   • Attach SMA Male short circuit cap (optional)

3. Allow the test equipment to warm up for 30 minutes at an ambient temperature of about 20 °C.

Tektronix provides service to cover repair under warranty and other services that are designed to meet your specific service needs.

Whether providing warranty repair service or any of the other services listed below, Tektronix service technicians are well equipped to service the IsoVu measurement system. Services are provided at Tektronix Service Centers and on-site at your facility, depending on your location.

CAUTION:To prevent damage to the measurement system, do not expose it to sprays, liquids, or solvents. Avoid getting moisture inside the comp box or sensor head when cleaning the exterior.

Clean the exterior surfaces with a dry, lint-free cloth or a soft-bristle brush. If dirt remains, use a soft cloth or swab dampened with a 75% isopropyl alcohol solution. Use only enough solution to dampen the cloth or swab. Do not use abrasive compounds on any part of the instrument.

The following describes the state of each LED and possible problems that you might encounter when taking measurements with the probe. Use this as a quick troubleshooting reference before contacting Tektronix for service.

WARNING:The probe may emit high-power laser radiation that is invisible to the human eye. This radiation can cause permanent eye and skin injuries. If laser radiation is detected, the oscilloscope will report an accessory fault error and automatically power down the affected channel. If this error occurs, disconnect the probe and send the probe in for repair.

Table 1. STATUS LED descriptions

LED		Status	Action
	Green (Solid)	Normal operation	-
	Green (Blinking)	Bulk power failure	Try unplugging and plugging back in. Inspect probe/oscilloscope interface. Service of probe may be required.
	Red (Solid)	Probe application failure	Try unplugging and plugging back in. Service of probe may be required.
	Red (Blinking)	Probe application failure and bulk power failure	Try unplugging and plugging back in. Inspect probe/oscilloscope interface. Service of probe and/or oscilloscope may be required.
	Red (Blinking • • – )	Self-Test failure No Power to probe head	Discontinue use and disconnect the probe from the instrument. Return it to Tektronix for service (Ref. CS-SUP-0240).

Table 2. SELF CAL LED descriptions

LED		Status
	Green (Solid)	Self-calibration completed successfully
	Amber (Intermittent flashing)	Self-calibration currently in progress
	Red (Solid)	Self-calibration failed
	Amber (Solid)	Self-calibration recommended Internal probe temperatures or other settings have invalidated the previous Self Cal.

Table 3. INPUT LED descriptions

LED		Status
	50 Ω	Sensor head SMA connector is terminated in 50 Ω ±5 V input range
	1 MΩ	Sensor head SMA connector is terminated in 1 MΩ ±5 V input range
Neither		Sensor head has tip attached (switching input termination disabled)

Table 4. ALT Mode LED description

LED		Status
	Magenta (Flashing)	The probe compensation box is near its maximum operating temperature. Additional cooling, such as an external fan, may be required.

If you need to return the measurement system to Tektronix for repair, use the original packaging. If this is unavailable or not fit for use, contact your Tektronix representative to obtain new packaging.

When you return the measurement system to Tektronix, attach a tag showing the following information:

• Name of the product owner

• Address of the owner

• Instrument serial number

• A description of problems encountered and/or service required
