TDSJIT3 Advanced and TDSJIT3 Essentials
Jitter and Timing Analysis Software
このデータ・シートの製品は、テクトロニクスでは販売終了となっています。
Tektronix Encoreプレミアム再生品を見るbr/>
上記製品のサポートと保証のステータスをチェックする
Features & Benefits
- Use the Jitter Wizard to Easily Make Accurate Jitter Measurements
- Analyze Random and Deterministic Jitter (Rj/Dj) and Estimate Total Jitter at BER
- Analyze Deterministic and Total Jitter on Repeating or Arbitrary Random Data Patterns
- Analyze Frequency-bounded Jitter and Timing Measurements using Timing Measurement Filters (First, Second, and Third-order High-pass and Low-pass Butterworth)
- Acquire, Capture, Store, and Analyze Worst-case Offenders
- View Simultaneous Results from Alternate Measurement Configurations Designated on a Single Channel or Source
- Qualify Jitter Measurements Using Channel Inputs, Cursors or Timing Details, Population Size, and Amplitude Range
- View and Analyze Jitter Spectrums, Histograms, and Trends with One Click
- 400 fs Typical Jitter Noise Floor with DSA72004
- 800 fsRMS Typical Jitter Accuracy with DSA72004
- Utilize a Configurable Golden PLL (TDSJIT3 Advanced only)
- Differential Crossover Voltage Measurements (TDSJIT3 Advanced only)
Applications
- Characterize Timing and AC Performance of High-speed Parallel and Serial Designs and Systems to 10.25 Gb/s and Beyond
- Characterize Data-to-Data and Clock-to-Data Jitter
- Characterize PLL Dynamic Performance and Transfer Functions
- Characterize Modulation of Spread Spectrum Clock Circuits
- Characterize Jitter Generation, Transfer, and Tolerance
- Characterize Clock and Data Jitter in HyperTransport, PCI Express, Fibre Channel, SONET, Serial ATA, and other Electrical or Optical Physical Layer Circuits
User-installed, Oscilloscope-resident Timing Analysis Package
TDSJIT3 is the premiere jitter and timing analysis software package available for real-time oscilloscopes. Running externally or within the Tektronix DPO7000, DPO/DSA70000, TDS5000B, TDS6000B/C, and TDS/CSA7000B Series oscilloscopes, TDSJIT3 provides the highest accuracy and lowest noise jitter measurements available in any real-time instrument. With comprehensive jitter analysis algorithms TDSJIT3 simplifies discovering jitter and its related sources in today's high-speed digital, communication, and system designs.
Digital designers, analog designers, communication and systems engineers in the computer, semiconductor, and communications industries are facing new challenges as processor clock speeds race beyond 3 GHz and backplane electrical data rates greater than 6 Gb/s become commonplace. These increasing clock and data speeds mean reduced circuit tolerance, or margin, for noise and jitter. By using tools to rapidly characterize and discover sources of jitter, designs can be made more robust, brought to market faster, and ultimately operate better in today's ultra high-speed environment.
Measurements
Measurement | Description |
---|---|
General Measurements | Rise Time, Fall Time, Positive Width, Negative Width, High Time, Low Time, Skew, Differential Crossover Voltage*1 |
Clock Measurements | Frequency, Period, Cycle-Cycle, N-Cycle, Positive Cy-Cy Duty, Negative Cy-Cy Duty, Positive Duty Cycle, Negative Duty Cycle, Clock TIE, Clock PLL TIE*1 |
Data Measurements | Data Frequency, Data Period, Data TIE, Data PLL TIE*1 |
Clock to Data | Setup, Hold, Clock-out |
Advanced Analysis*1 | Rj, Dj, Pj, DCD, DDj, Tj, BER |
Plots | Histogram, Time Trend, Cycle Trend, Spectrum, Eye Diagram Statistics*1 (BER CDF Curve), Phase Noise, Transfer Function |
Data Logging | Statistics, Min/Max Wfm, Snapshot, Worst-case |
*1 Features are only available with TDSJIT3 Advanced.
TDSJIT3 Jitter Measurements
The TDSJIT3 Jitter Analysis Software extends Tektronix’ real-time oscilloscopes capability, performing complex measurements on contiguous clock cycles or data edges single-shot acquisitions. Providing jitter measurements for most key timing parameters required by today’s interface standards, TDSJIT3 Advanced and TDSJIT3 Essentials are specifically designed to meet the jitter measurement needs of today's high-speed digital designers in the computer and communications industries. Measurements can be made on differential signals, between two separate inputs, or on multiple inputs simultaneously. Multiple measurements and plots can be displayed on the internal and external monitor. Trend analysis plots quickly show how timing parameters can change over time, like frequency drift, PLL startup, or response to power supply changes. Spectrum analysis quickly shows the frequency of jitter and modulation sources for easier identification: adjacent oscillators and clocks, power supply noise, or signal crosstalk. Comprehensive statistics and histograms of timing parameters enhance the powerful analysis capabilities of TDSJIT3 Plot displays and data can be relocated to the second monitor, saved to disk, or exported for further analysis. Acquired waveforms and measurement data logs can be saved for later analysis. You can quickly make accurate total jitter (Tj) estimates at levels down to 1×10-18 BER on common data signals including those with random pattern content. Control population size across single or multiple acquisitions; qualify what part of a signal is measured; correlate jitter trends and peaks to the original acquisition waveform; even share and analyze stored waveforms captured by colleagues.
TDSJIT3 Jitter Analysis screenshot

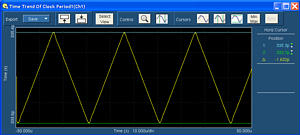

TDSJIT3 Trend Analysis plot
Characteristics
DPO7000 Series (TDS5000/B, TDS6000/B, TDS7000/B, and CSA7000/B Series Provide Similar Capability)
Characteristic | Description |
---|---|
Jitter Noise Floor | 0.6 psRMS (DPO7354, typical over 10 μs acquisition). |
Jitter Measurement Accuracy | 1.5 psRMS (DPO7354, typical over 10 μs acquisition). |
Delta Time Accuracy | 3.0 psRMS (20 GS/s, ≤10 nS measurement period). |
Delta Time Accuracy Specification | [0.06/(sample_rate) + 1.5 ppm×|Measurement_period|]RMS |
±[0.30/(sample_rate) + 1.5 ppm×|Measurement_period|]pk |
DPO/DSA70000 Series (TDS6000C Series Provide Similar Capability)
Characteristic | Description |
---|---|
Jitter Noise Floor | 400 fsRMS (DSA72004, typical over 10 μs acquisition) |
Jitter Measurement Accuracy | 800 fsRMS (DSA72004, typical) |
Delta Time Accuracy | 600 fsRMS (typical, see instrument manual for details) |
Physical Characteristics
Software supplied on compact disk media.
Software application running on the DPO7000, DPO/DSA70000, TDS5000/B, TDS6000B/C, and TDS/CSA7000/B Series four-channel oscilloscopes.
Ordering Information
TDSJIT3 Advanced
Order Option | DPO7000, DPO70000, TDS5000B, TDS6000B/C, TDS/CSA7000B Series Oscilloscope |
---|---|
Opt. JA3 | To Have Preinstalled On New Oscilloscope |
Opt. JA3 | To Upgrade Your Existing Oscilloscope |
Note: TDSJIT3 Advanced is included with DSA70000 Series instruments.
TDSJIT3 Essentials
Order Option | DPO7000, DPO70000, TDS5000B, TDS6000B/C, TDS/CSA7000B Series Oscilloscope |
---|---|
Opt. JE3 | To Have Preinstalled On New Oscilloscope |
Opt. JE3 | To Upgrade Your Existing Oscilloscope |
To Upgrade Versions of TDSJIT3
Order Option | Upgrade Path |
---|---|
Opt. JTA | TDSJIT3 (JT3) v1 to TDSJIT3 v2 Advanced (JA3) |
Opt. E3A | TDSJIT3 (JE3) v2 Essentials to TDSJIT3 v2 Advanced (JA3) |
Opt. 3EA | TDSJIT3 (J3E) Essentials v1 to TDSJIT3 v2 Advanced (JA3) |
Opt. 3EE | TDSJIT3 (J3E) Essentials v1 to TDSJIT3 v2 Essentials (JE3) |
Includes: Software on CD, manual on CD.
Recommended Accessories
Accessory | Description |
---|---|
Arbitrary Waveform Generator | AWG7102 |
Active Probes | P7500 TriMode™ active probe with DPO/DSA70000 Series, and TAP1500 and TAP2500 with the DPO7000 Series |
Differential Probe | P7500 TriMode™ active probe with DPO/DSA70000 Series |
High-bandwidth Differential Acquisition System with SMA Inputs | P7313SMA differential probe adapter |
Notes:
TDSJIT3 is not compatible with two-channel oscilloscopes.
Installing TDSJIT3 replaces earlier versions such as TDSJIT2.
