3Phase Inverter Motor Drive Analysis
5 Series/5 Series B/6 Series B MSO Option 5IMDA/6IMDA Application Datasheet
Measurements and analysis on threephase power systems are inherently more complex than on singlephase systems. Although oscilloscopes can capture voltage and current waveforms with high sample rates, further calculations are required to produce key power measurements from the data. The oscilloscope based threephase solution allows to capture threephase voltage and current waveforms with higher sample rates, longer record lengths using the HiRes acquisition mode that goes up to 16bits and with the support of automated measurements produce key power test results. The Power converters based on Pulse Width Modulation (PWM), such as variablefrequency motor drives can complicate measurements since it is very important to extract precise zero crossings for the PWM signals, thus making an oscilloscope a recommended test tool for validation and troubleshooting for motor designers. Special software, designed to automate power analysis on inverters, motors, and drives, greatly simplifies important threephase power measurements on PWM systems and can help engineers get faster insights into their designs. The Inverter Motor Drive Analysis (IMDA) solution from Tektronix helps engineers design better and more efficient threephase motor drive systems, taking full advantage of the advanced user interface, six or eight analog input channels, and ‘High Res’ mode (16 bits) on the 5 Series/5 Series B/6 Series B MSO. The IMDA solution provides fast, accurate, and repeatable results for electrical measurements on industrial motors and drive systems for AC induction motors, permanent magnet synchronous motors (PMSM), and brushless DC (BLDC) motors. It can be configured to measure DC to threephase AC converters, such as those used in the electric vehicles.
Key features and specifications
 Accurately analyze threephase PWM signals used to drive AC induction, BLDC, and PMSM motors.
 Unique oscilloscope based phasor diagrams indicate V_{RMS}, I_{RMS}, V_{MAG}, I_{MAG}, and phase relationships at a glance for the configured wiring pairs.
 Debug motor drive designs by viewing the drive input/output voltage and current signals in the time domain simultaneously with the phasor diagram.
 Threephase Autoset feature configures the oscilloscope for optimal horizontal, vertical, trigger, and acquisition parameters for acquiring threephase signals.
 Measures threephase harmonics per the IEC6100032, IEEE5192014, and IEEE5192022, or custom limits.
 Measures the system efficiency based on the selected wiring configurations.

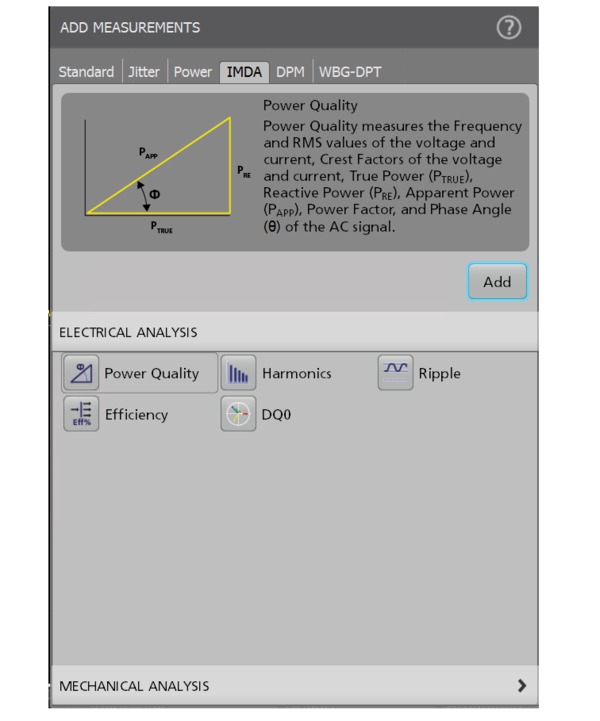

 Quickly add and configure measurements through the intuitive drag and drop interface on the 5 Series/5 Series B/6 Series B MSO.
 Analyze Inverter and Automotive threephase designs for DC input and AC output wiring configuration.
 Displays the PWM filtered edge qualifier waveform during analysis.
 Displays the test results per Record, or per Cycle mode during analysis for specific measurements.
 Supports Time trend and Acquisition trend plots for specific measurements.
 Supports mathematical conversion of LineLine to LineNeutral for specific wiring.
 Supports DQ0 measurements with the phasor plot and resultant vector navigation using oscilloscope cursors.
 Supports Angle measurement offset configuration for DQ0 measurement.
 Supports mechanical measurements and DQ0 using Resolvers, Hall sensors, and QEI (Quadrature Encoder Interface) signals with and without the Index pulse.
 Supports Torque measurement.
 Supports harmonic gating of all measurements by fundamental frequency and full spectrum.
 Computes the Mechanical power and System efficiency.
Measurement overview
Threephase power converters such as variable frequency drives require a range of measurements during the design process. The Inverters, Motors, and Drives Analysis package for the 5 Series/5 Series B/6 Series B MSO automates key electrical measurements which are grouped into the Electrical Analysis group. The measurements can be configured to measure the Input or Output wiring configuration.

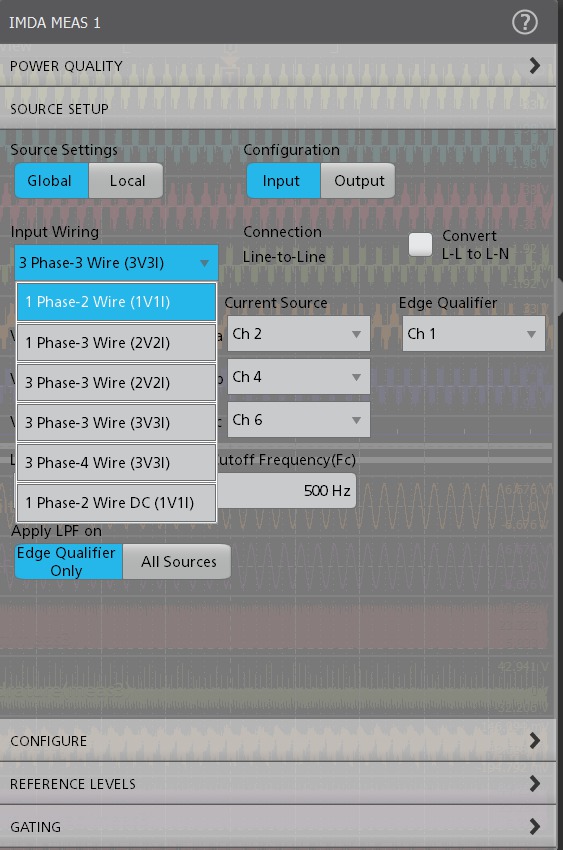

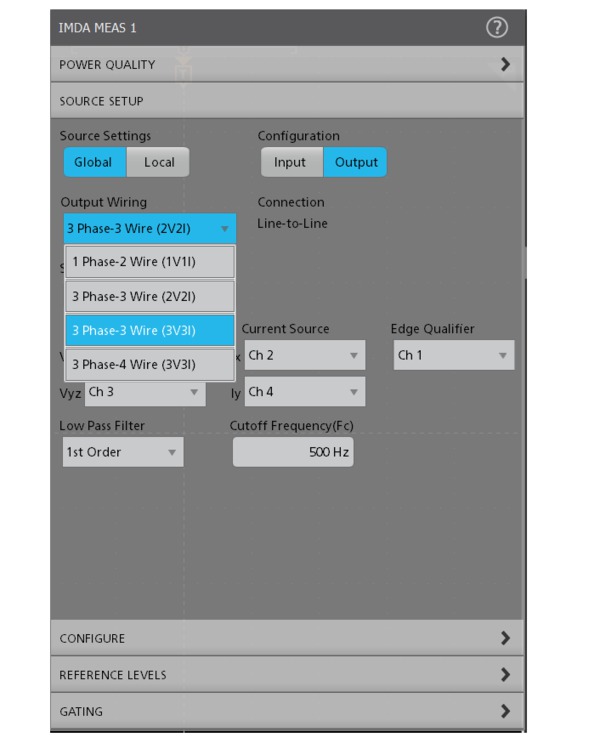

The measurements can be set to measure 1V1I (1Phase2Wire), 2V2I (1Phase3Wire), 2V2I (3Phase3Wire), 1V1I (1Phase 2Wire DC) or 3V3I (3Phase3Wire), and 3P4W (3Phase4Wire) to support various supply and motor configurations. Measurements can be performed linetoline or linetoneutral, to support delta and wye or star configurations.
Harmonics
Power waveforms are rarely textbook sinusoids. Harmonics measurements break down nonsinusoidal voltage or current waveforms into their sinusoidal components, indicating the frequency and amplitude for each component.

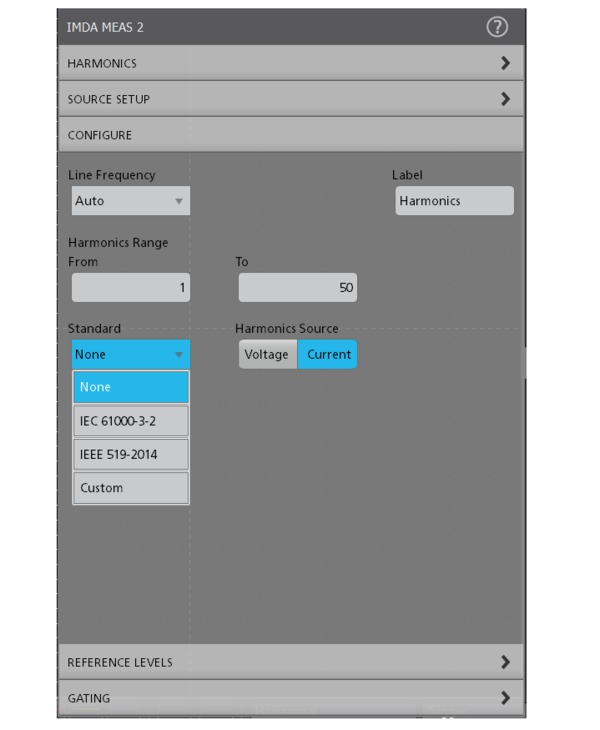

Harmonics analysis can be performed up to 200^{th} harmonic order. The maximum harmonic order can be set to suit your needs by specifying the range in the measurement configuration. THDF, THDR, TDD and fundamental values are measured for each phase. Measurements can be evaluated against the IEEE 5192014, IEEE 5192022, or IEC 6100032 standard, or custom limits. Test results can be recorded in a detailed report indicating pass/fail status.

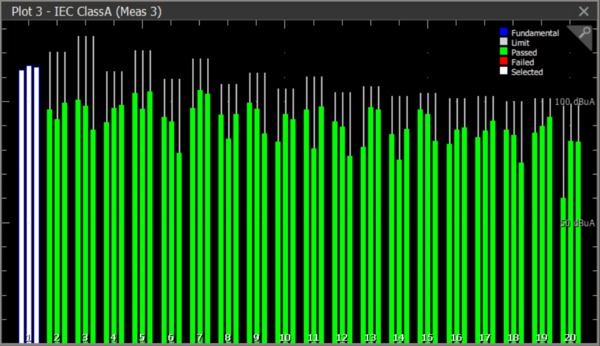

The Harmonics plot shows the test results for all three phases grouped together so user can correlate the test results between the phases. The plot also shows the test results visually. The harmonics bars are highlighted in green color during a pass condition, and highlight to red color when it exceeds the test limits. This gives a quick insight when debugging for harmonics design.
Power Quality

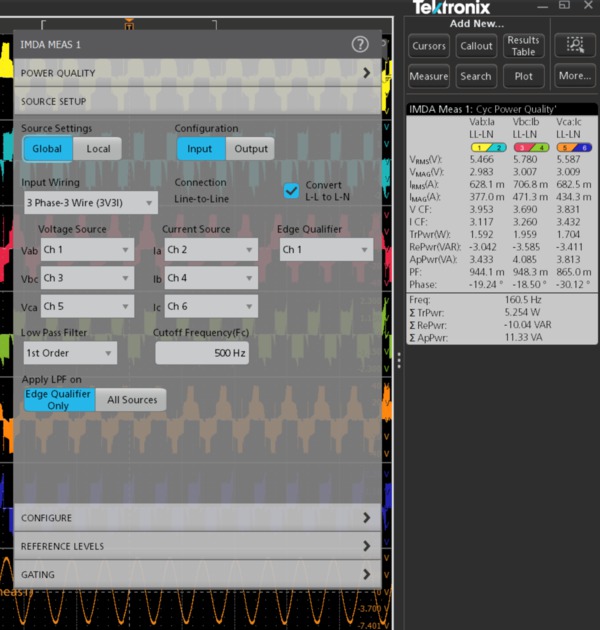

This measurement provides critical threephase power submeasurements including: frequency and RMS magnitudes of voltage and current, crest factors of voltage and current, PWM frequency, and phase angle for each phase. It also displays the sum of true power, sum of reactive power, sum of apparent power components.
Additionally, in the LineNeutral configuration, this measurement displays True Power, Reactive Power, and Apparent Power components of all the threephases.

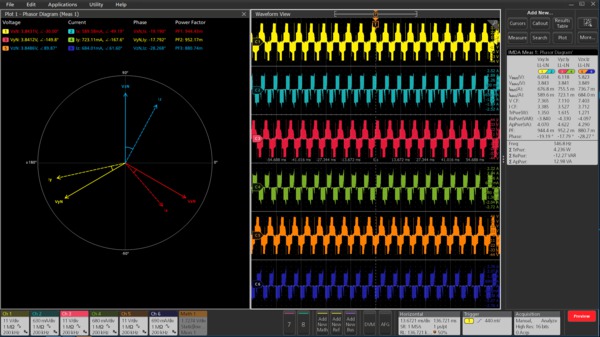

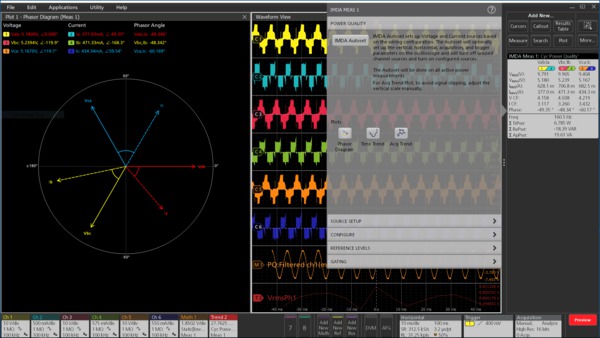

Voltage and current vectors can be displayed on a phasor diagram so you can quickly judge phase shift for each phase and the balance among phases. Each vector is represented by an RMS value and phase is computed using the Discrete Fourier Transform (DFT) method.

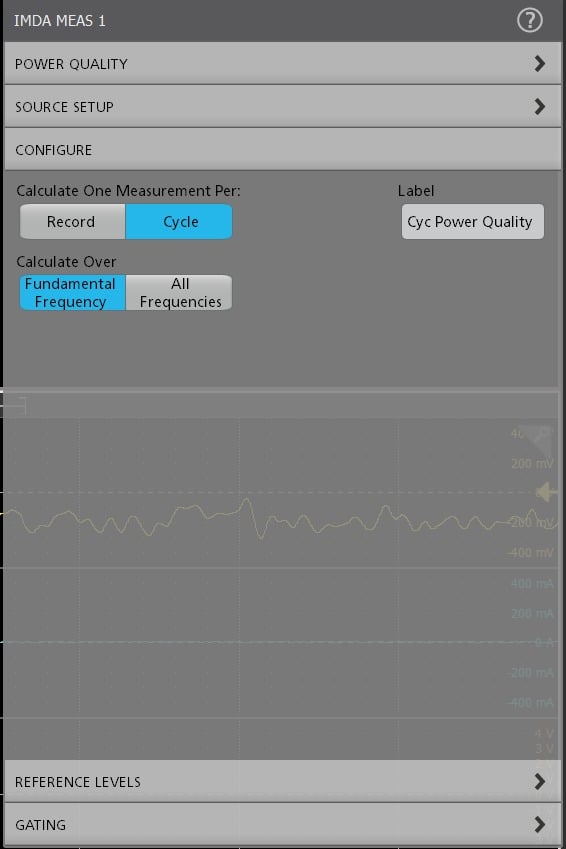

The Power quality measurement can be configured to provide critical threephase power measurements on the output side, including: frequency and RMS magnitudes of voltage and current, crest factors of voltage and current, PWM frequency, true power, reactive power, apparent power, power factor, and phase angle for each phase.
Efficiency

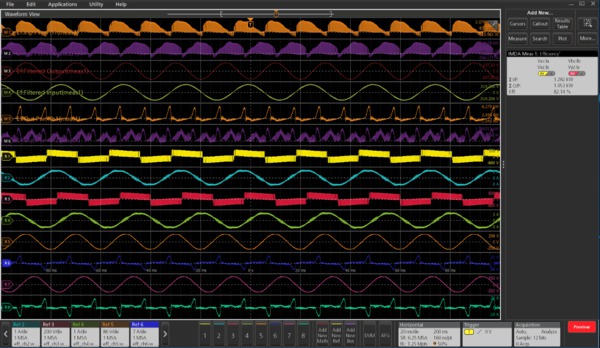

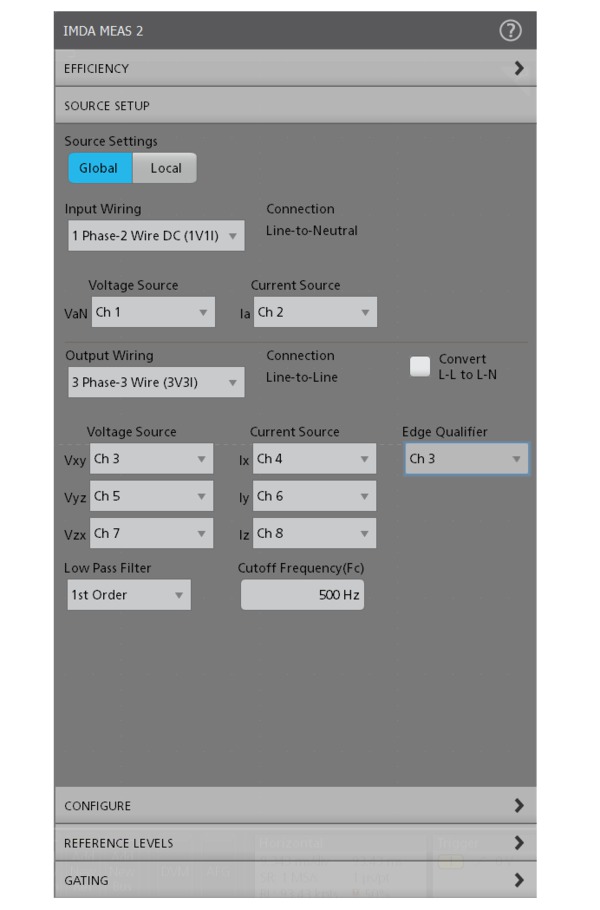

Efficiency measures the ratio of the output power to input power. The IMDA solution supports efficiency of threephase AC and Inverter configurations. By using the 2V2I method, threephase efficiency can be measured using eight oscilloscope channels (2 voltage and 2 current sources on the input side and 2 voltage and 2 current sources on the output side). The solution calculates efficiency at each phase (for 3V3I configuration) and the total (average) efficiency of the system based on the different input and output wiring combinations.

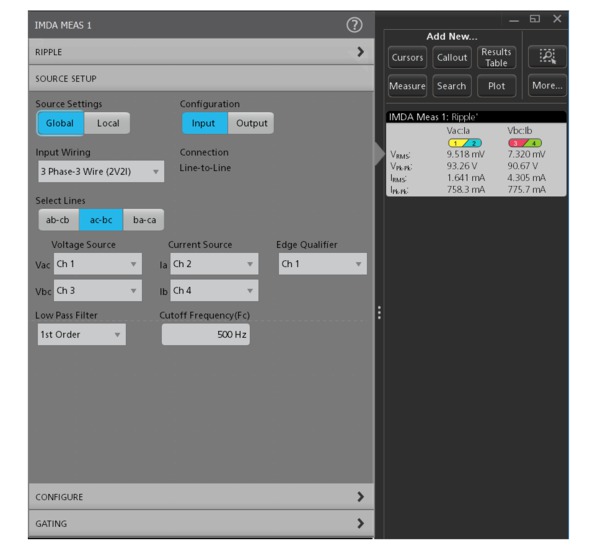

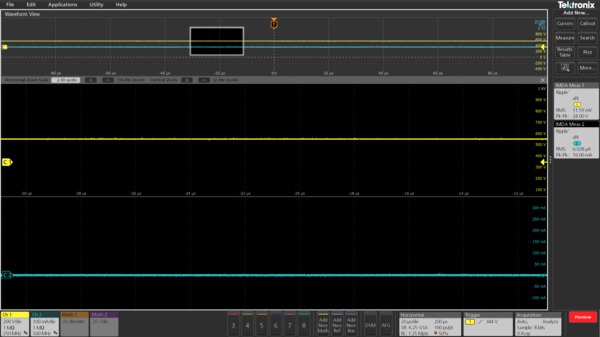

Ripple analysis
Ripple is defined as the residual or unwanted AC voltage on a constant DC component. It is typically measured on the DC bus. This measurement helps to understand how efficiently the signal is getting converted from ACDC on the input side, and the impact of unwanted components on the PWM signal on the output side.
Direct Quadrature Zero (DQ0) analysis
The behavior of threephase AC machines can be described by rotating voltage and current equations as below.
Where,
A, B, and C are three phase AC signals.
Vg is the corresponding gain.
w(t) is the 2pi×f×t.
The voltages (V) and currents (I) at the AC interface are usually separated, typically 120 degrees out of phase. These V and I components are timevarying, which means there is no representation of a steadystate operation point.
Generally, AC signals are realworld signals, but converting them to DC helps get an abstract representation of the direct quadrature transform. The DQ0 assists in emulating the controller. This information helps to understand more about what the controller is doing and allows to tune the controller design.
The DQ0 transformations typically rotate the reference frames of AC waveforms to convert them to DC signals. This allows simplified calculations on the DC signals before performing the inverse transform to recover the actual threephase AC results.
To measure and monitor the control system’s output, the designers depend on FPGA’s and ASICbased hardware to handle sensor data to get the DQ0 information and then check the control information through multiple iterations. This solution involves a complex and time taking process.
It is practically challenging to measure or probe the DQ0 signals. A typical solution provides an external stimulus to the controller to replicate the controller input signals and the AnalogDigital Controller (ADC) outputs as the DQ0 signals.
To address this challenge, users depend on the software application DQ0 solution to understand the complex dynamic phenomena in power control systems.
The IMDA solution features DQ0 transformation, which rotates the reference frames of the three phase waveforms, so they become DC signals. Calculations can be simplified on these DC quantities before inverting them and getting to the actual threephase AC results. A basic control scheme is shown in the following figure.
Tektronix offers a patented measurement called DQ0 under the electrical analysis measurement category as an added option using Clarke’s and Park’s transformation matrix. The DQ0 feature is available as an option 5IMDADQ0/6IMDADQ0 on the 5 Series, 5 Series B, and 6 Series B MSO.
The DQ0 method calculates the angle (θ) as 2*pi*f*t and extrapolates the reference frame based on where we expect timevarying signals to be. The DQ0 frame (phasor diagram) rotates with the right speed and frequency and not necessarily in phase with the rotor, which helps to understand the instantaneous state of the motor.
This measurement is supported in the 3V3I configuration, takes the threephase voltage or current signals from the motor as inputs, and converts them into DQ0 coefficients acting as a powerful debugging tool for the motor designers to tune their PWM controller circuit designs.
The measurement computes realtime DQ0 transformation by converting the 3phase drive output voltage or current waveforms. The transform matrix converts timevarying AC signals into timeinvariant DC components. This helps to reproduce the control system's understanding of instantaneous motor torque and speed. The use of the DQ0 transformation allows motor designers to correlate the performance of the 3Phase power section to control system of the hardware algorithms and design. The overlapped DQ0 and 3phase ABC vectors act as a good debug feature for designers to observe simultaneously both vector axis on the same plot.

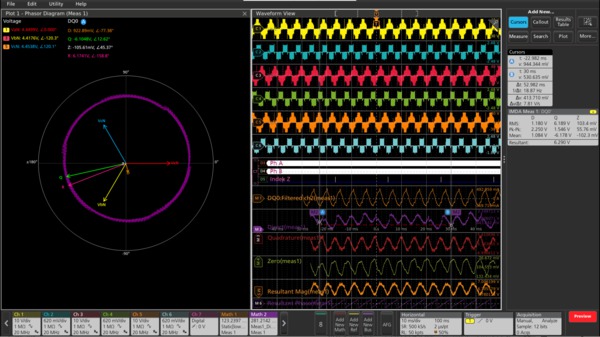

There are different outputs of this measurement such as scalar values with the magnitude of D and Q, RMS values with statistics, derived math waveforms, and a phasor diagram. Math waveform provides the DC transformed waveform. This provides the different views of the control system outputs in a single view.
By observing the DQ0 results, some important inferences can be drawn, such as variations indicating to RMS ripple, peak to peak values, and higherorder harmonics. These parameters directly relate to understanding the operation of the algorithms in the control systems. Without this information, it would be difficult to understand the performance of the motor control systems.

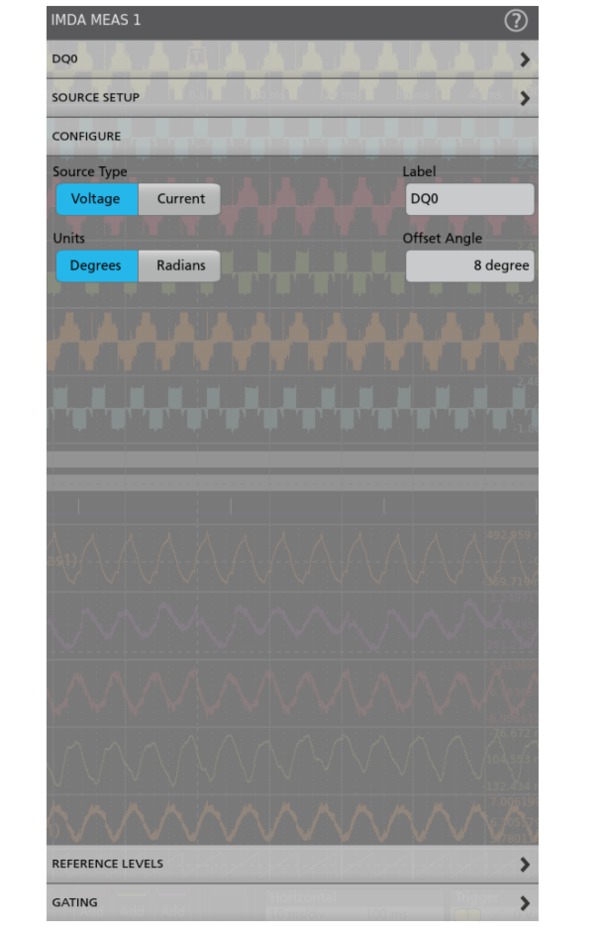

Configure the offset (electrical) angle:
 To adjust if there is any position misalignment of the mounted encoder/sensors.
 If there is any low pass filter delay after applying the filter on the electrical signals.

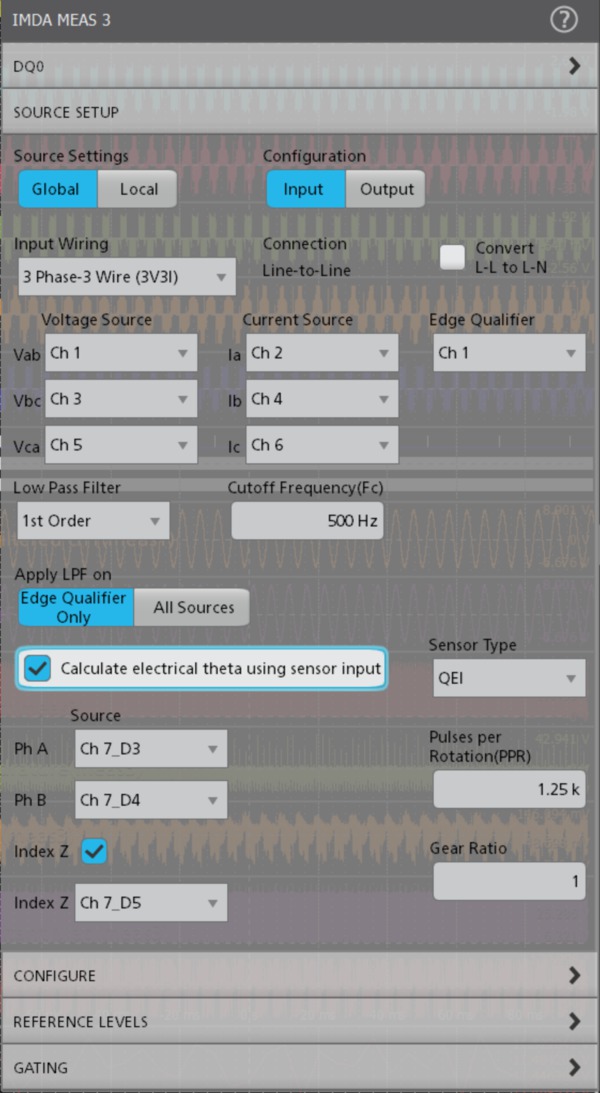

This is also supported with and without sensors configuration. If analog sources are configured for electrical measurement and digital sources for mechanical measurement then enter the low pass filter phase delay and position misalignment combined as an offset angle.

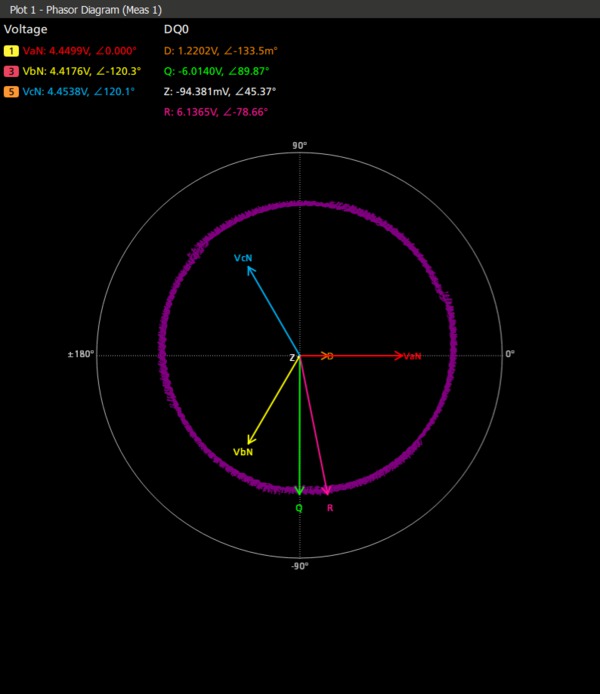

The enhanced DQ0 algorithm computes the resultant vector from the D and Q components and displays a resultant vector as an overlapped motor rotations, and integrated with instantaneous motor angle (theta).
Dynamic measurements using trend analysis
A common requirement in motor drive analysis is an ability to look at the motor response over longer test times, records, and an extended number of acquisitions to monitor the DUT behavior over varying load conditions. This dynamic measurement helps to understand optimal designs and interdependency between different parameters like voltage, current, power, frequency, and their variance based on the load conditions. You can manually zoom and get the specific region of interest to look at test results at the particular region of the waveform.

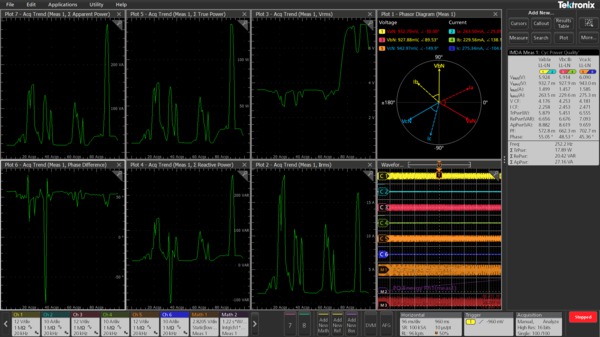

IMDA solution offers two unique trend plots on the power quality measurement to support such requirements:

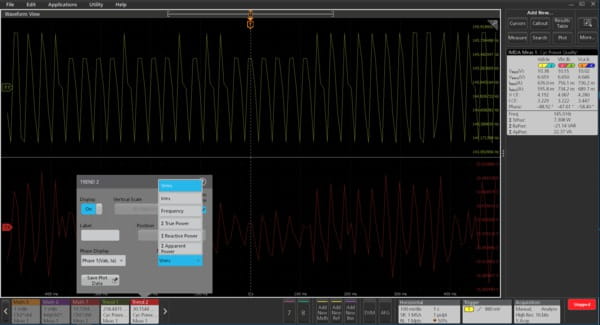

 Time trend plot
 Acq trend plot
Each plot has its advantages and can be used to plot the supported submeasurements under power quality measurement. The time trend plot shows the measured value per cycle, or for an acquired waveform (a record), while the acq trend plot shows a mean of the measured value per record, over each of the acquisitions. The acquisition count can be set during the test configuration. This allows you to capture long records of data to perform deep record analysis and understand the dynamic behaviors of the motor response. The plots can be saved as a CSV file for postprocessing.

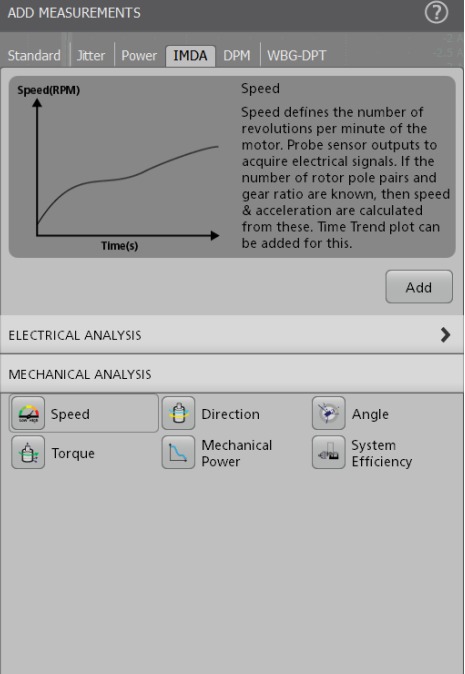

Mechanical analysis

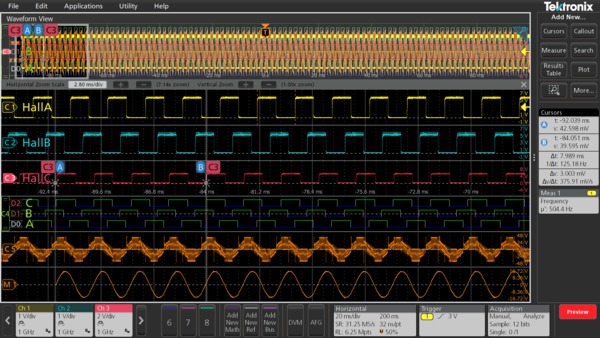

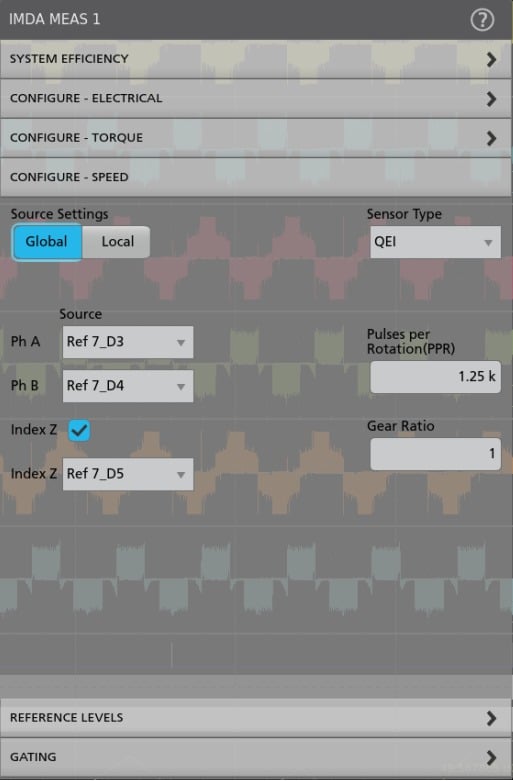

The IMDA mechanical analysis group (Option IMDAMECH) supports Hall sensor, Resolver, and QEI output signals to calculate speed, acceleration, and direction information. In addition to these measurements, the QEI method also supports the angle measurement and displays them in degrees or radians. The acceleration results are reported as part of the speed measurement. The measurement requires the number of pole pairs and corresponding gear ratio to measure key motor parameters. The direction measurement expects a sequence of hall sensor rising edges to be configured before operation and validates them during the operation. For the QEI method, the measurement requires the information on QEI outputs  PhaseA, PhaseB, the optional Zindex pulse, and Pulses per Rotation (PPR).
The TPP1000 passive probes or high voltage differential THDP0200/100 probes can be used to capture the sensor outputs depending on the motor output power and noise levels. Digital channels with TLP logic probes are recommended for use instead of analog because of lesser noise and can help to conserve analog channels for other tests operations and use single flex channel for the measurement.
Speed measurement

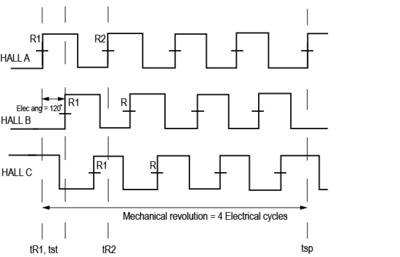

Hall sensor signal transition as shown in the following figure.
Speed is defined by the following equation,
Where,
Difference between T_{SP} and T_{ST} is defined by the number of pole pairs.
T_{ST} is the start if the electrical pulse
T_{SP} is the stop if the electrical pulse
60 is the RPM (revolutions per minute)
G is the gear ratio.
Speed measurement can be calculated either once per rotation or for every QEI sensor signal cycle.
Acceleration measurement
Acceleration is rate of change of speed per unit time. It is defined as
Speed and direction support following plots:
 Histogram
 Time Trend
 ACQ Trend

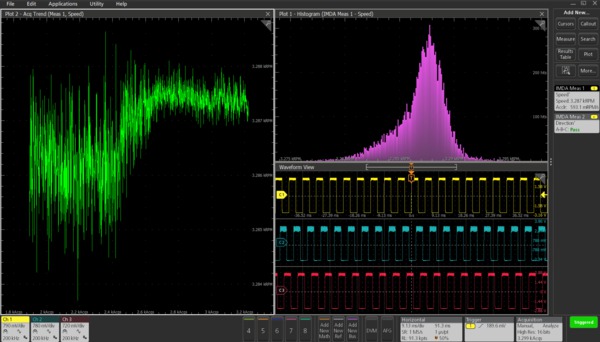

Importance of speed ACQ trend plots
The ACQ trend along with the histogram plot shows jitter on motor speed, which otherwise requires dedicated instrument like a flutter meter to measure. This jitter information (variations in edge timing) measures the motorspeed consistency.
Motor startup profile
Motor designers are interested to investigate the motor startup profile during the design stage. The time trend gives the instantaneous speed information of a motor which otherwise is hard to measure.

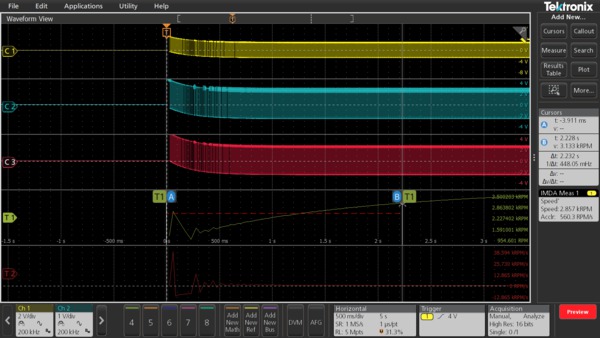

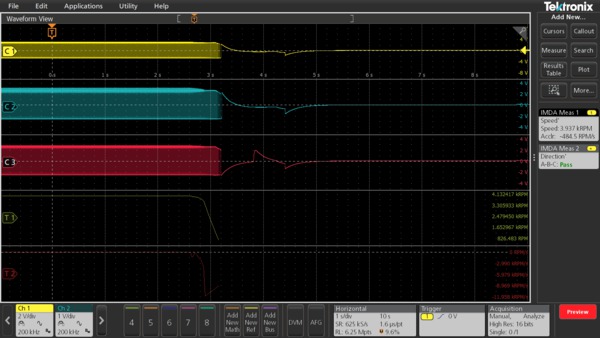

In the following Time trend plot showing startup sequence of a motor image, where the startup time taken by the motor is 2.3s from OFF to a ON state. Similarly, one can perform ON to OFF state and gain insights into the deacceleration process as shown in the figure Time trend plot showing deceleration of a motor into a stop state image.
Direction measurement

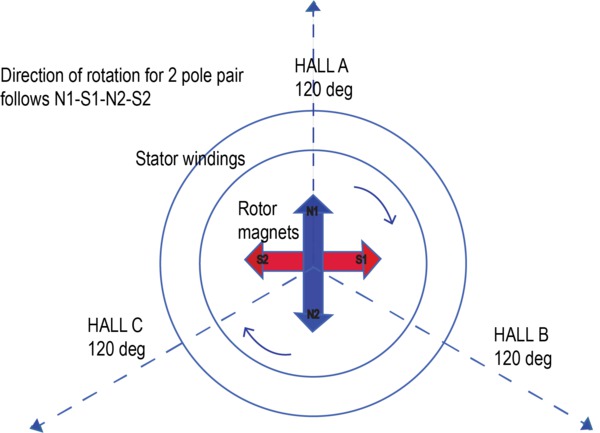

Some applications like drills, washing machines, and electric pumps require motor to operate and change directions rapidly. The direction measurement helps with this analysis. The order of rising edges or falling edges of hall sensor output determines the direction of rotation. The direction measurement needs all three hall signals. They are available as configurable parameters for the direction measurement and are validated during the motor operation. Generally, a ABC sequence is interpreted as clockwise (CW) and a ACB sequence is interpreted as counterclockwise (CCW).
For example, if the first rising edge is from HALL A and a rising edge of HALL B exists at 120 degrees, then the rotor rotation sequence is ABC. Else, if the second rising edge of HALL C occurs at 120 degrees, then the sequence is ACB.
Here is the formula used to compute the direction information.
Order (Clockwise) = (ABC)
Order (Counterclockwise) = (ACB)
Where Order function checks for the sequence of rising edges on all three hall sensor signals.

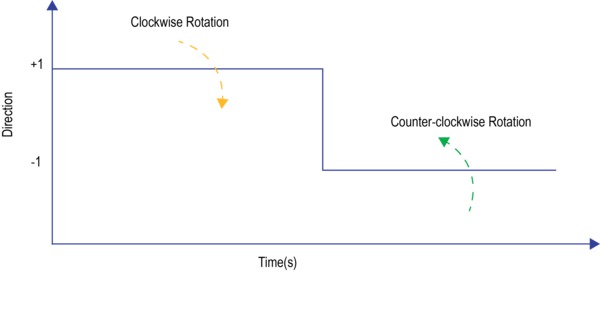

Direction can be displayed as an ACQ trend plot to give a visual indication on an exact timestamp when the motor reversed the direction helping during the debug. This is shown as a sample plot in the following figure.
Resolvers

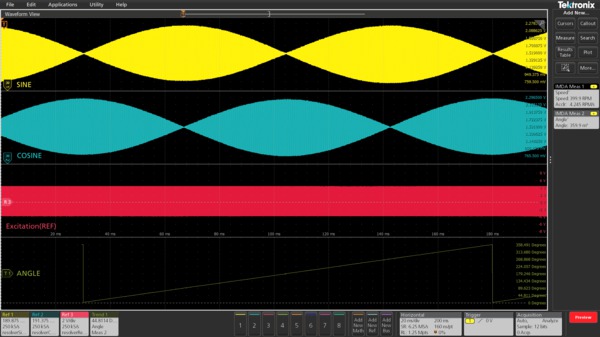

Resolver is a sensor that is mounted on a motor to determine the angular position of the rotor.
A resolver produces three signal outputs, Excitation  used as a reference, Sine, and Cosine used for analysis. The Sine and Cosine signals are orthogonal to each other and are modulated with the reference signal. The Sine and Cosine envelopes are extracted before measuring the various parameters.
Following measurements are available with resolver support:
The instantaneous angle is measured by:
Angle = arctan(sin value/cos value)
The formula for computing Speed is
Speed = [Frequency(envelope signal) / Pole pairs] Hz
Where envelope signal is the output of the envelope extraction.
Torque measurement
The torque of a motor is the rotary force produced on its output shaft, it is a twisting force that is measured in Newtonmeters (Nm).
IMDA supports two methods for torque measurements:
 Sensor method:

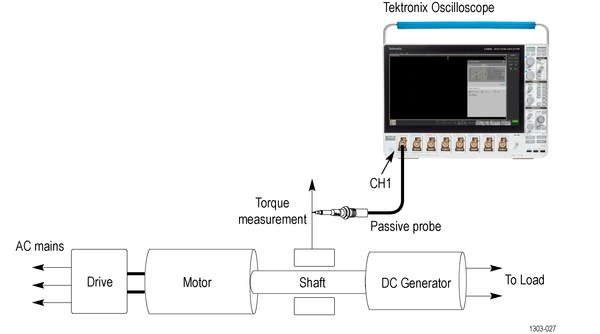

This is the most common torque measurement that uses the torque sensor or the Load cell output. Measuring the torque generated by motors can be done by coupling a rotary torque sensor in line with the motor shaft. Users can capture Torque waveform using a passive voltage probe. The voltage waveform is proportional to a measured torque value.

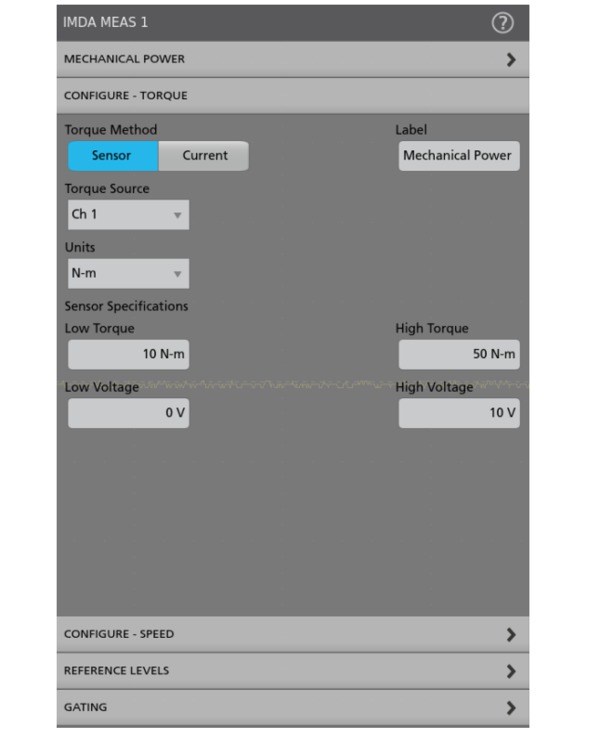

The user must configure high and low values of the Torque sensor and corresponding high and low values of the output voltage. The measurement rescales the acquired voltage waveform to the Torque values.

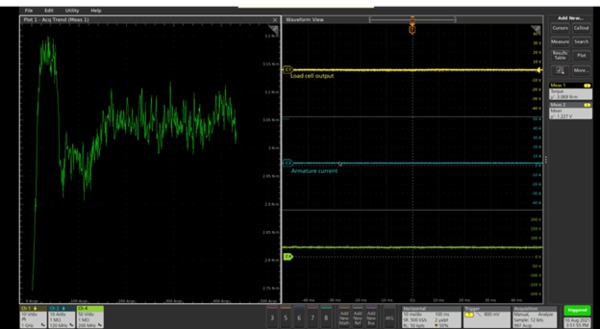

The Load cell provides the Force. The Torque value is computed as a product of force and the arm length (distance).

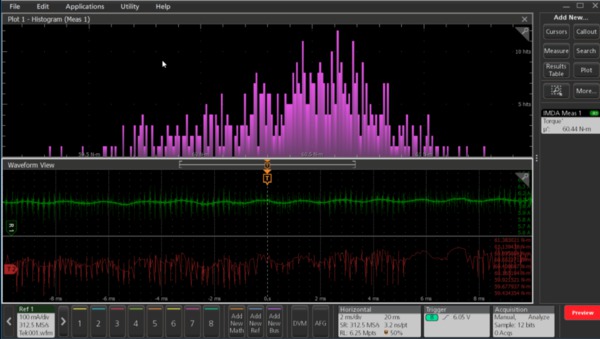

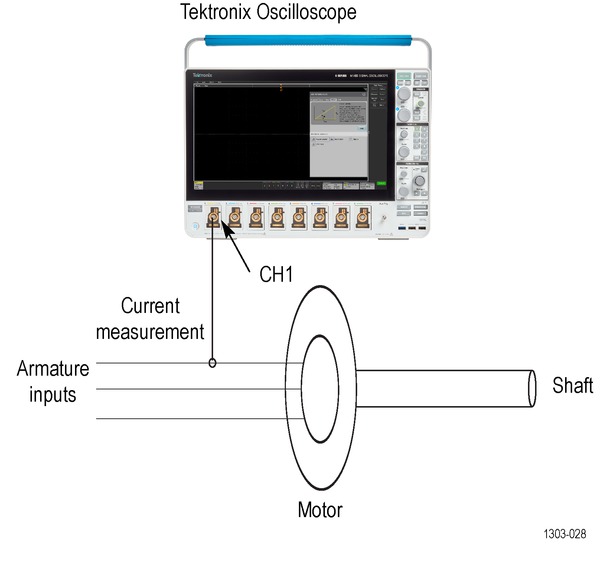

 Current method:
Many motors have data specifications by which torque can be inferred as proportional to applied RMS current by using the Torque constant. This is an estimation of the torque value.
Generally, the torque developed in any dc motor is proportional to the torque constant times the armature current. In a series motor, the field current is proportional to the armature current.
The torque produced by the rotor is estimated to be directly proportional to the armature current. The user must configure the Torque constant of the motor.
Torque = Torque constant x Irms
The torque measurement supports the following plots:
 Histogram
 Time Trend
 ACQ trend.
Following torque units are part of the configuration:
 Newton Meters (N·m)
 Foot pounds (ft·lb)
 Inch ounces (in·oz)
 Inch pounds (in·lb).
Mechanical Power measurement
The Mechanical Power of a rotating shaft is determined by its speed of rotation and the torque that it provides. This measurement supports Hall Sensors and QEI encoder to compute Speed and Torque.

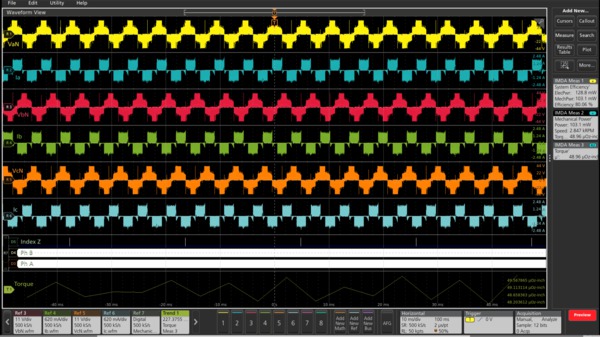

The Mechanical Power measurement computes torque using either a torque sensor or an armature current input, and speed using hall or QEI sensor inputs. The computed Mechanical power using these inputs are directly proportional to the product of speed and torque of the shaft.
IMDA supports different sensor types to measure torque, speed, and angular position of the motor.
Mechanical Power = (Torque × Multiplier) × Speed
Where the Multiplier is based on the torque unit and it can be 104.7252 nm, 0.739522 ozinch, 141.9883 ftlb, or 11.83235897 inchlb.
Speed is in RPM.
Mechanical Power is in Watt.
System Efficiency measurement
System Efficiency is the measure of the effectiveness with which electrical energy is converted to mechanical energy. This measurement is often performed at different speeds under different loads and is commonly displayed as a speed torque curve.
Power efficiency is a measure by which all the electrical equipment is rated, so it is important to measure it dynamically to check whether the motor is operating in the desired region.

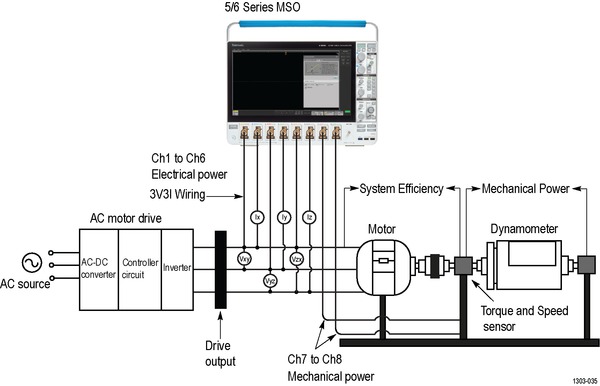

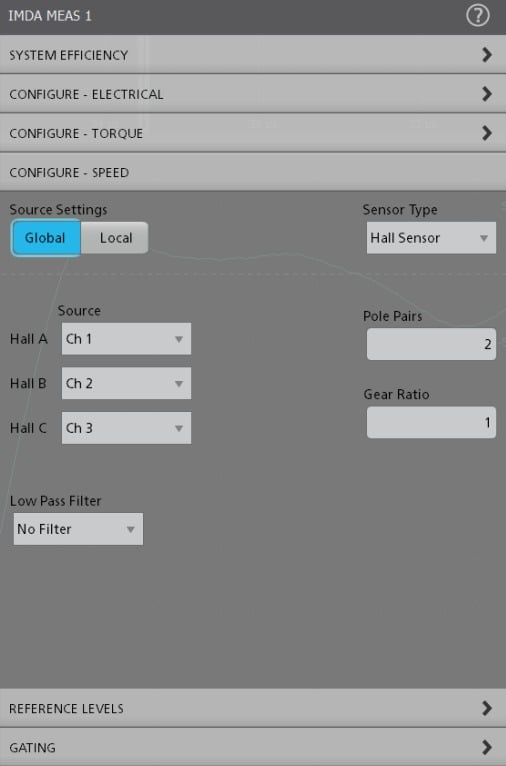

The IMDA System Efficiency measurement takes in electrical voltage and current inputs to compute the input power and torque and speed sensors signal to compute the output mechanical power. Based on these parameters, system efficiency is computed. The electrical power can be computed using 2V2I or 3V3I wiring based on the oscilloscope channels available.
For an electrically driven motor, the output power is mechanical while the input power is electrical, so the efficiency equation is computed by
System Efficiency = ((Output mechanical power)/(Input electrical power)) × 100%
Report generation

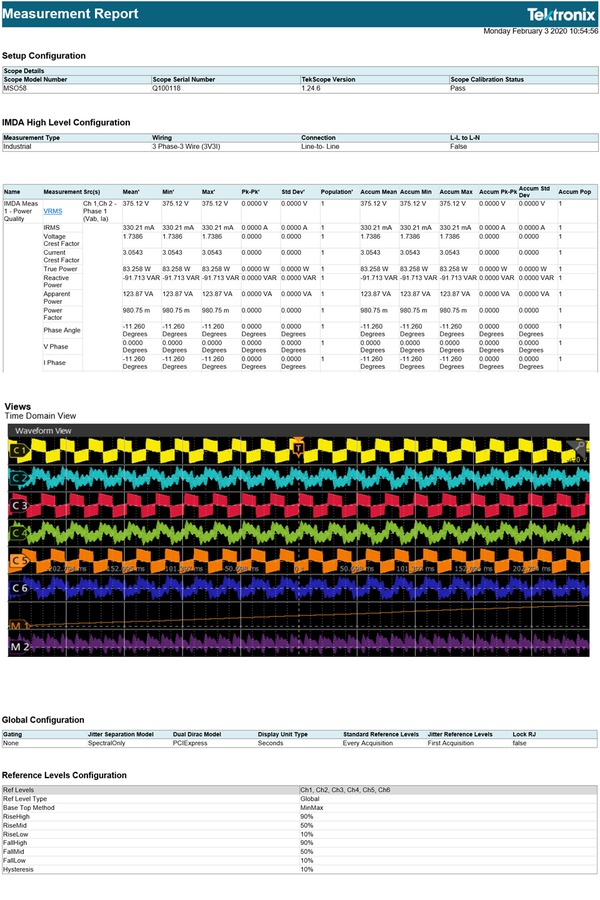

The IMDA software simplifies data collection, archiving, documentation of your design, and development process. It supports the report generation in MHT or PDF formats with pass/fail results for easy analysis.
Specifications
 Wiring configuration
 1V1I (1Phase2Wire), 2V2I (1 Phase3Wire), 2V2I (3Phase3Wire), 2V2I (DC InAC Out), 3V3I (DC InAC Out) or 3V3I (3Phase3Wire), and 3P4W (3Phase4Wire)
 LL to LN conversion
 Applicable for 3 Phase3 Wire (3V3I)^{1}
 Electrical analysis
 Power quality, Harmonics^{2}, Ripple, DQ0^{3}, Efficiency^{4}
 Sensors supported

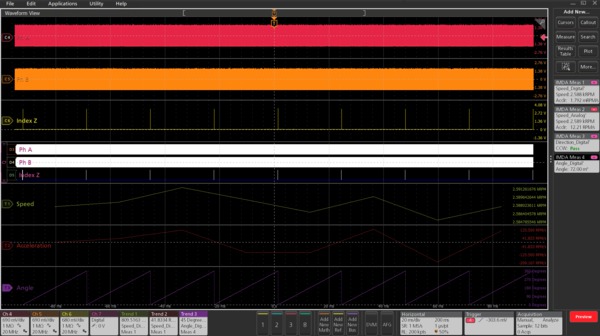

 Hall sensors, Resolvers, QEI (Quadrature Encoder Interface)
 Mechanical analysis
 Speed, Acceleration, Angle (QEI method), Direction, Torque, Mechanical Power, and System Efficiency
 Harmonic gating
 Fundamental and full spectrum
 Threephase autoset
 For all measurements
 Plots
 Time Trend plot, ACQ trend plot, Phasor diagram, harmonics bar graph ^{5}, DQ0 plot, and Histogram plot (speed distribution)
 Report
 MHT and PDF format, Data export to CSV format
 Degauss/Deskew (static)
 Automatic detection of probes, Auto Zero. User can deskew voltage and current probes, degauss the current probe from the menus for each channel
 Source support
 Live analog signals, reference waveforms, and math waveforms
Ordering information
Models
Product  Options^{6}  Supported instruments  Bandwidth available

New instrument order option  5IMDA  5 Series MSO (MSO56, MSO58) 5 Series B MSO (MSO56B, MSO58B) MSO58LP

Product upgrade option  SUP5IMDA
Floating license  SUP5IMDAFL
New instrument order option  5IMDADQ0
Product upgrade option  SUP5IMDADQ0
Floating license  SUP5IMDADQ0FL
New instrument order option  5IMDAMECH
Product upgrade option  SUP5IMDAMECH
Floating license  SUP5IMDAMECHFL
New instrument order option  6IMDA  6 Series B MSO (MSO66B, MSO68B)

Product upgrade option  SUP6BIMDA
Floating license  SUP6BIMDAFL
New instrument order option  6IMDADQ0
Product upgrade option  SUP6BIMDADQ0
Floating license  SUP6BIMDADQ0FL
New instrument order option  6IMDAMECH
Product upgrade option  SUP6BIMDAMECH
Floating license  SUP6BIMDAMECHFL
Software bundles
Supported instruments  Bundle options  Description

5 Series/5 Series B MSO  5PROPOWER1Y  1 Year License Pro Power Bundle
5PROPOWERPER  Perpetual License Pro Power Bundle
5ULTIMATE1Y  1 Year License Ultimate Bundle
5ULTIMATEPER  Perpetual License Ultimate Bundle
5PROAUTO1Y  1 Year License Pro Automotive Bundle
5PROAUTOPER  Perpetual License Pro Automotive Bundle
6 Series B MSO  6PROPOWER1Y  1 Year License Pro Power Bundle
6PROPOWERPER  Perpetual License Pro Power Bundle
6ULTIMATE1Y  1 Year License Ultimate Bundle
6ULTIMATEPER  Perpetual License Ultimate Bundle
6PROAUTO1Y  1 Year License Pro Automotive Bundle
6PROAUTOPER  Perpetual License Pro Automotive Bundle
Recommended probes
Probe model  Description  Quantity

TCP0030A or TCP0150  Current Probes  3 for 3V3I wiring^{7}
THDP0200 or TMDP0200  High Voltage Differential Probes  3 for 3V3I wiring^{7}
