Models 2634B, 2635B, and 2636B System SourceMeter Instrument Specifications

SPECIFICATION CONDITIONS

This document contains specifications and supplemental information for the Models 2634B, 2635B, and 2636B System SourceMeter^™ instrument. Specifications are the standards against which the 2634B, 2635B, and 2636B are tested. Upon leaving the factory, the 2634B, 2635B, and 2636B meet these specifications. Supplemental and typical values are nonwarranted, apply at 23 °C, and are provided solely as useful information.

Source and measurement accuracies are specified at the 2634B, 2635B, and 2636B terminals under these conditions:

18 °C to 28 °C, < 70 percent relative humidity
After a two-hour warm-up period
Speed normal (1 NPLC)
A/D autozero enabled
Remote sense operation or properly zeroed local operation
Calibration period: One year

DC POWER SPECIFICATIONS

Voltage

Current

Maximum output power and source/sink limits¹

30.3 W maximum per channel

± (20.2 V at 1.5 A, −1.5 A)
± (202 V at 100 mA, −100 mA)
Four-quadrant source or sink operation

30.3 W maximum per channel

± (1.515 A at 20 V, −20 V)
± (101 mA at 200 V, −200 V)
Four-quadrant source or sink operation

Refer to Pulse Characteristics for pulsing details, such as duty cycle and pulse width.

¹ Full power source operation regardless of load or number of channels used to 23 °C ambient temperature. Above 23 °C or power sink operation, refer to “Operating Boundaries” in the Series 2600B System SourceMeter Reference Manual for additional power derating information.

VOLTAGE ACCURACY SPECIFICATIONS^{2, 3}

Range	Source			Measure
Range	Programming resolution	Accuracy ± (% reading + volts)	Typical noise (peak to peak) 0.1 Hz to 10 Hz	Display resolution	Accuracy⁴ ± (% reading + volts)
200 mV	5 µV	0.02% + 375 µV	20 µV	100 nV	0.015% + 225 µV
2 V	50 µV	0.02% + 600 µV	50 µV	1 µV	0.02% + 350 µV
20 V	500 µV	0.02% + 5 mV	300 µV	10 µV	0.015% + 5 mV
200 V	5 mV	0.02% + 50 mV	2 mV	100 µV	0.015% + 50 mV

CURRENT ACCURACY SPECIFICATIONS²

Range	Source			Measure
Range	Programming resolution	Accuracy ± (% reading + amperes)	Typical noise (peak to peak) 0.1 Hz to 10 Hz	Display resolution	Accuracy⁴± (% reading + amperes)
100 pA⁵	N/A	N/A	N/A	100 aA	0.15% + 120 fA^{6, 7}
1 nA	20 fA	0.15% + 2 pA	800 fA	1 fA	0.15% + 240 fA^{6, 8}
10 nA	200 fA	0.15% + 5 pA	2 pA	10 fA	0.15% + 3 pA
100 nA	2 pA	0.06% + 50 pA	5 pA	100 fA	0.06% + 40 pA
1 µA	20 pA	0.03% + 700 pA	25 pA	1 pA	0.025% + 400 pA
10 µA	200 pA	0.03% + 5 nA	60 pA	10 pA	0.025% + 1.5 nA
100 µA	2 nA	0.03% + 60 nA	3 nA	100 pA	0.02% + 25 nA
1 mA	20 nA	0.03% + 300 nA	6 nA	1 nA	0.02% + 200 nA
10 mA	200 nA	0.03% + 6 µA	200 nA	10 nA	0.02% + 2.5 µA
100 mA	2 µA	0.03% + 30 µA	600 nA	100 nA	0.02% + 20 µA
1 A	20 µA	0.05% + 1.8 mA	70 µA	1 µA	0.03% + 1.5 mA
1.5 A	50 µA	0.06% + 4 mA	150 µA	1 µA	0.05% + 3.5 mA
10 A⁹	200 µA	0.5% + 40 mA	N/A	10 µA	0.4% + 25 mA

² For temperatures 0 °C to 18 °C and 28 °C to 50 °C, accuracy is degraded by ± (0.15 × accuracy specification)/°C. High-Capacitance Mode accuracy is applicable at 23 °C ± 5 °C.
³ Add 50 µV to source accuracy specifications per volt of HI lead drop.
⁴ Derate accuracy specification for NPLC setting < 1 by increasing the error term. Add appropriate typical percent of reading term for resistive loads using the table below.

NPLC setting	200 mV range	2 V and 200 V ranges	100 nA range	1 µA to 100 mA ranges	1 A to 1.5 A ranges
0.1	0.01%	0.01%	0.01%	0.01%	0.01%
0.01	0.08%	0.07%	0.1%	0.05%	0.05%
0.001	0.8%	0.6%	1%	0.5%	1.1%

⁵ The 100 pA range is not available with the Model 2634B.
⁶ 10-NLPC, 11-Point Median Filter, < 200 V range, measurements made within 1 hour after zeroing. 23 ºC ± 1 ºC.
⁷ Under default specification conditions: ± (0.15% + 750 fA).
⁸ Under default specification conditions: ± (0.15% + 1 pA).

⁹ 10 A range is accessible in pulse mode only. Accuracy specifications for 10 A range are typical.

SUPPLEMENTAL CHARACTERISTICS

The following specifications are supplemental characteristics that provide additional information about instrument functions and performance. These characteristics are nonwarranted specifications; they describe the typical performance of the 2634B, 2635B, and 2636B.

PULSE CHARACTERISTICS

Pulse region specifications

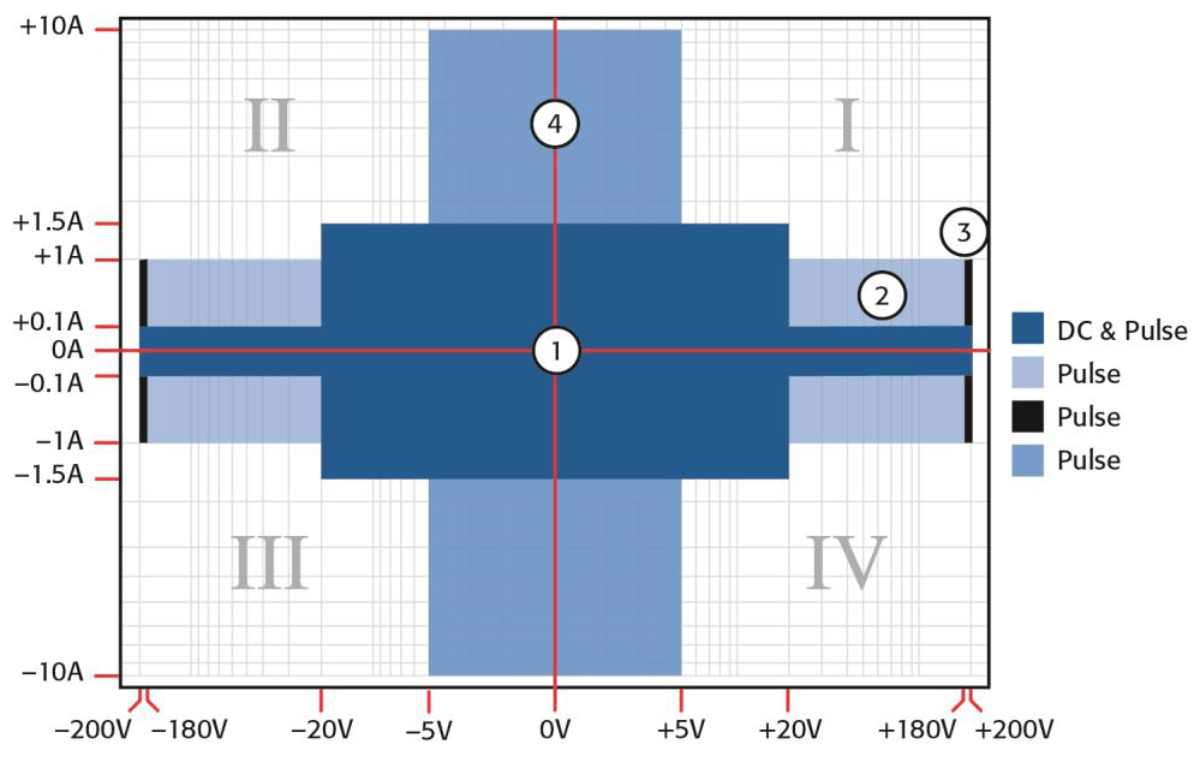

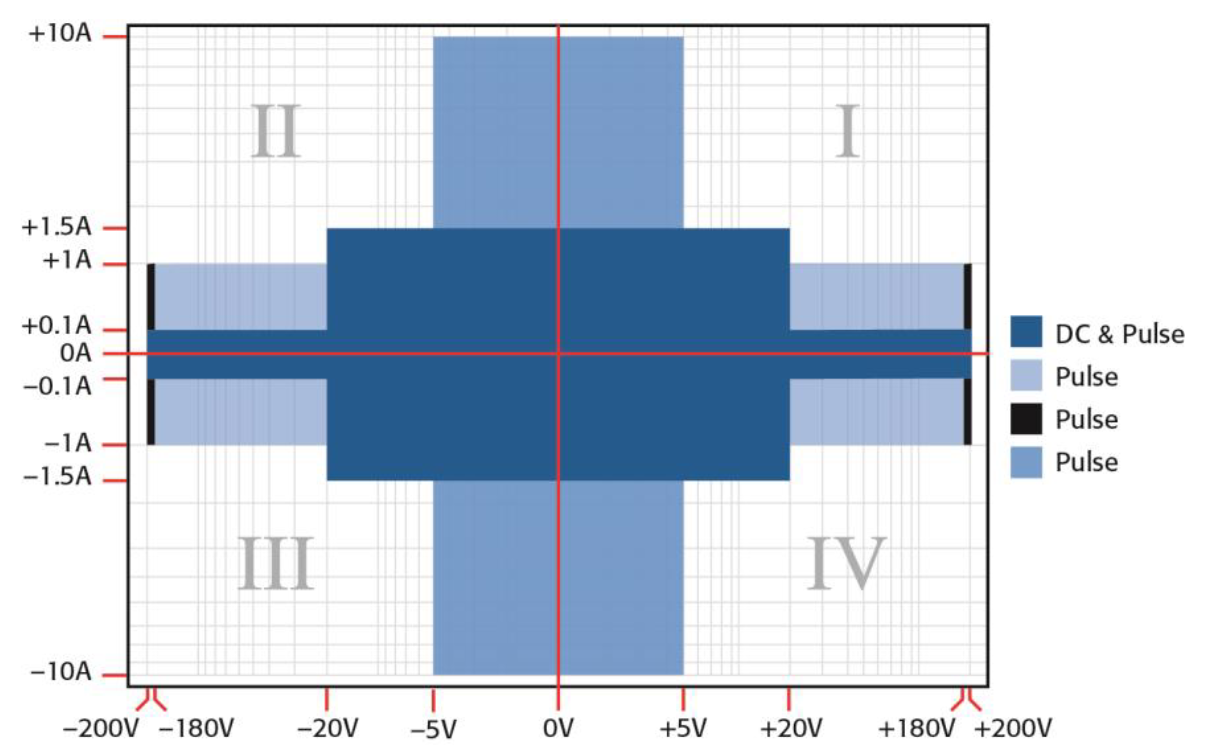

Region quadrant diagram	Region maximums	Maximum pulse width¹⁰	Maximum duty cycle¹¹
1	100 mA at 200 V	DC, no limit	100%
1	1.5 A at 20 V	DC, no limit	100%
2	1 A at 180 V	8.5 ms	1%
3¹²	1 A at 200 V	2.2 ms	1%
4	10 A at 5 V	1 ms	2.2%

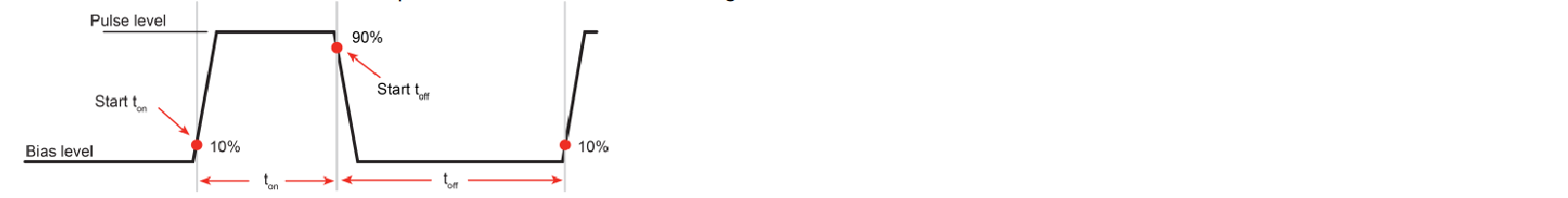

¹⁰ Times measured from the start of pulse to the start off-time; see figure below

¹¹ Thermally limited in sink mode (quadrants 2 and 4) and ambient temperatures above 23 °C. See power equations in the Series 2600B System SourceMeter Reference Manual for more information.

¹² Voltage source operation with 1.5 A current limit.

Minimum programmable pulse width⁹	100 µs Note: Minimum pulse width for settled source at a given I-V output and load can be longer than 100 µs.
	Source value	Load	Source settling time (% of range)	Minimum pulse width
	5 V	0.5 Ω	1%	300 µs
	20 V	200 Ω	0.2%	200 µs
	180 V	180 Ω	0.2%	5 ms
	200 V (1.5 A Limit)	200 Ω	0.2%	1.5 ms
	100 mA	200 Ω	1%	200 µs
	1 A	200 Ω	1%	500 µs
	1 A	180 Ω	0.2%	5 ms
	10 A	0.5 Ω	0.5%	300 µs
Pulse width programming resolution	1 µs
Pulse width programming accuracy	± 5 µs
Pulse width jitter	2 µs

ADDITIONAL SOURCE CHARACTERISTICS

Noise 10 Hz to 20 MHz	< 20 mV peak to peak, < 3 mV RMS 20 V range
Transient response time	< 70 µs for the output to recover to within 0.1% for a 10% to 90% step change in load
Overshoot	Voltage: < ±0.1% + 10 mV Step size = 10% to 90% of range, resistive load, maximum current limit/compliance Current: < ±0.1% Step size = 10% to 90% of range, resistive load See Current source output settling time for additional test conditions
Range change overshoot	Voltage: < 300 mV + 0.1% of larger range Overshoot into a 200 kΩ load, 20 MHz bandwidth Current:¹³ < 300 mV/R_LOAD + 5% of larger range
Guard offset voltage	< 4 mV Current < 10 mA
Remote sense operating range¹⁴	Maximum voltage between HI and SENSE HI = 3 V Maximum voltage between LO and SENSE LO = 3 V
Voltage output headroom	200 V range Maximum output voltage = 202.3 V – (total voltage drop across source leads). Maximum 1 Ω source lead. 20 V range Maximum output voltage = 23.3 V – (total voltage drop across source leads). Maximum 1 Ω source lead.
Overtemperature protection	Internally sensed temperature overload puts the instrument in standby mode
Limit/compliance	Bipolar limit (compliance) set with a single value Voltage:¹⁵ Minimum value is 20 mV; accuracy is the same as voltage source Current:¹⁶ Minimum value is 100 pA; accuracy is the same as current source
Voltage source output settling time	Time required to reach within 0.1% of final value after source level command is processed on a fixed range.
	Voltage range	Settling time
	200 mV	< 50 µs
	2 V	< 50 µs
	20 V	< 110 µs
	200 V	< 700 µs
Current source output settling time	Time required to reach within 0.1% of final value after source level command is processed on a fixed range Values below for I_OUT × R_LOAD = 2 V
	Current range	Settling time
	1.5 A and 1 A	< 120 µs (R_LOAD > 6 Ω)
	100 mA and 10 mA	< 80 µs
	1 mA	< 100 µs
	100 µA	< 150 µs
	10 µA	< 500 µs
	1 µA	< 2 ms
	100 nA	< 20 ms
	10 nA	< 40 ms
	1 nA	< 150 ms

¹³ With source settling set to SETTLE_SMOOTH_100NA

¹⁴ Add 50 µV to source accuracy specifications per volt of HI lead drop.

¹⁵ For sink operation (quadrants II and IV) without sink mode enabled, add 10% of compliance range and ±0.02% of limit settling to the corresponding voltage source accuracy specifications. For 200 mV range add an additional 120 mV of uncertainty. Specifications apply with sink mode enabled.

¹⁶ For sink operation (quadrants II and IV) without sink mode enabled, add 0.06% of limit range to the corresponding current limit accuracy specifications. Specifications apply with sink mode enabled.

ADDITIONAL MEASUREMENT CHARACTERISTICS

Contact check specifications^{17, 18}	Speed	Maximum measurement time to memory for 60 Hz (50 Hz)	Accuracy (1 year) 23 °C ± 5 °C ± (% reading + ohms)
	Fast	1.1 ms (1.2 ms)	5% + 10 Ω
	Medium	4.1 ms (5 ms)	5% + 1 Ω
	Slow	36 ms (42 ms)	5% + 0.3 Ω
Current measure settling time¹⁹	Time required to reach within 0.1% of final value after source level command is processed on a fixed range Values below for V_OUT= 2 V
	Current range	Settling time
	1 mA	< 100 µs
Input impedance	> 100 TΩ

¹⁷ Includes measurement of SENSE HI to HI and SENSE LO to LO contact resistances.
¹⁸ Contact check is not available with the Model 2634B.
¹⁹ Compliance equal to 100 mA. Delay factor set to 1.

ADDITIONAL CHARACTERISTICS

Maximum load impedance	Normal mode 10 nF	High‑capacitance mode 50 µF
Common mode voltage	250 V dc
Common mode isolation	> 1 GΩ < 4500 pF
Sense high input impedance	> 100 TΩ
Maximum sense lead resistance	1 kΩ for rated accuracy
Overrange	101% of source range 102% of measure range

HIGH-CAPACITANCE MODE^{20, 21, 22}

Accuracy specifications	Accuracy specifications are applicable in both normal and high-capacitance modes.
Voltage source output settling time	Time required to reach within 0.1% of final value after source level command is processed on a fixed range. Current limit = 1 A
	Voltage range	Settling time with C_LOAD = 4.7 µF
	200 mV	< 600 µs
	2 V	< 600 µs
	20 V	< 1.5 ms
	200 V	< 20 ms
Current measure settling time	Time required to reach within 0.1% of final value after source level command is processed on a fixed range Values below for V_OUT = 2 V unless noted
	Current range	Settling time
	1.5 A and 1A	< 120 µs (R_LOAD > 6 Ω)
	100 mA and 10 mA	< 100 µs
	1 mA	< 3 ms
	100 µA	< 3 ms
	10 µA	< 230 ms
	1 µA	< 230 ms
Capacitor leakage performance using HIGH-C scripts²³	200 ms at 50 nA Load = 5 µF in parallel with 10 MΩ Test: 5 V step and measure
Mode change delay	Current ranges of 100 µA and above: 11 ms delay for both in and out of high-capacitance mode Current ranges below 100 µA: 250 ms delay into high-capacitance mode 11 ms delay out of high-capacitance mode
Voltmeter input impedance	30 GΩ in parallel with 3300 pF
Noise 10 Hz to 20 MHz	< 30 mV peak to peak 20 V range
Range change overshoot	Voltage: < 400 mV + 0.1% of larger range For 20 V range and below Overshoot into a 200 kΩ load, 20 MHz bandwidth

²⁰ High-Capacitance Mode specifications are for dc measurements only.
²¹ 100 nA range is not available in High-Capacitance Mode.
²² High-Capacitance Mode uses locked ranges. Autorange is disabled.
²³ Part of KI Factory scripts. See the Series 2600B Reference Manual for details.

MEASUREMENT SPEED CHARACTERISTICS^{24, 25, 26}

Maximum sweep operation rates (operations per second) for 60 Hz (50 Hz):

A/D converter speed	Trigger origin	Measure to memory (using user scripts)	Measure to GPIB (using user scripts)	Source measure to memory (using user scripts)	Source measure to GPIB (using user scripts)	Source measure to memory (using sweep API)	Source measure to GPIB (using sweep API)
0.001 NPLC	Internal	20000 (20000)	9800 (9800)	7000 (7000)	6200 (6200)	12000 (12000)	5900 (5900)
0.001 NPLC	Digital I/O	8100 (8100)	7100 (7100)	5500 (5500)	5100 (5100)	11200 (11200)	5700 (5700)
0.01 NPLC	Internal	4900 (4000)	3900 (3400)	3400 (3000)	3200 (2900)	4200 (3700)	4000 (3500)
0.01 NPLC	Digital I/O	3500 (3100)	3400 (3000)	3000 (2700)	2900 (2600)	4150 (3650)	3800 (3400)
0.1 NPLC	Internal	580 (480)	560 (470)	550 (465)	550 (460)	560 (470)	545 (460)
0.1 NPLC	Digital I/O	550 (460)	550 (460)	540 (450)	540 (450)	560 (470)	545 (460)
1.0 NPLC	Internal	59 (49)	59 (49)	59 (49)	59 (49)	59 (49)	59 (49)
1.0 NPLC	Digital I/O	59 (49)	59 (49)	59 (49)	59 (49)	59 (49)	59 (49)

Maximum single measurement rates (operations per second) for 60 Hz (50 Hz):

A/D converter speed	Trigger origin	Measure to GPIB	Source measure to GPIB	Source measure pass/fail to GPIB
0.001 NPLC	Internal	1900 (1800)	1400 (1400)	1400 (1400)
0.01 NPLC	Internal	1450 (1400)	1200 (1200)	1100 (1100)
0.1 NPLC	Internal	450 (390)	425 (370)	425 (375)
1.0 NPLC	Internal	58 (48)	57 (48)	57 (48)

Maximum measurement range change rate	> 7000 per second for > 10 µA. When changing to or from a range ≥ 1 A, maximum rate is >> 2200/second.
Maximum source range change rate	> 400 per second > 10 µA. When changing to or from a range ≥ 1 A, maximum rate is >> 190/second.
Maximum source function change rate	> 1000 per second
Command processing time	< 1 ms Maximum time required for the output to begin to change after receiving the smua.source.levelv or smua.source.leveli command.

²⁴ Tests performed with a Model 2636B using the following equipment: Computer hardware (Intel^® Pentium^® 4 2.4 GHz, 2 GB RAM, National Instruments^™ PCI-GPIB); driver (NI-488.2 Version 2.2 PCI-GPIB); software (Microsoft^® Windows^® XP, Microsoft^® Visual Studio^® 2010, VISA^™ version 4.1).
²⁵ Exclude current measurement ranges less than 1 mA.
²⁶ With default measurement delays and filters disabled.

TRIGGERING AND SYNCHRONIZATION CHARACTERISTICS

Triggering

Trigger in to trigger out	0.5 μs
Trigger in to source change²⁷	10 μs
Trigger timer accuracy	±2 μs
Source change after LXI trigger	280 μs

Synchronization

Multi-node synchronized source change²⁷	< 0.5 μs
Single-node synchronized source change²⁷	< 0.5 μs

²⁷ Fixed source range with no polarity change.

SUPPLEMENTAL INFORMATION

Front-panel interface	Two-line vacuum fluorescent display (VFD) with keypad and navigation wheel
Display	Show error messages and user-defined messages Display source and limit settings Show current and voltage measurements View measurements stored in dedicated reading buffers
Keypad operations	Change host interface settings Save and restore instrument setups Load and run factory and user-defined test scripts that prompt for input and send results to the display Store measurements into dedicated reading buffers
Programming	Embedded Test Script Processor (TSP™) accessible from any host interface; responds to high-speed test scripts comprised of remote commands and statements (for example, branching, looping, and math); able to execute test scripts stored in memory without host intervention.
Minimum user memory available	16 MB (approximately 250,000 lines of TSP code)
Reading buffers	Nonvolatile memory uses dedicated storage areas reserved for measurement data. Reading buffers are arrays of measurement elements. Each element can store the following items: Measurement Source setting (at the time the measurement was taken) Measurement status Range information Timestamp Reading buffers can be filled using the front-panel STORE key, and retrieved using the RECALL key or host interface.
Buffer size, with timestamp and source setting	> 60,000 samples
Buffer size, without timestamp and source setting	> 140,000 samples

TIMING

Timer	Free-running 47-bit counter with 1 MHz clock input. Reset each time instrument power is turned on. If the instrument is not turned off, the timer is automatically reset to zero (0) every four years.
Timestamp	TIMER value is automatically saved when each measurement is triggered
Resolution	1 μs
Timestamp accuracy	±100 ppm

GENERAL SPECIFICATIONS

IEEE-488	IEEE Std 488.1 compliant. Supports IEEE Std 488.2 common commands and status model topology
RS-232	Baud rates from 300 bps to 115,200 bps Programmable number of data bits, parity type, and flow control (RTS/CTS hardware or none) When not programmed as the active host interface, the 2634B, 2635B, and 2636B can use the RS 232 interface to control other instruments
Ethernet	RJ-45 connector, LXI version 1.4 Core 2011, 10/100BaseT, Auto-MDIX
LXI compliance	LXI version 1.4 Core 2011
Expansion interface²⁸	The TSP-Link™ expansion interface allows TSP-enabled instruments to trigger and communicate with each other Cable type: Category 5e or higher LAN crossover cable Three meter (9.84 ft) maximum between each TSP-enabled instrument A maximum of 32 TSP-Link nodes can be interconnected Each source-measure instrument uses one TSP-Link node
USB Control (Rear)	USB 2.0 Device: USB-TMC488 protocol
USB File System (Front)	USB 2.0 Host: Mass storage class device
Power supply	100 V ac to 240 V ac, 50 Hz or 60 Hz (autosensing), 240 VA maximum
Cooling	Forced air; side intake and rear exhaust. One side must be unobstructed when rack mounted.
Warranty	1 year
EMC	Conforms to European Union EMC Directive
Safety	NRTL listed to UL61010-1:2008 and CSA C22.2 No. 61010-1 Conforms to European Union Low Voltage Directive
Environment	For indoor use only Altitude: Maximum 2000 m (6562 ft) above sea level Operating: 0 °C to 50 °C, 70% relative humidity up to 35 °C. Derate 3% relative humidity/°C, 35 °C to 50 °C Storage: −25 °C to 65 °C
Dimensions	Rack mount: 89 mm high × 213 mm wide × 460 mm deep (3.5 in. × 8.4 in. × 17.5 in.) Bench configuration (with handle and feet): 104 mm high × 238 mm wide × 460 mm deep (4.1 in. × 9.4 in. × 17.5 in.)
Weight	2635B: 4.75 kg (10.4 lb) 2634B and 2636B: 5.50 kg (12.0 lb)

²⁸ TSP-Link is not available with the Model 2634B.

Digital I/O Interface

Digital I/O interface²⁹
	Connector: 25-pin female D
	Input/output pins: 14 open drain I/O bits
	Absolute maximum input voltage: 5.25 V
	Absolute minimum input voltage: −0.25 V
	Maximum logic low input voltage: 0.7 V, +850 µA maximum
	Minimum logic high input voltage: 2.1 V, +570 µA
	Maximum source current (flowing out of digital I/O bit): +960 µA
	Maximum sink current at maximum logic low voltage (0.7 ): −5.0 mA
	Absolute maximum sink current (flowing into digital I/O pin): −11 mA
	5 V power supply pins: Limited to 250 mA total, solid-state fuse protected
	Safety interlock pin: A signal of > 3.4 V at 24 mA (at an absolute maximum of 6 V) must be externally applied to ensure 200 V operation. Connect the 5 V output and the interlock input of the 25-pin digital I/O connector on the back of the 2634B, 2635B, or 2636B to the switch in your fixture. The output will be disabled when the interlock signal is < 0.45 V. Absolute maximum input is −0.4 V to +6.0 V.

²⁹ The Digital I/O feature is not available with the 2634B. Only +5 V, GND, and INTERLOCK pins are available with the Model 2634B.
