46 GBaud Multi-Format Optical Transmitter

OM5110 Datasheet

Les produits figurant sur cette fiche technique ne sont plus vendus par Tektronix.
Référez-vous à Tektronix Encore pour les équipements de test reconditionnés.
Consultez l'assistance et les informations de garantie pour ces produits.

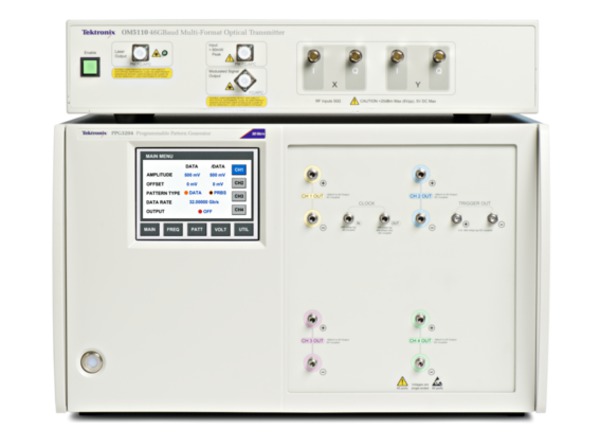

The OM5110 Multi-Format Optical Transmitter is a C-and L-Band transmitter capable of providing the most common coherent optical modulation formats such as PM-QPSK and PM-16QAM up to 46 GBaud. When combined with a signal source, such as the Tektronix AWG70001A Arbitrary Waveform Generator or the Tektronix PPG3204 32 Gb/s Programmable Pattern Generator, the OM5110 offers a complete coherent optical test signal generation system.

Features and benefits
  • Multi-format optical transmitter supports modulation of formats such as BPSK, PM-QPSK, and PM-16QAM

  • Excellent linearity supports modulation of multi-level signals
  • Modulates single or dual-polarization signals
  • Built-in C or L-band lasers for setup convenience
  • Supports external laser sources
  • Supports manual and automatic bias control of amplifiers and modulator
  • Remotely control all setup and operations over Ethernet
  • Testing coherent optical receivers
  • Golden reference coherent optical transmitter
  • Transmitter for multi-carrier superchannel systems

100G / 400G / 1Tb/s Coherent optical test system

The OM5110 Multi-Format Optical Transmitter is a C-and L-Band transmitter capable of modulating the most common coherent optical modulation formats such as PM-QPSK and PM-16QAM up to 46 GBaud. When combined with a signal source, such as the Tektronix AWG70001A Arbitrary Waveform Generator or the Tektronix PPG3204 32 Gb/s Programmable Pattern Generator, the OM5110 offers a complete coherent optical test signal generation system. The flexibility to automatically or manually set all amplifier and modulator bias points provides the user the freedom to simulate less-than-ideal performance of their device.

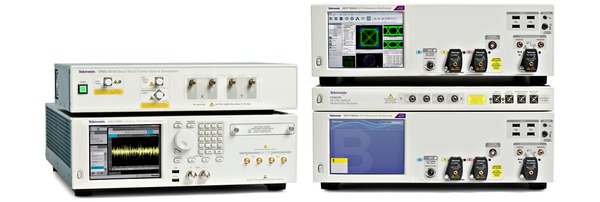

Coherent optical transmitter or transceiver manufacturers can use the OM5110 as a golden reference against which to compare module designs. For transmitters under development, use the Tektronix OM4245 Optical Modulation Analyzer to measure transmitter performance, and then compare the results against the OM5110 reference transmitter.

Coherent optical receiver manufacturers can also use the OM5110 as the ideal transmitter with which to test their receiver’s performance and prove functionality under best-case conditions. Used along with the AWG70001A Arbitrary Waveform Generator, the user can add optical impairments to the signal to test the receiver under a wide range of real-world scenarios.


As the demand for network bandwidth has increased, new transmission schemes such as multi-carrier “superchannels” are under investigation. The OM5110 can function as the heart of a superchannel system. Multiple optical carriers can be externally combined and used as the laser source to the OM5110 using the external signal input. Tektronix offers external laser sources, such as the OM2012 Tuneable Laser Source, which can be used to create a superchannel system. With such a configuration, systems with aggregate data rates such as 400G, 1Tb/s, and beyond, can be created.

The OM5110 offers the convenience of built-in laser sources, either C-band or L-band. Setup and operation of the laser, such as wavelength and optical power, can all be controlled remotely over Ethernet. Alternatively, an external laser source may be connected to the front panel of the instrument in place of the built-in lasers.

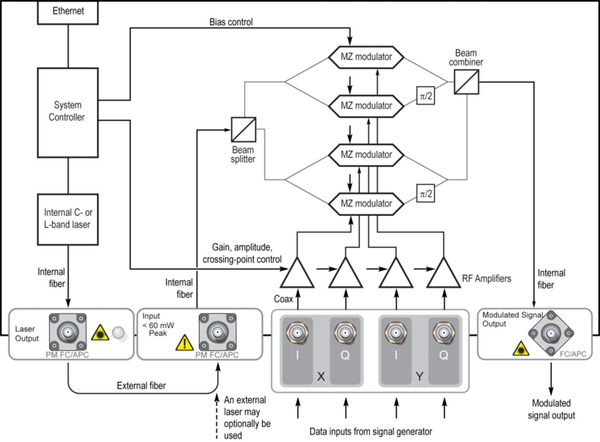

The data from the external signal generator is first amplified by four, high-linearity amplifiers. The bias points for these amplifiers can be monitored and automatically controlled by the included Tektronix control software. The user may also take control of the bias points and set the amplifier bias voltages manually. The high-linearity of these amplifiers makes them ideal for multi-level signals such as 16QAM. For two-level signals, such as QPSK, the amplifiers can be can be driven into saturation so that the modulator drive is less sensitive to input drive level variations due to external rf cable losses.

The output of either the on-board laser, or a customer-supplied external laser is passed through a beam splitter and then fed to each of the four internal Mach-Zehnder modulators. Like the amplifiers, each Mach-Zehnder modulator has bias controls that can be automatically controlled or manually set by the user. The amplified signals feed these four modulators whose outputs are optically combined to create a complex, dual-polarized optical signal available on the front-panel of the instrument.

Coherent optical signal generation system

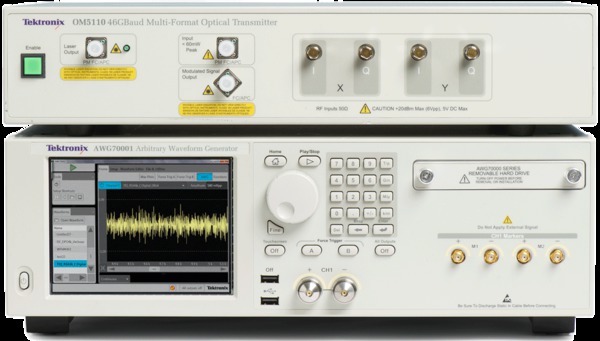

The OM5110 is a key part of a coherent optical signal generation system. The other major component is the signal generator itself. The Tektronix PPG3000 series programmable pattern generators and theTektronix AWG70000 Series Arbitrary Waveform Generators (AWG) offer the flexibility to choose the type of signal generation instrument suited to the test requirements.

The PPG3000 Series can generate patterns up to 32 Gb/s and offers 1, 2, or 4 channels in a single instrument. The patterns may be standard PRBS patterns or user-defined. Using a 4-channel pattern generator makes creating dual-polarization I-Q waveforms very simple.


The AWG70000 Series can reach sampling rates as high as 50 GS/s with 10 bits vertical resolution. Such level of performance allows for the direct generation of IQ basebands signals required by modern coherent optical communication systems. The arbitrary waveform generation capabilities of the AWG70000 Series makes it possible to create multi-level signals such as 16QAM, add impairments to a signal, or to create waveforms that are precompensated for the real-world effects of the test system.


Coherent optical signal generation is one of the more demanding applications for an AWG. The requirements in terms of number of channels sampling rate, bandwidth, record length, and timing and synchronization quality can be only met by the highest performance instruments, such as the Tektronix AWG70000 Series. The unique capability of generating ideal or distorted signals and the ease to add new modulation schemes and signal processing algorithms without the need to add any extra hardware make AWGs an ideal tool for coherent optical communication research and development.



Values stated in the following tables are typical unless stated otherwise.

System characteristics
Maximum symbol rate

46 GBaud: for binary formats such as BPSK, QPSK

34 GBaud: for multi-level formats such as 16QAM

Modulation formats


Higher order formats are possible depending on baud rate and frequency compensation available.

Absolute maximum ratings
Input Optical Power
18 dBm
Input Electrical Signal, AC
6 Vp-p
Input Electrical Signal, DC
Electrical characteristics
3 dB bandwidth relative to 2 GHz
23 GHz
6 dB bandwidth relative to 2 GHz (specification)
> 30 GHz
Modulation percent of 2π at 1 Vp-p, 23 GHz input

> 90%

EVM, 25 GBaud 16QAM
Optical characteristics
External input wavelength range

1526.6 nm to 1609.6 nm

Modulator insertion loss (specification)
< 14 dB
DC extinction ratio
> 20 dB
Optical return loss
> 27 dB
PDL (typical)
< 0.8 dB
Power readout accuracy
± 2 dB
Internal laser optical characteristics
Internal laser wavelength range
1526.6 nm to 1567.5 nm
1567. 5 nm to 1609.6 nm
Output power
> 13 dBm
Minimum grid spacing
10 GHz
Minimum frequency step
100 MHz
Absolute wavelength accuracy
10 pm
Linewidth (short term)
100 kHz
Sidemode suppression ratio
55 dB
Power requirements
Power requirements

100 - 240 VRMS±10%, 50/60 Hz, 100 W

Fuse rating
Slo-Blo 3.15 A, 250 VAC
Physical characteristics
89 mm, 3.5 in.
432 mm, 17 in.
298.5 mm 11.75 in.
7.4 kg, 16.3 lb.
14.6 kg, 32.2 lb.
Environmental characteristics
+10 °C to +35 °C
-20 °C to +60 °C
10% to 85% RH up to +35 °C, noncondensing
10% to 85% RH up to +35 °C, noncondensing

10% to 45% RH up to +60 °C, noncondensing

3000 meters; derate maximum operating temperature by 1 °C per 300 meters above 1500 meters altitude
12,000 meters
Sine: 0.33 mm pk-pk (0.013 inch p-p) constant displacement, 5-55 Hz, 3 axes

Random: 0.24 GRMS, 5-500 Hz, 10 minutes per axis

Random: 2.22 GRMS, 5-500 Hz, 10 minutes per axis
Mechanical shock
Half-sine mechanical shocks, 30g peak amplitude, 11 second duration, 3 drops in each direction of each axis
EMC, environment, and safety
IEC61326, IEC61000-4-2/3/4/5/6/11
CISPR11, Class A, EN 61000-3-2,EN61000-3-3
UL61010-1, CAN/CSA-22.2, No.61010-1, EN61010-1, IEC61010-1, 21

Laser Safety: CFR1040.10 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. IEC60825-1-1

Ordering information

46 GBaud Multi-Format Optical Transmitter
Instrument options
OM5110 options
Opt. C
Built-in C-band laser
Opt. L
Built-in L-band laser
Opt. NL
No built-in lasers. Requires external laser source
Power plug options
Opt. A0
North America power plug (115 V, 60 Hz)
Opt. A1
Universal Euro power plug (220 V, 50 Hz)
Opt. A2
United Kingdom power plug (240 V, 50 Hz)
Opt. A3
Australia power plug (240 V, 50 Hz)
Opt. A5
Switzerland power plug (220 V, 50 Hz)
Opt. A6
Japan power plug (100 V, 50/60 Hz)
Opt. A10
China power plug (50 Hz)
Opt. A11
India power plug (50 Hz)
Opt. A12
Brazil power plug (60 Hz)
User manual options
Opt. L0
English manual
Service options
Opt. C3
Calibration Service 3 Years
Opt. C5
Calibration Service 5 Years
Opt. R3
Repair Service 3 Years (including warranty)
Opt. R5
Repair Service 5 Years (including warranty)
Installation options
On-site OM-series install for the Americas
On-site OM-series install for Japan
On-site OM-series install for Europe, Middle East, and Africa
On-site OM-series install for the Asia Pacific
