PSPL5335 -- 1:4 Amplified 4-Way Splitter, Datasheet

PSPL5335 Datasheet

Tektronix больше не продаёт продукты из этого технического описания.
Посмотреть бывшее в употреблении оборудование для тестирования Tektronix Encore.
Просмотреть информацию о технической поддержке и гарантии для этих продуктов.

PSPL5335 Datasheet

The PSPL5335 Amplified Splitter provides an effective way to distribute a single signal to four ports with no loss in amplitude. The PSPL5335 is not optimized for data transmission, it can be used as a clock splitter or general purpose amplifier. Unused ports can be left unterminated.

Key performance specifications

0 dB nominal insertion loss
Equal distribution to four ports
Single power supply

Typical performance

PSPL5335-Amplified-4-Way-Splitter--547146-10-N

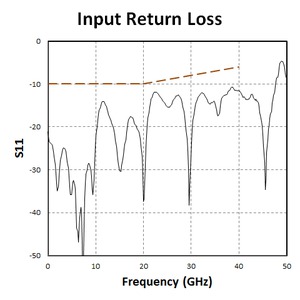

PSPL5335-Amplified-4-Way-Splitter--547146-11-N

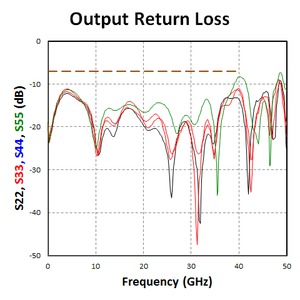

PSPL5335-Amplified-4-Way-Splitter--547146-12-N

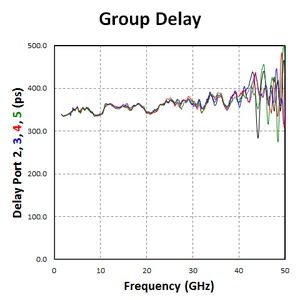

PSPL5335-Amplified-4-Way-Splitter--547146-13-N

Specifications

Electrical specifications
Parameter	Performance
Polarity	Inverting
Input / output coupling	AC
Input / output impedance	50 Ω
Bandwidth (-3 dB)	100 MHz to 35 GHz ¹
Insertion loss	0 dB
Input return loss 40 MHz 20 GHz	-10 dB ¹ -6 dB ¹
Output return loss 40 MHz	-7 dB ¹
Group delay	350 ps
Output power at 1 dB gain compression	+4 dBm
Warranty	One year

Operating specifications
Parameter	Units	Minimum	Typical	Maximum	Comments
DC supply voltage	V_DC	4.75		5.5
DC supply current	I_DC		400	600	Damage threshold ²
Maximum allowed input	V_amp			2	Damage threshold
Power dissipation	W		2	3.3
Operating temperature	°C		25

Mechanical dimensions

PSPL5335-Amplified-4-Way-Splitter--547146-14-N

¹ Tested in production at 25 °C.

² Tektronix recommends setting a current limit on the DC supply. Certain operating conditions (such as driving with low duty cycle negative-going pulses) can increase the supply current and cause the device to overheat.

Ordering information

Models

PSPL5335: Port 1 (input), 2.92 mm jack (f), Ports 2 - 5 (outputs), 2.92 mm jack (f)
