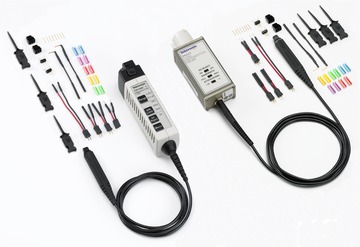

1 GHz and 500 MHz High Voltage Differential Probes
TDP1000, TDP0500, P6251 Datasheet TDP1000, TDP0500, P6251 Datasheet
Дополнительные сведения
- Высоковольтные дифференциальные пробники
- Поддержка приборов
- Explore more Software models
Читать на веб-сайте:
Key performance specifications
- 1 GHz and 500 MHz probe bandwidth
- <1 pF differential input capacitance
- 1 MΩ differential input resistance
- ±42 v (DC + pk AC) differential input voltage
- >18 dB CMRR (at 250 MHz 50X attenuation)
Key features
- Outstanding electrical performance
- Selectable bandwidth-limiting filters
- DC reject
- Versatile DUT connectivity
- Small compact probe head for probing small geometry circuit elements
- Straight pin, square pin, solder down, variable pitch standard accessories
- Robust design for reliability
- Easy to use
- Provides automatic units scaling and readout on the oscilloscope display
- TDP1000, TDP0500
- Connect directly to oscilloscopes with the TekVPI™ probe interface
- Easy access to scope-displayed probe menu for probe setup control and operating status information
- Remote GPIB/USB probe control through the oscilloscope
- AutoZero – zeros out output offset
- P6251
- Connect directly to the TekProbe™ interface oscilloscopes, or to TekConnect® oscilloscopes using TCA-BNC adapter
Applications
- High-speed switch mode power supply design
- CAN/LIN bus design
- Digital design and characterization
- Manufacturing engineering test
- Research and development
High-voltage differential probes
The TDP1000, TDP0500, and P6251 High-voltage Differential Probes are specifically designed for use with and direct connection to Tektronix oscilloscopes with either the TekVPI™ probe interface, or TekProbe BNC Interface. These probes achieve high-speed signal acquisition and measurement fidelity by solving three traditional measurement challenges:
- Outstanding Electrical Performance
- Versatile Device-Under-Test Connectivity
- Ease of Use
Specifications
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
Warranted characteristics
- Bandwidth (probe only)
- TDP1000, P6251
- 1 GHz
- TDP0500
- 500 MHz
- Attenuation
- 5X, 50X
- Differential mode input voltage
- ±42 v (DC + pk AC); 30 Vrms
- Rise time (probe only)
- TDP1000, P6251
- ≤350 ps
- TDP0500
- <700 ps
- CMRR
- >55 dB at 30 kHz
- >50 dB at 1 MHz
- >18 dB at 250 MHz (warranted at 50X attenuation)
- Maximum input voltage (nondestruct)
- ±100 V (DC + pk AC)
- Gain accuracy at DC
- ±5%
Typical characteristics
- Differential input capacitance
- ≤1 pF
- Differential input resistance
- 1 MΩ
- Sensitivity/noise level
- 5X attenuation
- 2 mVrms
10 mVrms (referred to the probe output)
- 50X attenuation
- 1 mVrms
50 mVrms (referred to the probe output)
- Propogation delay
- 6.5 ns
- Common mode input voltage
- ±35 v (DC + pk AC); 25 Vrms
- Differential input offset range
- TDP1000, TDP0500
- ±42 V (5X or 50X attenuation)
- P6251
- ±4.25 V (5X attenuation)
±42 V (50X attenuation)
- DC reject
- 5X attenuation
- 0.4 Hz
- 50X attenuation
- 4 Hz
Nominal characteristics
- Selectable bandwidth filter limits
- TDP1000, TDP0500
- 100 Hz, 10 kHz, 1 MHz, Full
- P6251
- 5 MHz, Full
- Oscilloscope interface recommendations
- TDP1000, TDP0500
- TekVPI™ Probe
- When using MSO/DPO2000/B series, the TekVPI Power supply (Tektronix part number, 119-7465-xx) and power cable is needed.
- P6251
- TekProbe BNC Level II
TekConnect® (TCA-BNC required)
Power requirements
- TDP1000, TDP0500
- Powered directly by oscilloscopes with the TekVPI interface
- P6251
- Powered directly by the TekProbe-BNC interface, eliminating the need for additional power supplies and cables when used with TekProbe-BNC oscilloscopes.
- May also be powered through the 1103 TEKPROBE power supply for use with non-TekProbe interface instrumentation.
Physical characteristics
- Compensation box dimensions
Dimension TDP1000, TDP0500 P6251 in cm in cm Height 1.6 4.1 1.0 2.6 Width 1.2 3.05 1.6 4.1 Length 4.2 10.7 3.2 8.13 Cable length 47.2 (inches), 1.2 (meters)
- Weight
TDP1000, TDP0500 P6251 lb kg lb kg 0.320 0.146 0.360 0.163
Ordering information
Models
- TDP1000
- 1 GHz high-voltage differential probe with TekVPI interface.
- TDP0500
- 500 MHz high-voltage differential probe with TekVPI interface.
- P6251
- 1 GHz High-voltage Differential Probe with TekProbe-BNC Level II Interface.
Options
Language options
- Opt. L5
- Japanese manual
- Opt. L7
- Simplified Chinese manual
Service options
- Opt. C3
- Calibration Service 3 Years
- Opt. C5
- Calibration Service 5 Years
- Opt. R3
- Repair Service 3 Years (including warranty)
- Opt. R5
- Repair Service 5 Years (including warranty)
- Opt. SILV600
- Standard warranty extended to 5 years
- Opt. SILV900
- Standard warranty extended to 5 years
Additional service products for the TDP0500 or TDP1000
- TDP0500-R3DW / TDP1000-R3DW
- Repair service coverage 3 years (includes product warranty period) 3-year period starts at time of customer instrument purchase
- TDP0500-R5DW / TDP1000-R5DW
- Repair service coverage 5 years (includes product warranty period) 5-year period starts at time of customer instrument purchase
Accessories
Standard accessories
Description | Quantity included with product | Reorder part number (qty in reorder) |
---|---|---|
Y-lead set | 2 each | 196-3434-xx (1) |
Solder-down lead set, 1 inch | 1 each | 196-3504-xx (1) |
Solder-down lead set, 3 inch | 1 each | 196-3505-xx (1) |
Micro CKT test tip | 3 each | 206-0569-xx (1) |
Tip savers | 2 each | 016-1781-xx (2) |
Longhorn adapters | 2 each | 016-1780-xx (5) |
Straight-pin probe tips | 8 each | 016-1891-xx (8) |
3-inch ground leads | 2 each | 196-3437-10 (2) |
Color-coding bands | 2 each of 5 colors | 016-1315-xx (2 each of 5 colors) |
Nylon carrying case | 1 each | 016-1952-xx (1) |
Standard warranty
Recommended accessories
Description | Part number | Quantity |
---|---|---|
BNC to probe tip adapter | 067-1734-xx | 1 each |
Spring loaded grounds | 016-1782-xx | 1 package of 6 |
Twin foot adapter | 016-1785-xx | 1 package of 4 |
Twin tip adapter | 016-1786-xx | 1 package of 4 |
IC micro grabber | SMK4 | 1 package of 4 |
TEKPROBE probe power supply | 1103 | 1 each |
