TriMode™ Probe Family

P7700 Series TriMode Probes Datasheet

온라인으로 읽기:

The P7700TDP7700 Series TriMode probes provide the highest probe fidelity available for real-time oscilloscopes. In addition, with connectivity innovations such as solder down tips with the probe’s input buffer mounted only a few millimeters from the end of the tip, the P7700TDP7700 series probes provide unmatched usability for connecting to today’s most challenging electronic designs.

Key features

  • High bandwidth for signal fidelity
    • 20 GHz P7720
    • 16 GHz P7716
    • 13 GHz P7713
    • 8 GHz P7708
    • 10 GHz TDP7710
    • 8 GHz TDP7708
    • 6 GHz TDP7706
    • 4 GHz TDP7704
  • Minimal device impact
    • Thin and flexible solder tips
    • Lightweight and flexible probe cable
    • Active buffer tip design for low probe loading
  • Easy to connect TekFlex™ Connector technology
    • Pinch-to-Open accessory connector
    • Versatile Connectivity - solder down tips, optional browser for handheld or fixtured probing, and coaxial input (SMA adapter)
    • Cross compatibility with P7700 series tip accessories
    • Full Bandwidth to 20 GHz
    • Full Bandwidth to 10 GHz
    • Probe cable and solder down tips operate over an extended temperature range
  • Probe and tip specific S-parameters
    • Full AC calibration of the probe and tip's signal path based upon unique s-parameter models
    • Unique DSP filters created for each probe and tip
  • TekConnectFlexChannel® interface for oscilloscope/probe control and usability
    • Direct control via probe buttons or from the oscilloscope's menus
    • Automated control of probe settings via the oscilloscope
    • Automatic recognition of the probe and tip when attached to the oscilloscope

Applications

  • DDR/LPDDR memory verification
  • High speed serial bus debugging
  • MIPI D-PHY/C-PHY/M-PHY conformance tests
  • HDMI and DisplayPort compliance tests

P7700TDP7700 Series TriMode Probes

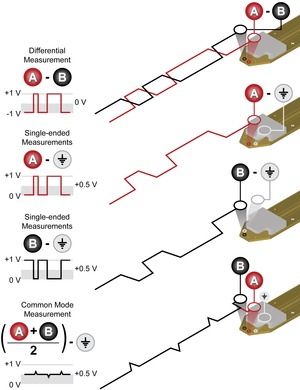

With TriMode probing one probe setup makes differential, single ended, and common mode measurements accurately. This unique capability allows you to work more effectively and efficiently, switching between differential, single ended and common mode measurements without moving the probe's connection points.

P7700 25Feb2022

TekFlex connector technology

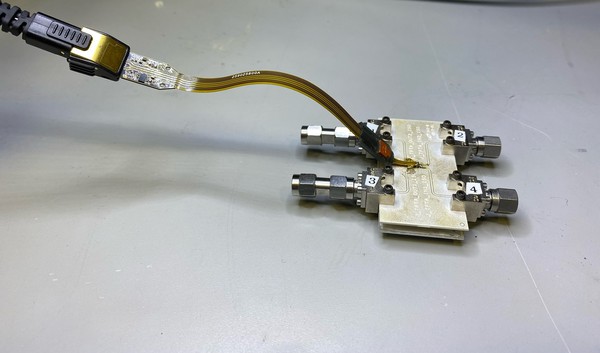

The P7700TDP7700 Series TriMode probes use the new TekFlex connector technology that combines a high speed signal path with power and communication support for an active buffer tip in a single, easy to connect accessory connector. The TekFlex connector has a pinch-to-open design that when open requires minimal force to attach an accessory tip. When the TekFlex connector is closed, it provides a secure connection to the accessory to avoid accidental disconnections.

With the TekFlex connector, the P7700TDP7700 series probes offer a set of active probe tips with the probe's buffer amplifier only millimeters from the input connections. The short signal path enabled with the active tips provides high fidelity and a high impedance input. It also minimizes signal loss, capacitance, and additive noise.

P7700 25Feb2022
P77STFLXA solder down, flex-circuit accessory with an active buffer amplifier on its tip.

P7700 25Feb2022

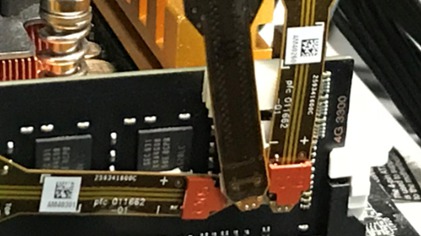

P77STFLXB solder down, flex-circuit accessory provides a probing solution for DDR4 and LPDDR4 electrical validation when used with Nexus XH Series Interposers.
P7700 25Feb2022

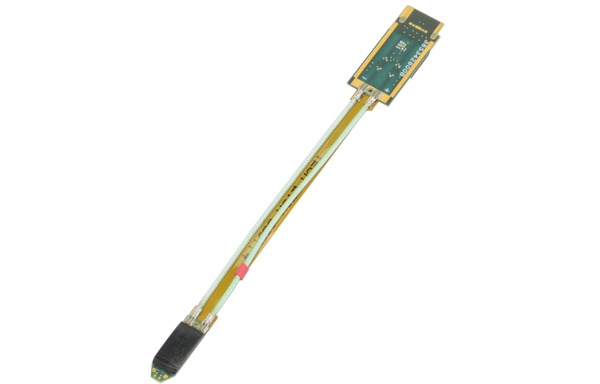

P77STCABL solder down accessory with a long reach, flexible cable combined with an active buffer amplifier on the tip.
P7700 25Feb2022
P77STFLRB Solder down, flex-circuit accessory provides improved signal access and mechanical strain relief for DDR and LPDDR electrical validation with Nexus XH interposers

Browser accessory for handheld probing

When you need to make a quick measurement or debug a problem, the P7700TDP7700 series browser accessory provides a simple to use option. With precision engineered tips that are easy to see and position accurately, the P77BRWSRPTD77BRWSR handheld browser accessory enables hand or fixtured probing and is ideal for probing fine pitch components and differential traces with spacing as narrow as 0.2 mm (.008 in).

P7700 25Feb2022
P77BRWSRPTD77BRWSR handheld browser accessory enables hand or fixtured probing with adjustable tip spacing. Up to 16 GHz8 GHz bandwidth.

The browser's tips have a full range of compliance and are adjustable in spacing using a convenient thumb wheel. A headlight on the tip enhances visibility of the probe point and can be switched on and off as needed. The browser tips are constructed of high strength BeCu and super-ceramic resistors 1. With 16 GHz bandwidth performance, theTheP77BRWSRPTD77BRWSR handheld browser accessory enables hand or fixtured probing with signal fidelity and convenience.

P7700 25Feb2022

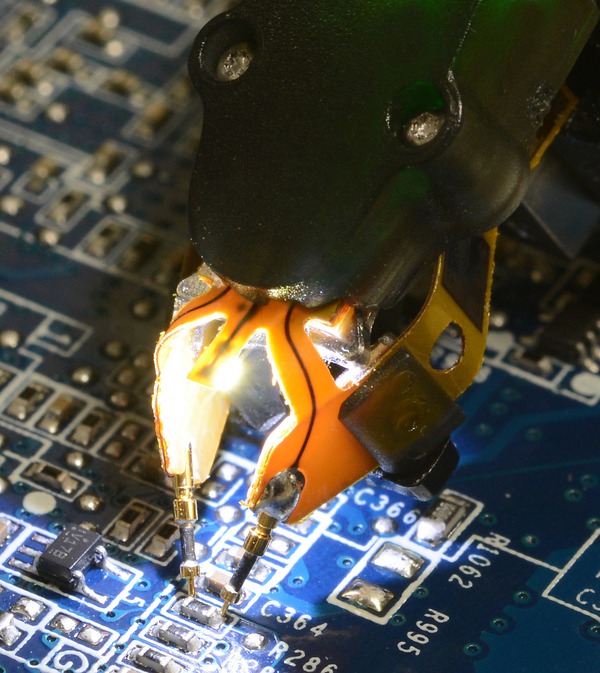

Headlight on P77BRWSRPTD77BRWSR handheld browser accessory enables hand or fixtured probing and enhances visibility of the probe point

Coaxial input (SMA) adapter

RF/coaxial connectors, such as SMA, are often found on test fixtures or on prototype board designs. Attaching a P7700TDP7700 series probe to these on-board connectors is easy with the SMA adapter. The P77C292MM adapter allows you to connect to 2.92 mm, 3.5 mm or SMA connectors with full bandwidth and low noise. The P77C292MM adapter includes TriMode functionality enabling differential, single ended, and common mode measurements.

For compliance testing of the HDMI and DisplayPort standards, the P77C292MM and P7700TDP7700 series probes are fully supported in Tektronix automated measurement suites for these standards. With the P77C292MM adapter attached, a P7700TDP7700 series probe can provide the DC termination voltage required by HDMI and other high-speed communication standards. The termination voltage can be set manually or automatically using voltage sense circuitry in the P7700TDP7700 probe and covers a range of ±4 V±2.5 V.

P7700 25Feb2022
P77C292MM SMA/2.92mm adapter for connecting to coaxial connectors

Automatic probe and tip identification and AC calibration

The P7700TDP7700 Series probes automatically identify the accessory connected to the probe. When the probe and tip are attached to an oscilloscope, they are recognized and a unique DSP filter providing a calibrated response is enabled. All calibration and filter calculation is based upon a unique set of s-parameters stored in the probe and tip.

These unique filters also de-embed probe parasitics from the measurement. Creating probe and tip specific filters is critical as bandwidths increase. At high bandwidth, small variations in the signal path can lead to significant variation in frequency response which cannot be corrected using a nominal DSP filter.

The P77BRWSRTDP77BRWSR accessory extends the calibration further. As the spacing of the browser's tips is adjusted, the change in opening is automatically recognized by the probe and oscilloscope. Using the value of the tip spacing, a width specific DSP filter is used to calibrate the probe's response.

The automatic recognition of the probe and tips and the automatic filter selection eliminates the risk of manually selecting the wrong filter and improves your efficiency.

Signal fidelity

You can be confident in the signal fidelity of your measurements. The innovative new probe design uses SiGe technology to provide the bandwidth and fidelity needed today and in the future.

The P7700TDP7700 Series probe architecture provides:

  • An active buffer amplifier on the tips with the solder-in tips' probe input only 3.2 mm from the input
  • Excellent step response and low insertion loss up to 20 GHz20 GHz
  • Low-DUT loading with 100 kΩ (DC) and 0.4 pF (AC) performance
  • High CMRR
  • Low noise

P7700 25Feb2022

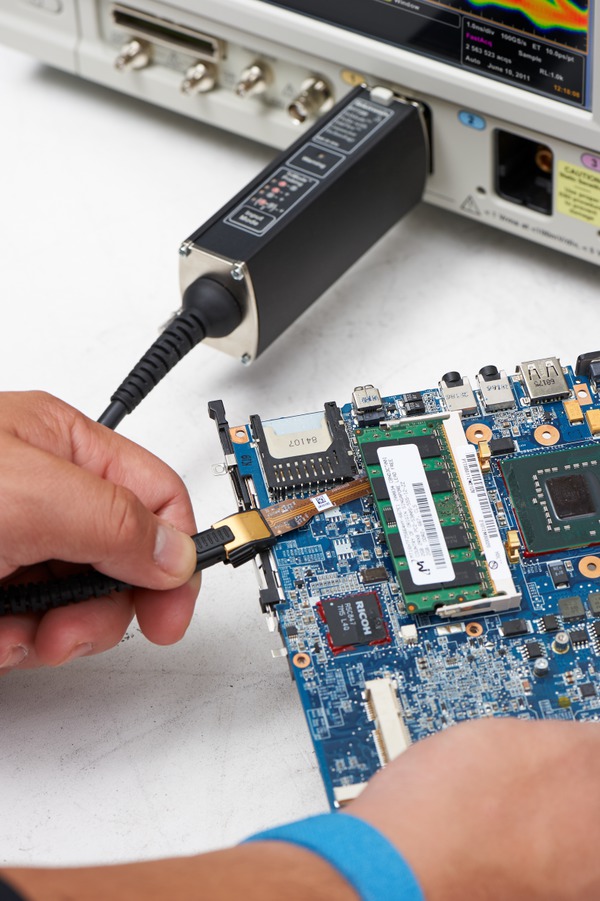

Performance you can count on

Depend upon Tektronix to provide you with performance you can count on. In addition to industry leading service and support, these probes are backed by a one year warranty.

Specifications

Specifications are typicalguaranteed unless noted otherwise.

All specifications apply to all models unless noted otherwise.

P7700 Series TriMode probe models

P7720 P7716 P7713 P7708
P77STFLXA

P77STCABL

P77C292MM

P77STFLXB

P77STLRCB

P77BRWSR

P77STFLRB

P77HTFLRB

P77STFLXA

P77STCABL

P77C292MM

P77BRWSR

P77STFLRB

P77HTFLRB

P77STFLXB

P77STLRCB

P77STFLXA

P77STFLXB

P77STCABL

P77C292MM

P77BRWSR

P77STLRCB

P77STFLRB

P77HTFLRB

P77STFLXA

P77STFLXB

P77STCABL

P77C292MM

P77BRWSR

P77STLRCB

P77STFLRB

P77HTFLRB

Bandwidth (typical) 20 GHz 215 GHz 16 GHz 16 GHz 15 GHz 13 GHz 8 GHz
Rise time (10-90%) 27 ps 336 ps 32 ps 32 ps 36 ps 40 ps 55 ps
Rise time (20-80%) 18 ps 24 ps 24 ps 24 ps 24 ps 28 ps 35 ps

Electrical characteristics

Attenuation
Solder-in tips
4x
Browser
10x
Coaxial input (SMA) adapter
0.7x/1.3x/2.7x/5x/10x
Input range, typical
Solder-in tips
Single-ended Differential
2.5 Vpp 5.0 Vpp
Browser
Single-ended Differential
6.0 Vpp 12.0 Vpp
SMA adapter
Single-ended Differential
1.2 Vpp 2.0 Vpp
Operating voltage window, typical
Solder-in tips
±5.25 V
Browser
±10 V
SMA adapter
±4 V
Offset voltage range, typical
Solder-in tips
-4 V to +4 V
Browser
-10 V to +10 V
SMA adapter
-4 V to +4 V
SMA adapter termination voltage range
-4 V to +4 V
DC gain accuracy, typical
±2.0%
DC input resistance, differential typical
Tips/Adapters Differential
P77C292MM

100 Ω

P77STFLXA, P77STCABL

100 kΩ

P77BRWSR

144 kΩ ± 20%

Solder-in tips
100 kΩ
Browser
150 kΩ
SMA adapter
100 Ω
NoiseSystem noise, 10 mvV/div, probe with P77STCABL tip
System Noise
ProbeA, B modeC modeD mode
TDP7710<4.65 mV RMS<4.65 mV RMS<4.65 mV RMS
TDP7708<4.65 mV RMS<4.65 mV RMS<4.65 mV RMS
TDP7706<4.1 mV RMS<4.1 mV RMS<4.1 mV RMS
TDP7704<4.1 mV RMS<4.1 mV RMS<4.1 mV RMS
System Noise, typical
ProbeA, B modeC modeD mode
TDP7710<3.6 mV RMS<2.8 mV RMS<3.9 mV RMS
TDP7708<3.3 mV RMS<2.6 mV RMS<3.8 mV RMS
TDP7706<3.0 mV RMS<2.5 mV RMS<3.7 mV RMS
TDP7704<2.7 mV RMS< 2.3 mV RMS<3.2 mV RMS
P77STFLXA, P77STFLXB, P77STCABL, and P77STLRCB tips
< 32 nV/rt-Hz
P77STFLRB and P77HTFLRB
< 35 nV/rt-Hz
Browser
< 80 nV/rt-Hz
SMA adapter
< 11 nV/rt-Hz
Low frequency input capacitance (differential, typical)
P77STFLXA, P77STFLXB, P77STCABL, and P77STLRCB tips
0.4 pF
P77STFLRB and P77HTFLRB
0.7 pF
Browser

0.23 pF @ 50 mil spacing

0.22 pF @ 200 mil spacing

CMRR/DMRR, typical
Frequency rangeMin. CMRR/DMRR
≤ 50 MHz34 dB
> 50 MHz, ≤ 800 MHz24 dB
> 800 MHz, ≤ 4 GHz14 dB
> 4 GHz, ≤ 10 GHz10 dB
CMRR, typical
DC
34 dB
50 MHz
34 dB
1 GHz
24 dB
10 GHz
14 dB
20 GHz
10 dB
Non-destructive input range, typical
Solder-in tips, Browser
-15 V to +15 V
SMA adapter
-5 V to +5 V

Nominal characteristics

Oscilloscope interface
Tekconnect ® TekVPI ®
Oscilloscope interface
Tekconnect ® FlexChannel
Accessory connector
TekFlex
Cable length
1.3 m (4.3 feet) 1.21 m (4.0 feet)
Weight
Probe cable and head
3.5 oz
Probe (comp box, cable, head)
9.6 oz

Temperature

Temperature range
Compensation box and browser
Operating: 0 °C to +45 °C (32 °F to 113 °F)Operating: 0 °C to +50 °C (32 °F to 122 °F)

Non-Operating: -20 °C to +60 °C (-4 °F to 140 °F)

P77STFLXA, P77STFLXB, P77STCABL, and P77STLRCB tips

Operating: -35 °C to 85 °C (-31 °F to 185 °F)

Non-Operating: -35 °C to 85 °C (-31 °F to 185 °F)

Cable, P77STFLXA, P77STFLXB, P77STCABL, P77STLRCB,and P77STFLRB tips

Operating: -40 °C to 105 °C (-40 °F to 221 °F)

Non-Operating: -40 °C to 105 °C (-40 °F to 221 °F)

P77HTFLRB

Operating: -40 °C to 125 °C (-40 °F to 257 °F)

Non-Operating: -40 °C to 125 °C (-40 °F to 257 °F)

SMA adapter

Operating: -35 °C to 85 °C (-31 °F to 185 °F)

Non-Operating: -35 °C to 85 °C (-31 °F to 185 °F)

Compatibility

Compatible oscilloscopes

The P7700 series probes are compatible with the following oscilloscopes running Microsoft Windows 7 and Tekscope firmware version 10.6 or higher:

DPO70000C series

DSA70000C series

MSO70000C series

DPO70000D series

DSA70000D series

DPO70000DX series

MSO70000DX series

MSO70000SX series

The TDP7700 series probes are compatible with the following oscilloscopes:

MSO6 series

Ordering information

P7700 Series TriMode Probes

P7720
20 GHz TriMode probe with TekFlex connector technology
P7716
16 GHz TriMode probe with TekFlex connector technology
P7713
13 GHz TriMode probe with TekFlex connector technology
P7708
8 GHz TriMode probe with TekFlex connector technology

Standard accessories

All probes include the following items: Accessory kit, Manual, Two solder-in tips, Magnetic cable holder for strain relief, Certificate of traceable calibration, Calibration data report, One-year warranty

Below is the list of standard accessories:

Component descriptionPart numberQuantity per assembly
Strap, Wrist; Adjustable, 6 Ft coiled cord0063415051
Cable Assembly, RF (BNC to BNC, 50 Ω)012020800
Marker Band set; Probe identification, 2 each of 5 colors016194800
Wire, Elect; Solid, 38 AWG, on Spool017010300
Adhesive tape; Double sided, 4 Inch * 0.5 Inch Strips, Quantity 4020316700
Kit, Accessory; Set of 3 P77AFLXST SIA tips020319200
Case, Soft assembly, Case; Probe with inserts 024361601
Bar, Cable mount magnetic121100300
Magnetic cable band, 270 ID129185700
Magnetic cable band, 450 ID129186700
Case, Accessory wooden case with foam insert202054500
Label, Spine P7713 soft case335355800
Downloadable to CD
Accessory reorder and content sheet0707386001
User manual, Tech manual; SMPLP; Tektronix Supplemental information sheet for the People's republic of china; China ROHS071217907
Tech manual; User manual, P7700 Series071342103
Card; P7700 Probe Firmware update instructions071351001
Errata sheet; ROHS2 Read this first for converted products071353600

Service options

Opt. C3
Calibration Service 3 Years
Opt. C5
Calibration Service 5 Years
Opt. D3
Calibration Data Report 3 Years (with Opt. C3)
Opt. D5
Calibration Data Report 5 Years (with Opt. C5)
Opt. G3
Complete Care 3 Years (includes loaner, scheduled calibration, and more)
Opt. G5
Complete Care 5 Years (includes loaner, scheduled calibration, and more)
Opt. R3
Repair Service 3 Years (including warranty)
Opt. R3DW

Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase

Opt. R5
Repair Service 5 Years (including warranty)
Opt. R5DW

Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase

Probe bandwidth upgrades

As the frequencies of your test signals increase, the performance of your probes can increase too. The bandwidth of the P7700 series probes is fully upgradeable. For example, if you purchase an 8 GHz probe today, you can upgrade it to a higher bandwidth, up to 20 GHz, in the future at a fraction of the cost of purchasing a new probe.

As the frequencies of your test signals increase, the performance of your probes can increase too. The bandwidth of the TDP7700 series probes is fully upgradeable. For example, if you purchase an 4 GHz probe today, you can upgrade it to a higher bandwidth, up to 8 GHz, in the future at a fraction of the cost of purchasing a new probe.

Bandwidth upgrade Model number Description/specification
8 GHZ to 13 GHz P77BW8T13 P7708 (8 GHz) to P7713 (13 GHz) probe upgrade
8 GHZ to 16 GHz P77BW8T16 P7708 (8 GHz) to P7716 (16 GHz) probe upgrade
13 GHz to 16 GHz P77BW13T16P7713 (13 GHz) to P7716 (16 GHz) probe upgrade
8 GHz to 20 GHz P77BW8T20 P7713 (13 GHz) to P7720 (20 GHz) probe upgrade
13 GHz to 20 GHz P77BW13T20 P7713 (13 GHz) to P7720 (20 GHz) probe upgrade
16 GHz to 20 GHz P77BW16T20 P7716 (16 GHz) to P7720 (20 GHz) probe upgrade
Bandwidth upgradeModel number Description/specification
4 GHZ to 6 GHz TDP77BW4T6 TDP7704 (4 GHz) to TDP7706 (6 GHz) probe upgrade
4 GHZ to 8 GHz TDP77BW4T8TDP7704 (4 GHz) to TDP7708 (8 GHz) probe upgrade
6 GHZ to 8 GHz TDP77BW6T8TDP7706 (6 GHz) to TDP7708 (8 GHz) probe upgrade

The upgrade of the probe bandwidth is performed in a Tektronix service center.

Recommended accessories

P77STFLXA
Active, solder-in tip with TekFlex connector technology, 20 GHz (5 tips/kit) 4
P77STFLXB
Active, 75 Ω solder-in tip with TekFlex connector technology for DDR4/LPDDR4 electrical validation, 15 GHz (5 tips/kit) 5
P77STCABL
Active, coaxial cable based, solder-in tip with TekFlex connector technology, 20 GHz
P77STLRCB
Active, coaxial cable based, solder-in tip with TekFlex connector technology for DDR electrical validation, 15 GHz
P77STFLRB
Active, 55 Ω Solder-in tip with TekFlex Connector technology for DDR/LPDDR electrical Validation with interposers, 16 GHz
P77HTFLRB
Active, 55 Ω Solder in tip with TekFlex Connector technology for High-temperature DDR/LPDDR electrical Validation with interposers (up to 125 ºC), 16 GHz
P77BRWSR
Browser accessory with TekFlex connector technology, 16 GHz
TDP77BRWSR
Browser accessory with TekFlex connector technology, 16 GHz
P77C292MM
SMA Coaxial adapter with TekFlex connector technology, 20 GHz
090-0103-02
DC probe calibration fixture
P77DESKEW
Deskew fixture 6
407-6019-xx
Probe adapter to attach the browser to the PPM203B articulated arm/positioner

Replacement parts

Tektronix part number Description
P77STFLXA
P7700 25Feb2022
Active, solder-in tip with TekFlex connector technology, 20 GHz (5 tips/kit) 7
P77STFLXB
P7700 25Feb2022

Flex circuit based DDR4/LPDDR4 memory solder in tips. These tips use flex circuit material and provide soldered, multi-point connections. They support full TriMode measurement capabilities and full probe bandwidth, 15 GHz (5 tips/kit).

P77STCABL
P7700 25Feb2022
Active, coaxial cable based, solder-in tip with TekFlex connector technology, 20 GHz
P77STLRCB
P7700 25Feb2022
Active, coaxial cable based, solder-in tip with TekFlex technology for DDR electrical validation with interposers, 15 GHz
P77STFLRB
P7700 25Feb2022
Active, Flex circuit based, solder-in tip with TekFlex technology for DDR electrical validation with interposers
P77HTFLRB
P7700 25Feb2022
Active, Flex circuit based, solder-in tip with TekFlex technology for High-temperature DDR electrical validation with interposers (up to 125 ºC)
TDP77BRWSR
P7700 25Feb2022
Browser accessory with TekFlex connector technology, 16 GHz
P77C292MM
P7700 25Feb2022
SMA Coaxial adapter with TekFlex connector technology, 20 GHz
407-6019-xx
P7700 25Feb2022
Probe adapter to attach the browser to the PPM203B articulated arm/positioner
020-3162-xx
P7700 25Feb2022
Replacement tip for browser accessory
020-3160-xx
P7700 25Feb2022
Browser pen wand
020-3161-xx
P7700 25Feb2022
Browser hands-free tripod
020-3163-xx
P7700 25Feb2022
Browser adapters
121-1003-xx
P7700 25Feb2022
Magnetic cable holder
129-1867-xx
P7700 25Feb2022
Large metal cable band
129-1857-xx
P7700 25Feb2022
Small metal cable band
196-3436-xx
P7700 25Feb2022
Browser ground lead
016-1948-xx
P7700 25Feb2022
Color bands
016-2111-xx
P7700 25Feb2022
Color bands
017-0103-xx
P7700 25Feb2022
38 AWG wire spool
020-3167-xx
P7700 25Feb2022
Double-sided adhesive tape
