QAM400A DTV Monitor Datasheet

QAM400A Datasheet

Die Produkte dieses Datenblatts gehören nicht mehr zum Angebot von Tektronix.
Tektronix Encore nach aufgearbeiteten Testgeräten durchsuchen.
Garantie- und Supportstatus dieser Produkte überprüfen.

QAM400A Datasheet

The QAM400A provides a complete solution for real-time transmission monitoring of MPEG Transport Streams over RF and ASI interfaces. Powerful confidence monitoring capability and deep diagnostic measurements are both combined into a single integrated solution. This enables cable operators to deliver superior QoS levels with reduced operational expenditure. Deployed at key network nodes, the QAM400A provides an intuitive and simplified presentation of video quality and diagnostic information. This supports the delivery of superior Quality of Service (QoS) levels in an increasingly complex broadcast environment. When used together with VQNet™, facility and network-wide views allow engineers to sectionalize network problems.

Features and benefits
  • Comprehensive confidence monitoring at the RF modulated layer with optional QAM Annex A, B, or C interfaces, as well as MER (up to 37 db typical), BER, and Constellation displays. These critical RF measurements provide early indication of signal degradation before any picture impairment is visible to the end customer without additional costly RF test equipment
  • Unique dual-level alarming and seven-day trend information proactively identifies impending problems before they become visible to the viewer
  • FlexVu™ uniquely empowers operations staff with the simplest information necessary to prove their service is delivering above their defined thresholds for superior Quality of Service (QoS)
  • Powerful diagnostic user interface provides intelligent hierarchical views of network information, media, and data, allowing engineers to rapidly identify the root cause of underlying service problems
  • Multilayer, multichannel, remote monitoring and measurement at RF and TS layers to DVB, ATSC, SCTE, DCII, and ISDB-T/Tb standards with content-checking support for both MPEG-2 and H.264/AVC
  • Comprehensive user-defined template monitoring ensures right content at the right place at the right time while content-ratings checking ensures only appropriate content broadcast
  • Simultaneous connection of multiple remote users and Network Management Systems (NMS) provides early visibility of problems to key individuals throughout the organization to support quicker corrective action
  • Embedded architecture designed specifically for continuous 24×7 operation maximizes service assurance, thus minimizing cost of customer complaints and equipment maintenance (disk-free operation)
  • Remote recording allows capture and analysis of stream events for expert offline analysis to diagnose difficult and intermittent problems, requiring no engineer site visits
  • Highly scalable and field-upgradeable monitoring solution to tailor capital expenditure with operational growth
Applications
  • Cable Headend Monitoring
  • IPTV Ingest and Headend Monitoring
  • Edge Network Monitoring
    • ASI to RF
    • IP to RF (Requires both IPM400A and QAM400A units)
    • IP to ASI

Deployed at key network nodes, the QAM400A provides an intuitive and simplified presentation of video quality and diagnostic information to support delivery of superior QoS levels in an increasingly complex broadcast environment.

Verify RF and TS integrity on a QAM channel with the ability to tune to any QAM channel for verification and diagnostics; ideal for monitoring output of headend SEM or Edge QAM devices at the RF combiner, with support for both MPEG-2 and H.264 at either Constant Bit Rate (CBR) or Variable Bit Rate (VBR).

Technical overview

The QAM400A provides a complete solution for real-time transmission monitoring of MPEG Transport Streams over RF and ASI interfaces. Powerful confidence monitoring capability and deep diagnostic measurements are both combined into a single integrated solution. The confidence monitoring capability uniquely simplifies DTV monitoring with the FlexVu™ summary displays, which include video thumbnail and Electronic Program Guide (EPG) views. This empowers operational staff with the simplest information necessary to ensure their service is delivering above their defined thresholds for superior QoS.

The deep diagnostic option provides engineers with intelligent hierarchical views of network information, media, and data to support rapidly identifying the root cause of underlying service problems. This diagnostic monitoring option provides more in-depth analysis of the MPEG Transport Stream including recording capability and a comprehensive range of TS testing including TR 101 290, A/65, A/78, SCTE-142 compliance testing.

The QAM400A provides a single Transport Stream processor platform packaged in a 1 RU rackmount chassis to provide monitoring of a Transport Stream at data rates up to 155 Mb/s 1. The QAM interface allows the QAM400A to receive RF inputs and display key RF monitoring parameters including MER, BER, and Constellation displays before demodulating the signal to provide measurements on the health of the Transport Stream.

The channel polling capability for the QAM400A probe combined with the RF interface allows up to 200 RF channels to be monitored in a repeating cyclic measurement process. Control and configuration of the polling is undertaken using flexible XML scripting. This polling ability makes a single QAM400A probe a broader tool, monitoring large numbers of network points in a time-sampled measurement mode.

The remote user interface provides a highly simplified presentation of video quality and diagnostic information for operations and engineering teams.

For a fully integrated monitoring solution, network management platforms are supported with a full set of APIs to support wider distributed network intelligence. This also includes video walls that can display up to the full transmitted resolution of the video stream for network operation centers.

1 Maximum Transport Stream bit rate is dependent on Transport Stream content and depth of analysis being performed. Depth of stream analysis is handled gracefully if SI/PSIP max content is exceeded to ensure critical measurements continue to be performed.

Flexible and upgradeable

The QAM400A provides a highly scalable and field-upgradeable monitoring solution to tailor capital expenditure with operational growth. The extended confidence monitoring probes can be installed throughout the network and powerful diagnostic capability (Option DIAG) can be added to the key monitoring points where Transport Streams are manipulated.

  • Triggered recording to be captured and rapidly analyzed in greater depth using powerful offline analysis tools such as the Tektronix MPEG Test System Stand-alone Software 1
  • PSI/SI/PSIP/ARIB SI analysis and repetition rate graphing allows broadcasters to determine that the system information is present and correct in the Transport Stream
  • Exception monitoring with simple automated template generation from reference streams. Template testing checks a number of key parameters to ensure that the Transport Stream has been constructed as the broadcaster intended. These parameters include the Transport Stream ID and Network ID, the number of programs in the multiplex, that each program has all of its components (Video, Audio, Data, Teletext, Subtitles), and Conditional Access (CA) status
  • Bit rate testing determines whether PIDs, programs, services, or user-defined groups of PIDs are within user-definable limits to ensure correct multiplex operation. Tektronix-proprietary PID variability test gives indication of PID bit rate variation to assess effects of statistical multiplexing
  • In-depth PCR analysis with graphical results views enable timing and jitter measurements to be made to ensure correct operation of the network
  • Comprehensive service logging enables verification of service level agreements to ensure that contractual obligations are met
  • When used in conjunction with the VQS1000 Video Quality Software application, provides reliable and sophisticated analysis algorithms applied to decoded MPEG-2 or H.264 video to identify stuck, black, macro-blocking, and compression artifacts

1 MTS400 Series MPEG Test System offline software tools are available for use with theMTM400A. These are stand-alone software applications intended to run on the customer’s control PC. Separate data sheet is available.

Measurement functions

QAM400A Extended Confidence Monitor In Standard Configuration
  • MPEG-2, DVB (TR 101 290), ATSC, and ISDB supported
  • TR 101 290 Priority 1, 2, and 3 measurements 1 in accordance with the techniques specified in TR 101 290
  • Supports A/65, A/78, and SCTE-142 compliance testing
  • Continuity count displayed on a per PID or per TS basis
  • PSI/SI/PSIP/ARIB SI analysis and repetition rate graphing. Transport Stream structure view with ability to drill down to examine tables and service contents plus real-time graphical representation of table repetition rates
  • Bit rate measurement in accordance with the methodology specified in TR 101 290 MGB2
  • Packet size detection
  • Comprehensive error logging that context filters with navigation
  • Status of all tests and measurements is available through SNMP MIB with support for SNMP traps 2

1 Except T-STD buffer model analysis.

2 Programmers Guide is available on request with full SNMP MIB and HTTP interface documentation.

Diagnostic monitoring options (Opt. DIAG)
  • Triggered recording with user-definable pre-triggered buffering and up to 160 MB available storage
  • Template testing (for user-defined service plan testing). User-definable tests with scheduled template updating
  • Bit rate testing on a per PID, program, or user-defined groups of PIDs basis
  • In-depth timing analysis with graphical results views of:
    • PCR_OJ (Overall Jitter)
    • PCR_AC (Accuracy)
    • PCR_FO (Frequency Offset)
    • PCR_DR (Drift Rate)
    • PTS Arrival Interval
  • Service logging of user-selected PIDs to record packet rates at user-definable intervals
  • Channel polling allows up to 200 channels to be polled sequentially from either the IP or the RF interface

Remote User Interface (RUI)

The Remote User Interface (RUI) is capable of providing simultaneous measurement results to multiple key resources, supporting improved organizational efficiency and workflow to minimize network downtime. It is also capable of being integrated into wider network management platforms to support wider distributed network intelligence. The confidence monitoring capability uniquely simplifies DTV monitoring with the FlexVu™ summary panels. For diagnostic monitoring a context-sensitive analysis paradigm provides a rich multilayer environment that presents complex information with an intuitive hierarchical approach. The supporting extensive navigation options ensure that you can identify the root cause of error alarms with minimal mouse clicks.

Confidence monitoring
  • FlexVu™ uniquely presents simplified presentation of video quality and diagnostic information, to enable delivery of superior QoS levels in an increasingly complex broadcast environment

QAM400A-DTV-Monitor-Datasheet--067639-9-N

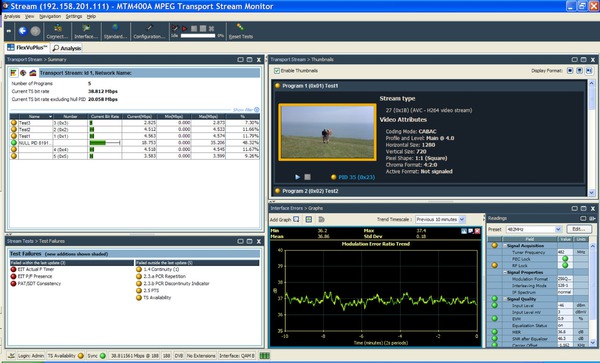

FlexVu™ Configurable window


  • At-a-glance service view with video thumbnails and interactive Electronic Programming Guide (EPG); empowering operations staff with the simplest information to monitor service delivery

QAM400A-DTV-Monitor-Datasheet--067639-10-N

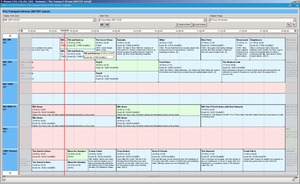

EPG view



QAM400A-DTV-Monitor-Datasheet--067639-11-N

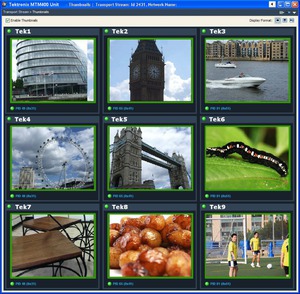

Video thumbnails


  • Comprehensive seven-day trending of IP and RF broadcast streams supports proactive network optimization to minimize downtime

QAM400A-DTV-Monitor-Datasheet--067639-12-N

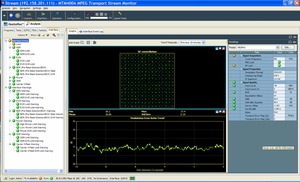

RF Trending QAM interface (with dual alarming)


Diagnostic monitoring
  • Powerful user interface provides intelligent hierarchical views of network information, media, and data allowing engineers to rapidly identify the root cause of underlying service problems
  • Accelerate time-to-insight with context-sensitive navigation and filtered logging to isolate root cause of test failure

Characteristics

Power Consumption (Nominal)
40 VA.
Voltage
100 to 240 V.
Frequency
50/60 Hz.
Monitoring
Maximum Data Rate
155 Mb/s 1

1 Maximum Transport Stream bit rate is dependent on Transport Stream content and depth of analysis being performed. Depth of stream analysis is handled gracefully if SI/PSIP max content is exceeded to ensure critical measurements continue to be performed.

Minimum Data Rate
250 Kb/s.
TR 101 290 tests and measurements
TR 101 290 tests and measurements
1st priority measurements2nd priority measurements3rd priority measurements
1.1 Ts_sync_loss2.1 Transport_error3.1a NIT_actual_error
1.2 Sync_byte_error2.2 CRC_error3.1b NIT_other_error
1.3a PAT_error_22.3a PCR_repetition_error3.2 SI_repetition_error
1.4 Continuity_count_error2.3b PCR_discontinuity_indicator_error3.4a Unreferenced_PID
1.5a PMT_error_22.4 PCR_accuracy_error3.5a SDT_actual_error
1.6 PID_error2.5 PTS_error3.5b SDT_other_error
 2.6 CAT_error3.6a EIT_actual_error
  3.6b EIT_other_error
  3.6c EIT_PF_error
  3.7 RST_error
  3.8 TDT_error
QAM Interface Characteristics (Options QA, QB2, QC)
QAM Interface Characteristics (Options QA, QB2, QC)
CharacteristicQAM Annex AQAM Annex BQAM Annex C
Input Frequency Range51 MHz to 858 MHz, 62.5 kHz steps88 MHz to 858 MHz, 62.5 kHz steps
Modulation Format16QAM, 64QAM, 256QAM compliant with ITU J-83 and DVB-C ETS 300 429 64QAM, 256QAM compliant with ITU J-83  1 SCTE07 Compliant16QAM, 64QAM, 256QAM Compliant with ITU J-83
Modulation Baud Rate5 Mbaud/s min
6.952 Mbaud/s max
5.057 Mbaud/s and 5.360 Mbaud/s5 Mbaud/s min
5.5 Mbaud/s max
Input Signal Level–59 dBm to –19 dBm(50 dBuV to 90 dBuV relative to 75 Ω), with a 16, 64, and 256 QAM input typical–64 dBm to –19 dBm(45 dBuV to 90 dBuV relative to 75 Ω) with a 64 and 256 QAM input typical–59 dBm to –19 dBm(50 dBuV to 90 dBuV relative to 75 Ω), with a 16, 64, and 256 QAM input typical
Ultimate Modulation Error Ratio37 dB typical
Receiver Bandwidth8 MHz nominal6 MHz nominal
Input Termination Impedance75 Ω nominal
Input Return Loss–6 dB min, –10 dB typical, 51 MHz to 858 MHz
Loopthrough Power Gain1.5 dB to 4 dB typical, 51 MHz to 858 MHzN/AN/A
Loopthrough Noise Figure8 dB typicalN/AN/A
Loopthrough Output Return Loss>10 dB typicalN/AN/A

1 Level 1 and Level 2 interleaving support compliant with all ITU J-83 Annex B, excluding I,J = 128,7 and 128,8.

QAM Annex A/C Measurements (Option QA or QC)
RF Lock

RF lock is indicated by a LED on the rear panel and a status icon on UI

EVM (Error Vector Magnitude)

Display Range for 64 QAM: ≤1% to ≥5% RMS

Display Range for 256 QAM: ≤1% to ≥2.5% RMS

Resolution: 0.1%

Accuracy: Within 20% of reading for S/N >25 dB typical

Ultimate MER (Modulation Error Ratio)
38 dB typical
Post R5 BER and TEF (Transport Error Flag)
Post Reed Solomon Indicative BER (uncorrectable error count) and number of Transport Error Flags are displayed on the UI
Constellation
The RF constellation is displayed on the UI
QAM Annex B Measurements (Option QB2)
RF Lock

RF lock is indicated by a LED on the rear panel and a status icon on UI

Input level (Signal strength)

Range: –64 dBm to –19 dBm

Resolution: 1 dBm

Accuracy: ±3 dBm typical

This includes the ability to set alarms and produce trend graphs over a seven-day period including min, max, and average

EVM (Error Vector Magnitude)

Display Range for 64 QAM: ≤1% to ≥5% RMS

Display Range for 256 QAM: ≤1% to ≥2.5% RMS

Resolution: 0.1%

Accuracy: Within 20% of reading for S/N >25 dB typical

This includes the ability to set alarms and produce trend graphs over a seven-day period including min, max, and average

MER (Modulation Error Ratio)

Display Range for 64 QAM: 22 dB to 37 dB

Display Range for 256 QAM: 28 dB to 37 dB

Resolution: 0.1 dB

Accuracy:

±1 dB for MER <25 dB

±3 dB for MER 25 dB to 34 dB typical

This includes the ability to set alarms and produce trend graphs over a seven-day period including min, max, and average

SNR

Display Range for 64 QAM: 22 dB to 37 dB

Display Range for 256 QAM: 28 dB to 37 dB

Resolution: 1 dB

Accuracy:

±1 dB for MER <25 dB

±3 dB forMER 25 dB to 34 dB typical

This includes the ability to set alarms and produce trend graphs over a seven-day period including min, max, and average

BER
Pre FEC, SER, and Error Sec BER values are displayed
Post R5 BER and TEF (Transport Error Flag)

Post Reed Solomon BER (uncorrectable error count) and number of Transport Error Flags are displayed on the UI

Constellation
The RF constellation is displayed on the UI
Environment and safety
Humidity
Operating

Maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly to 50% relative humidity at 40 °C

Nonoperating
10% to 95% relative humidity, noncondensing
Altitude
Operating
0 to 3000 m (9800 ft.)
Nonoperating
0 to 12000 m (40000 ft.)
Random vibration
Operating
5 to 500 Hz, GRMS = 2.28
Nonoperating
.5 to 500 Hz, GRMS = 0.27
Functional shock
Operating
30 G, half sine, 11 ms duration
Safety
Meets 73/23/EEC, EN61010-1, UL3111-1 and CAN/CSA 22.2 No. 1010.1-92, IEC61010-1
Physical characteristics
Dimensions
Dimensionmmin.
Height44 1.73
Width430 17.13
Depth600 23.62
Weight
Weight 1kglb.
Net6.0 13.3
Shipping9.0 19.7

1 Weight does not include optional interface cards.

Required Clearance
Dimensionmmin.
Top
Bottom
Left SideStandard 19 in. rackmount
Right SideStandard 19 in. rackmount
FrontClearance for handles required
RearClearance for connectors required

Ordering information

Models
QAM400A
DTV monitor for TS and RF cable network monitoring.

Includes: 1RU chassis fitted with Transport Stream processor card, QAM Annex A, B, or C interface, manual, rack slides, power cord, and license key certificate.

Instrument options
Options
OptionDescription
Opt. DIAGDeep-dive MPEG diagnostic analysis
Includes:
  • Triggered recording capability up to 160 MB
  • Template testing (for user-defined service plan testing)
  • In-depth PCR analysis with graphical result views
  • Bit rate testing functionality
  • Service logging
  • RF polling functionality
Opt. QAQAM Annex A interface
Opt. QB2QAM Annex B interface
Opt. QCQAM Annex C interface
Complementary products
ItemDescription
MTS4SA Opt. TSCLStand-alone Deferred Time Software package.
DVB/ATSC/ARIB TS Compliance Analyzer Software (TS file size limited to 192 MB). For full details see separate data sheet
VQNetVideo Service Assurance Management System. For full details please see separate data sheet
VQS1000Video Quality Software application for single-ended QoE analysis of video and audio content
Service options
Opt. R3
Repair Service 3 Years (including warranty)
Opt. R5
Repair Service 5 Years (including warranty)
Power plug options
Opt. A0
North America power plug (115 V, 60 Hz)
Opt. A1
Universal Euro power plug (220 V, 50 Hz)
Opt. A2
United Kingdom power plug (240 V, 50 Hz)
Opt. A3
Australia power plug (240 V, 50 Hz)
Opt. A4
North America power plug (240 V, 50 Hz)
Opt. A5
Switzerland power plug (220 V, 50 Hz)
Opt. A6
Japan power plug (100 V, 50/60 Hz)
Opt. A10
China power plug (50 Hz)
Opt. A99
No power cord
QAM4UP options
DIAG
Field upgrade kit to add deep-dive MPEG diagnostic analysis to an existing probe
