AERO • AUDIO • AUTO • AUTOMAX • COMP • EMBD • FLEX • USB • ENET Datasheet

Serial Triggering and Analysis Application Modules

Key features
  • Automated Serial Triggering, Decode, and Search options for I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, I2S/LJ/ RJ/T DM, USB, and Ethernet.
  • Trigger on all the critical elements of a serial bus such as address, data, etc.
  • Decode all the critical elements of each message. No more counting1s and 0s!
  • Search through long acquisitions using user-defined criteria to find specific messages. Search mark table provides a tabular view of the events found during an automated search.
  • Export Search Mark table data to .csv file.
  • Event table shows decoded serialbus activity in a tabular, time-stamped format for quick summaryof system activity.
  • Export Event table data to .csv file.

Serial triggering and analysis application modules

On a serial bus, a single signal often includes address, control, data, and clock information. This can make isolating events of interest difficult. The Serial Application modules for the MDO/MSO/DPO4000B, MDO3 000, and MSO/DPO2000B Series transform the oscilloscopes into a robust tool for debugging serial buses with automatic trigger, decode, and search for I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, I2S/LJ/RJ/TDM, USB, and Ethernet.



Triggering on a specific transmit data packet going across an RS-232 bus. A complete set of triggers, including triggers for specific serial packet content, ensures you quickly capture your event of interest.


Serial triggering

Trigger on packet content such as start of packet, specific addresses, specific data content, unique identifiers, etc. on popular serial interfaces such as I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, and I2S/LJ/RJ/TDM, USB, and Ethernet.

Bus display

Provides a higher-level, combined view of the individual signals (clock, data, chip enable, etc.) that make up your bus, making it easy to identify where packets begin and end and identifying subpacket components such as address, data, identifier, CRC, etc.

Bus decoding

Tired of having to visually inspect the waveform to count clocks, determine if each bit is a 1 or a 0, combine bits into bytes, and determine the hex value? Let the oscilloscope with a Serial Application module do it for you! Once you’ve set up a bus, the oscilloscope will decode each packet on the bus, and display the value in hex, binary, decimal (LIN, MIL-STD-1553, and FlexRay, USB and Ethernet only), signed decimal (I2S/LJ/RJ/TDM only), or ASCII (RS-232/422/485/UART, USB and Ethernet only) in the bus waveform.



Color-coded display of a CAN bus, showing Start, DLC, Data, CRC, and Stop components of the serial signal.




Simultaneously display the bus and digital waveforms. Digital waveforms show how the bus translates the individual signals based on the threshold settings (useful for making analog channels look like just 1s and 0s).


Event table

In addition to seeing decoded packet data on the bus waveform itself, you can view all captured packets in a tabular view much like you would see in a software listing. Packets are time stamped and listed consecutively with columns for each component (Address, Data, etc.).

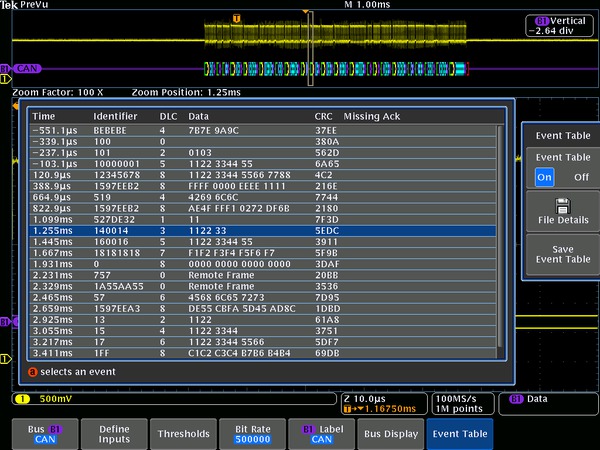

Event table showing decoded Identifier, DLC, DATA, and CRC for every CAN packet in a long acquisition


Search

Serial triggering is very useful for isolating the event of interest, but once you’ve captured it and need to analyze the surrounding data, what do you do? In the past, users had to manually scroll through the waveform counting and converting bits and looking for what caused the event. With a Serial Application module, you can enable the oscilloscope to automatically search through the acquired data for user-defined criteria including serial packet content. Each occurrence is highlighted by a search mark. Rapid navigation between marks is as simple as pressing the Previous (←) and Next (→) buttons on the oscilloscope front panel. The Search Mark table provides a tabular view of all events found during an automated search. The search mark data can be exported to a .csv file.



Search – I2C decode showing results from a Wave Inspector® search for Address value 50. Wave Inspector® controls provide unprecedented efficiency in viewing and navigating waveform data.

Specifications

Bus setup options
CharacteristicDescription
Sources (Clock and Data)Analog channels 1-4  Digital channels D0-D15
ThresholdsPer-channel thresholds
Recommended probingSingle ended
Include R/W in addressYes or No
Decode formats availableHex, Binary
Display modes
    BusBus only
    Bus and waveformsSimultaneous display of bus and logic waveforms
    Event tableDecoded packet data in a tabular view




I2C bus setup, showing selection of bus display modes.

Bus trigger and search options
CharacteristicDescription
Trigger and/or Search OnStart
Stop
Repeated Start Missing Ack
Address (7 or 10 bit) with R/W Selection
Data (number of bytes 1-5)
Address and Data




Triggering on a specific address value on the I2C bus.

Bus decode
CharacteristicDescription
Maximum Clock/Data RateUp to 10 Mb/s (for automated decoding of bus)
Decode DisplayStart (green bracket)
Address (yellow box)
Missing Ack (red ! symbol)
Data (cyan box)
Stop (red bracket)




Event table for I2C bus with all captured packets time stamped and in a tabular view.

SPI Characteristics
Bus setup options
CharacteristicDescription
Sources (Clock, Slave Select, MOSI, and MISO)Analog channels 1-4  Digital channels D0-D15
ThresholdsPer-channel thresholds
Recommended probingSingle ended
Decode configuration
    FramingIdle Time (2-wire SPI) Slave Select (3-wire or 4-wire SPI)
    ClockRising or Falling Edge
    Slave selectActive High or Active Low
    MOSIActive High or Active Low
    MISOActive High or Active Low
    Word size4-32 bits
    Bit orderMost Significant (MS) First Least Significant (LS) First
Decode formats availableHex, Binary
Display modes
    BusBus only
    Bus and waveformsSimultaneous display of bus and logic waveforms
    Event tableDecoded packet data in a tabular view

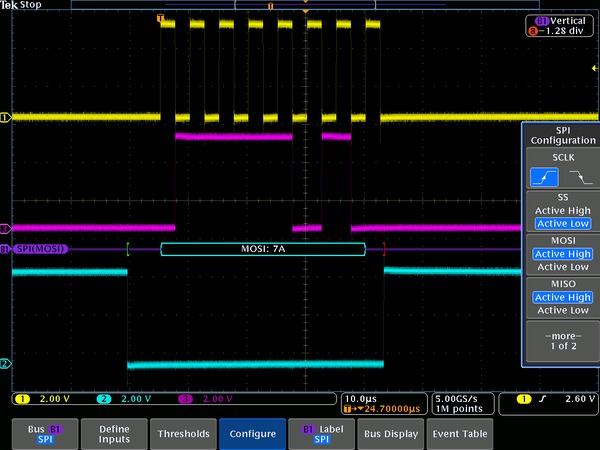

SPI bus setup, showing configuration options for bus sources.

Bus trigger and search options
CharacteristicDescription
Trigger and/or Search OnSS Active Start of Frame
MOSI
MISO
MOSI and MISO
Data: maximum of 128 bits (up to four 32-bit words or 32 four-bit words)




Triggering on a specific MOSI data value on the SPI bus.

Bus decode
CharacteristicDescription
Maximum Clock/Data RateUp to 50 Mb/s (for automated decoding of bus)
Decode displayStart (green bracket) Data (cyan box)
Stop (red bracket)

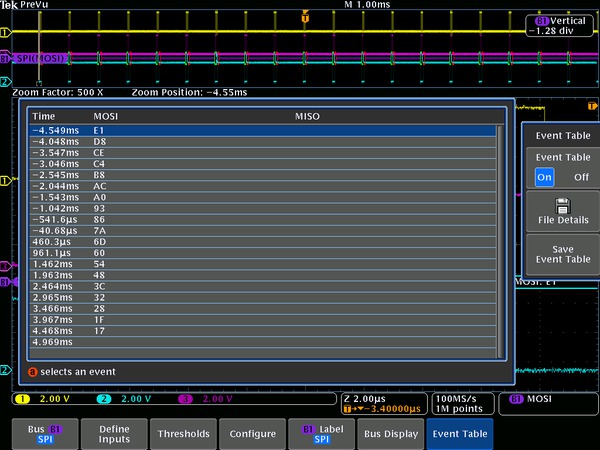

Event table for SPI bus with all captured packets time stamped and in a tabular view.

RS-232/UART/RS-422/RS-485 Characteristics
Bus setup options
CharacteristicDescription
RS-232/UART Sources (Transmit and Receive)Analog channels 1-4  Digital channels D0-D15
RS-422/RS-485 Sources (Transmit and Receive)Analog channels 1-4
ThresholdsPer-channel thresholds
Recommended probing
    RS-232/UARTSingle ended
    RS-422/RS-485 Differential
PolarityNormal (RS-232) Inverted (UART, RS-422/RS-485)
Decode configuration
    Bit rate
        Pre-defined list of rates50 b/s - 2.8 Mb/s
        Custom50 b/s - 10 Mb/s
    Data bits7, 8, or 9
    ParityNone, Odd, or Even
    PacketsOn or Off
 End of packet00h (NUL) 0Ah (LF)
0Dh (CR)
20h (SP)
FFh
Decode formats availableHex, Binary, ASCII
Display modes
    BusBus only
    Bus and waveformsSimultaneous display of bus and logic waveforms
    Event tableDecoded packet data in a tabular view




RS-232 bus setup, showing bit rate options for RS-232 bus.

Bus trigger and search options
CharacteristicDescription
Trigger and/or Search OnTx Start Bit Rx Start Bit
Tx End of Packet
Rx End of Packet
Tx Data (number of bytes 1-10)
Rx Data (number of bytes 1-10)
Tx Parity Error
Rx Parity Error




Triggering on a specific Tx data value on the RS-232 bus.

Bus decode
CharacteristicDescription
Maximum Clock/Data RateUp to 10 Mb/s (for automated decoding of bus)
Decode displayData (cyan box) Errors (red box)
- Parity
- Framing




Event table for RS-232 bus with all captured packets time stamped and in a tabular view.

CAN Characteristics
Bus setup options
CharacteristicDescription
Source for CAN_H, CAN_L, Rx, or Tx probingAnalog channels 1-4  Digital channels D0-D15
Source for differential probingAnalog channels 1-4
ThresholdsPer-channel thresholds
Recommended probing
    CAN_H, CAN_L, Rx, TxSingle ended
    DifferentialDifferential
Bit Rate
    Pre-defined list of rates10 Kb/s - 1 Mb/s
    Custom10 Kb/s - 1 Mb/s
Sample PointPosition at 5% to 95% within bit period or unit interval
Decode formats availableHex, Binary
Display modes
    BusBus only
    Bus and waveformsSimultaneous display of bus and logic waveforms
    Event tableDecoded packet data in a tabular view




CAN bus setup, showing signal type options for CAN bus.

Bus trigger and search options
CharacteristicDescription
Trigger and/or Search OnStart of Frame Type of Frame (Data, Remote, Error, Overload)
Identifier (Standard or Extended)
Data (number of bytes 1-8, trigger or search when =, ≠, <, >, ≤, ≥)
Identifier and Data
End of Frame
Missing Ack
Bit Stuffing Error




Triggering on a specific data value on the CAN bus.

Bus decode
CharacteristicDescription
Maximum Clock/Data RateUp to 1 Mb/s (for automated decoding of bus)
Decode displayStart (green bracket)
Address (yellow box)
DLC, CRC (purple box)
Missing Ack (red ! symbol)
Data (cyan box)
Stop (red bracket) Bit stuffing errors (red box)




Event table for CAN bus with all captured packets time stamped and in a tabular view.

LIN Characteristics
Bus setup options
CharacteristicDescription
SourceAnalog channels 1-4  Digital channels D0-D15
ThresholdsPer-channel thresholds
Recommended ProbingSingle ended
Sample PointPosition at 10% to 90% within bit period or unit interval
Decode Configuration
    PolarityNormal or Inverted
    Bit rate
        Pre-defined list of rates1.2 kb/s - 19.2 kb/s
        Custom800 b/s - 100 kb/s
    LIN standardv1.x, v2.x, or Both
    Include parity bits with IDYes or No
Decode formats availableMixed: ID and Parity are shown in Hex, Data and Checksum are shown in Binary Hex: all fields
Binary: all fields
Display modes
    BusBus only
    Bus and waveformsSimultaneous display of bus and logic waveforms
    Event TableDecoded packet data in a tabular view




LIN bus setup, showing source configuration options for LIN bus.

Bus trigger and search options
CharacteristicDescription
Trigger and/or Search OnSync Identifier
Data (number of bytes 1-8; trigger or search when =, ≠, <, >, ≤, ≥, inside range, outside range)
Identifier and Data
Wakeup Frame
Sleep Frame
Error (Sync, ID Parity, Checksum)




Triggering on a Sync Error on the LIN bus.

Bus decode
CharacteristicDescription
Maximum bit rateUp to 1 Mb/s, by LIN definition up to 20 kb/s (for automated decoding of bus)
Decode displayStart (green bracket) Sync, Break (purple box)
Identifier, Parity (yellow box)
Data (cyan box)
Checksum, Wakeup (purple box)
End of frame (red bracket)
Errors (red box)
- Sync
- Parity
- Checksum
- Header Time
- Response Time
- Frame Time
- Response and Frame Time




Event table for LIN bus with all captured packets time stamped and in a tabular view.

FlexRay Characteristics
Bus setup options
CharacteristicDescription
Source for single-ended probingAnalog channels 1-4  Digital channels D0-D15
Source for differential probingAnalog channels 1-4
ThresholdsHigh and low thresholds per-channel
Recommended probingSingle ended or differential
Decode configuration
    Bit rate2.5 Mb/s, 5 Mb/s, 10 Mb/s, or Custom (1 Mb/s - 100 Mb/s)
    Channel typeA or B
    PolarityBDiff or BP, BM, Tx or Rx
Decode formats availableMixed: Identifier, Payload Length and Cycle Count are shown in Decimal, Data and CRCs are shown in Hex. Hex: all fields
Binary: all fields
Display modes
    BusBus only
    Bus and waveformsSimultaneous display of bus and logic waveforms
    Event tableDecoded packet data in a tabular view




FlexRay bus setup, showing input options for FlexRay bus.

Bus trigger and search options
CharacteristicDescription
Trigger and/or Search OnStart of Frame Indicator Bits (Normal, Null, Payload, Sync, Startup)
Identifier (trigger when =, ≠, <, >, ≤, ≥, inside range, outside range)
Cycle Count (trigger when =, ≠, <, >, ≤, ≥, inside range, outside range)
Header Fields (Indicator Bits, Identifier, Payload Length, Header CRC, and Cycle Count)
Data (number of bits 1-16; byte offset ‘don’t care’ – 253; trigger when =, ≠, <, >, ≤, ≥, inside range, outside range)
Identifier and Data
End of Frame (Static, Dynamic (DTS), All)
Error (Header CRC, Trailer CRC, Null Frame (static or dynamic), Sync Frame, Startup Frame)
Bus decode
CharacteristicDescription
Maximum bit rateUp to 10 Mb/s (for automated decoding of bus)
Decode displayTSS (purple box) Start (green bracket)
Frame ID (yellow box)
Payload Length (purple box)
Headers (purple box)
- Null
- Normal
- Sync
- Payload
- Startup
- Unknown
- Null Sync
- Payload Sync
- Null Startup
- Payload Startup
- CRC
- Cycle Count (yellow box)
- Data (cyan box)
- CRC, DTS, CID (purple box)
- Stop (red bracket)
- TSS
- Header CRC
- Trailer CRC
- Null Frame
- Sync Frame
- Startup Frame
- BSS
- FSS


PC-based, eye-diagram analysis software builds an eye-diagram from the entire acquisition and plots it against TP1 mask called out by the FlexRay standard, available with MSO/DPO4000B and MDO4000B instruments.

I²S/LJ/RJ/TDM Characteristics
Bus setup options
CharacteristicDescription
Sources (Clock, Word, Data)Analog channels 1-4  Digital channels D0-D15
ThresholdsPer-channel thresholds
Recommended probingSingle ended
Decode configuration
    Word size4-32 bits
    ClockRising or falling edge
    Word Select polarityNormal or inverted
    Data High1 or 0
    Bit orderMost Significant (MS) First Least Significant (LS) First
Decode formats availableSigned Decimal, Hex, Binary
Display modes
    BusBus only
    Bus and waveformsSimultaneous display of bus and logic waveforms
    Event tableDecoded packet data in a tabular view




I2S bus setup, showing input configuration options for I2S bus.

Bus trigger and search options
CharacteristicDescription
Trigger and/or Search OnWord Select Frame Sync
Data (select either word, left word, or right word; trigger or search when =, ≠,<,>, ≤, ≥, inside range, outside range)




Triggering on a specific data value on the I2S bus.

Bus decode
CharacteristicDescription
Maximum Clock/Data RateUp to 12.5 Mb/s (for automated decoding of I2S/LJ/RJ bus) Up to 25 Mb/s (for automated decoding of TDM bus)
Decode displayStart (green bracket) Data (cyan box)
Stop (red bracket




Start (green bracket) Data (cyan box) Stop (red bracket).

MIL-STD-1553 Characteristics
Bus setup options
CharacteristicDescription
SourceAnalog channels 1-4  Reference waveforms 1-4
Math waveform
ThresholdsHigh and low threshold per source
Recommended probingSingle ended or differential (only one single-ended signal required)
Decode configuration
    Bit rate1 Mb/s per the standard
    Response Time2 μs – 100 μs
    PolarityNormal or Inverted
Decode formats availableMixed1: Hex (data), Decimal (addresses and count), Binary (bits) Mixed2: ASCII (data), Decimal (addresses and count), Binary (bits)
Block Hex
Hex and Binary Binary
Display modes
    BusBus only
    Bus and waveformsSimultaneous display of bus and logic waveforms
    Event tableDecoded packet data in a tabular view

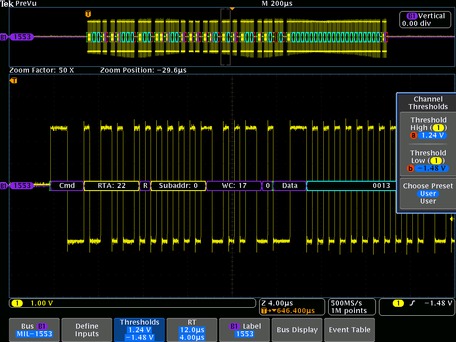

MIL-STD-1553 bus setup, showing threshold entry fields.

Bus trigger and search options
CharacteristicDescription
Trigger and/or Search OnSync Word Type 1 (Command, Status, Data)
Command Word 1 (set RT Address (=, ≠, <, >, ≤, ≥, inside range, outside range), T/R, Sub-address/Mode, Data Word Count/Mode Code, and Parity individually)
Status Word 1 (set RT Address (=, ≠, <, >, ≤, ≥, inside range, outside range), Message Error, Instrumentation, Service Request Bit, Broadcast Command Received, Busy, Subsystem Flag, Dynamic Bus Control Acceptance (DBCA), Terminal Flag, and Parity individually)
Data Word (user-specified 16-bit data value)
Error (Sync, Parity, Manchester, Non-contiguous data)
Idle Time (minimum time selectable from 4 µs to 100 µs; maximum time selectable from 12 µs to 100 µs; trigger on < minimum, > maximum, inside range, outside range)

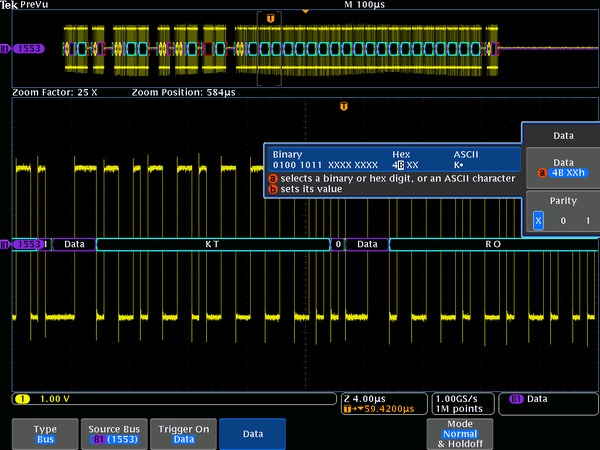

Triggering on a specific data value on the MIL-STD-1553 bus.

1 Trigger selection of Command Word will trigger on Command and ambiguous Command/Status words. Trigger selection of Status Word will trigger on Status and ambiguous Command/Status words.


Characteristic Description
Maximum Clock/Data Rate Up to 1 Mb/s (for automated decoding of bus)
Decode Display Start (green bracket) Sync 1 (purple box) with Word Type identified
Address (yellow box)
R/T (purple box)
Word Count (purple box)
Status Bits (purple box)
Data (cyan box)
Parity (purple box)
Stop (red bracket)
Errors (red box)

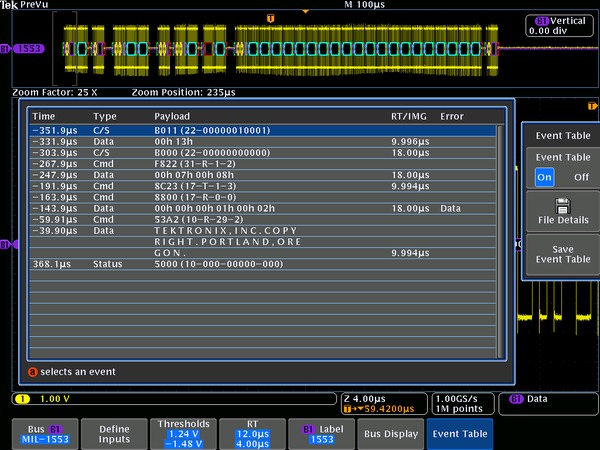

Event table for MIL-STD-1553 bus with all captured packets time stamped and in a tabular view.

1 Ambiguous Command and Status words will be labeled with C/S and a generic bit decode will be displayed.

USB Characteristics
Bus setup options
Characteristic Description
USB 2.0 Compatibility Low-speed and Full-speed: All MDO/MSO/DPO4000 or MDO3000 Series models High-speed: Models with 1 GHz analog channel bandwidth
Sources Single-ended:     Analog channels 1-4
    Digital channels D0-D15
Differential:
    Analog channels 1-4
    Math channel
    Reference channels 1-4
Recommended probing Low-speed and Full-speed: Single-ended or differential High-speed: Differential
Threshold presets Low-speed and Full-speed: Single-ended (D+: 1.4 V; D–: –1.4 V), differential (High: 1.4 V; Low: –1.4 V) High-speed: Differential (High: 100 mV; Low: –100 mV)
Decode formats available Mixed1: Frame and Address are shown in Decimal, Data shown in Hex Mixed2: Frame and Address are shown in Decimal, Data shown in ASCII
Hex: all fields
Binary: all fields
Display modes
    Bus Bus only
    Bus and waveforms Simultaneous display of bus and logic waveforms
    Event table Decoded packet data in a tabular view




Triggering on a specific PID on a USB FS bus.

Bus decode
Characteristic Description
USB 2.0 Data Rates Low-speed: 1.5 Mb/s Full-speed: 12 Mb/s
High-speed: 480 Mb/s
Decode Display Start (green bracket) PID (yellow box)
Data (cyan box)
CRC (purple box)
Stop (red bracket)

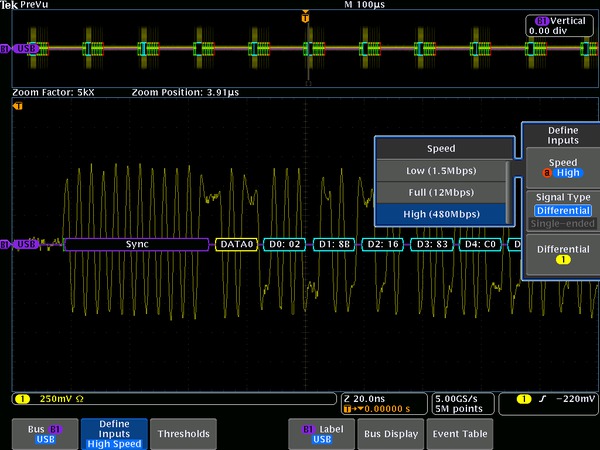

High-speed USB decoded display, automatically displaying bus content.

Bus trigger and search options
Characteristic Description
Trigger and/or Search On Low-speed: Trigger/Search on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error. Token Packet – Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data Packet – Any data type, DATA0, DATA1; Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range.
Handshake Packet – Any handshake type, ACK, NAK, STALL.
Special Packet – Any special type, Reserved.
Error – PID Check, CRC5, CRC16, Bit Stuffing.
 Full-speed: Trigger/Search on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error.
Token Packet – Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data Packet – Any data type, DATA0, DATA1; Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range.
Handshake Packet – Any handshake type, ACK, NAK, STALL.
Special Packet – Any special type, PRE, Reserved.
Error – PID Check, CRC5, CRC16, Bit Stuffing.
 High-speed: Trigger/Search on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error. Token Packet – Any token type, SOF, OUT, IN, SETUP; Address can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular value, or inside or outside of a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don't Care digits.
Data Packet – Any data type, DATA0, DATA1, DATA2, MDATA; Data can be further specified to trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range.
Handshake Packet – Any handshake type, ACK, NAK, STALL, NYET.
Special Packet – Any special type, ERR, SPLIT, PING, Reserved. SPLIT packet components that can be specified include:
            Hub Address
            Start/Complete – Don't Care, Start (SSPLIT), Complete
            (CSPLIT)
            Port Address
            Start and End bits – Don't Care, Control/Bulk/Interrupt
            (Full-speed Device, Low-speed Device),
            Isochronous (Data is Middle, Data is End, Data is Start,
            Data is All)
            Endpoint Type – Don't Care, Control, Isochronous, Bulk,
            Interrupt
Error – PID Check, CRC5, CRC16
Ethernet Characteristics
Bus setup options
Option Description
Ethernet compatibility 10BASE-T, 100BASE-TX
On MDO/MSO/DPO4000 Series only
Sources Single-ended: Analog channels 1-4  Differential:
    Analog channels 1-4
    Math channel
    Reference channels 1-4
Recommended probing 10BASE-T: Single-ended or differential 100BASE-TX: Differential
Thresholds presets 10BASE-T: Single-ended (D+: 1.25 V; D–: 1.25 V); Differential (High: 1.25 V; Low: –1.25 V) 100BASE-TX: Single-ended (D+: 500 mV; D–: 500 mV); Differential (High: 500 mV; Low: –500 mV)
Decode formats available Mixed1: Data is shown in Hex, all other fields are shown in either Decimal or Hex Mixed2: Data is shown in ASCII, all other fields are shown in either Decimal or Hex
Hex: all fields
Binary: all fields
Display modes
    Bus Bus only
    Bus and waveforms Simultaneous display of bus and logic waveforms
    Event table Decoded packet data in a tabular view





DPO4ENET 100BASE-TX decoded Event Table showing all packet information.

Bus decode
Characteristic Description
Ethernet Data Rates 10BASE-T: 10 Mb/s 100BASE-TX: 100 Mb/s
Decode Display Start (green bracket) MAC Address (yellow box)
Data (cyan box)
IPv4 Header (white box)
TCP Header (brown box)
CRC (purple box)
Stop (red bracket)
Error (red box)
Internet Protocol Support IPv4
Transport Layer Protocol Support TCP

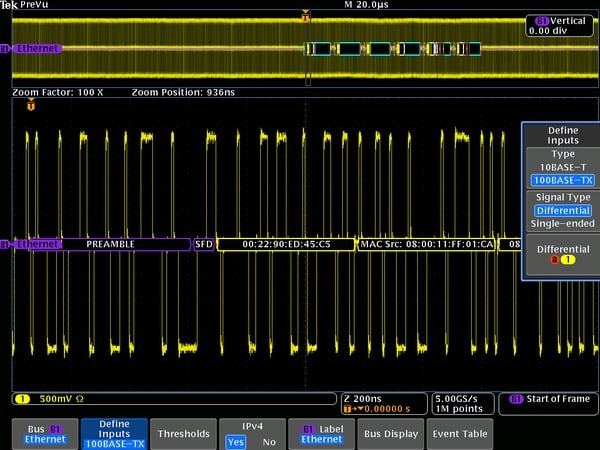

Color-coded DPO4ENET display of 100BASE-TX.

Display modes
Mode Description
Bus Bus only
Bus and waveforms Simultaneous display of bus and logic waveforms
Event table Decoded packet data in a tabular view




DPO4ENET 100BASE-TX decoded Event Table showing all packet information.

Bus trigger options
Option Description
Trigger and/or Search On 10BASE-T: Start Frame Delimiter
MAC Addresses: Trigger on Source and Destination 48-bit address values
MAC Q-tag Control Information: Trigger on Q-tag 32-bit value
MAC Length/Type: Trigger on ≤, <, =, >, ≥, ≠ a particular 16-bit value, or inside or outside of a range
MAC Client Data: Trigger on ≤, <, =, >, ≥, ≠ a particular 16-bit value, or inside or outside of a range. Selectable number of bytes to trigger on from 1-16. Byte offset options of Don't Care, 0-1499
IP Header: Trigger on IP header 8-bit value, Source Address, Destination Address
TCP Header: Trigger on Destination Port, Source Port, Sequence Number, and Ack Number
TCP/IPv4 Client Data: Trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range. Selectable number of bytes to trigger on from 1-16. Byte offset options of Don't Care, 0-1499
End of Packet
FCS (CRC) Error
100BASE-TX: Start Frame Delimiter
MAC Addresses: Trigger on Source and Destination 48-bit address values
MAC Q-tag Control Information: Trigger on Q-tag 32-bit value
MAC Length/Type: Trigger on ≤, <, =, >, ≥, ≠ a particular 16-bit value, or inside or outside of a range
MAC Client Data: Trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range. Selectable number of bytes to trigger on from 1-16. Byte offset options of Don't Care, 0-1499
IP Header: Trigger on IP header 8-bit value, Source Address, Destination Address
TCP Header: Trigger on Destination Port, Source Port, Sequence Number, and Ack Number
TCP/IPv4 Client Data: Trigger on ≤, <, =, >, ≥, ≠ a particular data value, or inside or outside of a range. Selectable number of bytes to trigger on from 1-16. Byte offset options of Don't Care, 0-1499
End of Packet
FCS (CRC) Error
Idle




DPO4ENET triggering on a specific 10BASE-T MAC source address.

Ordering information

Current/discontinued products
Current products
Serial BusMDO/MSO/DPO 4000B Series ModuleMDO3000 Series ModuleMSO/DPO2000B Series Module
I2C, SPI 1 DPO4EMBDMDO3EMBDDPO2EMBD
RS-232 / 422 / 485 / UARTDPO4COMPMDO3COMPDPO2COMP
CAN, LINDPO4AUTOMDO3AUTODPO2AUTO
FlexRay--MDO3FLEX--
CAN, LIN, FlexRayDPO4AUTOMAX 2 ----
I2S/LJ/RJ/TDM 3 DPO4AUDIOMDO3AUDIO--
MIL-STD-1553 DPO4AEROMDO3AERO--
USB 4 DPO4USBMDO3USB--
Ethernet 5 DPO4ENET----
Discontinued products
Serial BusMDO4000 Series ModuleMSO/DPO4000 Series ModuleMSO/DPO3000 Series ModuleMSO/DPO2000 Series Module
I2C, SPI 1 DPO4EMBDDPO4EMBDDPO3EMBDDPO2EMBD
RS-232 / 422 / 485 / UARTDPO4COMPDPO4COMPDPO3COMPDPO2COMP
CAN, LINDPO4AUTODPO4AUTODPO3AUTODPO2AUTO
FlexRay----DPO3FLEX--
CAN, LIN, FlexRayDPO4AUTOMAX 2 DPO4AUTOMAX 2 ----
I2S/LJ/RJ/TDM 3 DPO4AUDIODPO4AUDIODPO3AUDIO--
MIL-STD-1553 DPO4AERODPO4AERODPO3AERO--
USB 4 DPO4USBDPO4USB----
Ethernet 5 DPO4ENET------

1 SPI support is limited to 2-wire SPI only on models that have only 2 analog channels and no digital channels.

2 DPO4AUTOMAX includes a PC-based software package for FlexRay eye diagram analysis.

3 Not available on models that have only 2 analog channels and no digital channels.

4 USB LS/FS triggering and decode available on all models in all indicated product families. HS decode available only on 1 GHz models. HS triggering only available on 1 GHz models in MDO/MSO/DPO4000B and MDO4000 Series.

5 100BASE-TX requires ≥ 350 MHz model.

Recommended probes

Please refer to www.tek.com/probes for further information on the recommended models of probes and any necessary probe adapters.

Select Service

X

STAY INFORMED: Events & Seminars | Email Newsletter | Follow Tektronix on Twitter Follow Tektronix on Facebook Follow Tektronix on Google+ Follow Tektronix on Youtube

MEMBERSHIP: Create an account for exclusive membership privileges.Login
