Test Solar Systems from Cell to Full Arrays
In many ways, solar cells operate similar to the way plants use photosynthesis to convert solar energy. While plants need millions of years of evolution to improve their efficiency, engineers have taken huge strides in solar cell efficiency in the last decades. Whether you’re working on the quantum limitations of efficiency in solar cell materials, or utilizing next-gen materials for improved inverters, Tektronix provides solutions to accelerate your work.
Tektronix Enables a New Generation of Innovators
Tektronix works with engineers around the world, like the Innoptus Solar Team, to push the limits of solar power. Renewable energy is vital for the future of our planet, and Tektronix is here to help engineers accelerate their progress through testing, simulation, characterization, and more.
Techniques for Solar Systems
Testing Grid-tied Photovoltaic Inverters

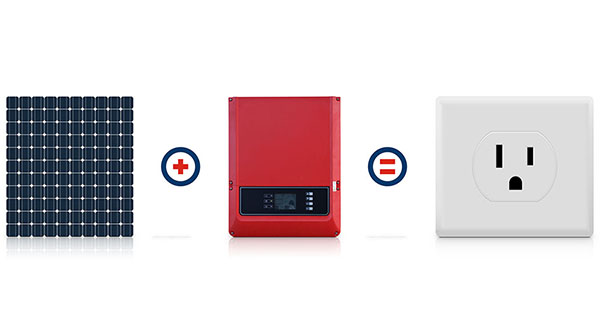

Solar inverters must efficiently generate AC power from the DC output of solar arrays while maintaining a good relationship with the power grid. They use sophisticated electronics to maintain maximum power point tracking (MPPT) as well as active grid-support requirements such as power factor correction, harmonics compliance, and ride-through.
High voltage, precision DC power supplies like the EA 10000 Series provide a reliable, controllable source to simulate the power output of solar arrays.

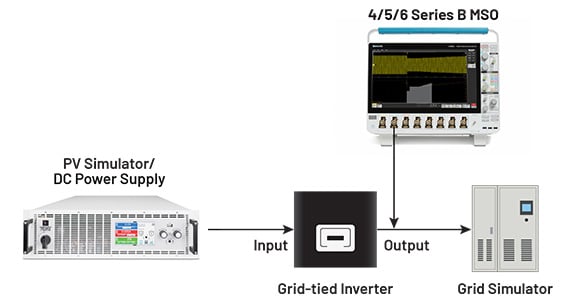

Oscilloscopes, voltage probes, current probes and advanced power measurement software enable engineers to test and debug the electronics within the inverter.
Simulate Large Solar Arrays

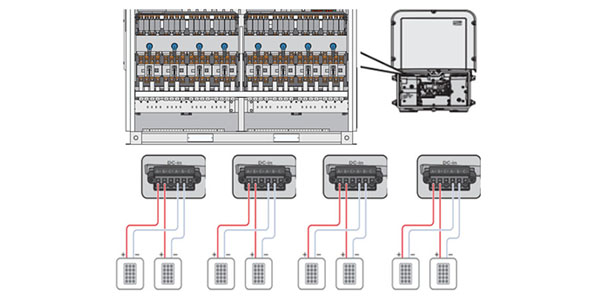

Commercial solar or photovoltaic (PV) inverters typically operate in the range of 30-1MW, with a solar array DC input voltage of up to 1500 VDC and produce three-phase AC power. At these power levels, it's not practical to use a single PV array input. Instead, commercial PV inverters have multiple maximum power point tracking (MPPT) inputs that are summed at the DC/DC level before feeding into the DC/AC Inverter.
To test this type of inverter, you would use several autoranging power supplies, one for each input. Thanks to the EA 10000 Series power supplies abilities to parallel up to 64 units while simulating photovoltaic cells, this parallel need is addressed. In addition, you can program each DC supply independently to simulate different irradiance profiles. For instance, on one inverter input, you can simulate a PV array in full sun, while on another input, you can simulate a PV panel that is partially or completely shaded.
.jpg?h=338&iar=0&w=600)
The 4200A-SCS' Clarius software simplifies solar cell characterization.
Learn More:
Solar Cell Characterization Basics Efficiency Testing Made Simple
Characterize Cells
Physically, a solar cell is nothing more than a specialized p-n junction that makes use of the internal photoelectric effect present in all semiconductors. A major focus for solar cell researchers is improving cell efficiency and maximizing energy extraction that happens from this process. This requires precise Current-Voltage (I-V) measurements of both new materials and completed cells. Keithley Source Measure Units like the Graphical 2400 Series and the 2600B Series are key tools for researchers thanks to 4-quadrant source/sink capability and their precision measurement. For more advanced labs, the 4200A-SCS Parameter Analyzer is looked to for it’s additional capacitance-voltage (C-V) and pulsed capabilities, as well as its built-in library including tests and sample results for solar cell I-V, C-V, C-f, DLCP, pulsed I-V, and resistivity tests.
