SignalVu-PC Vector Signal Analysis (VSA) Software

PC-based, Multi-domain RF Signal Measurement and Analysis

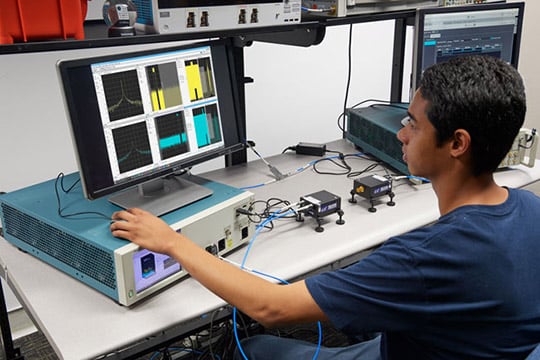

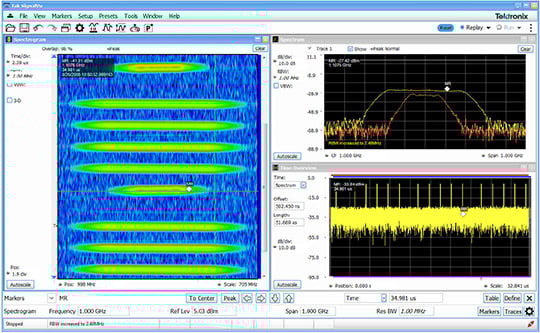

SignalVu-PC turns the MDO4000B into the widest Vector Signal Analyzer, with 1 GHz capture bandwidth. SignalVu-PC connects to the MDO4000B's built-in spectrum analyzer via Ethernet/LAN, WLAN, or USB and uses it to acquire vector data. The software controls the spectrum analyzer acquisition and updates measurement displays continuously. Try out the Wi-Fi Pre-compliance Wizard and get ready for regulatory compliance in the touch of a few buttons.

SignalVu-PC can also be used for off-line analysis, using data files acquired by a wide range of instruments – from real-time spectrum analyzers to oscilloscopes. Capture the underlying IQ signal with your instrument and analyze it many times with different settings and measurements.  Options for Wi-Fi testing, pulse analysis, and modulation analysis let you configure the software for your application.

SignalVu-PC VSA software extends your instrument investment with powerful troubleshooting tools for the frequency, time and vector domains.

trial demo

Models in the SignalVu-PC Vector Signal Analysis (VSA) Software Series:

Model List Price Configure and Quote
SIGNALVU-PC-SVE $1,990 Configure & Quote

Features

Benefits

Live Link to MDO4000B Take advantage of the widest RF Vector Signal Analyzer in the world and get in depth RF analysis and measurements.
Offline Vector Signal Analysis Free up your test equipment by analyzing your waveforms on an external computer
Data Processing for large acquisitions Capture large amounts of data during field data or operational acquisitions, and perform a deep analysis offline.  Ideal for spectrum management, signal intelligence and monitoring applications.
Support for Multiple File Types Analyze your .ISF, .WFM, .IQT, .TIQ, .MAT files from oscilloscopes, signal analyzers and third-party software on one common software platform.

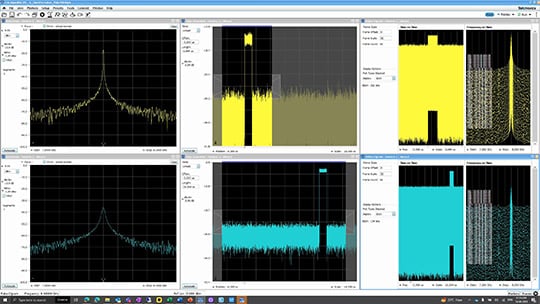

Multi-Domain Displays Connect problems in the frequency, phase, amplitude, and modulation domains with the time-correlated, multi-domain displays for faster troubleshooting
Automated Measurements Quickly characterize components and systems with the built-in ACLR, Multicarrier ACLR, Power vs. Time, CCDF, OBW/EBW, and Spur Search measurements

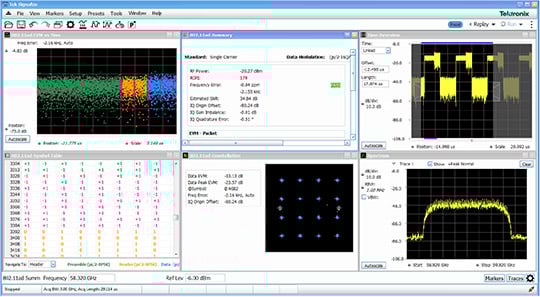

IEEE 802.11 a/b/g/j/p/n/ac transmitter measurements Speed up your WLAN measurements with the WLAN presets push-button. The WLAN RF transmitter measurements are defined by the IEEE 802.11- 2012 revision of the standard.
Advanced Analysis (optional) Enhance your SignalVu software with optional, advanced analysis packages for General Purpose Modulation Analysis, Advanced Pulse Analysis, Frequency and Phase Settling, Flexible OFDM and AM/FM/PM/Direct Audio measurements.
Automated Pulse
Measurement (optional)
Simplify test with 27 automated pulse measurements performed on over 10,000 different pulses with the push of a button
Education Package Teach students the fundamentals of different domains with the cost-effective education package.

Trial Download

Try out the power of vector signal analysis for FREE. Use the SignalVu-PC demonstration guide to learn the key features of this very powerful tool. First download your trial version of SignalVu-PC software (1) , then the demonstration guide (2) and don’t forget to download sample waveforms too. The download link actually appears on the next screen as a related link (on the right hand side) .

  1. 1.Trial version of SignalVu-PC Software
  2. 2.SignalVu-PC Demonstration Guide

Try out the Wi-Fi Pre-compliance Wizard (3). This wizard works in conjunction with SignalVu-PC connected to an MDO4000B and with touch of few buttons gets you ready for regulatory compliance.

  1. 3.Wi-Fi Pre-compliance Wizard



Title

SignalVu-PC Demonstration Guide (with Stored Signals) – Bringing the Benefits of Wideband Vector Signal Analysis to your PC

Understand the benefits of SignalVu-PC Offline Vector Signal Analysis Software when using stored files from supported Tektronix Real-Time Signal Analyzers or Oscilloscopes.

STORED SIGNAL FILES FOR SIGNALVU-PC DEMONSTRATION GUIDE

Stored signal files (.tiq) for use with the SignalVu-PC Demonstration Guide with Stored Signals.
