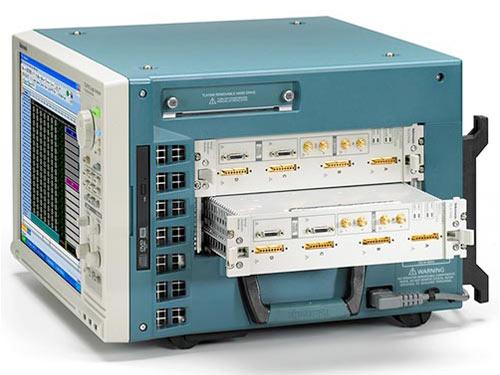

TLA7000 Logic Analyzer Series
Breakthrough Solutions for Real-Time Digital Systems Analysis.
The modular TLA7000 Logic Analyzer Series provides the speed and flexibility you need to capture logic detail on today's fastest microprocessors and memory designs. Pinpoint the source of elusive errors and gain the visibility you want with large easy-to-read displays, fast data throughput, and time-correlated views of analog and digital signals through the same probe.
Models in the TLA7000 Series:
| Model | Channels | Max State Clock Rate | Timing | Timing Resolution | List Price | Shop Online / Get Local List Pricing |
|---|---|---|---|---|---|---|
| TL708EX | 8 TekLink™ Instrument Ports | - | - | - | Contact Us | Configure |
| TLA7012 | Depends on installed modules (2 module slots) | Depends on installed modules (2 module slots) | Depends on installed modules (2 module slots) | Depends on installed modules (2 module slots) | $18,000 | Configure |

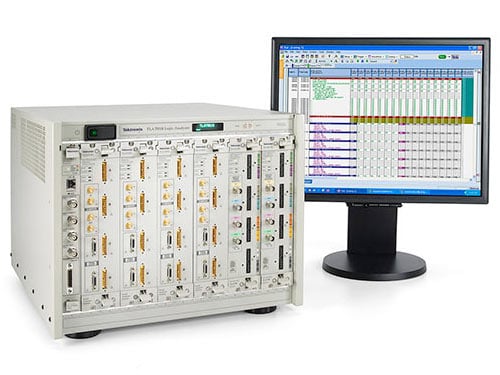

| TLA7016 | Depends on installed modules (6 module slots) | Depends on installed modules (6 module slots) | Depends on installed modules (6 module slots) | Depends on installed modules (6 module slots) | $21,200 | Configure |
| TLA7AC2 | 68 Channels | 800 MHz | 8 GHz | 125 ps | $13,300 | Configure |
| TLA7AC3 | 102 Channels | 800 MHz | 8 GHz | 125 ps | $18,700 | Configure |
| TLA7AC4 | 136 Channels | 800 MHz | 8 GHz | 125 ps | $27,800 | Configure |

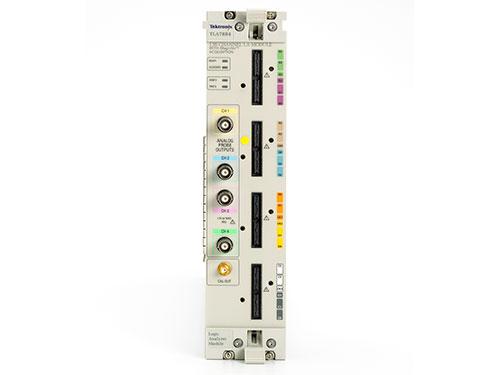

| TLA7BB2 | 68 Channels | 1.4 GHz | 50 GHz | 20 ps | $34,100 | Configure |
| TLA7BB3 | 102 Channels | 1.4 GHz | 50 GHz | 20 ps | $44,000 | Configure |
| TLA7BB4 | 136 Channels | 1.4 GHz | 50 GHz | 20 ps | $66,300 | Configure |
Features | Benefits |
| MagniVu™ acquisition | Avoid missing events completely in either timing or state acquisition mode with higher sampling resolution (up to 20 ps) on all channels. |
| iCapture™ multiplexing | Eliminate double probing with simultaneous digital and analog acquisition through a single logic analyzer probe. |
| Flagging the glitch | Remove the need to manually search all channels using exclusive ability to show both the time and channel where the glitch occurred. |
| TS/TH violation triggering | Eliminate the time consuming and complex task of monitoring the circuit's outputs with real-time violation triggering that automatically acquires intermittent setup and hold violations. |
| iView™ display | Gain complete system visibility with time-correlated, integrated analog and digital data on one display. |
| iVerify™ analysis | Quickly find signal integrity issues with multi-channel bus analysis using oscilloscope-generated eye diagram. |
| Automated measurements | Easily summarize your design's performance with sophisticated measurements such as: frequency, period, pulse width, duty cycle, and edge count. |
| Drag & drop triggers | Quickly isolate events through simple and intuitive trigger setup. Triggers include: Channel Edge, Channel Value, Bus Value, Multi-Group Value, Glitch, Setup and Hold Violation, or Trigger on Anything. |

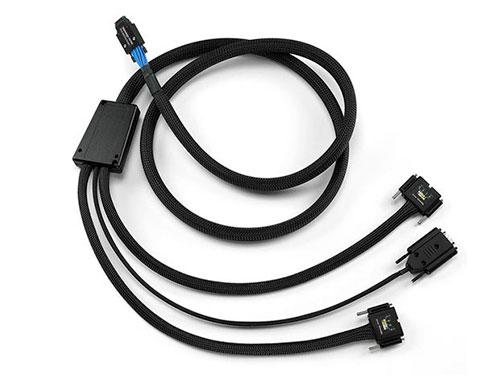

Logic Analyzer Probes and Accessories
Today's high speed, low voltage levels signals are very sensitive to signal integrity. Verification and debug of these signals depends on accurate acquisition and probing. Tektronix offers the best performing logic analyzer probes in the industry, ensuring that your acquisition is true reflection of your design's performance.
Third party probes and accessories that complement Tektronix Logic Analyzers
Crescent Heart offers hardware and software products for probing buses, processors and ASIC cores. Further information is available at www.c-h-s.com.
FuturePlus Systems offers bus analysis probes for memory DDR buses, Serial RapidIO, PCI Express ,and DisplayPort. Further information is available at www.futureplus.com.
Nexus Technology offers hardware adapters, embedded products, probe testers and probe modification kits to connect to industry standard buses for Serial Rapid I/O, DDR3, DDR2, DDR, PCI, PCI-X and others. Further information is available at www.nexustechnology.com.
Moving Pixel offers pattern generator solutions, hardware adapters, and bus supports for MIPI, Fiber Channel, and Hypertransport. Further information is available at http://www.movingpixel.com.
