Coherent Optical Products

Characterization of signals at 100G, 400G and beyond

Coherent Optical SolutionsAs network demands increase, long-haul communications are becoming more complex. Signaling has migrated from simple on-off keying to complex modulation formats such as DP-QPSK and PM-16QAM. Advanced test tools are required to test the latest communication systems for 100G, 400G, 1Tb/s and beyond. Tektronix is the only test and measurement vendor that can offer a complete coherent optical test system from signal generation, to modulation, acquisition, and analysis.

  • Coherent Optical Signal Generation
    Choose the signal generation you need with choices of arbitrary waveform generation and fixed pattern generation.

  • Coherent Optical Modulation
    Easily modulate complex signals with support for dual polarization, multi-level signals and automatic bias control.

  • Coherent Optical Acquisition
    Acquire coherent optical signals with the maximum precision and flexibility.

  • Coherent Optical Analysis
    Make fast and repeatable complex modulation measurement with the industry’s most customizable analysis tools.
FunctionProduct SeriesKey Specification
Coherent Signal GenerationAWG70001A Series Arbitrary Waveform GeneratorWaveform generation at 50 GSample/s and 10 bits resolution
 PPG3000, PPG4000 Series Programmable Pattern GeneratorsData rates up to 40 Gb/s and 8 ps risetimes
Coherent Optical ModulationOM5110 Multi-format Optical TransmitterDual-polarization modulation up to 46GBaud with automatic bias control
Coherent Optical AcquisitionOM4200 Series Optical Modulation AnalyzersDual-polarization coherent detection with 45 GHz analog bandwidth
 OM2210 Coherent Receiver Calibration SourceCalibration of C- and L-band Optical Modulation Analyzers

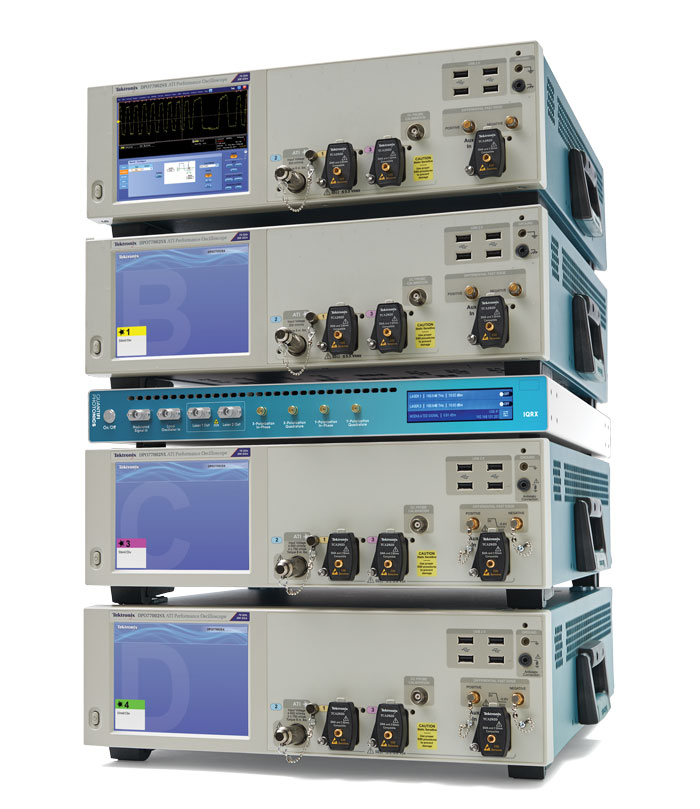

 DPO70000SX Series OscilloscopesFlexible acquisition with bandwidth up to 70 GHz at 200 GSamples/s
Coherent Optical AnalysisOM1106 Optical Modulation Analysis SoftwareCustomizable coherent demodulation and analysis



Title

Coherent Optical Measurements Reference Poster

Quickly and easily identify the cause of coherent optical transmitter and receiver impairments with this reference poster.

Choosing an Oscilloscope for Coherent Optical Modulation Analysis

Learn about the basic technologies used to convert complex modulated optical signals to electrical signals capable of being acquired by an oscilloscope, coherent detection techniques and why real-time or equivalent-time scopes may be chosen, and see a number of equipment configurations that support coherent demodulation and analysis.
Title

Increasing Spectral Efficiency through Coherent Optical Signal Generation

This webinar provides viewers with an extensive Solutions of coherent optic signals, including: key fundamentals, how to create and generate coherent optic signals, test equipment challenges and how to use high speed arbitrary waveform generators to provide high baud rate test signaling.
