Probe Accessories

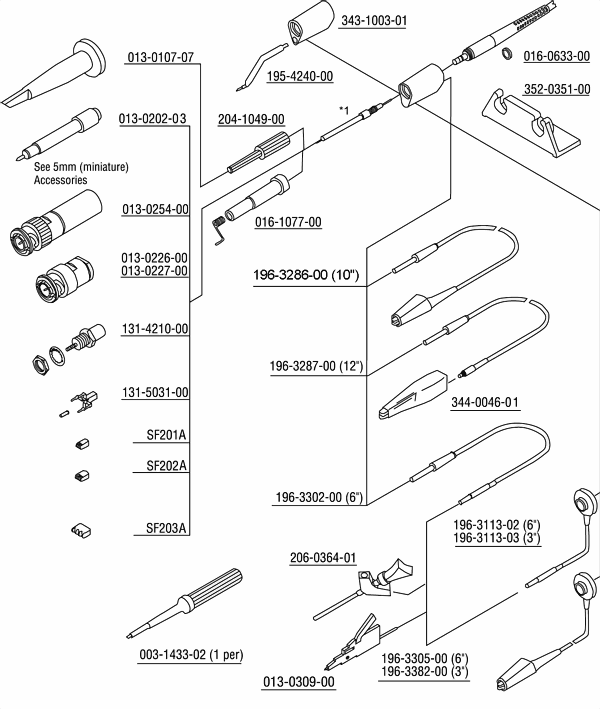

3.5 mm (Compact) Probe System for P6053C, P6133 Opt. 25, P6134C,P6135A, P6136 Opt. 25, P6137, P6138, P6138A, P6139A, P6339A, P6156, P6158and P5050
*1 See the Probe Replacement Parts table.
Probe Accessories
Part Number | Description |
|---|---|
003-1433-02 | Adjustment Tool. |
013-0107-07 | Retractable Hook Tip for Compact Tip Probes (Slate Gray). |
013-0202-03 | Subminiature/Compact-to-Miniature Probe to Adapter (Allows Use of Miniature Probe Tip Accessories). See 5 mm Probe Accessories. |
013-0226-00 | Compact Probe Tip to BNC Adapter (Non-terminated). |
013-0227-00 | 50 Ω Compact Probe Tip to BNC Termination Adapter. |
013-0254-00 | Compact Probe Tip to BNC Adapter Thread Locking (Non-terminated). |
016-0633-00 | Cable Marker Set for All Modular Cables (P5050, P610X/A/B, P612X, P613X/A, P623X, P62XX) (Except P6201, P6202A). |
016-1077-00 | Ground Tip Contact for Compact Tip Probes. 2 ea. Five Different Probe Tip to Ground Contact Spacings. |
131-4210-00 | Compact Probe Tip Chassis Mount Test Jack. |
131-5031-00 | Compact Probe Tip Circuit Board Test Points (Package of 25). |
195-4240-00 | Low Impedance Ground Contact. |
196-3113-02 | 6 in. Slip-on Ground Lead. |
196-3113-03 | 3 in. Slip-on Ground Lead. |
196-3286-00 | 10 in. Alligator Ground Lead. |
196-3287-00 | 12 in. Slip-on Ground Lead. |
196-3302-00 | 6 in. Alligator Ground Lead (Not Compatible With P6137, P6134C, P6053C or P6156). |
196-3305-00 | 6 in. Alligator Ground Lead. |
196-3382-00 | 3 in. Alligator Ground Lead. |
204-1049-00 | Compact Probe Tip Attenuator Tip Cover. |
206-0364-01 | SMT KlipChip™ Adapter. |
343-1003-01 | Ground Collar. |
344-0046-01 | #6-32 Thread Alligator Ground Clip. |
352-0351-00 | Probe Holder, Self-adhesive Back, Black. |
SMD Attachment Tools
Part Number | Description |
|---|---|
SMT KlipChip Adapter, Package of 20. | |
013-0309-00 | IC Grabber (2 each). |
SureFoot® Probe Tip Adapter, Package of 12, Yellow, 50 mil Pitch. | |
SureFoot Probe Tip Adapter, Package of 12, Blue, 25 mil/0.65 mm Pitch. | |
SureFoot Probe Tip Adapter, Package of 12, Red, 0.5 mm Pitch. |
 | Product(s) are manufactured in ISO registered facilities. |
60W-15268-0d
