Current Probes

Features & Benefits

A621

• AC – 5 Hz to 50 kHz
• 100 mA to 2000 A Peak
• For DMMs and Oscilloscopes
• Clamp On

A622

• AC/DC – 100 kHz
• 50 mA to 100 A Peak
• For DMMs and Oscilloscopes

Applications

• Motor Drives
• Inverters
• Power Supplies
• Avionics

A622











The A600 Series current probes high-value current probes are specifically designed to support measurements you make with your TekMeter^® or oscilloscope*¹.

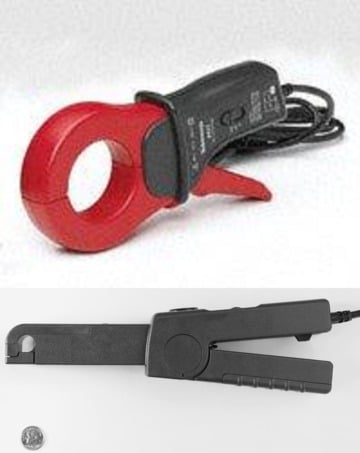

A621 2000 Amp AC Current Probe/BNC

This industrial-style clamp-on probe has a BNC connector and may be used with a shrouded banana plug adapter*¹ so it can be used on digital multimeters, TekMeter, and scopes. The A621 can measure AC currents from 100 mA to 2000 A peak over a frequency range of 5 Hz to 50 kHz. It provides a 1 mV, 10 mV, or 100 mV output for each Amp measured.

A622 100 Amp AC/DC Current Probe/BNC

This "long nose" style clamp-on probe uses a Hall Effect current sensor to provide a voltage output to oscilloscopes. It has a BNC connector and may be used with a shrouded banana plug adapter*¹ so it can also be used on digital multimeters, TekMeter, and scopes. The A622 can measure AC/DC currents from 50 mA to 100 A peak over a frequency range of DC to 100 kHz. It provides 10 mV or 100 mV output for each Amp measured.

Recommended Products

TPS2000, TDS1000B, TDS2000C, and TDS3000C Series oscilloscopes and DMM4020*¹, DMM4040*¹, and DMM4050*¹ digital multimeters.

*¹ For instruments with banana jack inputs, Tektronix part number 012-1450-00 Female BNC to banana lead adapter is required.
