VNA Measurements Aren’t as Expensive or Complicated as You Think

Wed, 2017-05-31 12:02 | by Jon Spurlock

There are two major misconceptions when it comes to Vector Network Analyzers (VNAs). One is they are very expensive. The other is they are very complicated to use. While historically, VNAs were extremely expensive, that's simply not the case today. With the advent of new technology, every RF engineer that uses a VNA can afford to have one on his or her workbench. VNAs can be very complicated to use if you're trying to make metrology grade measurements, if the device under test (DUT) has very high gain or loss, or if the device is frequency translating. However, most measurements can be accomplished easily and accurately, using the factory calibration built into the VNA, or a very simple user calibration.

Let’s first address the cost of VNAs. In the mid to late 1980s a VNA could easily cost up to $100K and that’s in 1980s dollars. Following the trend of most electronic devices, the average price of today’s traditional benchtop VNA is much lower than in the 1980s, but they are still expensive. This forces many companies to buy older VNAs off the used market and / or to have a limited number of VNAs that must be shared. And let’s not forget the cost of the test port cables, adapters and calibration kit that will be needed. These add significantly to the total cost of the VNA solution. Plus, since the test port cables, adapters and calibration kit wear out, you cannot or should not buy these used.

Have you ever gotten a design back and just want to make a quick check of the design only to go to the “lab” VNA to find a sign on it saying, “test in progress do not disturb”? Or the VNA is available but you spend hours hunting down the cables, adapters and calibration kit you need, when it will only take a few minutes to do the actual measurement?

You could use a spectrum analyzer with a tracking generator or external source, but that only gives you magnitude information and configuring a system to make return loss measurements on a spectrum analyzer is a hassle. And this assumes you have a spectrum analyzer handy and they are not cheap either.

Today there are other low cost alternatives to the used market. Several manufacturers now offer modular or disaggregated VNAs. These disaggregated VNAs separate the core measurement engine of the VNA from the data processing and display portion, enabling use of a low cost PC for the processing and display instead of a custom embedded controller. It also allows taking advantage of improvements in processing and networking capabilities by simply upgrading the PC without having to replace the core VNA engine. The disaggregated VNA solution is much smaller and more transportable, requiring less bench space and enables you to take the VNA to the DUT as opposed to bringing the DUT to the VNA. This is especially useful if you are measuring components in a large system or if you need to measure a DUT at a tuning or repair station.

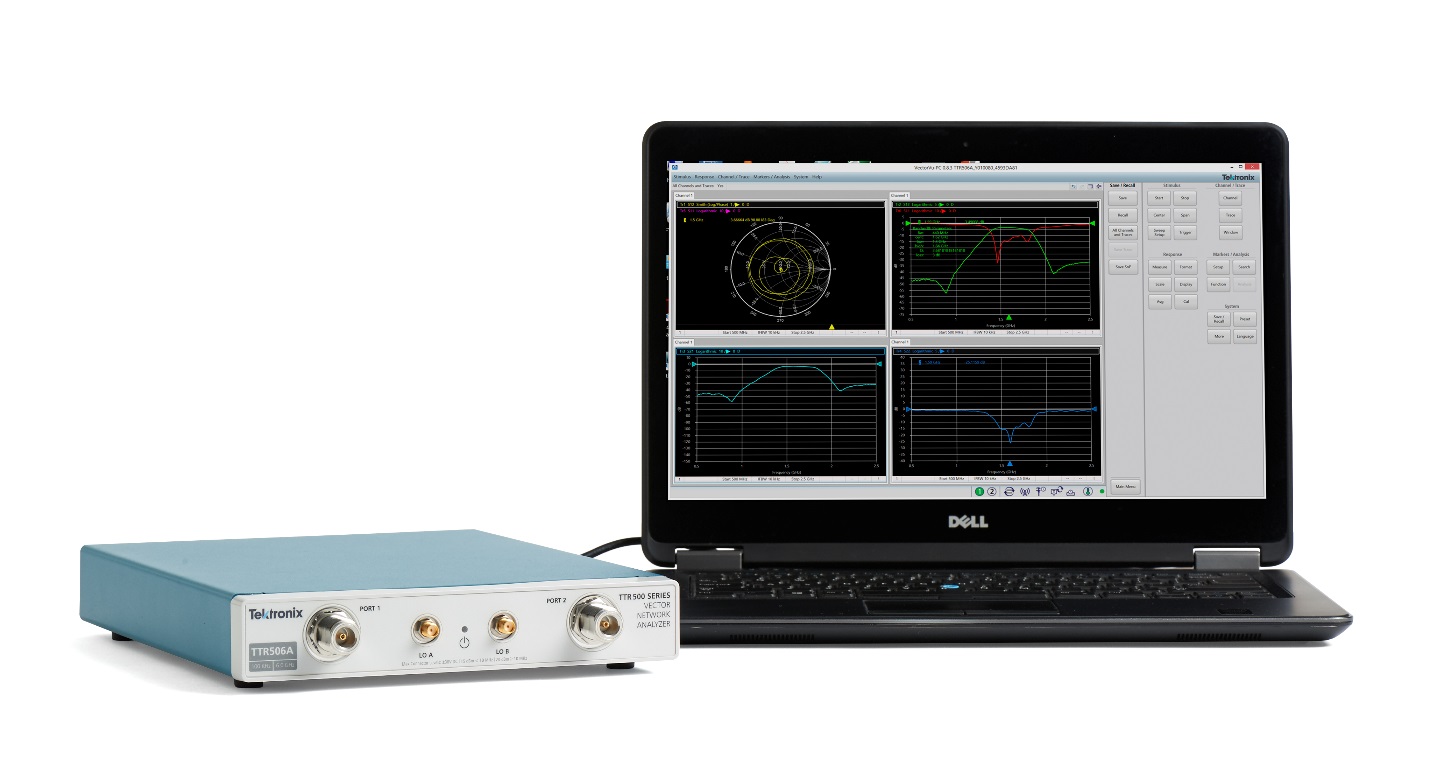

The Tektronix TTR503A and TTR506A USB-based VNAs use this disaggregated approach. The TTR503A and TTR506A VNAs are low cost and small, just like the other disaggregated VNA products, but in addition have the same accuracy and reliability as more expensive benchtop VNAs. Along with a complete selection of high quality, low cost test port cables, adapters and calibration kits, the TTR503A and TTR506A VNAs, provide a very affordable total VNA measurement solution.

Now let’s talk about reality and the complexity of effectively using a vector network analyzer. Many of you don’t use a VNA every day; you may think VNA measurements are shrouded in mystery; you may have been told to let the trained techs make your measurements for you; or you’re in school, but you can’t even get close to the VNA in order to learn to use it because only the grad students get to use the lab VNA. There are a lot of reasons you may not have wanted or been able to use a VNA as part of your typical test regime. Well, VNA measurements are not as complicated or challenging as you think – anymore.

You just want to verify the functionality of a design, trouble shoot a system, and determine if the unknown device in the lab drawer is a low pass filter or bandpass filter. These types of measurements don’t require the ultimate in accuracy and are therefore very easy to make. With the built-in factory calibration, new VNA’s can make accurate measurements right out of the box without further user calibration. Calibration has historically been one of the most difficult parts of making measurements on a VNA. The TTR503A/TTR506A comes calibrated from the factory with return loss accuracy of >122 dB, at the test ports. This is more than accurate enough for most applications.

Of course if you are measuring the transmission characteristics of a device, you will need to add at least one test port cable to the VNA. This cable will degrade the transmission accuracy of the factory calibration, primarily the phase. Or you may need to add adapters to the VNA test port to connect to your device. This adapter will degrade the return loss accuracy of the factory calibration, again mostly the phase. No need to fret. A simple one port response calibration or transmission response calibration can easily correct for the cables or adapters.

To perform a 1-port response calibration, it is best to use a precision open circuit standard or precision short circuit standard, but decent results can be made by just leaving the test port open.

Response calibration (Short/Open) – Reflection Test

  • 1-port calibration
  • Connect an Open or Short standard to a test port of the VNA to perform reflection test.
  • Calibration eliminates the reflection tracking error from the network.

Procedure:

For the appropriate standard (short or open) that you want to calibrate,

  1. In the Cal > Calibrate menu, select Response calibration.
  2. Select the appropriate soft key for the standard (short or open).
  3. Select the test port to calibrate the standard. The dialog box for the port opens.
  4. Connect the standard from the calibration kit to the test port of the VNA. Make sure you select the right gender.
  5. Click the appropriate standard button in the dialog box of the port. The VNA records a trace measurement. When the measurement is complete, a check mark appears next to the standard button in the port dialog box.
  6. Click Apply to apply the calibration data. The VNA creates and saves calibration coefficients. The error correction function is also enabled.



Figure. S11 magnitude and phase measurements of bandpass filter with correction ON (yellow) and correction OFF (red), using a response calibration (short) on port 1.

A 2-port response calibration is just as easy, since no calibration standards are required. Just connect the test ports together using a phase-stable cable.

Response calibration (Thru) – Transmission Test

  • 2-port calibration
  • Connect a Thru standard (phase-stable cable, in this case) to each test port of the VNA to perform the transmission response calibration.
  • Calibration eliminates the frequency response transmission tracking error from the network.





Procedure:

  1. In the Cal > Calibrate > Response menu, select the Thru standard.
  2. Select a Thru measurement:
    1. When the stimulus is at port 1 and you measure the response at port 2, you measure the S21 parameter.
    2. When the stimulus is at port 2 and you measure the response at port 1, you measure the S12 parameter.
  3. Connect the Thru standard (phase-stable cable, in this case) to both test ports of the VNA.
  4. Click the Thru standard button in the dialog box of the test port. The VNA records a trace measurement.
  5. For an optional isolation calibration, connect the Load standard to each of the test ports. Click Isolation to make the measurement.
  6. Click Apply to apply the calibration data. The VNA creates and saves the calibration coefficients. The error correction function is also enabled.



Figure. S21 magnitude and phase measurements of bandpass filter with correction ON (yellow) and correction OFF (red), using a response calibration (thru) from port 1 to port 2.

For a complete description of the various calibration methods and their associated trade-offs refer to the primer titled “Introduction to VNA Basics”.

If you are familiar with using any of the common VNAs on the market today, it will be easy to transition to newer models, even though they may be disaggregated and the measurement application is running on an external PC, the user interface is very similar to the user interface of other popular benchtop VNAs. The Tektronix VNA application also has built-in context sensitive help and provides examples of some common measurements.

With the low total solution cost of the TTR503A or TTR506A including accessories, now every RF engineer can afford to have a VNA on their bench. This means no more waiting to use the shared VNA and no more time wasted searching for accessories, resulting in fewer and faster design cycles. And you don’t need to go to VNA user training or be a “VNA Wizard” to effectively use a vector network analyzer. With a little basic knowledge it is easy to quickly make accurate VNA measurements.

Watch for my other blogs on VNA’s. I’ll cover topics such as:

  • Proper Connector care and Feeding
  • The Need for Quality Test Port Cables and Adapters
  • Selecting the Right Calibration Kit
  • Optimizing the VNA Measurement Set up

For more in-depth information on VNA’s download the Tektronix VNA primer.
