WFM / WVR5000 Series Waveform Monitor

WFM / WVR5000 Series Waveform Monitor

The WFM/WVR5000 series is the industry standard when monitoring basic video and audio content, at an affordable price.

Whether in the production or a post-production environment, the 5000 series offers uncompromising quality, HD/SD support, versatility through a range of software options, and the capability to handle 3G-SDI (WFM/WVR5200) and HDMI (WFM/WVR5250).

Video Format

HD/SD to
3G-SDI, HDMI

Audio Format

Embedded,
AES/EBU

Form Factor

3RU half-rack
short depth
or 1RU half-rack

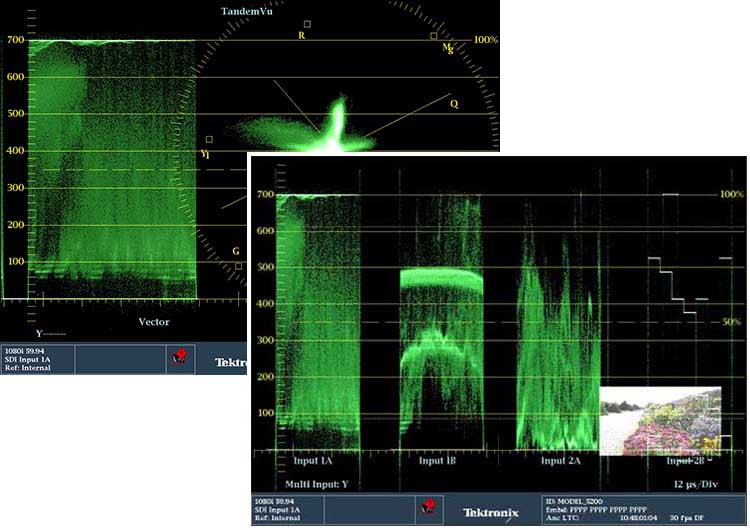

High Quality Displays for Precise Alignment & Matching of Cameras

Thumbnail

The 5000 Series waveform monitors and rasterizers are as much an essential at a local studio as they are at a global sporting event through their unique combination of high quality waveform and vector trace displays.

As applicable for luma and chroma camera alignment, as in matching imagery in a multi-camera production, the 5000 series helps to quickly, easily, and precisely perform complex camera setups in a high pressure environment.

Highlights

  • TandemVu (waveform + vector) for precise camera alignment
  • Multi-camera balancing made simple with the Multiple Input Mode

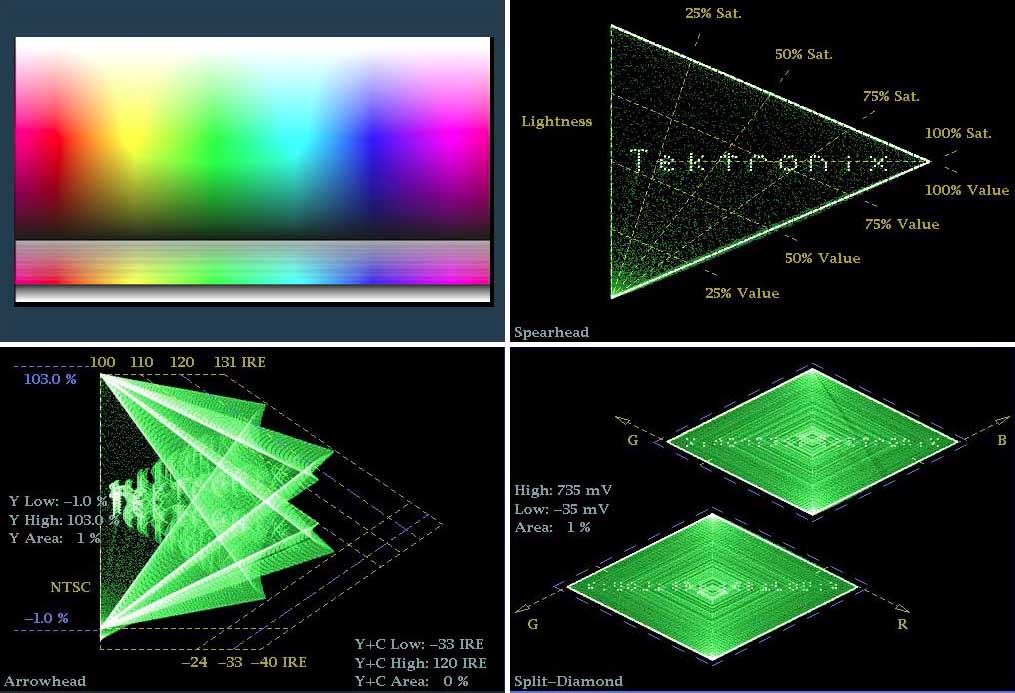

Patented Displays Ensure Color Gamut Compliance

Thumbnail

The Tektronix suite of patented gamut displays on the 5000 series, make it easy to adjust and correct the color fidelity of the video signal while staying within acceptable color limits.

The goal, given the dictates of delivery to a variety of media devices and screens, is consistent delivery without ever sacrificing the artistic intent of the original content.

Highlights

  • Patented Diamond, Spearhead, and Arrowhead Gamut Displays
  • Luma Qualified Vector Display for precise color adjustment

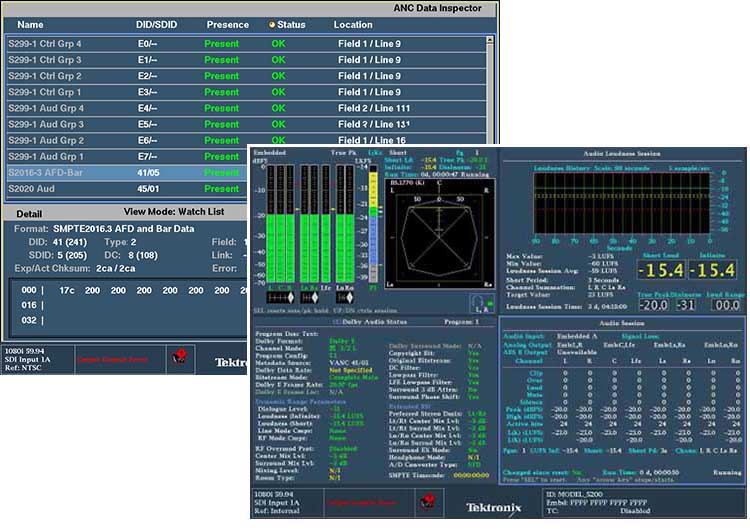

Comprehensive Content Quality Control (QC)

Thumbnail

The 5000 Series waveform monitors and rasterizers offer optional audio loudness monitoring and measurements as well as in-depth monitoring and analysis of digital data (including ANC data). A single tool to handle all quality control (QC) of signals from HD/SD-SDI to 3G-SDI, provides the assurance of superb video and audio quality as well as regulatory compliance.

Highlights

  • Audio Loudness Monitoring (ITU-R BS.1770-3, EBU R 128, ATSC A/85)
  • ANC Data Inspector for in-depth ANC Data Monitoring
  • Closed Caption and Subtitle / Teletext Decode

Models

Model Form Factor Video Formats Audio Formats Measurements Special Features List Price
WVR5000 1/2 Rack x 1RU x 18" HD, SD Embedded, AES/EBU Waveform & Vector, Audio Bars Basic HD & SD Monitoring Configure & Quote
WVR5250 1/2 Rack x 1RU x 5.5" 3G, HD, SD HDMI Embedded Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut Basic HD & SD Monitoring Configure & Quote
WVR5200 1/2 Rack x 1RU x 5.5" 3G, HD, SD Embedded Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut Basic HD & SD Monitoring Configure & Quote
WFM5000 1/2 Rack x 3RU x 5.5" HD, SD Embedded, AES/EBU Waveform & Vector, Audio Bars Basic HD & SD Monitoring Configure & Quote
WFM5250 1/2 Rack x 3RU x 5.5" 3G, HD, SD HDMI Embedded Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut Basic HD & SD Monitoring Configure & Quote
WFM5200 1/2 Rack x 3RU x 5.5" 3G, HD, SD Embedded Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut Basic HD & SD Monitoring Configure & Quote
ModelWVR5000
Form FactorVideo FormatsAudio Formats
1/2 Rack x 1RU x 18"HD, SDEmbedded, AES/EBU
MeasurementsSpecial Features
Waveform & Vector, Audio BarsBasic HD & SD Monitoring
ModelWVR5250
Form FactorVideo FormatsAudio Formats
1/2 Rack x 1RU x 5.5"3G, HD, SD HDMIEmbedded
MeasurementsSpecial Features
Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, GamutBasic HD & SD Monitoring
ModelWVR5200
Form FactorVideo FormatsAudio Formats
1/2 Rack x 1RU x 5.5"3G, HD, SDEmbedded
MeasurementsSpecial Features
Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, GamutBasic HD & SD Monitoring
ModelWFM5000
Form FactorVideo FormatsAudio Formats
1/2 Rack x 3RU x 5.5"HD, SDEmbedded, AES/EBU
MeasurementsSpecial Features
Waveform & Vector, Audio BarsBasic HD & SD Monitoring
ModelWFM5250
Form FactorVideo FormatsAudio Formats
1/2 Rack x 3RU x 5.5"3G, HD, SD HDMIEmbedded
MeasurementsSpecial Features
Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, GamutBasic HD & SD Monitoring
ModelWFM5200
Form FactorVideo FormatsAudio Formats
1/2 Rack x 3RU x 5.5"3G, HD, SDEmbedded
MeasurementsSpecial Features
Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, GamutBasic HD & SD Monitoring
Model Form Factor Video Formats Audio Formats Measurements Special Features List Price
WVR5000 1/2 Rack x 1RU x 18" HD, SD Embedded, AES/EBU Waveform & Vector, Audio Bars Basic HD & SD Monitoring Configure & Quote
WVR5250 1/2 Rack x 1RU x 5.5" 3G, HD, SD HDMI Embedded Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut Basic HD & SD Monitoring Configure & Quote
WVR5200 1/2 Rack x 1RU x 5.5" 3G, HD, SD Embedded Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut Basic HD & SD Monitoring Configure & Quote
WFM5000 1/2 Rack x 3RU x 5.5" HD, SD Embedded, AES/EBU Waveform & Vector, Audio Bars Basic HD & SD Monitoring Configure & Quote
WFM5250 1/2 Rack x 3RU x 5.5" 3G, HD, SD HDMI Embedded Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut Basic HD & SD Monitoring Configure & Quote
WFM5200 1/2 Rack x 3RU x 5.5" 3G, HD, SD Embedded Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, Gamut Basic HD & SD Monitoring Configure & Quote
ModelWVR5000
Form FactorVideo FormatsAudio Formats
1/2 Rack x 1RU x 18"HD, SDEmbedded, AES/EBU
MeasurementsSpecial Features
Waveform & Vector, Audio BarsBasic HD & SD Monitoring
ModelWVR5250
Form FactorVideo FormatsAudio Formats
1/2 Rack x 1RU x 5.5"3G, HD, SD HDMIEmbedded
MeasurementsSpecial Features
Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, GamutBasic HD & SD Monitoring
ModelWVR5200
Form FactorVideo FormatsAudio Formats
1/2 Rack x 1RU x 5.5"3G, HD, SDEmbedded
MeasurementsSpecial Features
Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, GamutBasic HD & SD Monitoring
ModelWFM5000
Form FactorVideo FormatsAudio Formats
1/2 Rack x 3RU x 5.5"HD, SDEmbedded, AES/EBU
MeasurementsSpecial Features
Waveform & Vector, Audio BarsBasic HD & SD Monitoring
ModelWFM5250
Form FactorVideo FormatsAudio Formats
1/2 Rack x 3RU x 5.5"3G, HD, SD HDMIEmbedded
MeasurementsSpecial Features
Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, GamutBasic HD & SD Monitoring
ModelWFM5200
Form FactorVideo FormatsAudio Formats
1/2 Rack x 3RU x 5.5"3G, HD, SDEmbedded
MeasurementsSpecial Features
Waveform & Vector, Loudness Metering, Closed Caption, Subtitles, ANC Data, GamutBasic HD & SD Monitoring

Mobile & Studio Production

Thumbnail

The key to stunning images and a highly realistic viewing experience is proper setup, alignment, and matching of cameras before the event. The WFM/WVR5000 series is an equally valuable tool for local studio productions or global live sporting events whether delivered via HD/SD-SDI or 3G-SDI workflows.

Highlights

  • HD/SD-SDI format support with field installable option to add 3G-SDI support
  • TandemVu (waveform + vector) for precise camera alignment
  • Multiple Input Mode for multi-camera matching

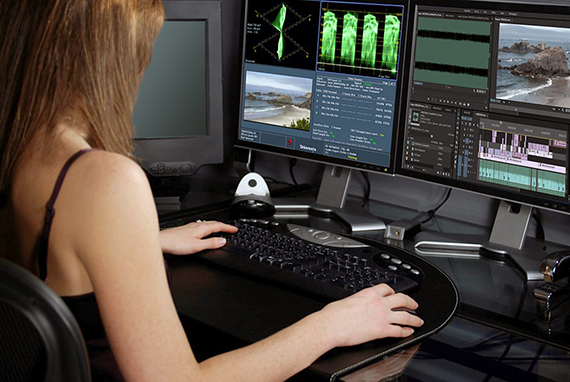

Post Production

Thumbnail

The easy to understand displays on the WFM/WVR8000 series provide insight for editors and colorists to adjust the color fidelity while retaining confidence that the video signal remains within acceptable levels of gamut.

Highlights

  • Patented Diamond, Spearhead, and Arrowhead Gamut Displays
  • Luma Qualified Vector Display for precise color adjustment
  • Most comprehensive ANC data support and audio loudness monitoring for QC of content
  • Stereoscopic 3D video displays for 3D featured film content
TitleTypeDate
Camera Measurements

Camera alignment is the key to great image quality. Alignment-related quality problems are costly to correct, but they're easy to avoid with the help of a versatile waveform monitor and a camera chart. Learn how to get variables like white balance…
Literature number: 25K-21309-0
Fact Sheet 20 May 2016
Preventing Illegal Colors

To prevent the undesired impact of color gamut violations, Tektronix has developed several displays that simplify assessment of proper gamut compliance.
Literature number: 25T-15609-1
Application Note 20 May 2016
Tips & Tricks: Using the Lightning display in Camera Set Up

The Lightning display provides both amplitude and interchannel timing information for the three channels of a component signal – within a single display. Download this Tips & Tricks to find out how to use it in Camera Set Up.
Literature number: 25W-30458-0
How-to Guide 20 May 2016
Tips & Tricks: Using the TandemVu display in Camera Set Up

Are you setting up a camera and want to insure that you have the proper signal levels on the first shot? With the Tektronix TandemVu display, you can easily make adjustments within one display for both waveform and vector. Download this Tips &…
Literature number: 25W-30459-1
How-to Guide 20 May 2016
