PRISM Media Monitoring and Analysis Platform

PRISM Media Monitoring and Analysis Platform

PRISM is our real time IP/SDI monitoring and analysis platform designed specifically to generate objective, trusted information for production of content to satisfy growing expectations in quality and consistency. Optimize Hybrid IP/SDI Facility Operations and Maintenance. Simplify Mobile Truck & Studio Production in 4K/WCG/HDR. Monitor popular IP Formats: ST2110-20/30/40; ST2022-6/7; PTP with NMOS/SDP. PRISM is versatile with a software-based architecture for easy in-the-field upgrades to meet growth requirements or monitor new standards.

PRODUCTION

  • Integrated transfer function / color space conversion for HLG, ST 2084 PQ, S-LOG2, S-LOG3, LOG-C, HDR workflows
  • Wide Color Gamut (WCG) support per ITU-R BT.2020
  • SDI test signal generation

IP/SDI FACILITY MAINTENANCE

  • Support ST2110-20/21/30/40, ST2022-6/7 with NMOS/SDP implementation
  • Ensure accurate PTP timing and alignment
  • IP test signal generation
IP Format

SMPTE 2110-20/30/40; SMPTE 2022-6/7; 2059-2

SDI Format

3G/HD/SD-SDI

Form Factor

3RU half-rack or 1RU full-rack

PRISM Media Monitoring and Analysis Platform

Keep pace with growth & the evolution of standards

PRISM has a range of options to adapt to the design and process of your truck, OB van, studio, or facility operation. The information it produces is essential to solid decision making. Based around easily upgradable software, PRISM evolves with your growth and the rich set of options is engineered to keep pace with the evolution in IP and HDR standards.

Highlights

  • Software options: 4K/UHD, 12G-SDI, HDR, and WCG
  • Single IP software option for: SMPTE ST2110, ST2022-6/7 and PTP with NMOS/SDP

Reduce the time to diagnose & remedy faults

PRISM presents complex information as an easy to understand graphical display familiar to the broadcast engineer. Increase efficiencies with rapid identification, diagnosis, and remedies to network or content issues in hybrid IP & SDI environments.

Highlights

  • Supports SMPTE ST 2110 and 2022-6/7 with ST2110 test signal generation

Application

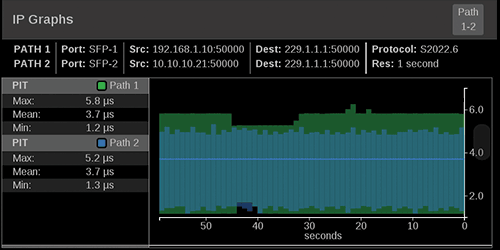

  • Correlate video errors across IP and content layers using graphical displays
  • Ensure PTP timing is within operating parameters
  • Accurately measure IP packet jitter and errors
  • Monitor RTP packet delivery timing in sender devices to be compliant to ST2110-21

Simplify your camera setup & operation in complex HDR environments

PRISM provides certainty in multi-camera HDR and SDR production operating in various color spaces, including BT.709 and BT.2020. The result is stunning visuals with a consistent 'look' every cinematographer seeks.

Highlights

  • Patented Stop Waveform Display: Makes iris adjustment of cameras much easier in live and studio environments
  • Vector and Gamut displays with integrated transfer function / color space conversion: Simplifies sometimes difficult natural skin-tone setups
  • Picture display with integrated transfer function / color space conversion: Allows true to life viewing of HDR and/or BT.2020 content
  • PRISM gives you confidence whether you are shooting PQ, HLG, SLOG2, SLOG3, LOG-C
Model Form Factor SDI Formats Audio Format Displays Measurements
(Opt. MP-IP-MEAS)
IP Formats
(Opt. MP-IP-STD)
List Price
MPI 3RU integrated Display 12G (MP-FMT-4K),
3G-SDI Level A & B,
HD-DSI, SD-SDI
AES67 and 2110-30
(MP-IP-STD),
Embedded
Waveform and Picture, Audio Bars, Video Session, Event / Error Log, IP Status (MP-IP-STD), Stop display (MP-PROD) SMPTE ST 2110-21,
IP / PTP Session, IP
Graph, PIT
Histogram, PTP
Timing, IP Stream
Capture (MP-IP-CAP)
SMPTE ST:
2110-20/30/40
2022-6/-7 & 2059-2
ASPEN SMPTE
RDD-37 (video content only)
IEEE 1588
Configure & Quote
MPX 1 RU external display Configure & Quote

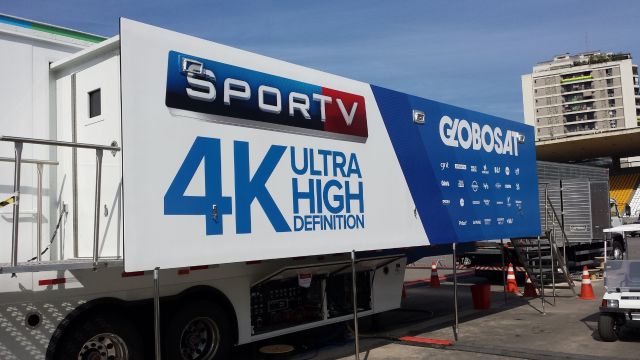

Truck/OB Van & Studio Production

Proper setup alignment and matching of cameras before a live the event is key to producing stunning images and a highly realistic viewing experience. PRISM fits any of your application needs, from local studio productions to global live sporting events; from familiar HD workflows to emerging 4K HDR workflows.

Highlights

  • Supports HD/SD-SDI with optional 12G-SDI and/or 4K/UHD
  • Integrated LUT for HLG, ST 2084 PQ, S-LOG2, S-LOG3, LOG-C HDR workflows
  • WCG support per ITU-R BT.20200
  • Input cameras with various standards and formats

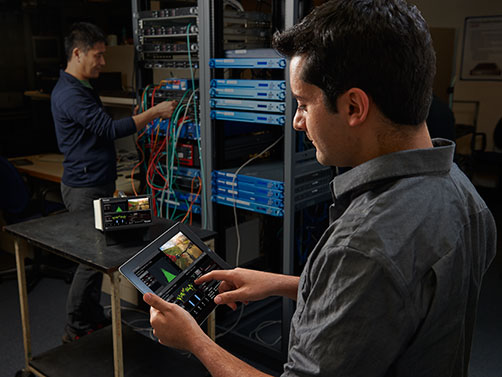

Hybrid IP/SDI Facility Operations & Maintenance

Managing the efficient transition from SDI to a hybrid or an all-IP infrastructure and the subsequent workflow challenges, impacts on everyone in the broadcast chain. PRISM, with its familiar graphical format, is essential to this process and is your trusted companion in reducing the learning curve and managing overall workflow efficiency.

Highlights

  • Support SMPTE ST2110-20/21/30/40, ST2022-6/7 and PTP
  • Correlate video errors across IP and content layers
  • Ensure PTP timing
  • Accurately measure IP packet jitter and errors
  • Monitor RTP packet delivery timing in sender devices to be compliant to ST2110-21
Model Form Factor SDI Formats Audio Format Displays Measurements
(Opt. MP-IP-MEAS)
IP Formats
(Opt. MP-IP-STD)
List Price
MPI 3RU integrated Display 12G (MP-FMT-4K),
3G-SDI Level A & B,
HD-DSI, SD-SDI
AES67 and 2110-30
(MP-IP-STD),
Embedded
Waveform and Picture, Audio Bars, Video Session, Event / Error Log, IP Status (MP-IP-STD), Stop display (MP-PROD) SMPTE ST 2110-21,
IP / PTP Session, IP
Graph, PIT
Histogram, PTP
Timing, IP Stream
Capture (MP-IP-CAP)
SMPTE ST:
2110-20/30/40
2022-6/-7 & 2059-2
ASPEN SMPTE
RDD-37 (video content only)
IEEE 1588
Configure & Quote
MPX 1 RU external display Configure & Quote
Media Analysis Solution for Hybrid IP/SDI Infrastructure
PRISM Datasheet PRISM provides flexible options and field-installable upgrades to monitor a diverse variety of IP statistics as well as video and audio content. The comprehensive feature set, along with an intuitive and simplified graphical presentation of IP statistics…
Literature number: 2MW-60446-9
Datasheet 10 Jul 2018
PRISM MPI Media Analysis Platform Dual Rack Cabinet Version 2 Installation
This document contains instructions for installing the PRISM MPI Media Analysis Platform into one of the optional dual rack cabinets.
Part number: 071357700
Field Install Instructions 19 Mar 2018
PRISM MPI Media Analysis Platform Dual Rack Cabinet Version 1 Installation
This document contains instructions for installing the PRISM MPI Media Analysis Platform into one of the optional dual rack cabinets.
Part number: 071350103
Field Install Instructions 19 Mar 2018
PRISM MPX Media Analysis Platform Installation and Safety
This software supports version 1.5. This manual contains installation and safety information for the PRISM MPX Media Analysis Platform.
Part number: 071354902
User 28 Nov 2017
PRISM MPI Media Analysis Platform Installation and Safety
Supports software version 1.5. This manual contains installation and safety information for the PRISM MPI Media Analysis Platform.
Part number: 071350004
User 06 Nov 2017
PRISM Media Analysis Solution
PRISM provides flexible options and field-installable upgrades to monitor a diverse variety of IP statistics as well as video and audio content. The comprehensive feature set, along with an intuitive and simplified graphical presentation of IP statistics…
Part number: 2MW-60446-7
02 Nov 2017
PRISM Media Analysis Platform V1.5
Supports firmware version 1.5. This manual contains information about the operation, functions, and features of the PRISM Media Analysis Platform.
Part number: 077129003
Primary User 02 Nov 2017
PRISM Media Analysis Platform V1.5
This document describes the new features, improvements, and limitations of firmware version 1.5 for the PRISM Media Analysis Platform.
Part number: 077129305
Release Notes 31 Oct 2017
PRISM Media Analysis Platform Specifications and Performance Verification
This manual contains specifications and performance verification procedures for the PRISM Media Analysis Platform.
Part number: 077129103
Performance Verification 31 Oct 2017
PRISM Media Analysis Platform Field Upgrade
This document contains instructions for installing field upgrades on the PRISM Media Analysis Platform.
Part number: 075109500
Field Install Instructions 31 Oct 2017
