5 Series Mixed Signal Oscilloscope Low Profile
5 Series Mixed Signal Oscilloscope Low Profile
In applications that demand extreme channel density, the 5 Series MSO Low Profile oscilloscope sets a new standard for performance. With 12-bit analog-to-digital converters, this high speed digitizer offers 8 input channels (plus AUX Trig) in a compact package, only 3.5 inches high (2U).
Bandwidth
1 GHz
Analog Channels
8
Digital Channels
Up to 64 (optional)
Record Length
125 Mpts
Low Profile
Instrument more of your experiment without adding racks

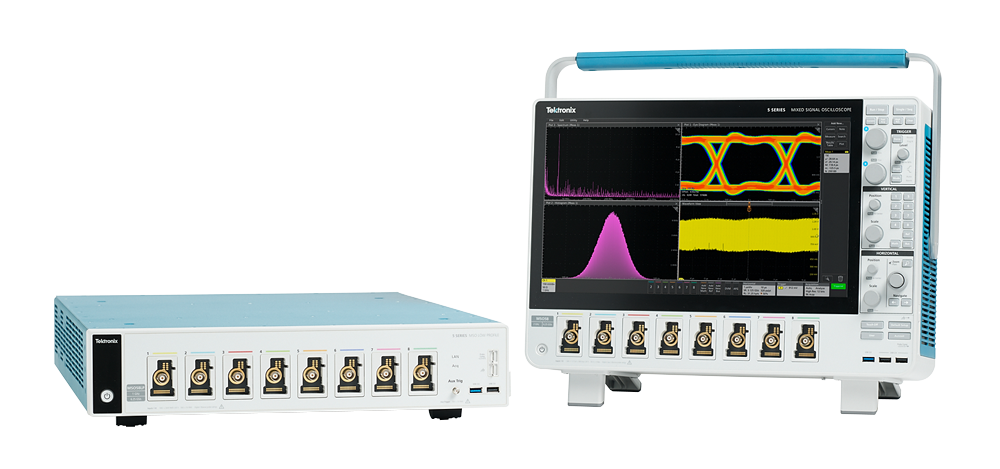

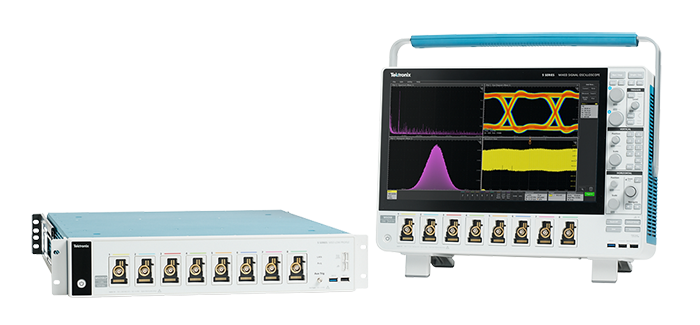

MSO58LP

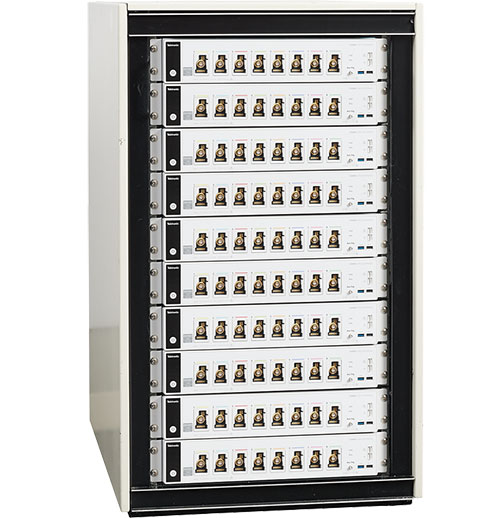

Replace your oscilloscopes and fit 6x more channels into your existing rack space. The 5 Series MSO LP offers 8 channels, plus an auxiliary trigger input, in a space-saving 2U instrument -- at a low cost-per-channel. Each the 8 FlexChannel™ inputs can be used as 1 analog channel or 8 digital channels.
High-fidelity captures and high-quality data
With 1 GHz analog bandwidth, 6.25 GS/s sample rate on all channels, and 125 M record length, the 5 Series MSO Low Profile has the performance you need to capture accurate waveform data with the best possible signal integrity.
See more signal detail than ever with 12-bit vertical resolution and ENOB of 7.6 bits at 1 GHz
Tek49
12-bit analog-to-digital converters provide 16 times the vertical resolution of traditional 8-bit ADCs. Measure small signal details, even if they are riding on large signals.
Transition from design to manufacturing test, effortlessly
Eliminate work by using exactly the same software and test routines in production that you developed during design. Use the benchtop 5 Series MSO with its 15.6-inch HD display and pinch-swipe-zoom touchscreen for design validation. Then run exactly the same tests using the compact low-profile version in manufacturing.
Models
| Model | Bandwidth | Sample Rate | Record Length | Analog Channels | Digital Channels | List Price |
|---|---|---|---|---|---|---|
| MSO58LP | 1 GHz | 6.25 GS/s | 125 Mpoints | 8 | Up to 64 (optional) | - |
ModelMSO58LP
List Price
-
BandwidthSample RateRecord Length
1 GHz
6.25 GS/s
125 Mpoints
Analog ChannelsDigital Channels
8
Up to 64 (optional)
| Model | Bandwidth | Sample Rate | Record Length | Analog Channels | Digital Channels | List Price |
|---|---|---|---|---|---|---|
| MSO58LP | 1 GHz | 6.25 GS/s | 125 Mpoints | 8 | Up to 64 (optional) | - |
ModelMSO58LP
List Price
-
BandwidthSample RateRecord Length
1 GHz
6.25 GS/s
125 Mpoints
Analog ChannelsDigital Channels
8
Up to 64 (optional)
High-Energy Physics

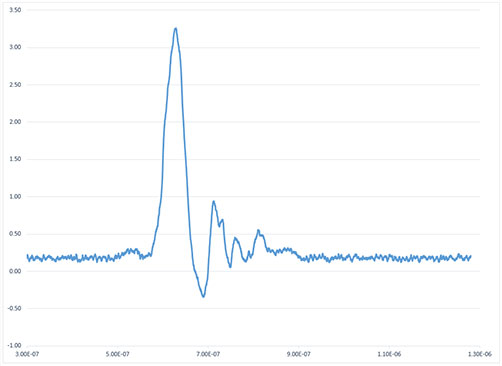

Pulsed power measurement applications capture fleeting events that represent the world of particle physics, and require the acquisition of many signals with high dynamic range in challenging physical environments. The 5 Series MSO Low Profile provides more than 6X the channel density of a traditional bench oscilloscope with industry-leading performance enabling confident collection of accurate test data.
Highlights
- 12-bit analog-to-digital converters
- ENOB of 7.6 at 1 GHz
- 125 M record length acquires up to 20 ms of time at 6.25 GS/s
- 2 rack units high (3.5 inches)
ATE Systems
Automated test systems require robust programming capability and are often subject to rack-space constraints. The 5 Series MSO Low Profile oscilloscope packs 8 inputs into just 2 rack units and it comes ready to mount. Each input can work as a precision analog channel or 8 digital channels. And you can develop tests on the 5 Series MSO with it's 15.6-inch display for design validation and use the same programming on the Low Profile version for production.
Highlights
- 8 FlexChannel inputs plus auxiliary trigger input
- 2 rack units high (3.5 inches) with rackmount attached
- 10/100/1000 Ethernet LAN for easy communication
- USB 3.0 device port for fast communication
| Tektronix 5 Series MSO Low Profile |
Tektronix 5 Series MSO |
Keysight S-Series |
Keysight M9243A |
National Instruments PXIe-5162 |
|
|---|---|---|---|---|---|
| Bandwidth | 1 GHz | 350 MHz to 2 GHz | 500 MHz to 8 GHz | 1 GHz | 1.5 GHz |
| Analog Channels | 8 | 4, 6, or 8 | 4 | 2 | 2 |
| Analog Sample Rate (All Channels) | Up to 6.25 GS/s | Up to 6.25 GS/s | Up to 10 GS/s | Up to 2.5 GS/s | Up to 2.5 GS/s |
| Height (Rack Units) | 2U | 7U | 7U | 3U | 4U |
| A/D Resolution | 12 bits | 12 bits | 10 bits | 8 bits | 10 bits |
| ENOB (system at 1 GHz) | 7.6 bits | 7.6 bits | 7.8 bits | Not Specified | 6.6 bits |
| Standard Record Length (All Channels) | 125 Mpts | 62.5 Mpts | 50 Mpts | 2 Mpts | 16 Mpts |
| Integrated Arbitrary/Function Generator | 50 MHz (opt) | 50 MHz (opt) | - | - | - |
| Digital Channels (MSO) | Up to 64 (opt) | Up to 64 (opt) | 16 (opt) | - | - |
| Operating System | Closed Linux | Closed Linux Open Windows 10 (opt.) |
Open Windows 7 | Windows 7 | Closed Open Windows 10 |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| TAP1500 | Active Probe: 1.5 GHz, 10X, Single-ended, TekVPI | Configure & Quote | |
| TAP2500 | Active Probe: 2.5 GHz, 10X, Single-ended, TekVPI | Configure & Quote |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| TCP0020 | Probe, AC/DC Current; 20 Amp; 50 MHz BW; TekVPI Interface; Certificate of Traceable Calibration Standard | Configure & Quote | |
| TCP0030A | Probe, AC/DC Current; 30 Amp DC, DC TO 120 MHZ; with TekVPI Interface; Certificate of Traceable Calibration Standard | Configure & Quote | |
| TCP0150 | Current Probe: 20 MHz, 5 mA to 212 A, AC/DC, TekVPI | Configure & Quote |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| TDP0500 | Differential Probe: 500 MHz, 5X/50X, +/- 42V, TekVPI | Configure & Quote | |
| TDP1000 | Differential Probe: 1 GHz, 5X/50X, +/- 42V, TekVPI | Configure & Quote | |
| THDP0100 | Differential PROBE; 100 MHZ TekVPI DIFFERENTIAL HIGH VOLTAGE PROBE | Configure & Quote | |
| THDP0200 | Differential PROBE; 200 MHZ TekVPI DIFFERENTIAL HIGH VOLTAGE PROBE | Configure & Quote | |
| TMDP0200 | Differential PROBE; 200 MHZ TekVPI DIFFERENTIAL MEDIUM VOLTAGE PROBE;TMPD0200 | Configure & Quote |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| TDP1500 | Differential Probe: 1.5 GHz, 1X/10X, +/-8.5V, TekVPI | Configure & Quote | |
| TDP3500 | Differential Probe: 3.5 GHz, 5X, +/- 2V, TekVPI | Configure & Quote |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| TIVH02 | IsoVu optically isolated differential probe, 200 MHz, TekVPI, 3 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips | Configure & Quote | |
| TIVH02L | IsoVu optically isolated differential probe, 200 MHz, TekVPI, 10 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips | Configure & Quote | |
| TIVH05 | IsoVu optically isolated differential probe, 500 MHz, TekVPI, 3 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips | Configure & Quote | |
| TIVH05L | IsoVu optically isolated differential probe, 500 MHz, TekVPI, 10 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips | Configure & Quote | |
| TIVH08 | IsoVu optically isolated differential probe, 800 MHz, TekVPI, 3 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips | Configure & Quote | |
| TIVH08L | IsoVu optically isolated differential probe, 800 MHz, TekVPI, 10 m cable, includes 50X(MMCX50X) and 500X(SQPIN500X) tips | Configure & Quote | |
| TIVM1 | IsoVu optically isolated differential probe, 1 GHz, TekVPI, 3 m cable, includes 5X(IVTIP5X) and 25X(IVTIP25X) tips | Configure & Quote | |
| TIVM1L | IsoVu optically isolated differential probe, 1 GHz, TekVPI, 10 m cable, includes 5X(IVTIP5X) and 25X(IVTIP25X) tips | Configure & Quote |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| TLP058 | 8 channel general purpose logic probe for 5 and 6 Series MSO oscilloscopes. Includes accessory kit. | Configure & Quote |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| TPP0500B | Passive Probe: 500 MHz, 10X, TekVPI | Configure & Quote | |
| TPP0502 | Passive Probe: 500 MHz, 2X, TekVPI | Configure & Quote | |
| TPP1000 | Passive Probe: 1 GHz, 10X, TekVPI | Configure & Quote |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| TPP0850 | High Voltage Probe: 800 MHz, 50X, 2.5 kV, Single-ended, TekVPI | Configure & Quote |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| TPR1000 | 1 GHz, Single-Ended TekVPI Power-Rail Probe with TPR4KIT Standard Accessory Kit | Configure & Quote | |
| TPR4000 | 4 GHz, Single-Ended TekVPI Power-Rail Probe with TPR4KIT Standard Accessory Kit | Configure & Quote |
| Data Sheet | Software Package / Software Option | Description | Configure and Quote |
|---|---|---|---|
| Opt. 5-AFG | Add built-in Arbitrary/Function Generator | Contact Us | |
| Opt. 5-DJA | Simplifies identifying signal integrity concerns, jitter and their related sources and provides the highest sensitivity and accuracy available for real-time oscilloscopes. | Contact Us | |
| Opt. 5-PWR | Power measurement and analysis | Contact Us | |
| Opt. 5-SEC | Password-protected enabling and disabling of all communication ports and firmware upgrades | Contact Us | |
| Opt. 5-SRAERO | Aerospace serial triggering and analysis | Contact Us | |
| Opt. 5-SRAUDIO | I2S, LJ, RJ, and TDM protocol trigger and decode of serial packet content | Contact Us | |
| Opt. 5-SRAUTO | CAN, CAN-FD, LIN, and FlexRay protocol trigger and decode of serial packet content | Contact Us | |
| Opt. 5-SRAUTOSEN | Automotive sensor serial triggering and analysis | Contact Us | |
| Opt. 5-SRCOMP | RS-232/422/485/UART protocol trigger and decode of serial packet content | Contact Us | |
| Opt. 5-SREMBD | I2C and SPI protocol trigger and decode of serial packet content | Contact Us |
Access Digital Channels
| Upgrade | Description | Purchasing Details |
|---|---|---|
| TLP058 Logic Probe | Each probe accesses 8 digital channels on any FlexChannel for any 5 Series MSO | Request a quote on this probe |
Add Instrument Functions
| Upgrade | Description | Purchasing Details |
|---|---|---|
| SUP5-AFG | Add arbitrary function generator | Request trial license Request a quote |
| SUP5-DVM | Add digital voltmeter / trigger frequency counter | Software upgrade license file provided upon registration. Register now. |
Add Protocol Analysis
| Upgrade | Description | Purchasing Details |
|---|---|---|
| SUP5-SRAERO | Aerospace serial triggering and analysis (MIL-STD-1553, ARINC429) | Request trial license Request a quote |
| SUP5-SRAUDIO | Audio serial triggering and analysis (I2S, LJ, RJ, TDM) | Request trial license Request a quote |
| SUP5-SRAUTO | Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay) | Request trial license Request a quote |
| SUP5-SRAUTOSEN | Automotive sensor serial triggering and analysis (SENT) | Request trial license Request a quote |
| SUP5-SRCOMP | Computer serial triggering and analysis (RS-232/422/485/UART) | Request trial license Request a quote |
| SUP5-SREMBD | Embedded serial triggering and analysis (I2C, SPI) | Request trial license Request a quote |
| SUP5-SRENET | Ethernet serial triggering and analysis (10Base-T, 100Base-TX) | Request trial license Request a quote |
| SUP5-SRUSB2 | USB2.0 serial triggering and analysis (LS, FS, HS) | Request trial license Request a quote |
Add Advanced Analysis
| Upgrade | Description | Purchasing Details |
|---|---|---|
| SUP5-DJA | Advanced jitter and eye analysis | Request trial license Request a quote |
| SUP5-PWR | Power analysis | Request trial license Request a quote |
