DisplayPort Interface

Future of Display Technology

The DisplayPort standard continues to revolutionize display interfaces in a variety of applications, including laptops, monitors and docking stations.

Defined by the Video Electronics Standards Association (VESA), DisplayPort version 2.0 significantly increases data rates. This enables higher dynamic range, improves refresh rates and supports the highest display resolutions.

Our comprehensive solutions are designed to be adaptable to fit your unique DisplayPort testing needs for VESA certification. Our automated software dramatically reduces test time and complexity by handling setup and calibration.

Solutions for DisplayPort

DisplayPort 2.0 Transmitter Compliance Solution

Tektronix TekExpress DP2.0 is a single button solution for the testing of UHBR10, UHBR13.5, and UHBR20 data rates. The Tektronix solution supports Standard DP, mini-DP, and USB-C connectors. Use the TekExpress DP2.0 solution to test and validate the physical electrical layer requirement of the DP source.

  • Option to de-embed the RF cable and fixture
  • Support both TP2 and TP3EQ test points
  • Signal validation helps to detect anomalies quickly in the signal
  • Supports 16 preset selection for all the UHBR data rates

DisplayPort TM is a trademark of the Video Electronics Standards Association (VESA).

See DisplayPort 2.0 datasheet

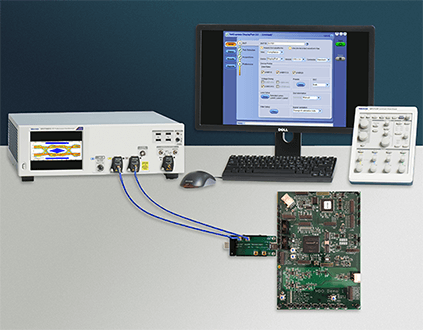

DisplayPort Validation Test

DisplayPort 1.4a Transmitter Compliance Solution

Engineers designing DisplayPort silicon for computer and embedded systems or validating the physical layer compliance of DisplayPort devices need comprehensive solutions.

With Tektronix oscilloscopes and software analysis tools such as DPOJET and SDLA, designers can characterize DisplayPort 1.4 source devices operating at HBR3 (8.1 Gbps). Our DP1.4 solution performs all transmitter testing including compliance in under 7 hours at HBR2 (5.4 Gbps) and 11 hours at HBR3.

  • Supports Standard DP, mini-DP and USB Type-C connectors
  • Fully automated DUT controlling with intelligent pattern recognition
  • Optimized measurement algorithms execute tests faster with improved accuracy
See DisplayPort 1.4 datasheet
DisplayPort Validation Software

Solution Resource Section

DisplayPort 2.0 Pre-Compliance and Debug Solution
Fact Sheet

DisplayPort 2.0 Pre-Compliance and Debug Solution

Learn more about the TekExpress DisplayPort 2.0 pre-compliance/debug solution for testing DP2.0 devices in our data sheet. See how it provides the most comprehensive solution for the designing DisplayPort silicon, as well as for physical-layer compliance validation.

Jitter Analysis Software
Fact Sheet

DPOJET Data Sheet

DPOJET is the premier eye-diagram, jitter, noise and timing analysis package available for real-time oscilloscopes.

Serial Data Debug
Fact Sheet

SDLA

Tektronix’s advanced Serial Data Link Analysis solutions enable a seamless transition between characterization, compliance, and debug tasks required to bring your product to market.
