Application
Software Bundles
FOR 4, 5 & 6 SERIES MSOs
1
Application Bundles
MONEY SAVING BUNDLES FOR THE 4, 5 AND 6 SERIES MSOs
Application bundles are a great
• Offer better value with more functions
at a much lower cost than equivalent
alternative to purchasing individual
individual options
options, especially if you plan to
• Make it cost-effective to purchase capabilities
address diverse applications with your
to cover future needs or needs across
oscilloscope. Compared to individual
engineering teams
options, these specially designed
• Include the most frequently combined options
for key applications and industries
bundles:
2
Three Levels of Application Bundles
Starter Bundle
These bundles add capabilities that almost all engineers need for embedded systems design.
4, 5 or 6 Series MSOs equipped with a Starter Bundle (for example, 4-STARTER-FL) will be able to decode and trigger on I2C, SPI, RS232/422/485/UART
bus activity as well as power measurements and analysis. Includes an integrated arbitrary/function generator with 13 predefined functions and arbitrary
waveforms. This is equivalent to adding -AFG, -SRCOMP, -SREMBD and -PWR options.
Pro Bundles
Specially designed to empower engineers in particular applications and industries.
See pages 4 through 9 for details on specific bundles
Any Pro Bundle includes the capabilities enabled with the Starter Bundle Extended record length to help you take better advantage of advanced
analysis capabilities.
Standards
Serial Decode
Power
Signal Integrity
Compliance
Automotive
Aerospace
(4, 5, 6 Series)
(4, 5, 6 Series)
(5, 6 Series)
(5, 6 Series)
(4, 5, 6 Series)
(4, 5, 6 Series)
A comprehensive
Automates a wide
Essential tools for
Comprehensive test
For ECU designers
Serial bus decoding
kit of serial protocol
range of power
engineers analyzing
automation with full
- decoding for
for key aerospace
support for embedded
measurements - from
jitter and signal
instrument control and
automotive protocols,
protocols and mask
systems. Eliminates
the AC line to point of
integrity of high-
reporting for testing
and automated
testing for testing
the need to decode by
load.
speed clocks and data
to the leading serial
compliance testing for
unique signals.
hand.
lines.
standards.
key communications
standards.
Ultimate Bundle
Everything listed above for the most capabilities and highest savings.
All of the capabilities of the Starter Bundle All capabilties of ALL Pro Bundles.
Spectrum View RF vs. time waveforms Extended Spectrum View capture bandwidth.
Video triggering.
Maximum available record length for the 5 and 6 Series MSOs.
3
(4, 5, 6 Series MSO)

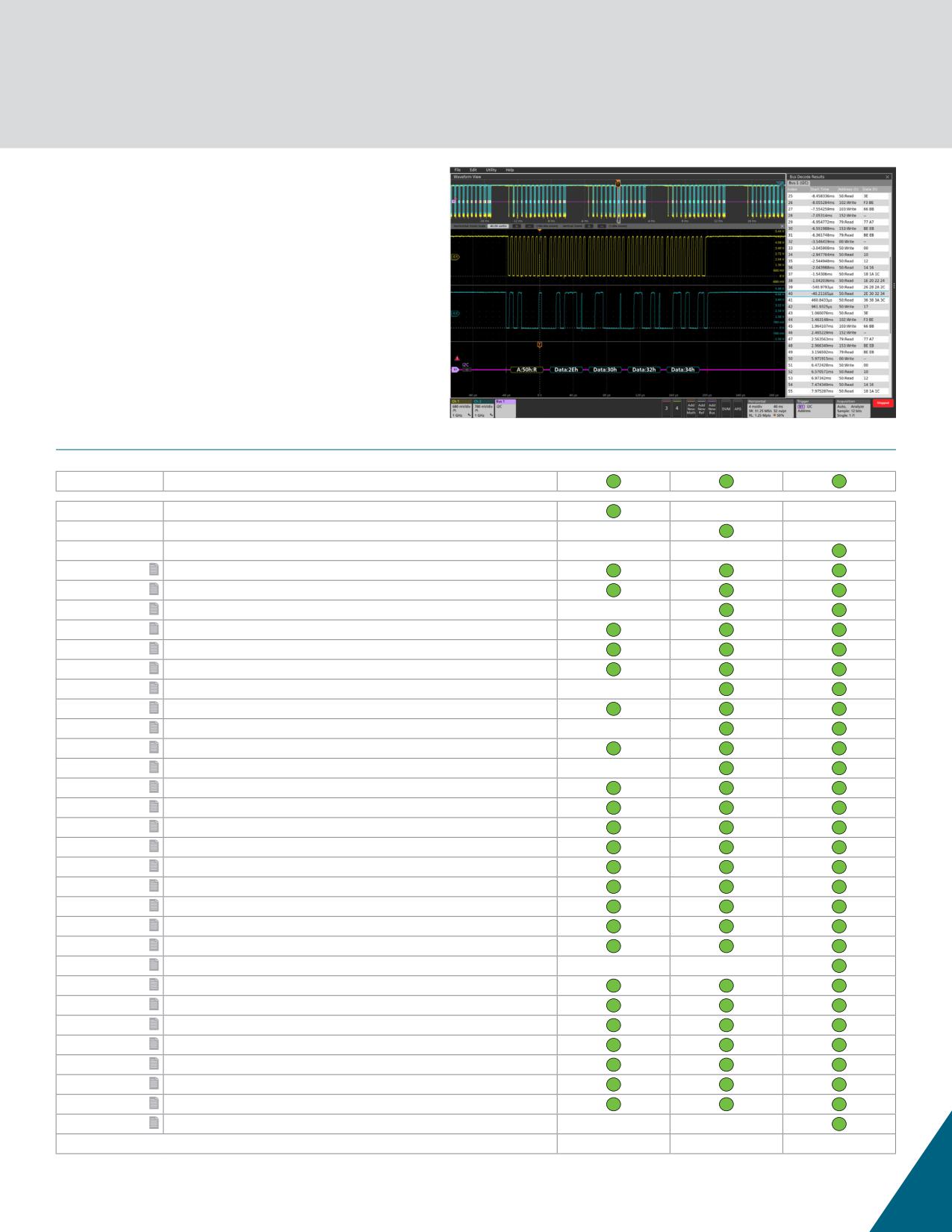

Pro Bundle | Serial Decode
A comprehensive kit of serial protocol support for
embedded systems. These options automate bus
decoding, eliminating the chore of hand decoding.
Search capability makes it easy to zero in on
specific bus activity.
Automated serial decoding provides system-level visibilty without hand decoding.
Included
Description
4 Series MSO
5 Series MSO
6 Series MSO
Starter Bundle
Embedded serial decode/trigger and integrated AFG (See page 3 for details.)
4-RL-1
Extend record length to 62.5 million sample points per channel
5-RL-125M
Extend record length to 125 million sample points per channel
6-RL-2
Extend record length to 250 million sample points per channel
PWR
Advanced power measurements and analysis
RFNFC
NFC serial decoding and analysis
SR8B10B
8B10B serial decoding and analysis
SRAERO
Aerospace serial bus triggering and analysis (MIL-STD-1553, ARNIC 429)
SRAUDIO
Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
SRAUTO
Automotive serial triggering and analysis (CAN, CAN FD, CAN XL, LIN, FlexRay)
SRAUTOEN1
100BASE-T1 protocol decode and analysis
SRAUTOSEN
SENT serial decoding and analysis
SRCPHY
MIPI C-PHY X.X (CSI-2/DSI-2) serial decoding and analysis
SRCXPI
CXPI serial decoding and analysis
SRDPHY
MIPI D-PHY 1.2 (CSI/DSI) decoding and analysis
SRENET
Ethernet serial triggering and analysis (10BASE-T, 100BASE-T)
SRESPI
eSPI serial decoding and analysis
SRETHERCAT
EtherCAT serial decoding and analysis
SREUSB2
eUSB 2.0 serial decoding and analysis
SRI3C
I3C serial decoding and analysis
SRMANCH
Manchester serial decoding and analysis
SRMDIO
MDIO serial decoding and analysis
SRNRZ
NRZ serial decoding and analysis
SRONEWIRE
1-Wire serial decoding and analysis
SRPCIE321
PCIe Gen 1, 2, 3 serial decoding and analysis
SRPM
Power management serial triggering and analysis (SPMI)
SRPSI5
PSI5 serial decoding and analysis
SRSDLC
SDLC serial decoding and analysis
SRSMBUS
SMBus serial decoding and analysis
SRSPACEWIRE
Spacewire serial decoding and analysis
SRSVID
SVID serial triggering and analysis
SRUSB2
USB 2.0 serial triggering and analysis (LS, FS, HS)
SRUSB3
USB 3.0 serial decode and analysis (USB 3.0)
Permanent Licenses
4-PRO-SERIAL-FL
5-PRO-SERIAL-FL
6-PRO-SERIAL-FL
4
(4, 5, 6 Series MSO)
Pro Bundle | Power
Automates a wide range of power measurements - from the AC line to point of load. Also includes decoding for popular power
management buses.
Automate common measurements such as true power, apparent power,
5 and 6 Series MSOs support advanced 3-phase motor drive analysis.
reactive power, power factor and many more.
Included
Description
4 Series MSO
5 Series MSO
6 Series MSO
Embedded serial decode/trigger and integrated AFG
Starter Bundle
(See page 3 for details.)
4-RL-1
Extend record length to 62.5 million sample points per channel
5-RL-125M
Extend record length to 125 million sample points per channel
6-RL-2
Extend record length to 250 million sample points per channel
3PHASE
3-Phase power analysis
DPM
Digital power management and analysis
IMDA
3-Phase inverters, motors and drives analysis
IMDA-DQ0
DQ0 measurements for IMDA
IMDA-MECH
Mechanical measurements for IMDA
Power delivery network measurements for control loop stability, minimizing
PDN
power rail noise, and analysis of power supply induced jitter.
PWR
Advanced power measurements and analysis
SRPM
SPMI serial bus triggering and analysis
SRSVID
SVID serial bus triggering and analysis
TDR
Time domain reflectometry (TDR) measurements and analysis
WBG-DPT
Wide bandgap SiC/GaN double pulse test measurements
Permanent Licenses
4-PRO-POWER-FL
5-PRO-POWER-FL
6-PRO-POWER-FL
5
(5, 6 Series MSO)

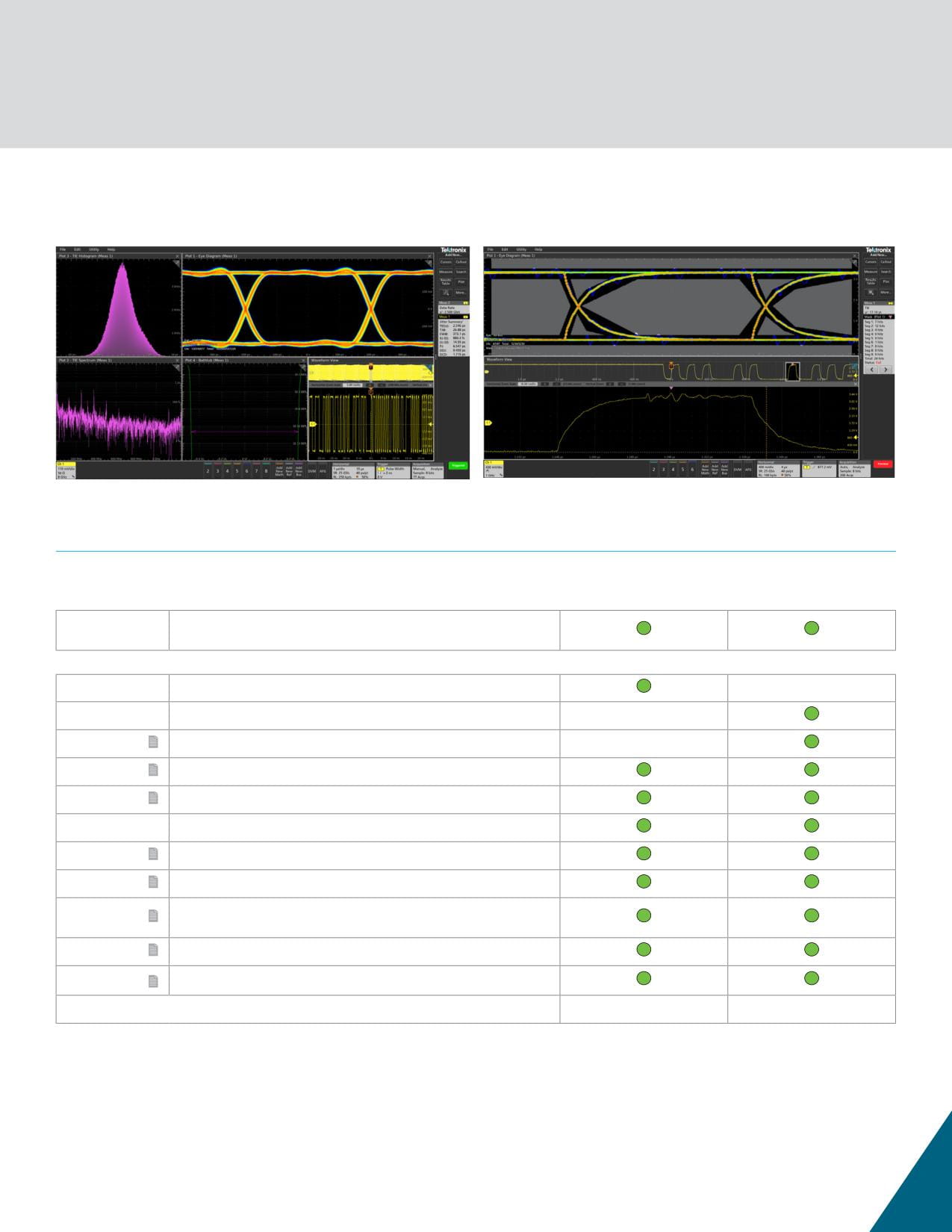

Pro Bundle | Signal Integrity
Essential tools for engineers validating and troubleshooting high-speed clocks and data lines. Quickly measure and
deconstruct jitter. Automatically evaluate signal shapes and measurement limits with mask and limit testing.
Get a fast overview of jitter with the jitter summary measurement.
Mask and limit tests automate pass / fail signal testing.
Included
Description
5 Series MSO
6 Series MSO
Embedded serial decode/trigger and integrated AFG
Starter Bundle
(See page 3 for details.)
5-RL-125M
Extend record length to 125 million sample points per channel
6-RL-2
Extend record length to 250 million sample points per channel
DBDDR3
DDR3/LPDDR3 analysis and debug solution
DBLVDS
Automated LVDS test solution*
DJA
Advanced jitter analysis
MTM
Mask and limit testing
PAM3
PAM3 signal analysis*
PWR
Advanced measurements and analysis
Signal Integrity Modeling-base license (includes de-embedding,
SIM
embedding, and core analysis tools)
TDR
Time domain reflectometry (TDR) measurements and analysis
UDFLT
User-defined filter creation tool
Permanent Licenses
5-PRO-SIGNAL-FL
6-PRO-SIGNAL-FL
*Requires optional solid-state drive with Windows operating system (5-WIN / 6-WIN)
6
(5, 6 Series MSO)

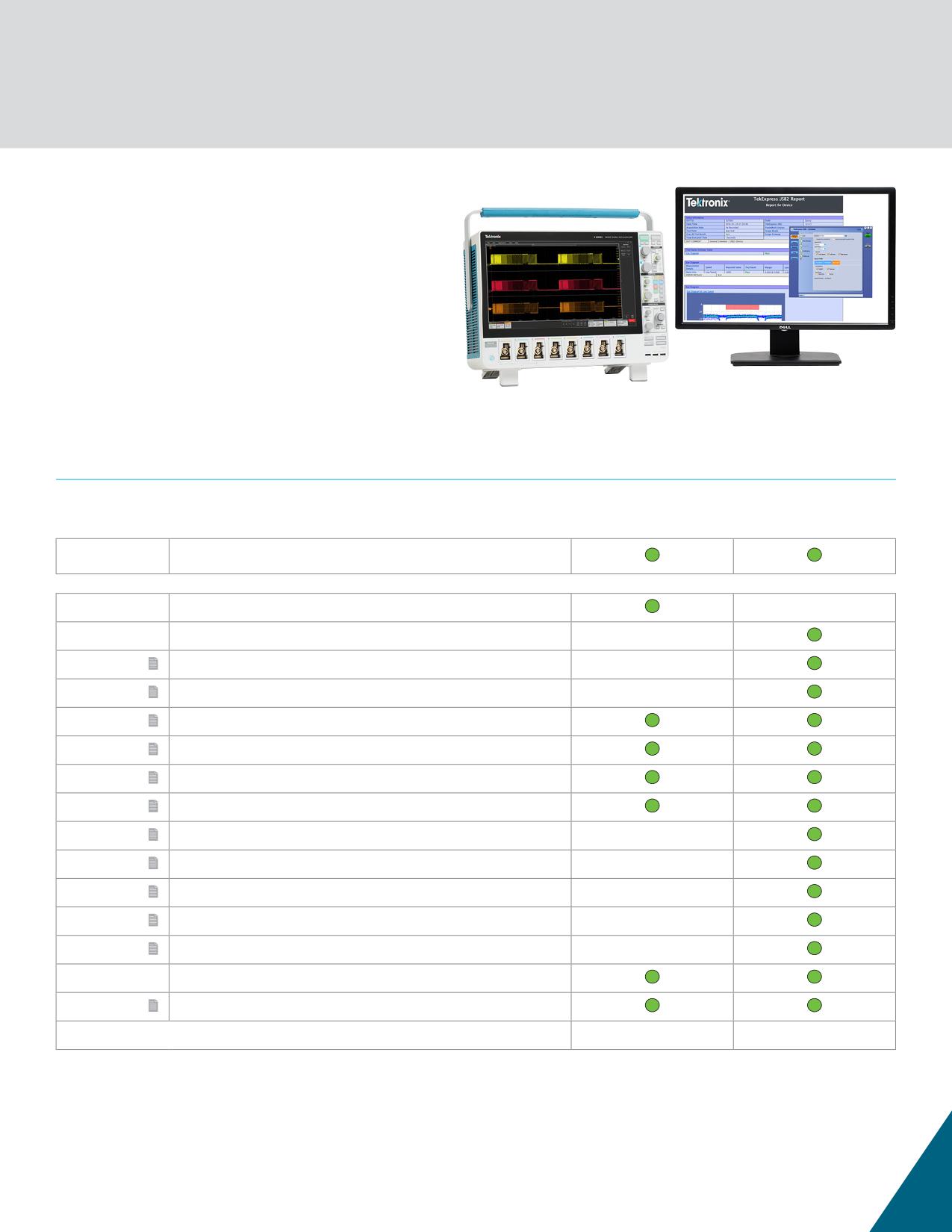

Pro Bundle | Standards Compliance
Includes all currently available compliance options
for your Windows®-equipped 5 or 6 Series MSO. All
standards use the TekExpress engine for flexible
configuration, full instrument control, informative
prompts and comprehensive reporting.
Run all tests specified in the standard, or selected tests. Automatic report
generation gives you a jump on documentation.
Included
Description
5 Series MSO
6 Series MSO
Embedded serial decode/trigger and integrated AFG
Starter Bundle
(See page 3 for details.)
5-RL-125M
Extend record length to 125 million sample points per channel
6-RL-2
Extend record length to 250 million sample points per channel
CMCPHY20
MIPI C-PHY 2.0 TX compliance testing (requires Opt. DJA)*
CMDPHY21
MIPI D-PHY 2.1 conformance testing (requires Opt. DJA)*
CMENET
Ethernet (10/100/1000BASE-T) compliance testing*
CMENETML
Multilane Ethernet option for CMENET (10/100/1000BASE-T)*
CMINDUEN10
Industrial Ethernet (10BASE-T1L Long reach) automated compliance testing*
CMUSB2
USB2 automated compliance testing*
CMDDR3
DDR3 automated compliance testing*
CMDPHY
D-PHY-Tx 1.2 automated compliance testing*
CMNBASET
NBASE-T automated compliance testing*
CMXGBT
XGbT automated compliance testing*
DBDDR3
DDR3/LPDDR3 analysis and debug*
DJA
Advanced jitter analysis
PWR
Advanced power measurements and analysis
Permanent Licenses
5-PRO-COMPL-FL
6-PRO-COMPL-FL
*Requires optional solid-state drive with Windows operating system (5-WIN / 6-WIN)
7
(4, 5, 6 Series MSO)
Pro Bundle | Automotive
Especially for ECU designers, this bundle provides outstanding system visibility for validations and troubleshooting.
It includes support for important automotive protocols, and serial standards compliance testing and debugging.
Automated decoding and triggering speeds debug.
Unique signal separation for Automotive Ethernet on 5 and 6 Series MSOs.
Included
Description
4 Series MSO
5 Series MSO
6 Series MSO
Starter Bundle
Embedded serial decode/trigger and integrated AFG (See page 3 for details.)
4-RL-1
Extend record length to 62.5 million sample points per channel
5-RL-125M
Extend record length to 125 million sample points per channel
6-RL-2
Extend record length to 250 million sample points per channel
AUTOEN-SS
Signal separation for 100/1000BASE-T1 signals*
CMAUTOEN
Automotive Ethernet (100/1000BASE-T1) automated compliance testing*
Automotive Ethernet (10BASE-T1S Short Reach ) automated
CMAUTOEN10
compliance testing*
CMAUTOEN10G
Multi-Gigabit Ethernet (2.5G/5GBASE-T1) automated compliance testing*
CMDPHY
D-PHY-Tx 1.2 automated compliance testing*
CMDPHY21
MIPI D-PHY 2.1 conformance testing
DJA
Advanced jitter analysis
IMDA
3-phase inverters, motors and drives analysis
IMDA-DQ0
DQ0 measurements for IMDA
IMDA-MECH
Mechanical measurements for IMDA
PAM3
PAM3 signal analysis*
PWR
Advanced power measurements and analysis
Automotive serial decoding, triggering and analysis (CAN, CAN FD, CAN XL, LIN,
SRAUTO
FlexRay)
SRAUTOEN1
100BASE-T1 protocol decode and analysis
SRAUTOSEN
SENT serial decoding and analysis
SRCXPI
CXPI serial decoding and analysis
SRI3C
I3C serial decoding and analysis
SRPSI5
PSI5 serial decoding and analysis
WBG-DPT
Wide bandgap SiC/GaN double pulse test measurements
Permanent Licenses
4-PRO-AUTO-FL
5-PRO-AUTO-FL
6-PRO-AUTO-FL
*Requires optional solid-state drive with Windows operating system (5-WIN / 6-WIN)
8
(4, 5, 6 Series MSO)
Pro Bundle | Aerospace
Includes serial bus decoding for protocols used
in the aerospace industry, as well as support
for generic encoding schemes such as NRZ
and Manchester. Mask and limit testing make it
easy to automate testing of unique signals.
Gain fast visibility into aerospace systems.
Included
Description
4 Series MSO
5 Series MSO
6 Series MSO
Embedded serial decode/trigger and integrated AFG
Starter Bundle
(See page 3 for details.)
4-RL-1
Extend record length to 62.5 million sample points per channel
5-RL-125M
Extend record length to 125 million sample points per channel
6-RL-2
Extend record length to 250 million sample points per channel
DJA
Advanced jitter analysis
PWR
Advanced power measurements and analysis
MTM
Mask and limit testing
Aerospace serial bus triggering and analysis
SRAERO
(MIL-STD-1553, ARINC 429)
SRMANCH
Manchester serial decoding and analysis
SRNRZ
NRZ serial bus decoding and analysis
SRSPACEWIRE
SpaceWire serial bus decoding and analysis
Permanent Licenses
4-PRO-AERODEF-FL
5-PRO-AERODEF-FL
6-PRO-AERODEF-FL
9
(4, 5, 6 Series MSO)
Ultimate Bundle
The Ultimate Bundle offers the most capabilities
and the highest savings in a single package.
It includes:
• All the capabilities of the Starter Bundle, including
embedded serial decode/trigger and integrated AFG
• All the capabilities of ALL Pro Bundles
• Increased record length on the 5 and 6 Series MSOs, - 500
Mpoints on the 5 Series MSO or 1 Gpoints on the
6 Series MSO.
• Wideband, synchronized spectrum analysis
• Spectrum View RF vs. time waveforms and triggering
• Expanded spectrum capture bandwidth
• Video triggering
Included
Description
4 Series MSO
5 Series MSO
6 Series MSO
4, 5 or 6 Series MSOs equipped with a Starter Bundle (for
example, 4-STARTER-FL) will be able to decode and trigger
on I2C, SPI, RS232/422/485/UART bus activity as well as
Starter Bundle
power measurements and analysis. Includes an integrated
arbitrary/function generator with 13 predefined functions
and arbitrary waveforms. This is equivalent to adding -AFG,
-SRCOMP, -SREMBD and -PWR options.
Serial Decode
Power
Signal Integrity
ALL
Pro Bundles
Standards Compliance
Automotive
Aerospace
Spectrum View RF vs Time waveforms and triggering
Extended Spectrum View capture bandwidth
These Addional
Video triggering
Features
Extend record length to 500 Mpoints per channel
Extend record length to 1 Gpoints per channel
Permanent Licenses
4-ULTIMATE-FL
5-ULTIMATE-FL
6-ULTIMATE-FL
For more information, pricing, and to determine which Application Bundle
is right for your needs please contact your local Tektronix account manager.
10
Contact Information:
Australia 1 800 709 465
Austria* 00800 2255 4835
Balkans, Israel, South Africa and other ISE Countries +41 52 675 3777
Belgium* 00800 2255 4835
Brazil +55 (11) 3530-8901
Canada 1 800 833 9200
Central East Europe / Baltics +41 52 675 3777
Central Europe / Greece +41 52 675 3777
Denmark +45 80 88 1401
Finland +41 52 675 3777
France* 00800 2255 4835
Germany* 00800 2255 4835
Hong Kong 400 820 5835
India 000 800 650 1835
Indonesia 007 803 601 5249
Italy 00800 2255 4835
Japan 81 (3) 6714 3086
Luxembourg +41 52 675 3777
Malaysia 1 800 22 55835
Mexico, Central/South America and Caribbean 52 (55) 88 69 35 25
Middle East, Asia, and North Africa +41 52 675 3777
The Netherlands* 00800 2255 4835
New Zealand 0800 800 238
Norway 800 16098
People’s Republic of China 400 820 5835
Philippines 1 800 1601 0077
Poland +41 52 675 3777
Portugal 80 08 12370
Republic of Korea +82 2 565 1455
Russia / CIS +7 (495) 6647564
Singapore 800 6011 473
South Africa +41 52 675 3777
Spain* 00800 2255 4835
Sweden* 00800 2255 4835
Switzerland* 00800 2255 4835
Taiwan 886 (2) 2656 6688
Thailand 1 800 011 931
United Kingdom / Ireland* 00800 2255 4835
USA 1 800 833 9200
Vietnam 12060128
* European toll-free number. If not
accessible, call: +41 52 675 3777
Rev. 02.2022
Find more valuable resources at TEK.COM
Copyright © Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in
all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names
referenced are the service marks, trademarks or registered trademarks of their respective companies.
8/2026 SBG 48W-73761-11
