MPEG Test Systems

Features & Benefits

• Industry’s Fastest Analysis Engine enables Reduced Time to Insight, Rapid Development, Evaluation, Deployment, and Diagnostics of Next-generation DTV and IPTV Systems and Services
• A Wide Range of DTV Standards are Supported, including MPEG, DVB, ATSC, ISDB, and ISDB-TB (Brazil). Specific SI for Terrestrial, Cable, and Satellite, plus Regional Variations of these Standards are also Supported
• Range of Interfaces and Analysis Capabilities provide the Necessary Connectivity to Diagnose Problems Anywhere in the Network Environment, whether that be Transmission Links (RF or IP Layer) or Content Processing (TS Layer)
• Connect to both IP Version 4 and 6 Networks, including those using IGMP and MLD Multicast Protocols Respectively
• Analyze both Constant and Variable Bit Rate Streams (CBR and VBR)*¹
• Integrated Cross-layer Fault Analysis and Logging provides One-box Solution for Fault Diagnosis, Reducing Time to Insight when Troubleshooting
• Playout Functionality provides Stimulus with Parametric Capabilities and IP Multisession Replication to Characterize Behavior of Network or Device Under Test
• CaptureVu™ Technology Captures and Analyzes System Events in Real Time and Deferred Time to Debug the Intermittent and Complex Problems that Traditional Analyzers Miss
• Innovative Program-centric User Interface brings Expert Power to the Novice User
• H.264 Buffer Analysis, Multiplexing, and ES Compliance Checking provide the Most Powerful Suite of Tools for Creation and Analysis of Transport Streams containing H.264 Content
• Video and Audio Quality Analysis that Helps Distinguish between Impairments Resulting from Network Distribution versus Artifacts Resulting from Compression
•
• Try Before You Buy: Demo Versions of the TSCA, Multiplexer, and Buffer Analyzer are Available to Download

Applications

Equipment Manufacturers – Research & Development

• CaptureVu™ Technology allows Rapid Isolation and Debugging of Equipment and System Faults
• High-performance Line Rate Gigabit Ethernet (GbE) IP Connectivity and Integrated Cross-layer Analysis enable Diagnosis of Complex Timing Problems in Video over IP and IPTV Network Equipment
• Multiplexer/Remultiplexer allows Flexible Test Stream Creation and Modification
• Rapid and In-depth Analysis of Selected Elements of Transport Streams to Confirm Functionality and Compliance to Standards
• Set-top Box Buffer Testing and Verification
• Elementary Stream Analysis Option for Codec Design and Optimization
• High-accuracy Picture Quality Analysis based upon the Human Vision Model for Device Design Optimization and Fault Diagnosis

Equipment Manufacturers – Manufacturing Test

• Tclips Test Streams together with the Multiplexer/Remultiplexer allows Custom Test Stream Creation and Editing for Fast and Flexible Equipment Stress Testing
• Stream Playout and Recording provides a Repeatable Test Source with Seamless Looping and Continuous Time-stamping for Test and Alignment of STBs, IRDs, and Modulators
• Multiport ASI and IP Interfaces allow Multiple Devices to be Tested Simultaneously
• Duplex Operation allows End-to-End Testing of System Network Elements

Broadcaster and Network Operator Engineering

• RF and IP Connectivity and Analysis provide Single-box Solution for Broadcast System Troubleshooting at any Point in the Network
• Integrated Cross-layer Fault Analysis and Logging for Network Fault Diagnosis reduces Time to Insight when Troubleshooting and Removes the Need for Additional IP- or RF-specific Diagnostic Equipment
• CaptureVu™ Technology allows Isolation of Intermittent Network Problems that other Analyzers would not be Capable of Isolating
• Video and Audio Quality Analysis that Helps Distinguish between Impairments Resulting from Network Distribution versus Artifacts Resulting from Compression
• Elementary Stream Compliance Option for Evaluating Different Vendors’ Compression Equipment and Diagnosing Faults

MTS4000 CaptureVu™

Summary of MTS4000 Standard Tools

Standard Tools	Optional Tools
Real- and Deferred-time Transport Stream Compliance Analyzer (TSCA) including Carousel Analyzer, GbE (NIC) Interface	Video Quality Software, Single Ended. Includes VQS1000 with all options
Player	Picture Quality Analysis Software, Single and Double Ended. Includes PQASW with IP option
TS Cutter	Stream Generations including Multiplexer, TS Editor, Make Seamless, Carousel Generator, and Tclips Test Streams
	Standard ES Analysis including MTS4CC with all options plus MPEG-2 ES Analyzer
	Enhanced ES Analysis includes MTS4EAB with all options plus MPEG-2 ES Analyzer
	PES and T-STD Buffer Analyzer
Standard Interfaces	Optional Interfaces
Ethernet IP (10/100/1000BASE-T)	Multiport ASI Interface
	IPTV Gigabit Ethernet Interface (10/100/1000BASE-T, 1000BASE-SX, LX, ZX)
	10GBASE-SR Dual Optical Port 10 Gb/s NIC. Includes Short-reach SFP+ Modules (850 nm)
	DVB-C: QAM B
	ATSC-T: 8VSB
	DVB-S/S2 Interface supporting QPSK, 8PSK, 16APSK and 32APSK Demodulation

Further details of individual tools are available within the Additional Resources.

*¹ Some timing-related measurements are not possible with VBR streams.

Transport Stream Compliance Analyzer (TSCA)

The TSCA offers significant enhancements over traditional software-based deferred-time (stored streams) MPEG analyzers. The combination of an innovative high-speed analysis engine and built-in intelligence, allows ultra-fast pinpointing and debugging of intermittent faults in MPEG Transport Streams used in next-generation DTV and IPTV systems and services.

The TSCA also provides real-time analysis of Transport Streams received through the MTS4000’s stream interfaces, including IP and RF. The real-time analysis includes Cross Layer time-correlated IP and TS measurements, alarms, and error logging together with stream recording.

The TSCA includes the CaptureVu™ technology and PCR measurement and graphing capabilities. CaptureVu™ technology captures and analyzes system events in real time and deferred time to debug the intermittent and complex problems that traditional analyzers miss.

Transport Stream Compliance Analyzer

Standards compliance is ensured through built-in customizable scripting supporting the broadest ranges of ratified and evolving DTV standards, including ATSC, DVB, ISDB-S, ISDB-T, ISDB-TB, and MPEG. To maintain compatibility with the latest standards, flexibility is the key. New standards and proprietary tables can easily be catered for by loading Tektronix-supplied updates, or creating your own custom scripts.

Users can configure the TSCA software to display stream information in user-selected fonts. This feature enables you to view stream information in your local language or to use custom fonts.

Duplex operation of the real-time TSCA and Player allows end-to-end system test (maximum aggregate bit rate is 400 Mb/s for simultaneous input and output operation).

Carousel Analyzer

Carousel Analyzer

When developing either data or object carousels for interactive applications, designers not only need to verify the content of carousels, but also whether they are compliant with the relevant standards, and to optimize the settings between transmission bandwidth and responsiveness of the user experience. These settings are mainly concerned with the repetition rates of the various carousel groups. The Carousel Analyzer is designed to address all of these needs for a Transport Stream file containing carousel components. It analyzes carousels compliant with MPEG-2 DSM-CC, DVB (including MHP), DTT (MHEG-5), or ARIB standards.

Playout (Transport Stream Generation)

MPEG Player

The Player tool provides a Transport Stream stimulus for a device under test through the ASI or IP stream interfaces. Continuous playout of looped streams is possible at up to maximum ASI rate of 214 Mb/s with automatic updating of time stamps. Playout rate can be automatically determined from file PCRs or manually set.

Playout through the IP interface provides stimulus with parametric capabilities and multisession replication to characterize behavior of a network or device under test. This capability enables equipment manufacturers developing hardware or software solutions for video distribution over IP and IPTV to ensure quality and performance of products, resulting in reduced development costs and accelerated roll out of next-generation IP broadcast services.

Summary of MTS4000 Optional Tools

Multiplexer and SI Table Editor

Multiplexer

When testing network elements or set-top boxes, a Transport Stream of the representative type needed is often not available. Even if there is a similar one, vital components within it may be missing or suffer from a lack of SI (Service Information) or other tables, or are multiplexed to the incorrect Transport Stream rate for the application.

Use the Multiplexer/Remultiplexer/Demultiplexer application to create and modify multiprogram Transport Streams with custom SI/PSI/PSIP information for DVB, ATSC, ISDB*², and MPEG-compliant Transport Streams.

Video and audio Elementary Streams may also be multiplexed into a Transport Stream. H.264 streams both with and without SEI timing messages are supported. Bit rate and frame rate auto-detection features aid the import process.

This enables the user to create their own test streams that they can use to validate and debug their designs more quickly, and also to create errored streams to perform parametric stress testing and ensure robustness and quality of their MPEG-2 or H.264 implementation.

The Make Seamless wizard is provided with the Multiplexer. When looping a Transport Stream to simulate continuous playout, errors can be generated at the loop point caused by discontinuities in timing information. The Make Seamless wizard provides the opportunity of creating a seamless version of a Transport Stream file by adjusting SI and ES components within the stream.

*² This includes ISDB-TB (Brazil) and Single Segment mode.

Buffer Analyzer

Buffer Analyzer

When developing professional and consumer equipment, particularly encoders and set-top boxes, the characteristics of the test streams being either generated or used as stimulus need to be ascertained. Of critical importance amongst these characteristics is adherence to the buffer model. That is, when the stream is processed by a receiver, will any of the internal buffers be caused to either under- or overflow. Consequences of these conditions will be freeze frames and receiver resets.

There are two types of buffer model; the one to use by the receiver is signaled within the Elementary Stream itself. The T-STD method is based upon the DTS values within the PES header and can be used for any contained CODEC type. Additionally, certain video CODECs such as MPEG-2 and H.264/AVC may contain buffer parameters within the ES itself. The Buffer Analyzer verifies conformance of a stream to the T-STD model. Verification of the H.264/AVC HRD method is covered by the MTS4EA product.

Packetized Elementary Stream (PES) Analyzer

Packetized Elementary Stream Analyzer

When developing professional and consumer equipment, particularly encoders and set-top boxes, the characteristics of the test streams being either generated or used as stimulus need to be ascertained. The header associated with each PES packet is of particular interest, as it contains the decode and presentation time stamps (DTS and PTS) for the contained Elementary Stream. Errors in these time stamps may cause resets or picture freeze problems at the receiver in extreme cases. They are more typically the cause of lip sync problems where the time stamps of associated video and audio streams are not synchronized. The PES Analyzer is designed to help address these problems as well as verify conformance of the PES header contents to the MPEG, DVB, and ATSC standards.

Creating, Editing, and Resizing Transport Streams

Two direct stream manipulation packages are supplied as standard with the MTS4000. TS Cutter allows resizing of Transport Streams. TS Editor allows direct editing of Transport Streams using a hexadecimal view as well as a header interpretation guide.

MTS4EA ES Analyzer

MTS4EA

Whether developing a new CODEC chip, integrating a CODEC into professional or consumer equipment, or integrating different vendor’s equipment when rolling out new services, the ability to verify the compliance of an Elementary Stream is crucial. This tool checks for compliance of an Elementary Stream to either next-generation VC-1, AVC/H.264, and MPEG-4 standards, or legacy MPEG-2 and H.263. Audio decode and waveform display of MPEG-2 audio (ISO/IEC 13818 parts 3 and 7), AC-3, and MPEG-4 AAC are also supported.

Comprehensive diagnostic capabilities including semantic trace view to determine Frame-by-Frame and Block-by-Block encoder decision making. Synchronized displays allow the user to quickly ascertain the details of each reported error. A bitstream editor allows the effects of planned encoder updates to be quickly understood.

Elementary Stream (ES) Analyzer

MPEG-2 ES Analyzer

The ES Analyzer is intended for CODEC design, optimization, and conformance purposes. It provides the ability to view the moving picture from within a PES stream and carry out a whole range of sophisticated tests on the lower layers of an Elementary Stream within a Transport Stream. In addition, it both analyzes and displays a range of extended media formats, including ATSC Closed Captions, DVB Subtitles, and Teletext associated with video Elementary Streams.

For analysis of MPEG-4, AVC/H.264, and VC-1 as well as MPEG-2 Elementary Streams, please refer to the MTS4EA.

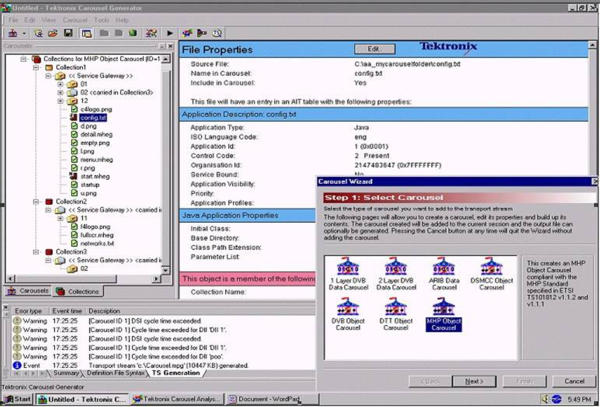

Carousel Generator

Carousel Generator

The Carousel Generator product is used for creating object carousel contents within an output Transport Stream. This is particularly useful in test situations where the effects of varying parameters, such as individual repetition intervals, may be quickly ascertained. The generator will create object carousels conforming to the MPEG-2 DSM-CC, DVB, DTT (MHEG-5), or MHP standards.

VQS1000

MTS4000 VQS1000

VQS1000 video quality software enables QoE monitoring capabilities and real-time assessment of video impairments on MPEG-2 or H.264 encoded content, including stuck, black, blockiness, and compression artifacts for selected services. The VQS1000 performs a full decode on the video stream that allows operators to determine the source of a problem (content source, network distribution, etc.). Engineers can clearly see and validate the presence of impairments on the image using unique impairment displays that highlight the location and severity of video defects. In addition, audio diagnostics allow operators to analyze audio loudness related problems to the ITU-R BS.1770/1771 audio loudness standard.

PQASW with IP Option

MTS4000 PQASW

PQASW is picture quality analysis software based on the concepts of the human vision system which provides repeatable, objective quality measurements that closely correspond with subjective human visual assessment. These measurements provide valuable information to engineers working to optimize video compression and recovery, and maintain a level of common carrier and distribution transmission service to clients and viewers.

The IP interface enables both generation and capture of compressed video with two modes of simultaneous operation. Simultaneous generation and capture lets the user playout the reference video clips directly from an IP port in the PC into the device under test. The test output from the device can then be simultaneously captured by the PC. This saves the user from having to use an external video source to apply any required video input to the device under test. With this generation capability, files created by video editing software can be directly used as reference and test sequences for picture quality measurements.

Performance You Can Count On

Depend on Tektronix to provide you with performance you can count on. In addition to industry-leading service and support, this product comes backed by a one-year warranty as standard.
