The MTS4EAV7 HEVC / AVC Video and Compressed Audio Analyzer is a powerful PC-based software package for deferred time analysis of encoded video and audio elementary streams. Supported video standards include HEVC (H.265), AVC / H.264, VC-1, MPEG-2, MPEG-4 part 2, and H.263. Supported audio standards include MPEG-2 audio, AAC, and AC-3. Also included are closed caption analysis capabilities. The MTS4EAV7 analyzer is available for standalone or networked PCs, and for Tektronix MTS4000 MPEG Test Systems.
Closed Caption syntax and compliance analysis with ability to render captions over video, save captions to standard file format (SRT, SCC MCC), and debug capabilities, with support for Korean characters
Video compression standards are complex and involve many elements which are vitally important to the efficiency and interoperability of compressed video in different applications. The MTS4EAV7 analyzer provides verification of the compliance of the stream against the compression standard, detailed analysis and statistics of the video and audio streams, tools for editing and debugging the stream, fidelity comparison against the original uncompressed stream, and checking for any video and audio delay.
Analysis of intermediate HEVC/H.265 and H.264/AVC transform values is included, as well as ARIB TR-B14 compliance verification. It enables equipment and systems developers to test and bring new designs rapidly to market, and video users to test compliance, interoperability, and performance of compression products.
CTU and CU Tooltips
CU Types Overlay
PU Types Overlay
CU Size distribution graph
Real-time compliance testing and error alerts
Macroblock overlays and statistics
Stream HexView and edit

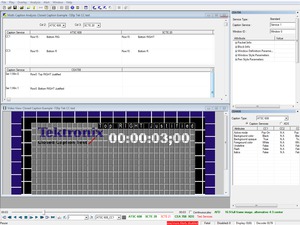

Closed Caption analysis (CEA 608 shown).
Audio compression analysis
Audio video delay measurement
Optional software includes H.265/HEVC support. For an additional floating license, order Option FLT.
1 For single-license installations, the software can be installed in floating-license mode or node-locked mode.
Software upgrade kit for MTS4EAV7, MTS4EAB, and MTS4EAF Version 4 or higher as well as MTS4000 Option ESE and Option ESB.
