Electrical Communication Adapters

Features & Benefits

AFTDS Differential Signal Adapter for Electrical Communication

Complies with ANSI T1.102 and ITU-T G.703 Standards
120 MHz Bandwidth
Low VSWR (Return Loss) ≤1.1:1, (≥26 dB)
Connects Directly to TDS Series Scope (TEKPROBE™ Interface) or Other 50 Ω Terminated Instruments
CE Certified

AMT75 75 Ω to 50 Ω Adapter for Electrical Communication and Video Signals

Complies with ANSI T1.102, ITU-T G.957, ITU-T G.703 Standards and Bellcore GR-253-CORE
1.0 GHz Bandwidth
Low VSWR (Return Loss) ≤1.1:1, (≥26 dB)
Connects Directly to TDS Series Scope (TEKPROBE Interface) or Other 50 Ω Terminated Instruments

Applications

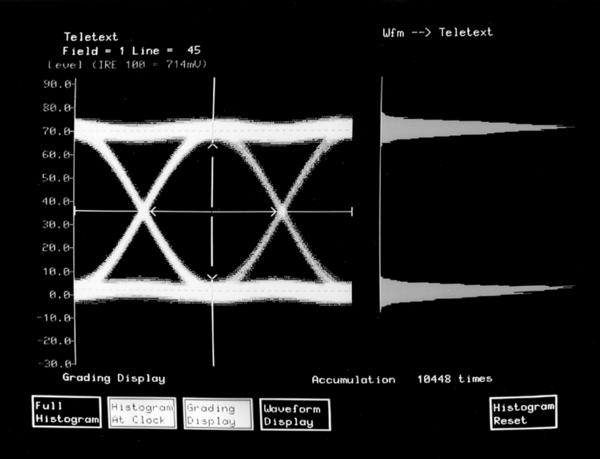

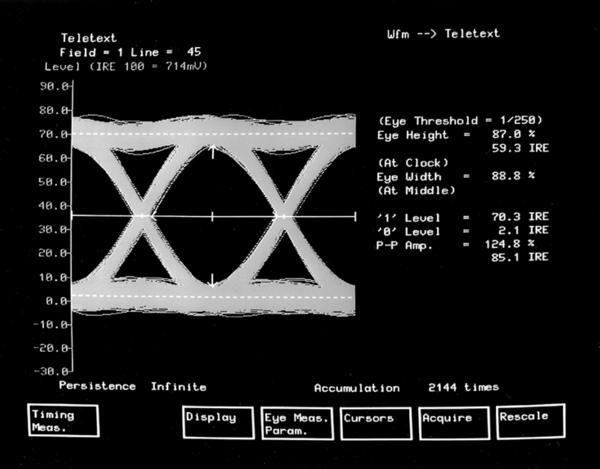

Communication Pulse Shape or Eye Pattern Testing
Electrical Communication and Video Signal Interface for 50 Ω Terminated Instruments

The AFTDS Differential Signal Adapter and the AMT75 75 Ω Adapter provide an effective means for 50 Ω terminated instruments to connect to, and analyze differential and high speed electrical communication signals, as well as video signals.

Both adapters are rugged and have the TEKPROBE interface, which provides convenient auto-scaling of waveforms on Tektronix TDS Series oscilloscopes. Also, the low VSWR (Return Loss) performance minimizes measurement errors commonly associated when interfacing with complex electrical signals.

Ideal for use in pulse shape compliance testing of high speed electrical communication signals.

Characteristics

AFTDS Differential Signal Adapter

Electrical Standards -

DS-1: (1.544 Mb/s)

DS-1A: (2.048 Mb/s)

DS-1C: (3.152 Mb/s)

DS-2: (6.312 Mb/s)

E-1: (2.048 Mb/s).

Standards of Compliance - ANSI T1.102, ITU-T G7.03.

Bandwidth (-3 dB) - 7 kHz to 120 MHz.

Rise Time - <3.0 ns.

Attenuation - 5x, (-14 dB) ±5.0% (valid over 50 kHz to 30 MHz).

Droop - ≤2.0% per 700 ns.

VSWR (return loss) - ≤1.1:1 (≥26 dB), typical (valid over 50 kHz to 30 MHz).

AFTDS Features

TEKPROBE™ Interface - Auto-scaling and auto-termination with Tektronix TDS scopes.

Input Impedance - 100 Ω, 110 Ω or 120 Ω ±3.0% (selectable). (Valid over 50 kHz to 30 MHz).

Load Impedance - 50 Ω ±3.0%.

Safety - UL3111-1, CSA1010.1, EN61010-1, IEC61010-1 (AFTDS only).

AMT75 75 Ω ADAPTER

Electrical Standards -

DS-3: (44.736 Mb/s).

DS-4: (139.264 Mb/s).

STS-1: (51.84 Mb/s).

STS-3: (155.51 Mb/s).

STM-1: (155.51 Mb/s).

E-2: (8.448 Mb/s).

E-3: (34.368 Mb/s).

E-4: (139.264 Mb/s).

D-1: (270 Mb/s).

D-2: (143 Mb/s).

Standards of Compliance - ANSI T1.102, ITU-T G.957, ITU-T G7.03, Bellcore GR-253-CORE.

Bandwidth (-3 dB) - DC to 1.0 GHz (typical).

Rise Time - <350 ps (typical).

Attenuation - 5X, (-14 dB) ± 2.0%.

VSWR (return loss) - ≤1.1:1 (≥26 dB), up to 1 GHz (typical).

AFTDS VSWR/Return Loss.

AMT75 VSWR/Return Loss.

AMT75 Features

TEKPROBE Interface - Auto-scaling and auto-termination with Tektronix TDS scopes.

Input Impedance - 75 Ω ±1.5%.

Output Impedance - 50 Ω ±1.5%.
