Data Timing Generator

Characteristics

Mainframe Characteristics

Basic Features

Platform - Benchtop mainframe with cold-swappable plug-and-play plug-in output modules. Mainframes accept any combination of output modules.

Number of Slots for Output Modules -

DTG5078: 8 slots (A, B, C, D, E, F, G, H).

DTG5274: 4 slots (A, B, C, D).

^NewDTG5334: 4 slots (A, B, C, D).

Master-Slave Capabilities -

DTG5078: Up to three DTG5078 mainframes can be connected in Master-Slave configuration.

DTG5274: Up to two DTG5274 mainframes can be connected in Master-Slave configuration.

DTG5334: Up to two DTG5334 mainframes can be connected in Master-Slave configuration.

Maximum Number of Output Channels

Number of Like Mainframes	DTG5078*1			DTG5274, DTG5334*1
	DTGM21	DTGM30	DTGM31 DTGM32	DTGM21	DTGM30	DTGM31 DTGM32
1	32	16	3	8	8	4
2	64	32	6	16	16	8
3	96	48	9	–	–	–

*¹ The DTG5078 has a limit to the number of modules that may be installed; the total must be less than 100. The coefficient for each module is shown below.DTGM30: 8, DTGM21: 10, DTGM31: 33, DTGM32: 32

Operating Modes -

Pulse Generator Mode (slots A to D only).

Data Generator Mode.

Output Patterns -

NRZ, RZ, R1, Pulse patterns (DTG5078/5274/5334: Slot A-D; DTG5078 Slot E-H, NRZ only).

Timing Parameters

Data Rate Range -

DTG5078:

NRZ: 50 Kb/s to 750 Mb/s.

RZ, R1, Pulse Mode: 50 Kb/s to 375 Mb/s.

DTG5274:

NRZ: 50 Kb/s to 2.7 Gb/s.

RZ, R1, Pulse Mode: 50 Kb/s to 1.35 Gb/s.

DTG5334:

NRZ: 50 Kb/s to 3.35 Gb/s (settable to 3.4 Gb/s)

RZ, R1, Pulse Mode: 50 Kb/s to 1.675 Gb/s (settable to 1.7 Gb/s)

Data Rate (Setting) Resolution -

Internal Clock : 8 digits.

External Clock : 4 digits.

External Phase Lock In : 4 digits.

Output Timing Controls

Delay Range -

PG Mode: 0 to 3 μs.

DG Mode:

Long Delay Off: 0 to 5 ns (NRZ, RZ, R1).

Long Delay On: NRZ:

Period ≥1.25 ns: 0 to 300 ns (Hardware sequence) or to 600 ns(Software sequence).

Period <1.25 ns: 0 to (240 ns × period) (Hardware sequence) or to(480 ns × period) (Software sequence).

Long Delay On: RZ/R1:

Period ≥2.5 ns: 0 to 300 ns (Hardware sequence) or to 600 ns(Software sequence).

Period <2.5  ns: 0 to (120 ns × period) (Hardware sequence) or to(240 ns × period) (Software sequence).

Delay Resolution -

DTG5078: 1 ps.

DTG5274/5334: 0.2 ps.

Phase Resolution - 0.1%

Differential Timing Offset Feature [between pair of two adjacent channels (Odd and Even)] -

Range: -1.0 to 1.0 ns.

Resolution:

DTG5078: 1 ps.

DTG5274/5334: 0.2 ps.

Semiautomatic Deskew Calibration -

Range: 500 ps.

Accuracy (after skew calibration):

100 ps, slots A to D.

200 ps, slots E to H (DTG5078 only).

Duty Cycle Adjustment Range - 0 to 100% (with 0 delay setting, RZ, R1, Pulse mode only).

Duty Cycle Adjustment Resolution - 0.1%.

Pulse Width Maximum Range - 290 ps to (period - 290 ps) (RZ, R1, Pulse mode only).

(Range also depends on delay settings.)

Pulse Width Resolution - 5 ps.

Jitter Performance (output channels)

Clock Pattern ("1010…" clock pattern)

Random Jitter -

DTG5078: <4 ps_RMS (at 750 Mb/s with DTGM21, 0.8 V_p-p, delay: 0.0 ns).

DTG5274: <3 ps_RMS (at 2.7 Gb/s with DTGM30, 0.8 V_p-p, delay: 0.0 ns).

DTG5334: <3 ps_RMS (at 3.35 Gb/s with DTGM30, 0.8 V_p-p, delay: 0.0 ns).

Data Pattern (PRBS pattern 2¹⁵-1)

Total Jitter -

DTG5078: at 750 Mb/s

<18 ps_RMS, <85 ps_p-p (typical) with DTGM21, 0.8 V_p-p, delay: 0.0 ns).

DTG5274: at 2.7 Gb/s

<16 ps_RMS, <60 ps_p-p (typical) with DTGM30, 0.8 V_p-p, delay: 0.0 ns).

<14 ps_RMS, <60 ps_p-p (typical) with DTGM31, 0.8 V_p-p, delay: 0.0 ns).

DTG5334: at 3.35 Gb/s.

<15 ps_RMS, 50 ps_p-p (typical) with DTGM30, 0.8 V and DTGM31, 0.8 V_p-p, delay: 0.0 ns); <13 ps_RMS, 50 ps_p-p (typical) with DTGM31, 0.8 V and DTGM31, 0.8 V_p-p, delay: 0.0 ns).

<44 ps_p-p with DTGM30, Delay: 0.0 ns, Amplitude = 0.4 V _p-p, Offset = 0.0 V, Data Format = NRZ, Jitter Mode = Off, an ambient temperature of 20 to 30 °C.

Signal Control Features

Cross-point Adjustment (duty cycle distortion) -

Range: 30% to 70%.

Resolution: 1%.

(Slots A to D, and DTGM30/M31/M32 used in NRZ mode.)

Jitter Generation -

Jitter All or Partial Pattern.

Jitter Profile: Sine, Gaussian Noise, Square, Triangle.

Jitter Freq./Res.: 0.015 Hz to 1.56 MHz / 1 mHz.

Jitter Amplitude: Up to 16.5 UI_p-p (depending on data rate and jitter frequency).

(Internal Jitter Generation available on Channel A1 only.)

Pulse and Data Features

Pulse Generator (PG) Features (unique to PG mode) -

Continuous or Burst.

Burst Count: 1 to 65,536.

Pulse Rate: Off, 1/1, 1/2, 1/4, 1/8, 1/16.

Data Patterns

Pattern Length per Channel (Pattern Memory) -

Minimum:

DTG5078: 1 bit (software mode) or 240 bits (hardware mode).

DTG5274/5334: 1 bit (software mode) or 960 bits (hardware mode).

Maximum:

DTG5078: 8,000,000 bits.

DTG5274: 32,000,000 bits (in multiples of four).

DTG5334: 64,000,000 bits (in multiples of four).

Built-in Data Patterns - Binary Counter, Johnson Counter, Graycode Counter, Walking Ones, Walking Zeros, Checker Board, User-defined Patterns.

Pattern Import Capability -

Type/Tools:

Tektronix TLA Data Exchange Format File (*.txt).

Tektronix HFS Vector File (ASCII) (*.vca).

Tektronix HFS Vector File (binary) (*.vcb).

Tektronix AWG2000 Series (*.wfm).

Tektronix AWG400s/500s/610/710/710B (*.pat).

Tektronix DG2000 Series (*.dat).

Medium/Pass:

Import data through GPIB, LAN, CD-ROM, floppy drive, USB memory devices.

Pattern Copy and Paste Capability - Copy, paste, and rotation between data listing/waveform editor and spreadsheet software (e.g. Excel) through the clipboard.

PRBS/PRWS Data Patterns - (Note: Memory supports PRBS/PRWS patterns, and user can create errored PRBS)

2⁵-1, 2⁶-1, 2⁷-1, 2⁸-1, 2⁹-1, 2¹⁰-1, 2¹¹-1, 2¹²-1, 2¹³-1, 2¹⁴-1, 2¹⁵-1, 2²³-1.

Sequencer Features

Sequence Length -

1 to 8,000 steps for main sequence.

1 to 256 steps for subsequence.

Max. Number of Blocks - 8,000.

Max. Number of Subsequences - 50.

Repeat Counter - 1 to 65,536 or infinite.

Channel Addition - AND or XOR (slots A to D only).

Note: DTG5078 slots E, F, G, and H do not support the following: RZ, R1, pulse generation modes which includes controls for trail delay/duty cycle/pulse width, channel addition, and variable cross-points.

Auxiliary Channels

Clock Out

Connector - Complementary output (common offset and ground).

DTG5078/5274: SMA rear panel.

DTG5334: SMA front panel.

Frequency Range -

DTG5078: 50 kHz to 750 MHz.

DTG5274: 50 kHz to 2.7 GHz.

DTG5334: : 50 kHz to 3.35 GHz, settable up to 3.4 GHz.

Frequency Resolution -

8 digit setting resolution

Minimum: 1 mHz (e.g. with 50 kHz setting).

Internal Clock Accuracy - within ±1 ppm.

Jitter -

DTG5078: <2 ps_RMS at 750 Mb/s, at 0.8 V_p-p (typical).

DTG5274: <2 ps_RMS at 2.7 Gb/s, at 0.8 V_p-p (typical).

DTG5334: <2 ps_RMS at 3.35 Gb/s, at 0.8 V_p-p (typical).

Amplitude/Resolution -

0.03 V_p-p to 1.25 V_p-p / 10 mV (50 Ω).

0.06 V_p-p to 2.5 V_p-p / 10 mV (1 MΩ).

Output Voltage Window -

-2.0 to 2.47 V (50 Ω).

-2.0 to 7.00 V (1 MΩ).

Max. Output Current - ±80 mA.

Transition Times (20% - 80%) -

DTG5078:

<85 ps (Amplitude = 0.1 V_p-p, Offset = 0 V) (typical).

<100 ps (Amplitude = 1.0 V_p-p, Offset = 0 V) (typical).

DTG5274:

<70 ps (Amplitude = 0.1 V_p-p, Offset = 0 V) (typical).

<80 ps (Amplitude = 1.0 V_p-p, Offset = 0 V) (typical).

DTG5334:

<100 ps (Amplitude = 1.0 V_p-p, Offset = 0 V) (typical).

Overshoot - <10%, at High = 1.0 V, Low = 0 V into (50 Ω) (typical).

Other Output Channels

Auxiliary DC Outputs - -3.0 to 5.0 V / 10 mV, Max. current: ±30 mA, 8 independently controlled outputs, Connector: 2 × 8 pin header on front panel.

Sync Out - CML (current mode logic), VOH: 0 V , VOL: -0.4 V (50 Ω) (typical), SMA Connector, SE, Front panel, Rise/Fall Time (20 to 80%): 140 ps, Delay to Data Out: -4.5 ns (typical).

10 MHz Reference Out - 1.2 V_p-p (50 Ω, AC coupled) (typical), 2.4 V_p-p (1 MΩ, AC coupled) (typical), BNC Connector, Rear Panel.

Input Channels

External Clock In -

Input Ranges:

DTG5078: 1 MHz to 750 MHz. SMA connector, rear panel.

DTG5274: 1 MHz to 2.7 GHz. SMA connector, rear panel.

DTG5334: 1 MHz to 3.35 GHz. SMA connector, front panel.

0.4 V_p-p to 2 V_p-p (50 Ω, AC Coupled), 50% ±5% duty cycle.

10 MHz Reference In -

Input Ranges:

10 MHz ±0.1 MHz, 0.2 V_p-p to 3 V_p-p (50 Ω, AC coupled), BNC connector, rear panel.

Phase Lock In -

Input Ranges:

1 MHz to 200 MHz, 0.2 V_p-p to 3 V_p-p (50 Ω, AC coupled), BNC connector, rear panel.

Skew Cal In - Single-ended, ECL (into 50 Ω to -2 V), SMA connector, front panel.

Trigger In -

Input Ranges:

-5 V to 5 V (50 Ω), 0.1 V resolution, -10 V to 10 V (1 kΩ), Min. 0.5 V_p-p (50 Ω), 1.0 V_p-p (1 kΩ), Min. 20 ns pulse width, Positive or Negative edge trigger, Delay timing: see manuals, BNC connector, front panel.

Event In -

Input Ranges:

-5 V to 5 V (50 Ω), 0.1 V resolution, -10 V to 10 V (1 kΩ), 0.1 V resolution, Min. 0.5 V_p-p (50 Ω), 1.0 V_p-p (1 kΩ), Polarity: Normal or Invert, Delay timing: see manuals, BNC connector, front panel.

Instrument Control/Data Transfer Ports

GPIB - GPIB for remote control and data transfer. (conforms to IEEE 488.1, compatible with IEEE 488.2 and SCPI-1999.0).

LAN - LAN for PC interface, remote control, and data transfer (conforms to IEEE 802.3).

Computer System and Peripherals

Compact PCI-based PC, Celeron 566 MHz CPU, Microsoft Windows 2000 Professional, 128 MB SDRAM, 20 GB Hard Drive, 1.44 MB floppy drive on front panel, CD-ROM in rear panel, included USB compact keyboard and mouse.

PC I/O Ports

USB 1.1 compliant ports (3 total, 1 front, 2 rear), PS/2 mouse and keyboard connectors (rear panel), RJ-45 Ethernet connector (rear panel) supports 10Base-T and 100Base-Tx, VGA Out (rear panel), RS-232C.

Physical Characteristics

Mainframe Dimensions	mm	in.
Display Characteristics – LCD color display, 800 (H) × 600 (V) (SVGA).
Height	266	10.5
Width	445	17.5
Length	462	19.7
Output Module Dimensions	mm	in.
Height	33	1.3
Width	84	3.3
Length	133	5.2
Weight (approx.)	kg	lb.
DTG5078	17.5	38.6
DTG5274	17.0	37.5
DTG5334	17.0	37.5
DTGM21	0.26	0.57
DTGM30	0.27	0.60
DTGM31	0.27	0.60
DTGM32	0.27	0.60

Mechanical Cooling – Required Clearance

Top and Bottom - 2 cm.

Side - 15 cm.

Rear - 7.5 cm.

Power Supply

Power Source - 100 to 240 VAC, 47 to 63 Hz.

Power Consumption - 560 W.

Environmental

Characteristic	Operating	Nonoperating
Temperature	+10 °C to +40 °C	-20 °C to +60 °C
Humidity	20% to 80% relative humidity with a maximum wet bulb temperature of 29.4 °C, noncondensing	(no diskette in floppy drive): 5% to 90% relative humidity with a maximum wet bulb temperature of 40 °C, noncondensing
Altitude	3,000 m (10,000 ft.)	12,000 m (40,000 ft.)
Random Vibration	2.65 m/s2 RMS (0.27 GRMS), from 5 Hz to 500 Hz, 10 minutes	22.36 m/s2 RMS (2.28 GRMS) total from 5 Hz to 500 Hz, 10 minutes each axis 3-axes. 30 minutes total

Safety -

UL61010B-1.

CAN/CSA-22.2 No. 1010.1.

EN61010-1/A2 1995.

Electromagnetic Compatibility (EMC) -

Europe:

EN61326 Class A.

EN61000-3-2, EN61000-3-3.

Australia / New Zealand:

AS/NZS 2064.

Output Module Characteristics

Basic Features	DTGM21		DTGM30	DTGM31	DTGM32
Output Channels and Connections	4 single-ended (installed in DTG5078) 2 single-ended (DTG5274/5334) 4 SMA connectors		2 complementary channels 4 SMA connectors	1 complementary channel 2 SMA connectors
Maximum Data Rate (calculated by transition time)	1.1 Gb/s		3.35 Gb/s		350 Mb/s*2
Normal/ Complement (Invert)	Selectable
Source Impedance	50 Ω / 23 Ω (selectable)		50 Ω
Enable/Disable	Yes (software switch)
Output Channel Timing
Transition Times (20 - 80%) (50 Ω)	<340 ps (VOL = 0.0, VOH = 1.0) (typical)   <1.0 ns (VOL = -1.65, VOH = 3.7) (typical)		<95 ps (VOL = 0.0, VOH = 0.1) (typical) <110 ps (VOL = 0.0, VOH = 1.0) (typical)
Transition Time Control	No
Slew Rate Control Range	–
Setting Resolution	–
Channel Output Levels
Amplitude/Resolution	0.25 to 5.35 Vp-p / 5 mV (from 23 Ω source impedance into 50 Ω) 0.25 to 3.9 Vp-p / 5 mV (from 50 Ω source impedance into 50 Ω) 0.50 to 7.8 Vp-p / 5 mV (from 50 Ω source impedance into 1 MΩ)		0.03 to 1.25 Vp-p / 5 mV (into 50 Ω)*3 0.06 to 2.5 Vp-p / 5 mV (into 1 MΩ)*3
Output Voltage Window	-1.65 V to 3.70 V (from 23 Ω source impedance into 50 Ω) -1.2 V to 2.7 V (from 50 Ω source impedance into 50 Ω) -2.4 V to 5.4 V (from 50 Ω source impedance into 1 MΩ)		-2.0 V to 2.47 V (into 50 Ω) -2.0 V to 7.0 V (into 1 MΩ)
DC Accuracy	(±3% of the set value) ±50 mV into 50 Ω to GND
Limit setting	High- and low-level limits can be set
Maximum Output Current	±80 mA
Overshoot	<15% (typical) at High = 1.0 V, Low = 0 V		<10% (typical) at High = 1.0 V, Low = 0 V
Typical Support Native Logic	TTL, CMOS, (P)ECL, LVPECL		LVDS, CMOS, (P)ECL, LVPECL, CML
External Jitter Control	No			Yes
External Jitter control input channels and connectors	–			1 single-ended channel 1 SMA connector	2 single-ended channels 2 SMA connectors
Input range	–			-0.5 V to +0.5 V (typical) Max input: -1.0 V to +1.0 V	-0.5 V to +0.5 V
Jitter Frequency	–			DC to 250 MHz *4	DC to 50 MHz
Jitter Amplitude	–			240 psp-p for 1 Vp-p input at Data rate ≤2.7 Gb/s*5	Range 1: Up to 1 ns at 1 Vp-p Range 2: Up to 2 ns at 1 Vp-p
External Tri-state (Hi Z) Control	Yes (SMB input connector)		No
Tri-state Enable	Enable: Hi 3.3 V, Disable Lo: 0.0 V		–
Control Channels	By output module level		–
Delay Time from Inhibit In to Data Output	Active to Inhibit: 13 ns, Inhibit to Active: 12 ns		–

*² Minimum pulse width >2.86 ns.

*³ Maximum output amplitude is dependent on output voltage window (offset). (See Figure 1.)

*⁴ Up to 400 MHz by overdriving jitter input (max -1.0 V to +1.0 V_p-p). (See Figure 2.)

*⁵ Jitter amplitude at data rates >2.7 Gb/s calculated as {240 - 61.5 × (data rate - 2.7)} ps_p-p for 1 V_p-p input (see Figure 3).

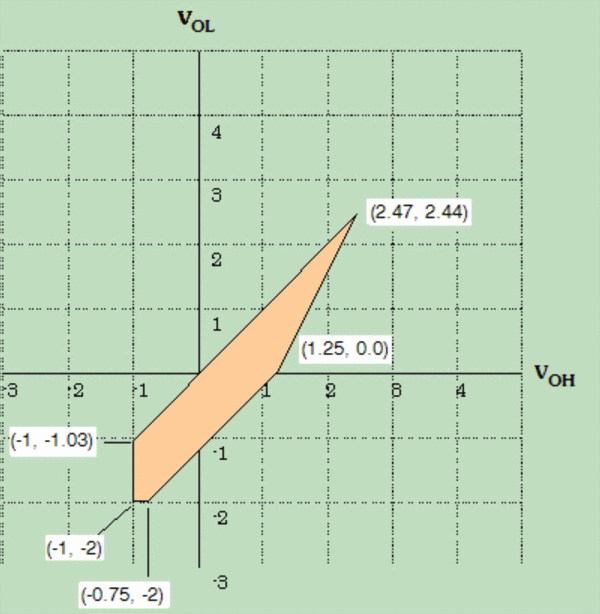

Figure 1. DTGM30, M31, M32 Output Amplitude vs. Offset


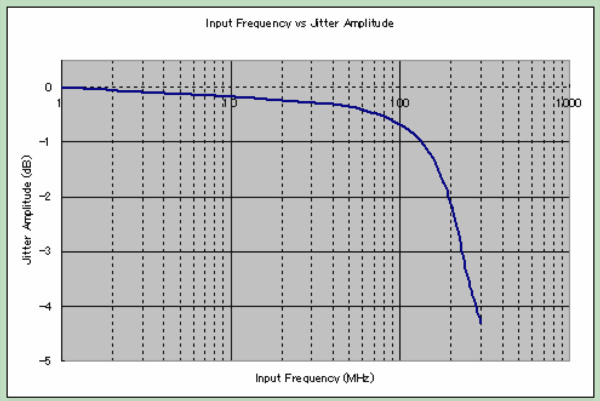

Figure 2. DTGM31 Jitter Input Frequency Response

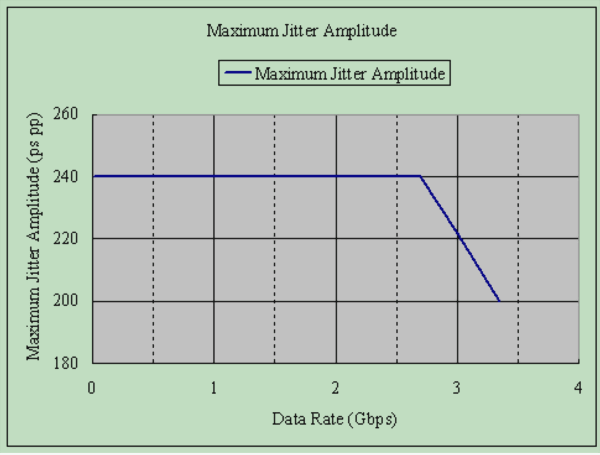

Figure 3. DTGM31 Maximum Jitter Amplitude vs. Data Rate
